Peugeot Traveller (2016 year). Instruction

367

Audio and Telematics

Traveller-VP_en_Chap10b_NAC-1_ed01-2016

To distribute information on the
declaration of danger zones, you
should check the option: "Allow
declaration of danger areas".

You can download updates to the
system, danger zones and mapping,
from the brand's website.
The download procedure can be found
in the same place.

Declaration of "Danger
areas"

Press Navigation to display the
primary page.

Press the "Declare a new danger
area" button located in the upper bar
of the touch screen.

Select the option "Type" to choose
the type of "Danger area".

Select the "Speed" option and enter
it using the virtual keypad.

Press "Confirm" to save and
distribute the information.

368

12:13

23 °C

531 kHz

Audio and Telematics

Traveller-VP_en_Chap10b_NAC-1_ed01-2016

Level 1

Level 2

Level 3

Bluetooth connection

Wi-Fi network connection

Networks

Share Wi-Fi connection

Connections and subscriptions to services

Functionalities available according to equipment.

Connectivity

369

Audio and Telematics

Traveller-VP_en_Chap10b_NAC-1_ed01-2016

Level 2

Level 3

Comments

Connectivity

Secondary page

Bluetooth

connection

All

Display all telephones, connected or
disconnected.

Connected

Display all connected telephones.

Start a search for a device to connect.

Connectivity

Secondary page

Wi-Fi network

connection

Secured

Display secured Wi-Fi networks.

Not secured

Display non-secured Wi-Fi networks.

Stored

Display remembered Wi-Fi networks.

Connectivity

Secondary page

Manage connection

Display the state of the subscription to connected
services, the state of the network connection and
the connection mode.

Connectivity

Secondary page

Share Wi-Fi

connection

Activation

Activate or deactivating the sharing of the Wi-Fi
connection.

Settings

Select a Wi-Fi network found by the system and
connect to it.

Save settings.

Functionalities available according to equipment.

370

Audio and Telematics

Traveller-VP_en_Chap10b_NAC-1_ed01-2016

Bluetooth connection

Procedure from the system

Connection sharing

Press on "Telephone" to display the
secondary page.

Press on "Bluetooth connection".

Select "Search".
The list of detected telephones is
displayed.

If the pairing procedure fails, it is recommended
that you deactivate and then reactivate the
"Bluetooth" function in your telephone.

The "Mobile internet data" profile
must be activated for connected
navigation (where the vehicle does not
have "emergency and assistance call"
services), having first activated sharing
of this connection on your smartphone.

The system offers to connect the
telephone with 3 profiles:
- "Telephone" (hands-free kit, telephone

only),

- "Streaming" (wireless play of audio files

on the telephone),

- "Mobile internet data".

Select the name of the chosen
telephone in the list.

Press on "Confirm".

Select one or more profiles.

Press on the "OPTIONS" button to
go to the secondary page.

As a safety measure and because it
requires sustained attention by the
driver, the pairing of a Bluetooth mobile
telephone with the Bluetooth hands-
free system of your audio system must
be done with the vehicle stationary
and the ignition on.

Procedure from the telephone

Select the name of the system in the
list of devices detected.

In the system, accept the connection request
from the telephone.

Activate the Bluetooth function on the
telephone and ensure that it is "visible
to all" (telephone configuration).

To complete the pairing, whichever
procedure used (from the telephone or
from the system), ensure that the code
is the same in the system and in the
telephone.

Depending on the type of telephone,
you may be asked to accept or not the
transfer of your contacts and messages.

371

Audio and Telematics

Traveller-VP_en_Chap10b_NAC-1_ed01-2016

Wi-Fi connection

Sharing the Wi-Fi connection

Managing connections

To protect from any piracy and provide
maximum security for your systems,
it is recommended that you use a
security code or complex password.

The Wi-Fi connection and the sharing
of the Wi-Fi connection are exclusive.

Press "Confirm".

Press "Confirm" to start the
connection.

Press "Connectivity" to display the
primary page.

Network connection by the smartphone Wi-Fi.

Creation of a local Wi-Fi network by the
system.

Press Connectivity to display the
primary page.

Press the "OPTIONS" button to go to
the secondary page.

Select "Wi-Fi network connection".

Select "Share Wi-Fi connection".

Select "Manage connection".

And / or

Select the "Secured", "Not secured"
or "Stored" tab.

Select the "Activation" tab to
activate or deactivate sharing of the
Wi-Fi connection.

Select the "Settings" to change the
name of the system network and the
password.

With this function you can view the access
to connected services, the availability of
connected services and modify the connection
mode.

using the virtual keypad, enter the
"Key" for the Wi-Fi network and the
"Password".

Select a network.

373

Audio and Telematics

Traveller-VP_en_Chap10b_NAC-1_ed01-2016

As a safety measure and because it
requires the sustained attention of
the driver, using a smartphone when
driving is prohibited.
operation must be with the vehicle
stationary.

The synchronisation of a
smartphone allows applications on a
smartphone that are adapted to the
MirrorLink

technology to be displayed

in the vehicle's screen.
The principles and standards
are constantly evolving. For the
communication process between
the smartphone and the system to
work correctly, the smartphone must
be unlocked; update the operating
system of your smartphone as
well as the date and time in the
smartphone and the system.
For the list of eligible smartphones,
connect to the brand's internet website
in your country.

The "MirrorLink

" function requires

the use of a compatible smartphone
and applications.

There may be a wait for the availability
of applications, depending on the
quality of your network.

When connecting a smartphone to
the system, it is recommended that
Bluetooth

be started on the smartphone

Depending on the smartphone, it may be
necessary to activate the "MirrorLink

" function.

During the procedure, several screen
pages relating to certain functions
are displayed.
Accept to start and end the
connection.

Connect a uSB cable. The
smartphone charges when
connected by a uSB cable.

Press "MirrorLink

" to start the

application in the system.

once connection is established, a page
is displayed with the applications already
downloaded to your smartphone and adapted
to MirrorLink

technology.

Access to the different audio sources remains
accessible in the margin of the MirrorLink

display, using touch buttons in the upper bar.
Access to the menus for the system is possible
at any time using the dedicated buttons

From the system, press on
"Connectivity" to display the primary
page.

As a safety measure, applications
can only be viewed with the vehicle
stationary; display is interrupted once
the vehicle is moving.

375

Audio and Telematics

Traveller-VP_en_Chap10b_NAC-1_ed01-2016

Level 1

Level 2

Level 3

Comments

Connectivity

MirrorLink

go to or return to the applications already
downloaded to your smartphone and adapted to
MirrorLink

technology.

go to a menu list depending on the application
chosen.
"Back": abandon the current operation, go up
one level.
"Home": go to or return to the "Car mode" page
on your smartphone.

go to the primary page of the "Connectivity"
menu.

377

Audio and Telematics

Traveller-VP_en_Chap10b_NAC-1_ed01-2016

As a safety measure and because it
requires the sustained attention of
the driver, using a smartphone when
driving is prohibited.
operation must be with the vehicle
stationary.

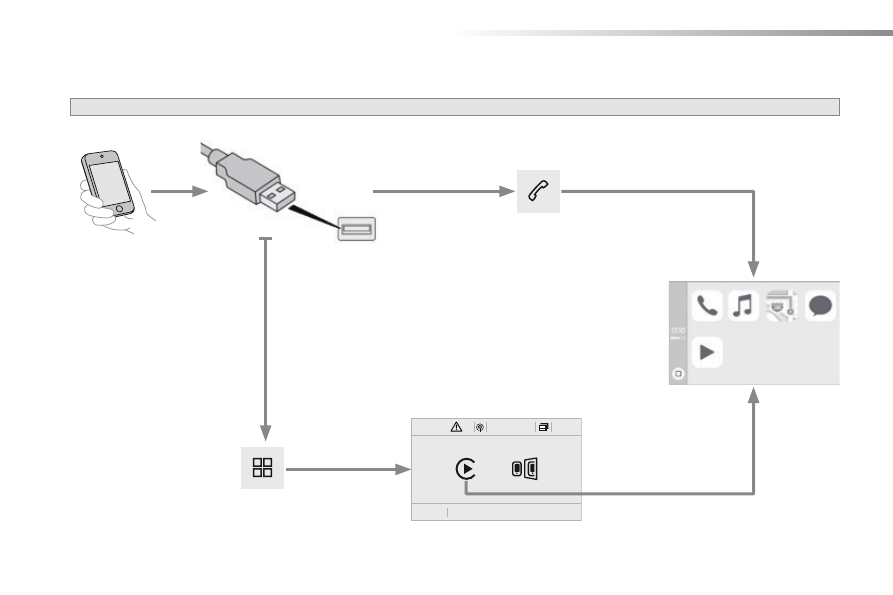

The synchronisation of a
smartphone allows applications on a
smartphone that are adapted to the
CarPlay

technology to be displayed

in the vehicle's screen, having first
activated the CarPlay

function in your

smartphone.
As the principles and standards
are constantly changing, it is
recommended that you keep your
smartphone's operating system
updated.
For the list of eligible smartphones, go
to the brand's internet website in your
country.

Connect a uSB cable. The
smartphone charges when
connected by a uSB cable.

Press "Telephone" to display the
CarPlay

interface.

Press "CarPlay" to display the
CarPlay

interface.

on connecting the uSB cable, the
CarPlay

function deactivates the

system's Bluetooth

mode.

In the system, press "Connectivity"
to display the primary page.

378

FM/87.5 MHz

87.5MHz

12:13

23 °C

87.5 MHz

FM/87.5 MHz

87.5MHz

12:13

87.5 MHz

23 °C

AM/531 kHz

kHz

12:13

23 °C

531 kHz

Audio and Telematics

Traveller-VP_en_Chap10b_NAC-1_ed01-2016

Radio Media

Level 1

Level 2

Radio stations

379

Audio and Telematics

Traveller-VP_en_Chap10b_NAC-1_ed01-2016

Level 1

Level 2

Comments

Radio Media

Source

Radio

Select change of source.

USB

iPod

AUX

Bluetooth

Radio Media

Frequency /

Presets

Frequency

Carry out an automatic or manual search for
radio stations.

Presets

Make a long press on an empty location to preset
a station.

Radio Media

Band

Press Band to change waveband.

DAB

Radio Media

List

Radio stations

open the list of radio stations and press on a
radio station to select it.

380

Audio and Telematics

Traveller-VP_en_Chap10b_NAC-1_ed01-2016

Level 1

Level 2

Radio-media options

Audio settings

Radio settings

Radio stations

381

Audio and Telematics

Traveller-VP_en_Chap10b_NAC-1_ed01-2016

Level 1

Level 2

Comments

Radio Media

Secondary page

Audio settings

Ambience

Select the sound ambience.

Distribution

Sound distribution by the Arkamys

system.

Sound

Adjust the volume or activate volume linked to
speed.

Voice

Adjust the voice volume.

Ringtone

Adjust the ringtone volume.

Confirm

Save settings.

Radio Media

Secondary page

Radio settings

General

Activate or deactivate settings.

Announcements

Confirm

Save settings.

Radio Media

Secondary page

Radio stations

Display the list of radio stations for the band
selected.

DAB

Presets

Select a preset radio station.

Frequency

enter a frequency manually.

Change the screen display mode.

update the list according to reception.

382

Audio and Telematics

Traveller-VP_en_Chap10b_NAC-1_ed01-2016

Level 1

Level 2

Radio-media options

Photos

USB
