In the event of a breakdown

Traveller-VP_en_Chap08_en-cas-de-panne_ed01-2016

Do not force the lever as locking will
not be possible if the clamp is not
positioned correctly; start the procedure
again.

Disconnecting the battery

In order to maintain an adequate state
of charge for starting the engine, it is
recommended that the battery be disconnected
if the vehicle is taken out of service for a long
period.
Wait 2 minutes after switching off the ignition
before disconnecting the battery.
F close the windows and the doors before

disconnecting the battery,

F switch off all electrical consumers (audio

system, wipers, lighting, ...),

F switch off the ignition and wait for four

minutes.

Having exposed the battery, it is only
necessary to disconnect the (+) terminal.

Quick release terminal

Disconnecting the (+) terminal

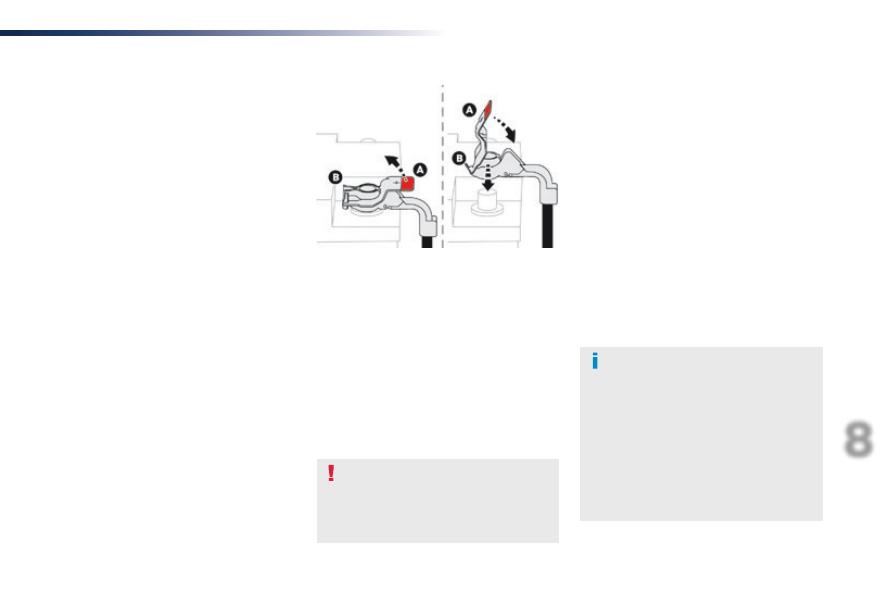

F Raise the lever A fully to release the

clamp B.

Following reconnection of the battery

Reconnecting the (+) terminal

F Position the open clamp B of the cable on

the positive post (+) of the battery.

F Press down on the clamp to position it

correctly on the battery post.

F Lock the clamp by lowering the lever A.

After reconnecting the battery, switch on the
ignition and wait 1 minute before starting to
allow initialisation of the electronic systems.
However, if minor problems persist following
this operation, contact a PeugeoT dealer or a
qualified workshop.
Referring to the corresponding section, you
must yourself reinitialise or reset certain
systems, such as:
-

the remote control or electronic key
(depending on version),

the electric windows,

the date and time,

the radio preset stations.

The Stop & Start system may not be
operational during the trip following the
first engine start.
In this case, the system will only be
available again after a continuous
period of immobilisation of the vehicle,
a period which depends on the ambient
temperature and the state of charge of
the battery (up to about 8 hours).

320

In the event of a breakdown

Traveller-VP_en_Chap08_en-cas-de-panne_ed01-2016

Battery capacity

Vehicle length

Rating in Ah

(Ampere hours)

Compact (L1)

480

Standard (L2)

640

Long (L3)

720 / 800

Always replace the battery by one of
equivalent specification.

Towing

Access to the tools

The towing eye is stowed in the tool box.

For more information on the Tool box,
refer to the corresponding section.

Procedure for having your vehicle towed or
for towing another vehicle using a removable
towing eye.

If your vehicle is fitted with a manual
gearbox, put the gear lever into neutral.

If your vehicle has an automatic or
electronic gearbox, place the gear
selector at position N.

The failure to observe this special point
may lead to damage to components
of the braking system and the lack of
braking assistance on restarting the
engine.

321

In the event of a breakdown

Traveller-VP_en_Chap08_en-cas-de-panne_ed01-2016

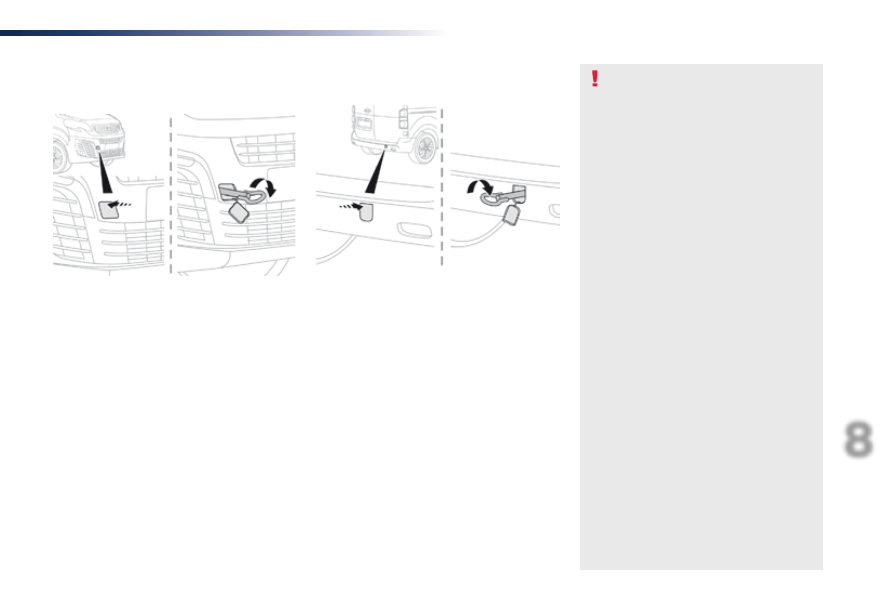

F on the front bumper, press the cover

(as shown above) to unclip it.

F  Screw the towing eye in fully.
F  Install the towing arm.
F  Switch on the hazard warning lamps on the

towed vehicle.

F Move off gently and drive slowly over a

short distance only.

Towing your vehicle

F on the rear bumper, press the cover (as

shown above) to unclip it.

F  Screw the towing eye in fully.
F  Install the towing arm.
F  Switch on the hazard warning lamps on the

towed vehicle.

F Move off gently and drive slowly over a

short distance only.

Towing another vehicle

General
recommendations

observe the legislation in force in your
country.
ensure that the weight of the towing
vehicle is higher than that of the towed
vehicle.
The driver must remain at the wheel of
the towed vehicle and must have a valid
driving licence.
When towing a vehicle with all four
wheels on the ground, always use an
approved towing arm; rope and straps
are prohibited.
The towing vehicle must move off gently.
When towing a vehicle with the engine
off, there is no longer any power
assistance for braking or steering.
In the following cases, you must always
call on a professional recovery service:
-

vehicle broken down on a motorway
or fast road,

four-wheel drive vehicle,

when it is not possible to put the
gearbox into neutral, unlock the
steering, or release the parking
brake,

towing with only two wheels on the
ground,

where there is no approved towing
arm available...

322

In the event of a breakdown

Traveller-VP_en_Chap08_en-cas-de-panne_ed01-2016

on vehicles fitted with Diesel engines, the fuel
system must be primed if you run out of fuel.
For all versions other than BlueHDi, refer to the
corresponding engine compartment view.

Running out of fuel (Diesel)

For more information on Diesel misfuel
prevention, refer to the corresponding
section.

F Add at least five litres of Diesel fuel to the

tank.

F open the bonnet.
F If necessary, unclip the styling cover for

access to the priming pump.

F Squeeze and release the priming pump

repeatedly until resistance is felt (there
may be resistance at the first press).

F operate the starter to start the engine

(if the engine does not start at the first
attempt, wait around 15 seconds before
trying again).

F If the engine does not start after a few

attempts, operate the priming pump again
then start the engine.

F Refit the styling cover and clip it in place.
F Close the bonnet.

1.6 HDi engine

(except BlueHDi)

If the engine does not start first time,
don't keep trying but start the procedure
again from the beginning.

BlueHDi engine

F Fill the fuel tank with at least five litres of

Diesel.

F Switch on the ignition (without starting the

engine).

F Wait around 6 seconds and switch off the

ignition.

F Repeat the operation 10 times.
F operate the starter to run the engine.

Other engines

F Add at least five litres of Diesel fuel to the

tank.

F open the bonnet.
F If necessary, unclip the styling cover for

access to the priming pump.

F Squeeze and release the priming pump

repeatedly until resistance is felt (there
may be resistance at the first press).

F operate the starter to start the engine

(if the engine does not start at the first
attempt, wait around 15 seconds before
trying again).

F If the engine does not start after a few

attempts, operate the priming pump again
then start the engine.

F Refit the styling cover and clip it in place.
F Close the bonnet.

323

Technical data

Traveller-VP_en_Chap09_caracteristiques-techniques_ed01-2016

Mirrors folded

Side-hinged doors

Tailgate

Compact (L1)

Standard (L2)

Long (L3)

* Increased payload.
** Payload increased with high body.
*** Depending on the country of sale.

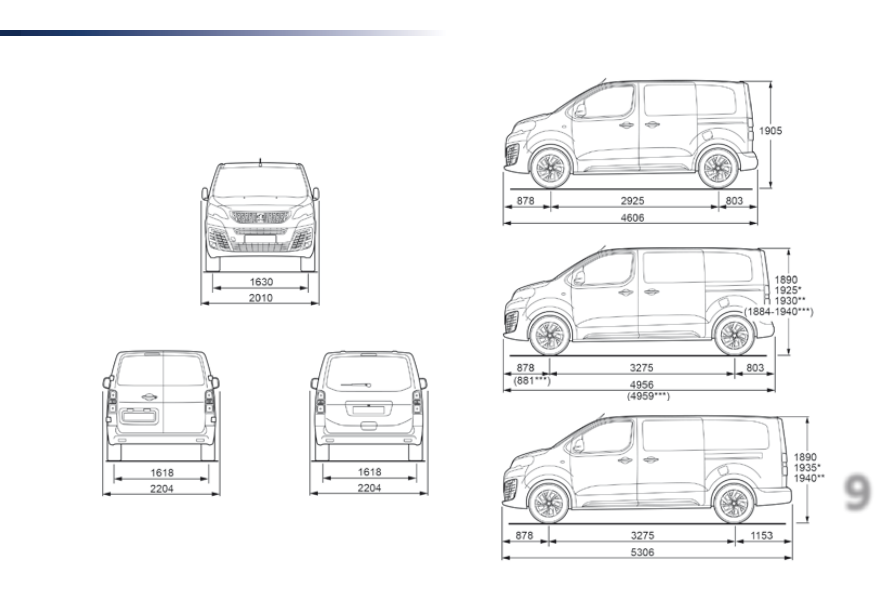

Dimensions (in mm)

These dimensions have been measured on an unladen vehicle.

324

Technical data

Traveller-VP_en_Chap09_caracteristiques-techniques_ed01-2016

engines

Engine characteristics

The engine characteristics (capacity,
maximum power, maximum power speed, fuel,
Co

emissions...) for your vehicle are given in

the registration document, as well as in sales
brochures.
These characteristics correspond to the
values type-approved on a test bed, under
conditions defined in european legislation
(Directive 1999/99/eC).
For more information, contact a PeugeoT
dealer or a qualified workshop.

Weights

The kerb weight is equal to the unladen
weight + driver (75 kg).
The gTW and towed load values indicated
apply up to a maximum altitude of
1 000 metres; the towed load mentioned must
be reduced by 10 % for every additional
1 000 metres.
The weight of the braked trailer can be
increased, within the gTW limit, on condition
that the gVW of the towing vehicle is reduced
by the same amount.
The recommended nose weight is the vertical
load on the towbar ball (removable with or
without tools).

High ambient temperatures may result
in a reduction in the performance of the
vehicle to protect the engine; when the
ambient temperature is higher than
37 °C, limit the towed weight.

If the ambient temperature is high, it
is recommended that the engine be
allowed to idle for 1 to 2 minutes after
the vehicle comes to a stop, to facilitate
its cooling.

Towing with a lightly loaded vehicle can
adversely affect roadholding.
Braking distances are increased when
towing a trailer.
Never exceed 60 mph (100 km/h) when
towing (comply with the legislation in
force in your country).

GVW : gross vehicle weight, the maximum authorised vehicle weight.
GTW : gross train weight, the maximum authorised weight of vehicle
plus trailer.

Weights and towed
loads

The maximum weights and towed loads for your
vehicle are given are given in the registration
document, as well as in sales brochures.
These values are also present on the
manufacturer's plate or label.
For more information, contact a PeugeoT
dealer or a qualified workshop.

325

Technical data

Traveller-VP_en_Chap09_caracteristiques-techniques_ed01-2016

euRo 6 Diesel engines

* Increased payload.

Engine

code

Gearbox

Engine oil capacity with

filter replacement

(litres)

Length

Unbraked trailer

weight (kg)

8-9 seats

Trailer nose

weight (kg)

8-9 seats

1.6 litre

BlueHDi 95

BHV

(DV6FDu)

Manual

(5-speed)

5.6

L1, L2, L3

750

L2*, L3*

1.6 litre

BlueHDi 95

S&S

BHS

(DV6FDu)

eTg6

electronic
(6-speed)

5.6

L1, L2, L3

L2*, L3*

1.6 litre

BlueHDi 115

S&S

BHX

(DV6FCu)

Manual

(6-speed)

5.6

L1, L2, L3

L2*, L3*

326

Technical data

Traveller-VP_en_Chap09_caracteristiques-techniques_ed01-2016

* Increased payload.

Engine

code

Gearbox

Engine oil capacity with

filter replacement

(litres)

Length

Unbraked trailer

weigt (kg)
8-9 seats

Trailer nose

weight (kg)

8-9 seats

2 litre BlueHDi

150 S&S

AHX

(DW10FD)

Manual

(6-speed)

6.1

L1, L2, L3

750

L2*, L3*

100

2 litre BlueHDi

180 S&S

AHH

(DW10FC)

eAT6

automatic
(6-speed)

5.1

L1, L2, L3

L2*, L3*

327

Technical data

Traveller-VP_en_Chap09_caracteristiques-techniques_ed01-2016

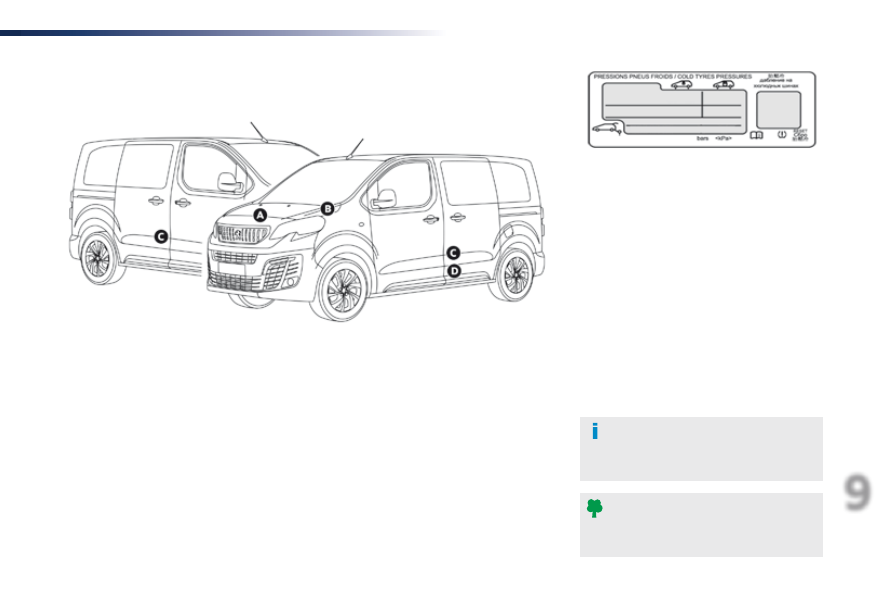

Identification markings

Various visible markings for the identification of your vehicle.

A. Vehicle Identification Number (VIN)

under the bonnet.

This number is engraved on the chassis
near the right hand front wheel arch.

The tyre pressures must be checked
when the tyres are cold, at least once
a month.

If the tyre pressures are too low, this
increases fuel consumption.

B. Vehicle Identification Number (VIN) on

the windscreen lower cross member.

This number is indicated on a self-
adhesive label which is visible through the
windscreen.

C. Manufacturer's label.

This self-destroying label on the middle
door pillar, right or left hand side, contains
the following information:
- the manufacturer's name,
- the european whole vehicle type

approval number,

- the vehicle identification number (VIN),
- the maximum authorised weight (gross

vehicle weight),

- the maximum authorised weight with

trailer (gross train weight),

- the maximum front axle weight,
- the maximum rear axle weight.

D. Tyre/paint label.

This label on the middle door pillar, driver's
side, contains the following information:
- the tyre inflation pressures, laden and

unladen,

- the tyre sizes (including the tyre load

index and speed rating),

- the inflation pressure for the spare

wheel,

- the paint colour code.

328

Audio and Telematics

Traveller-VP_en_Chap10a_BTA_ed01-2016

emergency or assistance call

If an impact is detected by the airbag
control unit, and independently of
the deployment of any airbags, an
emergency call is made automatically.

PEUGEOT Connect SOS

In an emergency, press this
button for more than 2 seconds.
Flashing of the green LeD and
a voice message confirm that
the call has been made to the
"PeugeoT Connect SoS" call
centre*.

Pressing this button again immediately cancels
the request.
The green LeD goes off.
Pressing this button for more than 8 seconds
cancels the request at any time.

The green LeD remains on (without flashing)
when communication is established.
It goes off at the end of the call.

"PeugeoT Connect SoS" immediately locates
your vehicle, starts communication with you in
your language**, and where necessary sends
the appropriate public emergency services**. In
countries where the service is not available, or
when the locating service has been expressly
declined, the call is sent directly to the
emergency services (112) without the vehicle
location .

** Depending on the geographical cover of

"PeugeoT Connect SoS", "PeugeoT
Connect Assistance" and the official national
language selected by the owner of the vehicle.
The list of countries covered and PeugeoT
CoNNeCT services is available from dealers
or at www.peugeot.co.uk.

* Subject to the general conditions for the

service available from dealers and to
technological and technical limitations.

If you benefit from the PeugeoT
Connect Packs offer with the SoS and
assistance pack included, there are
additional services available to you in
your MyPeugeoT personal space, via
the Internet website for your country.

329

Audio and Telematics

Traveller-VP_en_Chap10a_BTA_ed01-2016

PEUGEOT Connect Assistance

If you purchased your vehicle outside
the PeugeoT dealer network, we
invite you to have a dealer check the
configuration of these services and, if
desired, modified to suit your wishes.
In a multi-lingual country, configuration
is possible in the official national
language of your choice.

For technical reasons and in particular
to improve the quality of "PeugeoT
CoNNeCT services" services to
customers, the manufacturer reserves
the right to carry out updates to the
vehicle's on-board telematic system.

A fault with the system does not
prevent the vehicle being driven.

Press this button for more than
2 seconds to request assistance
if the vehicle breaks down.
A voice message confirms that
the call has been made**.

Pressing this button again immediately cancels
the request.
The cancellation is confirmed by a voice
message.

The orange LeD is on continuously: the backup
battery must be replaced.
In either case, the emergency and assistance
calls may not function.
Contact a qualified repairer as soon as
possible.

Operation of the system

When the ignition is switched
on, the green LeD comes on for
3 seconds indicating that the
system is operating correctly.

If the orange LeD flashes then
goes off: there is a system fault.

** Depending on the geographical cover of

Geo-location

You can deactivate geo-location by
simultaneously pressing the "PeugeoT
Connect SoS" and "PeugeoT Connect
Assistance" buttons, followed by a press on
"PeugeoT Connect Assistance" to confirm.

To reactivate geo-location, simultaneously
press the "PeugeoT Connect SoS" and
"PeugeoT Connect Assistance" buttons
again, followed by a press on "PeugeoT
Connect Assistance" to confirm.

331

Audio and Telematics

Traveller-VP_en_Chap10b_NAC-1_ed01-2016

PeugeoT Connect Nav

GPS satellite navigation - Connectivity - Multimedia audio - Bluetooth

telephone

Contents

First steps

332

Steering mounted controls

334

Menus 335
Voice commands

336

Navigation 342
Connected navigation

358

Connectivity 368
Radio Media

378

Telephone 390
Settings 402
Frequently asked questions

412

The system is protected in such a way that it will only operate in
your vehicle.

The link below gives access to oSS (open Source Software)
codes for the system.
http://www.psa-peugeot-citroen.com/oss

As a safety measure and because it requires sustained attention
by the driver, the pairing of a Bluetooth mobile telephone with
the Bluetooth hands-free system of your audio system must be
done with the vehicle stationary and the ignition on.
The display of the energy economy mode message signals that
a change to standby is imminent. For more information on the
Energy economy mode refer to the corresponding section.

332

FM/87.5 MHz
87.5MHz

12:13

23 °C

87.5 MHz

Audio and Telematics

Traveller-VP_en_Chap10b_NAC-1_ed01-2016

First steps

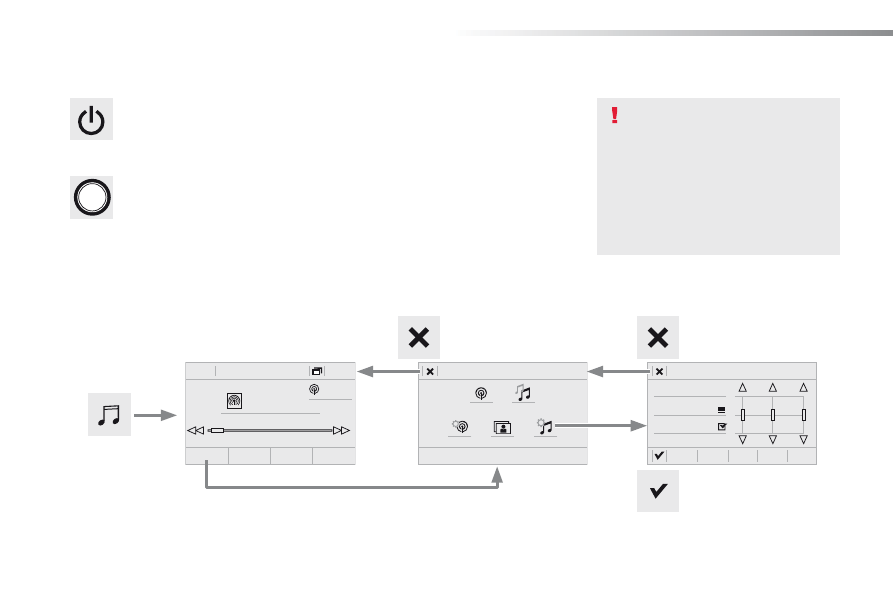

With the engine running, a press
mutes the sound.
With the ignition off, a press turns the
system on.

Volume.

use the buttons either side of the touch screen
for access to the menus, then press the virtual
buttons in the touch screen. All of the touch
areas of the screen are white.
each menu is displayed in one or two pages
(primary page and secondary page).

Secondary page

Primary page

The touch screen is of the "capacitive"
type.
To clean the screen, use a soft,
non-abrasive cloth (spectacles cloth)
with no additional product.
Do not use sharp objects on the
screen.
Do not touch the screen with wet
hands.

333

12:13

23 °C

531 kHz

Audio and Telematics

Traveller-VP_en_Chap10b_NAC-1_ed01-2016

Select the audio source (depending on
version):
-

FM / DAB* / AM* stations.

Smartphone via MirrorLink

or CarPlay

uSB memory stick.

Media player connected to the auxiliary
socket (jack, cable not supplied).

Telephone connected by Bluetooth* and
using Bluetooth* audio streaming.

* Depending on equipment.

Short-cuts: using the virtual buttons in the
upper band of touch screen, it is possible to
go directly to the selection of audio source,
the list of stations (or titles, depending on
the source), message notifications, emails,
mapping updates and, depending on services,
navigation notifications.

In very hot conditions, the volume may
be limited to protect the system. It may
go into standby (screen and sound off)
for at least 5 minutes.
The return to normal takes place when
the temperature in the passenger
compartment drops.

In the "Settings" menu you can create
a profile for just one person or a group
of people with common points, with
the possibility of entering a multitude
of settings (radio presets, audio
settings, navigation history, contact
favourites, ...); these settings are taken
into account automatically.

334

Audio and Telematics

Traveller-VP_en_Chap10b_NAC-1_ed01-2016

Steering mounted controls

Media (short press): change the
multimedia source.
Telephone (short press): call.
Call in progress (short press):
access to telephone menu.
Telephone (long press): reject an
incoming call, end call, access to
telephone menu.

Decrease volume.

Voice commands:
Short press, system voice
commands.
Long press, smartphone voice
commands via the system.

Mute / Restore the sound.

Radio (rotate): automatic search for
the previous / next station.
Media (rotate): previous / next track,
move in a list.
Short press: Confirm a selection.
other than selection, access to
presets.

Radio: display the list of stations.
Media: display the list of tracks.
Radio, press and hold: update the
list of stations received.

Increase volume.

Content .. 19 20 21 22 ..
