Ease of use and comfort

Traveller-VP_en_Chap03_ergonomie-et-confort_ed01-2016

Lower glove box

Upper glove box

It can hold a water bottle, the vehicle's
handbook pack...

It houses the passenger's front airbag
deactivation switch and can hold a water bottle,
the vehicle's handbook pack...

With air conditioning, it gives
access to the ventilation nozzle,
delivering the same air-conditioned
air as the vents in the passenger
compartment.

While driving, keep the glove boxes
closed. otherwise there is a risk of
injury in the event of an accident or
sudden braking.

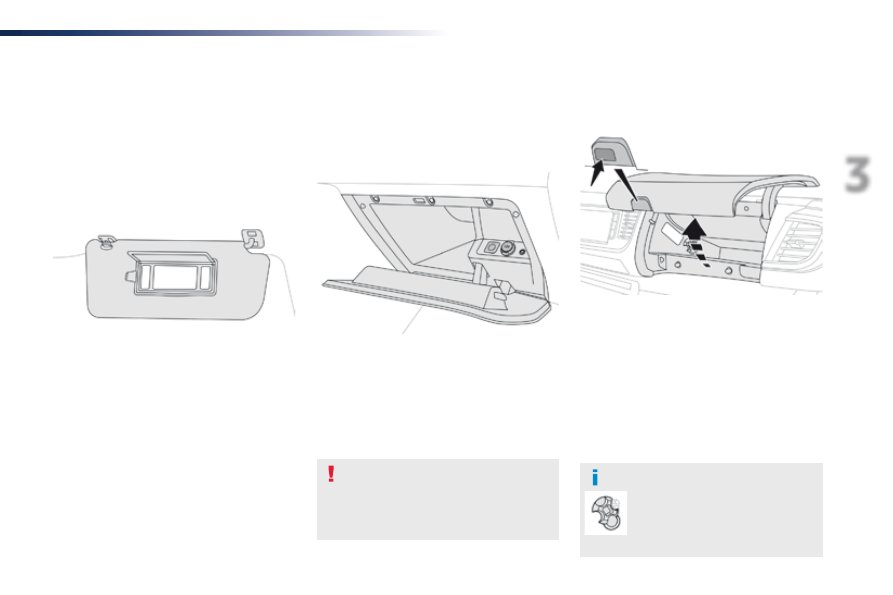

Sun visor

The sun visors provide protection from the
sun from the front or the side and have an
illuminated vanity mirror (depending on
version).
A pocket is provided on the driver's sun visor to
hold toll tickets, receipts, ...

F With the ignition on, raise the concealing

flap; the mirror is illuminated automatically.

F To open the glove box, pull the handle

towards you.

F To open the glove box, press the left hand

end of the control and guide the lid to its
open position notch.

If is so equipped, it is illuminated when the lid
is opened.

112

Ease of use and comfort

Traveller-VP_en_Chap03_ergonomie-et-confort_ed01-2016

"Aircraft" type tables

Fitted to the back of each front seat, these
allow you to place objects.

on the passenger side, do not forget
to fold the "aircraft" type table before
placing the seat in the table position.
Do not place hard or heavy objects
on the table. They could become
dangerous projectiles in the event of
emergency braking or impact.

For more information on the Front
seats and in particular the "table"
position for the backrest, refer to the
corresponding section.

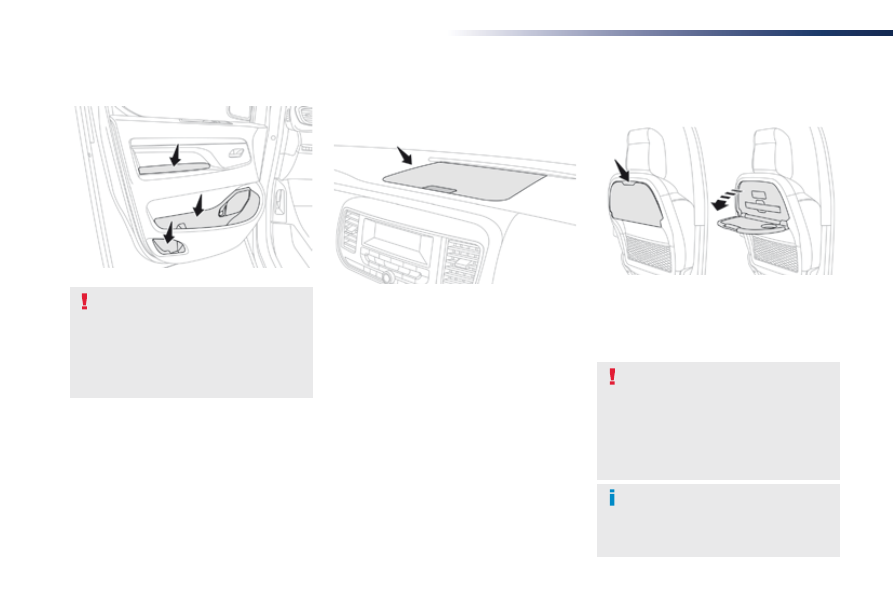

Upper storage compartment

Front door pockets

Liquids carried in an open vessel (a cup
or mug) could be spilt, presenting a risk
of damage on contact with the controls
in the dashboard and centre console.
Take care.

This is located in the dashboard, behind the
steering wheel.

Press the control to open the lid (depending on
version) then guide it to its fully open position.
To close, guide the lid then press the centre
gently.
Any liquid which could spill risks causing an
electrical short circuit and therefore a potential
fire.

F To use the table, lower it fully until it locks

in the low position.

F To stow the table, raise it, passing the point

of resistance, to the high position.

113

Ease of use and comfort

Traveller-VP_en_Chap03_ergonomie-et-confort_ed01-2016

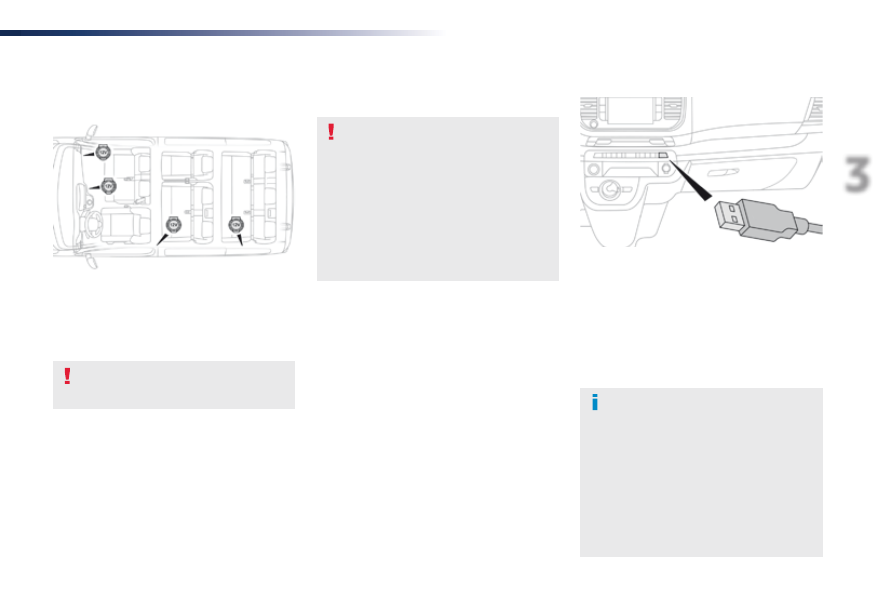

12 V accessory socket(s)
(depending on version)

USB port

F To connect a 12 V accessory (maximum

power: 120 Watts), lift the cover and
connect a suitable adaptor.

It allows the connection of a portable device,
such as a digital audio player of the iPod

type

or a uSB memory stick.
It reads the audio files which are transmitted to
your audio system and played via the vehicle's
speakers.
You can manage these files using the steering
mounted controls or the audio system.

When a uSB port is used, the portable
device charges automatically.
While charging, a message is displayed
if the current consumption of the
portable device exceeds the power
rating of the port.
For more information on using this
equipment, refer to the Audio and
telematics section.

observe the maximum power rating to
avoid damaging your accessory.

The connection of an electrical device
not approved by PeugeoT, such as a
uSB charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor telephone
reception or interference with displays
in the screens.

114

Ease of use and comfort

Traveller-VP_en_Chap03_ergonomie-et-confort_ed01-2016

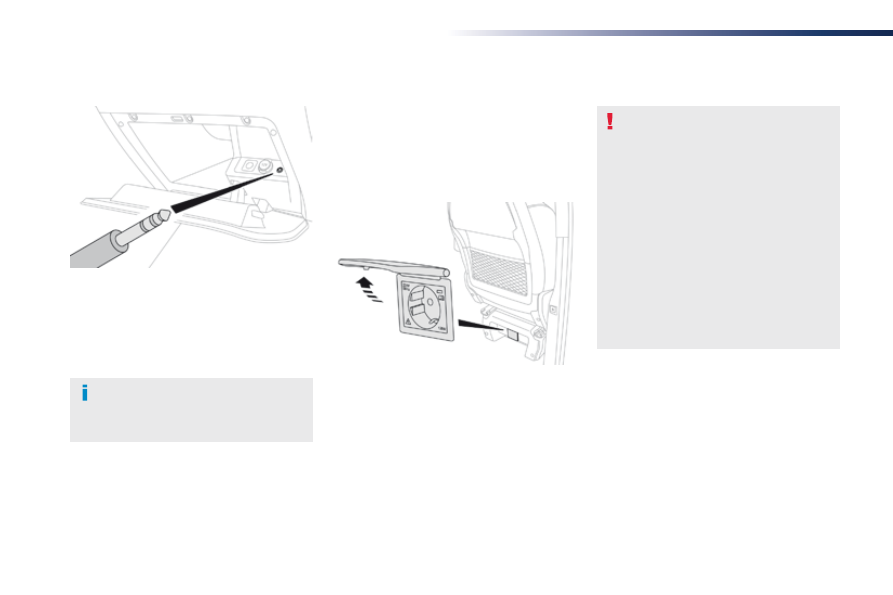

Auxiliary socket

230 V / 50 Hz power socket

It permits the connection of a portable device
so that you can listen to your music files via the
vehicle's speakers.
The management of the files is done using your
portable device.

For more information on the use of
this equipment, refer to the Audio and
telematics section.

If fitted to your vehicle, a 230 V / 50 Hz socket
(maximum power: 150 W) is located below the
right-hand front seat and so is accessible from
the second row.
This socket works with the engine running, as
well as in SToP mode with Stop & Start.

In the event of a fault with the socket, the green
warning lamp flashes.
Have it checked by a PeugeoT dealer or a
qualified workshop.

Connect only one device at a time to
the socket (no extension or multi-way
connector).
Connect only devices with class II
insulation (shown on the device).
Do not use a device with a metal case.
As a safety measure, when electrical
consumption is high and when required
by the vehicle's electrical system
(particular weather conditions, electrical
overload...), the current supply to
the socket will be cut off; the green
indicator lamp goes off.

F  Raise the cover,
F  Check that the indicator lamp is on green,
F  Connect your multimedia or other electrical

device (telephone charger, laptop
computer, CD-DVD player, baby food
warmer...).

115

Ease of use and comfort

Traveller-VP_en_Chap03_ergonomie-et-confort_ed01-2016

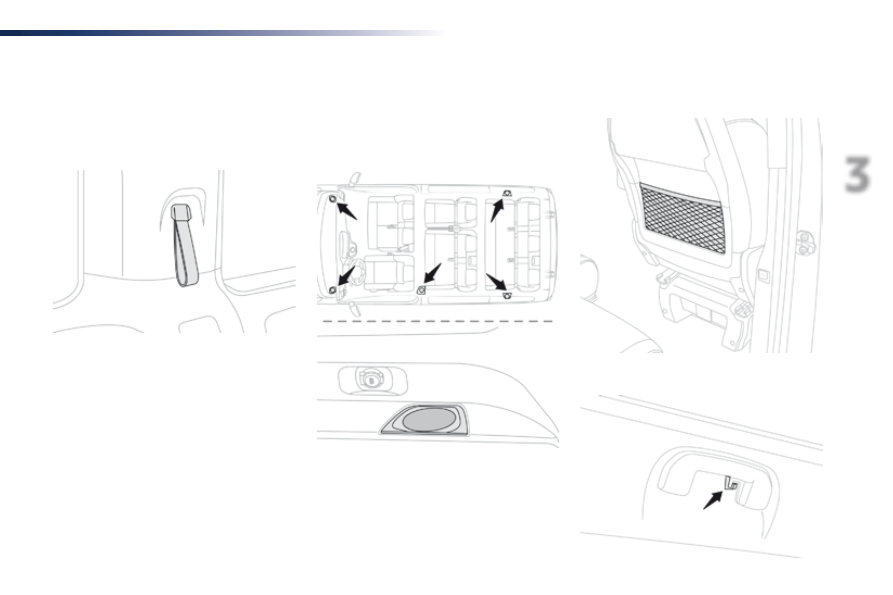

Seating area fittings

Depending on the vehicle's equipment, the various fittings below are located in the seating area.

Strap type grab
handle

Cup holder
(depending on version)

Any liquid carried in an open receptacle (cup
or other) might be spilt, presenting a risk. Take
care.

Nets on the backs of the
front seats

Coat hooks

116

Ease of use and comfort

Traveller-VP_en_Chap03_ergonomie-et-confort_ed01-2016

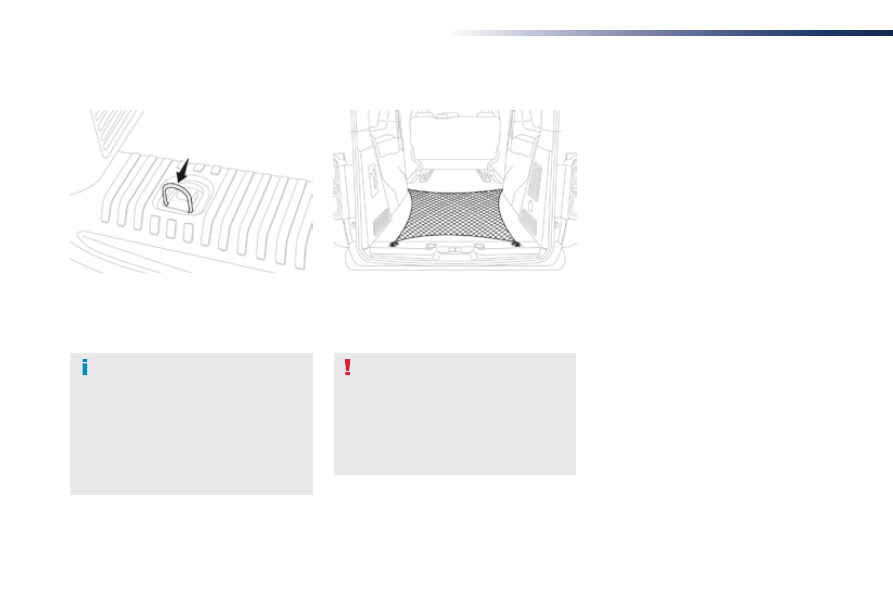

Stowing rings

use the stowing rings on the rear floor to fix the
net, your loads or luggage.

High load retaining net

This allows the use of the entire load space, up
to the roof:
-

behind the front seats in row 1, when the
rear seats (and bench seats) in rows 2
and 3 are folded or removed.

behind the rear seats and bench seats
in row 2, when the rear seats (and bench
seats) in row 3 are folded or removed.

Luggage retaining net

Attached to the stowing rings on the rear floor,
it allows objects to be held down.

As a safety measure in the event of
sudden braking, it is recommended that
heavy objects are placed as far forward
in the vehicle as possible.
It is recommended that the load is
secured firmly using the stowing rings
on the floor.

As a safety measure in the event of
sudden braking, it is recommended that
heavy objects are placed on the floor as
close as possible to the backrest of the
seat(s) or bench seat.

117

Ease of use and comfort

Traveller-VP_en_Chap03_ergonomie-et-confort_ed01-2016

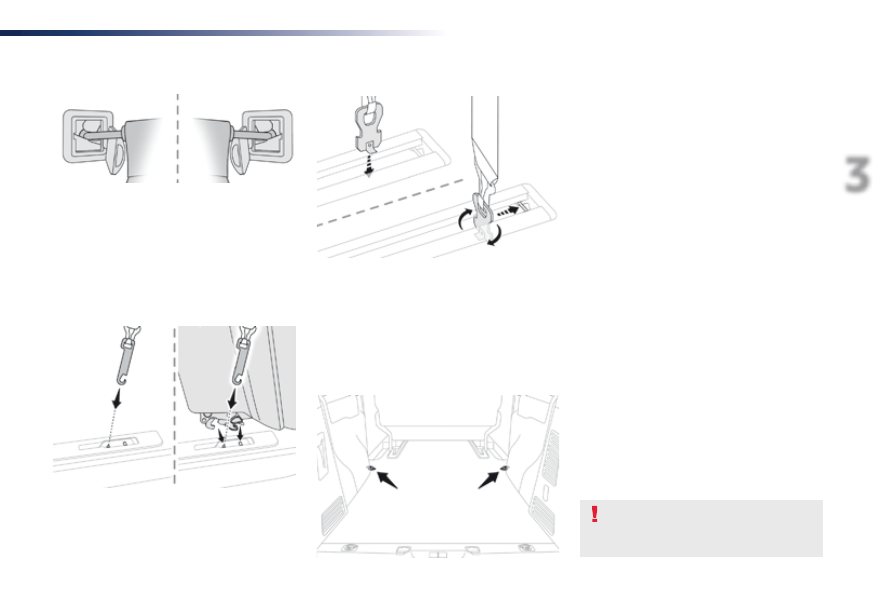

Upper fixings

Lower fixings (behind row 1)

If your vehicle has fixed one-piece bench seats
or seats and bench seats:

F on each side in row 2, insert the fixings in the

floor anchorages then turn them a quarter turn
to lock them in place (as shown above).

Place them as close as possible to the end of the rail.

F unclip the anchorage cover in the roof on

each side.

F on each side in row 2, insert the fixings in

the floor anchorages (as shown above).

If your vehicle has seats and bench seats or
individual seats on rails:

Lower fixings (behind row 2)

F use the stowing rings.

Fit the net

unclip the upper fixing covers and secure the
lower fixings (as previously described).
F Fold (table position) the seats and bench

seats in rows 2 and 3 (according to
equipment).

F unroll the high load retaining net.
F Position the upper net fixings in the

corresponding anchorages in the roof
(first one side, then the other).

F Fully extend the straps.
F on each side, attach the bottom fixings of

the net to the lower anchorages (behind
row 1) or in the stowing rings (behind
row 2).

F Pull on the straps to stretch the net.
F Check that the net is attached securely and

properly extended.

Never use the ISoFIX ring intended
for fixing the upper strap of a child seat
with Top Tether.

118

Ease of use and comfort

Traveller-VP_en_Chap03_ergonomie-et-confort_ed01-2016

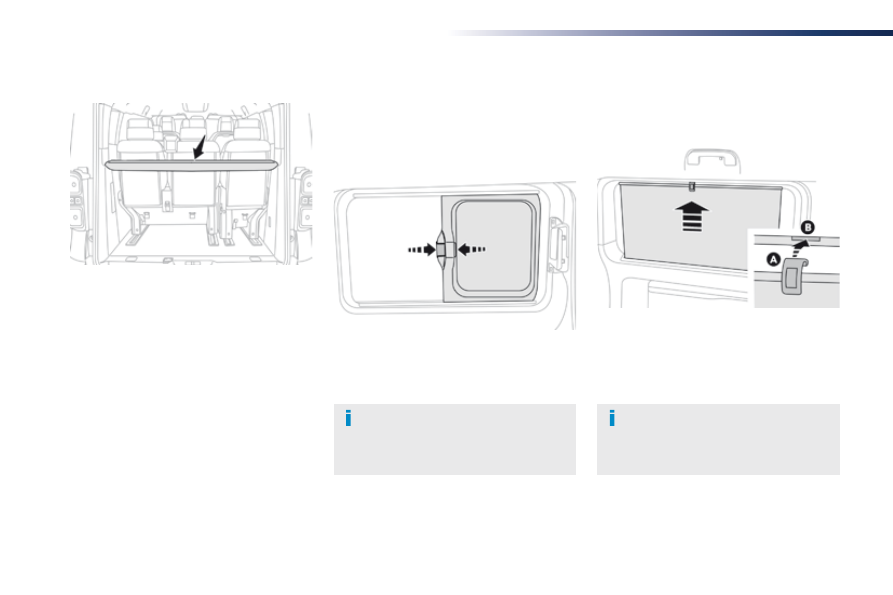

Luggage cover

F Raise it to remove it.
F To install it, insert the guides into their

housings.

If fitted to your vehicle, the side windows in row
2 can be opened.
While driving, the window must be closed or
secured at one of the notches.

Windows in row 2

For more information on the Child
lock for rear windows, refer to the
corresponding section.

Always guide the blind slowly using the
tab, both up and down.

Side blinds

Fitted to the windows in row 2, they protect the
passenger compartment from the sun's rays.

F Pull the tab A and anchor the blind on the

hook B.

F Squeeze the two controls then move the

window sideways.

119

Ease of use and comfort

Traveller-VP_en_Chap03_ergonomie-et-confort_ed01-2016

If the torch is not engaged correctly, it
may not charge and may not come on
when the boot is opened.

Use

F extract the torch from its location by pulling

it from the front.

F Press the switch, located on the back, to

switch the torch on or off.

F unfold the leg, located on the back, to set

down and raise the torch; for example,
when changing a wheel.

Storing

F Put the torch back in place in its location

starting with the rear.

If you have forgotten to switch off the torch,
this switches it off automatically.

observe the polarities when fitting the
batteries.
Never replace the rechargeable
batteries with single-use batteries.

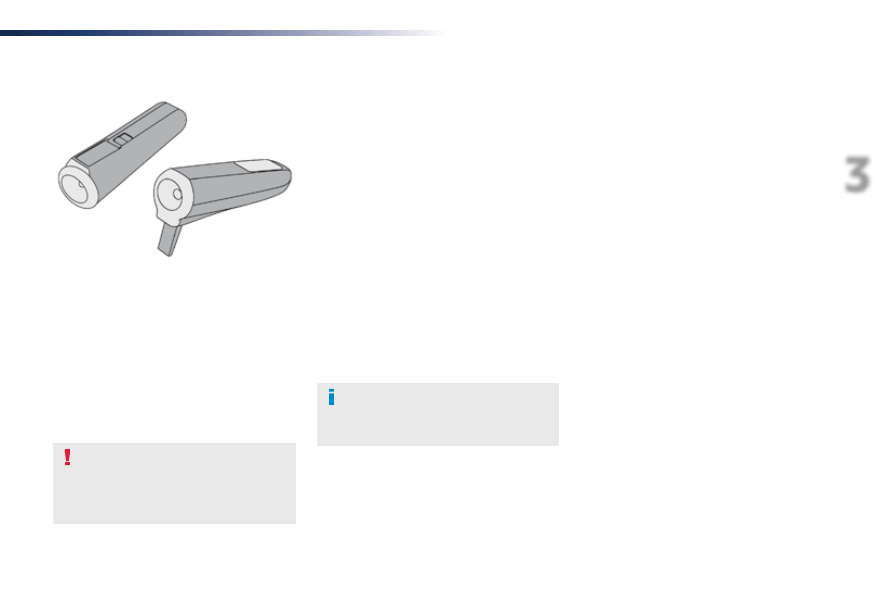

Torch

Portable lighting, located at the rear, which can
be used to illuminate the rear and as a torch.

This torch operates with NiMH type
rechargeable batteries.
It has a battery life of approximately 45 minutes
and charges while you are driving.

120

Ease of use and comfort

Traveller-VP_en_Chap03_ergonomie-et-confort_ed01-2016

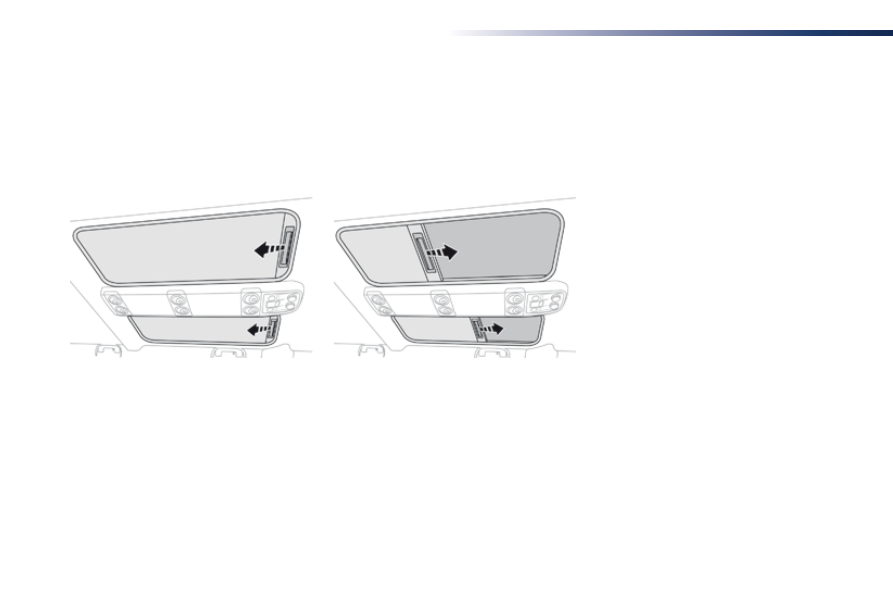

Panoramic sunroof

Opening

Blinds

Closing

It is equipped with two manual and independent blinds, which improve thermal and acoustic
comfort.

F Take one of the blinds by its grip and push

it rearward to the desired position.

F Take one of the blinds by its grip and pull it

forward to the desired position.

121

Ease of use and comfort

Traveller-VP_en_Chap03_ergonomie-et-confort_ed01-2016

Folding and sliding table

Storage

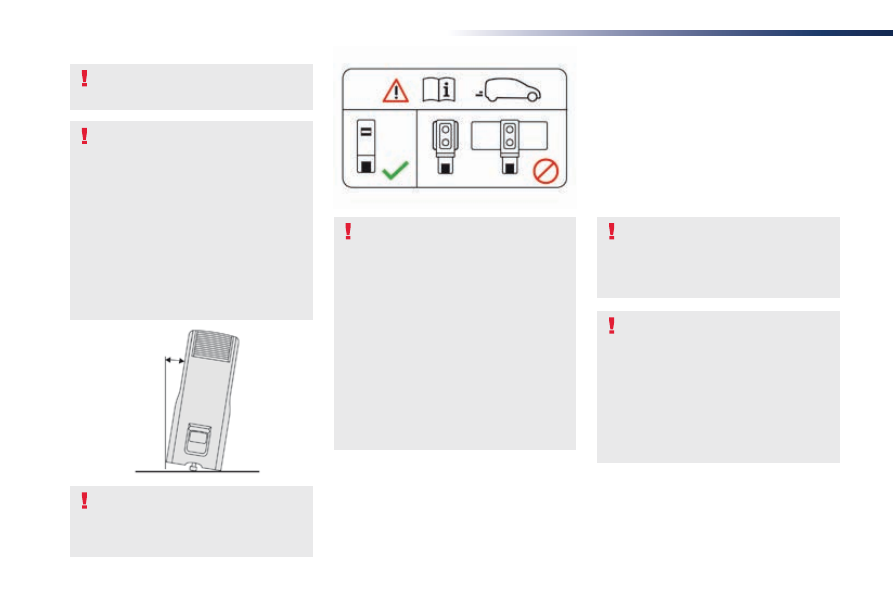

For correct sliding of the table, ensure
that there is no object in the space used
by the runner on the floor.
Before manoeuvring the table, check
that there is nothing on the table.

The storage space can accept a
maximum weight of 3 kg; do not exceed
this maximum load in use.

You can move the table folded or
unfolded. However, for greater safety, it
is recommended that the assembly be
moved in the folded position.

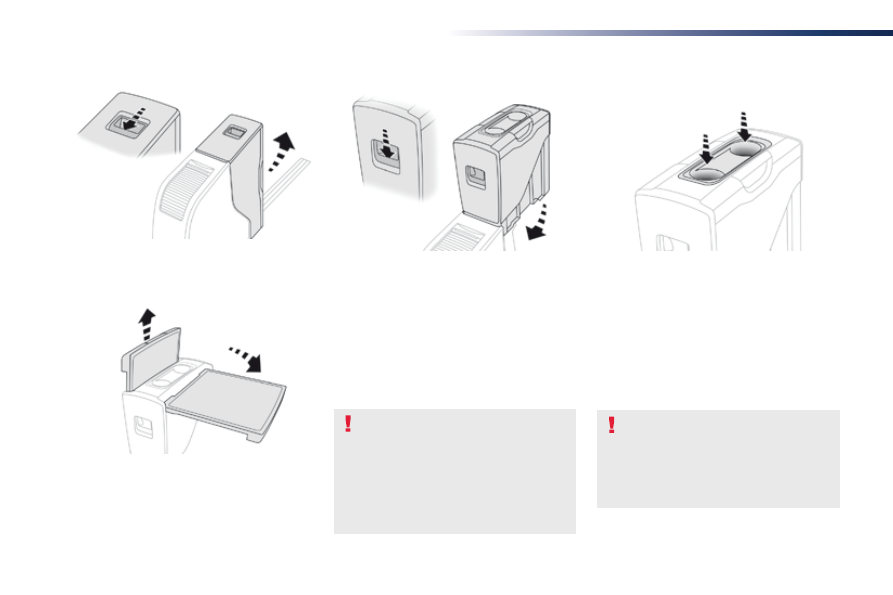

It comprises a central storage space closed
with a lid. unfolded, it offers a table with
two tops on which objects can be placed. The
central area includes two cup holders and can
also be used to place small objects (credit card,
pen, ...).

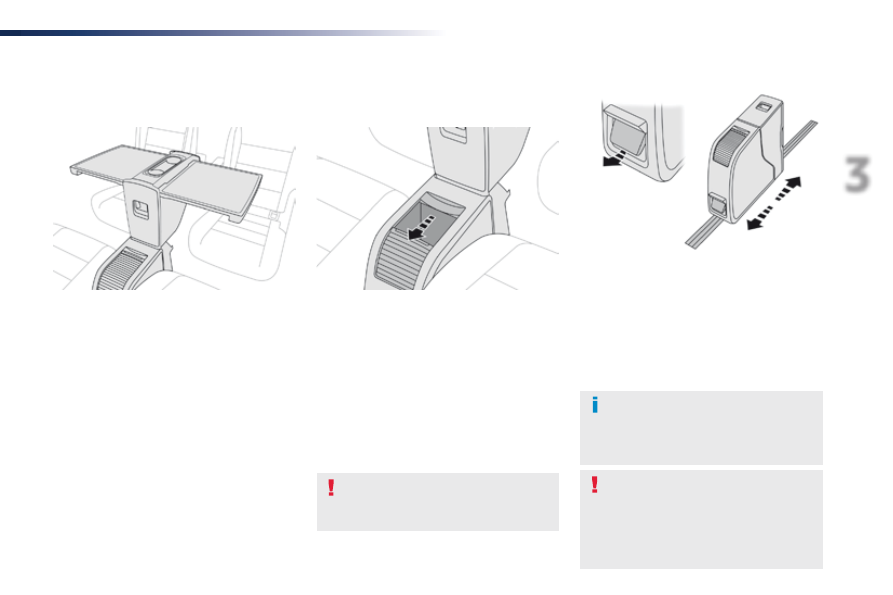

The assembly is mounted on a runner allowing it
to be positioned equally well in row 2 or row 3.

F Slide back the cover for access to 11 litres

of storage space.

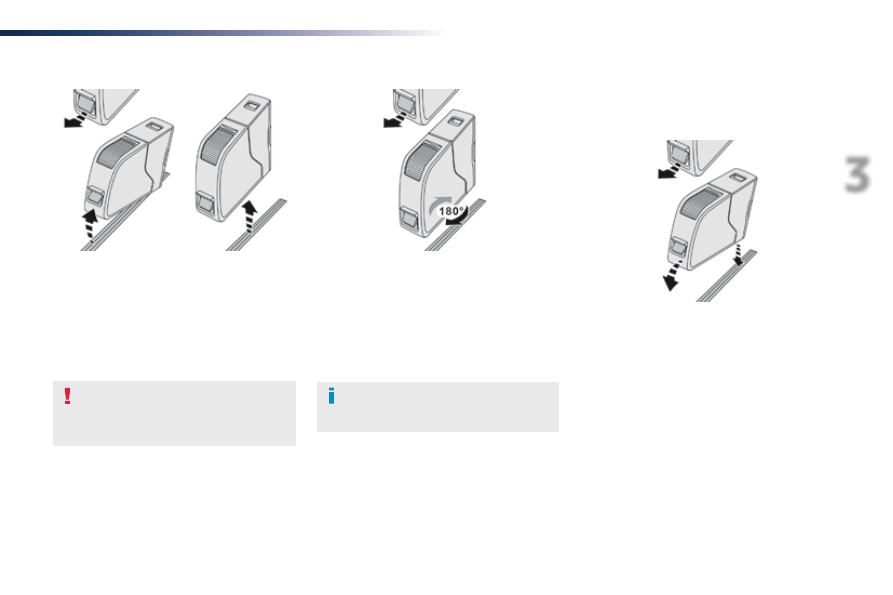

Moving forward or backward

F Raise this control (without going beyond

the point of resistance) and slide the
assembly forward or backward.

F Release the control when it is in the

desired position.

F Check that the table is correctly latched on

the runner. If this is not the case, move the
assembly slightly to the next notch on the
runner.

122

Ease of use and comfort

Traveller-VP_en_Chap03_ergonomie-et-confort_ed01-2016

Unfolding

F Pull each table top fully up then pivot them

on each side into the horizontal position.

F Raise each table top, going beyond the

point of resistance, to the vertical position.

F Push each table top down into its housing

until it clicks into place.

F Push the control then tip the table

assembly downward until it clicks into
place.

Folding

Before stowing the table tops, check
that there is no object underneath.
Before tipping the assembly down,
check that the two table tops have
clicked home in the low position and
that there is nothing in the cup holder
area (such as a can or pen).

F operate the control on the top and pull the

table assembly up until it clicks into place.

Cup holders

Liquids carried in an open vessel (a cup
or mug) could be spilt, presenting a risk.
Take care.
Never use the table in this position
while the vehicle is being driven.

Two cups or cans and small objects (such as
a credit card, portable ashtray or pen) can be
carried in the middle of the unfolded table.

123

Ease of use and comfort

Traveller-VP_en_Chap03_ergonomie-et-confort_ed01-2016

F Raise the control fully to release the

anchorages and tip the table assembly
forward.

F Remove the table assembly through the

sliding door in row 2.

Removing

Changing the direction

With the table removed, you can turn it 180°.

F Check that there is no object obstructing

the runner, which could prevent correct
latching.

Refitting

Remove a seat to make this easier.

Check that there is nothing in the space
around the runner on the floor, so that
the table disengages cleanly.

F Check that the control is in the up position

(latching mechanism armed). If not, raise
this control fully to arm the mechanism.

F Place the front of the table on the runner.
F Taking care not to interfere with the control,

tip the assembly down at the rear until it
clicks into place.

F Check that the assembly is correctly

latched on the runner. if this is not the
case, slide the assembly along the runner
to the next notch.

F Release the control until the guide latches

in the runner.

124

Ease of use and comfort

Traveller-VP_en_Chap03_ergonomie-et-confort_ed01-2016

Take care of passengers' feet when
manoeuvring the assembly.

Incorrect use of the table could cause
serious injury.
Never use the table open or unfolded
while the vehicle is being driven. An
object on the table is turned into a
projectile under heavy braking.
ensure that the table is correctly stowed
in the low position before moving off.
Never use the table tops as seats or
lean on them.
A label on the table is a reminder of this.

Never place hot objects such as
casseroles or cooking pans on the
table, you risk damaging its surface
(risk of fire).

With the table deployed, each top can
support a maximum of 10 kg. Failure to
observe this maximum load introduces
the risk of damaging all or part of the
table module.
Never raise the table when it is between
individual seats; this risks damaging the
table tops.

Storage off the runner

If removing and storing the table
out of the vehicle, ensure that it is
placed in a clean area, so as to avoid
introducing any foreign bodies into the
mechanisms.
The table assembly must be placed on
a flat and level surface when out of the
vehicle, resting on the guide so as to
avoid damaging the visible parts.

Caution, when out of the vehicle, the
table leans to the right or left when put
down.

125

Ease of use and comfort

Traveller-VP_en_Chap03_ergonomie-et-confort_ed01-2016

The air conditioning system only operates with the engine running.

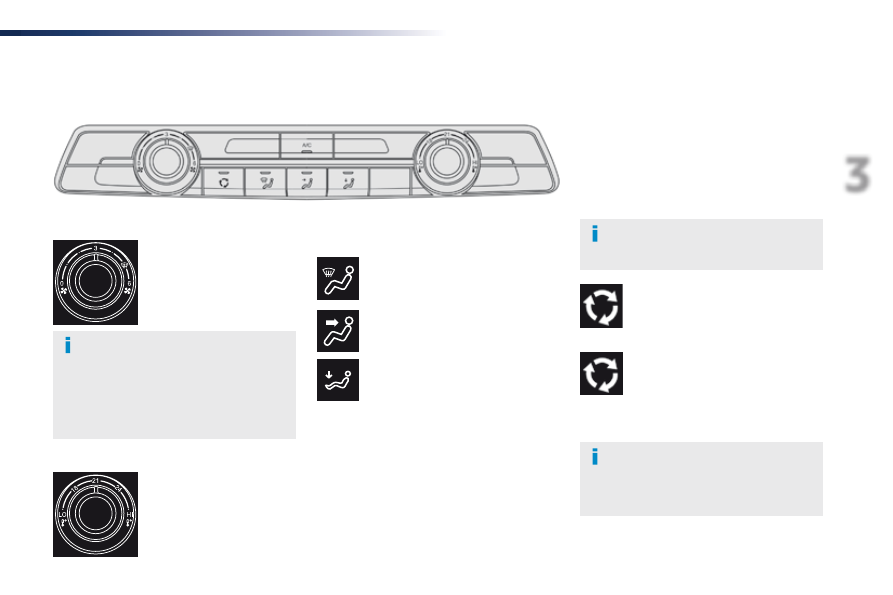

Manual air conditioning

Temperature

F Turn the knob from "LO"

(cold) to "HI" (hot) to
adjust the temperature to
your requirements.

Air flow

F Turn the knob to obtain a

comfortable air flow.

If you put the air flow control in the
minimum position (system off), the
temperature is no longer controlled.
However, a slight flow of air can still be
felt, resulting from the movement of the
vehicle.

Air distribution

Windscreen and side windows.

Footwells.

Central and side vents.

The air distribution can be adapted by adding
the corresponding buttons.

Air intake / Air recirculation

The intake of exterior air avoids misting of the
windscreen and side windows.
The recirculation of interior air insulates the
passenger compartment from exterior odours
and fumes.

Return to exterior air intake as soon as
possible to avoid deterioration of the air
quality and the formation of mist.

This allows hot or cold air to be
delivered quickly when required.

F Press this button to recirculate

the interior air; its indicator lamp
comes on.

F Press this button again to allow

exterior air into the passenger
compartment; its indicator lamp
goes off.

126

Ease of use and comfort

Traveller-VP_en_Chap03_ergonomie-et-confort_ed01-2016

Air conditioning

Switching on

With the engine running, the air conditioning is
designed to operate effectively in all seasons,
with the windows closed.
It enables you to:
-

lower the temperature, in summer,

increase the effectiveness of the demisting
in winter, above 3°C.

To obtain cool air more quickly, you
can use interior air recirculation for
a few moments. Then return to the
intake of exterior air.

F Press this button; its indicator

lamp comes on.

F Press this button again; its

indicator lamp goes off.

Switching off

The air conditioning does not operate
when the air flow adjustment is set to
off.

Switching off may result in some
discomfort (humidity, misting).

Peugeot Traveller (2016 year). Instruction - part 8
