MAIN MENU

F Press the "MENU" button to gain access to the main menu:

- audio functions,

- vehicle diagnostics,
- personalisation-configuration,
- telephone (Bluetooth system).

F Press the "5" or "6

" buttons to select the menu required, then

confirm by pressing the "OK" button.

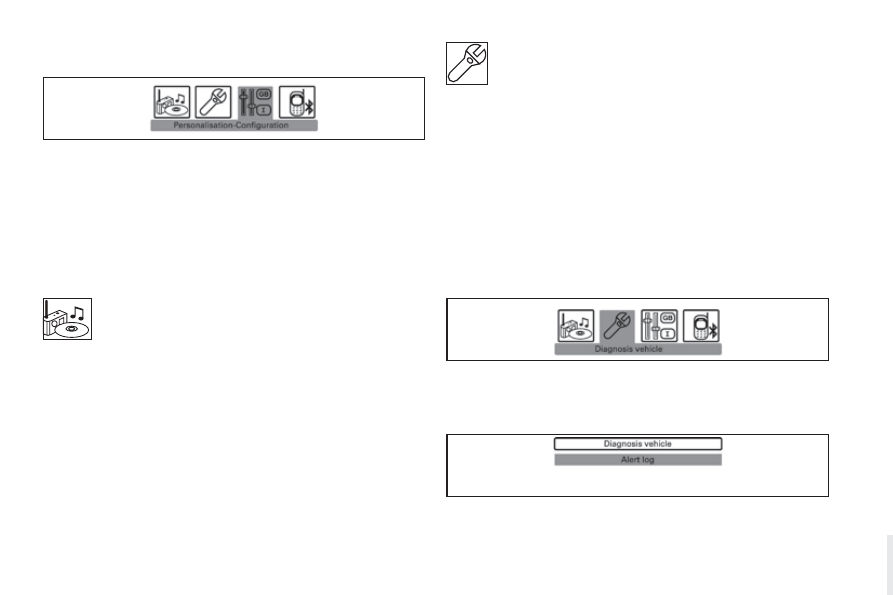

"AUdIO FUNCTIONS" MENU

With the PEUGEOT Connect Sound (RD5) switched on, once this menu
has been selected you can activate or deactivate the functions linked
with use of the radio (RDS, REG, RadioText) or the CD (introscan,
shuffle, CD repeat).
For more information on the "Audio functions" application, refer to the
"PEUGEOT Connect Sound (RD5)" part of the "Audio equipment and
telematics" section.

"dIAGNOSIS VEHICLE" MENU

Once this menu has been selected, you can consult information
concerning the status of the vehicle.

Alert log

This summarises the active warning messages, displaying them in
succession on the multifunction screen.

F On the "diagnosis vehicle" menu, select the following application:

F Press the "MENU" button to gain access to the main menu.
F Press the arrows, then the "OK" button to select the "diagnosis

vehicle" menu.

RCZ_en_Chap01_controle-de-marche_ed01-2015

* Depending on version.

** Depending on country of sale.

"PERSONALISATION-CONFIGURATION"
MENU

Once this menu has been selected, you can gain access to the
following functions:
- define the vehicle parameters,
- display configuration,
-

choice of language.

define the vehicle parameters*

Once this menu has been selected, you can activate or deactivate the
following equipment:
-

selective unlocking (refer to the "Access" section),

guide-me-home lighting (refer to the "Visibility" section),

interior mood lighting (refer to the "Ease of use and comfort" section),

daytime running lamps** (refer to the "Visibility" section),

rear parking sensors (refer to the "Driving" section).

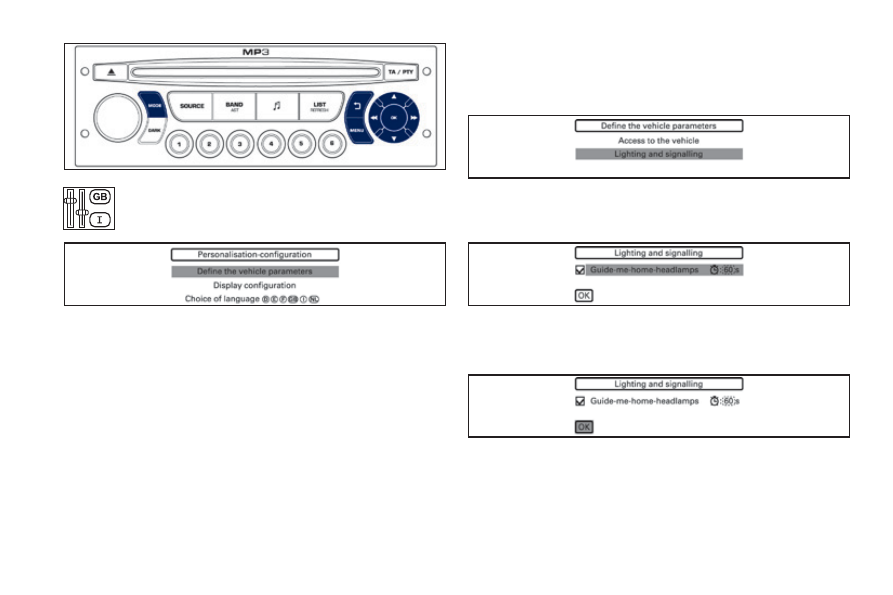

Example: setting of the duration of the guide-me-home lighting
F Press the "5" or "6" buttons, then the "OK" button to select the

menu required.

F Press the "5" or "6" buttons, then the "OK" button to select the

"Guide-me-home headlamps" line.

F Press the "7" or "8

" buttons to set the value required (15, 30 or

60 seconds), then press the "OK"

button to confirm.

F Press the "5" or "6" buttons, then the "OK" button to select the

"OK"

box and confirm or press the "Back" button to cancel.

MONIT

ORING

RCZ_en_Chap01_controle-de-marche_ed01-2015

With the PEUGEOT Connect Sound (RD5) switched on, once this menu
has been selected you can configure your Bluetooth hands-free system
(pairing), consult the various telephone directories (calls log, services...)
and manage your communications (pick up, hang up, call waiting,
secret mode...).

For more information on the "Telephone" application, refer to the
"PEUGEOT Connect Sound (RD5)" part of the "Audio equipment and
telematics" section.

"TELEPHONE" MENU

display configuration

Once this menu has been selected, you have access to the following
settings:

brightness-video setting,

date and time setting,

choice of units.

Choice of language

Once this menu has been selected, you can change the language
used by the display (Deutsch, English, Espanol, Français, Italiano,
Nederlands, Portugues, Portugues-Brasil, Türkçe**).

As a safety measure, configuration of the multifunction screen by
the driver must only be done when stationary.

Setting the date and time
F Press the "7" or "8

" button to display the "Display configuration"

menu, then the "OK" button.

F Press the "5" or "6" button to select the "Adjust date and time"

line, then the "OK" button.

F Press the "7" or "8

" button to select the setting to modify. Confirm

by pressing the "OK"

button then modify the setting and confirm

again to save the modification.

Adjust the settings one by one, confirming with the "OK" button.

F Press the "5" or "6" button, then the "OK" button to select the

"OK"

box and confirm, or the "Back" button to cancel.

** According to country of sale.

RCZ_en_Chap01_controle-de-marche_ed01-2015

RETRACTABLE COLOUR SCREEN (WITH
PEUGEOT CONNECT NAVIGATION (RT6))

dISPLAYS IN THE SCREEN

Displays according to context:

- time,

- date,

- altitude,
- ambient temperature (the value displayed flashes if there is a risk of

ice),

visual parking sensor information,

audio functions,

telephone and contacts information,

satellite navigation system information,

alert messages,

menus for settings of the screen, navigation system and vehicle
equipment.

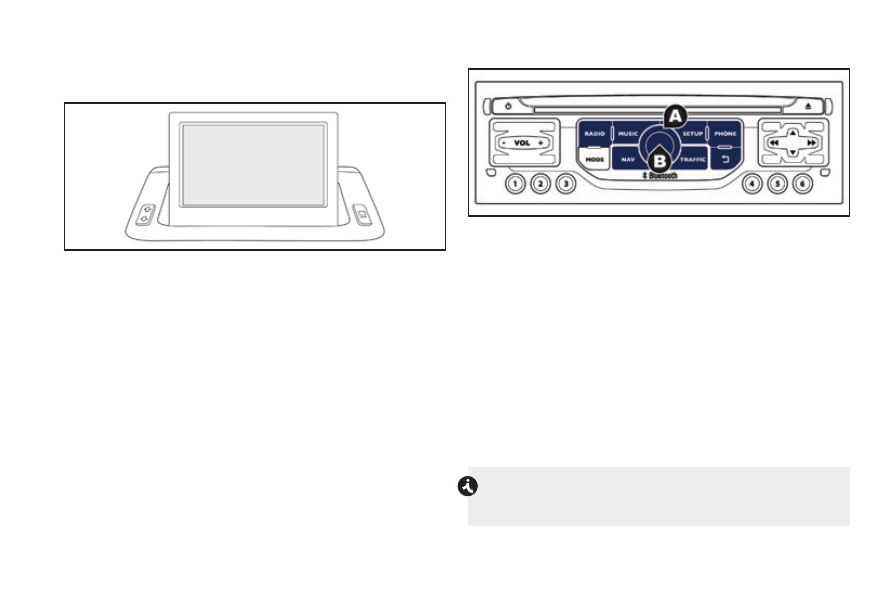

From the PEUGEOT Connect Navigation (RT6) control panel, to select
one of the applications:
F press the dedicated "RAdIO", "MUSIC", "NAV", "TRAFFIC",

"PHONE" or "SETUP" button for access to the corresponding
menu,

F turn dial A to select a function, an item in a list,
F press button B

to confirm the selection,

or
F press the "Back" button to abandon the current operation and

return to the previous display.

For more information on these applications, refer to the "PEUGEOT
Connect Navigation (RT6)" part in the "Audio equipment and telematics"
section.

CONTROLS

For operation of the retractable screen (opening, closing,
adjustment of the position, etc.), refer to the "Access to the
retractable screen" section.

MONIT

ORING

RCZ_en_Chap01_controle-de-marche_ed01-2015

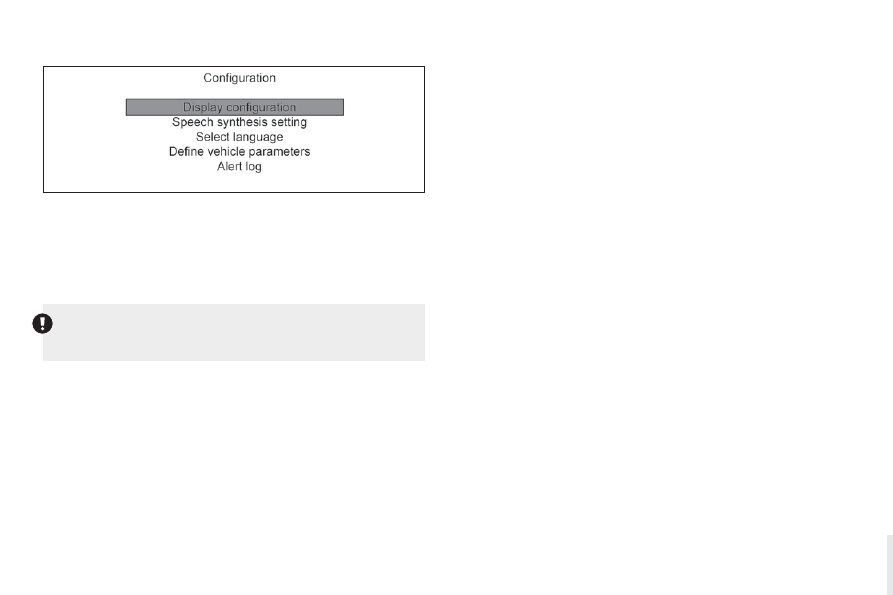

"SETUP" MENU

F Press the "SETUP"

button to gain access to the configuration menu:

- "Display configuration",
- "Voice synthesis",

- "Choice of language",

- "Vehicle parameters",

- "Alert log".

As a safety measure, configuration of the multifunction screen by
the driver must only be done when stationary.

display configuration

This menu allows you to choose a colour scheme for the screen, to
adjust the brightness, set the date and time and choose the units for
distance (km or miles), fuel consumption (l/100 km, mpg or km/l) and
temperature (°Centigrade or °Fahrenheit).

Voice synthesis

This men allows you to adjust the volume for navigation instructions and
to choose the type of voice (male or female).

* Depending on version.

** According to country of sale.

Choice of language

This menu allows you to choose the language used by the screen
(French, English, Italian, Portuguese, Spanish, German, Dutch, Turkish,
Polish, Russian).

Vehicle parameters*

This menu allows you to activate or deactivate certain driving and

comfort equipment, arranged by category:
-

Access to the vehicle

● Plip action (selective unlocking of the driver's door; refer to the

"Access" section),

Parking sensors

- Lighting configuration (see the "Visibility" section) :

● Duration of the guide-me-home lighting,

● Directional headlamps (main/additional directional lighting),

● Mood lighting (Interior mood lighting),
● Daytime running lamps**.

Alert log

It lists the active alerts by displaying their associated messages in turn.

Setting the date and time
F Press "SETUP".
F

Select "Display configuration" and confirm.

Select "Set date and time" and confirm.

You can select "Synchronise the minutes with GPS", so that the
minutes are adjusted automatically by satellite reception.

Select the setting to modify. Confirm by pressing "OK", then adjust

the setting and modify again.

F Adjust the settings one by one.
F Select "OK

" in the screen then confirm to save the setting.

RCZ_en_Chap01_controle-de-marche_ed01-2015

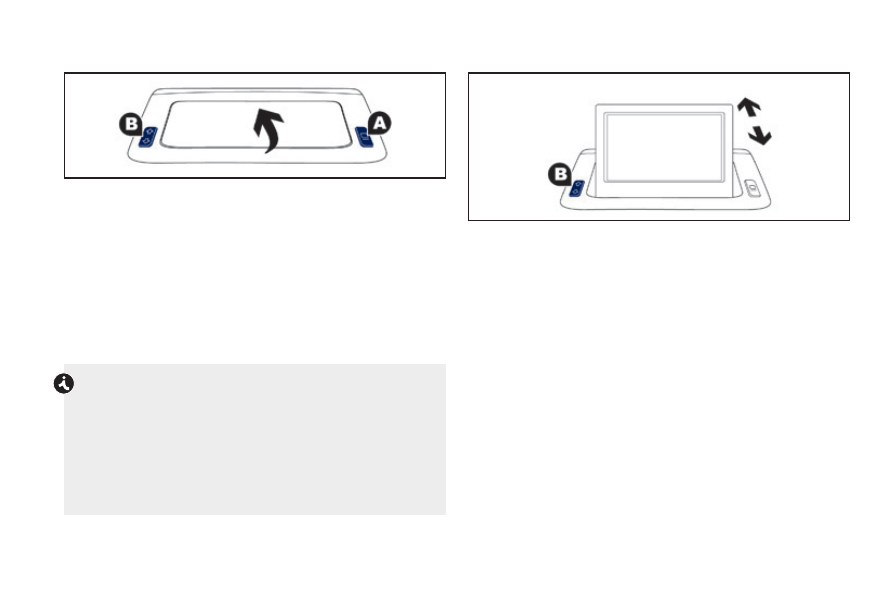

You can adjust the angle of the screen to one of four defined positions,
by repeated presses on the front or back of the control B. The position
of the screen is memorised on closing.

Adjusting the angle of the screen

The screen opens automatically when the ignition is switched on. It
closes automatically three seconds after switching off the ignition if the
audio and telematics system is switched off.

ACCESS TO THE RETRACTABLE SCREEN

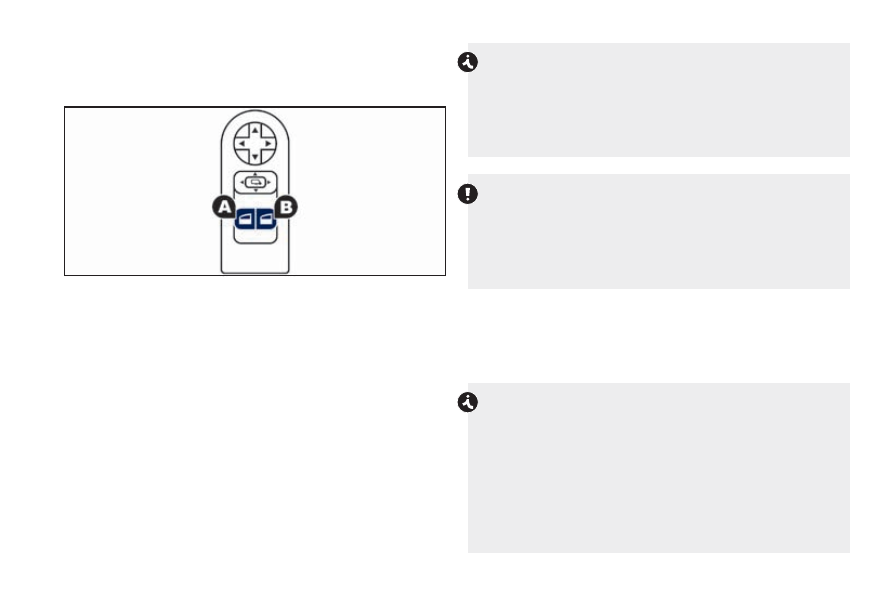

You can open or close the screen at any time, with the ignition on, using
control A.

Press button A: the screen folds.

Press button A again: the screen opens again.

If you have closed the screen, it will open again automatically:

on switching on the audio and navigation system (unless it
had been closed manually while the system was in operation),

when an outgoing telephone call is made,

when a voice command is given,

when a warning message linked with the STOP warning lamp
is displayed (PEUGEOT Connect Navigation (RT6)).

ACCESS

RCZ_en_Chap02_ouvertures_ed01-2015

REMOTE CONTROL KEY

System which permits central unlocking or locking of the vehicle using
the lock or from a distance. It is also used to locate and start the
vehicle, as well as providing protection against theft.

UNLOCKING THE VEHICLE

Unfolding the key

F First press this button to unfold the key.

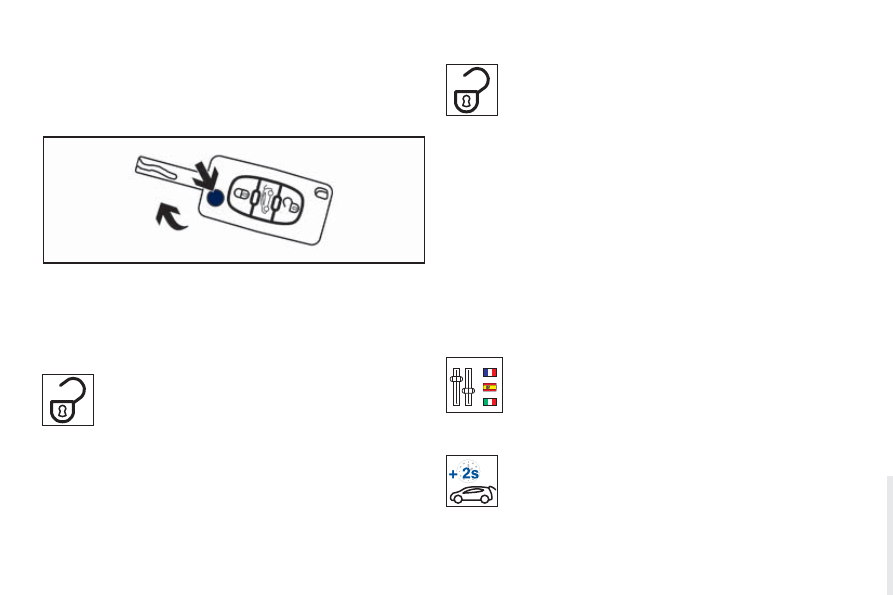

Complete unlocking using the remote control

F Press the open padlock to unlock the vehicle.

Selective unlocking using the remote control

F Press the open padlock once to unlock the driver's door

and the fuel filler flap only.

F Press the open padlock again to unlock the passenger's door and

the boot.

Selective unlocking using the key

F Turn the key forwards in the driver's door lock once to unlock the

driver's door and the fuel filler flap only.

F Turn the key forwards in the driver's door lock again to unlock the

passenger's door and the boot.

The complete or selective unlocking parameter is set via
the vehicle configuration menu.
Complete unlocking is activated by default.

Complete unlocking using the key

F Turn the key forwards in the driver's door lock to unlock the vehicle.

Unlocking and partial opening of the boot

F Press this button for more than two seconds to unlock

the boot. The boot opens slightly.

This action also unlocks the doors and the fuel filler flap.

The direction indicators flash for a few seconds.
Depending on version, the door mirrors unfold, the alarm is deactivated.

RCZ_en_Chap02_ouvertures_ed01-2015

If one of the doors or the boot is still open, the central locking does
not take place; the vehicle locks and then immediately unlocks,
witnessed by the sound of the locks rebounding. However, the
alarm (if fitted) will be fully activated after about 45 seconds.
When the vehicle is locked, if it is unlocked inadvertently, it will
lock itself again automatically after thirty seconds unless a door is
opened.

If the alarm had been activated previously, it will not be reactivated
automatically.

The folding and unfolding of the door mirrors using the remote
control can be deactivated by a PEUGEOT dealer or a qualified
workshop.

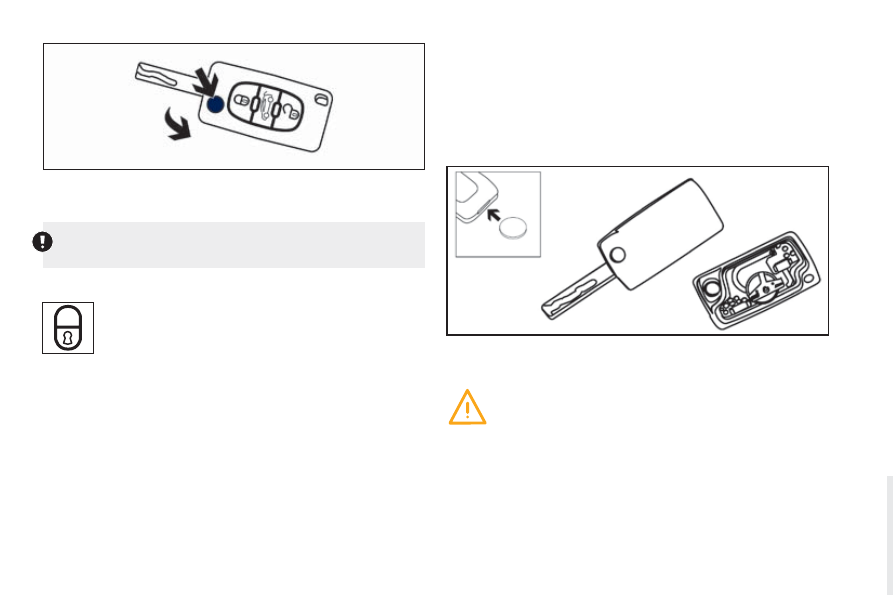

LOCKING THE VEHICLE

Normal locking using the remote control

F Press the closed padlock to lock the vehicle completely.

Normal locking using the key

F Turn the key rearwards in the driver's door lock to lock the vehicle

completely.

deadlocking using the remote control

F Press the closed padlock to lock the vehicle completely.
F

Press the closed padlock again within five seconds to

deadlock the vehicle.

deadlocking using the key

Deadlocking renders the exterior and interior door controls
inoperative.

It also deactivates the manual central control button.

Therefore, never leave anyone inside the vehicle when it is
deadlocked.

The direction indicators come on for a few seconds.

Depending on version, the door mirrors fold, the alarm is activated.

F Turn the key rearwards in the driver's door lock to lock the vehicle

completely.

Turn the key rearwards again within five seconds to deadlock the

vehicle.

The direction indicators come on for a few seconds.

Depending on version, the door mirrors fold, the alarm is activated.

ACCESS

RCZ_en_Chap02_ouvertures_ed01-2015

Folding the key

F First press this button to fold the key.

LOCATING YOUR VEHICLE

REMOTE CONTROL PROBLEM

Following disconnection of the vehicle battery, replacement of the
remote control battery or in the event of a remote control malfunction,
you can no longer unlock, lock or locate your vehicle.
F First of all, use the key in the lock to unlock or lock your vehicle.
F Then, reinitialise the remote control.
If the problem persists, contact a PEUGEOT dealer as soon as
possible.

Reinitialisation

F  Switch off the ignition.
F  Turn the key to position 2 (Ignition on).
F  Press the closed padlock immediately for a few seconds.
F  Switch off the ignition and remove the key from the ignition switch.
The remote control is fully operational again.

Changing the battery

Battery ref.: CR1620 / 3 volts.

If the battery is flat, you are informed by illumination of this
warning lamp, accompanied by an audible signal and an alert
message in the screen.

F Unclip the casing using a coin at the notch.
F

Slide the flat battery out of its location.

F Slide the new battery into its location observing the original

direction.

F Clip the casing.
F Reinitialise the remote control.

This function allows you to identify your vehicle from a
distance, particularly in poor light. Your vehicle must be
locked.

F Press the closed padlock on the remote control.
This will switch on the courtesy lamps and the direction indicators will
flash for around ten seconds.

If you do not press the button when folding the key, there is a risk
of damage to the mechanism.

RCZ_en_Chap02_ouvertures_ed01-2015

LOST KEYS

Go to a PEUGEOT dealer with the vehicle's registration document, your personal identification documents and if possible the key code label.
The PEUGEOT dealer will be able to look up the key code and the transponder code required to order a new key.

LOCKING THE VEHICLE

Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emergency.
As a safety precaution, never leave children alone in the vehicle, except for a very short period.

In all cases, it is essential to remove the key from the ignition switch when leaving the vehicle.

REMOTE CONTROL

The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock
the vehicle, without you being aware of it.

Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk of stopping it from
working and the remote control would have to be reinitialised.

No remote control can operate when the key is in the ignition switch, even when the ignition is switched off, except for reinitialisation.

ANTI-THEFT PROTECTION

Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions.

Do not throw the remote control batteries away, they contain metals which are harmful to the environment.

Take them to an approved collection point.

WHEN PURCHASING A SECONd-HANd VEHICLE

Have the pairing of all of the keys in your possession checked by a PEUGEOT dealer, to ensure that only your keys can be used to open and
start the vehicle.

ACCESS

RCZ_en_Chap02_ouvertures_ed01-2015

ALARM*

System which protects and provides a deterrent against theft and break-
ins. It provides the following types of monitoring:

- exterior perimeter

The system checks for opening of the vehicle.

The alarm is triggered if anyone tries to open a door, the boot, the
bonnet...

- interior volumetric

The system checks for any variation in the volume in the passenger compartment.

The alarm is triggered if anyone breaks a window, enters the passenger
compartment or moves inside the vehicle.

- tilt

The system checks for any change in the attitude of the vehicle.

The alarm is triggered if the vehicle is lifted, moved or knocked.

For all work on the alarm system, contact a PEUGEOT dealer or a
qualified workshop.

LOCKING THE VEHICLE WITH FULL ALARM
SYSTEM

Activation

F Switch off the ignition and get out of the vehicle.
F Press the locking button on the remote control.

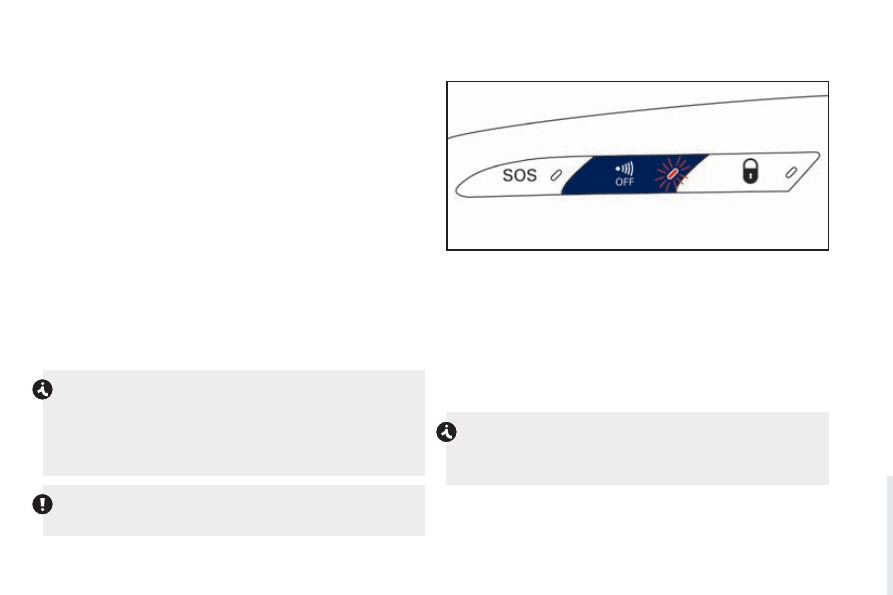

The monitoring system is active: the indicator lamp in the button flashes
once per second.

After the locking button on the remote control is pressed, the exterior
perimeter monitoring is activated after a delay of 5 seconds and the
interior volumetric and anti-tilt monitoring after a delay of 45 seconds.

deactivation

F Press the unlocking button on the remote control.
The alarm system is deactivated: the indicator lamp in the button goes off.

Self-protection function

The system checks for the putting out of service of its
components.

The alarm is triggered if the battery, the central control or the siren
wiring are put out of service or damaged.

* According to country.

If an opening (door, boot...) is not closed fully, the vehicle is not
locked but the exterior perimeter monitoring will be activated after
a delay of 45 seconds at the same time as the interior volumetric
and anti-tilt monitoring.

RCZ_en_Chap02_ouvertures_ed01-2015

LOCKING THE VEHICLE WITH EXTERIOR
PERIMETER MONITORING ONLY

deactivation of the interior volumetric and anti-tilt monitoring

F Switch off the ignition.

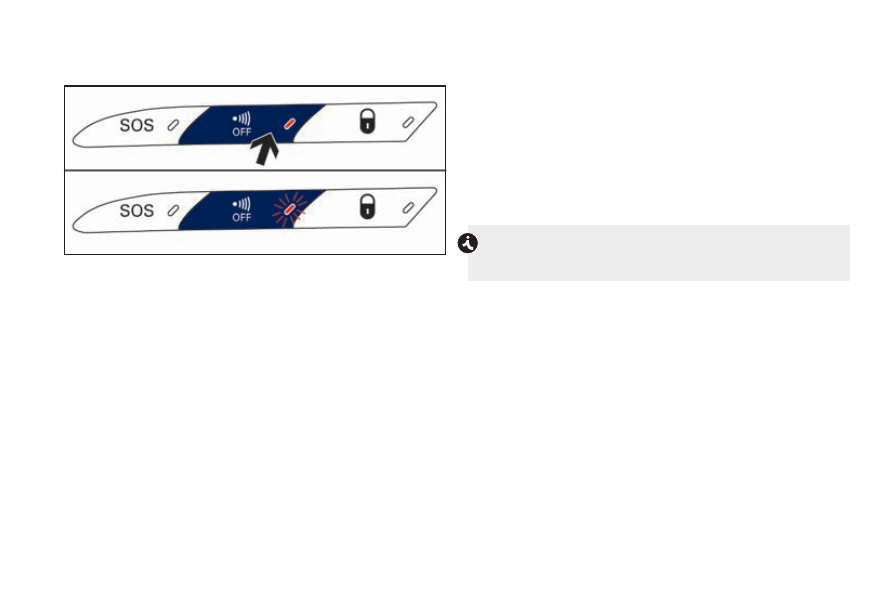

F Within ten seconds, press the button until the indicator lamp is on

continuously.

F Get out of the vehicle.
F Press the locking button on the remote control immediately.
The exterior perimeter monitoring alone is activated: the indicator lamp
in the button flashes once per second.

Reactivation of the interior volumetric and anti-tilt monitoring

F Press the unlocking button on the remote control to deactivate the

exterior perimeter monitoring.

F Press the locking button on the remote control to activate all the

monitoring functions.

The indicator lamp in the button again flashes once per second.

Deactivate the interior volumetric and anti-tilt monitoring to avoid
unwanted triggering of the alarm in certain cases such as:

leaving a pet in the vehicle,

leaving a window partially open,

washing your vehicle,

changing a wheel,

having your vehicle towed,

transport by sea.

To be effective, this deactivation must be carried out each time the
ignition is switched off.

ACCESS

RCZ_en_Chap02_ouvertures_ed01-2015

OPERATING FAULT

LOCKING THE VEHICLE WITHOUT ACTIVATING
THE ALARM

F Lock or deadlock the vehicle using the key in the driver's door lock.

When the ignition is switched on, fixed illumination of the indicator lamp
in the button indicates a fault with the system.
Have it checked by a PEUGEOT dealer or a qualified workshop.

FAILURE OF THE REMOTE CONTROL

To deactivate the monitoring functions:

F  unlock the vehicle using the key in the driver's door lock,
F  open the door; the alarm is triggered,
F  switch on the ignition; the alarm stops; the indicator lamp in the

button goes off.

TRIGGERING OF THE ALARM

The monitoring functions remain active until the alarm has been
triggered eleven times in succession.

When the vehicle is unlocked using the remote control, rapid
flashing of the indicator lamp in the button informs you that the
alarm was triggered during your absence. When the ignition is
switched on, this flashing stops immediately.

This is indicated by sounding of the siren and flashing of the direction
indicators for thirty seconds.

2 minutes after closing the last door or the boot, the system is activated
automatically.
F

To avoid triggering the alarm when entering the vehicle, first press

the remote control unlocking button.

AUTOMATIC ACTIVATION*

* Depending on country of sale.

RCZ_en_Chap02_ouvertures_ed01-2015

ELECTRIC WINDOWS

Fitted with a safety anti-pinch system.

A. Left-hand electric window.

B. Right-hand electric window.

ONE-TOUCH ELECTRIC WINdOWS

There are two options:

manual mode

F Press or pull the switch gently. The window stops when the

switch is released.

automatic mode

Press or pull the switch firmly. The window opens or closes fully

when the switch is released.

F Pressing the switch again stops the movement of the window.

The electric window switches remain operational for approximately
45 seconds after the ignition is switched off or until the vehicle is
locked after a door is opened.

If the passenger's window cannot be operated from the driver's
door control panel, carry out the operation from the control panel
of the passenger door.

After approximately ten consecutive complete opening/closing
movements of the window, a protection function is activated which
only authorises closing of the windows, so as to prevent damage
to the electric window motor.

Once the window is closed, the switches will become operational
again after approximately 40 minutes.

Safety anti-pinch

When the window rises and meets an obstacle, it stops and partially
lowers again.

If the window cannot be closed (for example, in the presence of
ice), immediately after the movement is reversed:
F press and hold the switch until the window opens fully,
F then pull the switch immediately and hold it until the window

closes,

F continue to hold the switch for approximately one second after

the window has closed.

The safety anti-pinch function is not operational during these
operations.

ACCESS

RCZ_en_Chap02_ouvertures_ed01-2015

Reinitialisation

If a window does not rise automatically, after reconnecting the battery
for example, its operation must be reinitialised:
F  pull the switch until the window stops,
F  release the switch and pull it again until the window closes fully,
F  continue to hold the switch for approximately one second after the

window has closed,

F press the switch to lower the window automatically to the low

position,

F when the window has reached the low position, press the switch

again for approximately one second.

The safety anti-pinch function is not operational during these
operations.

Always remove the key from the ignition when leaving the vehicle,
even for a short time.

If an obstacle is encountered during operation of the electric
windows, you must reverse the movement of the window. To do
this, press the switch concerned.

When the driver operates the switch for the passenger's electric
window, they must ensure that no one is preventing correct
closing of the windows.

The driver must ensure that the passengers use the electric
windows correctly.

Be aware of children when operating the windows.

RCZ_en_Chap02_ouvertures_ed01-2015

DOORS

OPENING

From outside

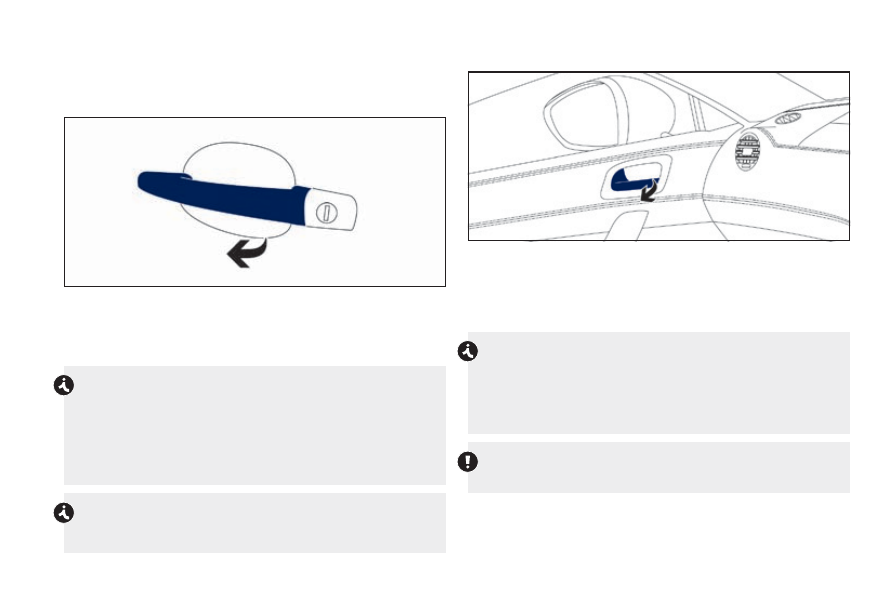

F After unlocking the vehicle completely using the remote control or

the key, take hold of the door handle then pull it.

The window lowers automatically by a few millimetres to permit
opening of the door.

In freezing conditions, the presence of ice may hinder the automatic
partial opening of the window; remove the ice which may have formed
along the lower seal, located at the base of the window.

When the selective unlocking is activated, the first press of the
remote control unlocking button permits unlocking of the driver's
door only.

From inside

F Pull the door control to open the door; this unlocks this vehicle

completely.

The window lowers automatically by a few millimetres to permit
opening of the door.

With the selective unlocking activated:

the driver's door control unlocks the driver's door and the fuel
filler flap only.

the passenger's door control unlocks the passenger's door
and the boot.

The interior door controls do not operate when the vehicle is
deadlocked.

If you leave the door open for more than one minute, the window
rises again.

Pull the handle again to reactivate the system.

Peugeot RCZ (2015 year). Instruction - part 3
