Warning/indicator lamp

is on

Cause

Action / Observations

STOP

fixed, alone
or associated
with another
warning lamp,
accompanied by
an audible signal
and a message
in the screen.

Illumination of this warning lamp
is associated with a serious fault
with the braking system, power
steering, engine lubrication
system or cooling system.

Stop as soon as it is safe to do so as there is a risk that the
engine will cut out while driving.

Park, switch off the ignition and contact a PEUGEOT
dealer or a qualified workshop.

Maximum
coolant
temperature

fixed with the
needle in the red
zone.

The temperature of the cooling
system is too high.

Stop as soon as it is safe to do so.

Wait until the engine has cooled down before topping up
the level, if necessary.

If the problem persists, contact a PEUGEOT dealer or a
qualified workshop.

Braking

fixed, associated
with the STOP
warning lamp.

The braking system fluid level is
too low.

You must stop as soon as it is safe to do so.
Top up with brake fluid recommended by PEUGEOT.
If the problem persists, have the system checked by a
PEUGEOT dealer or a qualified workshop.

fixed, associated
with the STOP
and ABS warning
lamps.

The electronic brake force
distribution (EBFD) system has
a fault.

You must stop as soon as it is safe to do so.
Have it checked by a PEUGEOT dealer or a qualified
workshop.

RCZ_en_Chap01_controle-de-marche_ed01-2015

Engine
autodiagnosis
system

flashing.

The engine management system
has a fault.

Risk of destruction of the catalytic converter.

Have it checked by a PEUGEOT dealer or a qualified

workshop.

fixed.

The emission control system has
a fault.

The warning lamp should go off when the engine is started.

If it does not go off, contact a PEUGEOT dealer or qualified

workshop without delay.

Low fuel level

fixed with the

needle in the
red zone,
accompanied by
an audible signal
and a message.

When it first comes on there

remains approximately 5 litres of
fuel in the tank.
At this point, you begin to use the
fuel reserve.

Refuel as soon as possible to avoid running out of fuel.
Until sufficient fuel has been added, this warning lamp
will come on every time the ignition is switched on,
accompanied by an audible signal and a message.
The audible signal and message are repeated with

increasing frequency as the fuel level drops towards "0".
Fuel tank capacity: approximately 55 litres.
Never continue to drive until you run out of fuel, as this
could damage the emission control and injection systems.

Warning/indicator lamp

is on

Cause

Action / Observations

Service

on temporarily.

A minor fault has occurred for

which there is no specific warning

lamp.

Identify the fault by reading the message shown in the
screen, such as, for example:
-

opening of the doors, boot or bonnet,

low engine oil level,

low screenwash level,

- flat remote control battery,

- saturation of the particle emission filter (Diesel)

As soon as traffic conditions permit, regenerate the

filter by driving at a speed of at least 36 mph (60 km/h)

until the service warning lamp goes off.

- a fault with the tyre under-inflation detection system,

- ...
For any other faults, contact a PEUGEOT dealer or a

qualified workshop.

fixed.

A major fault has occurred for

which there is no specific warning

lamp.

Identify the fault by reading the message shown on the

screen and contact a PEUGEOT dealer or a qualified

workshop.

MONIT

ORING

RCZ_en_Chap01_controle-de-marche_ed01-2015

Anti-lock
Braking
System (ABS)

fixed.

The anti-lock braking system has
a fault.

The vehicle retains conventional braking.

Drive carefully at reduced speed and contact a PEUGEOT
dealer or a qualified workshop without delay.

dynamic
stability control

(dSC/ASR)

flashing.

The DSC/ASR regulation is
operating.

The system optimises traction and improves the directional
stability of the vehicle in the event of loss of grip or trajectory.

fixed.

The DSC/ASR system has a
fault.

Have it checked by a PEUGEOT dealer or a qualified
workshop.

directional
headlamps

flashing.

The directional headlamps
system has a fault.

Have it checked by a PEUGEOT dealer or a qualified
workshop.

Warning/indicator lamp

is on

Cause

Action / Observations

Seat belt not
fastened /
unfastened

fixed, then

flashing in the
passenger's seat
belt and front
airbag warning
lamp display.

The driver or front passenger has
not fastened or has unfastened
their seat belt.

Pull on the belt in question and insert the tongue in the
buckle.

For more information, refer to the "Seat belts" section.

At least one rear passenger has
unfastened their seat belt.

Under-inflation

fixed.

The pressure in one or more
wheels is too low.

Check the pressure of the tyres as soon as possible.

This check should preferably be carried out when the tyres
are cold.

flashing then fixed,
accompanied
by the Service
warning lamp.

The tyre pressure monitoring
system has a fault or no sensor is
detected on one of the wheels.

Under-inflation detection is not assured.
Have the system checked by a PEUGEOT dealer or a
qualified workshop.

RCZ_en_Chap01_controle-de-marche_ed01-2015

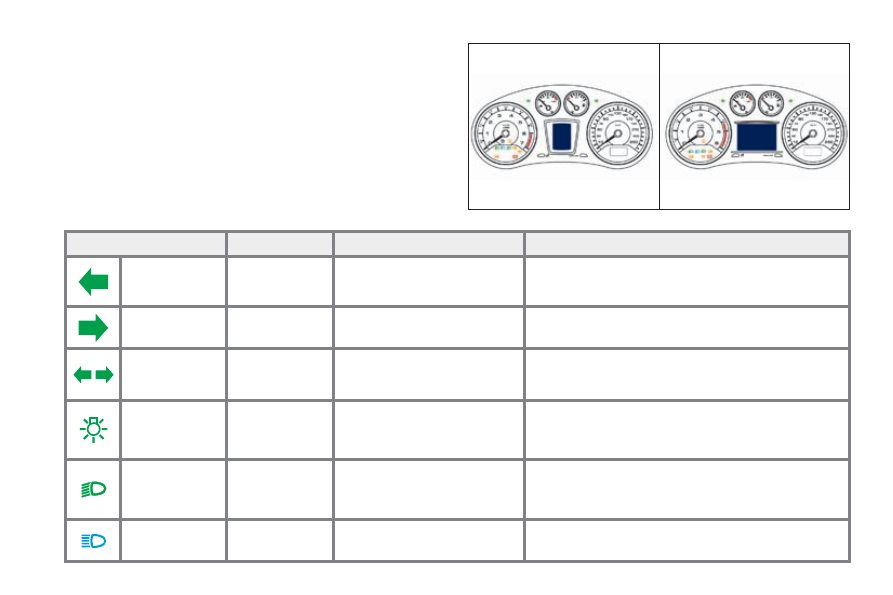

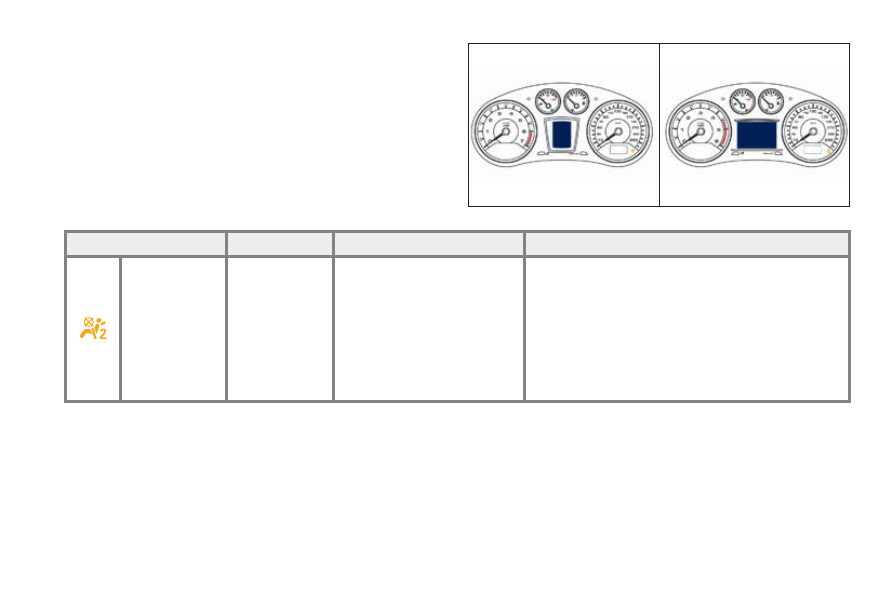

Operation indicator lamps

If one of the following indicator lamps comes on, this confirms that the
corresponding system has come into operation.

It may be accompanied by an audible signal.

Depending on your version of instrument panel, illumination of the
indicator lamp may also be accompanied by:

a symbol in the central instrument panel screen and a message in
the multifunction screen,

a symbol and a message in the central instrument panel screen.

Warning/indicator lamp

is on

Cause

Action / Observations

Left-hand
direction
indicator

flashing with
buzzer.

The lighting stalk is pushed
down.

Right-hand direction
indicator

flashing with
buzzer.

The lighting stalk is pushed up.

Hazard warning
lamps

flashing with
audible signal.

The hazard warning lamps
switch, located on the dashboard,
has been operated.

The left-hand and right-hand direction indicators and their
associated indicator lamps flash simultaneously.

Sidelamps

fixed.

The lighting stalk is in the
"Sidelamps" position or the
"AUTO" position with low light.

dipped beam
headlamps

fixed.

The lighting stalk is in the
"Dipped beam headlamps"
position or in the "AUTO" position
in conditions of low light.

Main beam
headlamps

fixed.

The lighting stalk is pulled
towards you.

Pull the stalk again to return to dipped beam
headlamps.

MONIT

ORING

RCZ_en_Chap01_controle-de-marche_ed01-2015

Warning/indicator lamp

is on

Cause

Action / Observations

Rear foglamp

fixed.

The rear foglamp has been
switched on using the ring on the
lighting control stalk.

Turn the ring on the lighting control stalk to the rear to
switch off the rear foglamp.

diesel engine
pre-heating

fixed.

The key is at position 2
(ignition on) in the ignition switch.

Wait until the warning lamp goes off before starting.

The period of illumination of the warning lamp is
determined by the ambient conditions (up to about thirty
seconds in very low temperatures).

If the engine does not start, switch the ignition off and then
on, wait until the warning lamp goes off again, then start
the engine.

Parking brake

fixed.

The parking brake is applied or
not properly released.

Release the parking brake to switch off the warning lamp,
keeping your foot on the brake pedal.

Observe the safety recommendations.

For more information on the parking brake, refer to the
corresponding section.

Passenger's
front airbag

fixed on the
seat belt and
passenger's front
airbag warning
lamps display.

The control switch, located on
the passenger's side of the
dashboard, has been placed in
the "ON" position.

The passenger's front airbag is
activated.

In this case, do not install a
"rearward facing" child seat.

While you do not have a rearward facing child seat fitted
to the front passenger seat, it is recommended that the
passenger's front airbag be activated.
On the other hand, before fitting a rearward facing child
seat, you must turn the control switch to the "OFF"
position.

RCZ_en_Chap01_controle-de-marche_ed01-2015

deactivation warning lamps

The other deactivation indicators appear in the form of symbols in the
large screen, located in the centre of the instrument panel.

Their display may be accompanied by an audible signal and a message
in the screen.

Warning/indicator lamp

is on

Cause

Action / Observations

Passenger's
front airbag

fixed, in the seat
belt and front
passenger's
airbag warning
lamps display.

The control switch, located
on the passenger's end of
the dashboard, is set to the
OFF position.

The passenger's front airbag is
deactivated.

You can install a "rearward
facing" child seat on the front
seat.

Before installing a rearward facing child seat on the front
seat, it is essential to deactivate the passenger's front
airbag.

On the other hand, where no rearward facing child seat is
present, it is recommended that the airbag be reactivated:
set the control to the ON position.

MONIT

ORING

RCZ_en_Chap01_controle-de-marche_ed01-2015

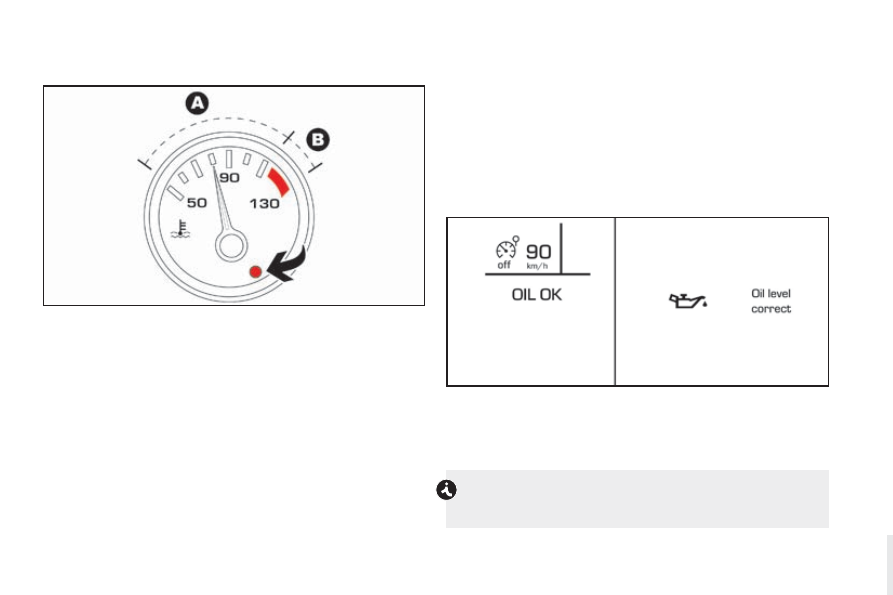

COOLANT TEMPERATURE INdICATOR

With the engine running, when the needle is:

in zone A, the temperature is correct,

in zone B, the temperature is too high; the maximum temperature
warning lamp and the central STOP warning lamp come on,
accompanied by an audible signal and the display of an alert
message.

You MUST stop as soon as it is safe to do so.

Wait a few minutes before switching off the engine.
Contact a PEUGEOT dealer or a qualified workshop.

ENGINE OIL LEVEL INdICATOR

This information is displayed for a few seconds when the ignition is
switched on, at the same time as the service information.

The check of this level is only valid if the vehicle is on a level
surface, with the engine having been off for more than 30 minutes.

After driving for a few minutes, the temperature and pressure in the
cooling system increase.

To top up the level:
F  wait for the engine to cool,
F  unscrew the cap by two turns to allow the pressure to drop,
F  when the pressure has dropped, remove the cap,
F  top up the level to the "MAx" mark.

RCZ_en_Chap01_controle-de-marche_ed01-2015

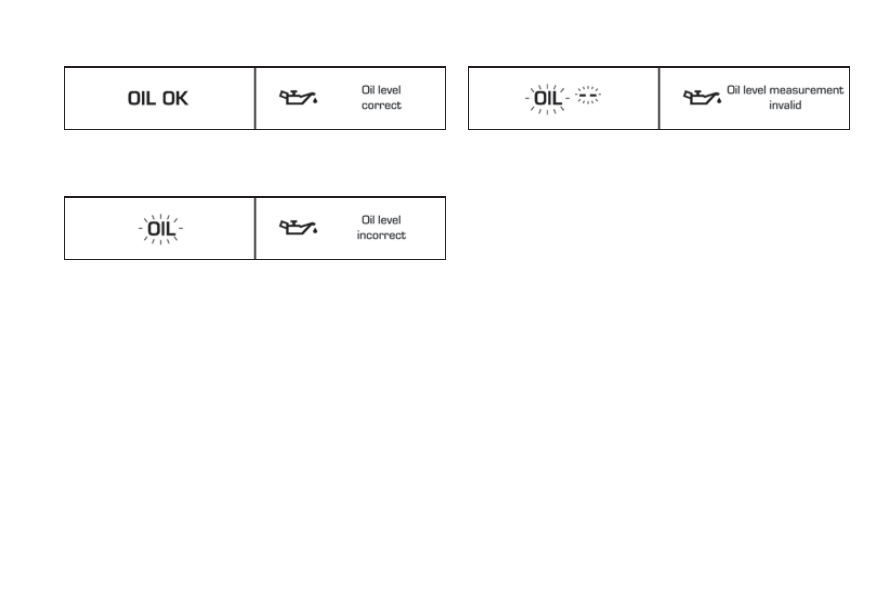

Oil level correct

This is indicated by the flashing of "OIL" or an alert message in the
instrument panel, accompanied by illumination of the service warning
lamp and an audible signal.
If the lack of oil is confirmed by a check using the dipstick, it is essential
that the level is topped up to prevent damage to the engine.

Refer to the "Checking levels" section.

This is indicated by the flashing of "OIL--" or the appearance of an alert
message in the instrument panel.
Contact a PEUGEOT dealer or a qualified workshop.
In the event of a fault with the electric gauge, the oil level is no longer
monitored.

If the system is faulty, you should check the engine oil level using the
dipstick under the bonnet.

Refer to the "Checking levels" section.

Lack of oil

Indicator fault

MONIT

ORING

RCZ_en_Chap01_controle-de-marche_ed01-2015

SERVICE INdICATOR

This information is displayed for a few seconds when the ignition is
switched on. It informs the driver when the next service is due, in
accordance with the manufacturer's service schedule.

The point at which the service is due is calculated from the last indicator
zero reset. It is determined by two parameters:

the distance travelled,

the time elapsed since the last service (only on HDi Diesel
versions).

More than 1 800 miles (3 000 km) remain before the next service is due

When the ignition is switched on, no service information appears on the
instrument panel central screen.

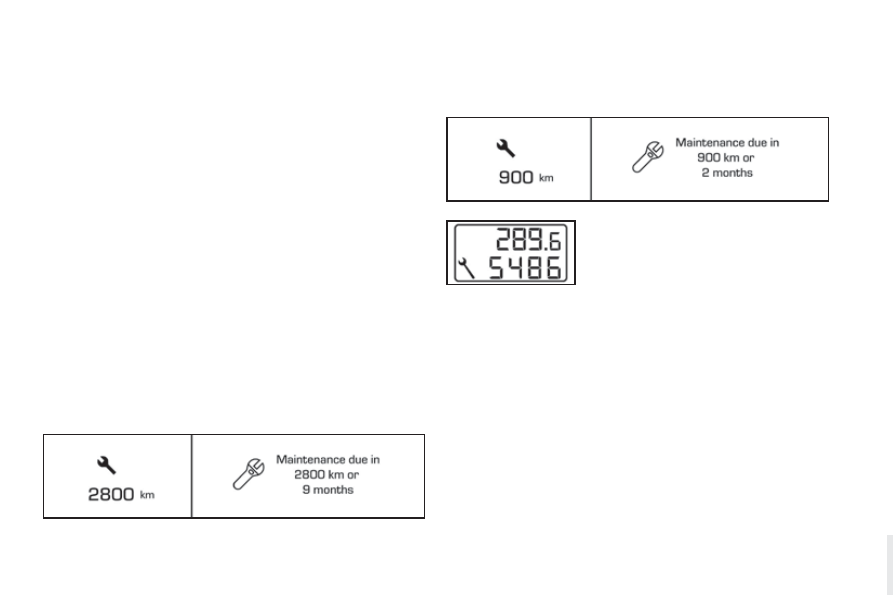

Between 600 miles (1 000 km) and 1 800 miles (3 000 km)
remain before the next service is due

For a few seconds after the ignition is switched on, the spanner
symbolising the service operations comes on. The instrument panel central
screen indicates the distance remaining before the next service is due.

Example: 1 700 miles (2 800 km) remain before the next service is due.

For a few seconds after the ignition is switched on, the central screen
indicates:

Less than 600 miles (1 000 km) remain before the next service is due

Example: 500 miles (900 km) remain before the next service is due.

For a few seconds after the ignition is switched on, the central screen
indicates:

The spanner remains on in the small screen
to indicate that a service must be carried out
soon.

RCZ_en_Chap01_controle-de-marche_ed01-2015

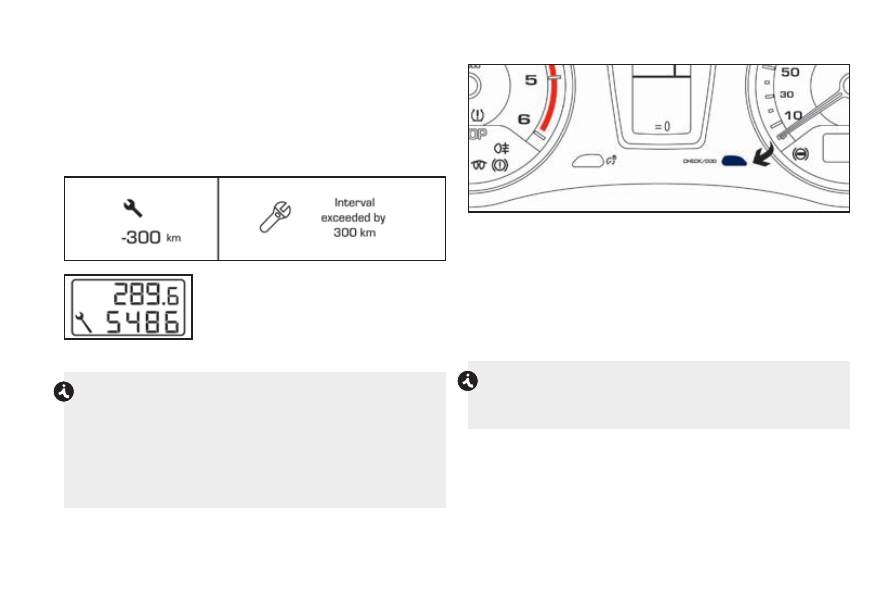

Service overdue

For a few seconds after the ignition is switched on, the spanner
flashes to indicate that the service must be carried out as soon as
possible.

Example: the service is overdue by 300 miles (300 km).

For a few seconds after the ignition is switched on, the central screen
indicates:

The spanner remains on in the small screen
to indicate that a service should have been
carried out.

The distance remaining may be weighted by the time factor,
depending on the type of motoring the vehicle is used for.

Therefore, the spanner may also come on if you have exceeded
the period since the last service specified in the manufacturer's
service schedule.

This indication applies only to HDi Diesel engines.

Service indicator reset

Retrieving the service information

You can access the service information at any time.

This information appears when running through the manual check
procedure.
F

Briefly press the "CHECK/000" button.

The service information is displayed for a few seconds on the
instrument panel central screen, then disappears.

Following this operation, if you wish to disconnect the battery,
lock the vehicle and wait at least five minutes for the reset to be
registered.

After each service, the service indicator must be reset.

If you have carried out the service on your vehicle yourself:
F  switch off the ignition,
F  press and hold the "CHECK/000" button,
F  switch on the ignition; the distance recorder display begins a

countdown,

F when the instrument panel central screen indicates "=0", release

the button; the spanner disappears from the small screen.

MONIT

ORING

RCZ_en_Chap01_controle-de-marche_ed01-2015

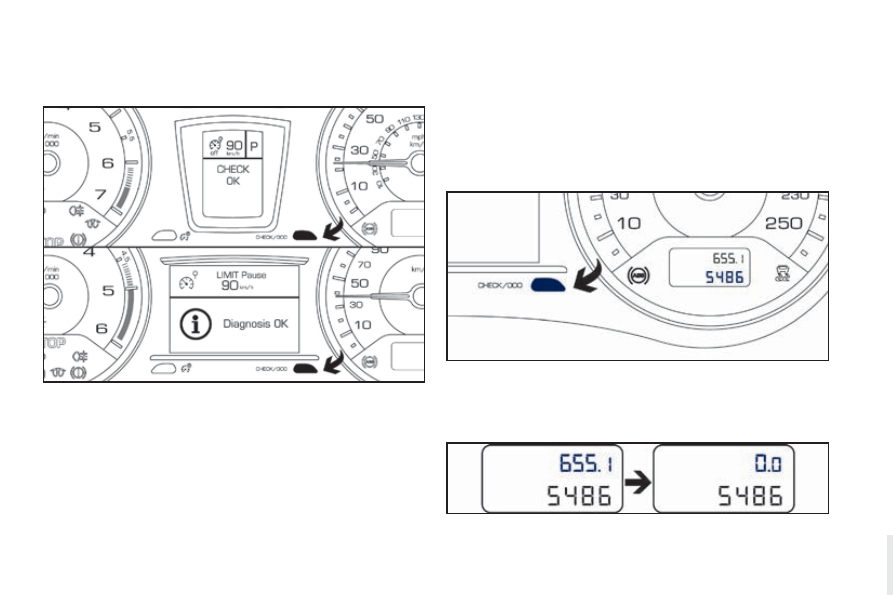

MANUAL CHECK

This function allows you to check the status of the vehicle (reminder of
the active alert warnings) and the service information.

With the engine running, to start a manual check, briefly press the

"CHECK/000" button on the instrument panel.

If no faults have been detected, "CHECK OK" appears in the
instrument panel central screen.

If a "minor" fault has been detected, the warning lamp concerned then
"CHECK OK" appear in the instrument panel central screen. Contact a
PEUGEOT or a qualified workshop.
If a "major" fault has been detected, only the warning lamps concerned
appear in the instrument panel central screen. Have it checked by a
PEUGEOT dealer or a qualified workshop.

dISTANCE RECORdERS

The total and trip distances are displayed for thirty seconds when the
ignition is switched off, when the driver's door is opened and when the
vehicle is locked or unlocked.

Measures the total distance travelled by the vehicle since its first
registration.

Total distance recorder

F With the ignition on, press and hold this button until zeros appear.

Trip distance recorder

Measures the distance travelled since it was last reset to zero by the
driver.

RCZ_en_Chap01_controle-de-marche_ed01-2015

LIGHTING dIMMER

Permits manual adjustment of the brightness of the instruments and
controls to suit the ambient light level. Only operates when the vehicle
lighting is on, with the exception of the daytime running lamps.

Activation

F Press the button to change the brightness of the instruments and

controls.

F When the lighting reaches the minimum setting, release the button,

then press again to increase it.

or
F When the lighting reaches the maximum setting, release the button,

then press again to reduce it.

When the lighting reaches the level of brightness required, release

the button.

deactivation

When the vehicle lighting is off, or in day mode on vehicles fitted with
daytime running lamps, pressing the button does not have any effect.

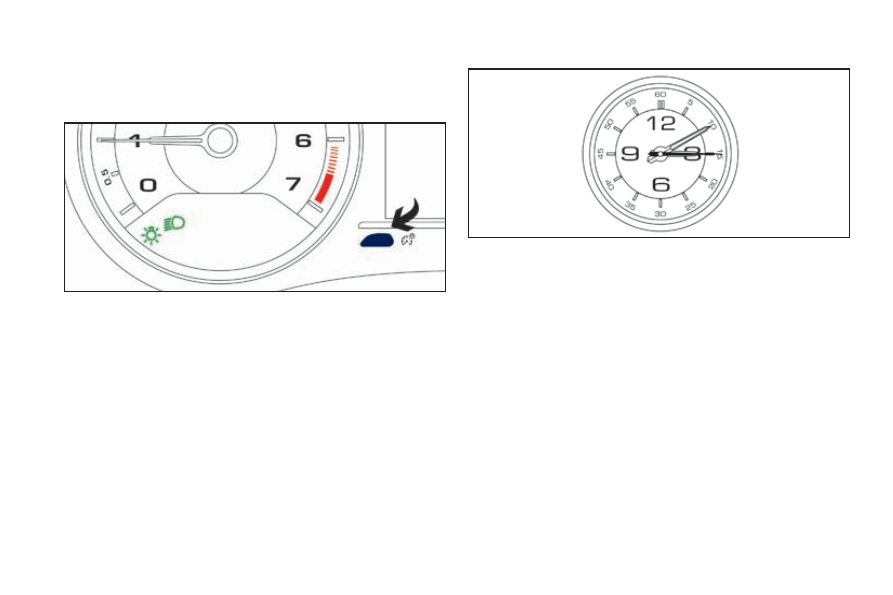

CLOCK

The analogue clock, located between the central vents of the
dashboard, does not have an adjustment button.

To set the time, refer to the section relating to your multifunction
screen's configuration menu.
The clock is synchronised with the multifunction screen time; once the
the setting has been confirmed on the multifunction screen, the hands
will turn to synchronise with the screen, and each time the ignition is
switched on.

MONIT

ORING

RCZ_en_Chap01_controle-de-marche_ed01-2015

display of information

F Cycle through the information with successive short presses on this

button.

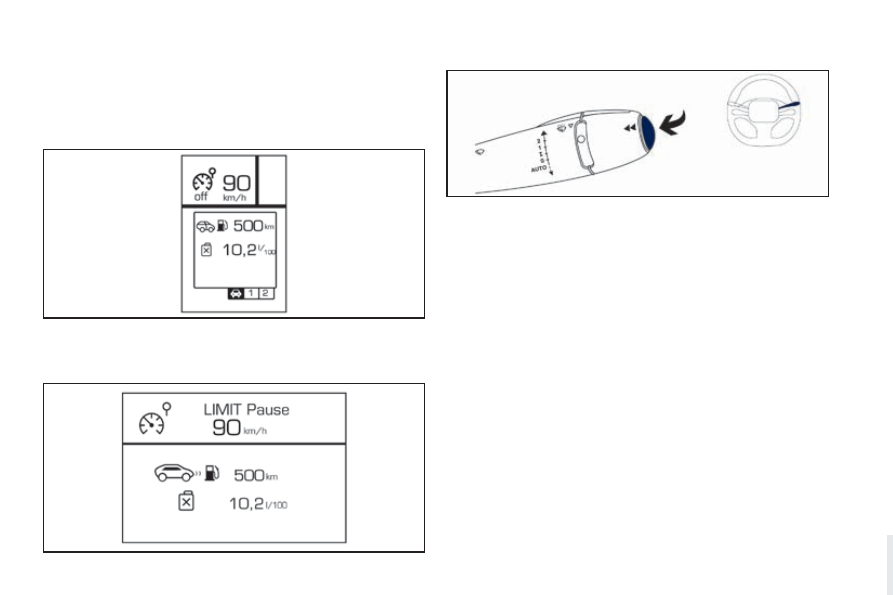

TRIP COMPUTER

CENTRAL INSTRUMENT PANEL SCREEN

CENTRAL INSTRUMENT PANEL SCREEN WITH
NAVIGATION

System that gives you information on the current journey (range, fuel
consumption…).

RCZ_en_Chap01_controle-de-marche_ed01-2015

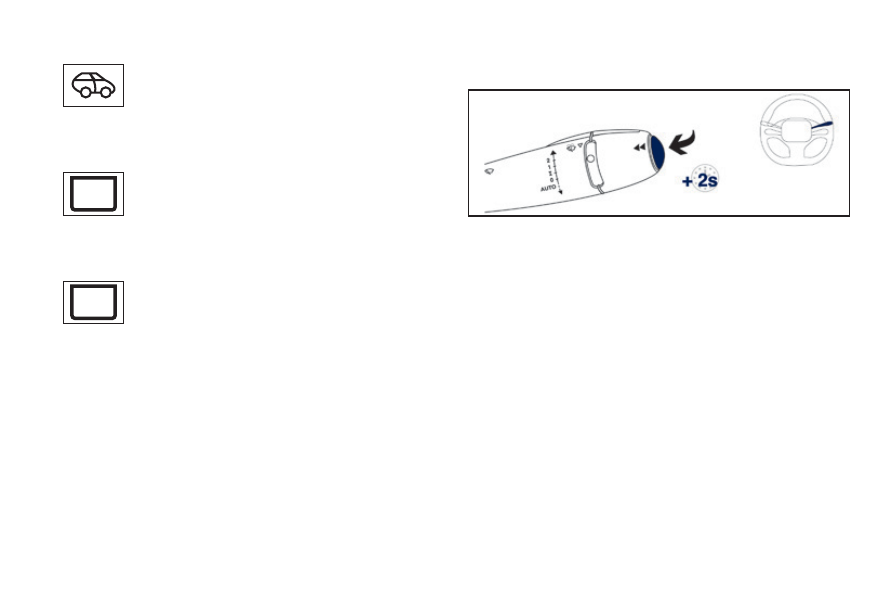

The trip computer can display:

The current information tab, for the trip in use, with:

● the range,
● the current fuel consumption.

The trip "1" tab with:

● the distance travelled,
● the average fuel consumption,
● the average speed.

The trip "2" tab with:

● the distance travelled,
● the average fuel consumption,
● the average speed.

F Pressing the button again takes you to a black screen.

A further press returns you to the normal display.

Trip reset

When the trip required is displayed, press this button.

Trips "1" and "2" are independent but their use is identical.

For example, trip "1"

can be used for daily figures, and trip "2" for

monthly figures.

MONIT

ORING

RCZ_en_Chap01_controle-de-marche_ed01-2015

TRIP COMPUTER, A FEW dEFINITIONS

Range

(miles or km)

The distance which can still be travelled with the fuel

remaining in the tank (related to the average fuel consumption over the
last few miles (kilometres) travelled).

This value may vary following a change in the style of driving
or the relief, resulting in a significant change in the current fuel
consumption.

If dashes are displayed continuously while driving in place of the
digits, contact a PEUGEOT dealer or a qualified workshop.

This function is only displayed from 20 mph (30 km/h).

When the range falls below 20 miles (30 km), dashes are displayed.
After filling with at least 5 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (100 km).

Current fuel consumption

(mpg or l/100 km or km/l)

Calculated over the last few seconds.

Average fuel consumption

(mpg or l/100 km or km/l)

Calculated since the last trip computer reset.

Average speed

(mph or km/h)

Calculated since the last trip computer reset.

distance travelled

(miles or km)

Calculated since the last trip computer reset.

RCZ_en_Chap01_controle-de-marche_ed01-2015

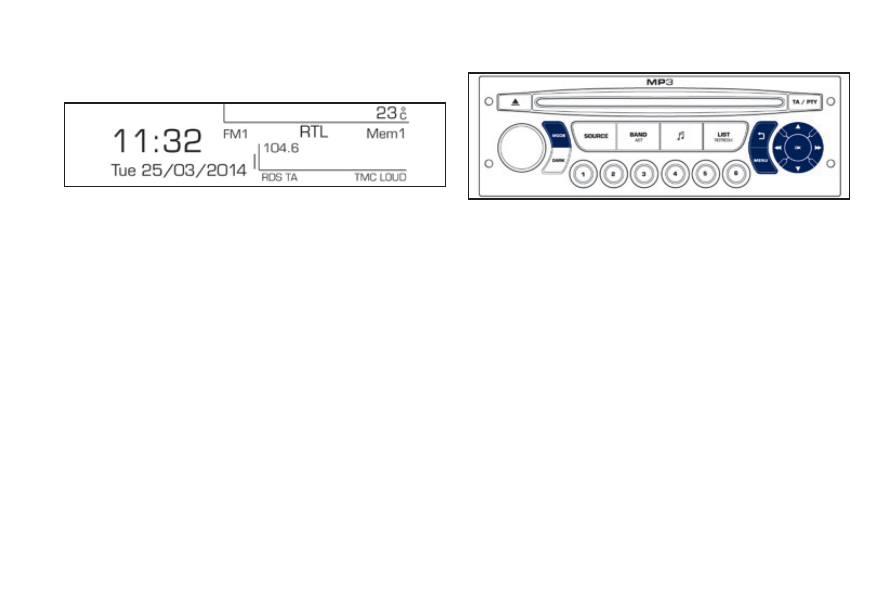

MONOCHROME SCREEN C (WITH
PEUGEOT CONNECT SOUND (RD5))

dISPLAYS IN THE SCREEN

Displays according to context:

- time,

- date,
- ambient temperature (the value displayed flashes if there is a risk of

ice),

visual parking assistance,

audio functions,

alert messages,

- the display and vehicle equipment settings menus.

CONTROLS

From the control panel of your PEUGEOT Connect Sound (RD5), you
can:
F press the "MENU" button for access to the main menu,
F press the "5" or "6" buttons to scroll through the items on the

screen,

F press the "MOdE" button to change the permanent application

(audio source, telephone...),

F press the "7" or "8" buttons to change a setting value,
F press the "OK"

button to confirm,

or
F press the "Back" button to abandon the operation in progress.

Content .. 1 2 3 ..
