Peugeot Partner (2017 year). Instruction

159

QUICK HELP

Partner-2-VU_en_Chap08_Aide-rapide_ed02-2016

Changing a fuse

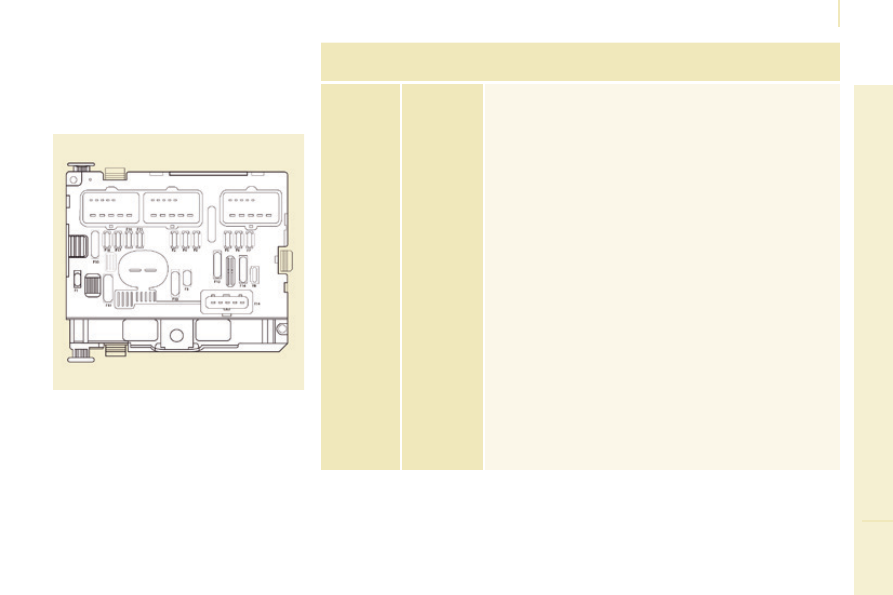

Fuses under the bonnet

After opening the bonnet, unclip and tilt
the box to gain access to the fuses.

Fuses

Amperes

Allocation

Engine management

Horn

Front and rear screenwash pump

LED

Engine components

Steering wheel angle sensor, DSC

Brake switch, clutch switch

Starter motor

Headlamp beam motor, parc management unit

Engine components

Not used

Wipers

Built-in systems interface

Pump

Right-hand main beam headlamp

Left-hand main beam headlamp

Right-hand dipped beam headlamp

Left-hand dipped beam headlamp

160

Partner-2-VU_en_Chap08_Aide-rapide_ed02-2016

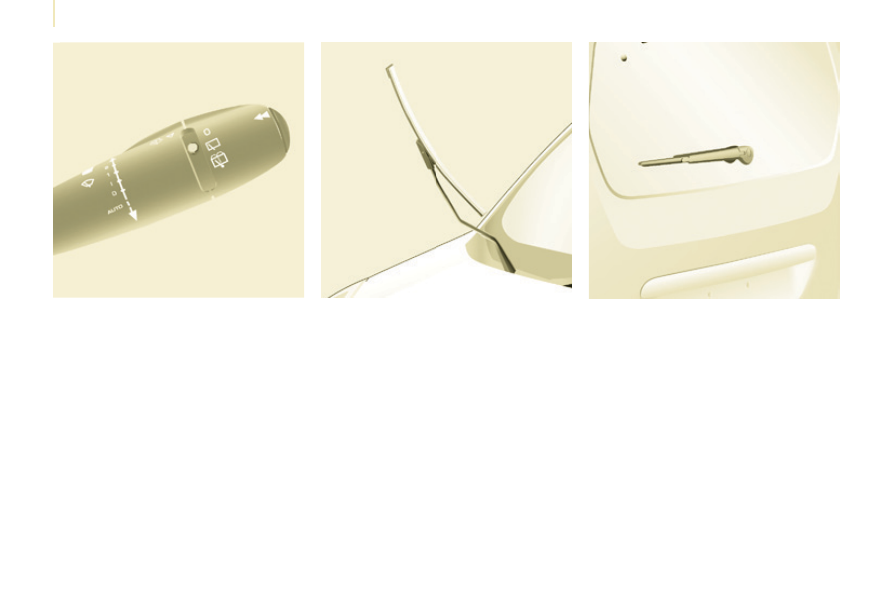

Changing a wiper blade

Placing the windscreen wiper
blades in the special position

Changing a front wiper blade

Changing the rear wiper blade

CHANGING A WIPER BLADE

Within a minute after switching off
the ignition, press the wiper stalk
downwards to position the wiper
blades along the windscreen pillars
(special position).

Lift the wiper arm.

Unclip the blade and remove it.

Fit the new blade.

Push back the wiper arm.

To return the windscreen wipers to
their normal position, switch on the
ignition and operate the wiper stalk.

Lift the wiper arm, then unclip the
blade and remove it.

Fit the new blade and push back
the wiper arm.

161

QUICK HELP

Partner-2-VU_en_Chap08_Aide-rapide_ed02-2016

Having your vehicle towed

Without lifting (4 wheels on the
road)

You should always use a towing arm.

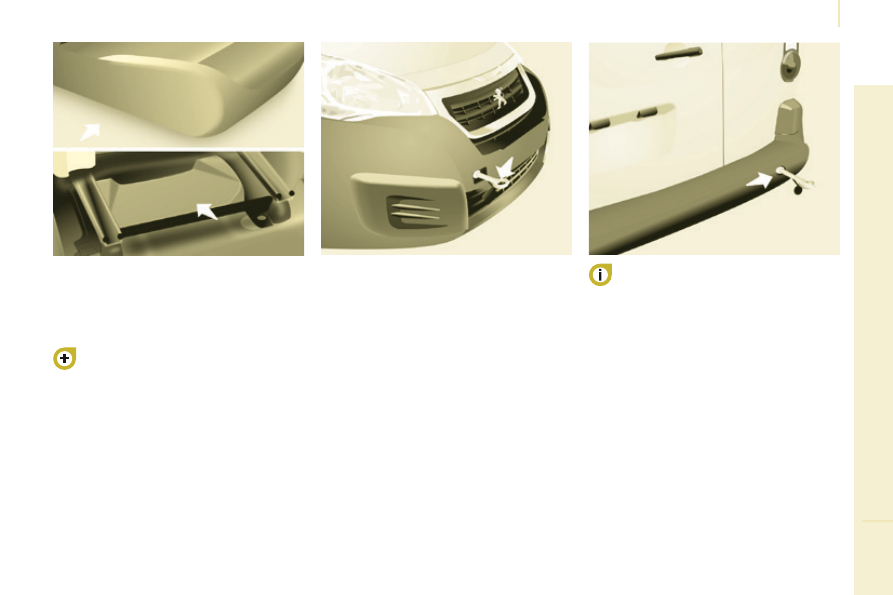

BEING TOWED

From the front

Unclip the cover by pressing the
bottom part.

Fully screw in the removable
towing eye.

From the rear

Unclip the cover using a coin or the

flat part of the towing eye,

Fully screw in the removable
towing eye.

When towing with the engine
switched off, there is no braking or
steering assistance.

Lifting (only 2 wheels on the
road)

It is preferable to raise the vehicle
using professional lifting equipment.

This procedure involves the use of
the towing eye supplied with the tools
for changing a wheel.

Vehicles fitted with a manual

gearbox (Diesel version)
In the case of vehicles fitted with

a manual gearbox, the gear lever
must be in neutral, failure to observe
this special condition may result in
damage to transmission and braking
components and the absence of
braking assistance when the engine is
started again.

Section 8, "Changing a wheel".

165

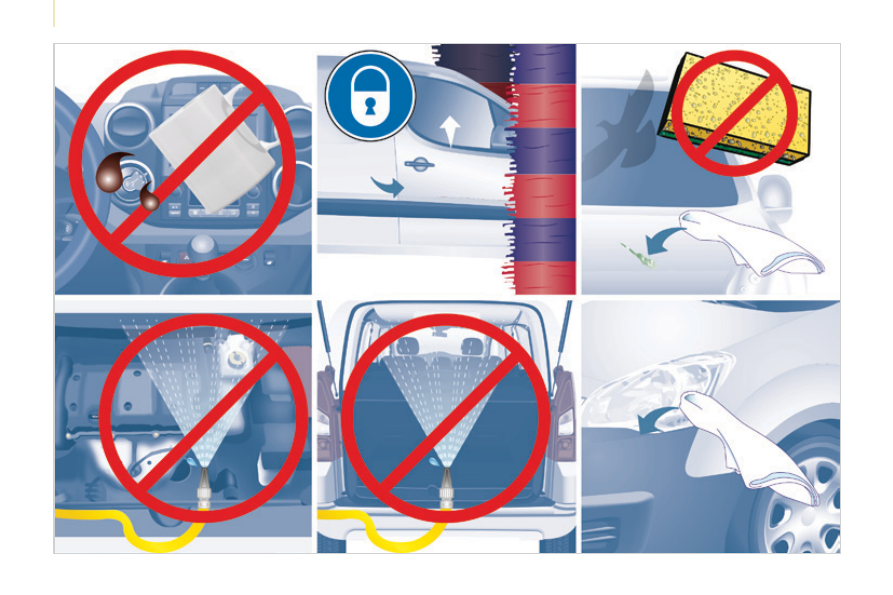

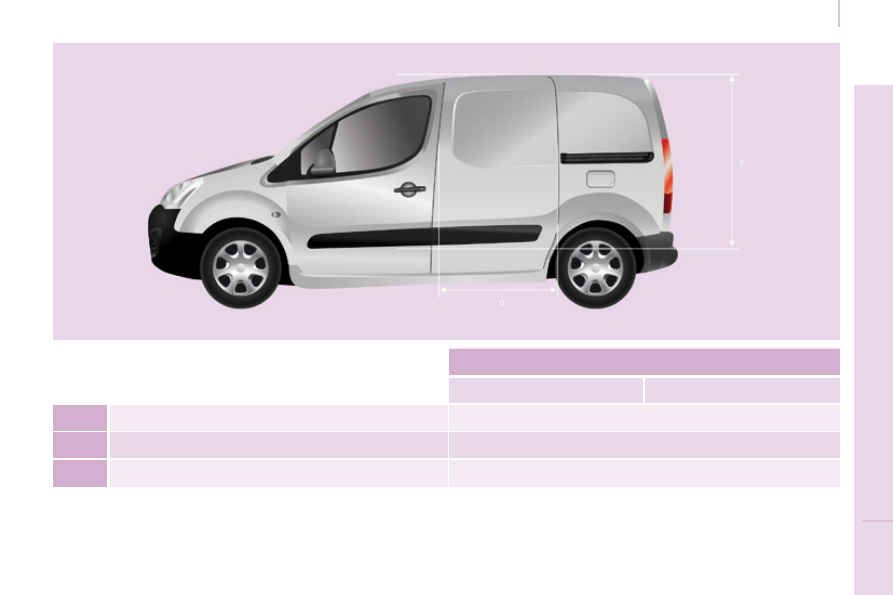

Dimensions

TECHNICAL

Partner-2-VU_en_Chap09_Caract-technique_ed02-2016

Short - L1

Long - L2

625

850

750

Overall length

4380

4628

Overall height

1805-1834

Wheelbase

2728

Front overhang

925

Rear overhang

727

975

Width over panels:

without mirrors

1810

with mirrors

2112

Width of front track

1505

Width of rear track

1554

Rear floor load length

1800

2050

Load length with front passenger seat folded

3000

3250

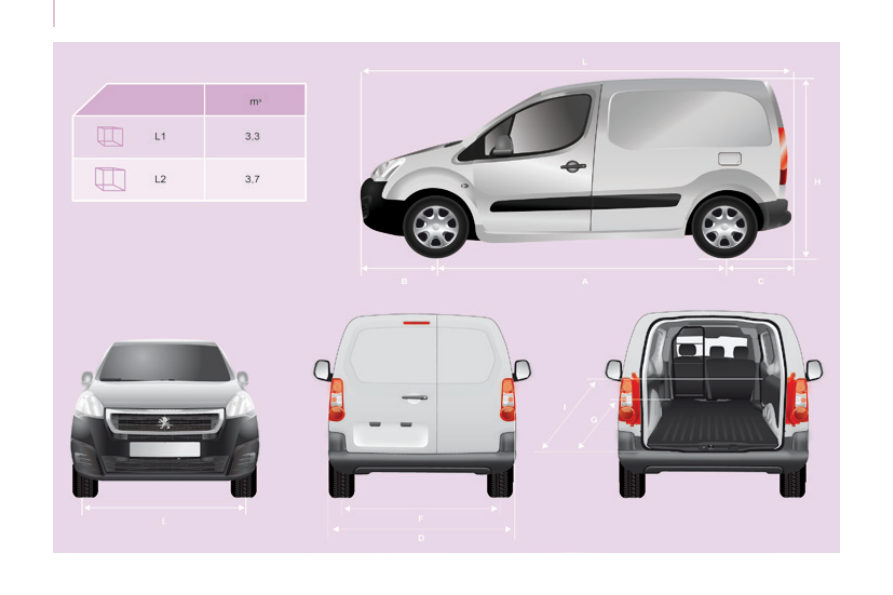

DIMENSIONS

Van (mm)

The vehicle is available in 2 lengths (L1 and L2),
refer to the tables.

166

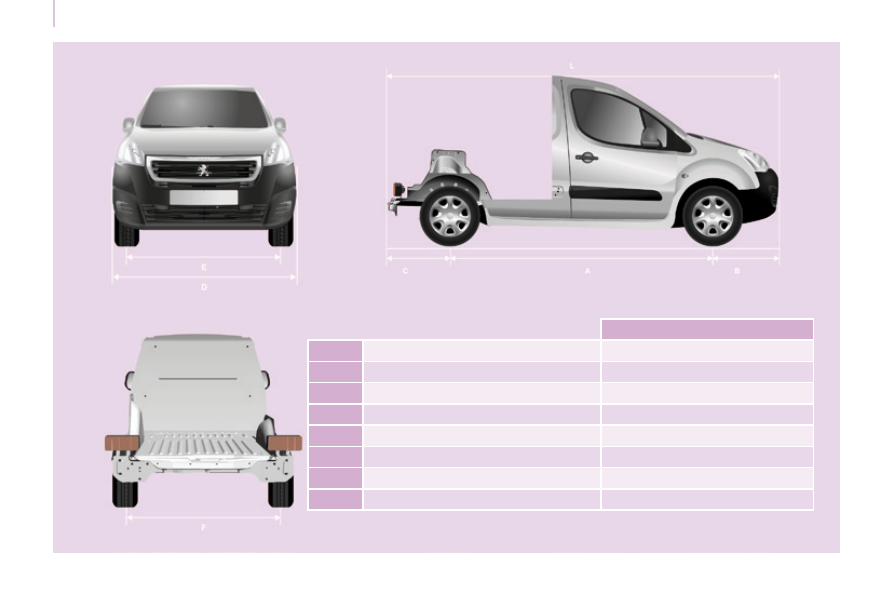

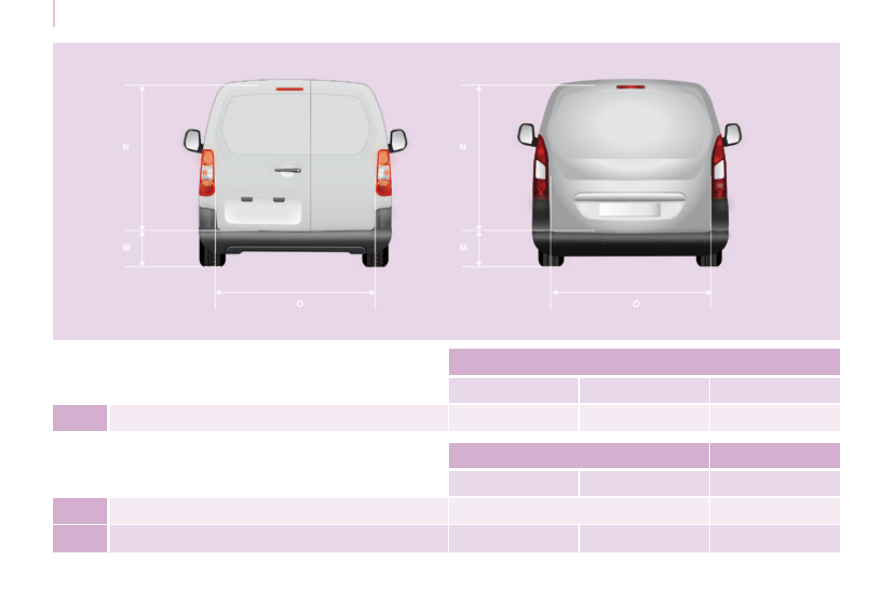

Dimensions

Partner-2-VU_en_Chap09_Caract-technique_ed02-2016

L1 - 625

L1 - 850

Maximum load sill height with 195/65 R15 tyre

584

609

612

Hinged doors

Tailgate

Small

Large

Load aperture height (under panel)

1148

1313

Width

495

543

1582

Rear doors (mm)

167

Dimensions

TECHNICAL

Partner-2-VU_en_Chap09_Caract-technique_ed02-2016

Load height

1100

Load width

650

Height under raised tailgate

1892

Sliding side door (mm)

168

Dimensions

Partner-2-VU_en_Chap09_Caract-technique_ed02-2016

Overall length

4237

Overall height

1821-1822

Wheelbase

2728

Front overhang

925

Rear overhang

584

Width over panels (without mirrors)

1810

Width of front track

1505

Width of rear track

1554

Floor cab (mm)

169

TECHNICAL

Partner-2-VU_en_Chap09_Caract-technique_ed02-2016

Weights

WEIGHTS AND TOWED LOADS

These values, expressed in kg, can be
found on the manufacturer's VIN plate
or label.
The maximum weights and towed
loads for your vehicle can be found on

the vehicle's registration certificate.

The recommended nose weight is
the downward force on the towball
(removable with or without tools).

In each country, it is imperative that
the maximum towed loads authorised
by local legislation are complied

with. To find out your vehicle's towing

capacities and its gross train weight,
consult a PEUGEOT dealer.

The kerb weight is equal to the weight

without load + driver (75 kg) + fuel tank

filled to 90%.
The GTW and towed load values
indicated are valid up to a maximum
altitude of 1000 metres. The value of
the towed load mentioned must be

reduced by 10 % for each additional

1000 metres.
With load transfer, the braked trailer
weight can be increased, on condition
that the equivalent of this load is
removed from the vehicle so that the
GTW is not exceeded.

High ambient temperatures
may result in a reduction in the
performance of the vehicle in

order to protect the engine. When
the ambient temperature is higher
than 37 °C, limit the towed weight.

The location of the manufacturer's
plate is given in chapter 9,

"Identification markings" section.

ENGINE CHARACTERISTICS

The engine characteristics (capacity,
maximum power, maximum power
speed, fuel, CO

emissions...) for your

vehicle are given in the registration

certificate.
These characteristics correspond
to the values type-approved
on a test bed, under conditions

defined in European legislation

(Directive 1999/99/EC).
For more information, refer to the
manufacturer's website or sales
brochure for the model. Contact

a PEUGEOT dealer or a qualified

workshop.

GVW: gross vehicle weight, the
maximum authorised weight.
GTW: gross train weight, the maximum
weight for vehicle plus trailer.

Towing with a lightly loaded
vehicle can adversely affect road
holding.

Towing a trailer increases braking
distances.
When towing, the maximum permitted
speed is reduced (comply with the
legislation in force in the country).

170

Partner-2-VU_en_Chap09_Caract-technique_ed02-2016

Identification markings

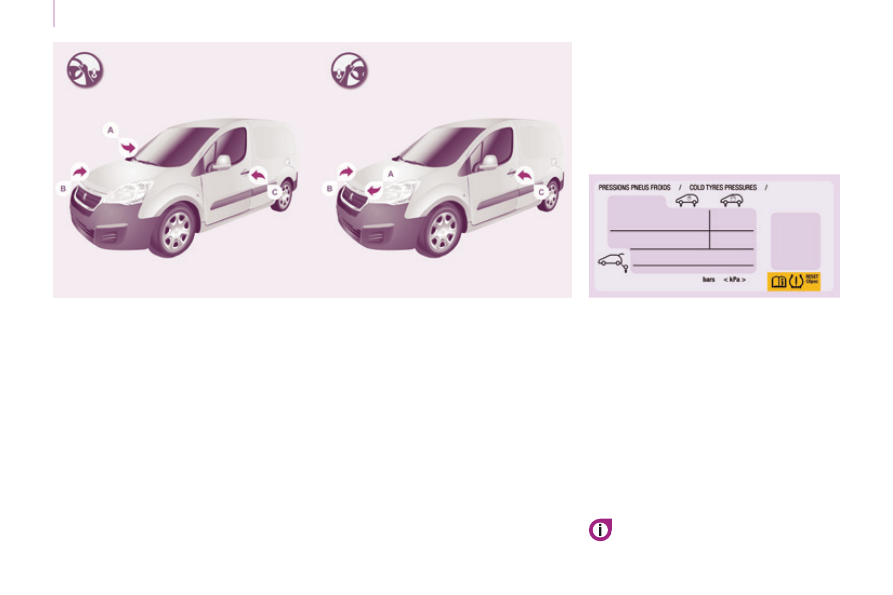

IDENTIFICATION MARKINGS

A. Manufacturer's plate.

C. Tyres and paint colour code.

B. Serial number.

This is located on the right-hand
middle pillar.
1 - VF Type serial number.
2 - Gross vehicle weight (GVW).
3 - Gross train weight (GTW).
4.1 - Maximum weight on front axle.
4.2 - Maximum weight on rear axle.

This is engraved on the front right
wheelarch.

The label C, on the front door gives:
-

the wheel and tyre sizes,

the tyre pressures, laden and
unladen

the tyre pressure for the spare
wheel,

the paint colour code.

The tyre pressures should be
checked when the tyres are cold,
at least once a month.

Audio and Telematics

171

TECHNOLOGY

BOARD

Partner-2-VU_en_Chap10a_SMEGplus_ed02-2016

7-inch touch screen

GPS satellite navigation - Multimedia audio - Bluetooth

telephone

Contents

First steps

172

Steering mounted controls

174

Menus

175

Navigation 176
Navigation - Guidance

Radio 196
DAB (Digital Audio Broadcasting) radio

198

Media 200
Settings 202
Connected services

Telephone 216
Frequently asked questions

224

The system is protected in such a way that it will only operate in
your vehicle.

As a safety measure, the driver should only carry out operations
which require prolonged attention while the vehicle is stationary.
The display of an energy economy mode message signals that
electrical systems operating are going into standby.
Refer to the energy economy mode section.

Audio and Telematics

172

Partner-2-VU_en_Chap10a_SMEGplus_ed02-2016

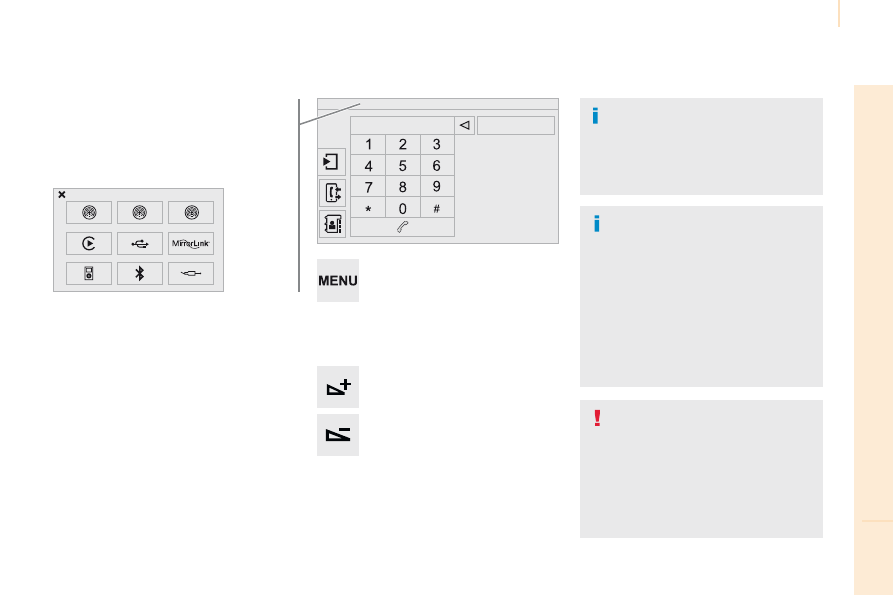

First steps

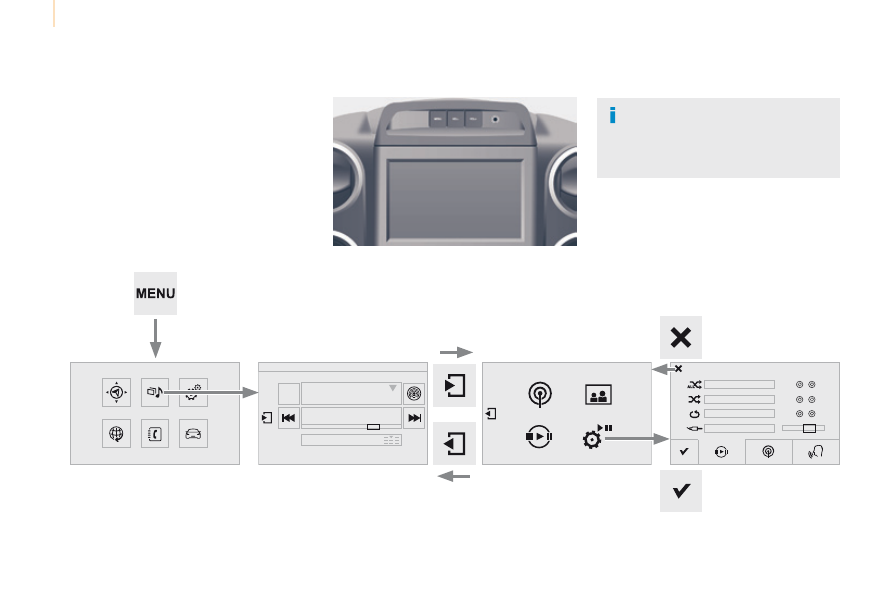

Use the buttons above the touch screen for
access to the menu carousel, then press the
virtual buttons in the touch screen.
Each menu is displayed in one or two pages
(primary page and secondary page).

Secondary page

Primary page

In very hot conditions, the system may
go into stand-by (screen and sound
completely off) for a minimum period of
5 minutes.

Audio and Telematics

173

TECHNOLOGY

BOARD

Partner-2-VU_en_Chap10a_SMEGplus_ed02-2016

Volume adjustment (each source is
independent, including traffic announcements
(TA) and navigation instructions).

Mute the sound by pressing simultaneously on
the volume increase and reduce buttons.
Unmute the sound by pressing one of the two
volume buttons.

Press Menu to display the menu
carousel.

Increase volume.

Reduce volume.

Selecting the audio source (depending on
version):
-

"FM" / "DAB"* / "AM"* stations.

"USB" memory stick.

Smartphone via MirrorLink

or CarPlay

Telephone connected by Bluetooth

* and

Bluetooth

audio streaming*.

Media player connected to the auxiliary
socket (jack, cable not supplied).

* Depending on equipment.

Short-cuts: using the touch buttons in the upper
band of the touch screen, it is possible to go
directly to the selection of the audio source or
the list of stations (or titles, depending on the
source).

The screen is of the "resistive" type, it
is necessary to press firmly, particularly
for "flick" gestures (scrolling through a
list, moving the map...). A simple wipe
will not be enough. Pressing with more
than one finger is not recognised.
The screen can be used when wearing
gloves. This technology allows use at
all temperatures.

In very high temperatures, the volume
may be limited to protect the system.
The return to normal takes place when
the temperature in the passenger
compartment drops.

To clean the screen, use a soft
non-abrasive cloth (spectacles cloth)
without any additional product.
Do not use pointed objects on the
screen.
Do not touch the screen with wet
hands.

Audio and Telematics

174

Partner-2-VU_en_Chap10a_SMEGplus_ed02-2016

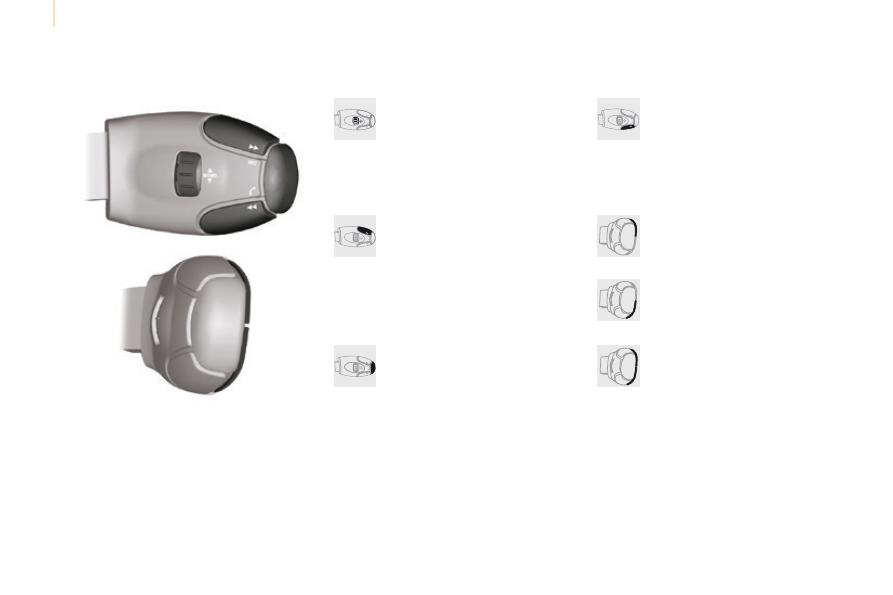

Steering mounted controls

Radio: select the previous/next
preset station.
Media: select a genre / artist / folder
from the list.
Select the previous/next entry in a
menu.

Decrease volume.

Radio: automatic search for a higher
frequency.
Media: Select next track.
Media, press and hold: fast forward.
Jump in the list.

Mute: cut the sound by pressing
the volume increase and decrease
buttons simultaneously.
Restore the sound by pressing one of
the two volume buttons.

Radio: automatic search for a lower
frequency.
Media: select previous track.
Media, press and hold: fast back.
Jump in the list.

Change the audio source.
Confirm a selection.
Call/end call on the telephone.
Press for more than 2 seconds:
access to the telephone menu.

Increase volume.
