Steering mounted controls

EASE OF US

E and

COMFORT

Partner-2-VU_en_Chap04_Ergonomie_ed02-2016

Changing the
programmed
speed

Switching the system off

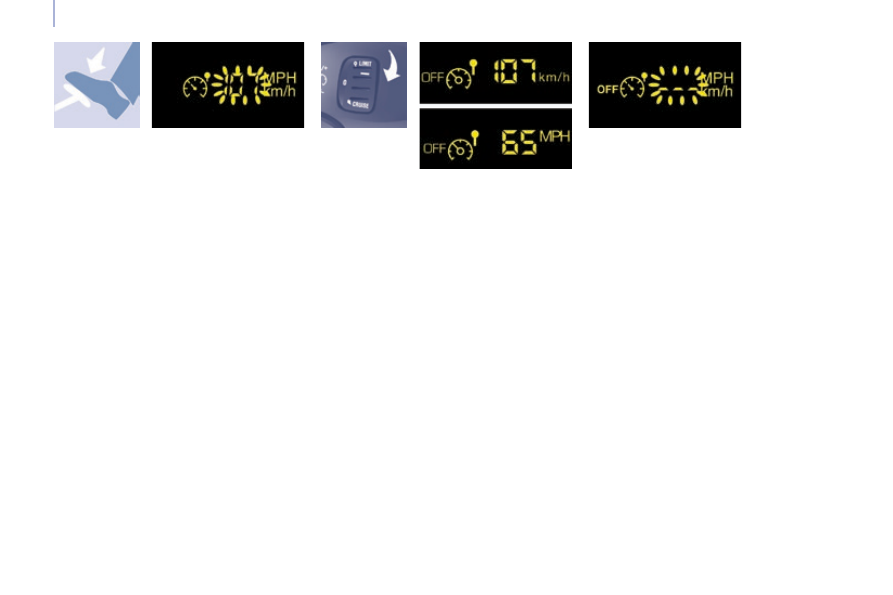

Operating fault

Cancelling the programmed
speed setting

When the vehicle becomes stationary,
after switching off the ignition, the
system no longer memorises a speed.

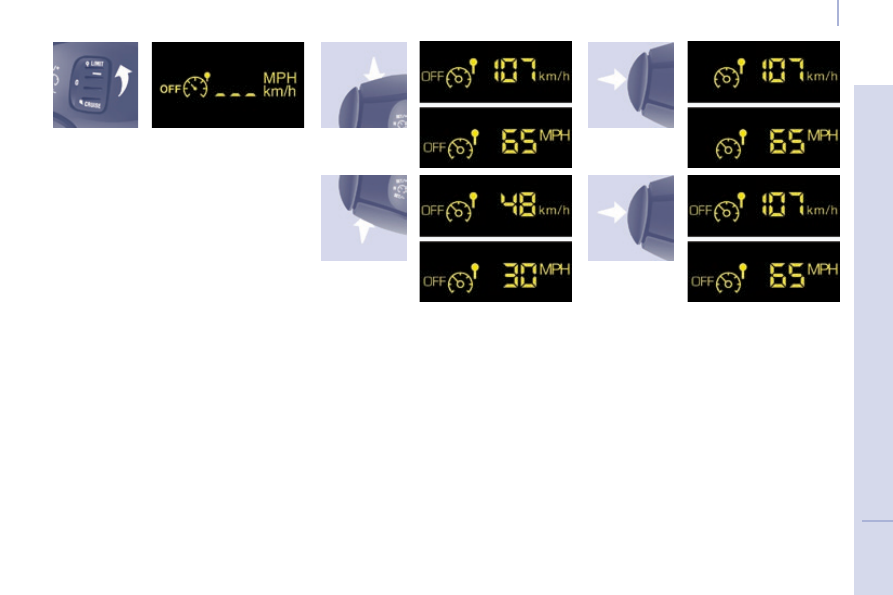

There are two methods of memorising
a speed higher than the previous one:

Place the dial in position 0 or
switch off the ignition to switch
everything off.

Good practice

Without using the accelerator
-

Press the SET + button.

A brief press increases the speed by 1 mph (km/h).
A maintained press increases the speed

in steps of 5 mph (km/h).

Using the accelerator
-

Exceed the memorised speed until
the speed required is reached,

Press the SET + or SET - button.

To memorise a speed lower than the previous one:
-

Press the SET - button.

A brief press decreases the speed by 1 mph (km/h).
A maintained press decreases the speed in steps of

5 mph (km/h).

The programmed speed setting is
cleared and replaced by three dashes.
Contact a PEUGEOT dealer or a

qualified workshop to have the system

checked.

When changing the programmed
speed setting by means of a
maintained press, pay attention as
the speed can increase or decrease
rapidly.
Do not use the cruise control on

slippery roads or in heavy traffic.
In the event of a steep slope, the cruise
control cannot prevent the vehicle from
exceeding the programmed speed
setting.
In any event, the cruise control cannot
replace the need to observe the speed
limits and the need for vigilance on the
part of the driver.
It is advisable to keep your feet near
the pedals.
To avoid any jamming under the
pedals:
- ensure that the mat and its fixings

on the floor are positioned correctly,

never place one mat on top of
another.

Steering mounted controls

Partner-2-VU_en_Chap04_Ergonomie_ed02-2016

The speed of the vehicle responds to
the pressure of the driver's foot, up
to the the accelerator pedal's point of
resistance, which indicates that the
programmed speed has been reached.
However, pressing the pedal beyond

this point of resistance to the floor

allows the programmed speed to be
exceeded. To resume use of the limiter,
simply reduce the pressure on the
accelerator pedal gradually and return
to a speed below that programmed.
Adjustments can be carried out
when stationary, with the engine
running, or with the vehicle moving.

This speed limiter shows the function
selection status in the instrument panel
and displays the programmed speed:

SPEED LIMITER

"LIMIT"

Function selected,
displaying of the
"Speed Limiter"
symbol.

Function off,
last programmed
speed - OFF.

Function on.

Vehicle speed above,
the programmed
speed setting is

displayed flashing.

Operating fault
detected,
OFF - the dashes

flash.

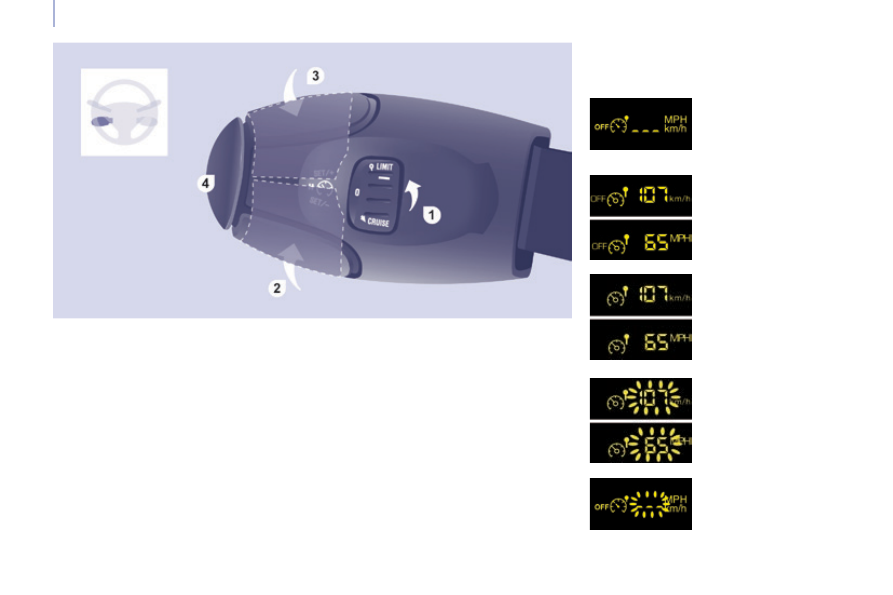

1. Limiter mode On / Off.
2. Reduce programmed speed

setting.

3. Increase programmed speed

setting.

4. Speed limiter On / Pause.

"This is the selected speed which the
driver does not wish to exceed".
This selection is made with the engine
running while stationary or with the vehicle
moving. The minimum speed which can
be programmed is 20 mph (30 km/h).

Steering mounted controls

EASE OF US

E and

COMFORT

Partner-2-VU_en_Chap04_Ergonomie_ed02-2016

Selecting the function

Programming a speed setting

On / Off

To memorise a speed higher than the previous one:
-

Press the SET + button.

A brief press increases the speed by 1 mph (km/h).
A maintained press increases the speed in steps

of 5 mph (km/h).

To memorise a speed lower than the previous one.
-

Press the SET - button.

A brief press decreases the speed by 1 mph (km/h).
A maintained press decreases the speed in steps

of 5 mph (km/h).

Place the switch in the LIMIT
position. The limiter is selected
but is not yet active. The screen
indicates the last programmed
speed setting.

A speed can be programmed without
activating the limiter but with the
engine running.

Pressing this button once activates
the limiter, pressing the button again
deactivates it (OFF).

Steering mounted controls

Partner-2-VU_en_Chap04_Ergonomie_ed02-2016

Switching the function off

Operating fault

The programmed speed is cleared
then replaced by three dashes.
Contact a PEUGEOT dealer or a

qualified workshop to have the system

checked.

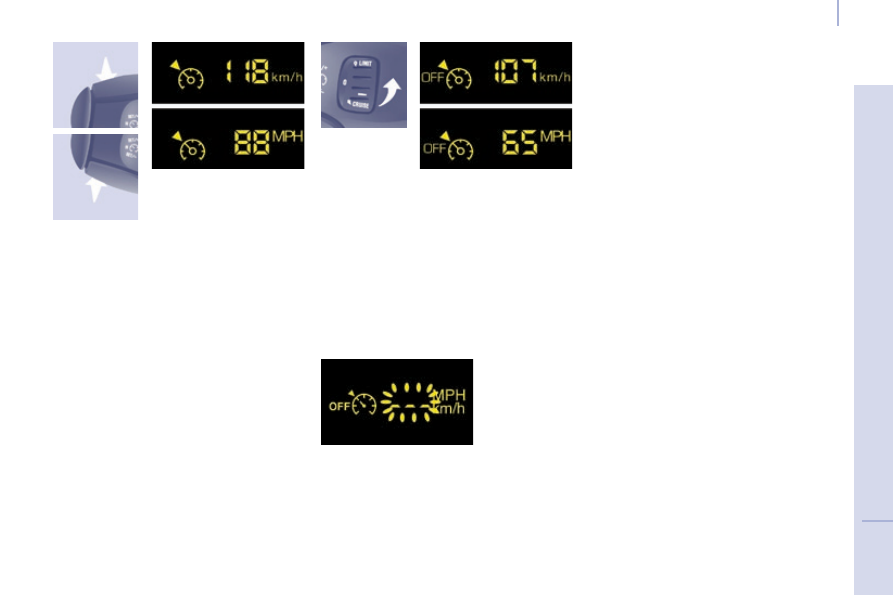

Flashing of the speed setting

Good practice
In any event, the speed limiter cannot
replace the need to observe speed
limits, nor can it replace the need for
vigilance on the part of the driver.
Always pay attention to the profile

of the road and sharp acceleration
and stay in complete control of your
vehicle.
To avoid any jamming under the
pedals:
- ensure that the mat and its fixings

on the floor are positioned correctly,

never place one mat on top of
another.

Exceeding the programmed
speed

Pressing the accelerator pedal in order
to exceed the programmed speed
will have no effect unless you press
the pedal

firmly beyond the point of

resistance.
The limiter is deactivated temporarily

and the programmed speed flashes

accompanied by an audible signal.
To return to the limiter function, reduce
your speed to below the programmed
speed.

The speed setting flashes:
-

following forcing of the accelerator
point of resistance,

when the limiter cannot prevent an
increase in the vehicle speed due

to the profile of the road or on a

steep descent,

in the event of sharp acceleration.

Place the switch in position 0 or
switch off the ignition to switch the
system off.

The last programmed speed remains in
the memory.

EASE OF US

E and

COMFORT

Partner-2-VU_en_Chap04_Ergonomie_ed02-2016

Ventilation

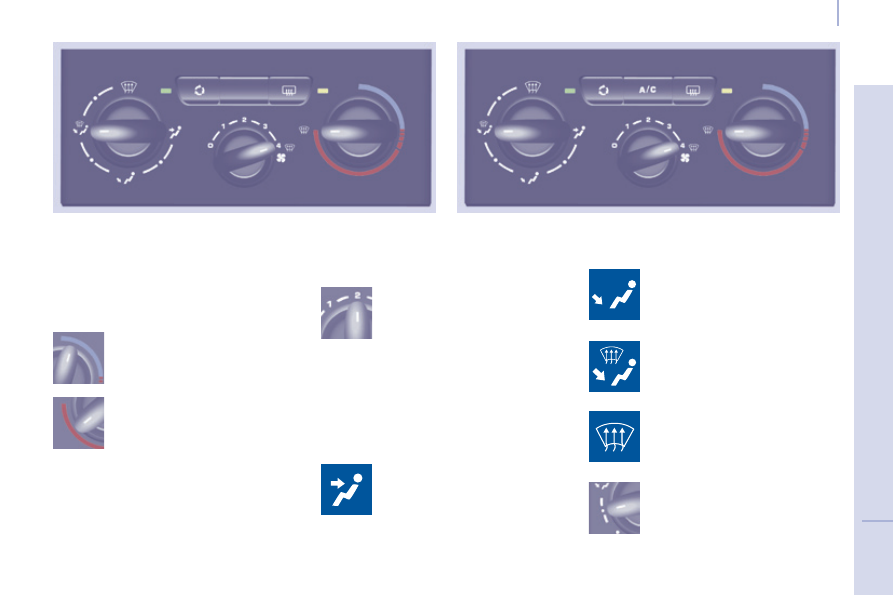

VENTILATION

the side vents and the central
vents,

Air flow

the footwells,

the windscreen and the
footwells,

the windscreen.

The air distribution can be
modulated by placing the
control in the intermediate

positions, marked "●".

Temperature

Air distribution

The air supply distribution is
determined by the following symbols:

in the red zone, provides
heating of the passenger
compartment.

in the blue zone, provides
ambient air,

The speed of the blown air at
the vents varies from 1 to the
fastest 4. Position 0 switches
it off.

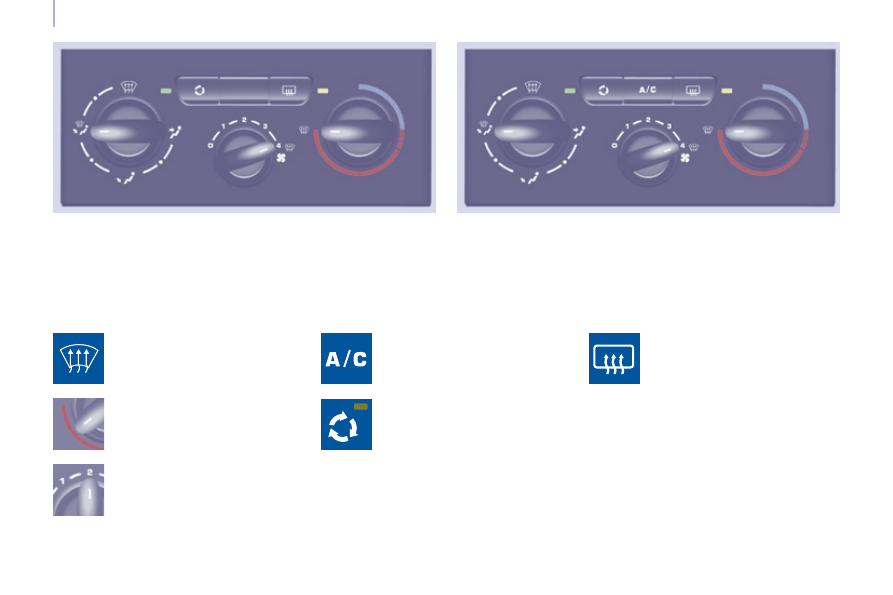

Heating

Manual air conditioning

Adjust this control in order to attain the
desired comfort level.

Control positioned:

Partner-2-VU_en_Chap04_Ergonomie_ed02-2016

Ventilation

Intake of exterior air

Recirculation of interior air

Air conditioning A/C

The LED in the button is
off. This is the preferred
operating position.

Pressing the button starts
the air conditioning system,
the LED is on. Pressing the
button again switches the
function off and the LED
goes off.

The air conditioning does not operate if
the fan speed is set to 0.

The air conditioning can only operate
with the engine running.

The LED in the button is on.
Recirculation temporarily
prevents exterior odours
and smoke from entering the
passenger compartment.

Used with the setting of the fan speed
(from 1 to 4), recirculation enables you
to attain the desired comfort level more
quickly with both hot or cold settings.
This position should only be temporary.
When your desired comfort level has
been reached, return to the intake
of exterior air position to permit
renewal of the air in the passenger
compartment and avoid misting. This is
the preferred operating mode.

EASE OF US

E and

COMFORT

Partner-2-VU_en_Chap04_Ergonomie_ed02-2016

Ventilation

Good practice

For maximum cooling or heating of the
passenger compartment, it is possible

to exceed the value 15 by turning until

LO is displayed or the value 27 by
turning until HI is displayed.
On entering the vehicle, the inside
temperature may be much colder (or
warmer) than is comfortable. There is
no advantage in changing the value
displayed in order to quickly reach the
level of comfort required. The system
will use its maximum performance to
reach the comfort value set.

DIGITAL AIR CONDITIONING

Automatic operation

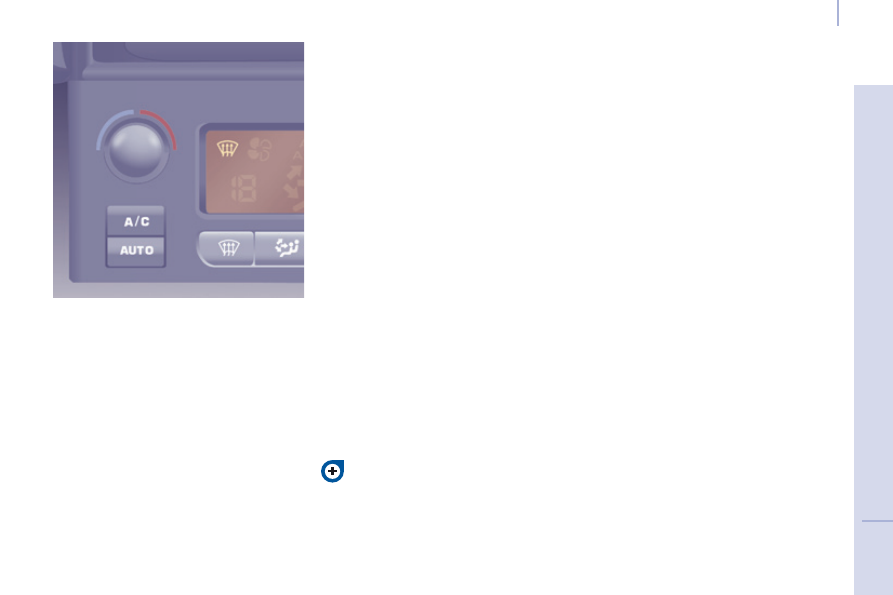

AUTO comfort programme
This is the normal air conditioning
system operating mode.

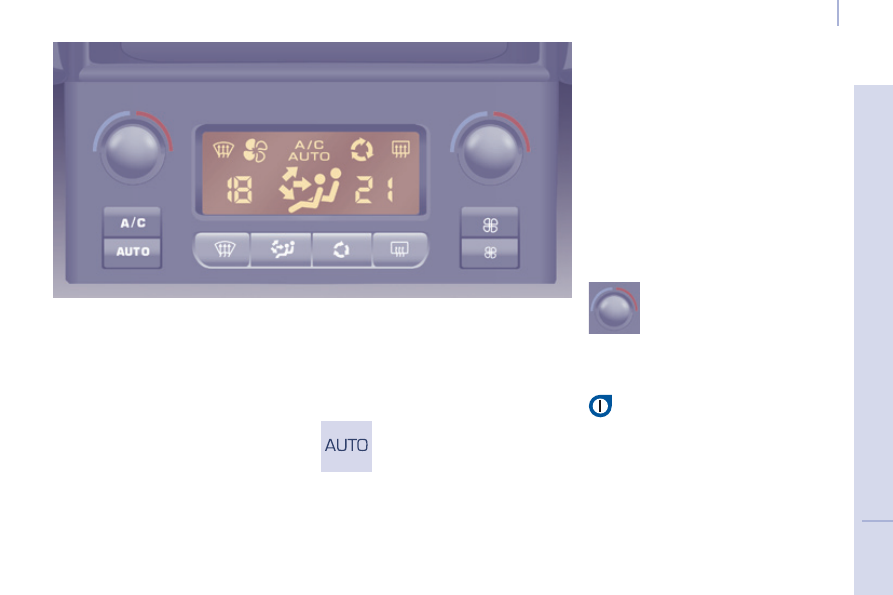

Driver or passenger side comfort
value
The value indicated in the screen
corresponds to a level of comfort and
not a temperature in degrees Celsius
or Fahrenheit.

Turn this control to the left
or to the right to decrease or
increase the value. A setting
around the value 21 provides
optimum comfort. However,

depending on your requirements, a
setting between 18 and 24 is usual.

Do not cover the sunshine sensor
located on the dashboard.

Press this button, the AUTO
symbol is displayed.
The system controls the

distribution, the flow and the

intake of air to guarantee

comfort and a sufficient circulation

of air in the passenger compartment
according to the comfort value set. No
further action on your part is required.

Air flow will increase gradually when

the engine is cold, to prevent excessive
distribution of cold air.
For your comfort, the settings are
stored when the ignition is switched off
and are reinstated the next time the
vehicle is started.
The automatic function will no longer
be maintained if you change a setting
manually (AUTO is cleared).

SEPARATE SETTINGS FOR DRIVER AND PASSENGER

Partner-2-VU_en_Chap04_Ergonomie_ed02-2016

Ventilation

Manual operation

You can, according to your
requirements, make a different selection
from that offered by the system by
changing a setting. The other functions
will still be controlled automatically.
Pressing the AUTO button restores fully
automatic operation.

Air distribution
Pressing this button several
times in succession directs

the air flow towards:

the windscreen,

the windscreen and footwells,

the footwells,

the side vents, central vents and
footwells,

the side vents and central vents.

Air flow
Press the small fan button to

reduce the flow or the large

fan button to increase the

flow.

On the display, the blades of the fan fill

when the flow is increased.

Switching the air
conditioning On / Off
Press this button, the A/C
symbol is displayed and the
air conditioning is activated.

Deactivating the system
Press the air flow small fan

button until the fan symbol
disappears from the display.

This action deactivates all of the
system's functions, with the exception
of the air recirculation and rear screen

demisting (if fitted on your vehicle).

Your comfort setting is no longer
maintained and is switched off.

Intake of exterior air /
Recirculation of interior air
Press this button to
recirculate the interior air.
The recirculation symbol is
displayed.

For your comfort, do not
deactivate the system for
long periods. Pressing the
large fan button or the AUTO
button reactivates the system

with the values set before it was
deactivated.

Recirculation prevents exterior
odours and smoke from entering
the passenger compartment. Avoid
prolonged operation in interior
air recirculation mode (risk of
condensation, odour and humidity).
Pressing this button again activates the
intake of exterior air.

Pressing this button again switches off
the air conditioning.

The ventilation outlet, located
in the glove box, diffuses cool
air (if the air conditioning is

on) regardless of the reference
temperature requested in the
passenger compartment and
regardless of the exterior temperature.

EASE OF US

E and

COMFORT

Partner-2-VU_en_Chap04_Ergonomie_ed02-2016

Ventilation

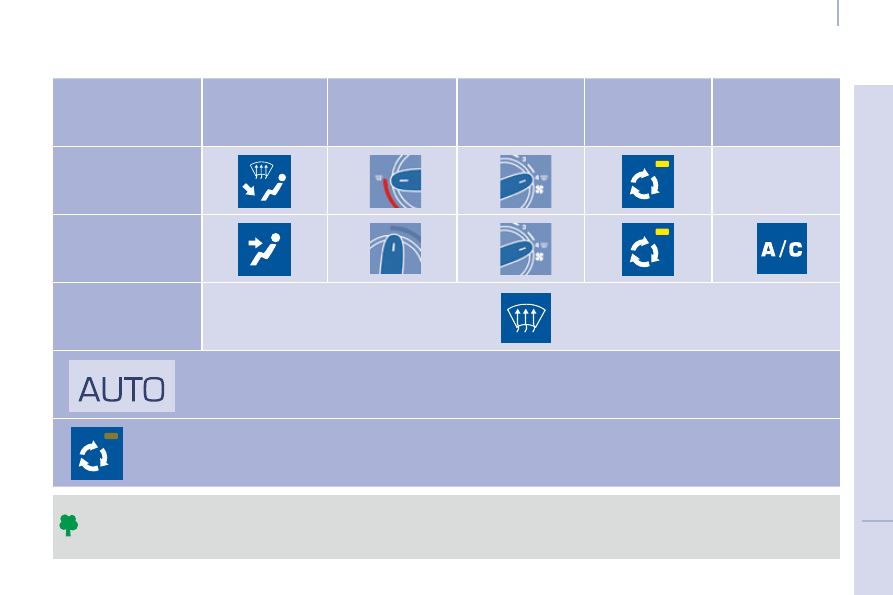

Recommended settings for air conditioning

If I require...

Air distribution

Temperature

Air flow

Air recirculation

A/C

Heating

Cooling

Demisting

Defrosting

With automatic digital air conditioning, operation in

AUTO mode is recommended,

irrespective of the requirement.

Remember to switch it off when the ambient air suits your requirements.

Contains fluorinated greenhouse gas R134A.

Depending on version and country of sale, the air conditioning system contains fluorinated greenhouse gas R134A.

Gas capacity 0.450 kg (+/- 0.025 kg), GWP index 1 430 t (equivalent CO

: 0.644 t).

Partner-2-VU_en_Chap04_Ergonomie_ed02-2016

Ventilation

DEMISTING AND DEFROSTING

Manual mode

Turn the control to this
temperature setting.

Increase the air flow setting.

Press the air conditioning button.

Returning to exterior air
intake open permits renewal
of the air in the passenger
compartment (LED off).

Turn the control to this air
distribution setting.

Demisting the rear screen and/
or mirrors

Pressing this button, with the
engine running, activates the
rapid demisting - defrosting of
the rear screen and/or electric
mirrors.

This function switches off:
-

when the button is pressed,

when the engine is switched off,

automatically to prevent excessive
energy consumption.

EASE OF US

E and

COMFORT

Partner-2-VU_en_Chap04_Ergonomie_ed02-2016

Ventilation

DEMISTING AND DEFROSTING

GOOD PRACTICE

Vents

"Leave them open"
For optimum distribution and diffusion
of hot or cool air in the passenger
compartment, there are adjustable
central and side vents which can
be directed sideways (right or left)
or vertically (up or down). For your
comfort while driving, do not close

them and direct the flow of air towards

the windows instead.
Air vents in the footwells and directed
towards the windscreen complete the
equipment.
Do not block the vents located at the
windscreen or the air extractor located
in the boot.

Dust filter, odour filter (activated
carbon)

This filter traps certain dust and limits

odours.
Ensure that this filter is in good

condition and have all of the filter

elements replaced regularly.

Refer to the "Checks" section of
chapter 7.

Air conditioning

In all seasons, the air conditioning
should only be used with the
windows closed. However, if the
interior temperature remains high
after a prolonged period parked in

the sun, first ventilate the passenger

compartment for a few minutes.
Use the AUTO mode as much as
possible as it permits optimised

control of all of the functions: air flow,

passenger compartment comfort
temperature, air distribution, air
intake mode or air recirculation in the
passenger compartment.
Operate the air conditioning system for

5 to 10 minutes, once or twice a month,

to keep it in good working order.
If the system does not produce cold air,
do not use it and contact a PEUGEOT

dealer or a qualified workshop.

Automatic mode: visibility
programme
The comfort programme (AUTO) may

not be sufficient to quickly demist or

defrost the windows (humidity, several
passengers, ice).
In this case, select the visibility
programme. The visibility programme
indicator comes on.
It activates the air conditioning, the air

flow and provides optimum distribution

of the ventilation to the windscreen and
side windows.
It deactivates the air recirculation.

It is normal that the condensation
created by the air conditioning system

results in a flow of water which may

form a puddle under the vehicle when
parked.

Partner-2-VU_en_Chap04_Ergonomie_ed02-2016

Seats

FRONT SEATS

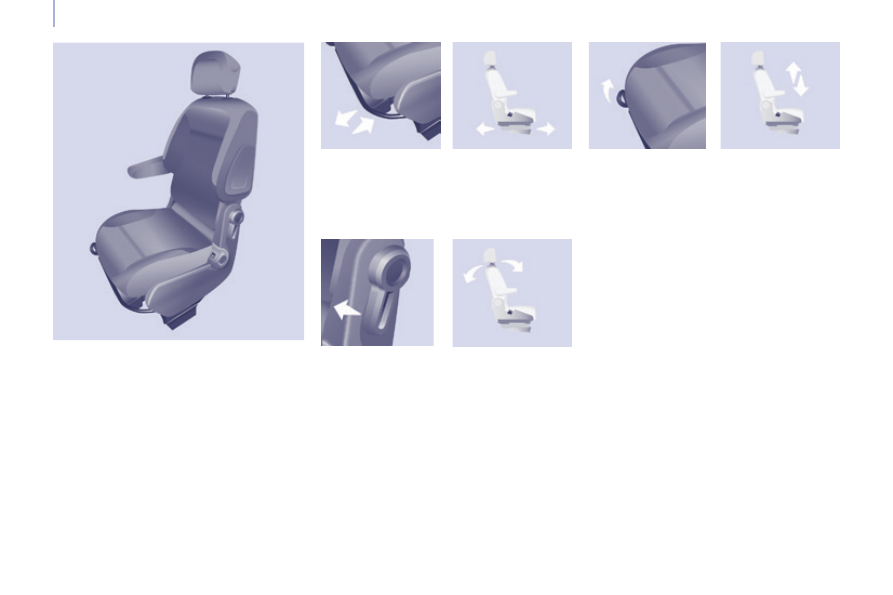

Forwards/backwards

Seat height (driver)

To raise the seat, pull the handle
upwards then take your weight off the
seat cushion.
To lower the seat, pull the handle
upwards then push on the seat
cushion.

Seat backrest angle

With your back pressed against the
seat backrest, move the lever forward
and set the required angle.

Lift the bar and slide the seat forwards
or backwards.

The front seats fitted differ, depending

on the version and configuration of

your vehicle.
Either:
-

a driver's seat and a passenger's
seat, or

an individual driver's seat and a
modular bench.

Depending on the models, the
following adjustments are available:

EASE OF US

E and

COMFORT

Partner-2-VU_en_Chap04_Ergonomie_ed02-2016

Seats

Never drive with the head
restraints removed; they must be
in place and correctly adjusted.

Armrest

Front heated seats
control

Each individual front seat may be fitted

with a control located on the side of the
seat base.
With the 2+1 bench, the driver's seat
control also switches the bench outer
seat heated cushion on or off.
Press to switch on the cushion heating.
Press again to switch it off.

PASSENGER SEAT

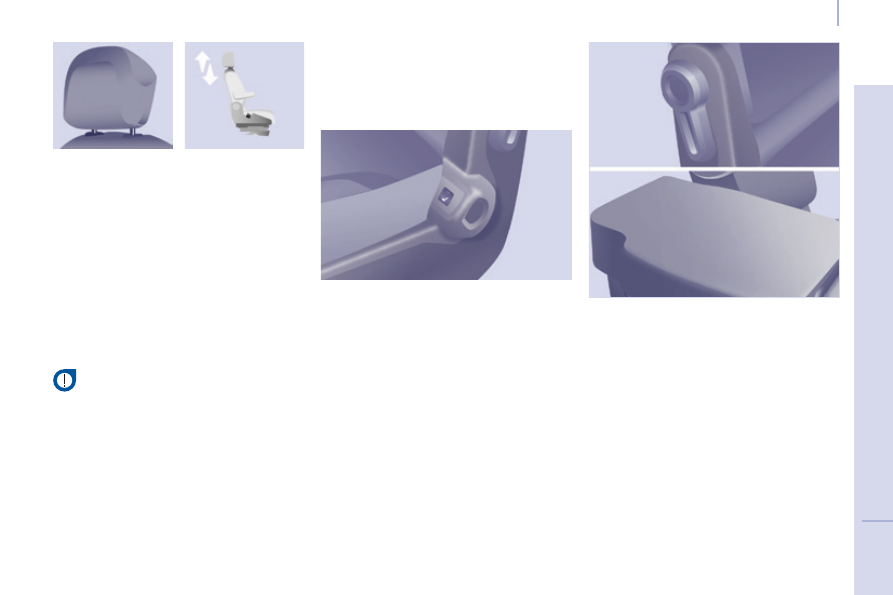

Head restraint height

The backrest of the individual
passenger seat can be folded to allow
very long objects to be carried.

Folding the seat backrest

Pull the lever forwards then tilt the seat
backrest.

To put the armrest back in place, clip it
in the vertical position.
If the vehicle is fitted with the additional

console and an armrest, to fold the
passenger seat to the table position
remove the console or the armrest.

To raise the head restraint, slide it vertically
upwards.
To lower the head restraint, press the
button and slide the head restraint
vertically downwards.
The adjustment is correct when the upper
edge of the head restraint is level with the
top of the head.
To remove the head restraint, press the
button and pull the head restraint upwards.
To re-install, engage the head restraint
rods in the holes, making sure they are
aligned with the seat backrest.

To put the armrest into the vertical
position, raise the armrest until it locks.
Lower the armrest to put it back in the
position for use.
To remove the armrest, press the
release button from the vertical position
and move aside the armrest.

Returning the seat backrest to
its original position

Pull the lever forwards then raise the
seat backrest until it locks.

Partner-2-VU_en_Chap04_Ergonomie_ed02-2016

Seats

Mobile office position

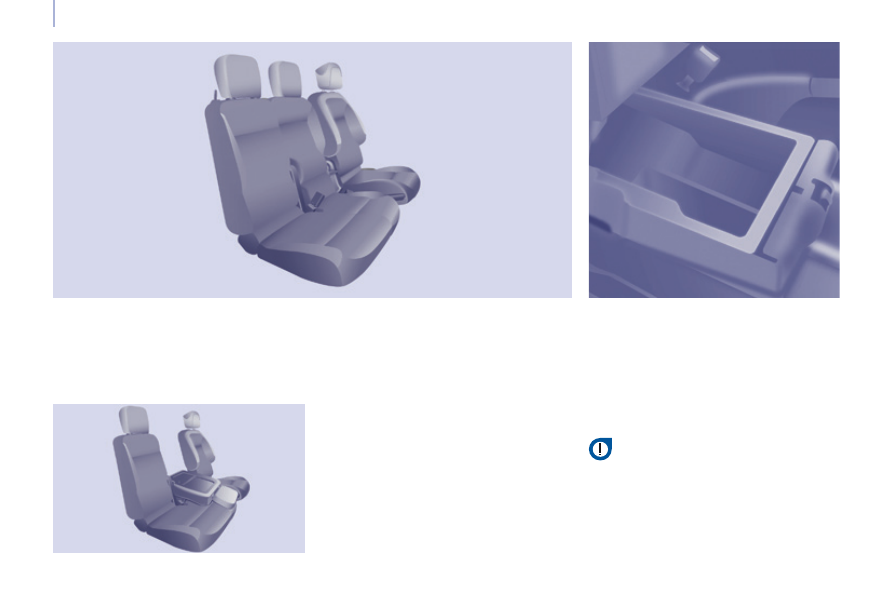

Storage compartment under the
seat cushion
Raise the centre seat cushion to gain
access to the storage compartment.
This space can be made secure by

fitting a padlock (not supplied).

MULTI-FLEx BENCH SEAT

Centre seat

Before locking the seat in the seat
position, always take care to leave
the seat belt buckles visible and

the associated straps available for the
passengers.

This is fitted with a 3-point seat belt

with the seat belt upper anchorage on
the load retaining ladder behind the
driver.

Pull the tab located on the lower edge
of the seat to lower the seat back
incorporating a writing table equipped
with a strap.
To return the seat back to the upright
position, pull the tab and guide the seat
backrest until it locks.
During the operations, take care not to
trap the tab under the seat cushion.

EASE OF US

E and

COMFORT

Partner-2-VU_en_Chap04_Ergonomie_ed02-2016

Seats

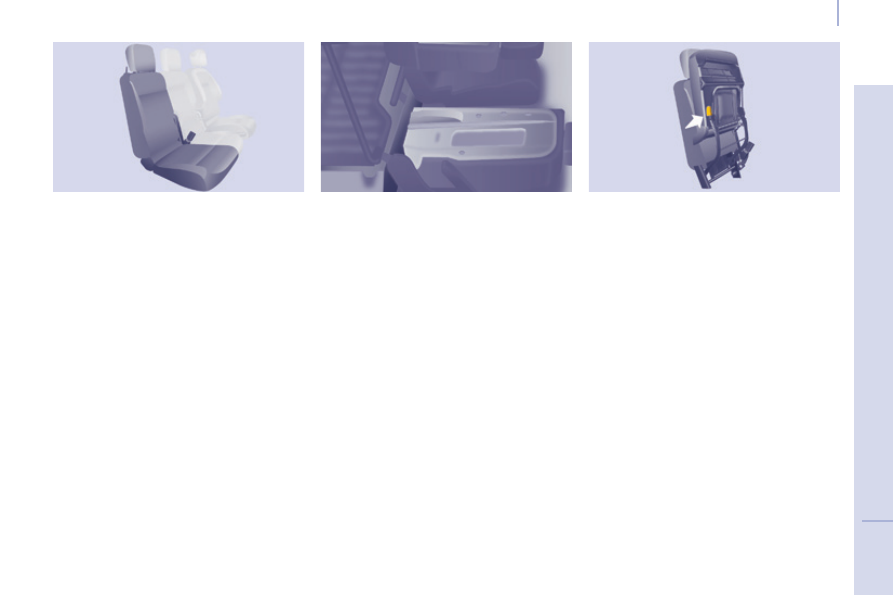

Foldaway position

Outer seat

Fully folded position

The backrest of the outer seat has a
metal shell.

Pull the tab located on the upper edge
of the seat by the head restraint to tilt
and guide the entire seat.
It inserts itself into the floor in the

front seat position and so forms a

continuous flat floor with the load

space.

This position allows long loads to be
carried inside the vehicle, up to 3 m

(3.25 m in the case of the long versions)

with the doors closed.
In the fully folded position, the maximum

weight on the seat backrest is 50 kg.

To return the seat to the seat position,
raise the seat backrest until it locks on

the floor in the seat position.

Raise the yellow lever located at the
base of the seat to release and raise
the entire seat to the foldaway position
(seat cushion raised against the seat
backrest) until it locks.

This position allows tall loads to be
carried in the cab part.

To return the seat to the seat position,
push the yellow lever located under the
seat cushion and lower the entire seat

until it is upright and locked on the floor

in the seat position.

Partner-2-VU_en_Chap04_Ergonomie_ed02-2016

Seats

CONFIGURATIONS

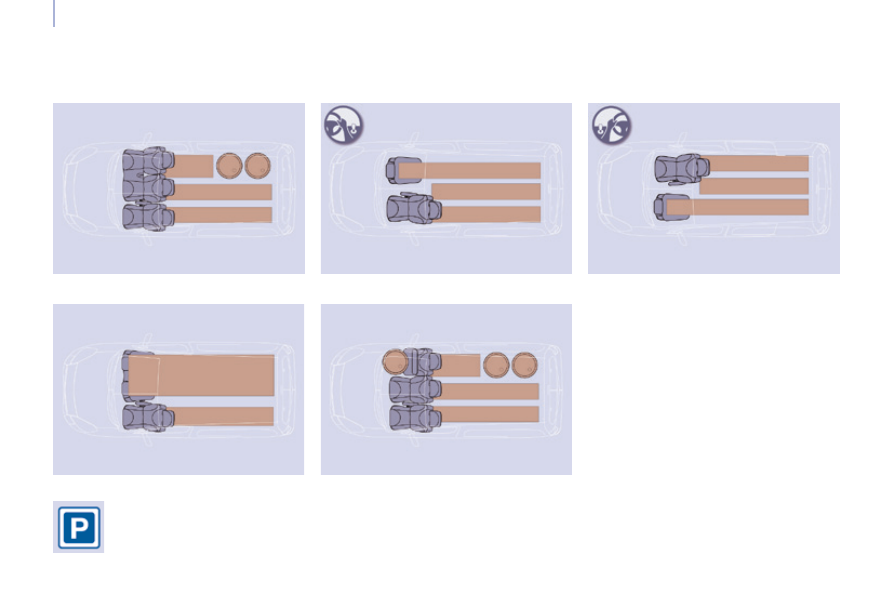

Examples of various layouts combining comfort and practicality

The various operations must
only be carried out while
stationary.

Content .. 3 4 5 6 ..
