Peugeot Partner VU (2007 year). Instruction - part 3

Audio equipment -

CASSETTE: AUDIO RB3

Selecting cassette mode

Recommendations for using

casssettes

- Use good quality cassettes.

- Avoid the use of cassettes which

play for longer than 90 minutes.

- Never expose the cassettes to heat

or the direct rays of the sun.

- Re-tighten the tape if necessary

before inserting the cassette in the

player.

- Clean the playing head regularly

with a damp type cleaning cas-

sette.

When a cassette is

inserted, the cassette

player will start auto-

matically.

If a cassette is already inserted,

press button

"SRC" several times to

select cassette mode.

Note: before inserting the cassette,

ensure that the tape is taut.

Ejecting the cassette

Direction of play

The player will play sides 1 and 2 of

the cassette alternately, by automati-

cally reversing the direction of play at

the end of a side.

To manually reverse the direction of

play, press the 2 buttons

F and G half

way.

Fully press buttons

and

G to eject the cas-

sette from the player.

Fast forward/rewind

Fully press button

F or G to fast for-

ward or rewind the cassette. At the

end of the fast forward/rewind, the

set plays the current side.

Audio equipment

28 -

AUDIO RD3

Stalk movement

Function

1 - Press (behind)

Increase volume.

2 - Press (behind)

Decrease volume.

1 + 2 - Simultaneous press

Sound cut-off (mute); restoring of the sound by pressing any button.

3 - Press

Automatic search of higher frequencies (radio) - Selection of the next track (CD).

4 - Press

Automatic search of lower frequencies (radio) - Selection of the previous track (CD).

5 - Press the end

Change of source (radio/CD).

6 - Rotation (clockwise)

Selection of next station stored in memory (radio).

7 - Rotation (anti-clockwise) Selection of previous station stored in memory (radio).

Audio equipment -

Button

Function

Radio on/off.

Decrease volume.

Increase volume.

RDS

RDS function on/off.

Press for more than 2 seconds: regional following mode on/off.

Trafﬁc information priority on/off.

Press for more than 2 seconds: PTY function on/off.



Selection of bass, treble, loudness, sound distribution and automatic volume correction.



Increase the setting of the functions associated with button



Decrease the setting of the functions associated with button



Manual and automatic search of higher frequency.

Selection of next CD track and PTY (radio).

MAN

Manual/automatic operation of buttons

L and N.



Manual and automatic search of lower frequency.

Selection of previous CD track and PTY (radio).

Selection of CD.

Press for more than 2 seconds: shufﬂe.

Radio

Selection of radio. Selection of FM1, FM2, FMast and AM wavebands.

Press for more than 2 seconds: automatic storing of stations in memory (autostore).



Ejection of CD.

1 to 6

1 2 3 4 5 6 Selection of station stored in memory.

Press for more than 2 seconds: storing of a station in memory.

Audio equipment

36 -

Ejection of a disc

Shufﬂe

When the CD player is selected, keep

button

Q pressed for two seconds.

The tracks will be played in random

sequence. Pressing the button again

for two seconds returns you to nor-

mal play.

Shufﬂe mode is de-activated each

time the audio system is switched

off.

After insertion of a

disc, printed face

upwards, the player

starts automatically.

If a disc is already inserted, press

button

COMPACT DISC: AUDIO RD3

Selecting CD mode

The use of copied compact

discs may cause faults.

Insert circular compact discs

only.

Selecting a track

Press button

L to select the next

track.

Press button

N to return to the start

of the current track or to select the

previous track.

Press button

S to

eject the disc from the

player.

Accelerated play

Keep button

L or N pressed for for-

wards or backwards accelerated

play.

Accelerated play stops as soon as

the button is released.

38 - Ventilation

Ventilation

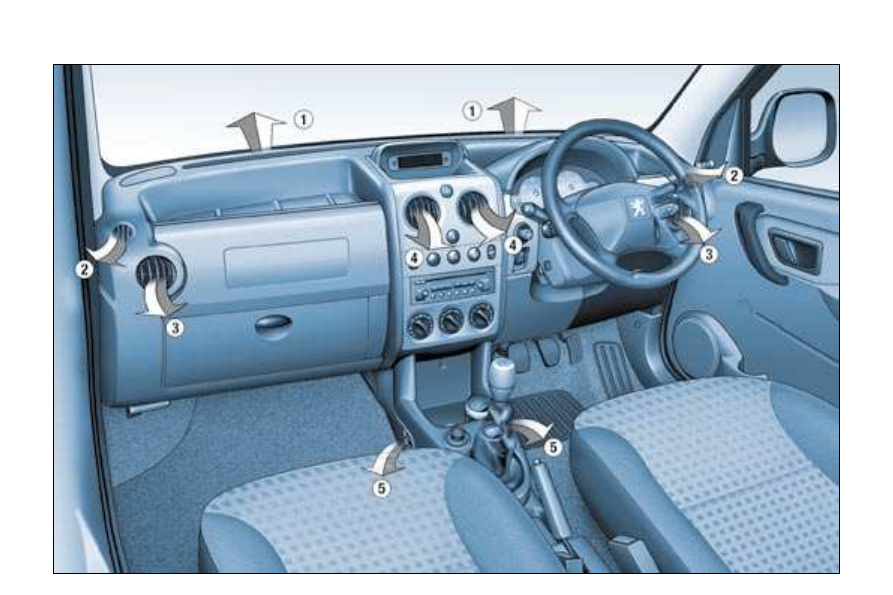

VENTILATION

1. Windscreen de-icing or

demisting vents.

2. Front window de-icing or

demisting vents.

3. Side vents.

4. Centre vents.

5. Air outlets to front footwells.

The air conditioning system does not

contain chlorine and does not present

any danger to the ozone layer.

Operate the air conditioning system

for 5 to 10 minutes, once or twice a

month, to keep it in perfect working

order.

The water created by the air condi-

tioning condensation is discharged

via an opening provided for this pur-

pose. Therefore, a puddle of water

may form underneath the vehicle

when stationary.

If the system does not produce cold

air, do not use it and contact your

PEUGEOT dealer.

De-icing the rear screen and

mirrors

With the engine running, pressing

the control de-ices the rear screen

and mirrors.

It switches off automatically after ap-

proximately twelve minutes.

Pressing the control again switch-

es the de-icing system on again for

twelve minutes.

It is possible to switch off the de-

icing by pressing the control before

the twelve minutes have elapsed.

Advice on operation

Select the air distribution most suited

to your requirements and the climatic

conditions.

Gradually adjust the temperature

setting for your comfort.

Position the air control in the "Out-

side Air" position.

For perfectly even air distribution,

take care not to obstruct the exterior

air intake grille and the vents.

Check that the passenger compart-

ment ﬁlter is in good condition.

When the engine is cold, to prevent

too great a distribution of cold air, the

ventilation will increase to its opti-

mum level gradually.

In order to be effective, the air condi-

tioning (

A/C button), should only be

used with the windows closed.

If the interior temperature remains

very high following a prolonged peri-

od parked in the sun, do not hesitate

to ventilate the passenger compart-

ment for a few minutes.

40 - Ventilation

Intake of exterior air.

HEATING

1. Air ﬂow adjustment

Turn the control from position

1 to position 4 to obtain an

air ﬂow sufﬁcient to ensure

your comfort.

2. Air ﬂow adjustment and air

intake control

Turn the control from position

1 to position 4 to obtain an

air ﬂow sufﬁcient to ensure

your comfort.

As soon as possible, position the

control in the exterior air intake

position to prevent misting of the

windows.

This is the normal operating posi-

tion.

Passenger compartment iso-

lation.

This position prevents exterior odours

and smoke entering the passenger

compartment.

Ventilation

These settings are recommended for

cold climates.

3. Temperature adjustment

To be adjusted to your requirements.

From blue (exterior temperature) to

red (hot).

4. Air distribution adjustment

This setting is recommended for high

temperatures.

Windscreen and side win-

dows (de-icing/demisting).

To quickly de-ice or demist the wind-

screen and side windows:

- position the air intake control in the

"Outside Air" position,

- turn the temperature and air ﬂow

controls to maximum,

- close the centre vents.

Windscreen, side windows

and footwells.

Footwells.

Centre and side vents.

42 - Ventilation

Press the switch to activate

the air conditioning. The indi-

cator light comes on.

2. Air ﬂow adjustment and air

intake control

Turn the control from position

1 to position 4 to obtain an

air ﬂow sufﬁcient to ensure

your comfort.

AIR CONDITIONING

The air conditioning does not op-

erate while the air ﬂow adjustment

control is in the minimum posi-

tion.

Note: to optimise the operation of

the air conditioning, leave the vents

open.

1. Air conditioning control

The air conditioning is designed to

operate in all seasons. In summer, it

enables the temperature to be lowered

and in winter, above 0 °C, it increases

the effectiveness of the demisting.

Ventilation

Additional heater

Vehicles which are ﬁtted with an HDI

engine may be ﬁtted with automatic

additional heating to improve your

comfort.

When the engine is idling or the vehi-

cle is stationary, it is quite normal to

notice a high-pitched whistling noise

and a slight emission of smoke and

odour.

Centre and side vents.

This setting is recommended for high

temperatures.

Recirculation of interior air.

This position prevents exterior odours

and smoke entering the passenger

compartment.

Used simultaneously with the air con-

ditioning, recirculation enables both

heating and cooling performance to

be improved.

Used without the air conditioning,

recirculation may result in misting of

the windows.

As soon as possible, position the control

in the exterior air intake position.

3. Temperature adjustment

To be adjusted to your requirements.

From blue (cold when the air condi-

tioning is on) to red (hot).

4. Air distribution adjustment

Windscreen and side win-

dows (de-icing/demisting).

To quickly de-ice or demist the wind-

screen and side windows:

- turn the temperature and air ﬂow

controls to maximum,

- close the centre vents,

- position the air intake control in the

"Outside Air" position,

- start the air conditioning.

Footwells.

These settings are recommended for

cold climates.

Windscreen, side windows

and footwells.

Intake of exterior air.

This is the normal operating position.

44 - Seats

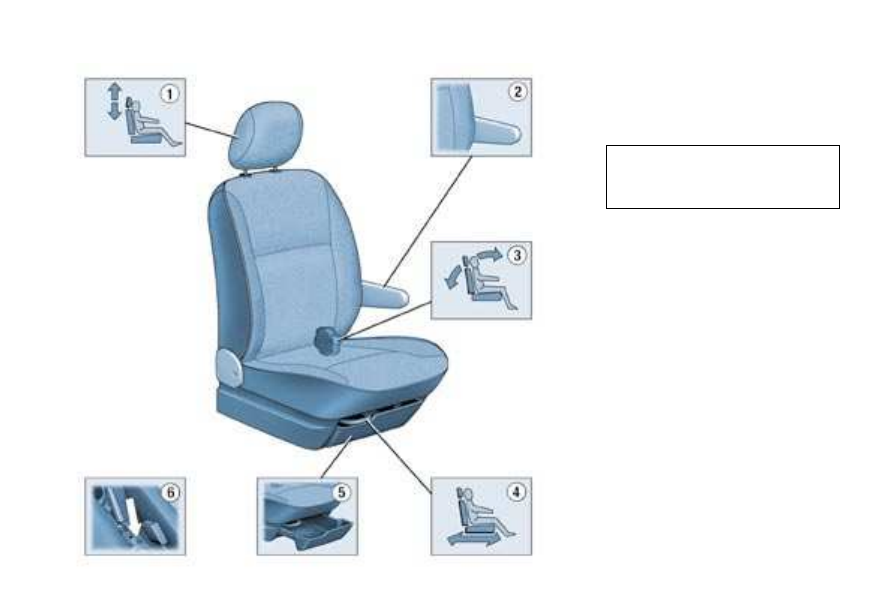

SEATS

1. Head restraint height

adjustment

To raise or lower the restraint, slide it.

The adjustment is correct when

the upper edge of the head re-

straint is level with the top of the

head.

To remove the head restraint, place it

in the top position, press the tabs and

pull it upwards.

To put it back in position, locate the

stems of the restraint in the holes,

taking care to keep them in line with

the seat back.

2. Armrests

These can be folded back.

3. Seat back angle adjustment

Turn the knob.

Seats

4. Forwards-backwards

adjustment (driver)

Lift the control and slide the seat for-

wards or backwards.

5. Storage drawer (version with

passenger air bag)

There is a storage drawer under the

driver’s or passenger seat.

To open it, lift it and pull.

Never drive with the head re-

straints removed; they must

be in place and correctly ad-

justed.

Do not place heavy objects

in the drawers.

6. Heated seats switch (according

to model)

Press the switch. The temperature is

controlled automatically.

Pressing the switch again stops op-

eration.

Note: the command for activation of

heating of the seat(s) remains mem-

orised for two minutes after the igni-

tion has been switched off.

46 - Seats

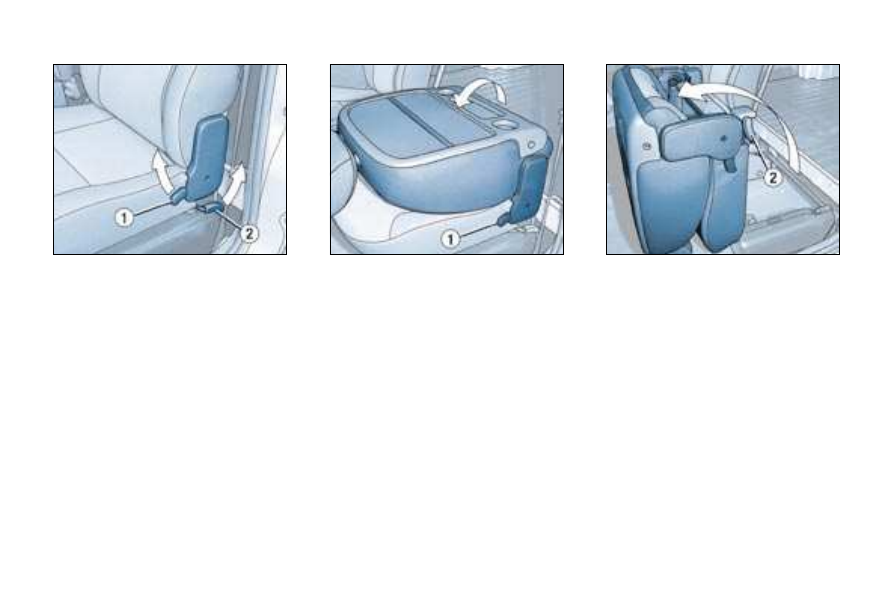

MULTIFUNCTION

PASSENGER SEAT*

To fold the seat back:

Pull the control

1 upwards and tilt the

seat back.

This provides a ﬂat surface, recess-

es for drinks and a strap for retaining

documents.

* According to country.

To fold the seat fully:

Pull the control

2 upwards and tilt the

whole seat.

It is not necessary to remove the

head restraint.

This provides access to a box which

enables you to store objects so that

they cannot be seen from outside

the vehicle or to wedge long objects

passed through the roof ﬂap.

If your vehicle is not ﬁtted with a load

blocking partition, it can accommo-

date long objects (up to 2.10 m).

These must be placed on the front

edge of the ﬂoor and secured using

the rear bar of the boot or using the

lashing rings.

48 - Seats

GENERAL POINTS RELATING

TO CHILD SEATS

Although one of PEUGEOT’s main

criteria when designing your vehicle,

the safety of your children also de-

pends on you.

For maximum safety, please follow

these precautions:

- in accordance with Directive 2003/

20,

all children under the age of

12 or less than one metre ﬁfty

tall must travel in approved child

seats* suited to their weight, on

seats ﬁtted with a seat belt or ISO-

FIX mountings*.

a child weighing less than 9 kg

must travel in the "rearwards-

facing" position in the front.

INSTALLING A CHILD SEAT

USING A THREE POINT SEAT

BELT

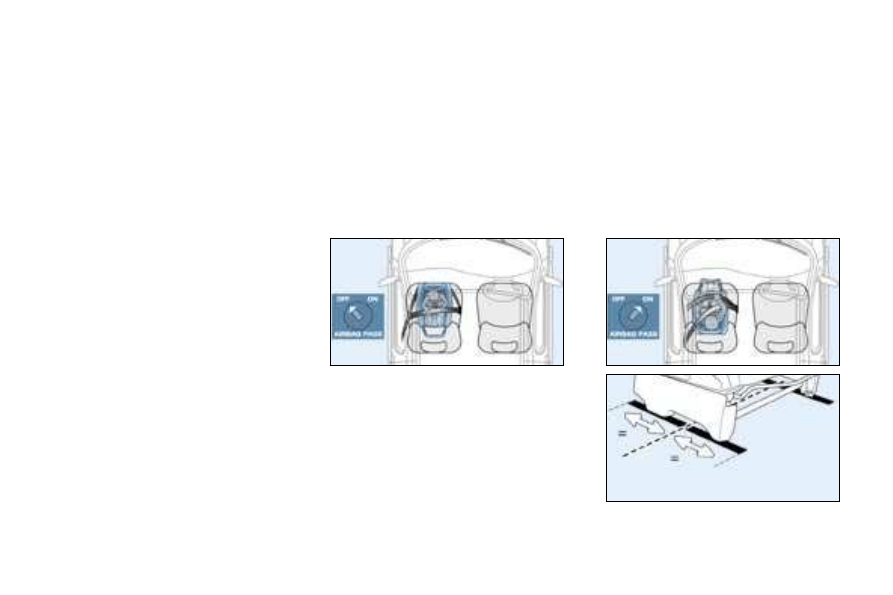

"Rearwards-facing"

When a "rearwards-facing" child seat

is installed on the

front passenger

seat, it is essential that the passen-

ger air bag** is disarmed. Otherwise,

the child would risk being seri-

ously injured or killed if the air bag

were to inﬂate.

"Forwards-facing"

When a "forwards-facing" child seat

is installed on the

front passenger

seat, adjust the vehicle’s seat to the

intermediate longitudinal position

with the seat back upright and leave

the passenger air bag armed**.

* The rules for transporting children

are speciﬁc to each country. Con-

sult the current legislation in your

country.

** According to model.

Intermediate longitudinal

position

Seats

CHILD SEATS RECOMMENDED BY PEUGEOT

PEUGEOT offers a complete range of recommended child seats which are se-

cured using a

three point seat belt:

Group 0: from birth to 10 kg

Group 0+: from birth to 13 kg

"BRITAX

Babysure"

(E11 0344117)

Installed in the

rear-facing

position.

"RÖMER

Baby-Safe Plus"

(E1 03301146)

Installed in the

rear-facing

position.

Groups 1, 2 and 3: from 9 to 36 kg

"KIDDY Life"

(E1 03301135)

For the safety of young children (from

9 to 18 kg), PEUGEOT recommends

use of the restraining cushion.

Groups 2 and 3: from 15 to 36 kg

"RECARO Start"

(E1 03301108).

"KLIPPAN Optima"

(E17 030007)

From the age

of 6 years

(approximately

22 kg), the booster

is used on its own.

Passenger air bag OFF**

** According to version.

50 - Seats

INSTALLING CHILD SEATS SECURED USING THE SEAT BELT

In accordance with the European regulation (Directive 2000/3), the table presented indicates the options for the installation of

child seats secured using the seat belt and universally approved (a), in accordance with the weight of the child and the seat

in the vehicle.

(a) Universal child seat: child seat

which can be installed in all ve-

hicles using the seat belt.

(b) Group 0: from birth to 10 kg.

Seat

Weight of the child and indicative age

Below 13 kg

(groups 0 (b)

and 0+)

Up to approx 1 year

From 9 to 18 kg

(group 1)

From 1 to approx

3 years

From 15 to 25 kg

(group 2)

From 3 to approx

6 years

From 22 to 36 kg

(group 3)

From 6 to approx

10 years

Front passenger

seat (c)

in your country before installing

your child on this seat.

U Seat suitable for the installation of

a child seat secured using a seat

belt and universally approved, "rear

facing" and/or "forward facing".

Content .. 1 2 3 4 ..
