Peugeot Partner VU (2007 year). Instruction - part 1

4 - Familiarisation

Familiarisation -

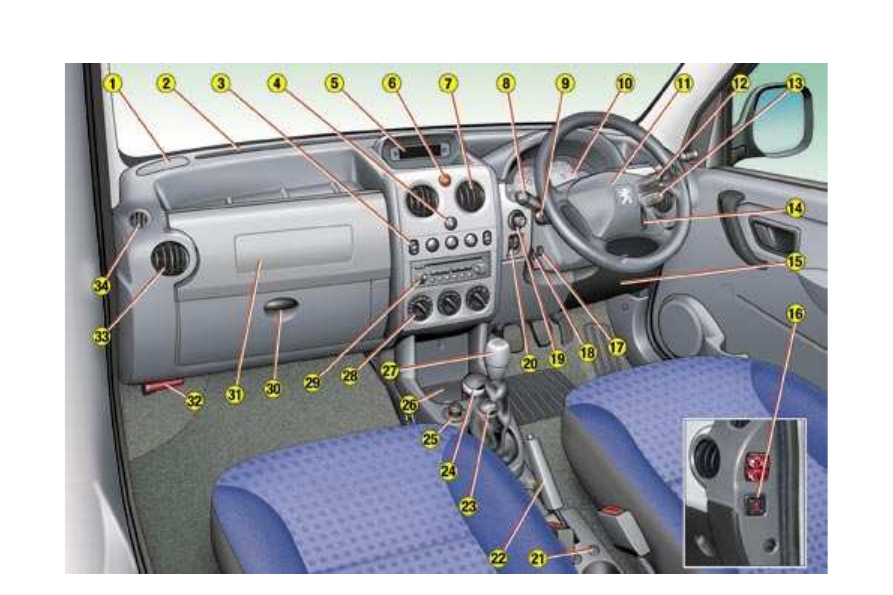

INSTRUMENTS AND CONTROLS

12 - Windscreen wash-wipe stalk.

13 - Audio equipment steering wheel

control.

14 - Steering lock and ignition.

15 - Fuse box.

16 - Passenger air bag disarming

control.

17 - Alarm.

18 - Steering wheel adjustment

control.

19 - Passenger’s electric mirror

control.

20 - Headlamp height adjustment.

21 - Heated seats control or parking

assistance deactivation switch.

22 - Handbrake.

23 - 12 V accessories socket.

24 - Removable ashtray.

25 - Lighter.

26 - Storage.

27 - Gear lever.

28 - Heating/air conditioning

controls.

29 - Audio RB3 or RD3.

30 - Lower glove box.

31 - Upper glove box or passenger

air bag.

32 - Bonnet release.

33 - Side adjustable heating/

ventilation vents.

34 - Side window de-icing/demisting

vents.

1 - Speaker (tweeter).

2 - Windscreen demisting vents.

3 - Controls:

- Electric windows.

- Demisting of rear door

windows or tailgate.

- Air conditioning.

4 - Central locking button.

5 - Multifunction display or clock.

6 - Hazard lights button.

7 - Central adjustable heating/

ventilation vents.

8 - Lights and direction indicators

stalk.

9 - Speed limiter/cruise control.

10 - Instrument panel.

11 - Driver’s air bag

Horn.

6 -

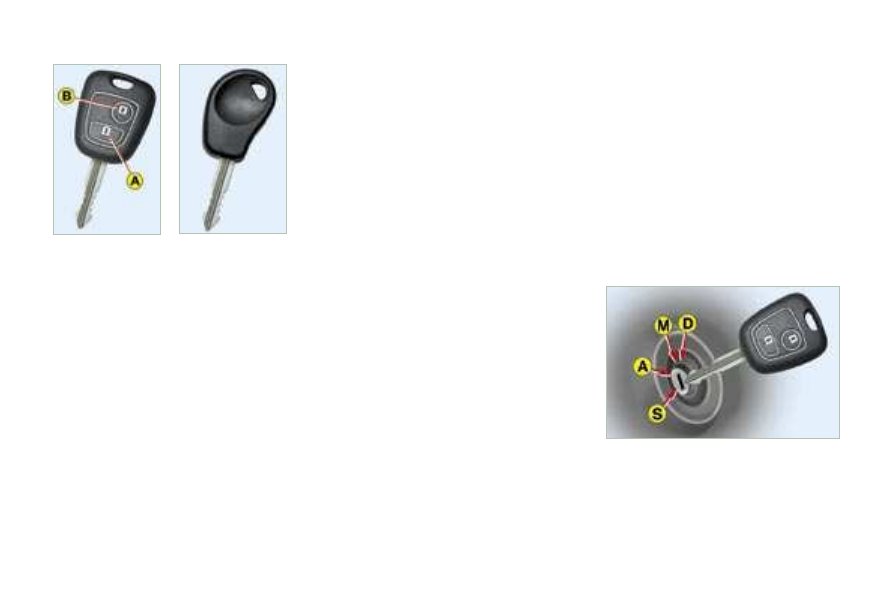

THE KEYS

The keys allow you to switch on the

ignition and operate the passenger

air bag disarming switch, as well as

to independently operate the locks

on the doors and the fuel ﬁller cap.

STARTING

STOP position (S):

The ignition is off.

Accessories position (A):

The ignition is off but the accessories

can be used.

On position (M):

The ignition is on.

Starting position (D):

Operates the starter.

The remote control key

Locking

Press button

A to lock the vehicle.

This is conﬁrmed by ﬁxed lighting of

the direction indicators for approxi-

mately two seconds.
Vehicles ﬁtted with deadlocking

Deadlocking renders the exterior and

interior door controls inoperative.

Pressing button A deadlocks the

vehicle.

This is conﬁrmed by ﬁxed lighting of

the direction indicators for approxi-

mately two seconds.

Pressing button A again within

ﬁve seconds following deadlocking,

changes the deadlocking to simple

locking.

This is conﬁrmed by ﬁxed lighting of

the direction indicators for approxi-

mately two seconds.
Unlocking

Press button

B to unlock the vehicle.

This is conﬁrmed by rapid ﬂashing of

the direction indicators.
Locating the vehicle

To locate your vehicle, previously

locked, in a car park:


press button

A, the courtesy lights

come on and the direction indica-

tors ﬂash for a few seconds.

Central locking

From the front doors, the keys allow

you to lock and unlock the doors and

tailgate.

If one of the doors or the tailgate is

open, it is impossible to operate the

central locking.

The remote control performs the

same functions at a distance.



Familiarisation

Familiarisation -

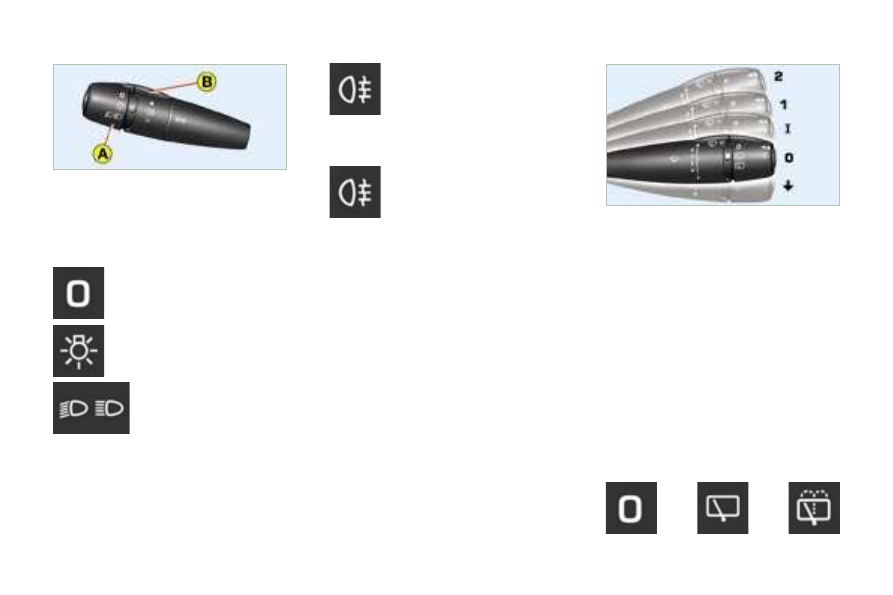

WINDSCREEN WIPERS

Front

2 Rapid wipe (heavy rain).

1 Normal wipe (moderate rain).

Intermittent wipe.

0 Off.


Single wipe.

Windscreen wash-wipe: pull the stalk

towards you.

STEERING WHEEL

STALKS

LIGHTING

Front and rear lights (ring A)

Front fog lamps (1st turn of the ring

forwards).

Front fog lamps and rear fog lamp

(2nd turn of the ring forwards).

To switch off: turn the ring rear-

wards.

Lights off

Side lights

Dipped

headlamps/

Main beam headlamps

Vehicles ﬁtted with a rear

fog lamp (ring B)

Turn the ring forwards.

Vehicles ﬁtted with front

fog lamps and a rear fog

lamp (ring B)

Off

Wash-

wipe

Intermittent

wipe

Rear



8 -

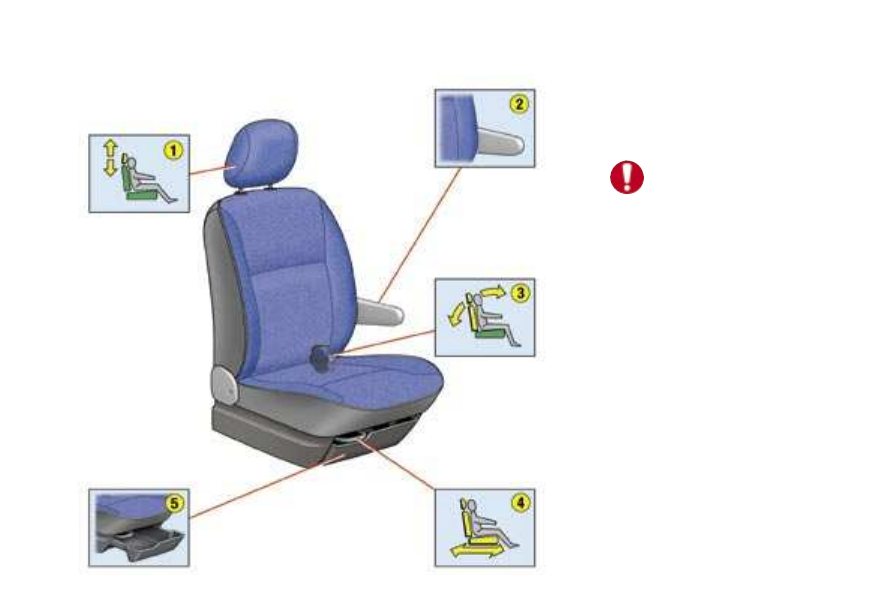

SEATS

Driver and passenger seats

1 - Head restraint height

adjustment.

Never travel with the head

restraints removed.

2 - Armrest.

3 - Seat back angle adjustment.

4 - Forwards-backwards

adjustment.

5 - Storage drawer

(passenger or driver).



Familiarisation

Familiarisation -

AIR BAGS

The air bag system has been de-

signed to maximise the safety of the

occupants in the event of serious col-

lisions. It works in conjunction with

the pretensioning seat belts.

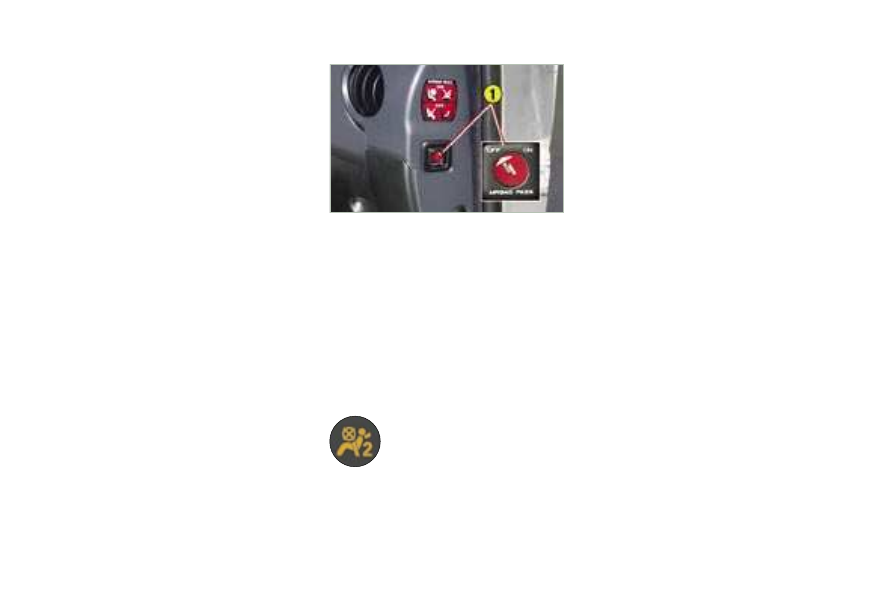

Disarming the passenger air bag


With the ignition off, insert the

ignition key into the passenger

air bag switch

1 and turn it to the

"OFF" position.

As soon as you remove the child

seat, turn the air bag switch to the

"ON" position to activate the air bag

again.

Disarming check

With the ignition switched

on (2nd notch), illumina-

tion of this warning light in-

dicates that the passenger

air bag is disarmed (switch

in the

"OFF" position).

The warning light remains on through-

out the duration of disarming.



Front air bags

These are folded in the centre of the

steering wheel for the driver and in

the fascia for the front passenger.

They are deployed simultaneously,

except in cases where the passenger

air bag is disarmed.

Side air bags

Side air bags are incorporated into

the front seat back frame, on the

door side.

They are deployed independently of

each other, on whichever side the

collision occurs.

Precautions regarding the

passenger air bag


disarm the air bag if you install a

rear-facing child seat,



activate the air bag for an adult

passenger.



10 -

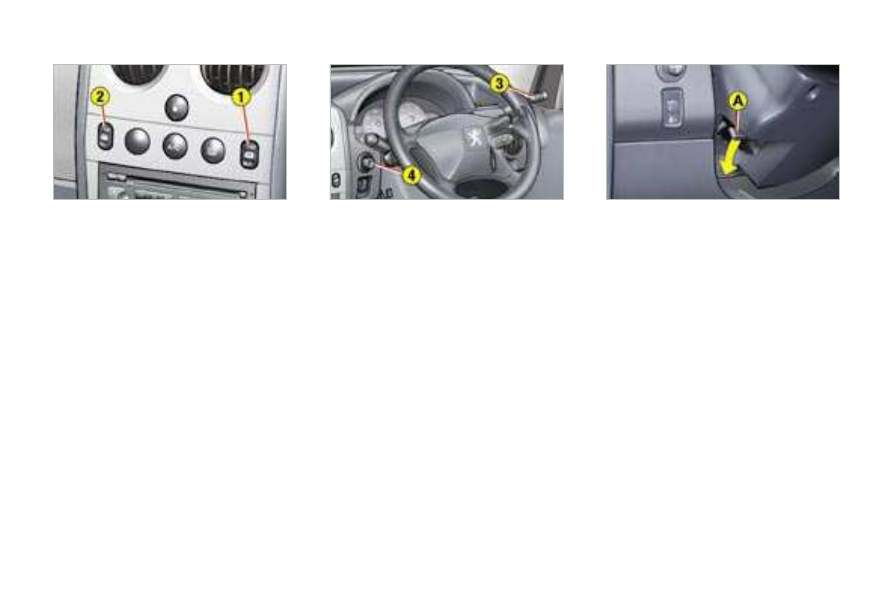

STEERING WHEEL HEIGHT

ADJUSTMENT



When stationary, push the control

A forwards to unlock the steering

wheel.



Adjust the height of the steering

wheel.



Lock it by pulling control

A to-

wards you fully.

ELECTRIC WINDOWS

1. Driver’s electric window.

2. Passenger’s electric window.

EXTERIOR MIRRORS



Move the manual control

3 in all

four directions to adjust.

Electric control for

the passenger’s side mirror



From the driver's seat, adjust in

all four directions by operating the

control

Manual mode:


Press the switch. The window

stops as soon as the switch is re-

leased.

Automatic mode (driver):


Press and hold the switch. One

touch completely opens or closes

the window.



Familiarisation

Familiarisation -

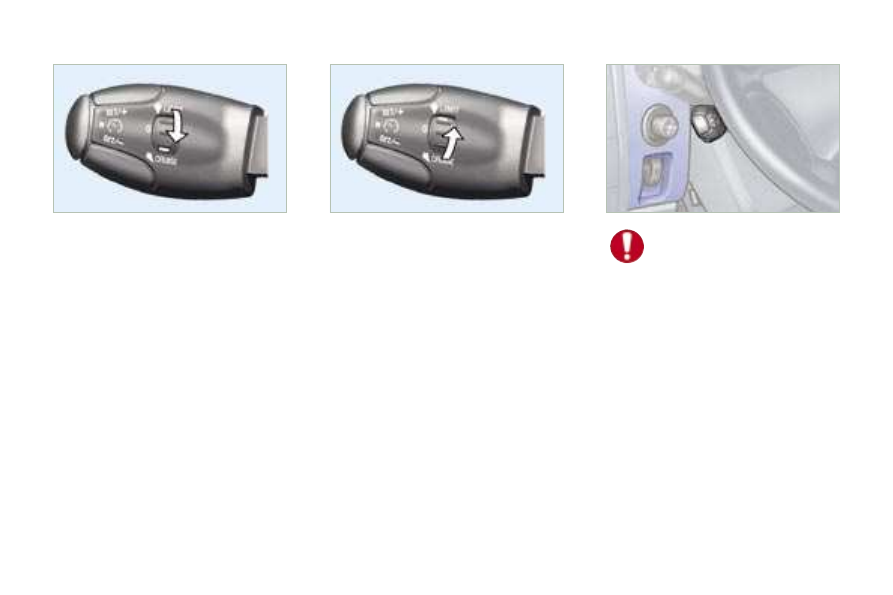

CRUISE CONTROL

The cruise control has a display on

the instrument panel which indicates

the programmed reference speed.

It enables the vehicle to maintain a

constant speed, programmed by the

driver.

In order to be programmed or ac-

tivated, the vehicle speed must be

above 25 mph (40 km/h), with at least

fourth gear engaged.

SPEED LIMITER

This speed limiter indicates the sta-

tus of selection of the function on the

instrument panel and displays the

programmed speed. The minimum

speed which can be programmed is

20 mph (30 km/h).

It prevents the vehicle from exceed-

ing the speed programmed by the

driver, this function remains active

regardless of any action on the brake

or clutch pedals. On the other hand,

pressing the accelerator pedal to the

point of resistance does not have any

effect. If the driver wishes to exceed

the programmed limit, he must force

the accelerator pedal travel beyond

this point of resistance.



On vehicles which are ﬁt-

ted with the speed limiter

and cruise control functions,

these functions cannot be

activated simultaneously.

Setting adjustments must be

made when stationary with the en-

gine running, or while the vehicle

is moving.

12 -

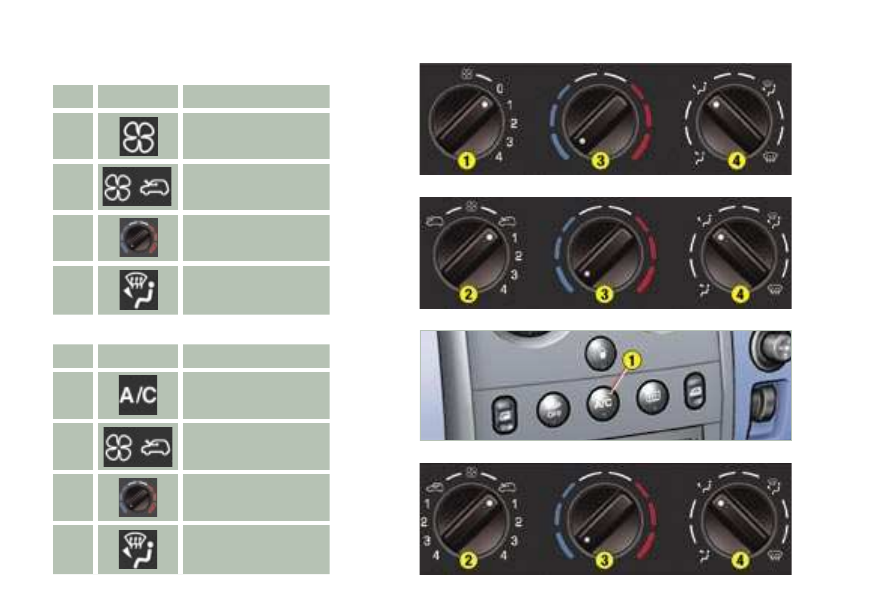

HEATING

AIR CONDITIONING

N°

Symbol

Function

Air ﬂow adjustment.

Air ﬂow adjustment

and air intake

control.

Temperature

adjustment.

Air distribution

adjustment.

N°

Symbol

Function

Air conditioning

control.

Air ﬂow adjustment

and air intake

control.

Temperature

adjustment.

Air distribution

adjustment.



Familiarisation

Familiarisation -

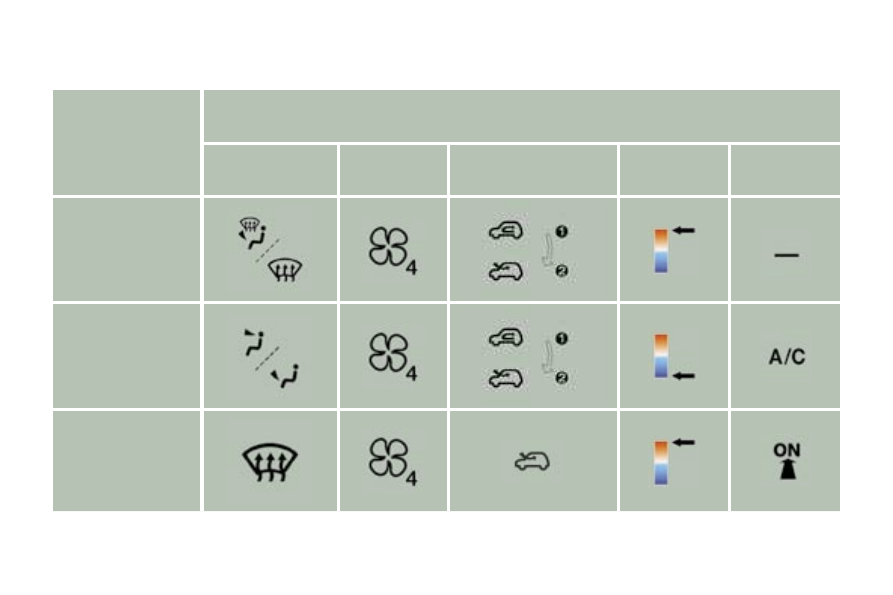

RECOMMENDED INTERIOR SETTINGS

I require...

Heating or Manual air conditioning

Air distribution

Air ﬂow

Air recirculation/Intake

of exterior air

Temperature

Manual AC

HOT

COLD

DEMISTING

DE-ICING

14 -

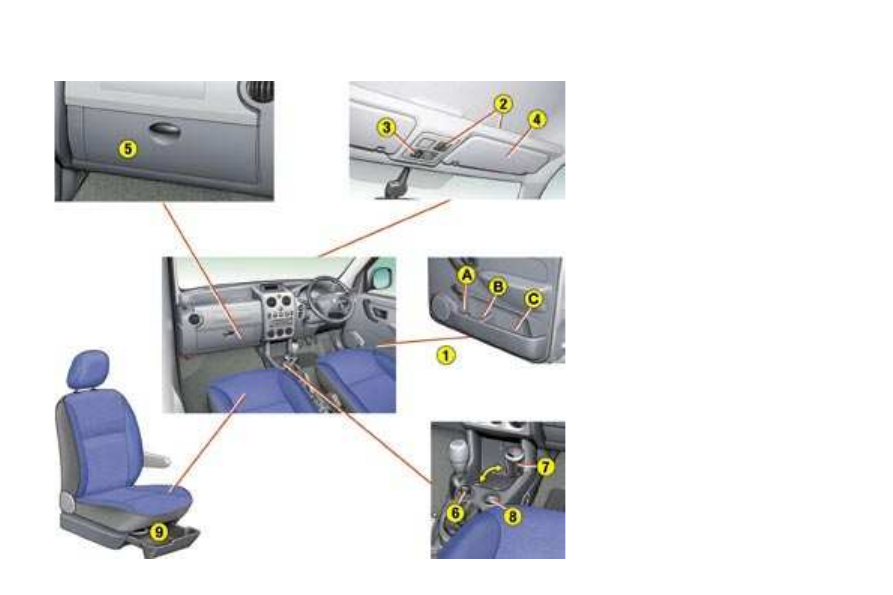

FRONT FITTINGS

1. Storage compartments

in the doors

A. Bottle holder.

B. Can holder.

C. Storage compartment.

2. Overhead storage with map

reading light

3. Courtesy light

4. Sun visor

5. Glove box

6. Lighter

7. Removable ashtray

8. 12 V accessories socket

9. Storage drawer



Familiarisation

Familiarisation -

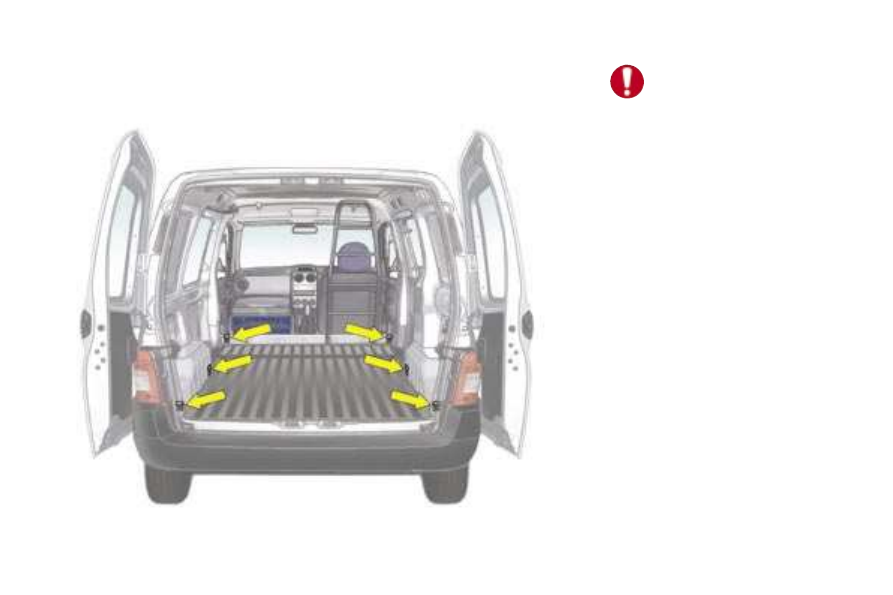

STOWING RINGS

For greater safety, always

secure the loads transported

ﬁrmly.



16 -

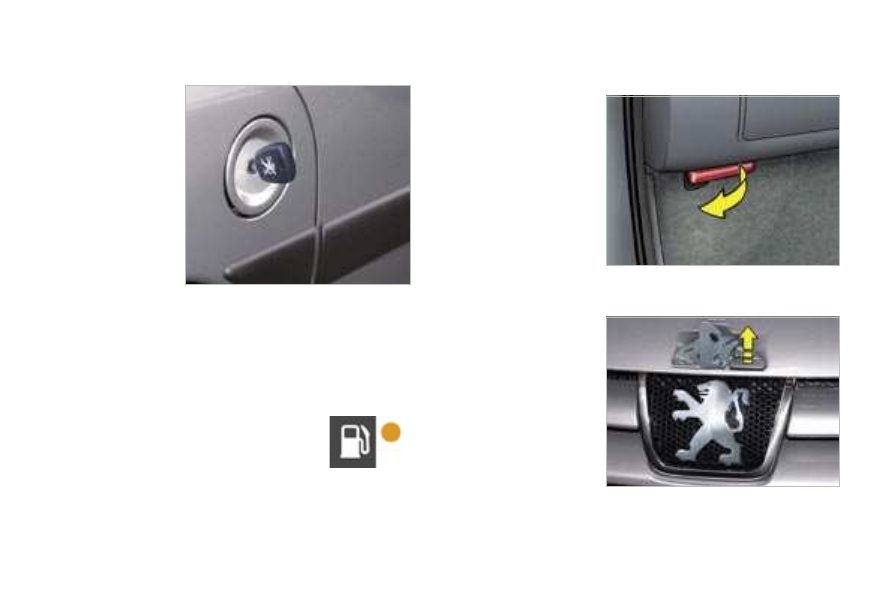

FILLING WITH FUEL

This operation must be carried out

with

the engine switched off.



Insert the key then turn it to the

left.



Remove the cap.

An indication shows which type of

fuel to use.

When you ﬁll your tank, do not conti-

nue after the third cut-off of the pump.

This could cause a malfunction.

The capacity of the tank is approxi-

mately 55 litres for petrol engines

and 60 litres for Diesel engines.

From the time this light comes on,

you have enough fuel left to cover

approximately 30 miles (50 km).

Outside the vehicle: Lift the control,

raise the bonnet and secure the strut

to keep the bonnet open.

OPENING THE BONNET

Inside the vehicle: Pull the control

on the left-hand side, under the fas-

cia panel.

Note: the right-hand sliding side door

cannot be opened while the fuel tank

cap is removed.

Low fuel level

warning light



Familiarisation

Instruments, controls and displays

18 -

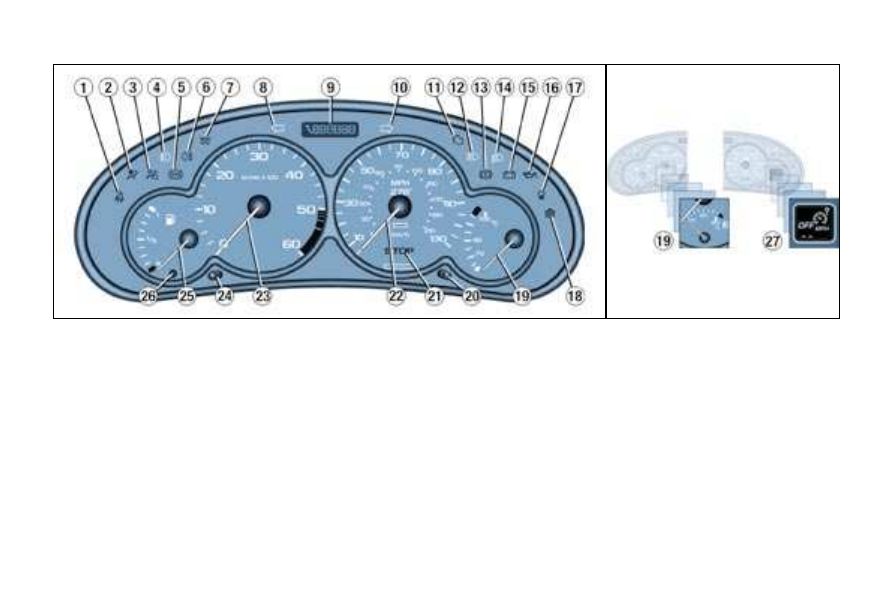

1. Seat belt not fastened warning

light

2. Passenger air bag disarmed

warning light

3. Front and side air bags warning

light

4. Front fog lamps indicator light
5. Anti-lock braking system (ABS)

warning light

6.  Rear fog lamp indicator light
7.  Diesel pre-heat warning light
8.  Left hand direction indicator
9.  Total distance recorder, service

indicator and engine oil level in-

dicator

10. Right hand direction indicator

11. Emission control system warn-

ing light

12. Main beam headlamps indicator

light

13. Handbrake, low brake ﬂuid level

and electronic brake force distri-

bution warning light

14. Dipped beam headlamps indica-

tor light

15. Battery charge warning light

16. Engine oil pressure and tem-

perature warning light

17. Water in diesel ﬁlter warning

light

18. Low coolant level warning light

19.  Coolant temperature indicator
20.  Total distance recorder button

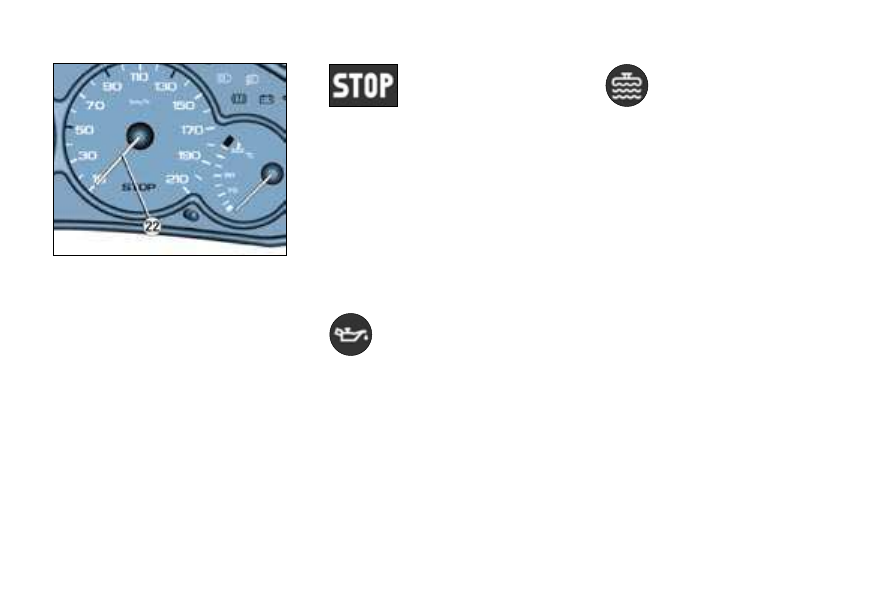

21.  Central (STOP) warning light
22.  Speedometer*
23.  Rev counter
24.  Lighting rheostat button
25.  Fuel level indicator
26.  Low fuel level warning light
27.  Speed limiter/cruise control display
*  Version  indicating  kilometres,  ac-

cording to country .

INSTRUMENT PANEL: PETROL - DIESEL

Instruments, controls and displays -

INSTRUMENTS AND

CONTROLS

A permanently lit warning light or

one ﬂashing, with the engine run-

ning, indicates an operating fault

of the unit concerned. The illumi-

nation of certain warning lights

may be accompanied by an audible

signal and a message on the mul-

tifunction display. Do not ignore

this warning: consult a PEUGEOT

dealer as soon as possible.

If the central STOP warning light

comes on when you are driving,

stop your vehicle immediately,

where it is safe to do so.

Central (STOP)

warning light

Linked to the warning

lights:

- "engine oil pressure and tempera-

ture",

- "low coolant level",

- "handbrake",

- "low brake ﬂuid level",

- "electronic brake force distribution

system fault".

Linked with the "coolant tempera-

ture" indicator.

You must stop if the light ﬂashes

with the engine running.

Consult a PEUGEOT dealer.

Engine oil pressure

and temperature

warning light

Linked to the central (STOP) warning

light.

You must stop.

This warning light indicates one of the

following:

- insufﬁcient oil pressure indicated by

the message

"Oil pressure insufﬁ-

cient" on the multifunction display.

- a lack of oil in the lubrication circuit.

Top up the level,

- an oil temperature which is too high. To

lower the oil temperature, reduce your

speed.

Lighting of the warning light is accompa-

nied by an audible signal.

Consult a PEUGEOT dealer.

Diesel engine low

coolant level warning

light

Linked to the central (STOP) warn-

ing light.

This comes on for a few seconds

when the ignition is switched on.

Lighting of this warning light is ac-

companied by an audible signal and

the message

"Top up engine cool-

ant level" on the multifunction dis-

play.

You must stop.

Wait for the engine to cool before

topping up the level.

The cooling circuit is pressurised.

In the event of breakdown and to

pre-

vent any risk of burns, unscrew the

cap by two turns to allow the pres-

sure to drop.

When the pressure has dropped, re-

move the cap and top up the level.

Consult a PEUGEOT dealer.

Instruments, controls and displays

20 -

Battery charge warning

light

This comes on for a few sec-

onds when the ignition is

switched on. Lighting of this warning

light, when the engine is running, ac-

companied by an audible signal and

the message

"Battery charge fault"

on the multifunction display, indicates

one of the following:

- faulty operation of the charging cir-

cuit,

- slack battery or starter terminals,

- a cut or slack alternator belt,

- an alternator failure.

Consult a PEUGEOT dealer.

Emission control

system warning light

This comes on for a few sec-

onds each time the ignition is

switched on.

If it comes on with the engine run-

ning, accompanied by an audible

signal and the message on the multi-

function display:

"Antipollution fault", this indi-

cates a failure of the emission con-

trol system.

"Catalytic converter fault", this

indicates a malfunction of the injec-

tion or ignition system. There is a

risk of damage to the catalytic con-

verter (petrol engine only).

Consult a PEUGEOT dealer.

Diesel engine pre-heat

warning light

Wait until the warning light

goes out before starting the

engine.

If the temperature is high enough,

the warning light comes on for less

than one second. You can start the

engine without waiting.

Anti-lock braking

system (ABS) warning

light

This comes on for a few seconds each

time the ignition is switched on.

If the warning light remains on or

comes on above 8 mph (12 km/h),

this indicates an ABS malfunction.

However, the vehicle retains conven-

tional servo-assisted braking.

Lighting of this warning light, accom-

panied by an audible signal and the

message

"ABS fault" on the multi-

function display, indicates an ABS

fault.

Consult a PEUGEOT dealer.

Handbrake, low

brake ﬂuid level and

Electronic Brake Force

Distribution system

fault warning light

Linked to the central (STOP) warn-

ing light.

This comes on each time the ignition

is switched on.

Lighting of this warning light is ac-

companied by an audible signal and

a message on the multifunction dis-

play indicating the cause of the warn-

ing:

"Handbrake on", if the handbrake

is applied or not fully released,

"Brake ﬂuid level low" if there is

an excessive drop in brake ﬂuid

level (if the warning light remains

on even when the handbrake is re-

leased),

"Braking fault" is displayed to-

gether with the ABS warning light,

indicating a malfunction of the

Electronic Brake Force Distribution

system.

You must stop.

Consult a PEUGEOT dealer.

Content .. 1 2 3 ..
