Peugeot Partner VU Dag (2004 year). Instruction - part 7

PRACTICAL INFORMATION

The electrical circuit of

your vehicle is designed

to operate with standard

or optional equipment.

Before installing other electrical

equipment or accessories in your

vehicle, consult a PEUGEOT

dealer.

Some electrical accessories or

the way in which they are fitted

may have an adverse effect on

the operation of your vehicle (its

electronic control circuits, the

audio circuit and the electrical

charging circuit).

PEUGEOT declines any respon-

sibility for expenses incurred

through the repair of your vehicle

or for any malfunctions resulting

from the installation of auxiliary

accessories, not supplied and not

recommended by PEUGEOT and

not installed in accordance with

Engine compartment fuse box

PEUGEOT's instructions, in

To gain access to the box in the engine compartment (next to the battery), unclip

particular for any equipment the

the cover.

power consumption of which

exceeds 10 milliamps.

After carrying out work, close the cover very carefully.

The maxi fuses provide additional

protection for the electrical systems.

Any work on these fuses must be

carried out by a PEUGEOT dealer.

22-12-2003

PRACTICAL INFORMATION

Fuse N°

Rating

Functions

10 A

Pre-heat unit (diesel) - Brake and clutch switches - Reversing lights.

15 A

Fuel pump.

10 A

ABS control unit.

10 A

Engine control unit.

Not used.

15 A

Front fog lamps.

20 A

Headlamp wash pump.

20 A

Fan assembly relay - Engine control unit.

15 A

Left-hand dipped beam.

15 A

Right-hand dipped beam.

10 A

Left-hand main beam.

10 A

Right-hand main beam.

15 A

Horns.

10 A

Front and rear windscreen wash pumps.

30 A

Oxygen sensor - Air flow sensor.

30 A

Air pump relay.

30 A

Front windscreen wiper.

40 A

Air conditioning fan.

22-12-2003

PRACTICAL INFORMATION

CHANGING A FUSE

Removing and fitting a fuse

Before changing a fuse, the cause of the fault must be found and remedied. The

The fuse boxes are located under

fuse numbers are indicated on the fuse box.

the fascia and in the engine

compartment.

Use the pliers B.

Always replace a faulty fuse (identification according to fuse) with a fuse

of the same rating.

Correct

Incorrect

Pliers B

Fascia fuse box

Unclip the cover to gain access to

the fuses.

The spare fuses and the pliers B are

secured on the inside of the cover A.

22-12-2003

PRACTICAL INFORMATION

Fuse N°

Rating

Functions

15 A

Rear wiper (hinged doors) - Rear 12 V sockets.

20 A

Multi-function display - Instrument panel - Audio equipment - Steering wheel controls.

15 A

Alarm siren.

10 A

Diagnostic socket.

15 A

Alarm.

30 A

Heated seats.

40 A

Rear screen and mirror demisting.

15 A

Rear windscreen wiper (tailgate).

30 A

Front electric windows.

10 A

Engine fuse box - Steering wheel controls - Rain sensor.

15 A

Instrument panel - Multi-function display - Audio equipment.

30 A

Locking/unlocking controls for doors, bonnet and boot.

10 A

Right-hand brake light.

15 A

Left-hand brake light.

20 A

Front courtesy light - Map reading light - Lighter - Front 12 V socket -

Electric mirror.

22-12-2003

100

PRACTICAL INFORMATION

BATTERY

ECONOMY MODE FUNCTION

After the engine has stopped, with

To charge the battery using a battery charger:

the key in the accessories position,

- Disconnect the battery,

certain functions (windscreen wiper,

- Follow the instructions for use given by the battery charger manufacturer,

electric windows, courtesy lights,

audio equipment etc.) can only be

- Reconnect starting with the negative (-) terminal,

used for thirty minutes, to prevent

- Check that the terminals and connectors are clean. If they are covered with

discharging the battery.

sulphate (white or greenish deposit), disconnect them and clean them.

Once the thirty minutes are over, the

message "Eco mode active"

appears on the multifunction display

To start the vehicle from another battery:

and the active functions are put on

- Connect the red cable to the positive (+) terminals of the two batteries,

standby.

- Connect one end of the green or black cable to the negative (-) terminal of the

slave battery,

- Connect the other end of the green or black cable to an earth point on the

broken down vehicle as far as possible from the battery.

Operate the starter, let the engine run.

Wait for the engine to return to idle, then disconnect the cables.

It is advisable to disconnect the battery if the vehicle is not to be used

for a period of more than one month.

- Never disconnect a terminal when the engine is running.

- Never charge a battery without first disconnecting the terminals.

- After every reconnection of the battery, switch on the ignition and

wait 1 minute before starting to allow the electronic systems to be

initialised. If slight difficulties are experienced after this, please

contact a PEUGEOT dealer.

A flat battery will prevent

the engine from starting.

22-12-2003

101

PRACTICAL INFORMATION

FITTING AUDIO EQUIPMENT

Making the connections

Your vehicle is equipped with certain

A1 : -

factory-fitted audio equipment:

A2 : -

- roof aerial,

A3 : -

- coaxial aerial cable,

- basic interference suppression,

A4 : -

- supply to front speakers,

A5 : -

- two 8-way connectors.

A6 : (+ve) Accessories

A7 : (+ve) Permanent

A8 : (-ve) Earth

B1 : (+)

FITTING SPEAKERS

B2 : (-)

The factory-fitted equipment allows

B3 : (+) Front right speaker

the fitting of

165 mm diameter

speakers in the front doors.

B4 : (-) Front right speaker

B5 : (+) Front left speaker

B6 : (-) Front left speaker

B7 : (+)

B8 : (-)

Contact a PEUGEOT

dealer before fitting audio

equipment or speakers in

your vehicle.

22-12-2003

102

PRACTICAL INFORMATION

SNOW SCREEN*

TOWING YOUR VEHICLE

The snow screen is installed on

the lower part of the front bumper to

Without lifting (four wheels on the ground)

prevent the accumulation of snow at

You must always use a tow bar.

the radiator cooling fan.

When the snow has cleared, do

From the front or the rear

not forget to remove the snow

Attach the tow bar to the towing eye.

screen.

FITTING

By lifting (two wheels only on the ground)

☞ Offer up the snow screen facing

It is preferable to lift the vehicle by the wheels.

its centring pin A on the front

bumper.

☞ Put it in place by pressing at

each clip B located in the four

corners.

REMOVAL

☞ Pass a screwdriver into the hole

located near each of the clips.

☞ Use the screwdriver as a lever to

unclip the four clips B in turn.

Never use the radiator crossmember.

* According to destination.

22-12-2003

103

PRACTICAL INFORMATION

TOWING A TRAILER,

Driving advice

Tyres: Check the tyre pressures

of the towing vehicle and of the

CARAVAN, BOAT etc.

trailer, observing the recommended

Only use original PEUGEOT tow

Distribution of loads: Distribute the

pressures.

bars that have been tested and

load in the trailer so that the heaviest

approved from the design stage of

items are as close as possible to the

your vehicle.

axle and the nose weight approaches

Braking: Towing increases the braking

the maximum permitted without

distance.

The tow bar must be fitted by a

exceeding it.

PEUGEOT dealer.

Lights: Check the electrical signalling

Your vehicle is basically designed for

on the trailer.

transporting people and luggage but it

Cooling: Towing a trailer on a slope

may also be used for towing a trailer.

increases the temperature of the

Driving with a trailer subjects the

coolant.

Side wind: Take into acount the

towing vehicle to more significant

As the fan is electrically controlled,

increased sensitivity to side wind.

stress and its driver must be particu-

its cooling capacity is not dependent

larly careful.

on the engine speed.

Air density decreases with altitude,

On the contrary, use a high gear to

thus reducing engine performance.

lower the engine speed, and reduce

Above 1 000 metres, the maximum

your speed.

towing load must be reduced by 10 %

The maximum towing load on a long

and so on for every 1 000 metres of

slope depends on the gradient and

altitude.

the outside temperature.

In all cases, pay attention to the

coolant temperature.

If the warning light comes on, stop

the vehicle and switch off the engine

as soon as possible.

22-12-2003

104

PRACTICAL INFORMATION

ACCESSORIES FOR YOUR PARTNER

For your PEUGEOT only use accessories and original parts approved by the manufacturer.

These accessories and parts are all adapted to your PEUGEOT, after being tested and approved for reliability and safety,

which PEUGEOT cannot guarantee for other products.

A wide choice of original accessories, approved by PEUGEOT, is available through the dealer network. They all carry

the PEUGEOT guarantee.

- Safety

Separation grille, window protectors, anti-theft alarm, wheel locks, parking assistance,

signalling triangle, first aid kit, fog lamps, safety jacket...

- Comfort

Rear and side windows, audio-telephone console, covers compatible with side air bags,

mats, luggage net, door deflectors...

- Loading

Roof bars, thermoformed interior protectors, wooden interior fittings, loading roller...

– Communication

Audio systems, audio-telephone, speakers, CD changer, navigation system...

– Customising

Alloy wheels, door sills, mud flaps, ...

– Leisure

Tow bar, roof box, snow chains, tailgate bicycle carrier...

– Children

Booster seats and child seats...

– Maintenance products : Screenwash, interior and exterior maintenance and cleaning products...

Before installing any electrical accessory on your vehicle, contact a PEUGEOT dealer.

22-12-2003

105

TECHNICAL DATA

ENGINES AND GEARBOXES

PETROL

Model codes

GBHFXB

GBKFWB

GCKFWB

ENGINES

1.1 litre

1.4 litre

Cubic capacity (cm3)

1 124

1 360

Bore x stroke (mm)

72 x 69

75 x 77

EU standard maximum power (kW)

44.1

Maximum power at engine speed (rpm)

5 500

EU standard maximum torque (Nm)

120

Maximum torque at engine speed (rpm)

2 700

2 800

Fuel

Unleaded

Catalytic converter

Yes

Gearbox

Manual

(5 speed)

Oil capacity (in litres)

Engine (with cartridge replacement)

3.2 (1) - 3.4 (2)

3 (1) - 3.25 (2)

Gearbox-Final drive

(1) Draining by gravity - (2) Draining by suction

22-12-2003

106

TECHNICAL DATA

ENGINES AND GEARBOXES

DIESEL

Model codes

GBWJYB/K

GBRHYB

GCWJYB PLC

GCRHYB

ENGINES

1.9 litre

2 litre Turbo HDI

Cubic capacity (cm3)

1 867

1 997

Bore x stroke (mm)

82.2 x 88

85 x 88

EU standard maximum power (kW)

Maximum power at engine speed (rpm)

4 600

4 000

EU standard maximum torque (Nm)

125

205

Maximum torque at engine speed (rpm)

2 500

1 900

Fuel

Diesel

Catalytic Converter

Yes

Gearbox

Manual

(5 speed)

Oil capacity (in litres)

Engine (with cartridge replacement)

4.8

4.5

Gearbox-Final drive

1.9

22-12-2003

107

TECHNICAL DATA

CONSUMPTION

In accordance with directive 99/100 in M.P.G. (litres/100 km)

Engine

Gearbox

Model

Urban driving

Inter-

Mixed

Emission of

codes

urban

CO2 by weight

(g/km)

1.1 litre

Manual

GBHFXB

1.4 litre

Manual

GBKFWB

29.1

(9.7)

45.6

(6.2)

37.6

(7.5)

175

GCKFWB

1.9 litre Diesel

Manual

GBWJYB/K

32.1

(8.8)

49.6

(5.7)

40.9

(6.9)

181

GCWJYB PLC

2 litre Turbo HDI

Manual

GBRHYB

39.2

(7.2)

57.6

(4.9)

49.6

(5.7)

152

GCRHYB

Fuel consumption values correct at time of printing.

22-12-2003

108

TECHNICAL DATA

WEIGHTS AND TOWING LOADS (IN KG)

Engine

1.1 litre

1.4 litre

Model

600 kg

800 kg

Gearbox

Manual

Model codes

GBHFXB

GBKFWB

GCKFWB

• Kerb weight

1 108

1 110

•Gross vehicle

weight (GVW)

1 690

1 890

• Gross train weight (GTW)*

2 440

2 590

2 790

• Unbraked trailer

500

• Braked trailer (within GTW)

750

900

• Recommended nose weight

Engine

1.9 litre D

2 litre Turbo HDI

Model

600 kg

800 kg

600 kg

800 kg

Gearbox

Manual

Model codes

GBWJYB/K

GCWJYB PLC

GBRHYB

GCRHYB

• Kerb weight

1 163

1 225

1 211

• Gross vehicle

weight (GVW)

1 755

1 955

1 790

1 990

• Gross train weight (GTW)*

2 855

3 055

2 890

3 090

• Unbraked trailer

500

• Braked trailer (within GTW)

1 100

• Recommended nose weight

* In the case of a towing vehicle, the speed is limited to 60 mph (100 km/h).

22-12-2003

109

TECHNICAL DATA

EXTERIOR DIMENSIONS (in mm)

2 690

4 146

852

602

570

1 440

1 960

1 801

1 422

1 719

22-12-2003

110

TECHNICAL DATA

INTERIOR DIMENSIONS (in mm)

1 155

1 320

1 190

568

1 340

22-12-2003

111

TECHNICAL DATA

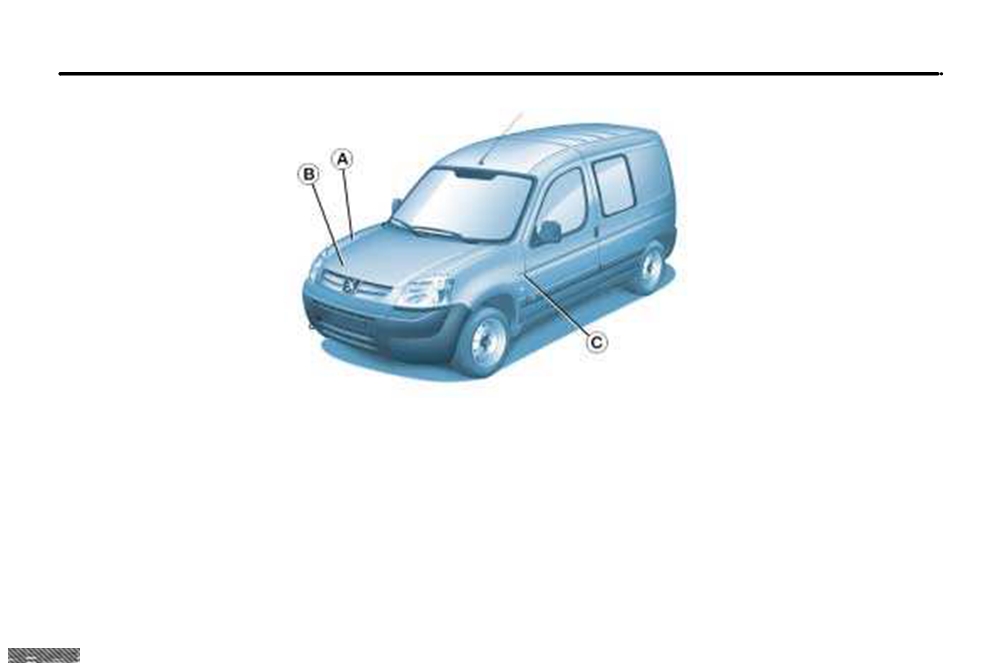

THE IDENTIFICATION FEATURES OF YOUR PARTNER

A. Manufacturer's plate (under the bonnet, on the front right wing).

B. Serial number on the bodywork (under the bonnet, on the right-hand crossmember).

C. Tyres and paint colour reference.

The label C on the driver's door pillar, near the hinges, gives:

- the wheel and tyre sizes,

- the tyre pressures: (tyre pressure checks must be carried out cold, at least every month)

– the paint colour reference.

22-12-2003

Content .. 5 6 7
