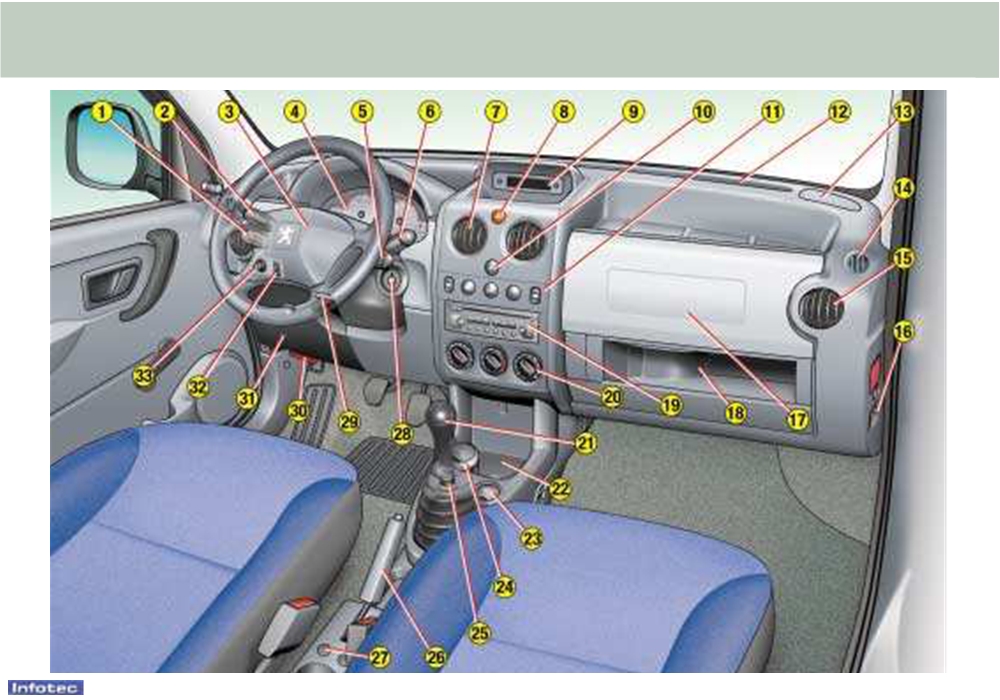

YOUR PARTNER AT A GLANCE
22-12-2003
3
YOUR PARTNER AT A GLANCE
1 -
Cruise control stalk.
12 - Windscreen demisting
25 - Lighter.
vents.
26 - Handbrake.
2 -
Lights and direction
indicators stalk.
13 - Speaker (tweeter).
27 - Heated seats control.
28 - Steering lock and ignition.
3 -
Driver's air bag.
14 - Side window demisting
Horn.
vents.
29 - Steering wheel adjustment
control.
4 -
Instrument panel.
15 - Side adjustable
30 - Bonnet release.
heating/ventilation vents.
5 -
Audio equipment steering
31 - Fuse box.
wheel control.
16 - Passenger air bag
32 - Headlamp height
disarming control*.
adjustment.
6 -
Windscreen wash-wipe
33 - Passenger's electric mirror
stalk.
17 - Upper glove box or
control.
passenger air bag.
7 -
Central adjustable
heating/ventilation vents.
18 - Lower glove box.
8 - Hazard lights button.
19 - Audio RB3 or RD3.
9 - Multifunction display or
20 - Heating/air conditioning
clock.
controls.
10 - Central locking button.
21 - Gear lever.
11 - Controls:
22 - Storage.
- Electric windows.
- Demisting of rear door
23 - 12 V accessories socket.
windows or tailgate.
- Air conditioning.
24 - Removable ashtray.
* According to destination.
22-12-2003
4
YOUR PARTNER AT A GLANCE

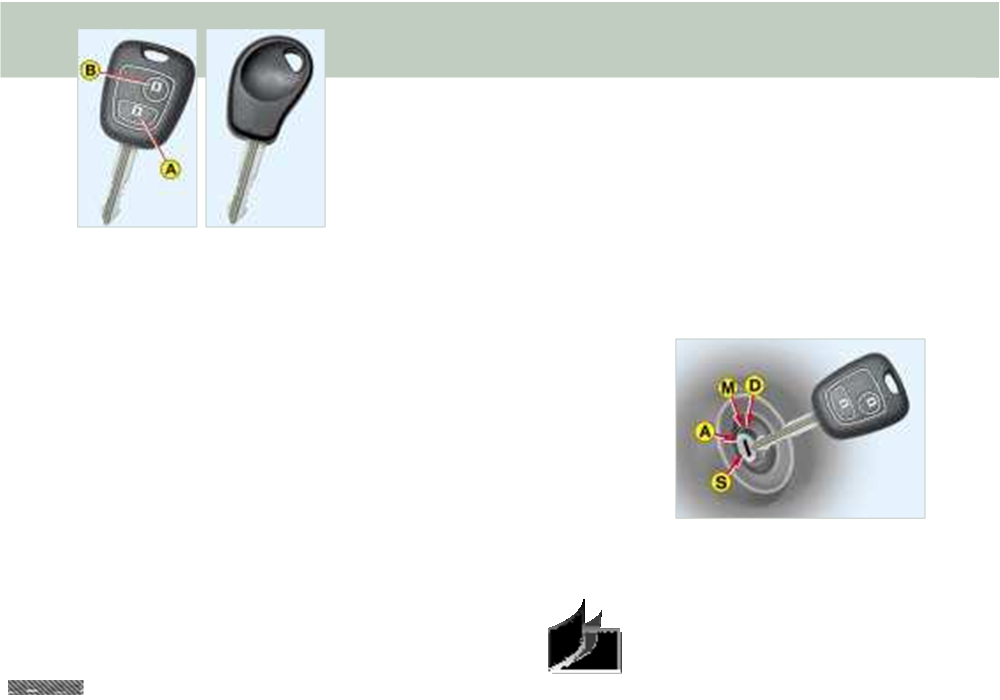

The remote control key
STARTING
Locking
STOP position (S):
The ignition is off.
Press button A to lock the vehicle.
Accessories position (A):
The
This is confirmed by fixed lighting
ignition is off but the accessories
of the direction indicators for
can be used.
approximately two seconds.
On position (M):
The ignition is on.
THE KEYS
Unlocking
The keys allow you to switch on
Starting position (D):
Press button B to unlock the
the ignition and operate the pas-
vehicle.
Operates the starter.
senger air bag disarming switch,
This is confirmed by rapid flash-
as well as to independently operate
ing of the direction indicators.
the locks on the doors and the
fuel filler cap.
Locating the vehicle
To locate your vehicle, previous-
Central locking
ly locked, in a car park:
From the front doors, the keys
☞ press button A, the courtesy
allow you to lock and unlock the
lights come on and the direc-
doors and tailgate.
tion indicators flash for a few
seconds.
If one of the doors or the tailgate
is open, it is impossible to oper-
ate the central locking.
The remote control performs the
same functions at a distance.
61
22-12-2003
5
YOUR PARTNER AT A GLANCE
Vehicles fitted with
a rear fog lamp
(ring B)
Turn the ring forwards.
Vehicles fitted with
front fog lamps and a
rear fog lamp (ring B)
STEERING WHEEL
WINDSCREEN WIPERS
STALKS
Front fog lamps (1st turn of the
Front
ring forwards).

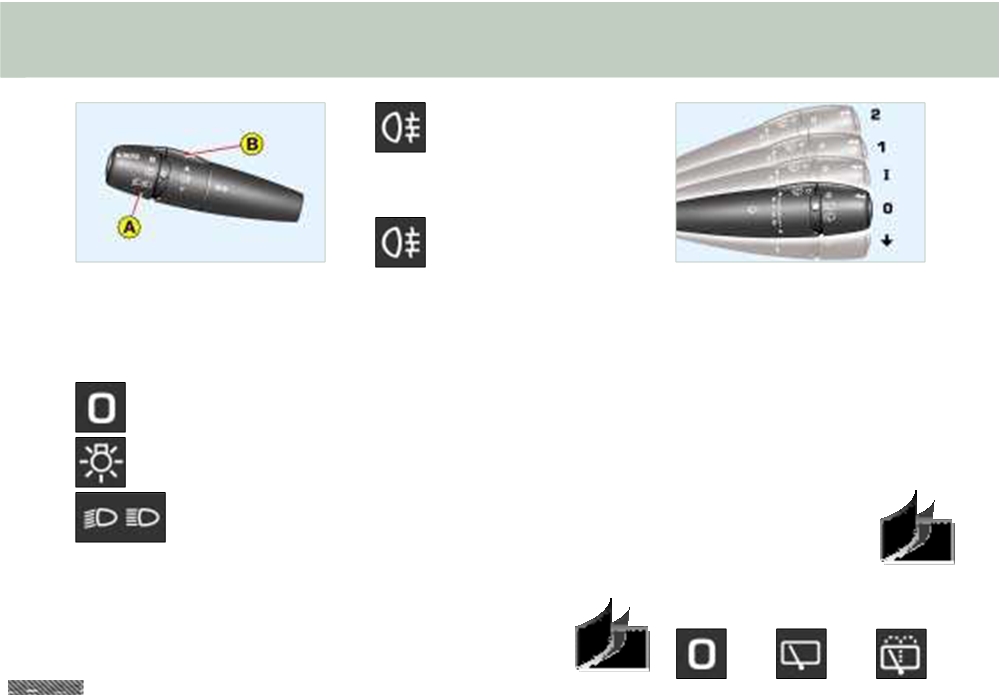

LIGHTING
Front fog lamps and rear fog
2
Rapid wipe
Front and rear lights (ring A)
lamp (2nd turn of the ring for-
(heavy rain).
wards).
1
Normal wipe
Lights off
(moderate rain).
To switch off: turn the ring rear-
wards.
I
Intermittent wipe.
0
Off.
Side lights
Single wipe.
Dipped
headlamps/Main
Windscreen wash-wipe:
beam headlamps
pull the stalk towards you.
72
Rear
Off
Intermittent
Wash-
wipe
wipe
71
22-12-2003
6
YOUR PARTNER AT A GLANCE
SEATS

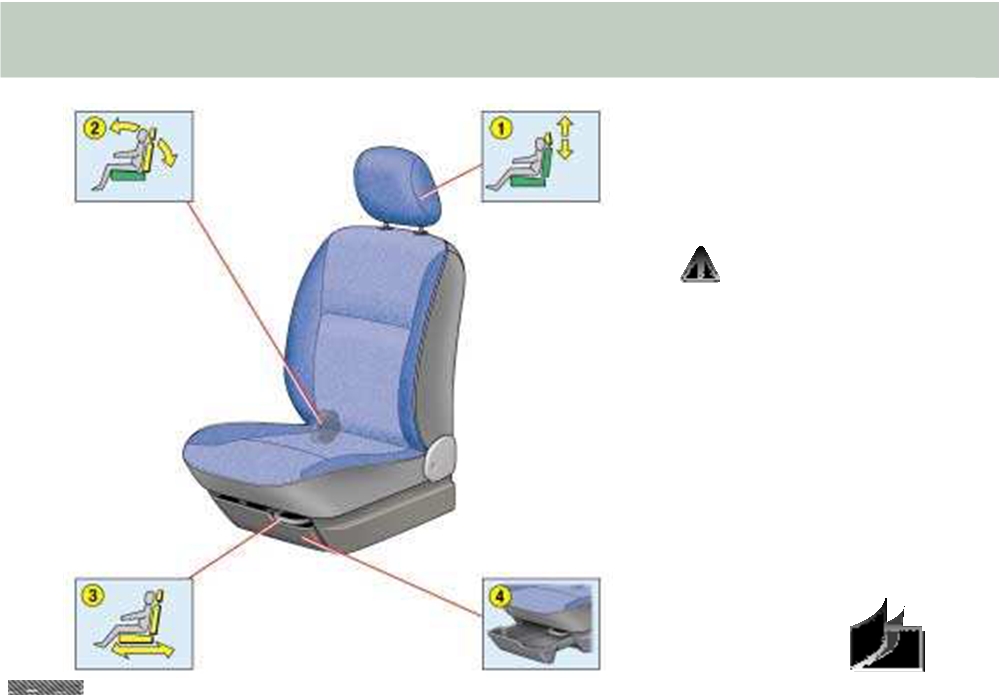

Driver and passenger seats
1. Head restraint height
adjustment.
Never travel with the
head restraints removed.
2. Seat back angle adjustment.
3. Forwards-backwards adjustment.
4. Storage drawer (passenger or
driver).
52
22-12-2003
7
YOUR PARTNER AT A GLANCE
AIR BAGS
The air bag system has been
designed to maximise the safety

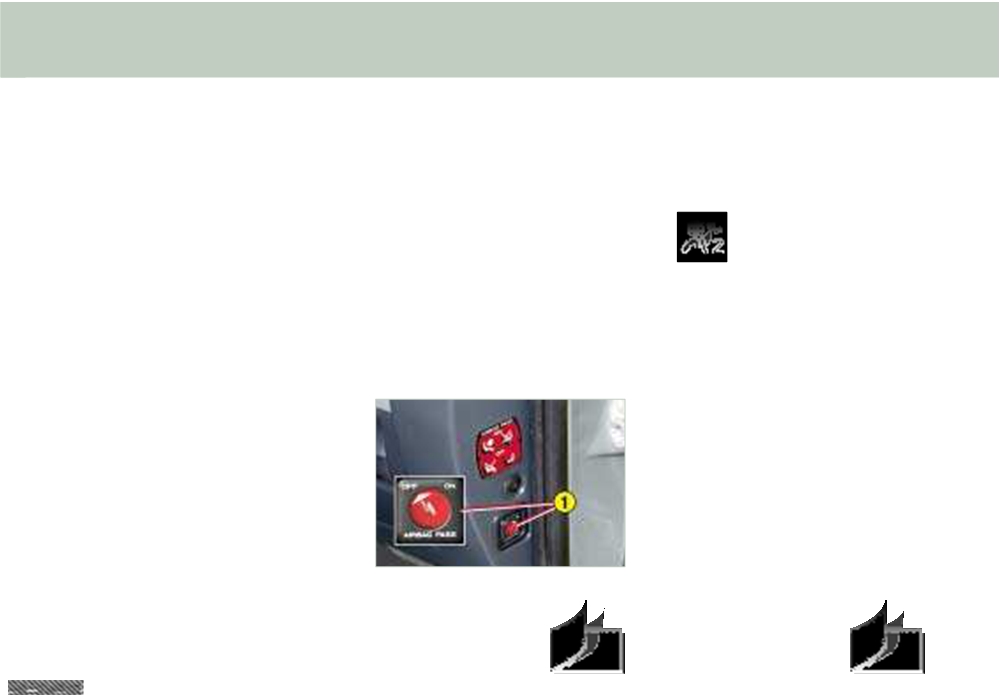

Disarming the passenger
Operating check
of the occupants in the event of
air bag*
serious collisions. It works in con-
junction with the pretensioning
With the ignition switched
☞ With the ignition off, insert the
seat belts.
on (2nd notch), illumina-
ignition key into the passen-
tion of this warning light
ger air bag slot 1 and turn it to
indicates that the pas-
the "OFF" position.
senger air bag is dis-
Front air bags
armed (slot in the "OFF" posi-
These are folded in the centre of
As soon as you remove the child
tion).
the steering wheel for the driver
seat, turn the air bag switch to the
The warning light remains on
and in the fascia for the front
"ON" position to activate the air
throughout the disarming process.
passenger. They are deployed
bag again.
simultaneously, except in cases
where the passenger air bag is
Side air bags*
disarmed.
Side air bags are incorporated
into the front seat back frame, on
the door side.
Precautions regarding
They are deployed independently
the passenger air bag
of each other, on whichever side
the collision occurs.
☞ disarm the air bag if you install
a rear-facing child seat,
☞ activate the air bag for an
adult passenger.
82
83
* According to destination.
22-12-2003
8
YOUR PARTNER AT A GLANCE
ELECTRIC WINDOWS
1. Driver's electric window.
2. Passenger's electric window.
Manual mode:
☞ Press the switch. The window stops as soon as the switch is released.
Automatic mode (driver):
☞ Press and hold the switch. One touch completely opens or closes the window.
73
EXTERIOR MIRRORS
☞ Move the manual control 3 in all four directions to adjust.
Electric control for the passenger's side mirror
☞ From the driver's seat, adjust in all four directions by operating the control 4.
74
22-12-2003
9
YOUR PARTNER AT A GLANCE
To activate
☞ Place the knob 1 in the ON
position.
A speed can now be memo-
rised.
☞ Place the knob 1 in the OFF
position to deactivate the
system.

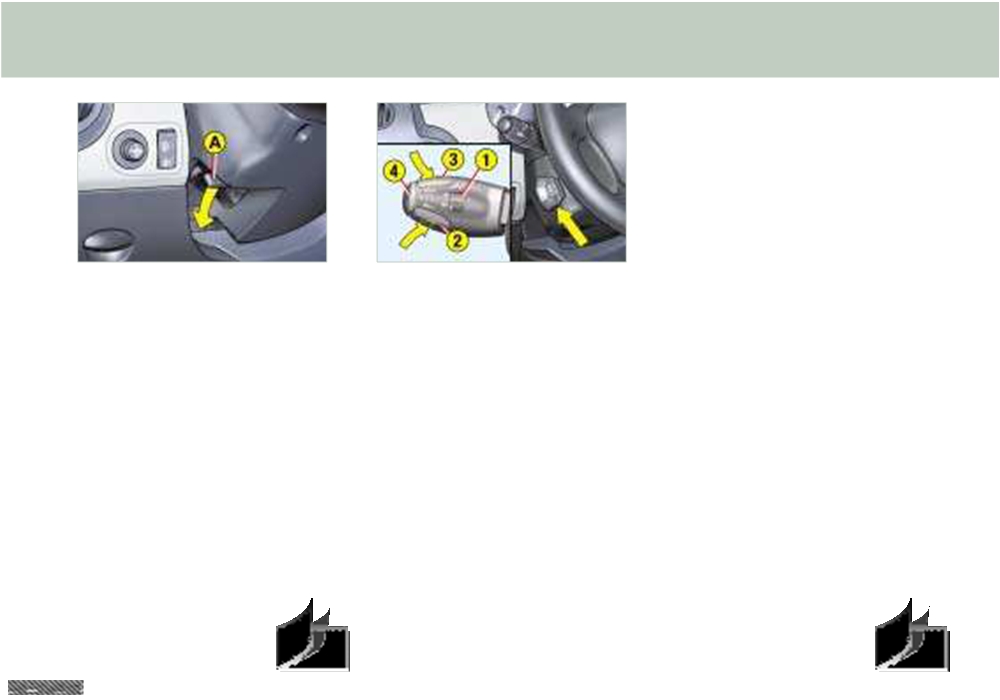

Memorising a speed
When you reach the required

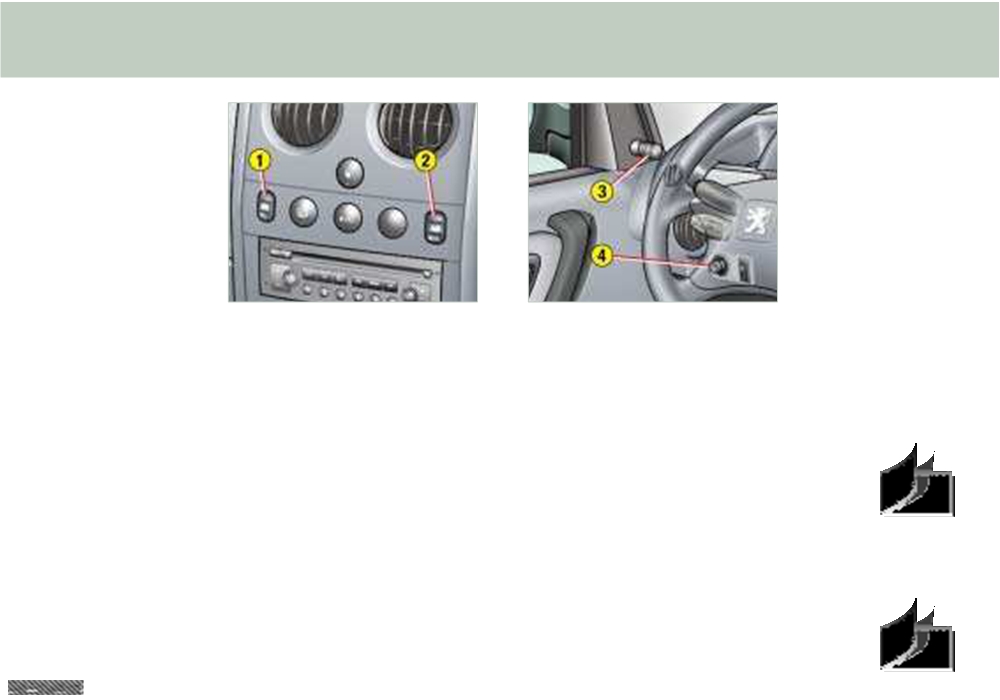

STEERING WHEEL HEIGHT
CRUISE CONTROL
speed, press button 2 or 3. The
ADJUSTMENT
speed is memorised and will be
The cruise control makes it possi-
maintained automatically.
☞ When stationary, push the
ble to maintain a constant vehicle
control A forwards to unlock
Deactivating
speed, programmed by the driv-
the steering wheel.
the memorised speed
er, irrespective of the profile of
☞ Adjust the height of the steer-
the road and without any action
If you wish to deactivate the
ing wheel.
on the accelerator or the brake
memorised speed:
pedals.
☞ Lock it by pulling control A
☞ press button 4 or the brake or
towards you fully.
In order for the vehicle speed to be
clutch pedal.
memorised, it must be greater than
Recalling the memorised
approximately 25 mph (40 km/h)
speed
and fourth or fifth gear must be
engaged.
After deactivation, press button
4. Your vehicle reverts to the last
memorised speed.
Cancelling the stored
speed
☞ Place the knob 1 in the OFF
position or switch off
the ignition.
76
81
22-12-2003
10
YOUR PARTNER AT A GLANCE
HEATING
N°
Symbol
Function
1
Air flow adjustment.
Air flow adjustment
2
and air intake control.
Temperature
3
adjustment.
Air distribution
4
adjustment.
48
22-12-2003
11
YOUR PARTNER AT A GLANCE
AIR CONDITIONING
N°
Symbol
Function
Air conditioning
1
control.
Air flow adjustment
2
and air intake control.
Temperature
3
adjustment.
Air distribution
4
adjustment.
50
22-12-2003
12
YOUR PARTNER AT A GLANCE
22-12-2003
13
YOUR PARTNER AT A GLANCE

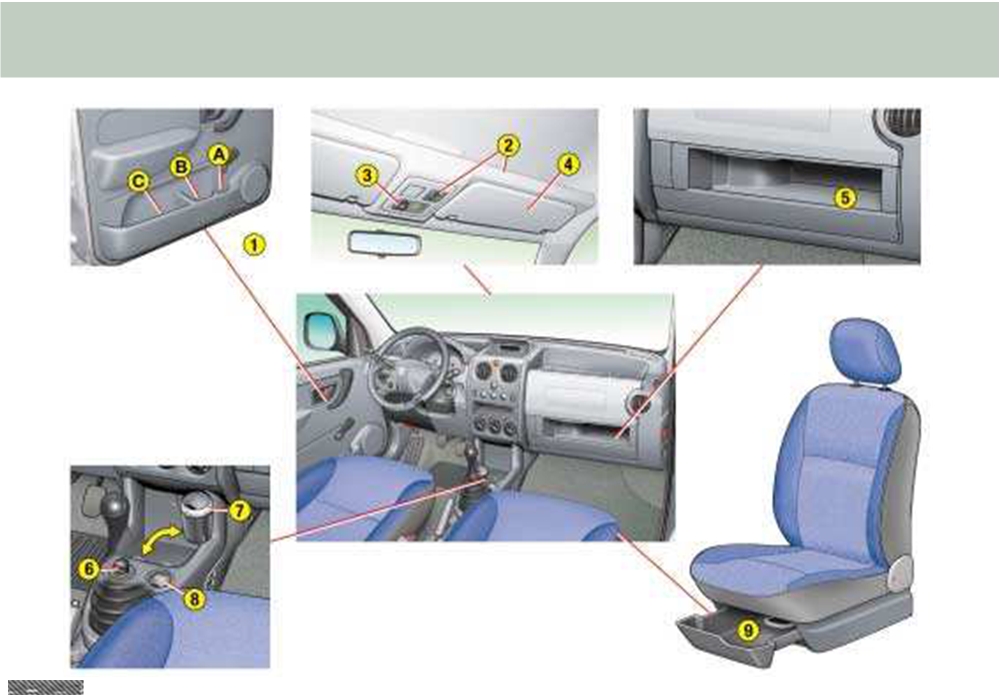

FRONT FITTINGS
1. STORAGE COMPARTMENTS IN THE DOORS
A. Bottle holder.
B. Can holder.
C. Storage compartment.
2. OVERHEAD STORAGE WITH MAP READING LIGHT
3. COURTESY LIGHT
4. SUN VISORS
5. GLOVE BOX
To open the glove box with lid, lift the handle (version with air conditioning).
6. LIGHTER
7. REMOVABLE ASHTRAY
Lift the lid to open the ashtray.
To empty it, after opening, remove it by pulling upwards.
8.
12 V ACCESSORIES SOCKET
This is located at the bottom of the centre console.
It permits the connection of a telephone charger, a baby's bottle warmer, ...
9. STORAGE DRAWER
To open it, lift it slightly and pull it forwards.
79
22-12-2003
14
YOUR PARTNER AT A GLANCE

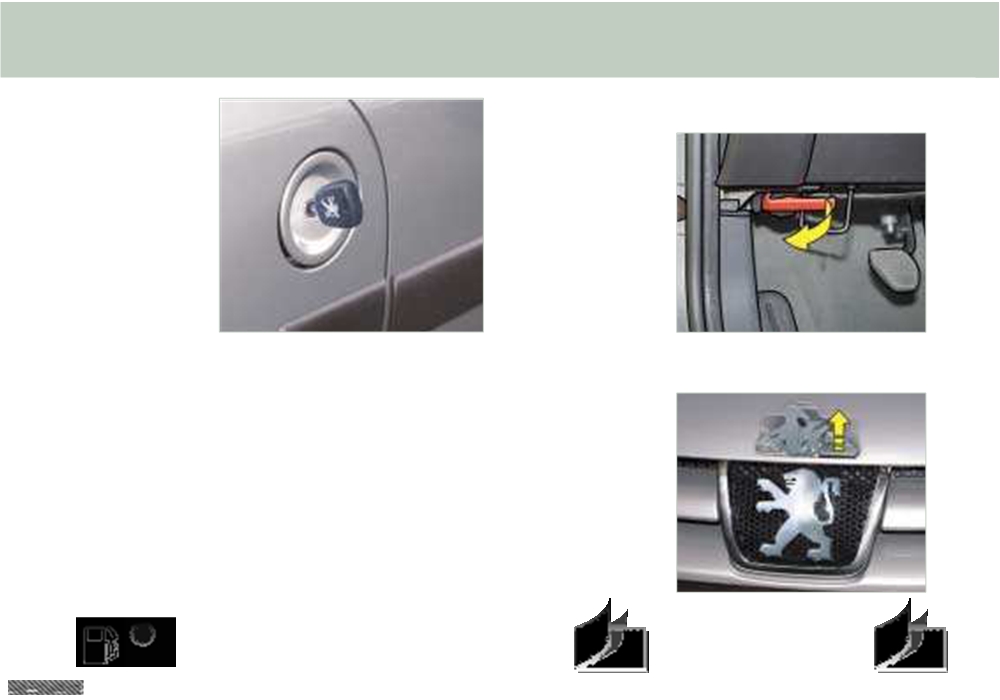

OPENING THE BONNET
Inside the vehicle: Pull the con-
FILLING WITH FUEL
trol on the left-hand side, under
the fascia panel.
This operation must be carried out with the engine switched off
☞ Insert the key then turn it to the left.
☞ Remove the cap.
An indication shows which type of fuel to use.
When you fill your tank, do not continue after the third cut-off of the pump.
This could cause a malfunction.
The capacity of the tank is approximately 55 litres for petrol engines
and 60 litres for Diesel engines.
Note: the right-hand sliding side door cannot be opened while the fuel
tank cap is removed.
Outside the vehicle:
Low fuel level warning light
Lift the control, raise the
bonnet and secure the
From the time this light comes on, you have enough
strut to keep the bonnet
fuel left to cover approximately 30 miles (50 km)
70
open.
69
22-12-2003
18
PEUGEOT SERVICING
PEUGEOT SERVICING
Your vehicle benefits from extended service intervals.
• For petrol engines: every 20,000 miles (30 000 km) or every two years.
• For direct injection diesel engines: every 12,000 miles (20 000 km) or every two years.
• For indirect injection diesel engines: every 10,000 miles (15 000 km) or every two years.
Your service indicator informs you when a service is due; the point at which a service is due is calculated from the last indi-
cator zero reset (see corresponding section).
This point is determined by two parameters:
- the distance travelled,
- the time elapsed since the last service.
Note: the distance remaining may be weighted by the time factor, depending on the driver's style of driving.
The extension of the service intervals means that the engine oil level must be checked regularly: topping up of the
oil between oil changes is normal.
This is why the PEUGEOT network is offering you an intermediate service between regular services.
The date of this visit is not shown by the service indicator. It is to be carried out at least every 10,000 miles
(15000 km) for petrol engines; every
6,000 miles
(10
000 km) for direct injection diesel engines and every
5,000 miles (7 500 km) for indirect injection diesel engines.
A PEUGEOT dealer will carry out a quick check and top up the levels if necessary (oil, coolant, windscreen wash
up to 2 litres).
If the oil level is too low there is a risk of serious damage to the engine: check the engine oil level at least every
2,000 to 3,000 miles (3 000 to 5 000 km), depending on the conditions of use.
This extended servicing has been made possible by modifications to our vehicles and to the lubricants:
THUS IT IS ESSENTIAL TO USE ONLY LUBRICANTS WHICH ARE SUITED TO YOUR ENGINE AND RECOMMENDED
BY THE MANUFACTURER (see "Lubricants" pages).
22-12-2003
19
PEUGEOT SERVICING
SPECIAL FEATURES
Some of your vehicle's vital components have specific servicing schedules.
The brake fluid must be replaced every 36,000/40,000 miles (60 000 km) or every 2 years.
The passenger compartment filter must be checked at each visit to the PEUGEOT dealer (intermediate visits and regu-
lar services).
The timing belt : consult your PEUGEOT dealer.
Arduous conditions of use
If the vehicle is used in certain particularly arduous conditions:
• Continuous door-to-door use.
• Town use (e.g. taxi).
• Repeated short journeys, with the engine cold in low temperatures.
Or in long stays in the following conditions:
• Hot countries with temperatures often above 30 °C.
• Cold countries with temperatures often below minus 15 °C.
• Countries with a dusty atmosphere.
• Countries whose lubricants or fuels do not conform to our recommendations.
It is necessary to follow an "Arduous Conditions" servicing schedule, which includes special operations and shorter
service intervals:
• Every 12,000 miles (20 000 km) or every year for petrol engine vehicles.
• Every 10,000 miles (15 000 km) or every year for Direct Injection Diesel engine vehicles.
• Every 6,000 miles (10 000 km) or every year for Indirect Injection Diesel engine vehicles.
22-12-2003
19
PEUGEOT SERVICING
SPECIAL FEATURES
Some of your vehicle's vital components have specific servicing schedules.
The brake fluid must be replaced every 36,000/40,000 miles (60 000 km) or every 2 years.
The passenger compartment filter must be checked at each visit to the PEUGEOT dealer (intermediate visits and regu-
lar services).
The timing belt : consult your PEUGEOT dealer.
Arduous conditions of use
If the vehicle is used in certain particularly arduous conditions:
• Continuous door-to-door use.
• Town use (e.g. taxi).
• Repeated short journeys, with the engine cold in low temperatures.
Or in long stays in the following conditions:
• Hot countries with temperatures often above 30 °C.
• Cold countries with temperatures often below minus 15 °C.
• Countries with a dusty atmosphere.
• Countries whose lubricants or fuels do not conform to our recommendations.
It is necessary to follow an "Arduous Conditions" servicing schedule, which includes special operations and shorter
service intervals:
• Every 12,000 miles (20 000 km) or every year for petrol engine vehicles.
• Every 10,000 miles (15 000 km) or every year for Direct Injection Diesel engine vehicles.
• Every 6,000 miles (10 000 km) or every year for Indirect Injection Diesel engine vehicles.
22-12-2003
|
|
|
