Practical information

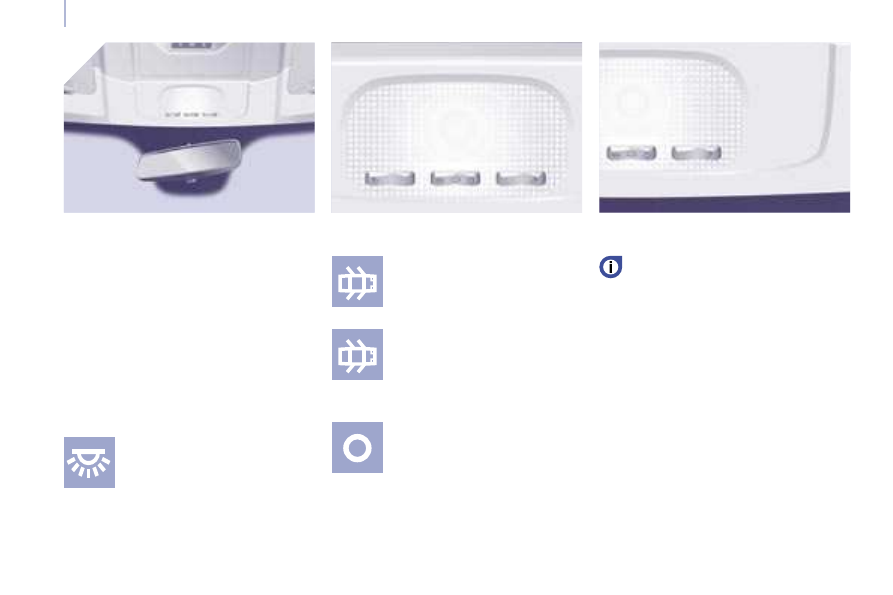

LOAD SPACE COURTESY LIGHTS

Automatic switching on/off
The front courtesy light comes on when

the key is removed from the ignition, when

the vehicle is unlocked, when one of the

front doors is opened and for location of the

vehicle using the remote control.

It switches off gradually after the ignition is

switched on and when the vehicle is locked.

Permanently on, ignition on.

Cab: comes on when one of the

front doors is opened.

Load space: comes on when one

of the rear doors is opened. If the

doors remain open for a few

minutes, the courtesy lights are

switched off.

Permanently off.

Front individual reading light

Rear courtesy light

If fitted on the vehicle, these are

switched on and off by means of a

manual switch, with the ignition on.

Areas for toll cards/car park tickets

The athermic windscreen has two non-

reflective zones located either side of the

base of the interior mirror.

They are intended for affixing toll cards

and/or car park tickets.

Front courtesy light

Practical information

LOAD SPACE LAYOUT

Depending on the vehicle’s equipment, the

various fittings below enhance your load

space.

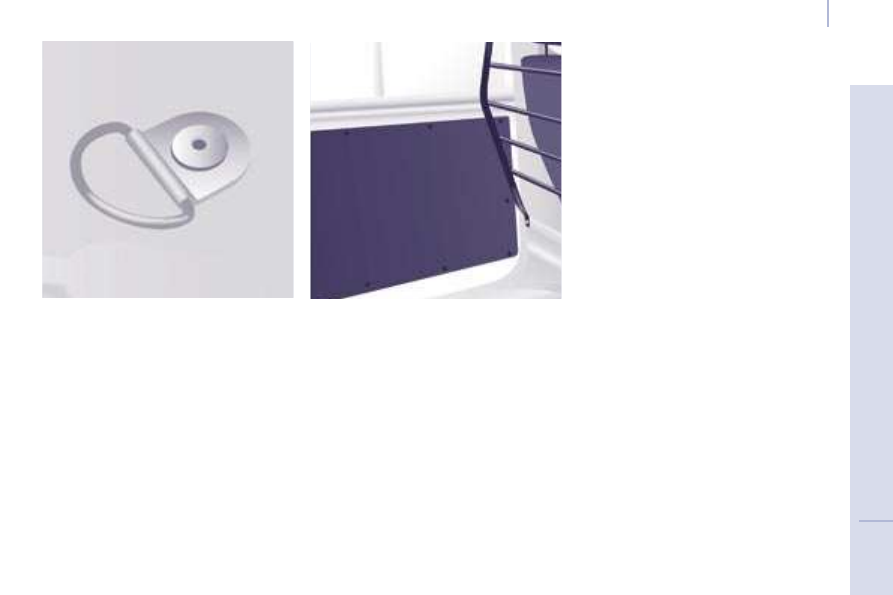

Stowing rings

Use the stowing rings on the rear floor to

secure your loads.

As a safety precaution in case of sharp

braking, you are advised to place heavy

objects as far forwards towards the cab as

possible.

Locations for stowing rail

Locations for securing a stowing rail are

available on each side of the vehicle.

Trims

The lower parts of the sides are fitted with

load protection trims.

Roof box on raised version

This is a storage compartment located in the

load space, above the cab roof.

Practical information

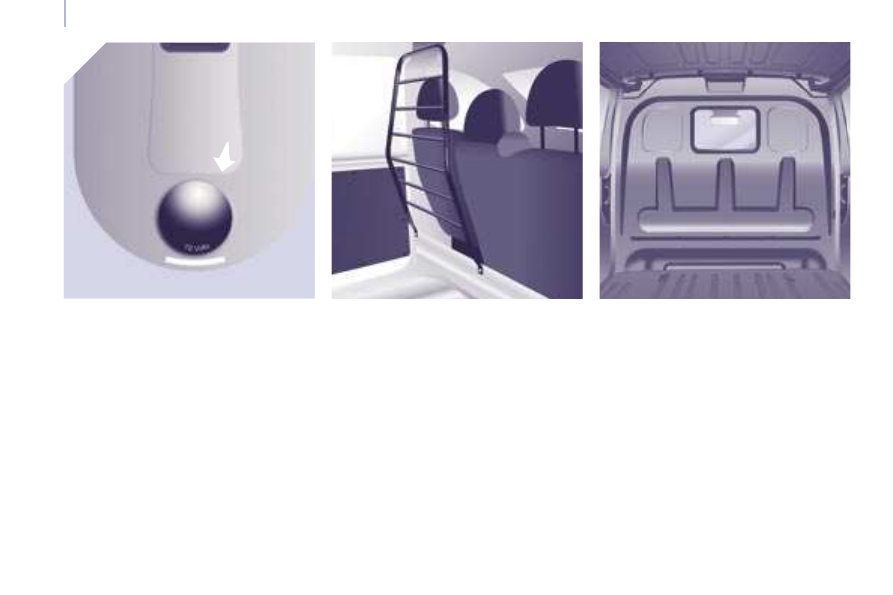

12 volt socket

This operates with the ignition off, therefore

limit its use to avoid discharging the battery.

Maximum power: 120 W.

Ladder type vertical separation or

partition

Behind the driver’s seat, a ladder type

vertical separation or partition protects the

driver against the risk of load movement.

Load retainer

On the floor, behind the front seats, a

horizontal partition protects the driver and

front passengers against the risk of load

movement.

Panel or glazed separation partitions permit

separation of the load space from the cab.

Practical information

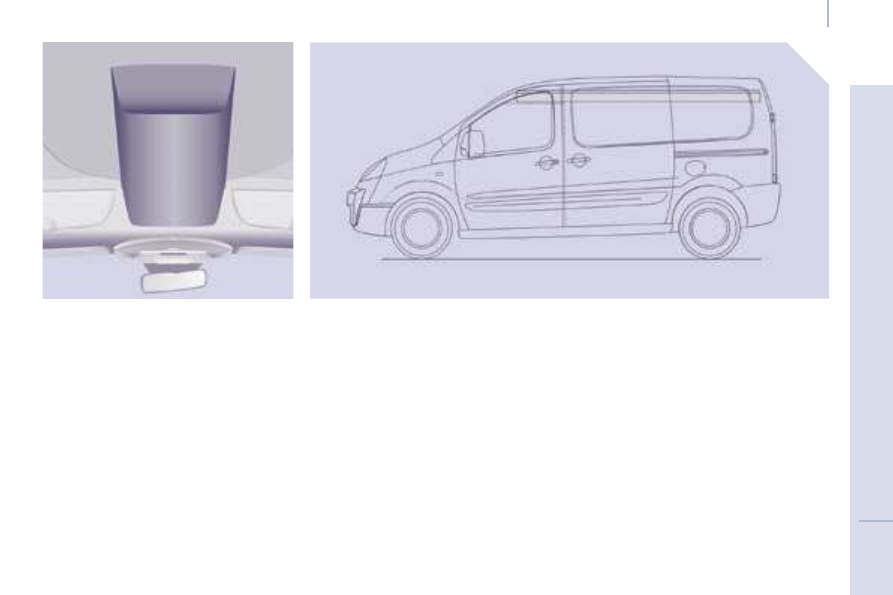

Tunnel and internal rack

Located above the cab, access to the tunnel

is via the load space.

The tunnel can be added to by an internal

rack which will enable you to transport long,

light items (electrical rods, pipes, etc...).

MIRRORS

The mirror is supplemented by a 2nd lower

mirror. This mirror is spherical to broaden

the field of side vision. Objects observed

are, in reality, closer than they appear.

Therefore, take this into account in order to

judge the distance correctly.

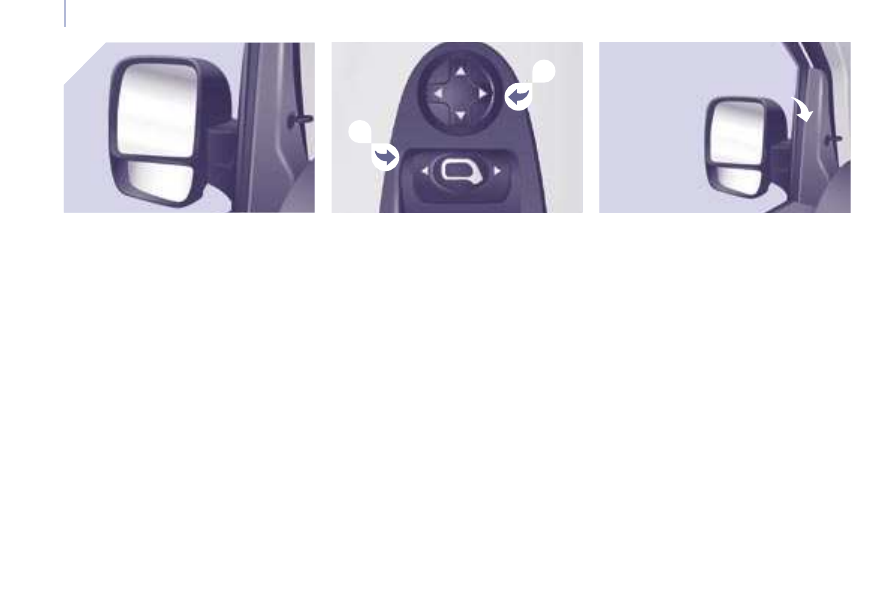

Electric exterior mirrors



Move switch

A to the right or to the left to

select the corresponding mirror.



Move knob

B in all four directions to

adjust.



Return switch

A to the centre position.

MIRRORS AND WINDOWS

Electric folding/unfolding

If your vehicle is fitted with this function, the

mirrors can be folded or unfolded electrically

from the inside, with the vehicle parked and

the ignition on:


Place switch

A in the centre position.



Pull switch

A rearwards.

Heated mirrors

If your vehicle is fitted with this function,

press the rear screen demisting button.

Manual Exterior Mirrors

Move the lever in all four directions to

adjust.

When the vehicle is parked, the exterior

mirrors can be folded back manually.

If the mirror casing has come out of its

initial location, with the vehicle stationary,

reposition the mirror casing manually or use

the electric folding switch.

There is no risk of breakage even in the

presence of ice.

Mirrors and windows

Mirrors and windows

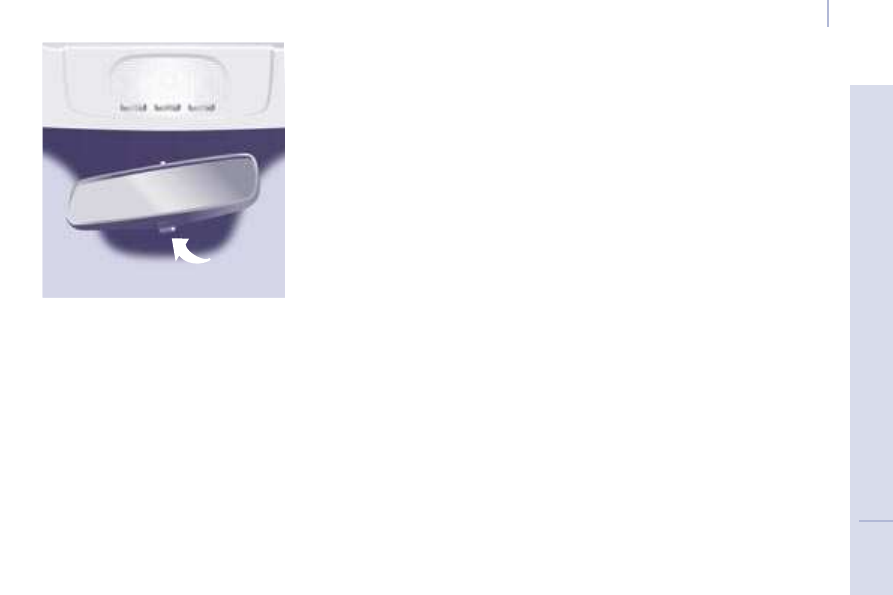

Manual interior mirror

The interior mirror has two positions:

- day (normal),

- night (anti-dazzle).

To change from one to the other, push or

pull the lever on the lower edge of the mirror.

Mirrors and windows

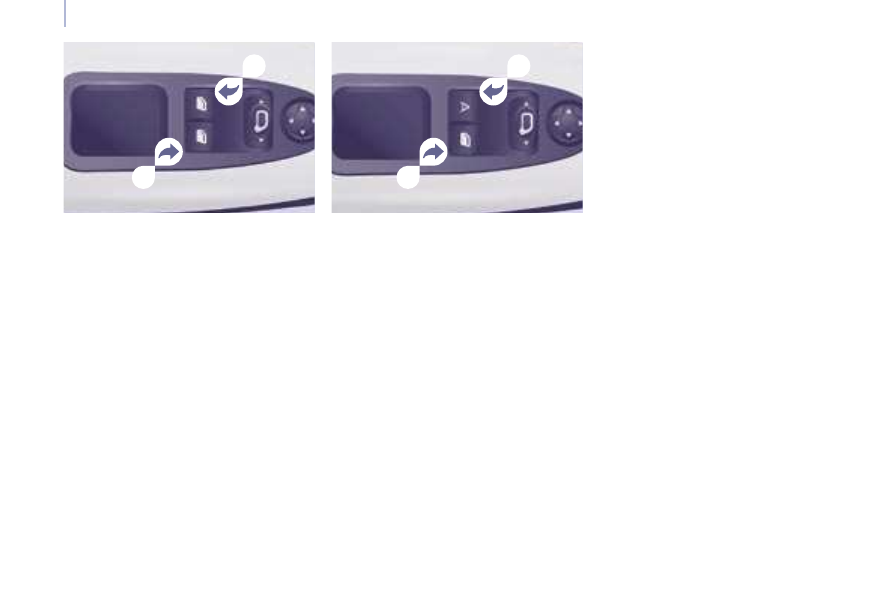

ELECTRIC WINDOWS

1 - Driver’s electric window control

2 - Passenger electric window control

There are two operating modes:

Manual mode

Press or pull the control, without passing the

point of resistance. The window stops when

you release the control.

Automatic mode

Press or pull the control, beyond the point

of resistance. The window opens or closes

fully when the control is released. Pressing

the control again stops the movement of the

window.

The electrical functions of the electric

windows are deactivated:

- approximately 45 seconds after the ignition

is switched off,

- after one of the front doors is opened, if the

ignition is off.

Safety auto-reverse

If your vehicle is fitted with the safety auto-

reverse function, when the window rises and

meets and obstacle, it stops and partially

lowers.

In the event of unwanted opening of the

window on closing, press the control until

the window is fully open. Within the next

4 seconds, pull the control until the window

is fully closed.

The safety auto-reverse does not operate

during these operations.

Reinitialisation

Following reconnection of the battery,

the safety auto-reverse function must be

reinitialised.

Lower the window fully, then raise it, it will

rise in steps of a few centimetres each time

the control is pressed. Repeat the operation

until the window is fully closed.

Continue to press the control for at least one

second after the window closed position has

been reached.

The safety auto-reverse does not operate

during these operations.

Good practice

If the electric windows meet an obstacle

during operation, you must reverse the

movement of the window. To do this, press

the control concerned.

When the driver operates the passenger

electric window controls, he must ensure

that no one is preventing correct closing of

the windows.

The driver must ensure that the passengers

use the electric windows correctly.

Be aware of children when operating the

windows.

RD4

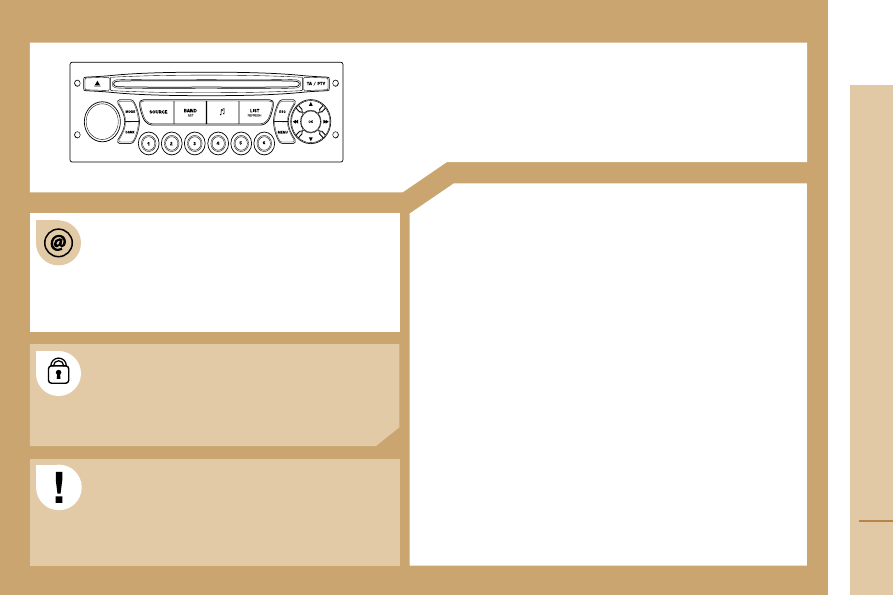

AUDIO EQUIPMENT

CONTENTS

• 01 First steps

pg. 68

• 02 Displays and general menu

pg. 69

• 03 Audio

pg. 71

• 04 Hands-free kit

pg. 73

• 05 Trip computer

pg. 74

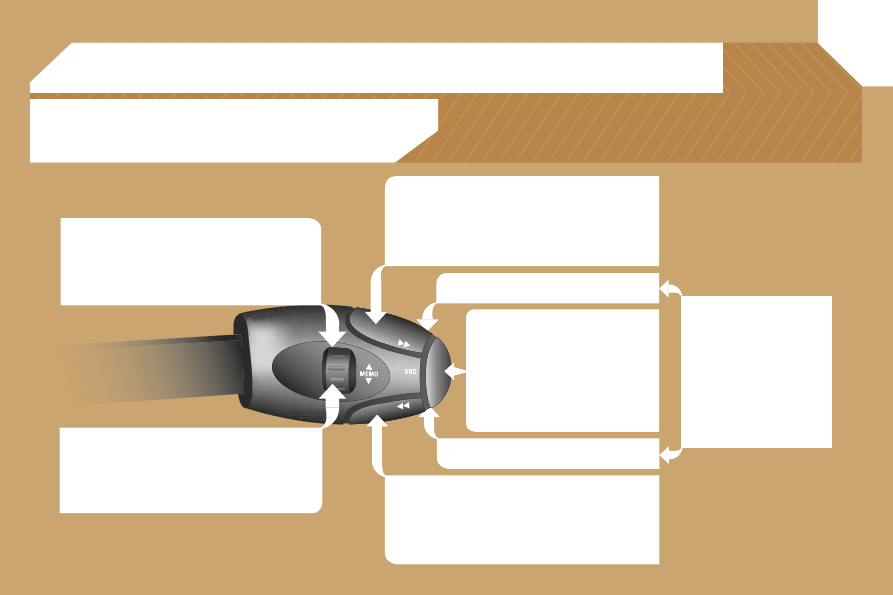

• 06 Control short-cuts

pg. 75

• 07 Conﬁguration

pg. 76

• 08 Display ﬂow charts

pg. 78

The INFOTEC internet site provides additional

animated information on the RD4. It can be consulted

at the following address:

http://public.infotec.peugeot.com

Simple registration permits access and free

consultation of the handbook.

The RD4 audio equipment is coded in such a way that

it will only operate in your vehicle. If it is to be installed

in another vehicle, contact your PEUGEOT dealer for

conﬁguration of the system.

-C

The audio equipment function is shared by the

whole PEUGEOT range. On the EXPERT, the audio

equipment may only offer some of the functions

mentioned depending on the speciﬁcation and the

characteristics speciﬁc to the country in which it is sold.

01 FIRST STEPS

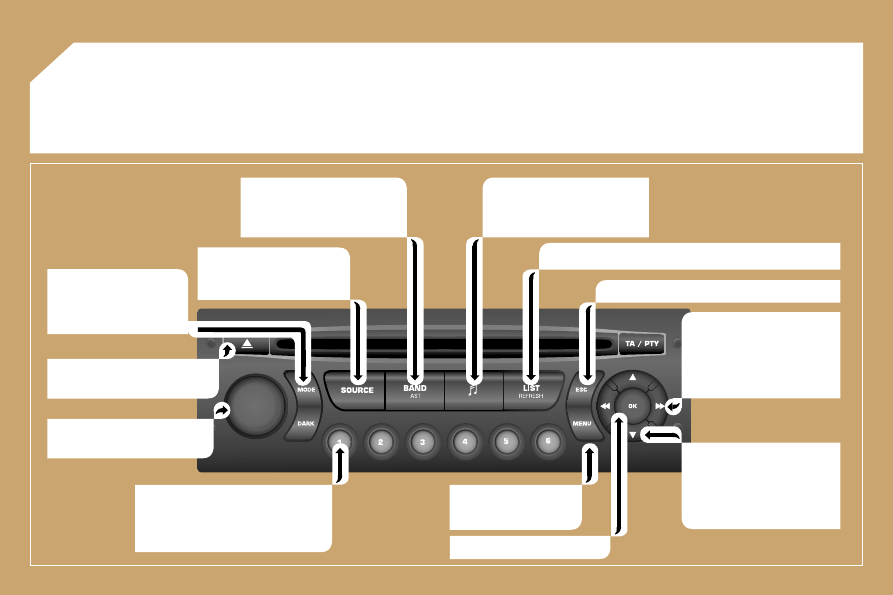

On/Off and volume adjustment.

CD eject.

Selection of the FM1, FM2,

FMast and AM wavebands.

Displaying of the general

menu.

- Selection of a lower/higher

frequency.

- Selection of the previous/next

CD.

- Automatic search for a

lower/higher frequency.

- Selection of previous/next

CD track.

Selection of the source:

radio, CD and CD changer.

- Storing of a station.

- Selection of a stored radio station.

- Selection of a CD in the CD

changer.

Setting the audio options:

Front/rear balance, left/right

balance, loudness, sound

ambiences.

Displaying of the local stations or of the tracks on the CD.

Abandon current operation.

Selection of the screen

display mode, if your

vehicle is ﬁtted with the

trip computer.

Conﬁrmation.

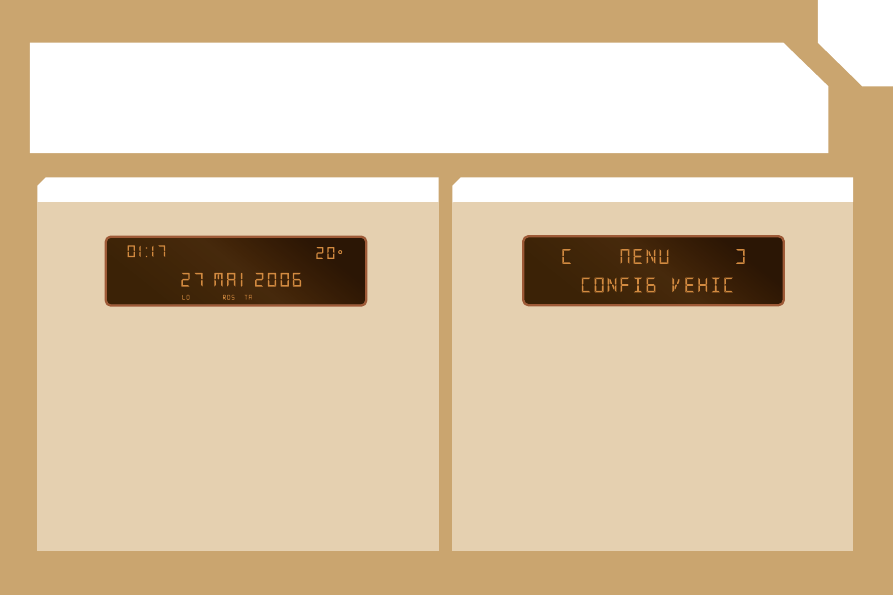

02 DISPLAY AND GENERAL MENU

Press the MENU button then OK.

> GENERAL MENU

> MONOCHROME DISPLAY A

This displays the following information, via the RD4 audio equipment

control pad:

- the time,

- the date,

- the exterior temperature (this ﬂashes if there is a risk of ice),

- the audio source displays (radio, CD, ...),

- the accesses check (doors, boot, ...),

- the warning messages or information messages displayed temporarily,

can be cleared by pressing the "ESC" button,

- the trip computer,

RADIO: RDS search, REG mode. CD: introscan, random play, repeat.

VEHICLE CONFIGURATION: activation/deactivation of the equipment.

OPTIONS: equipment status diagnostics.

DISPLAY ADJUST: year, month, day, hour, minute,

12 or 24 hour mode.

LANGUAGES.

UNITS: temperature (°C or °F), fuel consumption (l/100, mpg or km/l).

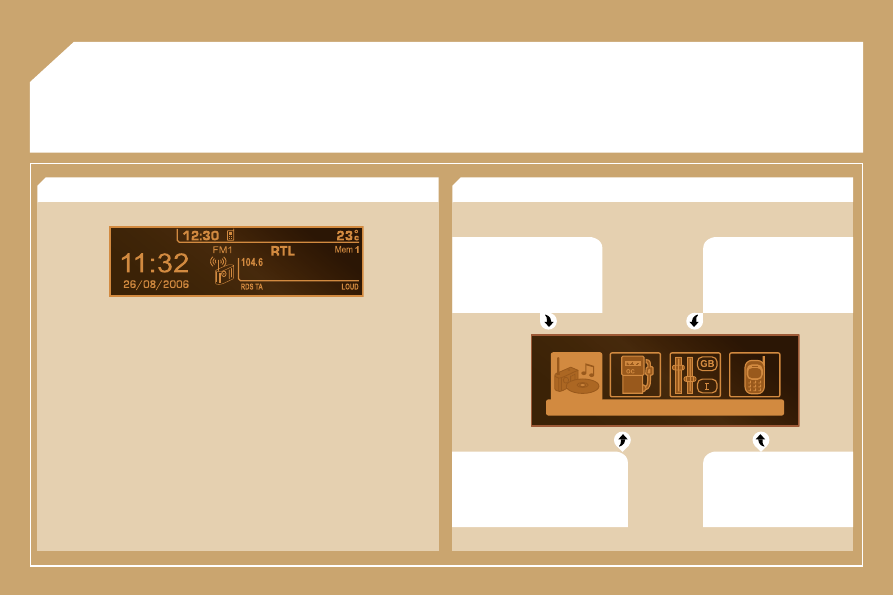

02 DISPLAY AND GENERAL MENU

AUDIO FUNCTION: radio,

CD, options.

PERSONALISATION-

CONFIGURATION: vehicle

parameters, display,

languages.

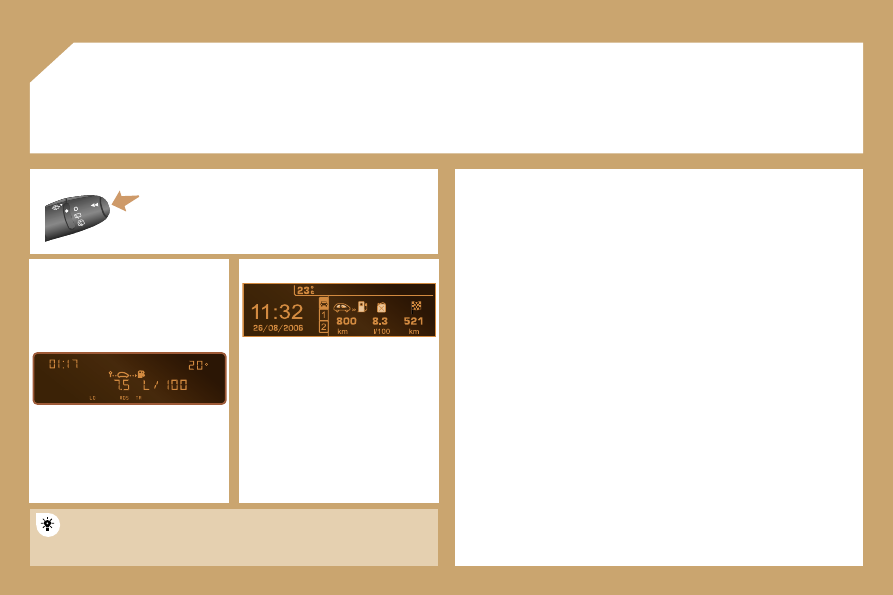

TRIP COMPUTER: distance

entering, warnings, status of

functions.

> GENERAL MENU

> MONOCHROME DISPLAY C

This displays the following information, via the RD4 audio equipment

control pad:

- the time,

- the date,

- the exterior temperature (this ﬂashes if there is a risk of ice),

- the audio source displays (radio, CD, ...),

- the accesses check (doors, boot, ...),

- the warning messages or information messages displayed temporarily,

can be cleared by pressing the "ESC" button,

- the trip computer,

TELEPHONE: hands-free

kit, matching, management

of a communication.

03 AUDIO

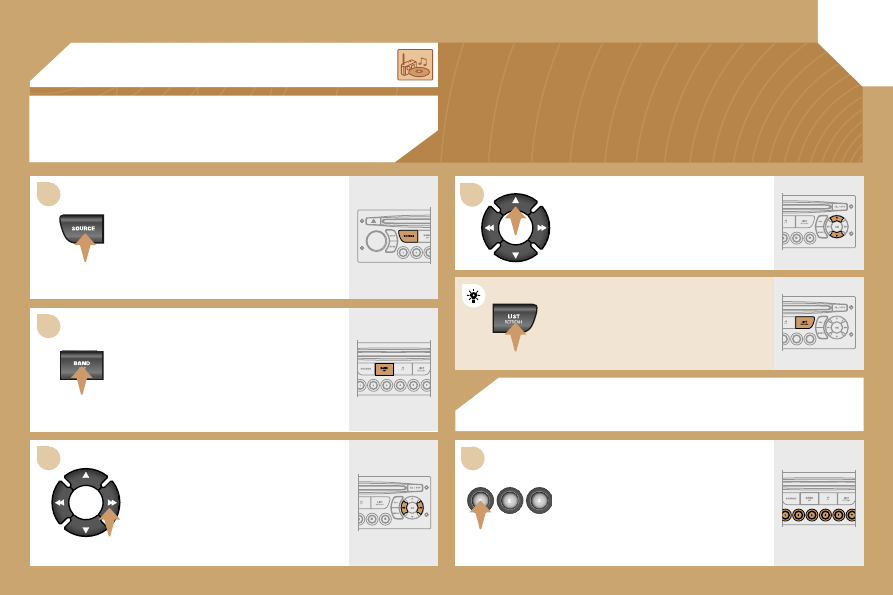

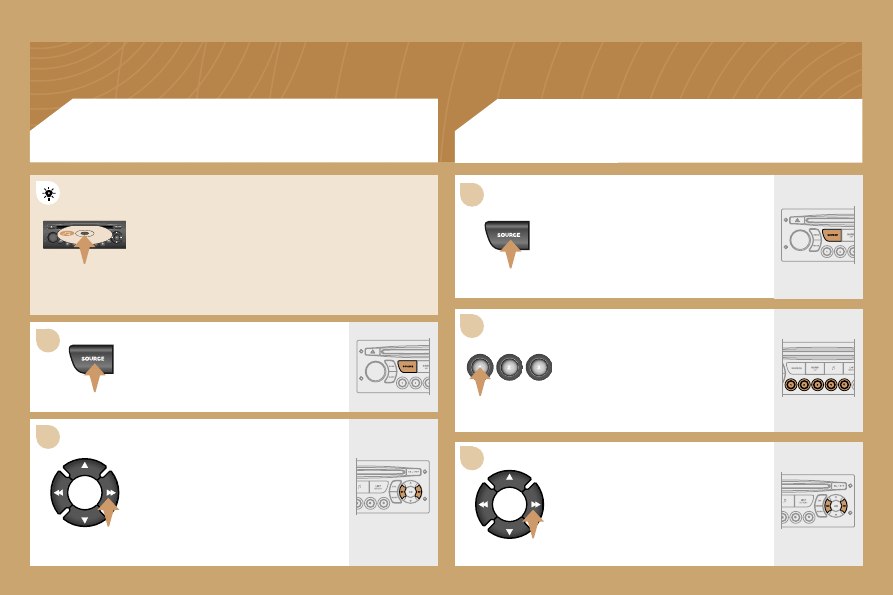

RADIO

SELECTING A STATION

RADIO

STORING A STATION

Press the SOURCE button several

times in succession and select the

radio.

Press the BAND/AST button to select

a waveband: FM1, FM2, FMast, AM.

Brieﬂy press one of the buttons to

carry out an automatic search of the

radio stations.

Press one of the buttons to carry out a

manual search of the radio stations.

Press one of the buttons on the

numeric keypad for more than

2 seconds to store the current station.

Press the LIST REFRESH button to

display the list of stations received

locally.

To update this list, press for more than

two seconds.

CD CHANGER

PLAYING A CD

Insert one or more CDs in the

changer.

Press the SOURCE button several

times in succession and select CD

CHANGER.

Press one of the buttons on the

numeric keypad to select the

corresponding CD.

Press one of the buttons to select a

track on the CD.

Press and hold one of the buttons for

fast forwards or backwards play.

PLAYING A CD

Insert circular compact discs only. Some anti-pirating

systems, on original discs or CDs copied using a

personal recorder, may cause faults which are no

reﬂection on the quality of the original player.

Insert a CD in the player, play begins automatically.

If the player already contains a disc,

press the SOURCE button several

times in succession and select CD.

Press one of the buttons to select a

track on the CD.

Press the LIST REFRESH button to

display the list of tracks on the CD.

Press and hold one of the buttons for

fast forwards or backwards play.

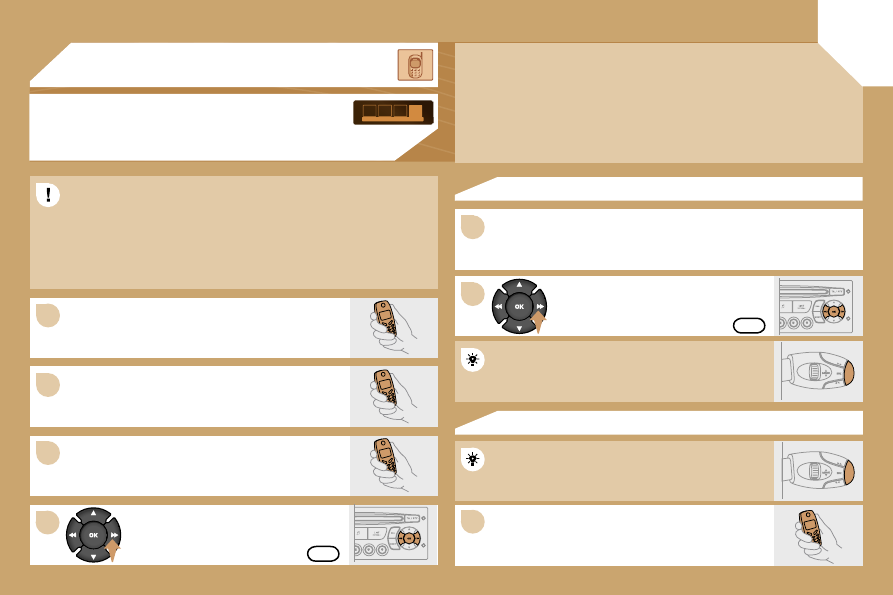

Press the end of the steering wheel stalk to accept

the call.

The services offered by the hands-free kit depend on the network, the

SIM card and the compatibility of the Bluetooth equipment used.

Consult your telephone’s manual and your operator to ﬁnd out which

services are available to you. A list of mobile telephones which offer

the best range of services is available from the network. Contact a

PEUGEOT dealer.

MAKING A CALL

Press and hold the end of the steering wheel stalk to

access your directory.

To dial a number, use the keypad on your telephone.

For safety reasons and because they require prolonged attention

on the part of the driver, the operations for matching of the

Bluetooth mobile telephone with the RD4 hands-free kit must be

carried out with the vehicle stationary and the ignition on.

Activate the telephone’s Bluetooth function and

carry out a search of the Bluetooth accessories

present for the telephone.

Select the accessory which corresponds to the

name of the vehicle, a superimposed conﬁguration

display appears on the multifunction display.

Enter the vehicle’s authentication code (=1234).

Depending on the telephone, you may be asked

to enter this code before the superimposed

conﬁguration display appears.

Select the YES tab on the display

using the buttons then conﬁrm by

pressing OK.

RECEIVING A CALL

An incoming call is announced by a ring and a superimposed

display on the multifunction display.

Select the YES tab on the display

using the buttons and conﬁrm by

pressing OK.

MATCHING A TELEPHONE

DISPLAY C

YES

04 HANDS-FREE KIT

05 TRIP COMPUTER

Each press of the button, located at the end of the

wipers stalk, permits displaying of the different trip

computer data in succession, depending on the display.

- the

"vehicle" tab with:

• the range, the current

consumption and the distance

remaining to the destination,

- the

"1" tab (route 1) with:

• the average speed, the average

consumption and the distance

travelled calculated over route

"1",

- the

"2" tab (route 2) with the

same characteristics for a second

route.

A few deﬁnitions

Range:

Displays the distance which can be travelled with the remaining fuel

detected in the tank, in relation to the average consumption over the last few miles

(kilometres).

This displayed value may vary signiﬁcantly following a change in the vehicle

speed or the relief of the route.

When the range falls below 20 miles (30 km), dashes are displayed. After ﬁlling with

at least 5 litres of fuel, the range is recalculated and is displayed when it exceeds

60 miles (100 km).

If, whilst driving, dashes are displayed continuously in place of digits, contact a

PEUGEOT dealer.

Current consumption:

only calculated and displayed above 20 mph (30 km/h).

Average consumption:

this is the average quantity of fuel consumed since the last

trip recorder zero reset.

Distance travelled:

calculated since the last trip computer zero reset.

Distance remaining to the destination (display C only): calculated with reference

to the ﬁnal destination, entered by the user. If guidance is activated, the navigation

system calculates it as a current value.

Average speed:

this is the average speed calculated since the last trip computer

zero reset (ignition on).

Zero reset

When the required route is displayed, press the end of the control for

more than two seconds.

DISPLAY C

DISPLAY A

RADIO: selection of a higher stored station

CD CHANGER: selection of the next CD

Selection of the next item on a menu.

RADIO: selection of a lower stored station

CD CHANGER: selection of the previous CD

Selection of the previous item on a menu.

RADIO: automatic search for a higher frequency

CD/CD CHANGER: selection of the next track

Continuous press: fast forwards play

Selection of the previous item.

RADIO: automatic search for a lower frequency

CD/CD CHANGER: selection of the previous track

Continuous press: fast backwards play

Selection of the next item.

Volume increase.

Volume decrease.

06 CONTROL SHORT-CUTS

Mute: press the volume

increase and decrease

buttons simultaneously.

Restore the sound by pressing

one of the two volume buttons.

- Change of sound source

- Conﬁrmation of a selection

- Pick up/Hang up the telephone

- Press for more than 2 seconds:

access to the telephone menu.

STEERING WHEEL CONTROLS

Content .. 3 4 5 6 ..
