Peugeot Expert VU Dag (2007 year). Instruction - part 3

Instruments and controls

After this operation, if you wish to

disconnect the battery, lock the vehicle

and wait for at least five minutes, otherwise

the zero re-set will not be registered.

Zero re-set

Your PEUGEOT dealer carries out this

operation after each service.

However, if you carry out the service

yourself, the re-set procedure is as follows:


Switch off the ignition,



Press and hold the trip recorder re-set

button,



Switch on the ignition.

The display begins a countdown.

When the display shows

"=0", release the

button; the spanner disappears.

Engine oil level indicator

When the ignition is switched on, the engine

oil level is indicated for a few seconds, after

the service information.

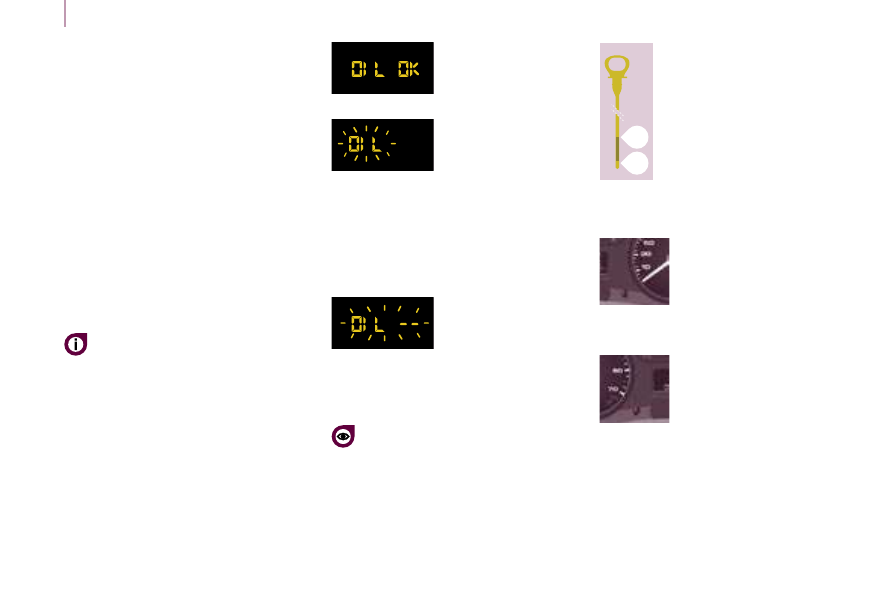

Oil level correct

Lack of oil

Flashing of

"OIL", linked

with the service warning

light, accompanied by

an audible signal and a

message on the display, indicates a lack of

oil which could damage the engine.

If the lack of oil is confirmed by a check

using the dipstick, it is essential that the

level is topped up.

Oil level gauge fault

Flashing of

"OIL --"

indicates a malfunction

of the engine oil level

gauge. Contact a

PEUGEOT dealer.

The level read will only be correct

if the vehicle is on level ground and

the engine has been off for more than

15 minutes.

Dipstick

A = maximum, never exceed

this level as a surplus of oil may

damage the engine.

Contact a PEUGEOT dealer

without delay.

B = minimum, top up the level via

the oil filler cap, using the type of

oil suited to your engine.

Trip recorder zero reset

button

With the ignition on, press the

button until the zeros appear.

Lighting rheostat

With the lights on, press the

button to vary the intensity of

the lighting of the instruments

and controls. When the

lighting reaches the minimum (or maximum)

setting, release the button then press it

again to increase (or reduce) the brightness.

As soon as the lighting is of the required

brightness, release the button.

Gearboxes and steering wheel

To change gear easily, always press the

clutch pedal fully.

To prevent the mat from becoming caught

under the pedal:

- ensure that the mat is positioned correctly,

- never fit one mat on top of another.

When driving, avoid leaving your hand on

the gear knob as the force exerted, even if

slight, may wear the internal components of

the gearbox over time.

6-speed reverse gear

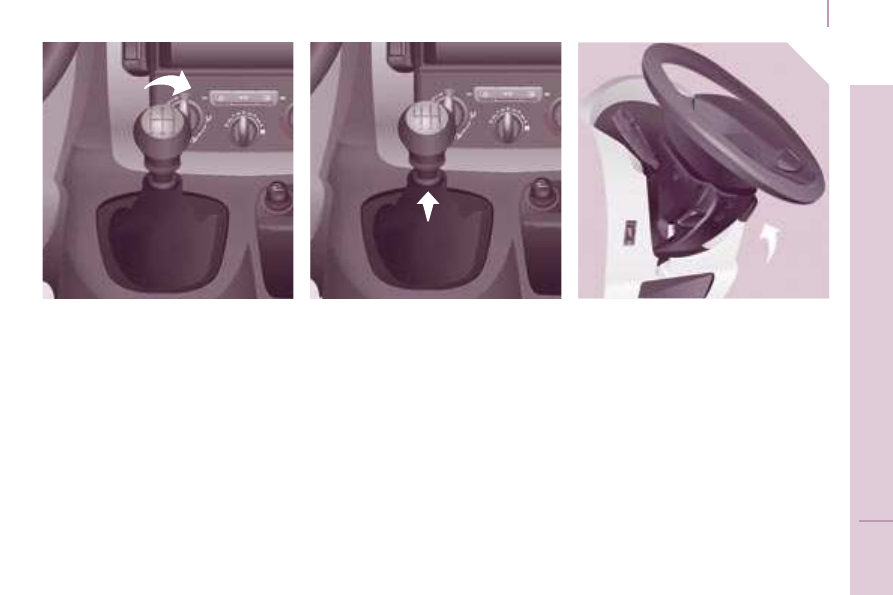

Raise the collar under the gear knob to

engage reverse gear.

Never engage reverse gear before the

vehicle is completely stationary.

The lever should be moved slowly to reduce

the noise on engaging reverse gear.

STEERING WHEEL HEIGHT AND

DEPTH ADJUSTMENT

When the vehicle is stationary, unlock the

steering wheel by lowering the lever.

Adjust the height and depth of the steering

wheel, then lock by pushing the lever fully

upwards.

GEARBOXES AND STEERING WHEEL

6-speed gearbox

5-speed gearbox

SET

Starting and stopping

STARTING AND STOPPING

Running and accessories position.

Certain accessories can be used.

Starting position.

The starter is operated.

STOP

position: steering lock.

The ignition is off.

Good practice when starting

Diesel pre-heating warning

light
Turn the key to the Running

position.

In cold weather, wait for this warning light to

switch off then operate the starter (Starting

position) until the engine starts.

If the temperature is high enough, the

warning light comes on for less than one

second, you can start without waiting.

Door or bonnet open

warning light
If this comes on, a door or the

bonnet is not closed correctly,

check!

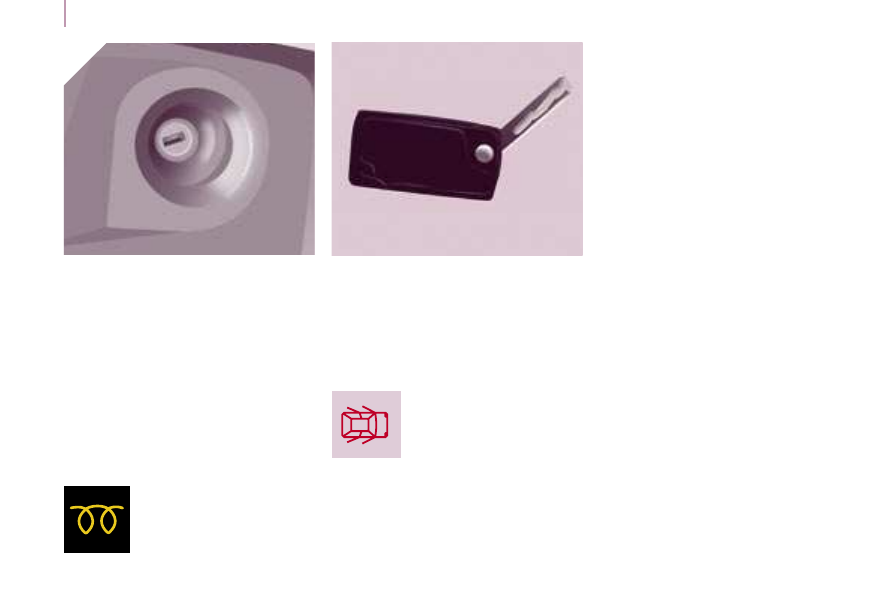

Key
Take care not to allow the key to come into

contact with grease, dust, rain or a damp

environment.

A heavy object attached to the key (keyring,

...) weighing on the shaft of the key in the

switch may cause a malfunction.

Good practice when stopping

Minimise engine and gearbox wear
When switching off the ignition, let the

engine run for a few seconds to allow the

turbocharger to return to idle.

Do not press the accelerator when switching

off the ignition.

There is no need to engage a gear after

parking the vehicle.

Dipped beam/main beam change

Pull the stalk fully towards you.

Lights-on buzzer
When the ignition is switched off, when the

driver’s door is opened, a buzzer sounds if

you have left your lights on.

Automatic lights

If your vehicle is fitted with a

brightness sensor.

Lights off

Dipped beam (green)

Main beam (blue)

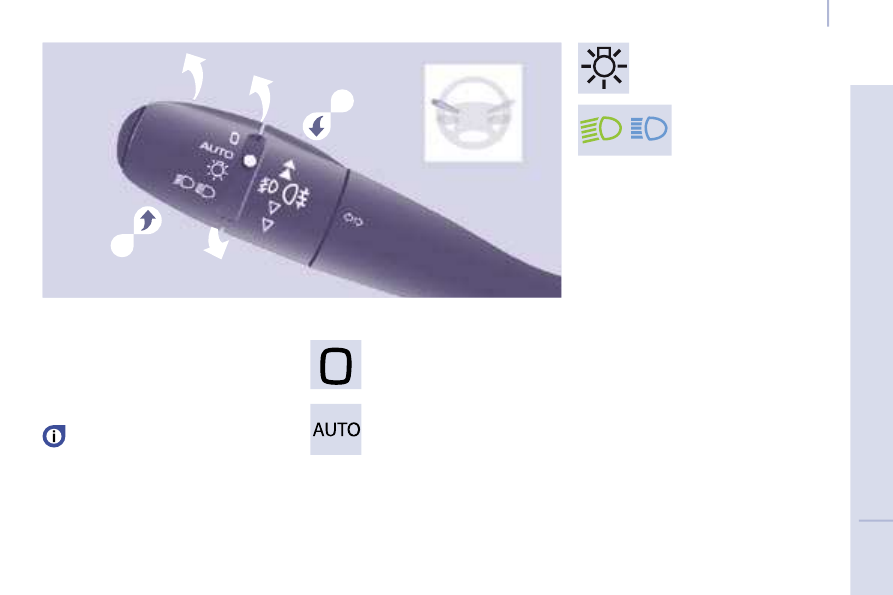

LIGHTING CONTROL

Front and rear lights

Selection is by turning ring

STEERING WHEEL CONTROLS

Checking by means of the indicator

lights on the instrument panel is

described in the "Instruments and controls"

section of chapter 2.

Side lights

Steering wheel controls

Front fog lights (green)

and rear fog lights (amber,

2nd rotation of the ring

forwards).

To switch off the front and rear fog

lights, turn the ring rearwards twice in

succession.

Direction indicators

(green flashing)

Left: downwards.

Right: upwards.

In clear weather or in rain, both day

and night, rear fog lights dazzle and

are prohibited.

Do not forget to switch them off when they

are no longer needed.

Automatic switching on of the lights switches

off the rear fog lamps, but the front fog

lamps remain on.

Daytime lights

Depending on the country in which the

vehicle is sold, the vehicle may be equipped

with daytime lights.

The dipped headlamps come on when the

vehicle is started.

This warning light comes on on

the instrument panel.

The instruments and controls

(instrument panel, display, air

conditioning control panel, ...) are only lit

on switching to the automatic switching on

of the lights mode or when the lights are

switched on manually.

Front and rear fog lights

Rotate ring

B forwards to switch on and

rearwards to switch off. The status is

confirmed by the light on the instrument

panel.

These operate with the side lights and the

dipped beam headlamps.

Front fog lights (green, 1st

rotation of the ring forwards).

Steering wheel controls

In foggy weather or in snow, the

brightness sensor can detect sufficient

light. As a consequence, the lights will not

come on automatically.

Automatic switching on of the lights

If your vehicle is fitted
with a brightness sensor,
the side lights and dipped
beam headlamps switch
on automatically if the light

is poor, or during operation of the windscreen
wipers. They switch off as soon as the light
becomes bright enough or the windscreen
wipers stop. This function is not compatible with
the daytime lights.

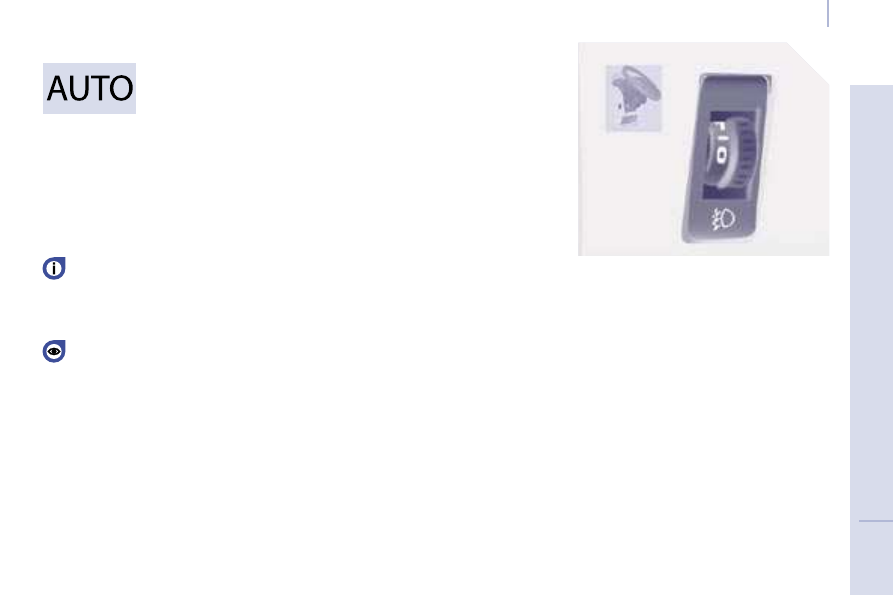

Activation

Turn the ring to the

AUTO position. The

activation of this function is accompanied by

a message on the display.

Deactivation

Turn the ring forwards or rearwards. The

deactivation of this function is accompanied

by a message on the display.

The function is deactivated temporarily when

you use the manual lights stalk.

If the brightness sensor does not

function correctly, the lights come on

accompanied by the service warning light,

an audible signal and a message on the

display.

Contact a PEUGEOT dealer.

HEADLAMP BEAM

Depending on the load in your vehicle, the

beam setting must be adjusted.

0 - No load.

1 - Partial load.

2 - Average load.

3 - Maximum authorised load.

Initial setting is position 0.

Do not cover the brightness sensor

located on the windscreen, behind the

mirror. It is used for the automatic switching

on of the lights and for the automatic wipers.

Steering wheel controls

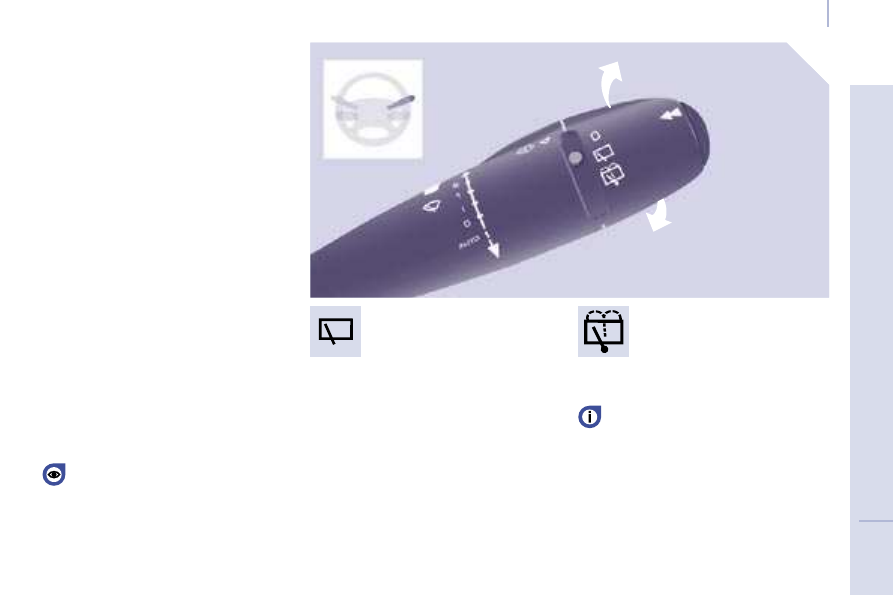

WINDSCREEN WIPER STALK

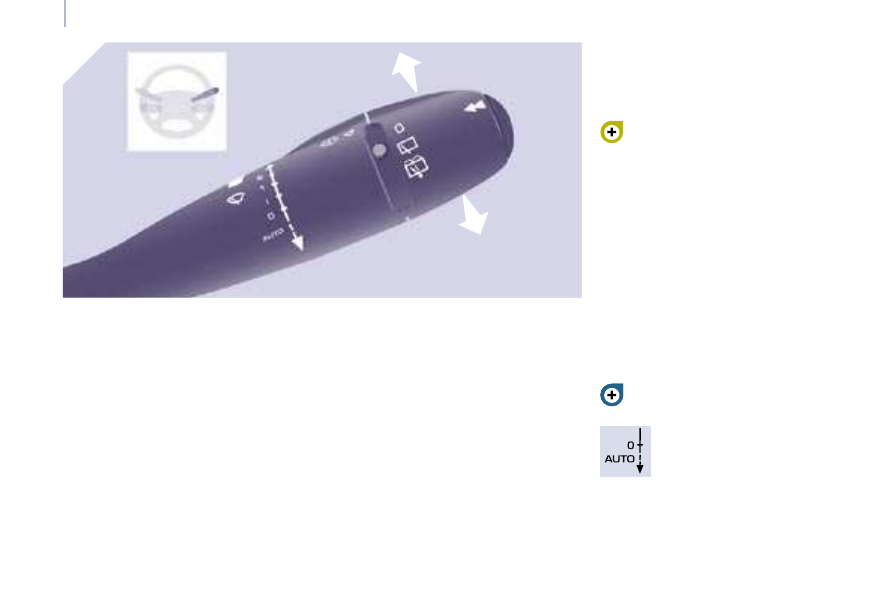

Manual windscreen wipers

The command must be reactivated

whenever the ignition has been switched

off for more than one minute:


move the stalk to any position,



then move it back to the required position.

2 Fast wipe (heavy rain).

1 Normal wipe (moderate rain).

l Intermittent wipe.

0 Off.



Single wipe (press downwards).

In the

Intermittent position, the wiping speed

is in proportion to the vehicle speed.

Special position of the windscreen

wipers

In the minute following switching off of the

ignition, any action on the stalk positions the

wipers against the windscreen uprights.

Vehicle fitted with the

automatic windscreen

wipers control

Do not cover this rain sensor,

located in the centre of the windscreen,

behind the mirror.

On vehicles which are fitted with this control,

in the

AUTO position, the windscreen wipers

This action enables you to position the

wiper blades for winter parking, cleaning or

replacement.

Refer to the "Changing a windscreen

wiper blade" section of chapter 8.

To park the wipers in their normal position

after this has been done, switch on the

ignition and move the stalk.

Wash-wipe and headlamp wash

Pull the stalk towards you, the wash-wipe

is accompanied by a timed sweep of the

wipers.

If your vehicle is fitted with this function, the

headlamp wash is linked with the wash-

wipe, it is triggered if the dipped headlamps

are on.

To top up the levels, refer to the

"Levels" section of chapter 7.

Steering wheel controls

operate automatically and

adapt their

speed to the intensity of the rainfall.

When not in

AUTO mode, for the other

positions, refer to the manual windscreen

wipers section.

Activation

Press the control downwards. Activation of

the function is accompanied by a message

on the display.

The automatic windscreen wipers

function must be reactivated if the ignition

has been switched off for more than one

minute, by pressing the stalk downwards.

Deactivation/Switching off
Place the windscreen wipers stalk in position

I, 1 or 2. Deactivation of the function is

accompanied by a message on the display.

In the event of malfunction of the

automatic windscreen wipers, the

windscreen wipers will operate in

intermittent mode.

Contact a PEUGEOT dealer to have the

system checked.

When using an automatic car wash,

switch off the ignition.

In winter, it is advisable to wait for the

windscreen to completely clear of ice before

operating the automatic wipe.

Rear windscreen wiper

If fitted on your vehicle, turn the

ring

to the first notch.

Rear windscreen wash

Turn the ring

past the first notch:

the windscreen wash then the

windscreen wiper operate for a

fixed time.

In winter, in the event of a considerable

amount of snow or ice, switch on the

rear screen demister. Once de-icing is

complete, remove the snow or ice which has

accumulated on the rear wiper blade. You

can then operate the rear windscreen wiper.

Steering wheel controls

Steering wheel controls

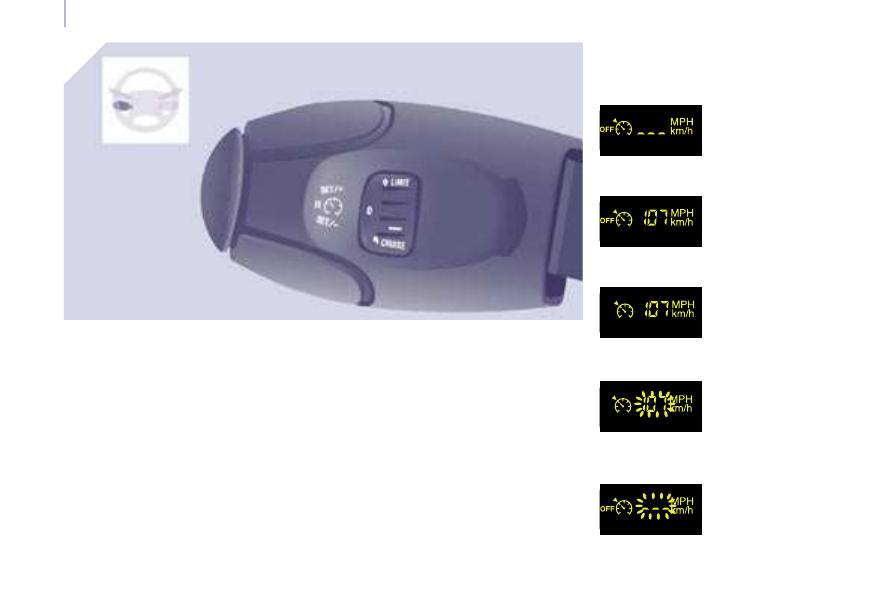

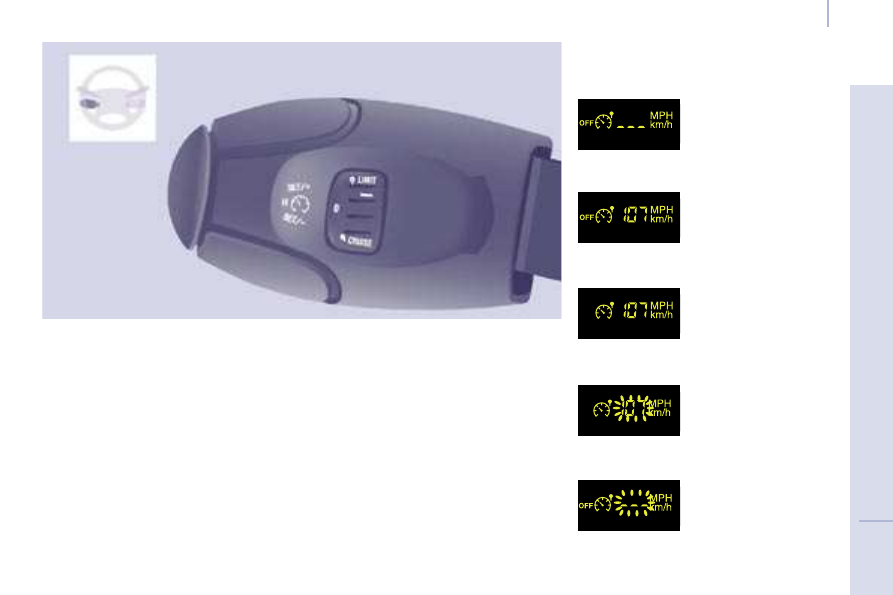

CRUISE CONTROL "CRUISE"

"This is the speed at which the driver wishes

to drive".

This aid to driving in free-flowing traffic

enables the vehicle to maintain the speed

programmed by the driver, unless a steep

gradient makes this impossible.

In order for it to be programmed or

activated, the vehicle speed must be greater

than 25 mph (40 km/h) with at least 4th gear

engaged.

If the vehicle is fitted with a speed limiter

and cruise control (according to the country

in which the vehicle is sold and the engine),

these functions cannot be activated at the

same time.

Function selected,

displaying of the "Cruise

Control” symbol.

Function deactivated,

OFF (example at

107 km/h).

Function activated

(example at 107 km/h).

Vehicle speed above

(e.g. 118 km/h),

the programmed speed

is displayed flashing.

Operating fault detected,

OFF - the dashes flash.

This cruise control shows the function

selection status on the instrument panel and

displays the programmed speed:

Selecting the function



Place the switch in the

CRUISE position.

The cruise control is selected but is not yet
active and no speed has been programmed.

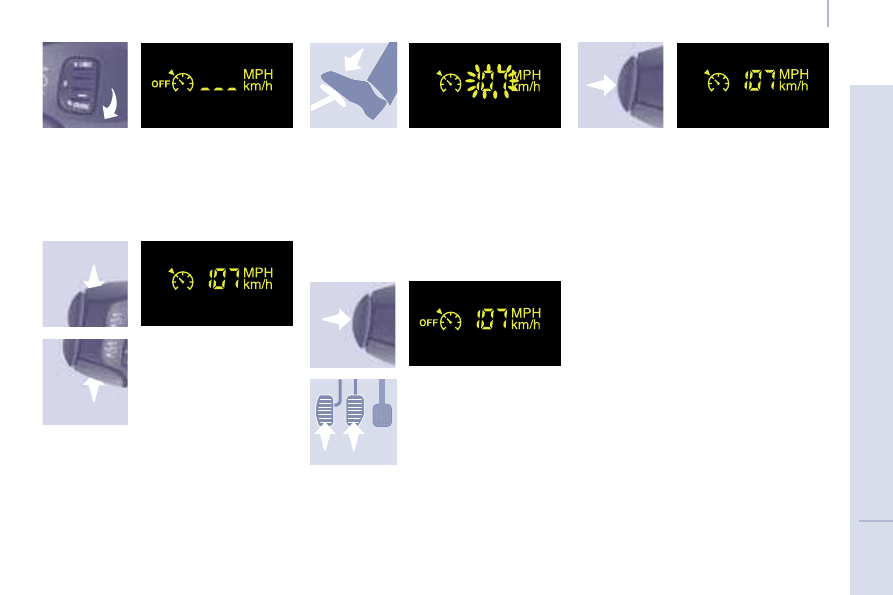

First activation/

programming a

speed



Reach the chosen

speed by pressing the
accelerator.



Press the

SET - or

SET + button.

This programmes/activates the reference

speed and the vehicle will maintain this

speed.

Temporary

exceeding of the speed

It is possible to

accelerate and drive

momentarily at a speed greater than the

programmed speed. The value programmed

flashes.

When the accelerator pedal is released, the

vehicle will return to the programmed speed.

Reactivation



Following deactivation of the cruise
control, press this button.

Your vehicle will return to the last

programmed speed.

Alternatively, you can repeat the "first

activation" procedure.

Deactivation (off)



Press this button or the
brake or clutch pedal.

Steering wheel controls

Switching the function off



Place the dial in position

0 or switch off

the ignition to switch everything off.

Cancelling the programmed

reference speed

When the vehicle becomes stationary, after

switching off the ignition, the system no

longer memorises a speed.

Good practice

When changing the programmed reference

speed by means of a maintained press,

pay attention as the speed can increase or

decrease rapidly.

Do not use the cruise control on slippery

roads or in heavy traffic.

In the event of a steep slope, the cruise

control cannot prevent the vehicle from

exceeding the programmed speed.

In any event, the cruise control cannot

replace the need to observe the speed

limits, nor can it replace the need for

vigilance and responsibility on the part of the

driver.

To avoid any jamming under the pedals:

- ensure that the mat is positioned correctly,

- never place one mat on top of another.

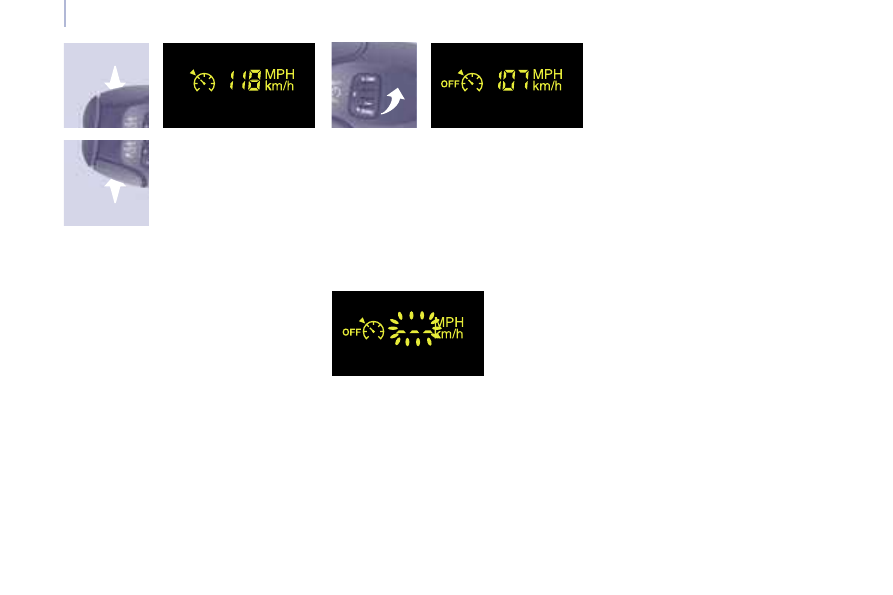

Changing the

programmed speed

There are two methods of

memorising a speed higher

than the previous one:

Without using the accelerator:


press the

Set + button.

A brief press increases the speed by

1 mph (km/h).

A maintained press increases the speed in

steps of 5 mph (km/h).

Using the accelerator:


exceed the memorised speed until the
speed required is reached,



press the

Set + or Set - button.

To memorise a speed lower than the

previous one:


press the

Set - button.

A brief press decreases the speed by

1 mph (km/h).

A maintained press decreases the speed

in steps of 5 mph (km/h).

Operating fault

The programmed speed is cleared then

replaced by three dashes.

Contact a PEUGEOT dealer to have the

system checked.

Steering wheel controls

SPEED LIMITER "LIMIT"

"This is the selected speed which the driver does

not wish to exceed". This selection is made with

the engine running while stationary or with the

vehicle moving. The minimum speed which can

be programmed is 20 mph (30 km/h).

The speed of the vehicle responds to the

pressure of the driver’s foot as far as the

accelerator pedal point of resistance which

indicates that the programmed speed has been

reached.

However, pressing the pedal beyond this point of

resistance to the ﬂoor permits exceeding of the

programmed speed.

To resume use of the limiter, simply reduce

the pressure on the accelerator pedal

gradually and return to a speed below that

programmed.

If the vehicle is fitted with a speed limiter

and cruise control (according to the country

in which the vehicle is sold and the engine),

these functions cannot be activated at the

same time.

The operating actions may be carried out

when stationary, with the engine running,

or with the vehicle moving.

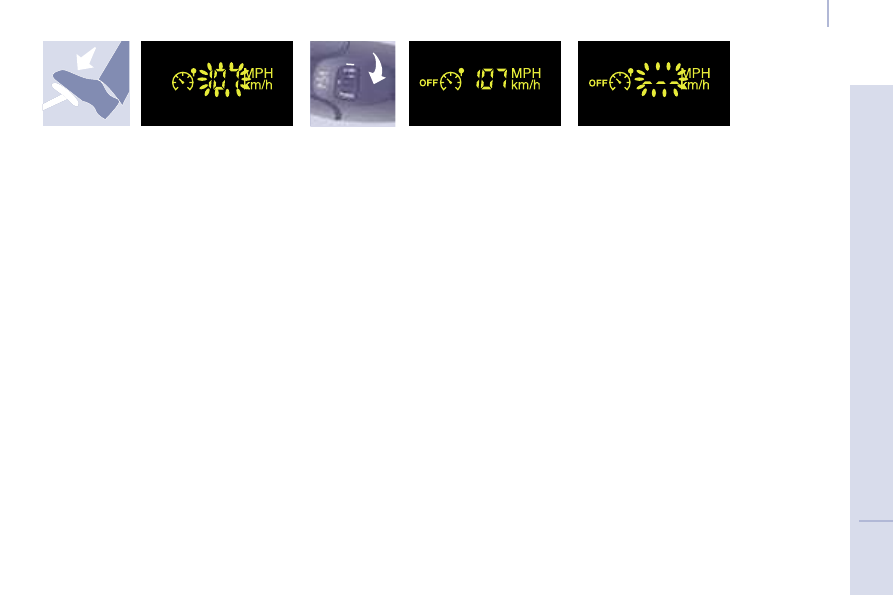

Function selected,

displaying of the "Speed

Limiter" symbol.

Function deactivated,

last programmed speed

- OFF

(example at 107 km/h).

Function activated

(example at 107 km/h).

Vehicle speed above

(example 118 km/h),

the programmed speed

is displayed flashing.

Operating fault detected,

OFF - the dashes flash.

This speed limiter shows the function

selection status on the instrument panel and

displays the programmed speed:

Steering wheel controls

Selecting the function



Place the dial in the

LIMIT position.

The limiter is selected but is not yet active.

The display indicates the last programmed

speed.

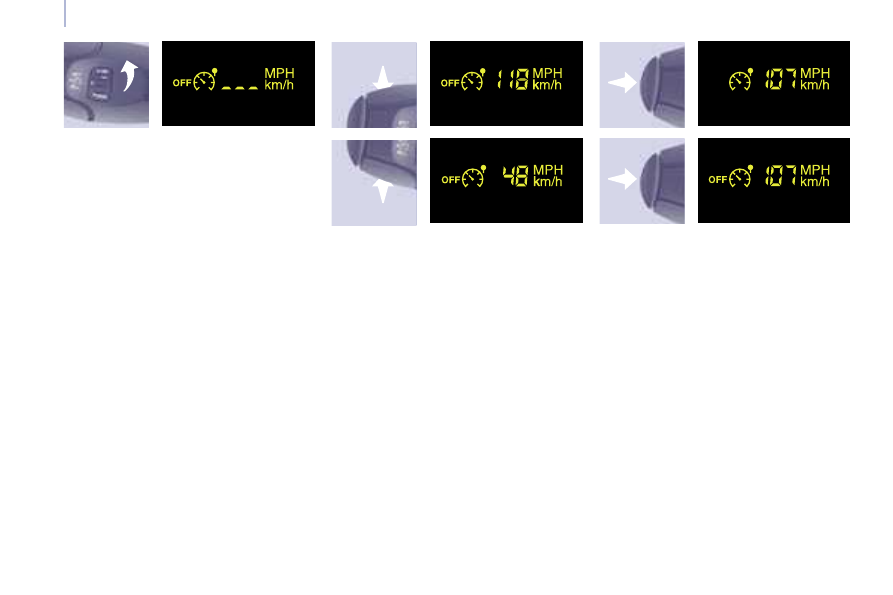

Programming a speed

A speed can be programmed without

activating the limiter but with the engine

running.

To memorise a speed higher than the previous

one:


press the

Set + button.

A brief press increases the speed by

1 mph (km/h).

A maintained press increases the speed in

steps of 5 mph (km/h).

To memorise a speed lower than the previous

one:


press the

Set - button.

A brief press decreases the speed by 1 mph

(km/h).

A maintained press decreases the speed in

steps of 5 mph (km/h).

Activation/Deactivation (off)

Pressing this button once activates the

limiter, pressing the button again deactivates

it (OFF).

Steering wheel controls

Switching the function off



Place dial in position

0 or switch off the

ignition to switch the system off. The

last programmed speed remains in the

memory.

Exceeding the programmed speed

Pressing the accelerator pedal in order to

exceed the programmed speed will have

no effect unless you press the pedal

firmly

beyond the

point of resistance.

The limiter is deactivated temporarily and

the programmed speed flashes.

To return to the limiter function, reduce your

speed to below the programmed speed.

Flashing of the speed

The speed flashes:


following forcing of the accelerator point of

resistance,



when the limiter cannot prevent an

increase in the vehicle speed due to the

profile of the road or on a steep descent,



in the event of sharp acceleration.

Good practice
In any event, the speed limiter cannot

replace the need to observe speed limits,

nor can it replace the need for vigilance and

responsibility on the part of the driver.

Always pay attention to the profile of the

road and take care on sharp acceleration.

To avoid any jamming under the pedals:

- ensure that the mat is positioned correctly,

- never place one mat on top of another.

Operating fault

The programmed speed is cleared then

replaced by three dashes.

Contact a PEUGEOT dealer to have the

system checked.

Steering wheel controls

Press the air recirculation

temporarily (diode lit).

Ventilation

Returning to exterior air intake open

permits renewal of the air in the passenger

compartment (diode off).

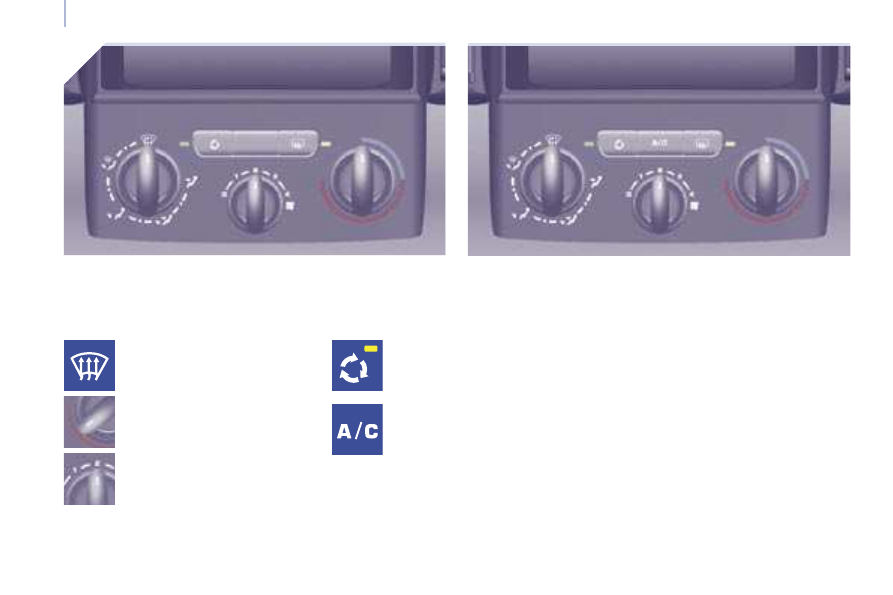

VENTILATION

Direct the control to this air

distribution setting.

Direct the control to this

temperature setting.

Increase the air flow setting.

DE-ICING AND DEMISTING

Manual mode

Press the air conditioning if fitted

on your vehicle.

Ventilation

De-icing the rear screen and

mirrors

If fitted on your vehicle, pressing this button,

with the engine running, activates the rapid

demisting - de-icing of the rear screen and

mirrors.

This function switches off:

- when the button is pressed,

- when the engine is switched off,

- automatically to prevent excessive energy

consumption.

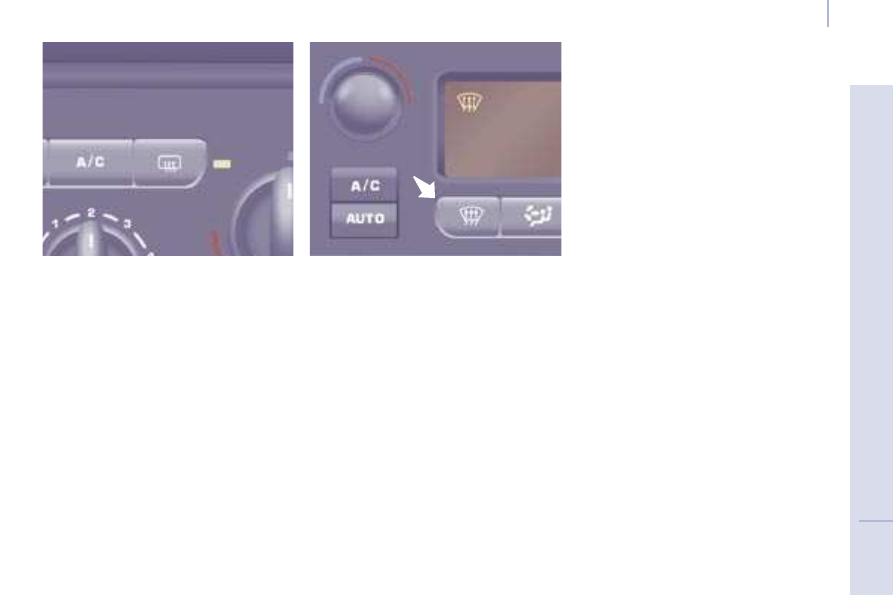

Automatic air conditioning: visibility

programme
The comfort programme (AUTO) may not

be sufficient to quickly demist or de-ice the

windows (humidity, several passengers, ice).

In this case, select the visibility programme.

The visibility programme indicator light

comes on.

It activates the air conditioning, the air flow,

the de-icing of the rear screen and provides

optimum distribution of the ventilation to the

windscreen and side windows.

It deactivates the air recirculation.

Content .. 1 2 3 4 ..
