Peugeot Boxer Dag (2010 year). Instruction - part 11

Diesel engines

Fuel consumption in litres per 100 km (miles per galllon)

Body type

GVW

Engine

Urban cycle

Extra-urban cycle

Combined cycle

emissions (g/km)

Van

L3H2

333 and 335

HDi 100

9.4 (30.1)

7.7 (36.7)

8.3 (34.0)

220

HDi 120

10.9 (25.9)

8.3 (34.0)

9.3 (30.4)

246

HDi 160

10.8 (26.2)

8.1 (34.9)

9.1 (31.0)

241

435

HDi 120

10.8 (26.2)

8.4 (33.6)

9.3 (30.4)

246

HDi 160

11.0 (25.7)

8.3 (34.0)

9.3 (30.4)

246

440

HDi 120

10.8 (26.2)

8.4 (33.6)

9.3 (30.4)

246

HDi 160

11.0 (25.7)

8.3 (34.0)

9.3 (30.4)

246

L3H3

333 and 335

HDi 100

9.4 (30.1)

7.7 (36.7)

8.3 (34.0)

220

HDi 120

10.9 (25.9)

8.3 (34.0)

9.3 (30.4)

246

HDi 160

10.8 (26.2)

8.1 (34.9)

9.1 (31.0)

241

435

HDi 120

10.8 (26.2)

8.4 (33.6)

9.3 (30.4)

246

HDi 160

11.0 (25.7)

8.3 (34.0)

9.3 (30.4)

246

440

HDi 120

10.8 (26.2)

8.4 (33.6)

9.3 (30.4)

246

HDi 160

11.0 (25.7)

8.3 (34.0)

9.3 (30.4)

246

L4H2

435

HDi 120

10.8 (26.2)

8.4 (33.6)

9.3 (30.4)

246

HDi 160

11.0 (25.7)

8.3 (34.0)

9.3 (30.4)

246

440

HDi 120

10.8 (26.2)

8.4 (33.6)

9.3 (30.4)

246

HDi 160

11.0 (25.7)

8.3 (34.0)

9.3 (30.4)

246

L4H3

435

HDi 120

10.8 (26.2)

8.4 (33.6)

9.3 (30.4)

246

HDi 160

11.0 (25.7)

8.3 (34.0)

9.3 (30.4)

246

440

HDi 120

10.8 (26.2)

8.4 (33.6)

9.3 (30.4)

246

HDi 160

11.0 (25.7)

8.3 (34.0)

9.3 (30.4)

246

Diesel engines

Fuel consumption in litres per 100 km (miles per gallon)

Body type

GVW

Engine

Urban cycle

Extra-urban cycle

Combined cycle

emissions (g/km)

Level 1

Combi

with 6/9

seats

L1H1

330 and 333

HDi 100

8.2 (34.4)

6.8 (41.5)

7.3 (38.7)

193

HDi 120

10.1 (28.2)

7.3 (38.7)

8.3 (34.0)

219

HDi 160

9.4 (30.1)

6.9 (40.9)

7.8 (36.2)

207

L2H2

333

HDi 100

8.5 (33.2)

7.0 (40.4)

7.6 (37.2)

200

HDi 120

10.2 (27.7)

7.5 (37.7)

8.5 (33.2)

224

HDi 160

9.9 (28.5)

7.2 (39.2)

8.2 (34.4)

216

Level 2

Combi

with 8/9

seats

L1H1

330 and 333

HDi 100

8.9 (31.7)

7.3 (38.7)

7.9 (35.8)

208

HDi 120

10.9 (25.9)

7.7 (36.7)

8.9 (31.7)

235

HDi 160

10.2 (27.7)

7.6 (37.2)

8.6 (32.8)

226

L2H2

333

HDi 100

8.9 (31.7)

7.3 (38.7)

7.9 (35.8)

208

HDi 120

10.9 (25.9)

7.7 (36.7)

8.9 (31.7)

235

HDi 160

10.2 (27.7)

7.6 (37.2)

8.6 (32.8)

226

Level 1

Combi

(export)

L2H2

435

HDi 120

10.8 (26.2)

8.1 (34.9)

9.1 (31.0)

240

HDi 160

10.2 (27.7)

7.6 (37.2)

8.6 (32.8)

226

The Diesel engines are perfectly compatible with biofuels which conform to current and future European standards (Diesel fuel which
complies with standard EN 590 mixed with a biofuel which complies with standard EN 14214) available at the pumps (containing up to 7 %
Fatty Acid Methyl Ester).

The B30 biofuel can be used in certain Diesel engines; however, this use is subject to strict application of the special servicing conditions.
Consult a PEUGEOT dealer.

The use of any other type of (bio)fuel (vegetable or animal oils, pure or diluted, domestic fuel...) is strictly prohibited (risk of damage to the
engine and fuel system).

Weights

WEIGHTS

Dimensions

Model

GVW in kg

L1 H1

330

3 000

333

3 300

L2 H1

333

3 300

335

3 500

L2 H2

330

3 000

333

3 300

335

3 500

L3 H2

330

3 000

335

3 500

435

3 500

440

4 000

L3 H3

330

3 000

335

3 500

435

3 500

440

4 000

L4 H2

335

3 500

L4 H3

435

3 500

Consult your registration certificate.

In each country, it is imperative that the towed loads permitted by local legislation are complied with. For information regarding your
vehicle's towing possibilities and its gross train weight, contact a PEUGEOT dealer.

The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).

High exterior temperatures may result in a reduction in the performance of the vehicle to protect the engine. When the exterior
temperature is higher than 37 °C, limit the weight towed.

This table indicates the gross vehicle weight (GVW) according to the dimensions and the vehicle model.

Weights

* 15 inch wheel.

** 16 inch wheel.

Load transfer

If the towing vehicle has not reached the GVW, it is possible to transfer this weight to the trailer.

In all cases, do not exceed the trailer weight and GTW indicated.

Comply with the towing capacities of your vehicle.

TOWED LOADS

Body type

Engine

With braked trailer

Van

330

HDi 100

2 000

HDi 120

2 500

HDi 160

2 500

333

HDi 100

2 000

HDi 120

2 500

HDi 160

2 500

335

HDi 100

2 000

HDi 120

2 500 *

3 000 **

HDi 160

2 500 *

3 000 **

435/440

HDi 120

2 500

HDi 160

2 500

Weights

TOWED LOADS

Body type

Engine

With braked trailer

Platform/Chassis

330

HDi 100

2 000

HDi 120

2 500

HDi 160

2 500

333

HDi 100

2 000

HDi 120

2 500

HDi 160

2 500

335

HDi 100

2 000

HDi 120

2 500 *

3 000 **

HDi 160

2 500 *

3 000 **

435/440

HDi 120

2 500

HDi 160

2 500

* 15 inch wheel.

** 16 inch wheel.

Weights

TOWED LOADS

Body type

Engine

With braked trailer

Combi

330

HDi 100

2 000

HDi 120

2 500

HDi 160

2 500

333

HDi 100

2 000

HDi 120

2 500

HDi 160

2 500

Identification features

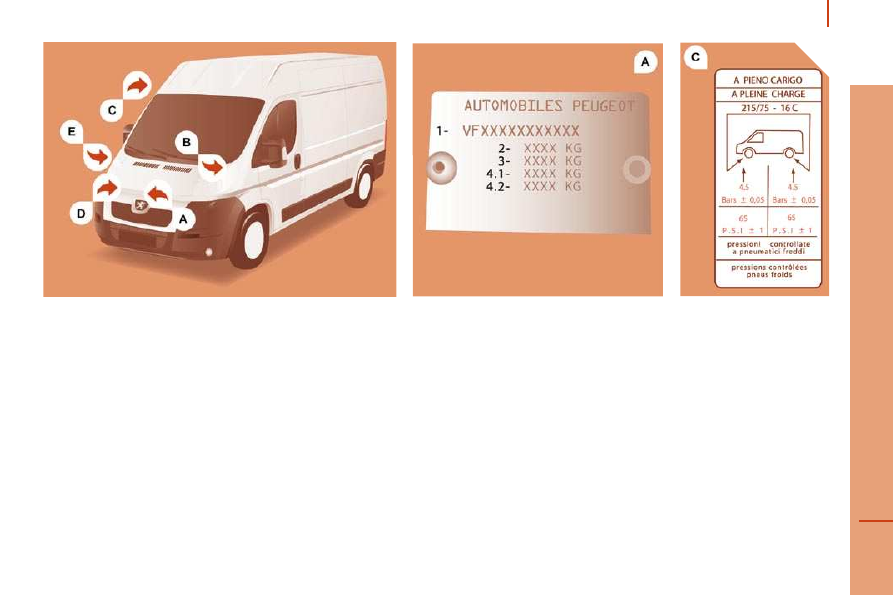

IDENTIFICATION MARKINGS

A. Manufacturer's plate

1 - VF Type serial number.

2 - Gross vehicle weight (GVW).

3 - Gross train weight (GTW).

4.1 - Maximum weight on front axle.

4.2 - Maximum weight on rear axle.

B. Serial number on the

bodywork

D. Paint code

C. Tyres

The label C affixed to the van pillar, on the
right-hand door side, indicates:

the wheel and tyre sizes,

the tyre pressures (the pressures must
be checked when cold, at least once a
month).

E. Serial number on the

bodywork

The number is located under the plastic
cover, at the sill on the right-hand door side.
