Peugeot Bipper Dag (2009 year). Instruction - part 7

Practical information

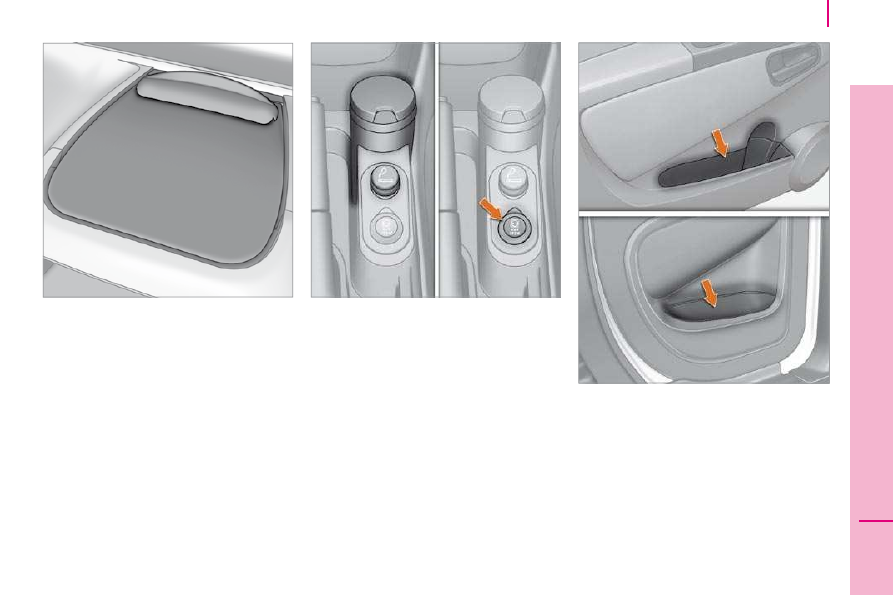

Smoker's kit

Located at the base of the centre console,
this consists of a lighter and ashtray.

12 volt socket (180 W max)

An accessories socket is provided next to
the lighter.

FRONT LAYOUT

Folding writing table (Light van)

This is located in the centre of the fascia
panel. In the absence of a table, the vehicle
is fitted with a storage compartment.
The clip can be used to secure A5 format
documents, slips, etc.
Pull the top of the table to unfold it, push to
fold it.

Storage compartment in the door
trays

With recess for storing a 1 litre bottle.

Practical information

Sun visor

To avoid glare from ahead, fold and direct
the sun visor down.
Toll cards, tickets, etc. can be slipped into
the sun visor on the driver's side.
The sun visor on the passenger's side may
be fitted with a courtesy mirror.

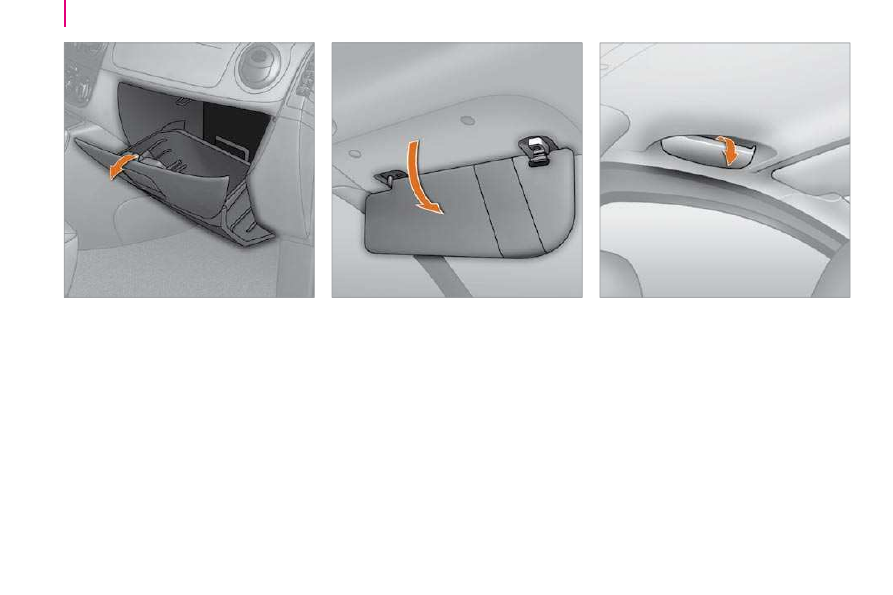

Glove box

This can accommodate a laptop.
It contains the handbook pack.

Spectacles storage (Combi)

There is a spectacles storage compartment
on the driver's side, above the door.
To open it, unclip the cover pulling at the
centre.

Practical information

LOAD SPACE LAYOUT

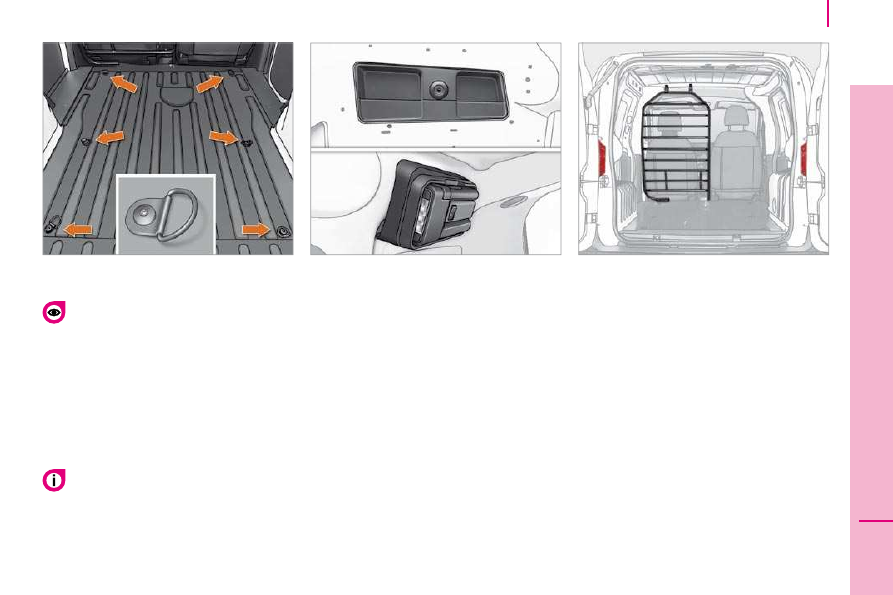

Stowing rings

There are 6 stowing rings on the rear floor to
secure your loads.
As a safety precaution in case of sharp
braking, you are advised to place heavy
objects as far forwards towards the driver's
seat as possible.

Storage tray

A storage tray is provided at the rear left of
the load space.

Torch

A magnetic torch is provided at the rear right
of the load space.
Remove the torch from its base by
pressing the button then pivoting the torch
downwards by 90 degrees.
To switch on the torch, slide the switch
forwards.
To change the 4 storage batteries (NiMH
type), remove the protective cover from the
torch.
To put the torch back in place, engage
it in the notches on the base and pivot it
upwards.

Ladder type vertical partition

Behind the driver's seat, a ladder type
vertical partition protects the driver against
the risk of load movement.

Partitions

Panel, glazed, mid-height panel with grille
and modular vertical grille type partitions are
offered to complement your light van.

The transportation of passengers in the
load space is not permitted.

It is advisable to immobilise the load
by securing it firmly using the stowing
rings on the floor.

The torch's storage batteries recharge
automatically while driving.
An additional lamp is installed in the centre
of the torch base (refer to the "Interior
lighting" section).

Practical information

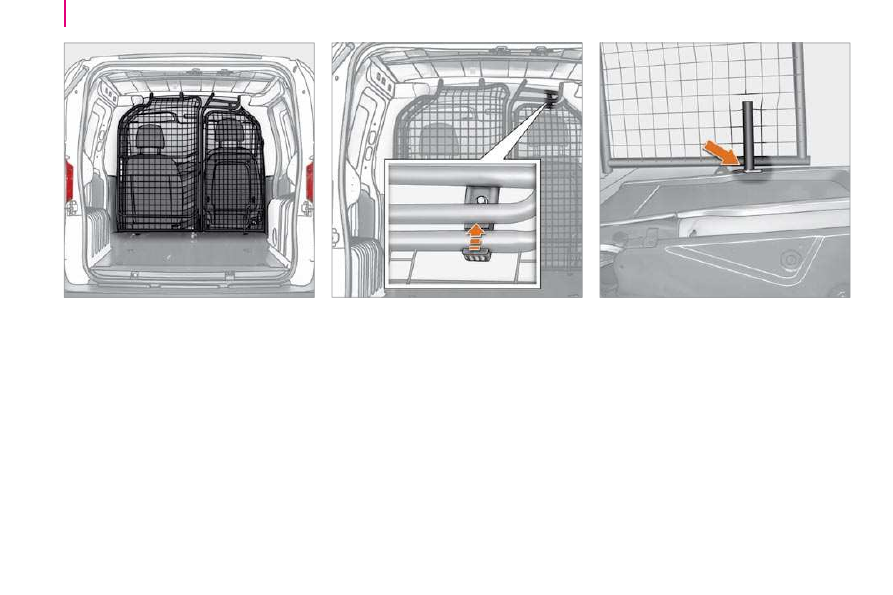

Modular vertical grille

Operations:

3. Lift the catch, located at the lower part of

the grille.

4. Pivot the grille and insert the catch in the

space provided on the passenger seat
back.

1. Place the passenger seat in the retracted

position.

2. Lift the catch, located at the upper part of

the grille.

You can obtain a two-part partition grille.
Associated with the retractable seat, the
grille increases the driver's safety by
isolating him from the front load.

Practical information

REAR LAYOUT

Stowing rings

There are 4 stowing rings on the rear floor to
secure your luggage.

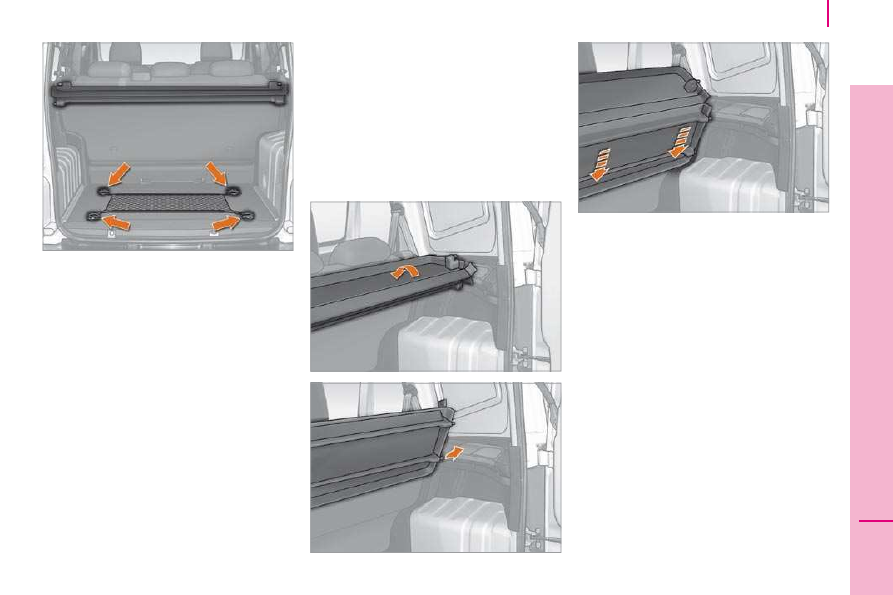

Luggage retaining net

Hooked onto the stowing rings, this enables
you to secure your luggage.

Rear shelf

Unfold the shelf to conceal the contents of
the boot from sight from the outside.
Fold the shelf back on itself for easier
access to the contents of the boot.
Store the shelf behind the rear bench seat
when loading bulky items vertically.

Removing the shelf

Fold the shelf back on itself.
Lift the shelf to approximately 60°.
Unclip the shelf's side fixings from its
supports.
Remove the shelf.
Store the folded shelf in the location behind
the rear bench seat.
To put the shelf back in place, carry out
these operations in reverse order.

Practical information

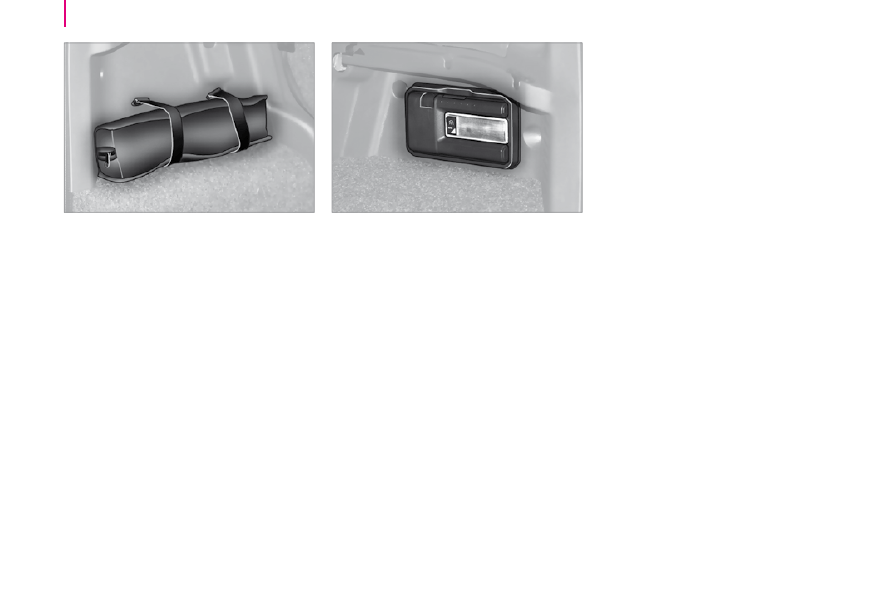

Retaining straps

There are two retaining straps on the left-
hand side of the boot.
They secure the tool kit.

Torch

A magnetic torch is provided on the right-
hand side of the boot.
Remove the torch from its base by
pressing the button then pivoting the torch
downwards by 90 degrees.
To switch on the torch, slide the switch
forwards.
To change the 4 storage batteries (NiMH
type), remove the protective cover, located
on the torch.
To put the torch back in place, engage it in the
notches on the base and pivot it upwards.
The torch's storage batteries recharge
automatically while driving.
A boot lamp is installed in the centre of the
torch base (refer to the "Interior lighting"
section).

Practical information

INTERIOR LIGHTING

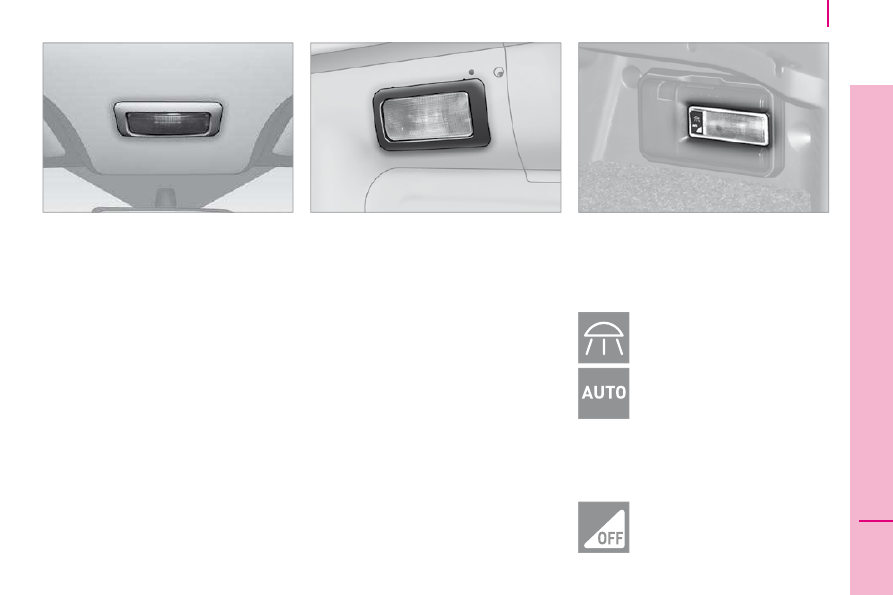

Front courtesy lamp

This is located in the centre of the roof.
It can be activated by:
- tilting the lens,

- opening or closing a door,

- locking or unlocking the vehicle.

It switches off automatically, after a few
minutes, if the doors remain open, or when
the ignition is switched on.
The courtesy lamp may be fitted with an
alarm sensor, a microphone for the hands-
free kit and reading lights.
The reading lampshave right-hand and left-
hand switches.

Rear courtesy lamp

This is located on the upper part of the rear
right side.
Press the side of the courtesy lamp lens to
switch it on or off.
It comes on automatically when a door is
opened.

Good practice

It switches off automatically:
- if the switch is not pressed down,

- in all cases within approximately

15 minutes if the doors remain open,

- when the ignition is switched on,

- when the vehicle is locked.

Boot lamp

This is located in the centre of the torch
base.
The lamp operates in accordance with the
three positions of the switch below.

Permanently on.

In this "AUTO" position, it comes
on gradually when the vehicle is
unlocked and when a rear door or
the tailgate is opened.

It switches off automatically, after a few
minutes, if a rear door or the tailgate
remains open, or when the ignition is
switched on.

Permanently off.

Driving safety

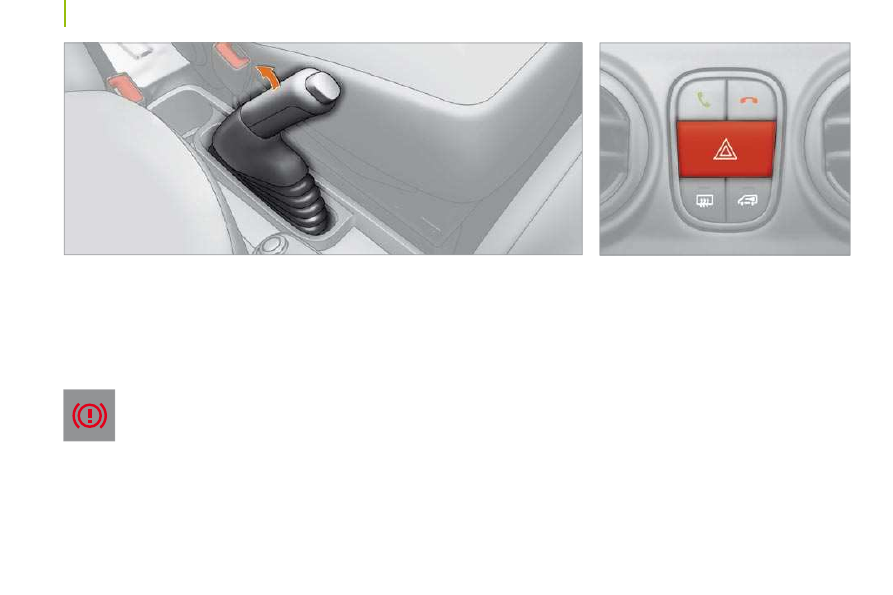

HANDBRAKE

Applying

Pull the handbrake to immobilise your
vehicle.
Check that the handbrake is applied firmly
before leaving the vehicle.

If the handbrake is still on or has
not been released properly, this is
indicated by this warning light which
comes on on the instrument panel.

When parking on a slope, direct your wheels
towards the pavement and pull the handbrake.
There is no advantage in engaging a gear
after parking the vehicle, particularly if the
vehicle is loaded.

Releasing

Pull the handle and press the button to lower
the handbrake.

HAZARD WARNING LIGHTS

Press this button, the two direction
indicators flash.
They operate with the ignition off.
When the hazard warning lights are switched
on, the change of direction function, via the
right-hand or left-hand direction indicator, is
deactivated.

Driving safety

HORN

Press the centre of the steering wheel.

ABS ANTI-LOCK BRAKING SYSTEM

The ABS increases the stability and
manoeuvrability of your vehicle when
braking, particularly on poor or slippery road
surfaces.
  Note:  when changing wheels (tyres and
rims), make sure that they conform to the
manufacturer's recommendations.
The anti-lock braking system comes into
operation automatically when there is a risk
of wheel lock.
Normal operation of the ABS may make
itself felt by slight vibrations of the brake
pedal.
  In emergency braking, press very firmly
without releasing the pressure.

Good practice
The anti-lock braking system comes into
operation automatically when there is a risk
of wheel lock. It does not permit shorter
braking. On very slippery road surfaces
(ice, oil, etc...) the ABS may lengthen the
braking distances. In emergency braking,
do not hesitate to press the brake pedal
firmly, without releasing the pressure, even
on slippery roads, you will then be able to
continue to manoeuvre the vehicle to avoid
an obstacle.

If the ABS warning light on the
instrument panel comes on, this
indicates a malfunction of the anti-
lock braking system which could

result in a loss of control of the vehicle on
braking.
Stop immediately.
Consult a PEUGEOT dealer.

Seat belts

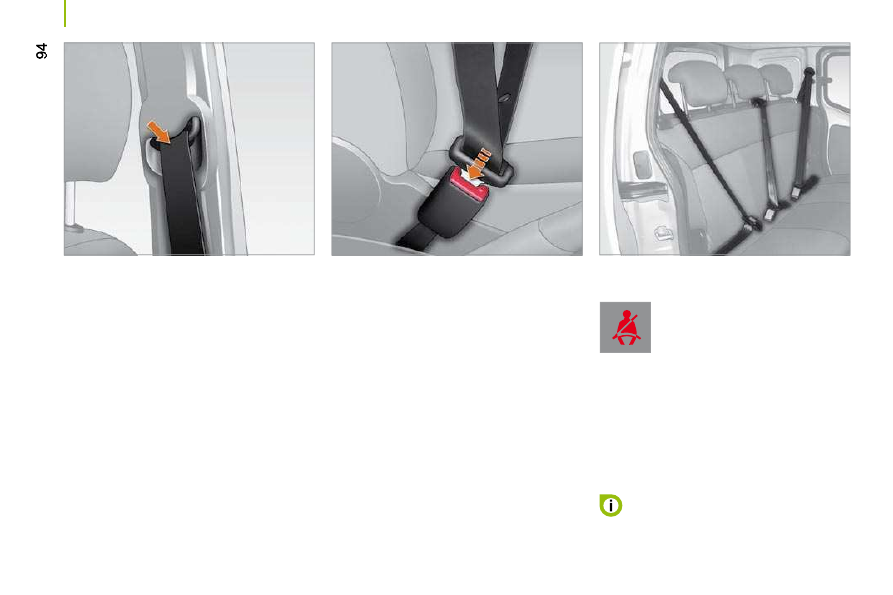

FRONT SEAT BELTS

The front seats are fitted with pre-tensioners
and force limiters.

Fastening

Pull the strap, then insert the tongue into the
buckle.
Check that the seat belt is fastened correctly
by pulling the strap.
The lap belt must be positioned as low as
possible on the pelvis. The chest belt must
pass over the hollow of the shoulder.

Inertia reel seat belts

These are fitted with a device which locks
automatically in the event of a collision or
emergency braking.
Safety in the event of a front impact has
been improved by the introduction of
pretensioning and force limiting seat belts.
Depending on the seriousness of the
impact, the pretensioning system instantly
tightens the seat belt against the body of the
occupant.
The pretensioning seat belts are active when
the ignition is on.
The force limiter reduces the pressure of the
seat belt against the body of the occupant in
the event of an accident.

Driver's seat belt not fastened
warning light

When the vehicle is started, this
warning light comes on if the
driver has not fastened his seat
belt.

REAR SEAT BELTS (COMBI)

The 3-seat bench is fitted with three-point
inertia reel seat belts with force limiter.
The centre seat has a seat belt guide and
inertia reel, integrated with the seat back.

When a seat belt is not in use, you can
store its buckle in the housing provided
in the bench seat cushion.

Seat belts

Good practice

The driver must ensure that all passengers
fasten their seat belt correctly.
Wherever you are seated in the vehicle,
always fasten your seat belt, even for short
journeys.
The seat belts are fitted with an inertia reel
which automatically adjusts the length of the
strap to your size. The seat belt is rolled up
automatically when not in use.
Ensure that the seat belt is rolled up
correctly after use.
After folding or moving a seat, ensure that
the seat belt is rolled up correctly in its
compartment and that the buckle is ready to
accommodate the tongue.

The inertia reels are fitted with a device
which automatically locks the strap in the
event of a collision or emergency braking or
if the vehicle rolls over.

The air bag warning light comes
on if the pretensioners are
triggered. Consult a PEUGEOT
dealer .

Depending on the nature and seriousness of
any impact, the pretensioning device may be
triggered before and independently of inﬂ ation
of the air bags. It instantly tightens the seat belts
against the body of the occupants.
The triggering of the pretensioners is
accompanied by a slight discharge of harmless
smoke and a noise, due to the activation of the
pyrotechnic cartridge incorporated in the system.
The force limiter reduces the pressure of the
seat belt against the body of the occupants. The
equipment ﬁ tted to these seat belts is operational
when the ignition is switched on.

In order to be effective, a seat belt must:
- restrain one person only,

- must not be twisted, check by pulling in

front of you with an even movement,

- be tightened as close to the body as

possible.

The upper part of the seat belt should be
positioned in the hollow of the shoulder.
The lap part should be placed as low as
possible on the pelvis.
Do not invert the seat belt buckles as they
will not fulfil their role completely. If the
seats are fitted with armrests, the lap part of
the seat belt should always pass under the
armrest.
Check that the seat belt is fastened correctly
by pulling the strap firmly.

Recommendations for children:

- use a suitable child seat if the passenger

is less than 12 years old or shorter than
one metre fifty,

- never allow a child to travel on your lap,

even with the seat belt fastened.

For further information regarding child
seats, refer to the "Children on board"
section of chapter 5.

In accordance with current safety
regulations, your PEUGEOT dealer
guarantees all work or any checks, from
testing to maintenance, on your seat belt
equipment.
Have the seat belts checked regularly
(even after a minor impact) by a PEUGEOT
dealer: they must not show any signs of
wear, cutting or fraying and they must not be
transformed or modified.

Clean the seat belt straps with soapy
water or a textile cleaning product, sold
by a PEUGEOT dealer.

Air bags

AIR BAGS

The air bags have been designed to
maximise the safety of the occupants in the
event of a serious collision; they work in
conjunction with the force limiting seat belts.
In the event of a serious collision, the
electronic detectors record and analyse the
front and side impacts suffered in the impact
detection zones:
- in the event of a serious impact, the air

bags inflate instantly and protect the
occupants of the vehicle. Immediately
after the impact, the air bags deflate
rapidly, so that they do not hinder the
visibility of the occupants nor their
possible exit from the vehicle.

- in the event of a minor or rear impact

and in certain roll-over conditions, the air
bags will not be deployed; the seat belt
alone is sufficient to provide maximum
protection in these situations.

The seriousness of the collision depends on
the nature of the obstacle and the speed of
the vehicle at the moment of impact.

Air bags only operate when the
ignition is switched on.

This equipment only operates once. If a
second impact occurs (during the same or
a subsequent accident), the air bag will not
operate.
The triggering of an air bag or air bags
is accompanied by a slight discharge of
harmless smoke and a noise, due to the
activation of the pyrotechnic cartridge
incorporated in the system.
This smoke is not harmful, but sensitive
individuals may experience some irritation.
The noise of the detonation may result in a
slight loss of hearing for a short time.

It is imperative that the passenger
air bag is disarmed if a child seat is

installed facing rearwards. Refer to the
"Children on board" section of chapter 5.

Air bags

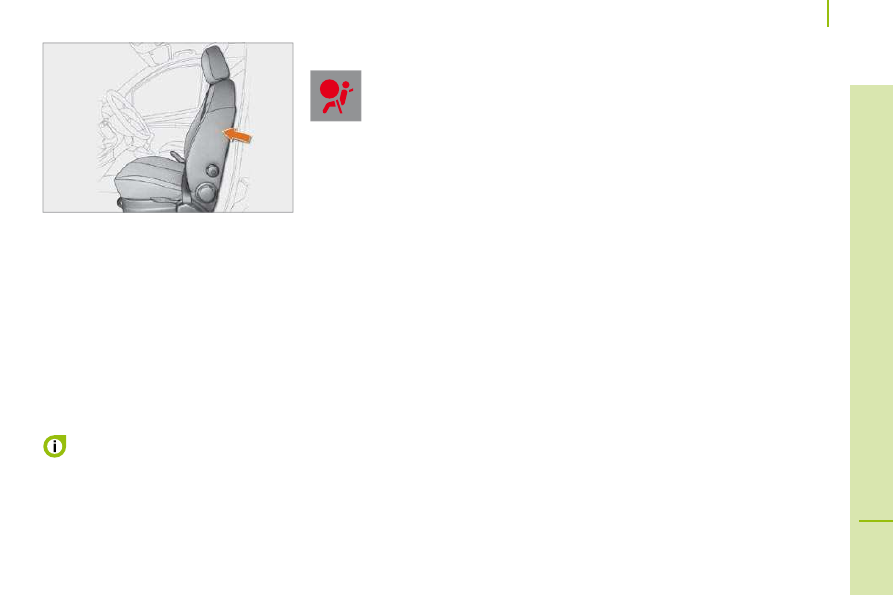

SIDE AIR BAGS

Activation

It is triggered unilaterally in the event of a
serious side impact, perpendicular to the
longitudinal centreline of the vehicle on
a horizontal plane and directed from the
outside towards the inside of the vehicle.
The side air bag inflates between the
front occupant of the vehicle and the
corresponding door trim pad.

In the event of a minor impact or bump
on the side of the vehicle or if the

vehicle rolls over, the air bag may not be
triggered.

Operating fault

If this warning light comes on on
the instrument panel, consult a
PEUGEOT dealer without delay to
have the system checked. The air
bags may no longer be triggered
in the event of a serious impact.

Air bags

For the air bags to be fully effective,
observe the following safety rules:

Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the air bags (a child, pet,
object...). This could hamper the operation
of the air bags or injure the occupants.
After an accident or if the vehicle has been
stolen or broken into, have the air bag
systems checked.
All work on the air bag systems is strictly
forbidden unless it is carried out by the
qualified personnel of a PEUGEOT dealer .
Even if all of the precautions mentioned are
observed, a risk of injury or of slight burns
to the head, chest or arms when an air bag
is triggered cannot be ruled out. In fact,
the bag inflates almost instantly (within a
few milliseconds) then deflates within the
same time, discharging the hot gas through
openings provided for this purpose.

Front air bags

Do not drive holding the steering wheel
by its spokes or resting your hands on the
centre part of the wheel.
Passengers must not place their feet on the
fascia.
Smoke as little as possible as deployment of
the air bags can cause burns or the risk of
injury from a cigarette or pipe.
Never remove or pierce the steering wheel
or hit it violently.

Side air bags

Only put approved covers on the seats.
These will not hinder the triggering of the
side air bags. Consult a PEUGEOT dealer .
Do not fix or glue anything to the seat backs.
This could cause injury to the chest or arms
when the side air bag inflates.
Do not sit with the upper part of the body
any nearer to the door than necessary.

Air bags

AIR BAGS

- in the event of a minor or rear impact

and in certain roll-over conditions, the air
bags will not be deployed; the seat belt
alone is sufficient to provide maximum
protection in these situations.

The seriousness of the collision depends on
the nature of the obstacle and the speed of
the vehicle at the moment of impact.

Air bags only operate when the
ignition is switched on.

It is imperative that the passenger
air bag is disarmed if a child seat is

installed facing rearwards. Refer to the
"Children on board" section of chapter 5.

Air bags

FRONT AIR BAGS

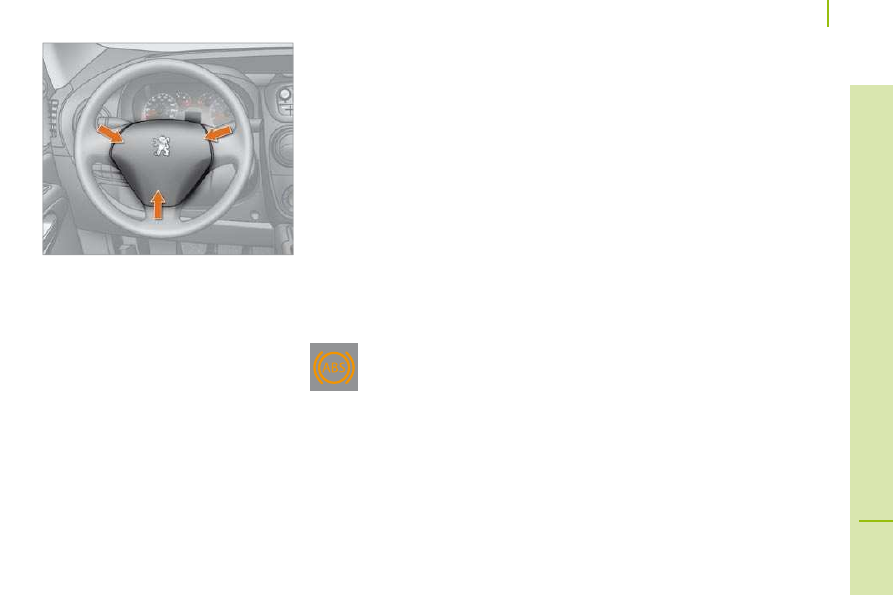

The front air bags are incorporated in the
centre of the steering wheel for the driver
and in the fascia for the front passenger.

Activation

They are deployed simultaneously, unless the
passenger's front air bag has been disarmed,
in the event of a serious front impact.
The front air bag inflates between the front
occupant of the vehicle and the fascia to
cushion his forward movement.

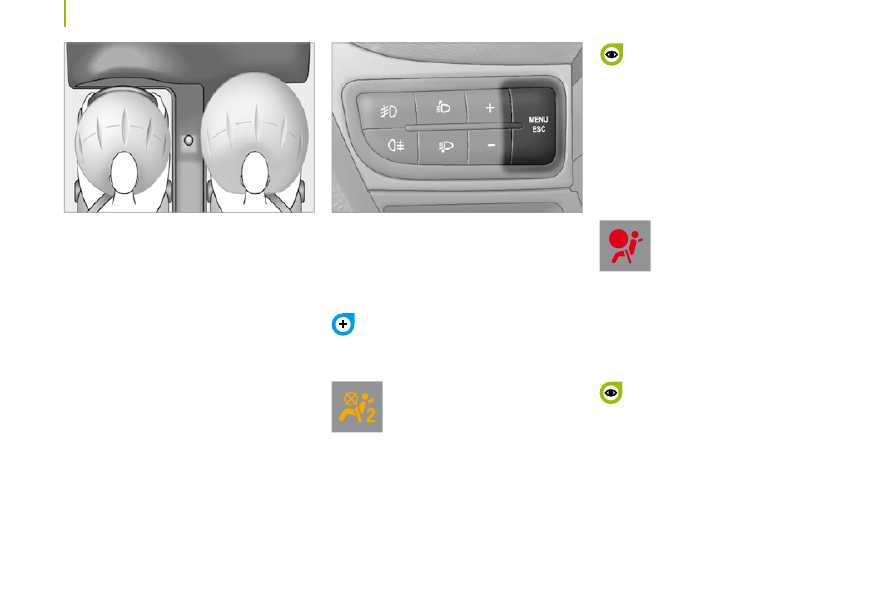

Disarming

The passenger's front air bag alone can be
disarmed. The air bag is disarmed from the
trip computer.

The air bag warning light on the
instrument panel is lit throughout
the period of disarming.

To ensure the safety of your child, it
is essential to disarm the passenger

air bag when you install a rear-facing child
seat on the front passenger seat. Otherwise,
the child would risk being killed or seriously
injured if the air bag were to inflate.

Refer to the "MENU" section of
chapter 3, then select OFF on the
"Passenger air bag" menu.

Operating fault

If the two air bag warning lights are lit
continuously, do not install a rear-

facing child seat. Consult a PEUGEOT
dealer .

If this warning light comes
on on the instrument panel,
accompanied by an audible signal
and a message on the display,

consult a PEUGEOT dealer without delay
to have the system checked. The air bags
may no longer be triggered in the event of a
serious impact.

Content .. 5 6 7 8 ..
