Peugeot 5008 (2017 year). Instruction

239

Driving

Operation

Assistance with parallel parking
manoeuvres

F When you have detected a parking space.

F Select "Park Assist" in the

Vehicle / Driving menu of the
touch screen to activate the
function.

This indicator lamp comes on in
the instrument panel to confirm the
activation of the system.

To enter a parking space, the system does
not identify spaces that are clearly smaller
or larger than the vehicle.

F Limit the speed of the vehicle to

a maximum of 12 mph (20 km/h)
and select "Enter parallel parking
space" in the touch screen.

F Operate the direction indicator on the

parking side chosen to activate the
measurement function. You should drive at
a distance of between 0.5 m and 1.5 m from
the row of parked vehicles.

F Move forwards slowly until a message is

displayed, accompanied by an audible
signal, asking you to engage reverse gear.

F Drive slowly following the instructions until

the system finds a free space.

F Select reverse, release the steering wheel

and start moving without exceeding 4 mph
(7 km/h).

240

Driving

Assistance in exiting from a
parallel parking space

F When you want to leave a parallel parking

space, start the engine.

F Select "Park Assist" in the

Vehicle / Driving menu of the
touch screen to activate the
function.

This indicator lamp comes on in
the instrument panel to confirm the
activation of the system.

F Press "Exit parallel parking

space" in the touch screen.

F The assisted parking manoeuvre is in

progress.

Without exceeding 4 mph (7 km/h), move

forwards and backwards, aided by the
warnings from the "Parking sensors"
system, until the end of the manoeuvre is
indicated.

F At the end of the manoeuvre, the indicator

lamp goes off in the instrument panel,
accompanied by the display of a message
and an audible signal.

The assistance is deactivated: you can take
over control.

F Operate the direction indicator for the exit

side chosen.

F Engage reverse or forward gear and release

the steering wheel.

F The assisted parking manoeuvre is in

progress.

Without exceeding 3 mph (5 km/h), move
forwards and backwards, aided by the
warnings from the "Parking sensors"
system, until the end of the manoeuvre is
indicated.

241

Driving

Assistance with bay parking
manoeuvres

F When you have detected a parking space.

F Select "Park Assist" in the

Vehicle / Driving menu of the
touch screen to activate the
function.

This indicator lamp comes on in
the instrument panel to confirm the
activation of the system.

F Limit the speed of the vehicle to

a maximum of 12 mph (20 km/h)
and select "Enter bay parking
space" in the touch screen.

The manoeuvre is complete when the vehicle's
front wheels are clear of the parking space.
At the end of the manoeuvre, the indicator lamp
in the instrument panel goes off, accompanied
by the display of a message and an audible
signal.
The assistance is deactivated: you can take
over control.

F Operate the direction indicator on the

parking side chosen to activate the
measurement function. You should drive at
a distance of between 0.5 m and 1.5 m from
the row of parked vehicles.

F Drive slowly following the instructions until

the system finds a free space.

242

Driving

When several successive bays are found,
the vehicle will be directed towards the
last one.

During a bay parking manoeuvre, the Park
Assist system is automatically deactivated
once the rear of the vehicle is within
20 inches (50 cm) of an obstacle.

During parking and exit from parking
manoeuvres, Visiopark 1 and Visiopark
2 functions may come into operation. They
facilitate monitoring of the surroundings
of the vehicle, by displaying additional
information in the instrument panel.
For more information on Visiopark 1,
Visiopark 2, refer to the corresponding
section.

F Move forwards slowly until a message is

displayed, accompanied by an audible
signal, asking you to engage reverse gear.

F Select reverse, release the steering wheel

and start moving without exceeding 4 mph
(7 km/h).

F The assisted parking manoeuvre is in

progress.

Without exceeding 4 mph (7 km/h), follow
the instructions displayed in the instrument
panel, aided by the warnings from the
"Parking sensors" system, until the end of
the manoeuvre is indicated.

At the end of the manoeuvre, the indicator lamp
goes off in the instrument panel, accompanied
by the display of a message and an audible
signal.
The assistance is deactivated: you can take
over control.

243

Driving

Deactivation

The system is deactivated by pressing the
control.
The system is deactivated automatically:
-  on switching off the ignition,
-  if the engine stalls,
-  if no manoeuvre is performed within

5 minutes of selecting the type of
manoeuvre

- after a prolonged stop of the vehicle during

a manoeuvre,

- if the road wheel anti-slip regulation (ASR)

is triggered,

- if the speed of the vehicle exceeds the

stated limit,

- when the driver interrupts movement of the

steering wheel,

-  after 4 manoeuvre cycles,
-  on opening the driver's door,
-  if one of the front wheels encounters an

obstacle.

The indicator lamp in the instrument panel goes
off and a message is displayed accompanied
by an audible signal.
The driver should then take back control of the
vehicle's steering.

If the system is deactivated during a
manoeuvre, the driver should reactivate it
to repeat the measurement.

Deactivation

The system is switched off automatically:
-  when towing a trailer, connected electrically,
-  if the driver's door is opened,
-  if the speed of the vehicle is above 45 mph

(70 km/h).

To switch the system off for a prolonged period,
contact a PEUGEOT dealer or a qualified
workshop.

Operating faults

In the event of a fault, this warning
lamp flashes for a few seconds,
accompanied by an audible signal.

If the fault occurs during the use of the system,
the warning lamp goes off.

In the event of a fault with the
power steering, this warning lamp
flashes in the instrument panel,
accompanied by a message.

Contact a PEUGEOT dealer or a qualified
workshop.

If the lateral distance between your vehicle
and the space is too great, the system may
not be able to measure the space.
Any object projecting beyond the
dimensions of the vehicle (e.g. a ladder on
the roof or a towball) will not be taken into
account by the Park Assist system during a
manoeuvre.

In bad weather or in winter, ensure that
the sensors are not covered by road dirt,
ice or snow.
In the event of a fault, have the system
checked by a PEUGEOT dealer or a
qualified workshop.

High pressure jet washing
When washing your vehicle, keep the lance at
least 12 inches (30 cm) away from the sensors.

PEUGEOT & TOTAL

A PARTNERSHIP FOR
PERFORMANCE!

TOTAL QUARTZ protects your engine against
the effects of time.
TOTAL QUARTZ Ineo First is a high performance

lubricant, the result of work done together by

PEUGEOT and TOTAL R&D. Specially formulated

for the engines in PEUGEOT vehicles, its innovative

technology significantly reduces CO

emissions and

keeps your engine clean.

RECOMMENDS

2015 was marked by PEUGEOT's return to Rallye-

Raid, one of the most difficult motorsport disciplines

in the world. To obtain the best performance in these

trials, PEUGEOT Sport chose TOTAL QUARTZ for

the PEUGEOT 2008 DKR, a high-tech lubricant that

protects the engine in the most severe conditions.

245

Practical information

Fuel

Fuel tank capacity: approximately 56 litres.
Reserve level: 6 litres.

Low fuel level

When the low fuel level is reached
in the fuel tank, this warning lamp
comes on in the instrument panel,
accompanied by the display of a
message and an audible signal.
When it first comes on, about
6 litres of fuel is left in the tank.

Until sufficient fuel is added, this warning lamp
appears every time the ignition is switched on,
accompanied by the display of a message and
an audible signal. When driving, this message
and audible signal are repeated with increasing
frequency as the fuel level drops towards 0.
Refuel as soon as possible to avoid running out
of fuel.
For more information on Running out of fuel
(Diesel), refer to the corresponding section.

If your vehicle is fitted with Stop & Start,
never refuel with the engine in STOP
mode; you must switch off the ignition
using the key, or the START/STOP button
if your vehicle has Keyless Entry and
Starting.

Refuelling

If you have put in the wrong fuel for your
vehicle, you must have the fuel tank
drained and filled with the correct fuel
before starting the engine.

A label on the inside of the fuel filler flap
reminds you of the type of fuel to use,
depending on your engine type.
Additions of fuel must be of at least 5 litres, in
order to be registered by the fuel gauge.
Opening the filler cap may create a noise
caused by an inrush of air. This vacuum is
entirely normal, resulting from the sealing of the
fuel system.

Once you have finished refuelling:
F  Refit the filler cap.
F  Turn it to the right.
F  Close the fuel filler flap.

To refuel in complete safety:
F You must switch off the engine.
F With the vehicle unlocked, press the rear

part of the filler flap.

F Turn the filler cap to the left.
F Remove the filler cap and hook it onto the

clip located on the inside of the filler flap,

F Fill up the tank completely, but do not

continue after the 3

cut-off of the nozzle;

this could cause malfunctions.

246

Practical information

Misfuel prevention (Diesel)

(Depending on the country of sale.)
Mechanical device which prevents filling the
tank of a Diesel vehicle with petrol. It helps
avoid the risk of engine damage that can result
from filling with the wrong fuel.
Located in the filler neck, the misfuel
prevention device appears when the filler cap
is removed.

Operation

When a petrol filler nozzle is introduced into the
fuel filler neck of your Diesel vehicle, it comes
into contact with the flap. The system remains
closed and prevents filling.
Do not continue trying but introduce a
Diesel filler nozzle instead.

It is still possible to use a fuel can to fill
the tank.
To ensure a good flow of fuel, do not place
the nozzle of the fuel can in direct contact
with the flap of the misfuel prevention
device and pour slowly.

Travelling abroad
As Diesel fuel pump nozzles may be
different in other countries, the presence
of the misfuel prevention device may make
refuelling impossible.
Not all Diesel vehicles are fitted with
misfuel protection, so before travelling
abroad, we recommend that you check
with the PEUGEOT dealer network
whether your vehicle is suitable for the
fuel pumps in the country in which you
intend to travel.

Compatibility of fuels

Fuel used for Diesel
engines

The Diesel engines are compatible with
biofuels that conform to current and future
European standards and which can be
obtained from filling stations.

Diesel fuel that meets standard
EN590 mixed with a biofuel that
meets standard EN14214 (possibly
containing up to 7% Fatty Acid
Methyl Ester),

Diesel fuel that meets standard
EN16734 mixed with a biofuel that
meets standard EN14214 (possibly
containing up to 10% Fatty Acid
Methyl Ester),

Paraffinic Diesel fuel that meets
standard EN15940 mixed with
a biofuel that meets standard
EN14214 (possibly containing up to
7% Fatty Acid Methyl Ester).

247

Practical information

For more information, contact a PEUGEOT
dealer or a qualified workshop.

The use of any other type of (bio)fuel
(vegetable or animal oils, pure or diluted,
domestic fuel, etc.) is strictly prohibited
(risk of damage to the engine and fuel
system).

The only Diesel additives authorised
for use are those that meet the
B715000 standard.

Diesel at low temperature

The use of B20 or B30 fuel that
meets the standard EN16709 is
possible with your Diesel engine.
However, this use, even occasional,
requires strict application of the
special servicing conditions referred
to as "Arduous conditions".

At temperatures below 0°C (+32°F), the
formation of paraffins in summer-type Diesel
fuels could entail an abnormal operation
of the fuel supply circuit. To avoid this, we
recommend using winter-type Diesel fuel and
keeping the fuel tank more than 50% full.
If, despite this, at temperatures below -15°C
(+5°F) the engine has problems starting,
just leave the vehicle in a garage or heated
workshop for a little while.

Fuel used for petrol engines

The petrol engines are compatible with biofuels
that conform to current and future European
standards and which can be obtained from
filling stations:

Petrol that meets standard EN228,
mixed with a biofuel that meets
standard EN15376.

The only petrol additives authorised
for use are those that meet the
B715001 standard.

Travelling abroad

Certain fuels could damage the engine
of your vehicle.
In certain countries, the use of a
particular fuel may be required
(specific octane rating, specific trade
name, etc.) to ensure correct operation
of the engine.
For any additional information, contact a
dealer.

248

Practical information

Towing a trailer

Your vehicle is primarily designed for
transporting people and luggage, but it may
also be used for towing a trailer.

We recommend the use of genuine
PEUGEOT towbars and their harnesses
that have been tested and approved from
the design stage of your vehicle, and that
the fitting of the towbar is entrusted to a
PEUGEOT dealer or a qualified workshop.
If the towbar is not fitted by a PEUGEOT
dealer, it must still be fitted in accordance
with the vehicle manufacturer's
instructions.

Please respect the maximum authorised
towable weights, indicated on the
registration certificate or in your vehicle’s
technical data.

For more information on Weights (and the
towed loads which apply to your vehicle)
refer to the corresponding section.

Vehicle equipped with motorised
tailgate with "Hands-Free Tailgate
Access" function
To avoid unwanted opening of the tailgate
when using the towing device:
- please deactivate the "Hands-Free

Tailgate Access" function in advance in
your vehicle's configuration menu,

- or move the electronic key away from

the recognition zone, with the tailgate
closed.

Towbar with quickly
detachable towball

No tools are required to install or remove the
towball on this genuine towbar system.

Presentation

Carrier.

Protective plug.

Connection socket.

Safety eye.

Detachable towball.

Locking / unlocking wheel.

Security key lock.

Key reference label.

249

Practical information

Trailers with LED lamps are not
compatible with the wiring harness of this
device.

To know the technical features, and in
particular the towable weights for your
vehicle, refer to the corresponding section.
For advice on driving safely when Towing
a trailer, refer to the corresponding
section.

Locked position; the locking wheel is in
contact with the towball (no gap).

Unlocked position; the locking wheel is
no longer in contact with the towball (gap
of around 5 mm).

Before each use
Check that the towball is correctly fitted,
verifying the follow points:
- the green mark on the locking wheel

is in line with the green mark on the
towball,

- the locking wheel is in contact with the

towball (position A),

- the security key lock is on and the key

removed; the locking wheel can no
longer be operated,

- the towball must not be able to move in

its carrier; test by shaking it with your
hand.

If the towball is not locked, the trailer can
detach – accident risk!

During use
Never release the locking system with a
trailer or load carrier on the towball.
Never exceed the maximum authorised
weight for the vehicle – the Gross Train
Weight or GTW.
It is essential that the maximum
authorised load be complied with on the
towing device: if it is exceeded, this device
may detach from the vehicle, which is a
serious accident risk.
Check that the trailer lamps work
correctly.
Before setting off, check the adjustment of
the headlamp beam height.
For more information on Adjusting the
headlamp beam height, refer to the
corresponding section.

Following use
When travelling without a trailer or load
on a towbar-mounted carrier, the towball
must be removed and the protective plug
inserted in the carrier. This measure
applies particularly where the towball
might obscure visibility of the number
plate or its lighting.

250

Practical information

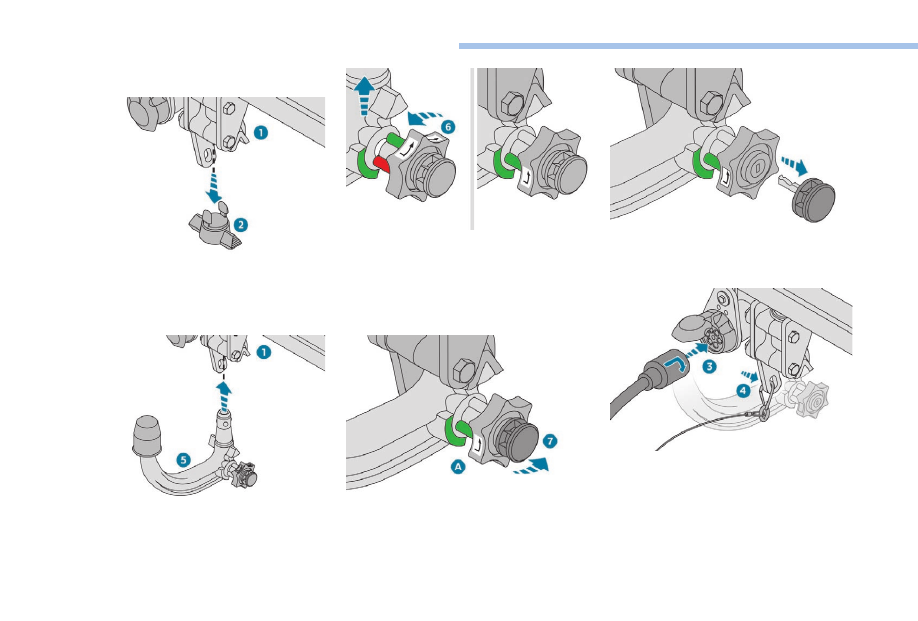

Fitting the towball

F Below the rear bumper, remove the

protective plug 2 from the towball carrier 1.

F Insert the end of towball 5 into carrier 1 and

push it upwards; the locking will take place
automatically.

F The locking wheel 6 turns a quarter of a

turn anti-clockwise; take care to keep your
hands clear!

F Check that the mechanism has correctly

locked in to place (position A).

F Close the lock 7 using the key.

F Always remove the key. The key cannot be

removed when the lock is open.

F Clip the cap onto the lock.

F Remove the protective cover from the

towball.

F Attach the trailer to the towball.
F Attach the cable on the trailer to the safety

eye 4 on the carrier.

F Insert the trailer plug and give it a quarter

turn to connect it to socket 3 of the carrier.

251

Practical information

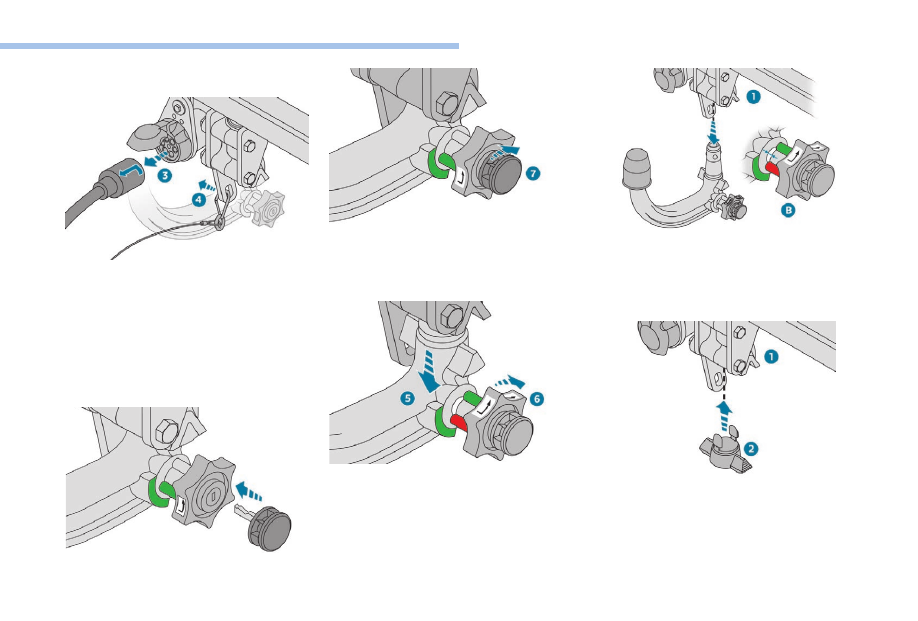

Removing the towball

F Give a quarter turn and pull the trailer plug

to disconnect it from socket 3 of the carrier.

F Detach the cable on the trailer from the

safety eye 4 on the carrier.

F Detach the trailer from the towball.
F Refit the protective cover to the towball.

F Remove the cap from the lock and press it

onto the head of the key.

F Insert the key into the lock 7.
F Open the lock using the key.

F Hold towball 5 firmly in one hand; using

the other hand, pull and turn locking wheel
6 fully in a clockwise direction; do not
release the locking wheel.

F Extract the towball from the bottom of its

carrier 1.

F Release the locking wheel; this

automatically stops in the unlocked position
(position B).

F Refit protective plug 2 to carrier 1.
F Carefully stow the towball in its bag away

from knocks and dirt.

252

Practical information

Apply the label provided to a clearly visible
area, close to the carrier or in the boot.
Go to a PEUGEOT dealer or a qualified
workshop for any work on the towbar
system.

Load reduction mode

System which manages the use of certain
functions according to the level of charge
remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as air conditioning,
heated rear screen, etc.
The deactivated functions are reactivated
automatically as soon as conditions permit.

Maintenance

Correct operation is only possible if the towball
and its carrier are kept clean.
Before cleaning the vehicle with a high-
pressure jet wash, the towball must be removed
and the protective plug fitted to the carrier.

Energy economy mode

System which manages the duration of use of
certain functions to conserve a sufficient level
of charge in the battery.
After the engine has stopped, you can still use
functions such as the audio and telematics
system, windscreen wipers, dipped beam
headlamps, courtesy lamps, etc. for a
maximum combined duration of about forty
minutes.

Switching to this mode

A message appears in the instrument panel
screen indicating that the vehicle has switched
to economy mode and the active functions are
put on standby.

If a telephone call is being made at this
time, it will be maintained for around
10 minutes with the Bluetooth hands-free
system of your audio system.

Exiting the mode

These functions will be automatically restored
the next time the vehicle is used.
In order to restore the use of these functions
immediately, start the engine and let it run:
- for less than ten minutes, to use the

equipment for approximately five minutes,

- for more than ten minutes, to use the

equipment for up to approximately thirty
minutes.

Let the engine run for the duration specified to
ensure that the battery charge is sufficient.
Do not repeatedly and continuously restart the
engine in order to charge the battery.

A flat battery prevents the engine from
starting.
For more information on the 12 V battery,
refer to the corresponding section.

253

Practical information

Very cold climate screen

(Depending on the country where the product
is sold.)

Prevents snow from accumulating at the
radiator cooling fan.
This removable device consists of two
elements to be attached to the front bumper.

For fitting and removing the screen, it is
recommended that you get in touch with a
PEUGEOT dealer or a qualified workshop.

Before fitting or removing a screen,
ensure that the engine is off and the
cooling fan has stopped.

Fitting

F Offer up the corresponding screen to the

lower grille in the bumper.

F First insert the two lower fixing brackets into

the bumper.

F Tilt the screen upwards until the three upper

fixing brackets click into the bumper.

F Check that the unit is firmly held by pressing

its edge.

Repeat these operations for the other screen.

Removing

F Insert a finger into the notch in the upper

part of the screen.

F Pull towards you to unclip the unit.
Repeat these operations for the other screen.

The very cold climate screen must be
removed:
- when the exterior temperature exceeds

10°C,

- when towing,
- at speeds above 75 mph (120 km/h).

254

Practical information

Snow chains

In wintry conditions, snow chains improve
traction as well as the behaviour of the vehicle
when braking.

The snow chains must be fitted only to the
front wheels. They must never be fitted to
"space-saver" type spare wheels.

Take account of the legislation in force
in your country on the use of snow
chains and the maximum running speed
authorised .

Installation tips

F If you have to fit the chains during a journey,

stop the vehicle on a flat surface on the side
of the road.

F Apply the parking brake and position any

wheel chocks to prevent movement of your
vehicle.

F Fit the chains following the instructions

provided by the manufacturer.

F Move off gently and drive for a few

moments, without exceeding 30 mph
(50 km/h).

F Stop your vehicle and check that the snow

chains are correctly tightened.

It is strongly recommended that before
you leave, you practise fitting the snow
chains on a level and dry surface.

Avoid driving with snow chains on roads
that have been cleared of snow to avoid
damaging your vehicle's tyres and the
road surface. If your vehicle is fitted with
alloy wheels, check that no part of the
chain or its fixings is in contact with the
wheel rim.

Use only the chains designed to be fitted to the
type of wheel fitted to your vehicle:

Original tyre size

Maximum link size

215/65 R17

9 mm

225/55 R18

9 mm

205/55 R19

9 mm

235/50 R19

cannot be fitted with

chains

For more information on snow chains, contact a
PEUGEOT dealer or a qualified workshop.

Peugeot 5008 (2017 year). Instruction - part 16
