INSTRUMENTS and CONTROLS

The total distance is dis-

played in zone 1 of the

screen and the trip dis-

tance in zone 2 (refer to

the "Distance recorders"

section).

Distance recorder (A and B)

INFORMATION ON T

INFORMATION ON THE
INSTRUMENT PANEL SCREEN

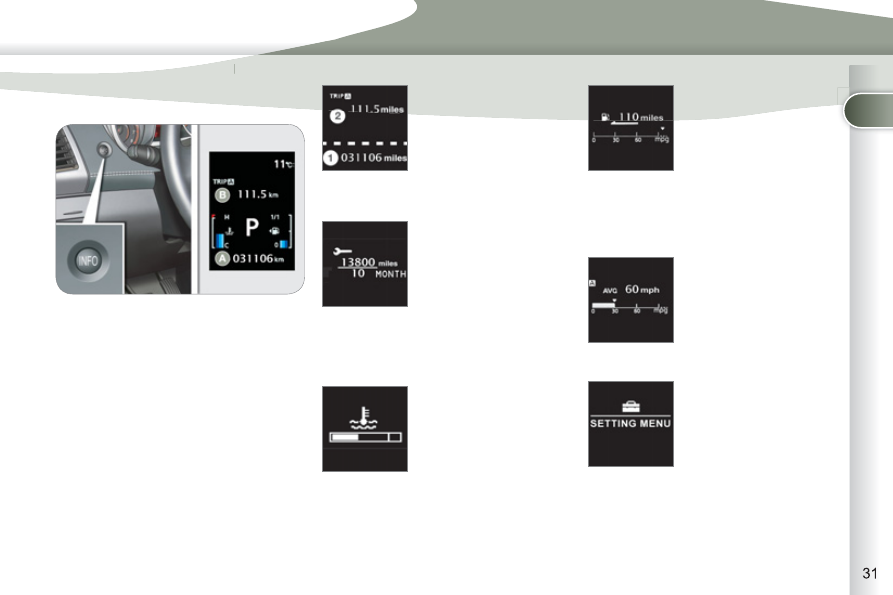

Information display

With the ignition on, press the INFO but-

ton, located on the fascia to the left of the

instrument panel, to display the various

types of information in succession:
- distance

recorder

distance recorder B,

- service

indicator,

- coolant

temperature,

- range,
- trip

computer,

- setting

menu.

This displays the dis-

tance and the number

of months remaining be-

fore the next service, in

line with the manufactur-

er's servicing schedule

(refer to the "Service in-

dicator" section).

Service indicator

When the engine is run-

ning, this indicates the

temperature of the cool-

ant (refer to the "Coolant

temperature indicator"

section).

Coolant temperature

When the engine is run-

ning, this indicates the

number of miles (kilo-

metres) which can still

be travelled with the fuel

remaining in the tank,

based on the average

fuel consumption over

the last few miles (kilometres) travelled

(refer to the "Range" section).

Range

This indicates the aver-

age fuel consumption,

the average speed and

the current fuel con-

sumption (refer to the

"Trip computer" section).

Trip computer

When the vehicle is

stationary , this allows

the user to change the

following settings (refer

to the "Setting menu"

section):
- the display language,
- the temperature dis-

play units,

the fuel consumption units,

the option to reinitialise the average

fuel consumption and the average

speed,

- the break (rest) reminder display

interval.

Setting menu

INSTRUMENTS and CONTROLS

The total distance is dis-

played in zone 1 of the

screen and the trip dis-

tance in zone 2 .

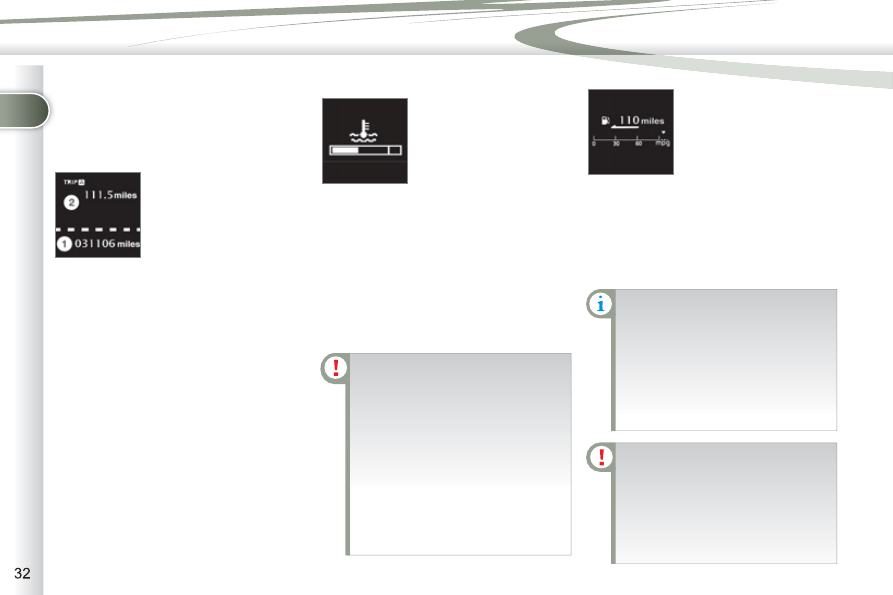

DISTANCE RECORDERS (A/B)

System for measuring the total distance

travelled by the vehicle during its ser-

vice life and the distance travelled in

a day or other period until it is reset to

zero by the driver.

Zero reset

With the ignition on, press the

INFO

button for more than 2 seconds until

zeros appear.

When the engine is run-

ning, this indicates the tem-

perature of the coolant.

COOLANT TEMPERATURE

If the bar is close to the critical position

located on the right, the temperature is

too high.

The symbol fl ashes when your engine

is overheating.
You must stop your vehicle as soon

as it is safe to do so.
Wait a few minutes before switching

off the engine.

Wait for the engine to cool be-

fore topping up the level. The

cooling system is pressurised.

When the engine is

running , this indicates

the distance which can

still be travelled with

the fuel remaining in the

tank based on the aver-

age fuel consumption

over the last few miles/

kilometres travelled.

RANGE

When the range is less than 30 miles

(50 km) , dashes are displayed.
Refuel as soon as possible. The display

of the range is updated.

To avoid any risk of scalding,

unscrew the cap by two turns to

allow the pressure to drop.
When the pressure has dropped,

remove the cap and top up the

level, if necessary.
Contact a PEUGEOT dealer or

a qualifi ed workshop.

This fi gure may increase fol-

lowing a change in the style of

driving or the relief, resulting in

a reduction in the current fuel

consumption.
If you only add a few litres, the

value displayed will be incorrect.

Therefore, you must fi ll the tank

whenever possible.

When you disconnect the bat-

tery, the previous fuel consump-

tion data is lost and the value

displayed will be different from

that displayed before the battery

was disconnected. The distance

displayed must be considered

an approximate indication.

INSTRUMENTS and CONTROLS

SERVICE INDICATO

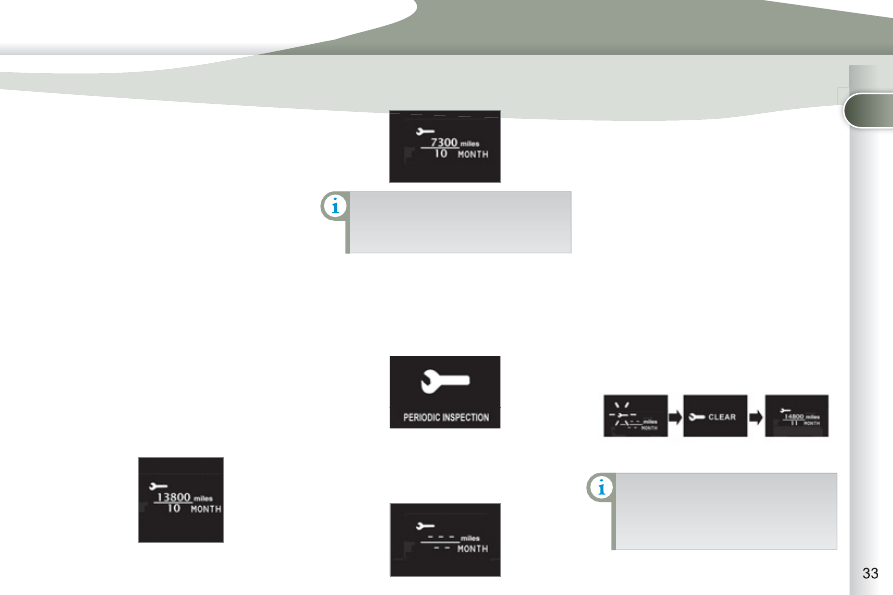

SERVICE INDICATOR

Resetting the service indicator

to zero

Your PEUGEOT dealer or a qualifi ed

workshop carries out this operation after

each service.
If you have carried out your vehicle's

service yourself, the zero reset proce-

dure is the following:
) switch off the ignition.
) press the INFO button several times

in succession until the service indi-

cator is displayed.

) press and hold the INFO button for

a few seconds until the

spanner

fl ashes .

) press the

INFO button while the

spanner is fl ashing to change the

display "---" to "CLEAR" then the

time remaining before the next ser-

vice is due is displayed.

Service overdue

Operation

When the ignition is switched on, you

must press the

INFO button several

times in succession until the service

indicator is displayed. The distance re-

corder display line indicates the number

of miles (kilometres) remaining and the

time elapsed line indicates the number

of months remaining before the next

service is due.

After a certain distance and a

certain time, the display of "---" is

reinitialised and the display indi-

cates the time remaining before

the next service is due.

System which informs the driver when

the next service is due in accordance

with the manufacturer's servicing

schedule.
The point at which the next service is

due is calculated from the last service

indicator zero reset.
It is determined by two parameters:
-

the distance travelled (in miles (km)),

- the time elapsed since the last ser-

vice (in months).

The distance remaining to be travelled

may be weighted by the time factor, de-

pending on the user's driving habits.

Example: the display indicates that

7300 miles (kilometres) remain before

the next service is due.

The symbol

"--" remains dis-

played until the fi rst service of

a new vehicle has been carried

out.

Example: the display indicates that the

service is overdue. This service must

be carried out by a PEUGEOT dealer

or a qualifi ed workshop.

Each time the ignition is switched on,

the display "PERIODIC INSPECTION"

is displayed for a few seconds to indi-

cate that the service must be carried

out without delay.

INSTRUMENTS and CONTROLS

TRIP COMPUTER

Average fuel

consumption

(l/100 km or km/l or

mpg)

This is the average fuel

consumption since the

last zero reset.

This fi gure may change follow-

ing a change in the style of driv-

ing or the relief resulting in an

increase or decrease in the cur-

rent fuel consumption.

Average speed (km/h

or mph)

This is the average

speed calculated since

the last zero reset.

Resetting the information to zero

When the ignition is switched on, the

zero reset switches automatically from

manual mode to automatic mode.

If dashes "---" are displayed

for long periods in place of the

digits while driving, contact a

PEUGEOT dealer or a qualifi ed

workshop.

Current fuel

consumption

(l/100 km or km/l or

mpg)

This is the average fuel

consumption during the last

few seconds of driving.

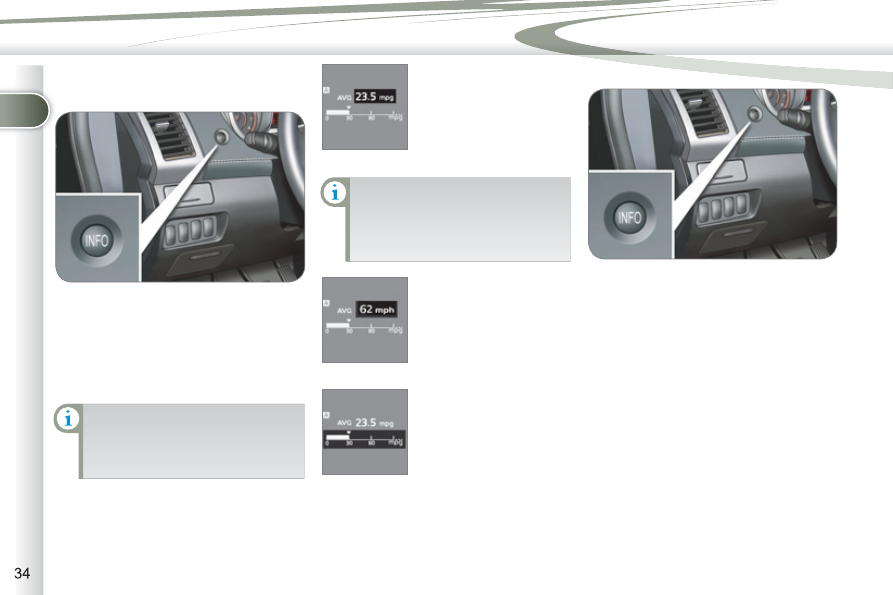

Information display

With the ignition on, press the

INFO

button on the dashboard, to the left of

the instrument panel, several times in

succession to display the different infor-

mation:
-

average fuel consumption,

- average

speed,

current fuel consumption.

When the required information is dis-

played, press the INFO button for more

than two seconds to reset all of the in-

formation to zero.

Automatic
If the ignition key remains in the OFF

position for more than 4 hours, the in-

formation is reset to zero automatically.

INSTRUMENTS and CONTROLS

When the vehicle is

stationary , it allows the

user to change the fol-

lowing settings:
- the choice of the reini-

tialisation of the aver-

age fuel consumption

and average speed,

the fuel consumption units,

the temperature display unit,

the display language,

- activation/deactivation of the INFO

button sound,

the break (rest) reminder display in-

terval,

restore the factory settings.

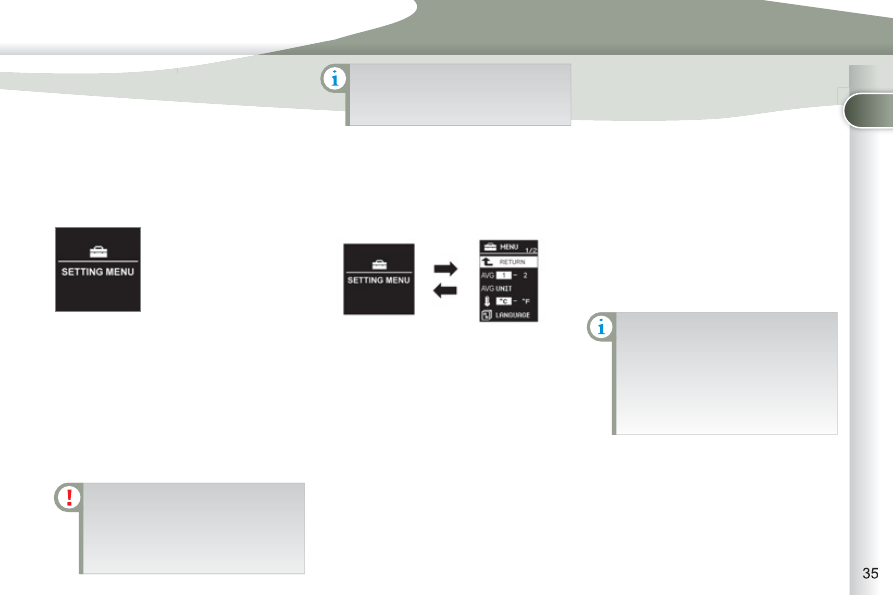

SETTING MENU

System which provides access to the

settings for certain functions.
The various menus may change be-

tween the type 1 instrument panel and

the type 2 instrument panel.
With the ignition on , press the INFO

button on the dashboard, to the left of

the instrument panel, several times in

succession until the "SETTING MENU"

screen is displayed.

To change the settings, you

must stop the vehicle and switch

on the ignition.
Apply the parking brake and

place the gear lever in neutral.

When the vehicle is moving ,

the function settings are not

displayed when you press the

INFO button.

Operation

) press and hold the INFO button for

a few seconds to display the menu

screen.

Press and hold the INFO button

for a few seconds to return to

the previous screen.
When the menu screen is

displayed, if no operation is

carried out within 15 seconds,

the Setting Menu screen is dis-

played.

) on the menu screen, press the INFO

button to select a function from the

list:

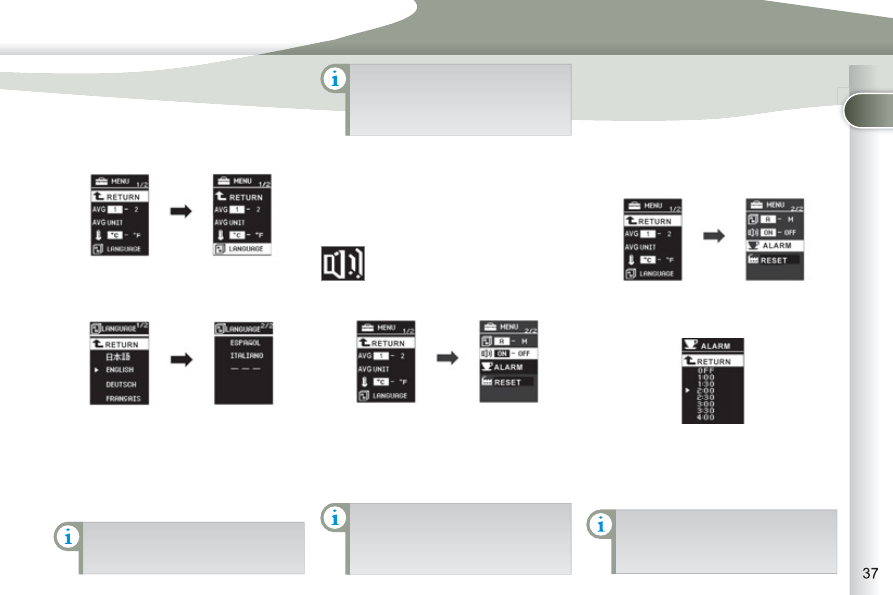

MENU 2/3:
-

a/b (option of displaying a different

language on the instrument panel

screen and the navigation screen),

activation/deactivation of the

INFO button sound ,

ALERT (changing of the "BREAK

REMINDER" display interval),

selection of the sound of the di-

rection indicators,

activation/deactivation of the cur-

rent fuel consumption ,

MENU 1/3 :
-

1 - 2 (choice of the type of reinitiali-

sation of average fuel consumption

and average speed),

UNIT (choice of the fuel consumption

units),

- choice of the temperature display

unit ,

LANGUAGE (option of the display

language),

MENU 3/3:
-

REINITIALISE (restore factory set-

tings).

INSTRUMENTS and CONTROLS

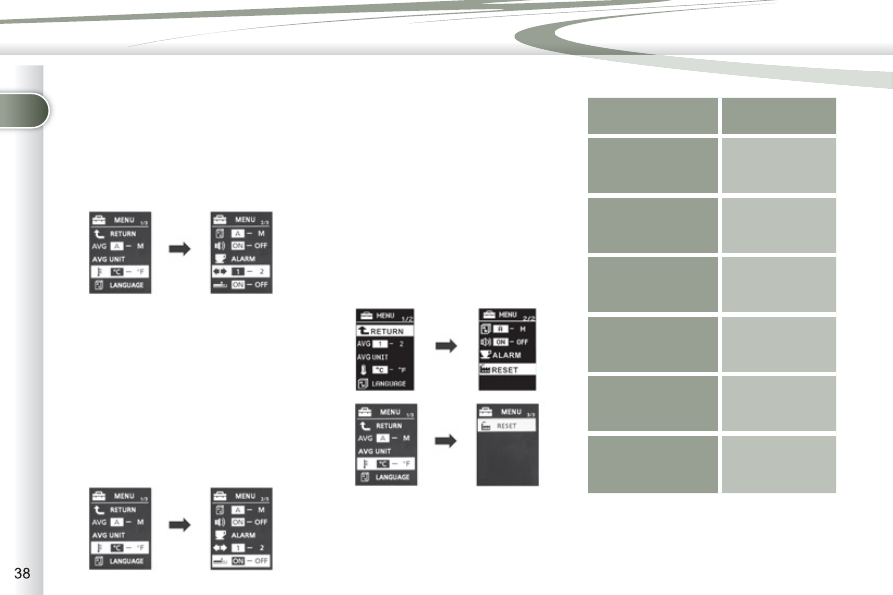

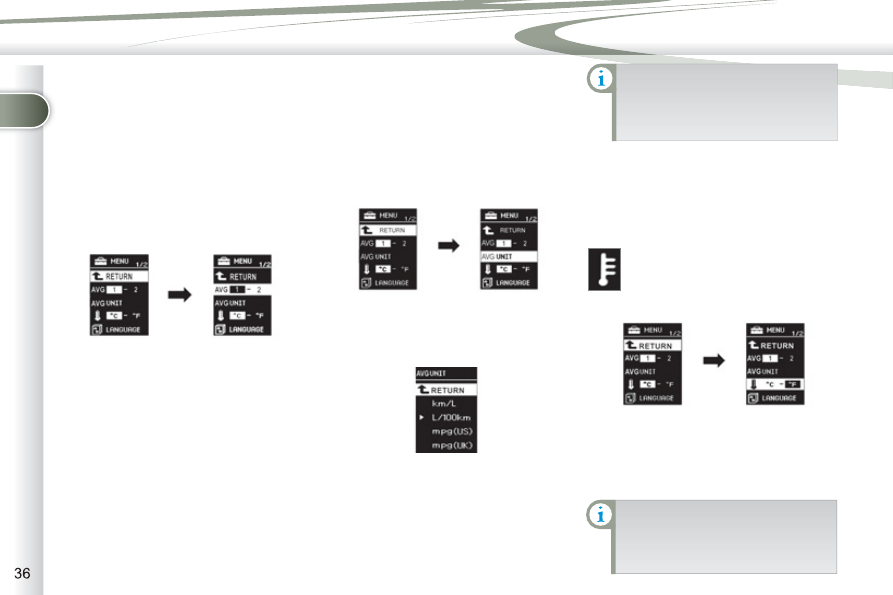

Choice of the fuel consumption

units

You can choose between different units

for displaying fuel consumption.

On the menus screen:
) press the

INFO button to select

"UNIT" .

) press and hold the INFO button for

a few seconds to display the "UNIT"

screen.

) press the INFO button to scroll the

units (km/L, L/100 km, mpg (US),

mpg (UK) and PREVIOUS) in suc-

cession.

) press and hold the INFO button for

a few seconds to confi rm your se-

lection.

In this case, the distance, speed and

quantity of fuel units will also be changed

in accordance with your choice of fuel

consumption unit.

If the battery is disconnected,

the settings memory is cleared

and the default unit (km/L) is re-

stored automatically.

Choice of the temperature

display unit

You can choose between different units

for displaying the temperature.

On the menu screen:

) press the INFO button to se-

lect the temperature unit set-

ting symbol (thermometer).

) press and hold the INFO button for

a few seconds to scroll the units

(°C and °F) in succession.

The mode selected is confi rmed.

If the battery is disconnected,

the settings memory is cleared

and the default unit (°C) is re-

stored automatically.

Choice of the reinitialisation of

the average consumption and

average speed

You can choose between two average

fuel consumption and average speed

reinitialisation modes:
- automatic

reinitialisation

( choice 1) ,

manual reinitialisation (choice 2) .

On the menu screen:
) press the INFO button to select:

) press and hold the INFO button for

a few seconds to switch in succes-

sion from reinitialisation mode 1 (au-

tomatic) to reinitialisation mode

(manual) .

The mode selected is confi rmed.

INSTRUMENTS and CONTROLS

Choice of the display language

On the menu screen:
) press the

INFO button to select

"LANGUAGE" .

) press and hold the

INFO button

for a few seconds to display the

"LANGUAGE" screen.

) press the

INFO button to scroll

the languages (Japonais, English,

Deutsch, Français, Espanol, Italiano,

"---" and PREVIOUS) in succes-

sion.

) press and hold the INFO button for

a few seconds to confi rm your se-

lection.

If you select the "---" setting, no

message will be displayed in

message display situations.

If the battery is disconnected, the

settings memory is cleared and

the default language (ENGLISH)

is restored automatically.

Activation/deactivation of the

"INFO" button sound

You can activate or deactivate the INFO

button sound.
On the menu screen:

) press the INFO button to se-

lect the INFO button sound

activation/deactivation sym-

bol (located on menu 2/3) .

) press and hold the INFO button for

a few seconds to scroll the choices

(ON, OFF) in succession.

The mode selected is confi rmed.

If the battery is disconnected,

the settings memory is cleared

and the default choice (ON) is

restored automatically.

Changing the display interval

of the "BREAK REMINDER"

message

On the menu screen:
) press the

INFO button to select

"ALERT" (located on menu 2/3) .

) press and hold the

INFO button

for a few seconds to display the

"ALERT" screen.

) press the

INFO button to select

the display interval of the "BREAK

REMINDER" message.

) press and hold the INFO button for

a few seconds to confi rm.

If the battery is disconnected,

the settings memory is cleared

and the default value (OFF) is

restored automatically.

You can choose between different lan-

guages for the display.

You can change the display interval of

the "BREAK REMINDER" message.

INSTRUMENTS and CONTROLS

Selection of the sound of the

direction indicators

You can select the sound of the direction

indicators, with the type 2 instrument

panel only.
On the menu screen:
) press the

INFO button to select

sound 1 or 2 (located on menu 2/3) .

Activation/deactivation of the

current fuel consumption

You can activate or deactivate the cur-

rent fuel consumption, with the type 2

instrument panel only.
On the menu screen:
) press the INFO button to select the

current fuel consumption activation/

deactivation symbol

(located on

menu 2/3) .

Restoring factory settings

(REINITIALISE)

You can restore all of the factory set-

tings for all functions.

Functions

Factory setting

Reinitialisation

of average fuel

consumption and

average speed

1 (automatic)

Fuel consumption

units

L/100 km

Temperature

display unit

°C

Display language

ENGLISH

INFO button

sound

ON (activated)

Display of

the "BREAK

REMINDER"

message

OFF (deactivated)

On the menu screen:
) press the

INFO button to select

"REINITIALISE"

(located on

menu 2/2 or 3/3 depending on the

instrument panel) .

) press and hold the INFO button for

at least 5 seconds .

An audible signal is heard and all of the

factory settings are restored for all func-

tions.

) press and hold the INFO button for

a few seconds to scroll through the

choices in succession (ON, OFF).

The factory settings are:

INSTRUMENTS and CONTROLS

MONOCHROME SCR

CHROME SCREEN

This provides the following information:
- the

time,

- audio system information (refer to

the "Audio and Telematics" section).

Setting the time

The digital clock can be set in automatic

mode or in manual mode .

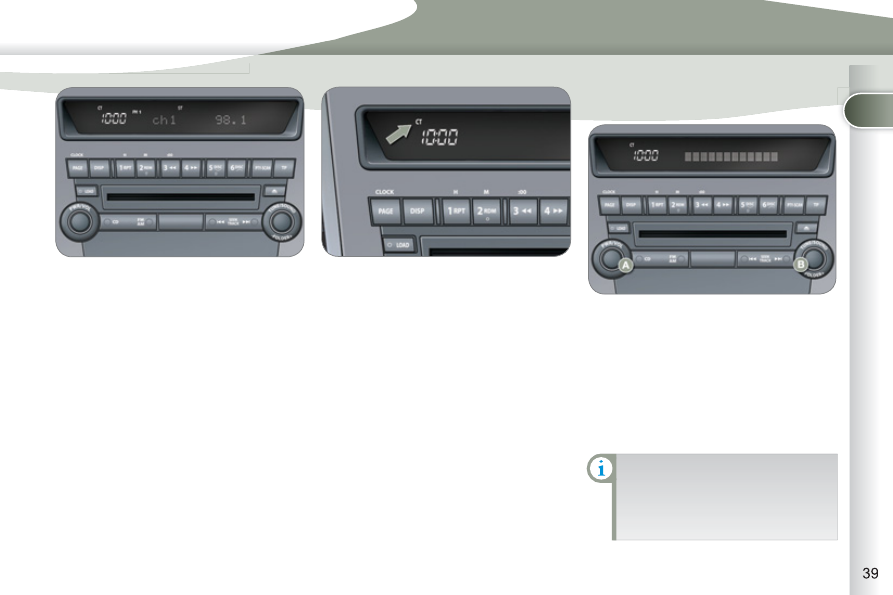

Selecting the Setting

Select the

automatic mode or the

manual mode as follows:

) Press button A "PWR" to switch on

the audio system.

) Access the setting mode by press-

ing button

B "TUNE" for approxi-

mately 2 seconds.

) Press button

B "TUNE" several

times to scroll through the various

menus and select the

CT menu

(clock time).

The order of the menus is the

following: AF/CT/REG/TP-S/PTY

display language/SCV/PHONE/

Functions setting mode OFF.

Automatic mode
This mode permits automatic setting

of the local time using the signal from

RDS stations.
The symbol

"CT" appears on the

screen.

Manual mode
This mode permits manual setting of

the time using the audio equipment but-

tons.
It can also be used when the "Automatic

mode" displays an inaccurate time,

when the local RDS stations are broad-

casting from a different time zone.

INSTRUMENTS and CONTROLS

Set the time using the buttons as indi-

cated below:
) with the ignition on or in the ACC

(Accessories) position, press and

hold the

CLOCK button until the

time display fl ashes.

) Press the appropriate button to set

the time:

Button H: to set the hours
The hours digits scroll when you press

this button.
Button M: to set the minutes
The minutes digits scroll when you

press this button.
Button 00: to reset the minutes to

zero.
- from

1 to 29 min : rounded down to

the previous hour,

- from

30 to 59 min: rounded up to

the next hour.

) After setting the time, press the

DISP button; the time display stops

fl ashing.

Manual mode

Automatic mode

In this mode, setting is automatic using

the signal from the RDS radio stations.

The digital clock does not dis-

play seconds.
When the "minutes" display is

set or reset to zero, the clock

starts at the zero second of the

minute selected.
The time setting is lost if the bat-

tery is disconnected.

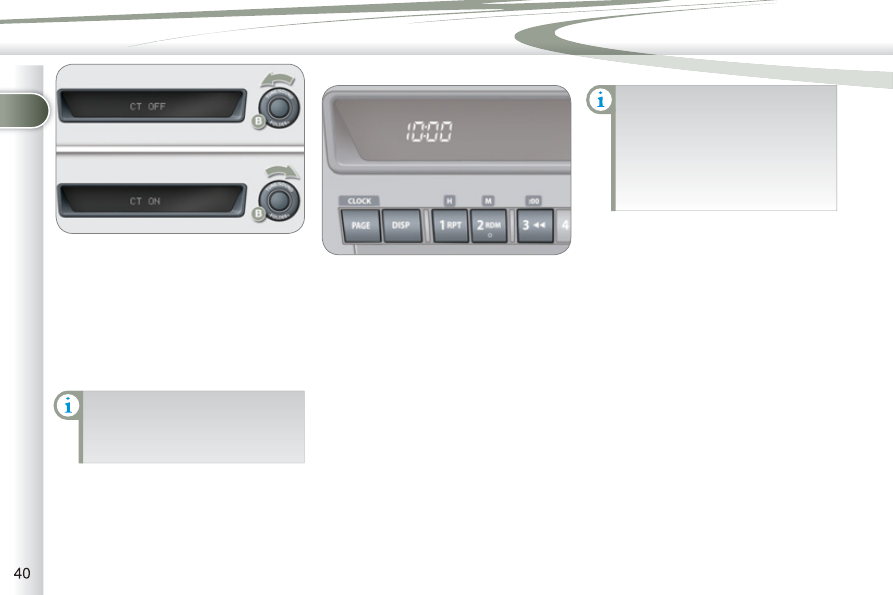

) Turn button

B "TUNE" to the left or

to the right to select "CT ON" (auto-

matic mode) or "CT OFF" (manual

mode).

) After selecting the mode, you can

exit the "Functions setting mode"

menu by pressing button B "TUNE"

for approximately 2 seconds.

If no action is carried out within

10 seconds, the system will exit

the "Functions setting mode"

menu automatically.

INSTRUMENTS and CONTROLS

COLOUR SCREEN

This permits display of the following

main menus:

On the control panel, press button

(SET) to access the "Settings" screen

and select:
-

"Display Off" to switch off the dis-

play,

"Sound control" for the sound dis-

tribution or volume, the type of music

and the sound fi eld (surround),

"Picture control" to set the colour,

the intensity, the brightness, the

contrast and the level of black,

"System" to change the time zone,

the language, the units and other

settings,

"Wide Screen" to change the size

of the DVD picture to 4/3 format,

wide screen mode, centred wide

screen mode or enlargement,

"Equipment" to set certain equip-

ment offered in the vehicle,

"Colour Contrast" to select the

contrast of the display in relation

to the ambient light (Day, Night or

Auto),

"TP standby" to activate or deacti-

vate the traffi c information.

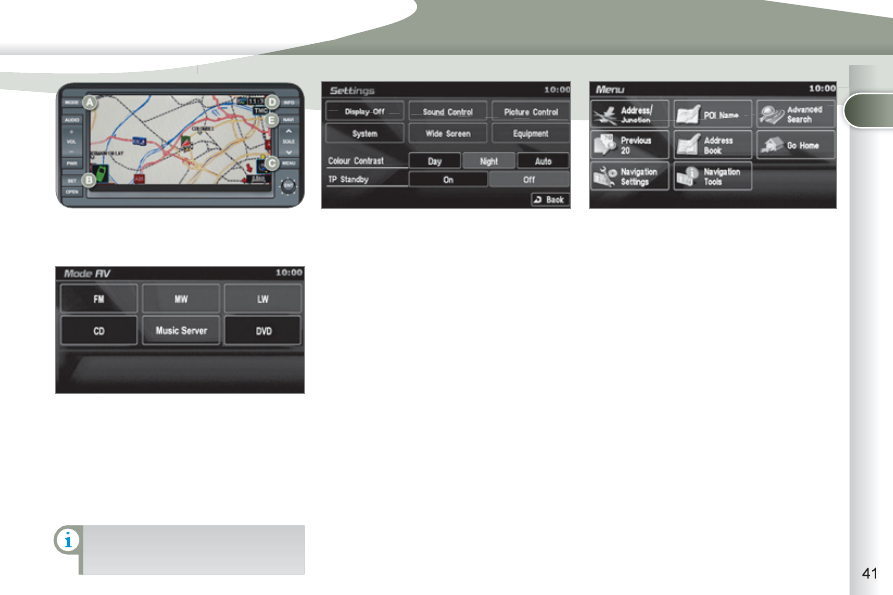

"Audio-video" menu

"Navigation-guidance" menu

On the control panel, press button

(MODE) to access the

"AV mode"

screen and select:
-

radio (FM, MW, LW),

CD (audio, MP3 or WMA),

- Music

Server,

- DVD.

"Settings" menu

On the control panel, press button

(MENU) to access the "Menu" screen

and select:
-

"Address/Junction" to search for

a location using the address or the

name of the street,

"POI name" to search for a location

using the name of a point of interest

(POI),

"Advanced search" to search for a

location using an advanced search

based on a POI,

"Previous 20" to search for a loca-

tion using one of the 20 previous

destinations,

"Address book" to search for a lo-

cation using a stored address,

"Home" to navigate to your home

address,

"Navigation settings" to set func-

tions linked with the navigation,

"Navigation tools" to access the

basic information or a pre-set demon-

stration.

The "CD" and "DVD" buttons

are active if you insert a CD or

DVD in the player.

INSTRUMENTS and CONTROLS

Setting the time

The digital clock is set automatically .
This mode enables the system to set

the local time automatically using the

signal from the RDS stations.
) On the control panel, press button B

(SET) to access the "Settings" menu.

) On the touch screen, press button B

to access the "System" menu.

The system settings screen is dis-

played.

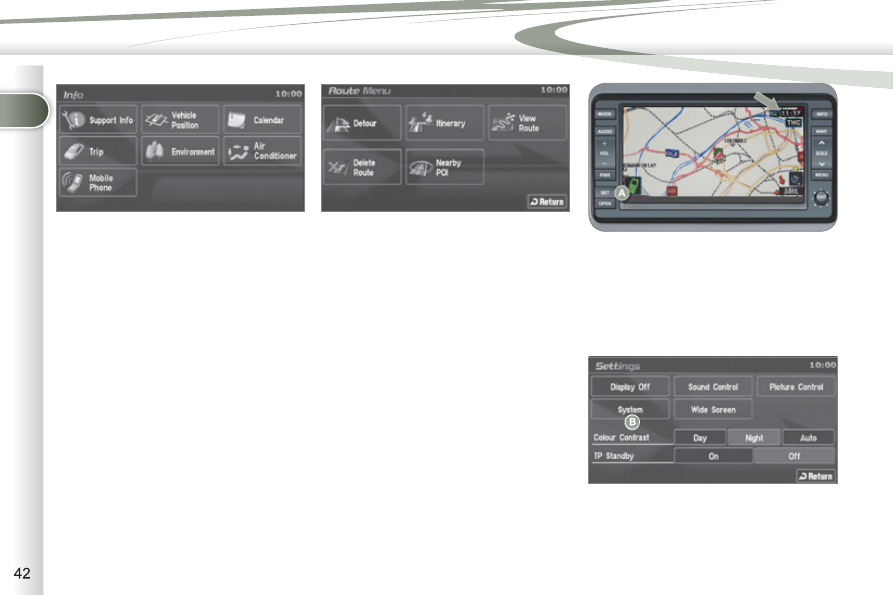

"Info" menu

On the control panel, press button

(INFO) to access the "Info" screen and

consult:
-

"Support info" to display the soft-

ware and data versions,

"Vehicle position" to display the

GPS location of the vehicle,

"Calendar" to make a note of

events, birthdays, etc.,

"Journey" to display the average

speed, fuel consumption, distances

and driving time,

"Environment" to display the alti-

tude, the atmospheric pressure, the

exterior temperature (the ice symbol

is displayed if there is a risk of ice),

"Air conditioning" to display the

information relating to the air condi-

tioning,

"Mobile phone" to enter a number,

delete a character, make or receive

a call.

"Route" menu

On the control panel, press button

(NAVI) to access the

"Route Menu"

screen and select:
-

"Detour" to make a detour through

a specifi ed region,

"Itinerary" to change the route,

"View route" to display a route in

different ways,

"Delete route" to delete a route,

"Nearby POI" to search for the

POIs in the surrounding area.

INSTRUMENTS and CONTROLS

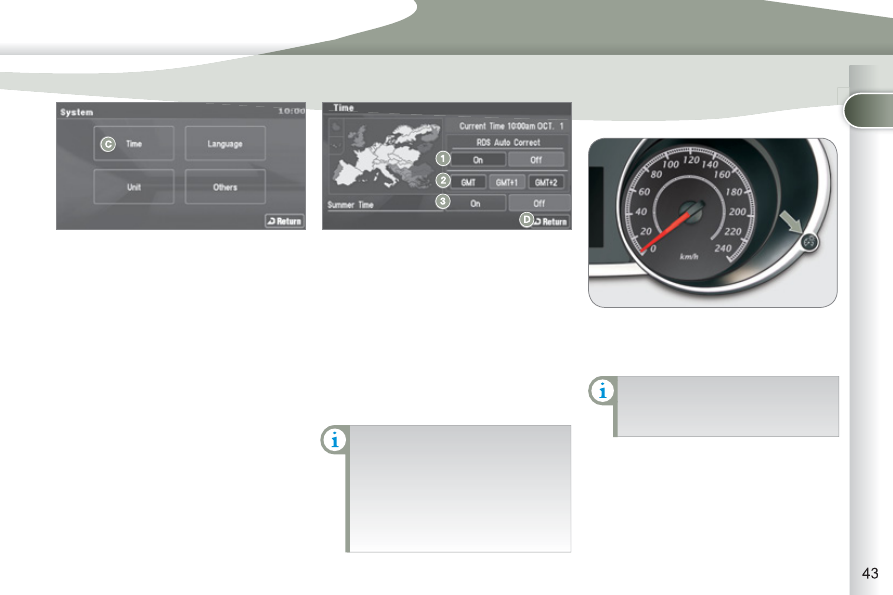

1. RDS Auto Correct:
Activate/deactivate automatic ad-

justment.

2. GMT/GMT+1/GMT+2

Select the time zone.

3. Summer Time:

Summer time On/Off.

) Press button D to confi rm and re-

turn to the previous menu.

) Press button C to access the "Time"

menu .

You must deactivate automatic

adjustment (RDS Auto Correct)

to change the time zone and

summer time settings.
On each screen, you can return

to the previous screen by press-

ing button D "Return" .

Once this menu has been selected, you

can access the following functions:

LIGHTING RHEOSTAT

With the lighting on or off, press the but-

ton to change the intensity of the light-

ing of the instruments and controls in

"day" or "night" mode.

When the lighting reaches the maxi-

mum setting, press again to change to

the minimum setting.
When the lighting reaches the required

intensity, release the button.
The setting is saved when the ignition

switch is turned to OFF.

An audible signal is heard and the

intensity of the lighting increases

each time the button is pressed.

System for manual adjustment of the

brightness of the instruments and con-

trols in relation to the exterior bright-

ness.

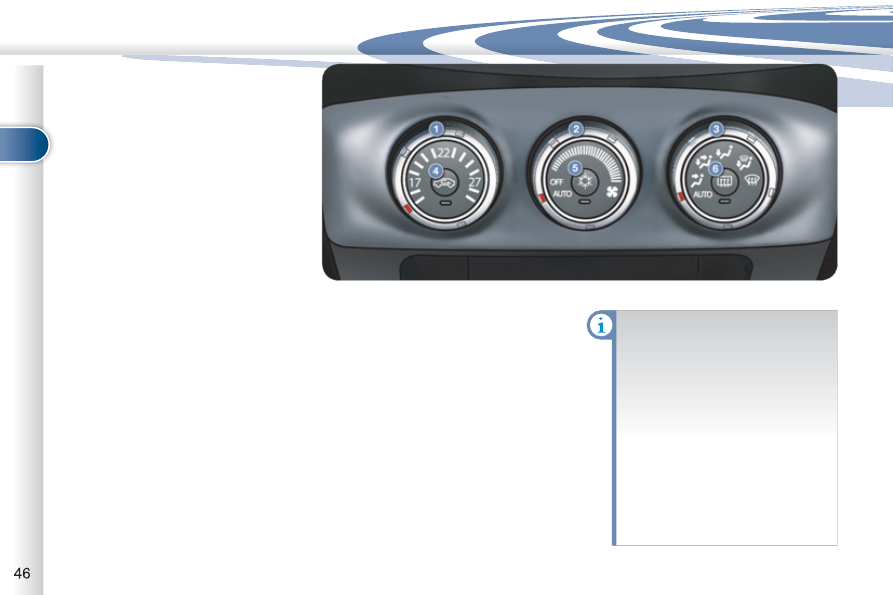

COMFORT

For even air distribution, take care not

to obstruct the exterior air intake grille

located at the bottom of the windscreen,

the vents, the air outlets under the front

seats and the air extractor located be-

hind the fl aps in the boot.

The water formed by the air conditioning

condensation is discharged via an open-

ing provided for this purpose. Therefore,

a puddle of water may form underneath

the vehicle when stationary.
If the system does not produce cold air,

do not use it and have it checked by a

PEUGEOT dealer or a qualifi ed workshop.

AUTOMATIC REGULATION OF

ON OF

THE DIGITAL AIR CONDITIONING

Do not cover the temperature and

humidity sensor

2 and the sunshine

sensor 7 .
They are required for regulation of the

air conditioning.

Advice on operation

In hot weather, in order to obtain

intense ventilation, it is advis-

able to use vents 1 and 4 only.
If, when the vehicle has been

parked in the sun for a long time,

the interior temperature remains

very high, fi rst ventilate the pas-

senger compartment for a few

minutes.

Switch off the air conditioning

when the climatic conditions

permit.

Use of the automatic regulation of the

air conditioning is recommended. It per-

mits automatic and optimised control of

all of the following functions: air fl ow,

passenger compartment temperature

and air distribution, by means of various

sensors (ambient temperature, interior

temperature, sunshine), so preventing

the need for you to change your set-

tings other than the value displayed.

In certain cases of particularly arduous

use (towing the maximum load on a

steep gradient in hot weather), switch-

ing off the air conditioning saves engine

power and therefore improves the tow-

ing capacity.

Close the windows to benefi t from the

full effectiveness of the air conditioning.

Ensure that the passenger compart-

ment fi lter is in good condition. Have

the fi lter elements replaced periodically.

If you drive in a dusty environment, re-

place it twice as often.

The air conditioning system does not

contain chlorine and is not harmful to

the ozone layer.
Operate the air conditioning system for

5 to 10 minutes, once or twice a month,

to keep it in good working order.

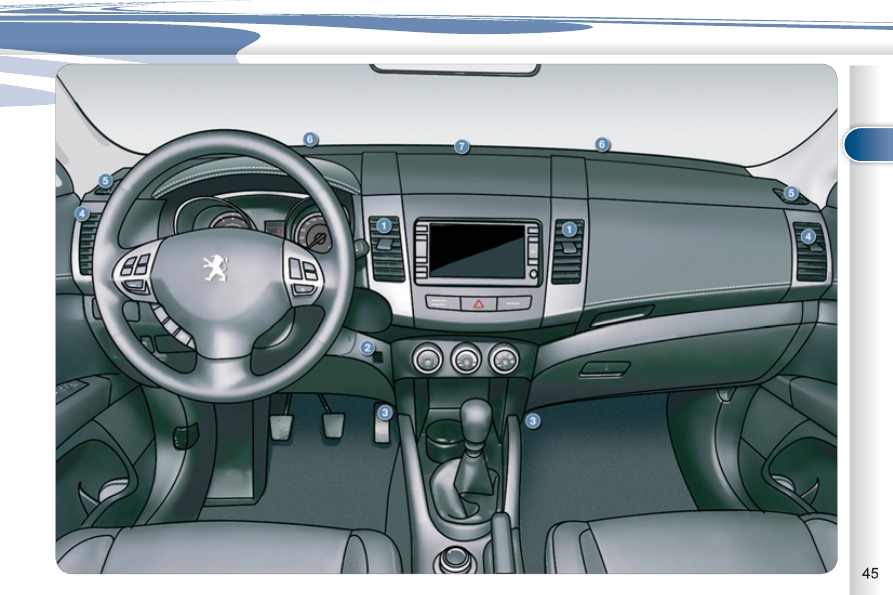

   1.  Central vents.
  2.  Temperature sensor.
  3.   Air outlet to passenger footwells.
  4.  Side vents.
  5.   Front window demisting/defrosting

vents.

6. Windscreen demisting/defrosting vents.
7. Sunshine sensor.

COMFORT

AUTOMATIC AIR
CONDITIONING

Automatic operation

) Set the temperature control dial 1 to

the temperature required.

) Place the air fl ow control dial 2 in

the "AUTO" position.

) Place the air distribution adjustment

dial 3 in the "AUTO" position.

When the engine is cold, to avoid

an excessive distribution of cold

air, the ventilation will reach its

optimum level gradually.
On entering the vehicle, the in-

terior temperature may be much

colder (or warmer) than the

comfort temperature. There is

no need to change the tempera-

ture displayed in order to reach

the comfort required rapidly.
The automatic regulation of the

air conditioning will operate to

correct the temperature difference

as quickly as possible.

    1.  Temperature adjustment
  2.  Air fl ow adjustment
  3.   Air distribution adjustment
  4.   Intake of exterior air/Recirculation of

interior air

5. Air conditioning On/Off
6. Rear screen demist/defrost

In automatic mode:
) when the temperature is set to maxi-

mum (Rapid heating), the intake of

exterior air is activated and the air

conditioning stops.

) when the temperature is set to mini-

mum (Rapid cooling), the air re-

circulation is activated and the air

conditioning operates.

The system controls the air distribu-

tion, the fl ow, the temperature and the

air intake to ensure the level of comfort

selected and adequate air circulation in

the passenger compartment. No further

action on your part is required.

Peugeot 4007 (2012 year). Instruction - part 3
