FAMILIARISATION

MONITORING

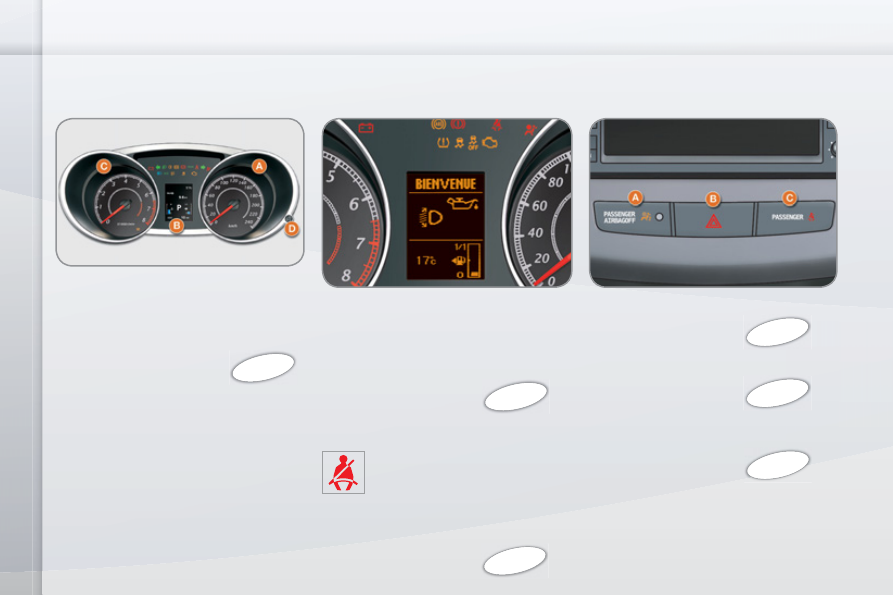

Instrument panel

Switch panel

When the ignition is on, the orange and

red warning lamps come on.
When the engine is running, these

warning lamps should go off.
If warning lamps remain on, refer to the

page concerned.

Warning lamps

A. Passenger's airbag deactivated warning

lamp.

109

B. Hazard warning lamps switch.

102

C. Front passenger's seat belt not fas-

tened or unfastened warning lamp.

106

Detection of driver's seat belt

fastening

When the ignition is switched

on, the seat belt warning lamp

comes on accompanied by an

audible signal if the driver has

not fastened their seat belt.

The warning lamp goes off when the

seat belt is fastened.

   A.  Speedometer.
  B.   Instrument panel screen.
  C.  Rev counter.
  D.   Dashboard lighting dimmer.

FAMILIARISATION

PASSENGER SAFETY

Front passenger's airbag

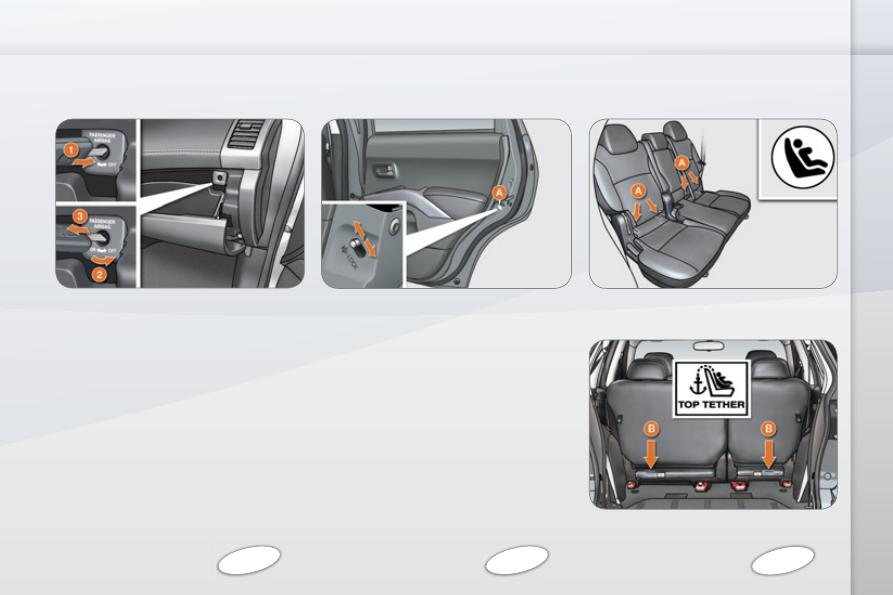

Child lock

   1.   Insert the key.
  2.   Select the "OFF"  position.
  3.   Remove the key.

This prevents opening of the door con-

cerned from the inside.
Lower or raise the control A to lock or

unlock.

109

101

ISOFIX mountings

Two rings A , located between the seat back

and seat cushion of the vehicle's seat are

used to secure an ISOFIX child seat.

A ring B is used to secure the upper

strap referred to as the TOP TETHER .

FAMILIARISATION

Cruise control

This maintains a constant vehicle speed

programmed by the driver.
1. "ON/OFF" button: activation/deacti-

vation of cruise control mode.

2. "COAST SET" button: storing a

driving speed then decreasing the

cruising speed.

3. "ACC RES" button: increasing the

cruising speed and recalling the

stored speed.

4. "CANCEL" button: switching off the

cruise control.

In order to be programmed or activated,

the vehicle speed must be higher than

25 mph (40 km/h) with at least second

gear engaged.

This detects obstacles (person, vehicle,

tree, gate, ...) located behind the vehicle.
The vehicle is fi tted with four sensors:
D. two side sensors.
E. two central sensors.

Audible rear parking sensors

121

123

DRIVING SAFELY

Four wheel drive system

Three transmission modes are avail-

able and can be selected manually by

the driver to suit the circumstances:
A. Two wheel drive (2WD),
B. Four wheel drive

(4WD AUTO),

C. Four wheel drive

(4WD LOCK).

119

Also...
You can change transmission

mode when stationary or when

driving at a speed below 60 mph

(100 km/h).

ECO-DRIVING

Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO

emis-

sions.

Optimise the use of your

gearbox

With a manual gearbox, move off gently,

change up without waiting and drive by

changing up quite soon. If your vehicle

has the system, the gear shift indicator

invites you to change up; it is displayed

in the instrument panel, follow its instruc-

tions.

With an automatic or electronic gear-

box, stay in Drive "D" or Auto "A" , ac-

cording to the type of gearbox, without

pressing the accelerator pedal heavily

or suddenly.

Drive smoothly

Maintain a safe distance between ve-

hicles, use engine braking rather than

the brake pedal, and press the accel-

erator progressively. These practices

contribute towards a reduction in fuel

consumption and CO

emissions and

also helps reduce the background

traffi c noise.

If your vehicle has cruise control, make

use of the system at speeds above

25 mph (40 km/h) when the traffi c is

fl owing well.

Control the use of your

electrical equipment

Before moving off, if the passenger

compartment is too warm, ventilate it

by opening the windows and air vents

before using the air conditioning.
Above 30 mph (50 km/h), close the win-

dows and leave the air vents open.
Remember to make use of equipment

that can help keep the temperature in

the passenger compartment down (sun

roof and window blinds...).
Switch off the air conditioning, unless

it has automatic digital regulation, as

soon as the desired temperature is at-

tained.
Switch off the demisting and defrosting

controls, if not automatic.
Switch off the heated seat as soon as

possible.

Switch off the headlamps and front

foglamps when the level of light does

not require their use.

Avoid running the engine before moving

off, particularly in winter; your vehicle will

warm up much faster while driving.

As a passenger, if you avoid connecting

your multimedia devices (fi lm, music,

video game...), you will contribute to-

wards limiting the consumption of elec-

trical energy, and so of fuel.
Disconnect your portable devices be-

fore leaving the vehicle.

Limit the causes of excess

consumption

Spread loads throughout the vehicle;

place the heaviest items in the bottom

of the boot, as close as possible to the

rear seats.
Limit the loads carried in the vehicle

and reduce wind resistance (roof bars,

roof rack, bicycle carrier, trailer...). Use

a roof box in preference.
Remove roof bars and roof racks after

use.

At the end of winter, remove snow

tyres and refi t your summer tyres.

Observe the recommendations

on maintenance

Check the tyre pressures regularly,

when cold, referring to the label in the

door aperture, driver's side.
Carry out this check in particular:
-

before a long journey,

at each change of season,

after a long period out of use.

Don't forget the spare wheel and the

tyres on any trailer or caravan.

Have your vehicle serviced regular-

ly (engine oil, oil fi lter, air fi lter...) and

observe the schedule of operations

recommended by the manufacturer.

When refuelling, do not continue after

the 3 rd cut-off of the nozzle to avoid

any overfl ow.

At the wheel of your new vehicle,

it is only after the fi rst 1 800 miles

(3 000 kilometres) that you will see

the fuel consumption settle down to a

consistent average.

INSTRUMENTS and CONTROLS

INSTRUMENT PANE

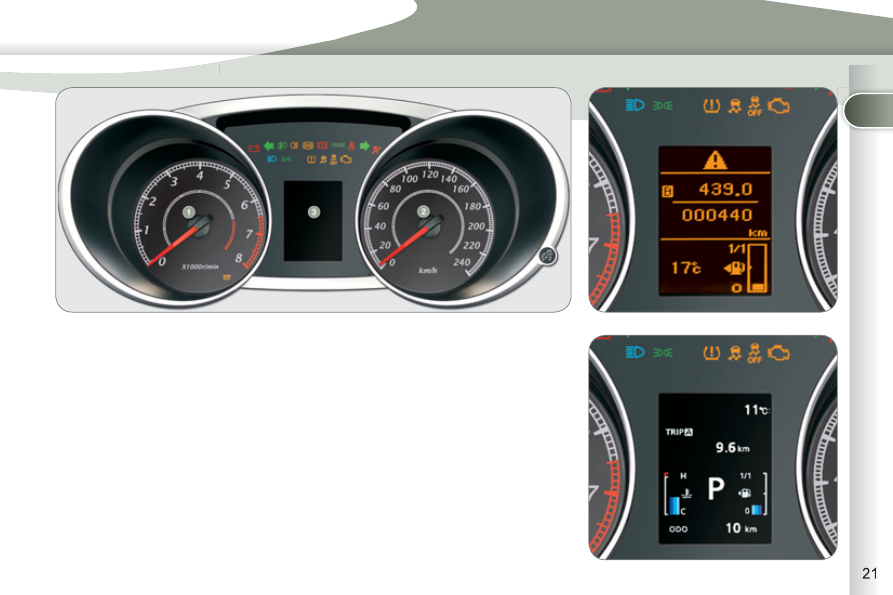

INSTRUMENT PANEL

3. Instrument panel screen:

   -   Warning and status displays.
  -   Total and trip distance recorders.
  -  Service indicator.
  -  Coolant temperature.
  -   Trip computer information.
  -   Cruise control setting.
  -   Dashboard lighting and parameter

settings.

  -  Fuel level.
  -  Ambient temperature.
  -  Transmission mode.

Panel grouping together the dials and

warning/indicator lamps. These inform

the driver of the activation/deactivation

of a system or of the occurrence of a

fault.

Screen type 1

Screen type 2

1. Rev counter.
2. Speedometer.

INSTRUMENTS and CONTROLS

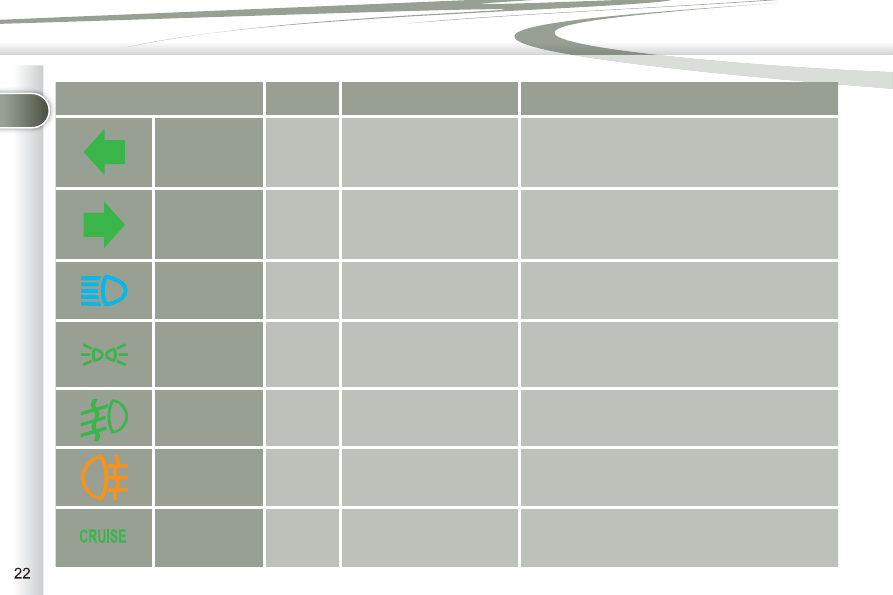

INSTRUMENT PANEL WARNING LAMPS

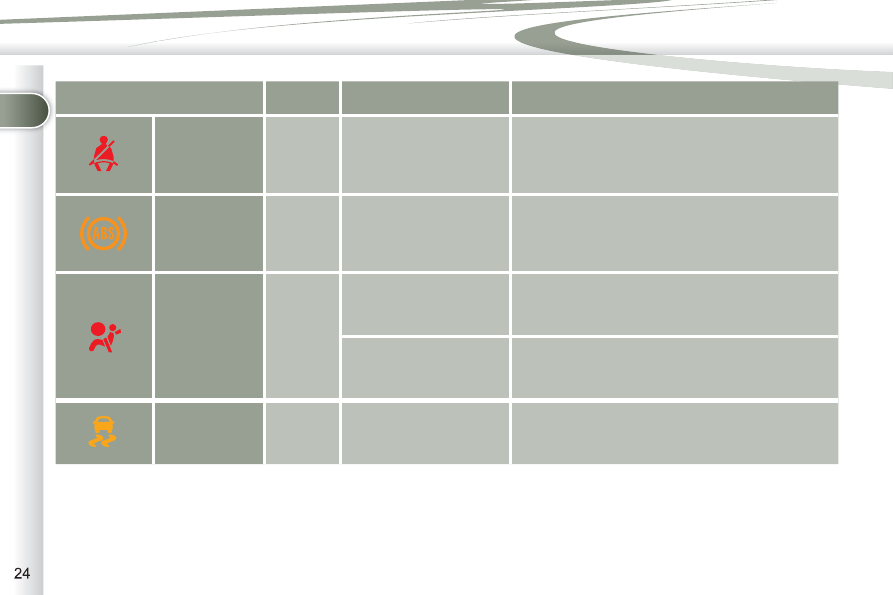

Warning lamp

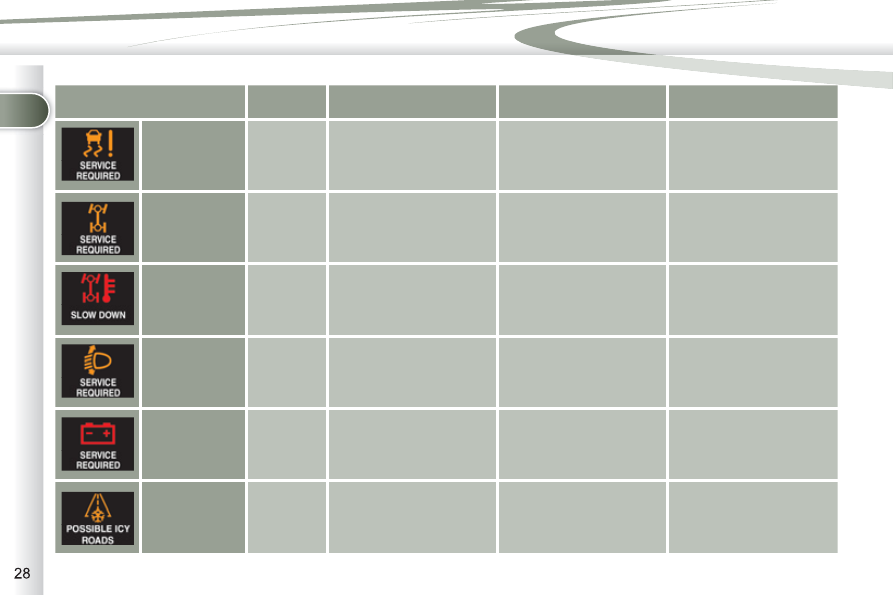

is on

Cause

Actions/ Observations

Left-hand

direction

indicator

Flashing

with

audible

warning

This fl ashes when you

press the lighting stalk

down.

If this indicator lamp fl ashes abnormally quickly,

this could indicate that the bulb of one of the

direction indicators has blown. Change the bulb

or contact a PEUGEOT dealer or a qualifi ed

workshop.

Right-hand

direction

indicator

Flashing

with

audible

warning

This fl ashes when you

push the lighting stalk up.

If this indicator lamp fl ashes abnormally quickly,

this could indicate that the bulb of one of the

direction indicators has blown. Change the bulb

or contact a PEUGEOT dealer or a qualifi ed

workshop.

Main beam

headlamps

Fixed

This comes on when

you pull the lighting stalk

towards you.

Pull the stalk to return to dipped beam

headlamps.

Sidelamps

Fixed

This comes on when the

lighting stalk is in the

"Sidelamps" or "Dipped

beam headlamps"

position.

Turn the stalk to the desired position.

Front foglamps

Fixed

This comes on when you

use the front foglamps.

Turn the ring on the stalk forwards to switch on

the foglamps.

Rear foglamps

Fixed

This comes on when you

use the rear foglamps.

Turn the ring on the stalk forwards to switch on

the foglamps.

Cruise control

Fixed

This comes on when the

mode is active.

Press the "ON/OFF" button to activate/

deactivate the mode.

INSTRUMENTS and CONTROLS

Warning lamp

is on

Cause

Actions/Observations

Diesel

preheating

Fixed

This comes on when the

ignition switch is in the

ON position.

Wait until this goes off before starting.
The duration for which this is on is determined by

the exterior climatic conditions.

Parking brake/

Brake fl uid level

Fixed

This comes on for a

few seconds when the

ignition is turned to "ON"

then goes off.

It is accompanied by a message on the

instrument panel screen.

The parking brake is

applied or has not been

released fully.

It is accompanied by a message on the

instrument panel screen. Release the parking

brake to switch off the warning lamp.

The brake fl uid level is

too low.

It is accompanied by a message on the

instrument panel screen. Top up with brake fl uid

and contact a PEUGEOT dealer or a qualifi ed

workshop.

Emission

control system

Fixed or

fl ashing

This comes on or

fl ashes in the event of a

fault with the system.

Contact a PEUGEOT dealer or a qualifi ed

workshop.
It should go off a few seconds after starting the

engine.

Battery charge

Fixed

This comes on if a

charging circuit fault

occurs.

It should go off when the engine is started.
It is accompanied by a message on the

instrument panel screen. Check the battery

terminals (refer to the "Battery" section).

INSTRUMENTS and CONTROLS

Warning lamp

is on

Cause

Actions/Observations

Driver's

seat belt not

fastened

Fixed

The driver has not

fastened or has

unfastened their seat

belt.

This is accompanied by a message on the

instrument panel screen.
Fasten the driver's seat belt.

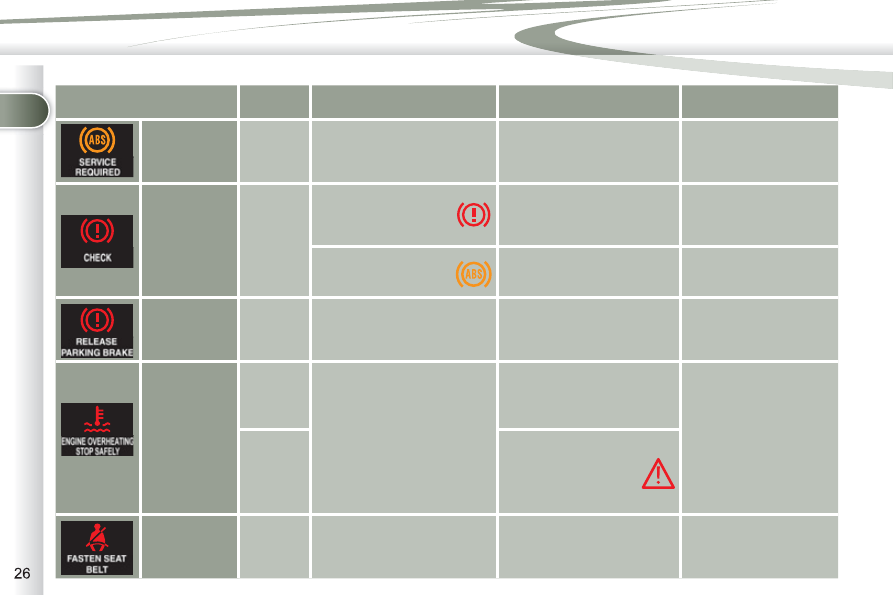

ABS

Fixed

This comes on if an anti-

lock braking system fault

occurs.

It is accompanied by a message in the instrument

panel screen. The vehicle retains conventional

braking without assistance but you are advised to

stop. Have it checked by a PEUGEOT dealer or

a qualifi ed workshop.

Airbags and

pretensioners

Fixed

This comes on for a

few seconds when the

ignition is turned to "ON"

then goes off.

It should go off when the engine is started. If it

does not go off, contact a PEUGEOT dealer or a

qualifi ed workshop.

This comes on if an

airbag or pretensioner

fault occurs.

It is accompanied by a message on the

instrument panel screen. Have the system

checked by a PEUGEOT dealer or a qualifi ed

workshop without delay.

Dynamic

stability control

system (ASC)

Fixed

This comes on if a

dynamic stability control

system fault occurs.

It is accompanied by a message on the

instrument panel screen. Have the system

checked by a PEUGEOT dealer or a qualifi ed

workshop without delay.

INSTRUMENTS and CONTROLS

Each time the engine is started: a series of warning lamps and/or messages come on, applying a checking self test. They go

off after a few seconds. Engine running: the warning lamp or the message becomes a warning if it remains on continuously

or fl ashes. This initial warning may be accompanied by an audible signal and a message on the screen. Do not ignore these

warnings.
The messages displayed may differ between the type 1 instrument panel and the type 2 instrument panel.
When the cause of the appearance of the warning lamp or warning message has been rectifi ed, the warning disappears

from the screen automatically. If the cause of the warning is not rectifi ed, you can return to the previous screen at any time

by pressing the INFO  button on the dashboard.
The symbol "!"  is displayed.
To return to the previous screen (with the "!"  symbol), you must press the INFO  button several times.

INSTRUMENT PANE

INSTRUMENT PANEL DISPLAYS

Warning messages (ignition at "OFF")

You can close the warning messages which show these symbols in order to move on to the next screen.
To do this, press the INFO button according to the symbol displayed.

Press briefl y .

Press and hold .

Symbols which appear in the top right corner of the screen.

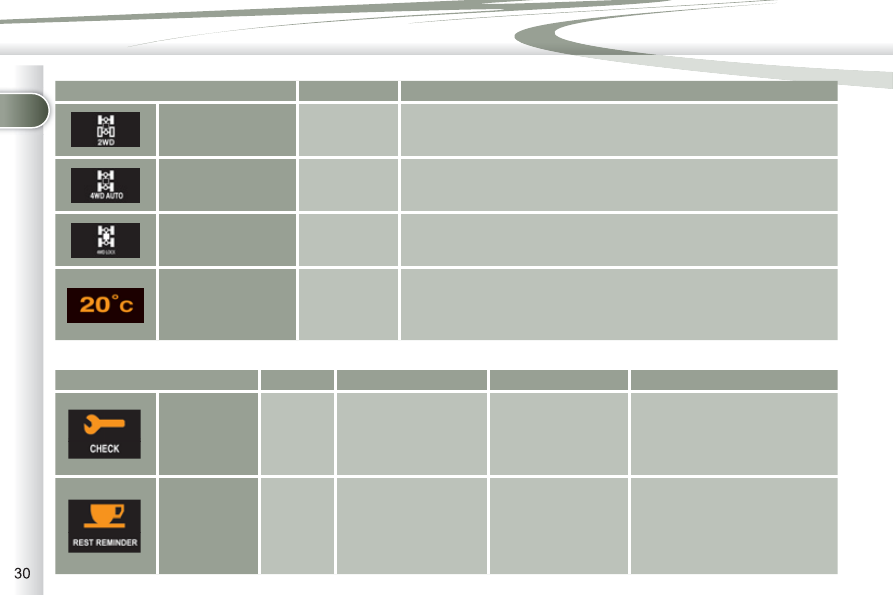

Message

is on

Cause

Solution - action

Observations

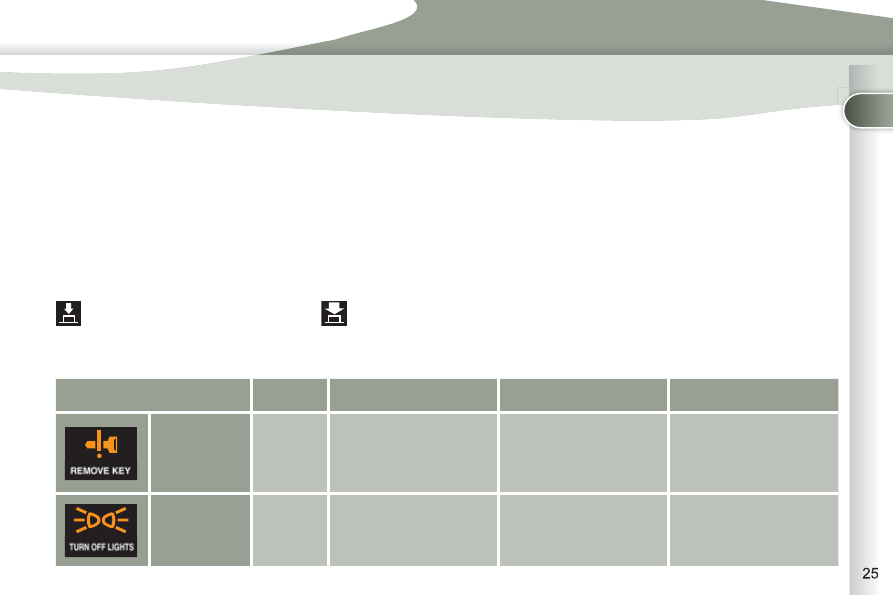

Key in

ignition

Fixed

The driver's door is open

and you have forgotten

to remove the key from

the ignition.

Turn the ignition switch

to the LOCK position

and remove the key.

Only if the engine has

been started.
An intermittent audible

signal is heard.

Lighting left

Fixed

You have forgotten to

switch off the vehicle

lighting.

Switch off the vehicle

lighting by placing the

stalk at OFF.

An intermittent audible

signal is heard.

INSTRUMENTS and CONTROLS

Warning messages (ignition at "ON")

Message

is on

Cause

Solution - action

Observations

ABS

Fixed

Anti-lock braking system

(ABS) fault.

Contact a PEUGEOT

dealer or a qualifi ed

workshop.

The vehicle retains

conventional braking

without assistance but

you are advised to stop.

Braking

system

Fixed

Associated warning

lamp.
The level of brake

fl uid in the reservoir

is too low.

Stop and top up, otherwise

contact a PEUGEOT

dealer or a qualifi ed

workshop.

If the message remains

on after topping up,

contact a PEUGEOT

dealer or a qualifi ed

workshop.

Associated warning

lamp.
Braking system fault.

Contact a PEUGEOT

dealer or a qualifi ed

workshop.

You must stop as

soon as it is safe to

do so.

Parking brake

Fixed

You have moved off with

the parking brake still

applied.

Release the parking brake.

Coolant

temperature

Flashing

High engine

temperature.

If the message fl ashes ,

wait for the engine to cool

before topping up the level,

if necessary.

You must stop your

vehicle as soon as it

is safe to do so.

Flashing

If the message fl ashes

and the service warning

light comes on , contact

a PEUGEOT dealer or

a qualifi ed workshop

without delay.

Seat belt

Fixed

The driver has not fastened

or has unfastened his seat

belt.

Fasten your seat belt.

There is an intermittent

audible signal above

5 mph (8 km/h).

INSTRUMENTS and CONTROLS

Message

is on

Cause

Solution - action

Observations

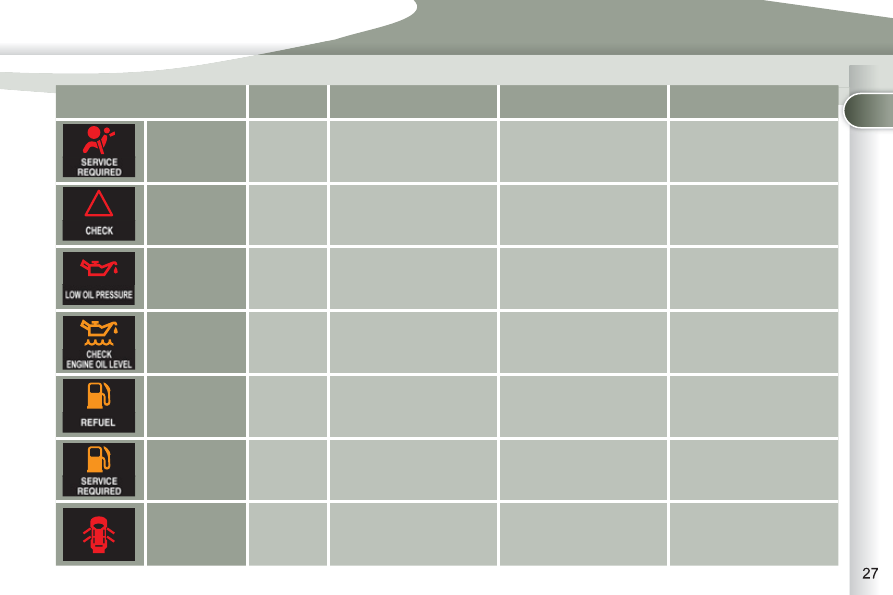

Airbags

Fixed

Fault in the airbags or

pretensioners.

Contact a PEUGEOT

dealer or a qualifi ed

workshop.

Service

Fixed

Problem in one of the

systems which does

not have a specifi c

message.

Stop the vehicle and

contact a PEUGEOT

dealer or a qualifi ed

workshop.

To identify the problem,

contact a PEUGEOT

dealer or a qualifi ed

workshop.

Engine oil

pressure

Fixed

Engine oil pressure too

low or fault in the engine

lubrication system.

Stop the vehicle and

contact a PEUGEOT

dealer or a qualifi ed

workshop.

Engine oil

level

Fixed

Engine oil level too low.

Stop the vehicle and

check the level using the

dipstick.

If there is a lack of oil,

top up the level.

Low fuel

warning

Fixed

The fuel level is low.

Refuel as soon as

possible.

Fuel system

Fixed

Fuel system fault.

Contact a PEUGEOT

dealer or a qualifi ed

workshop.

Opening

not closed

correctly

Fixed

One of the doors or the

tailgate is not closed

correctly.

Close the door or the

tailgate.

The opening concerned

is indicated on the

screen.

INSTRUMENTS and CONTROLS

Message

is on

Cause

Solution - action

Observations

Dynamic

stability

control system

(ASC)

Fixed

Dynamic stability control

system (ASC) fault.

Contact a PEUGEOT

dealer or a qualifi ed

workshop.

Four wheel

drive system

Fixed

Four wheel drive

transmission system

fault.

Contact a PEUGEOT

dealer or a qualifi ed

workshop.

Four wheel

drive system

temperature

Fixed

The temperature of

the four wheel drive

transmission system is

too high.

Stop the vehicle and

contact a PEUGEOT

dealer or a qualifi ed

workshop.

The vehicle switches to

front wheel drive (2 WD)

mode automatically.

Automatic

headlamp

adjustment

system

Fixed

The automatic headlamp

adjustment is faulty.

Contact a PEUGEOT

dealer or a qualifi ed

workshop.

Only on vehicle fi tted

with xenon bulbs.

Battery charge

Fixed

Battery charge fault.

Stop the vehicle and

contact a PEUGEOT

dealer or a qualifi ed

workshop.

Ambient

temperature

Fixed

The ambient

temperature is 3 °C

(37 °F) or below.

Road icy.
Take care and drive

slowly.

Caution: The road may

be icy even when this

screen is not displayed.

INSTRUMENTS and CONTROLS

Message

is on

Cause

Solution - action

Observations

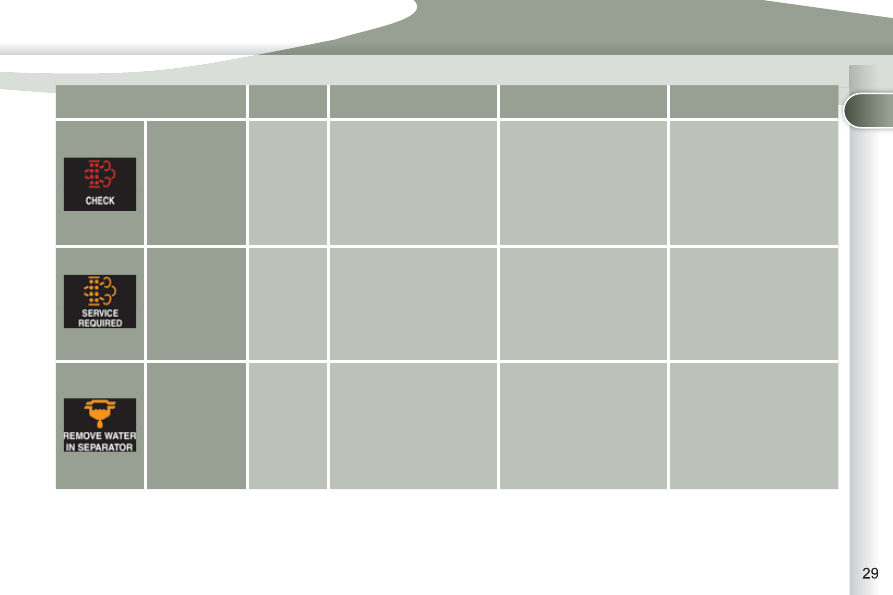

Saturation of

the particle

emission fi lter

Fixed

Start of saturation of the

particle emission fi lter.

As soon as traffi c

conditions permit,

regenerate the fi lter by

driving at a speed of at

least 35 mph (60 km/h)

until the message is

cleared.

If the message is still

displayed, contact a

PEUGEOT dealer or a

qualifi ed workshop.

Diesel

additive level

Fixed

Low Diesel additive

level.

Have the level topped

up by a PEUGEOT

dealer or a qualifi ed

workshop without delay.

Water in the

Diesel fi lter

(according to

country)

Fixed

The presence of water

in the Diesel fi lter is

indicated.
Risk of damage to the

injection system on

Diesel engines.

Contact a PEUGEOT

dealer or a qualifi ed

workshop without delay.

INSTRUMENTS and CONTROLS

Prevention messages

Information messages (ignition at "ON")

Message

is on

Status of the system

2WD two wheel

drive system

Flashing

When the "2WD" (2 wheel drive) mode is selected using

the transmission mode selector.

4WD four wheel

drive system

Flashing

When the "4WD" (4 wheel drive) mode is selected using

the transmission mode selector.
This mode is the default mode.

4WD LOCK four

wheel drive system

Flashing

When the "LOCK" (4 wheel drive) mode is selected using

the transmission mode selector.

Ambient

temperature

Fixed

This indicates the ambient temperature.
When the vehicle is stationary or if the speed is below 12 mph

(20 km/h) the temperature displayed may not be the true

temperature.

Display

is on

Cause

Solution - action

Observations

Service

indicator

Fixed

Informs the driver of

the time remaining

before the vehicle's

scheduled service.

Contact a

PEUGEOT dealer

or a qualifi ed

workshop.

This is displayed for a few

seconds when the ignition is

switched on.

Break

advised

Fixed

Informs the driver that

they should stop to

take a break.

You are advised to

take a break.

This is displayed when the

driving time that you set

previously is reached.
An audible signal is heard

3 times and is then heard

every 5 minutes until the

vehicle stops.

Peugeot 4007 (2012 year). Instruction - part 2
