Peugeot 3008 Hybrid 4 (2017 year). Instruction - part 36

Technical data

Diesel engines and towed loads

Engines

1.6 litre BlueHDi

100 S&S

1.6 litre BlueHDi

115 S&S

1.6 litre BlueHDi

115 S&S

1.6 litre BlueHDi

120 S&S

1.6 litre BlueHDi

120 S&S

Gearboxes

BVM

(Manual 5-speed)

BVM6

(Manual 6-speed)

EAT6

(Auto. 6-speed)

BVM6

(Manual 6-speed)

EAT6

(Auto. 6-speed)

Codes

DV6FD BE4 STT

DV6FC ML6C

STT

DV6FC AT6III

STT

DV6FC ML6C

STT

DV6FC AT6III

STT

Model codes
MC...

BHYB/C2B
BHYB/C2F

BHXH/C2B
BHXH/C2F

BHXW/C2B
BHXW/C2F

BHZH/C2B
BHZH/C2F

BHZH/C2K

BHZW/C2B
BHZW/C2F

Cylinder capacity (cm³)

1,560

Max power: EU standard (kW)

Fuel

Diesel

Braked trailer (within the GTW limit) (kg)
on a 10% or 12% gradient

1,300

1,500

1,300

1,500 - 1,400

1,300

Unbraked trailer (kg)

680

685

695

685

695

Recommended nose weight (kg)

Technical data

Diesel engines and towed loads

Engines

2.0 litre BlueHDi 150

S&S

2.0 litre BlueHDi 180

S&S

Gearboxes

BVM6

(Manual 6-speed)

EAT6

(Auto. 6-speed)

BVM6

(Manual 6-speed)

EAT6

(Auto. 6-speed)

Codes

DW10FD ML6C

DW10FD AM6III

DW10FD ML6C STT

DW10FC AM6III STT

Model codes
MR... M9...

AHXG/C2A

AHXV/C2A

AHRH/C2B
AHRH/C2F
AHSH/C2B

AHSH/C2F
AHXH/C2B
AHXH/C2F

AHWW/C2B
AHWW/C2F

Cylinder capacity (cm³)

1 997

Max power: EU standard (kW)

110

133

Fuel

Diesel

Braked trailer (within the GTW limit) (kg)
on a 10% or 12% gradient

600

2,000

1,700

Unbraked trailer (kg)

600

745

750

Recommended nose weight (kg)

Technical data

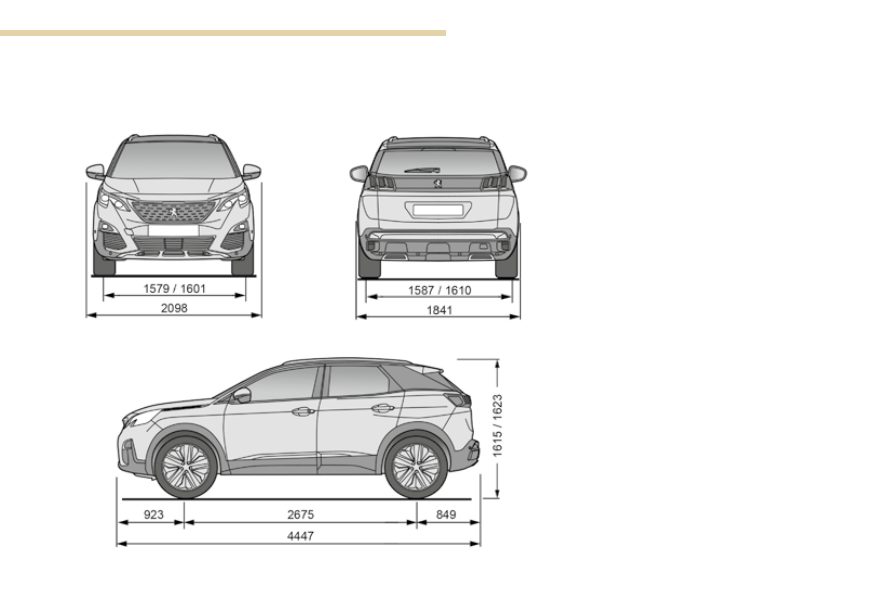

Dimensions (in mm)

These dimensions have been measured on an unladen vehicle.

Technical data

Identification markings

Different visible markings for the identification of your vehicle.

A. Vehicle identification number (VIN),

under the bonnet.

The number is engraved on the body structure.

B. Vehicle identification number (VIN), on

the dashboard.

The number is recorded on a label, visible
through the windscreen.

C. Manufacturer's label.

This self-destructing label is affixed near to the
right-hand door.
It bears the following information:
- the name of the manufacturer,
- the European Whole Vehicle Type Approval

number,

- the spare tyre pressure.
It also indicates the paint colour code.

The vehicle may be originally equipped
with tyres with higher load and speed
indices than those indicated on the label,
without affecting inflation pressure.

Checking tyre pressures

The tyre pressures should be checked when
cold at least monthly.
The pressures given on the label are valid for
cold tyres. If you have driven for more than
10 minutes or more than 6 miles (10 kilometres)
at more than 30 mph (50 km/h), the tyres will be
warm. In this case 0.3 bar (30 kPa) should be
added to the pressures given on the label.

Never reduce the pressure of a warm
tyre.

Low tyre pressures increase fuel
consumption.

- the vehicle identification number (VIN),
- the maximum authorised vehicle weight

(the Gross Vehicle Weight or GVW),

- the maximum authorised train weight

(GTW),

- the maximum weight on the front axle,
- the maximum weight on the rear axle.

D. Tyres / paint code label.

This label is affixed near to the driver's door.
It bears the following information about the tyres:
- the tyre pressures, unladen and laden,
- the tyre specification, made up of the

dimensions and type as well as the load
and speed indices,

Even partial copies and translations of this
document are forbidden without the written
consent of PEUGEOT cars.

PEUGEOT Cars certifies, by application of the
provisions of European regulation (Directive
2000/53) relating to end-of-life vehicles, that it
has satisfied the targets set by the EU and that
recycled materials are used in manufacturing the
products it markets.

07-16

Printed in the EU.
