Peugeot 2008 (2016 year). Instruction - part 5

Comfort

2008_en_Chap03_confort_ed01-2016

In order for these systems to be fully effective, follow the operation and maintenance
guidelines below:
F To obtain an even air distribution, take care not to obstruct the exterior air intake grilles

located at the base of the windscreen, the nozzles, the vents and the air outlets, as well
as the air extractor located in the boot.

F Do not cover the sunshine sensor, located on the dashboard; this is used for regulation

of the air conditioning system.

F Operate the air conditioning system for at least 5 to 10 minutes, once or twice a month

to keep it in perfect working order.

F Ensure that the passenger compartment filter is in good condition and have the filter

elements replaced regularly.

We recommend the use of a combined passenger compartment filter. Thanks to its
special active additive, it contributes to the purification of the air breathed by the
occupants and the cleanliness of the passenger compartment (reduction of allergic
symptoms, bad odours and greasy deposits).

F To ensure correct operation of the air conditioning system, you are also advised to have

it checked regularly as recommended in the warranty and maintenance record.

F If the system does not produce cold air, switch it off and contact a PEUGEOT dealer or

a qualified workshop.

When towing the maximum load on a steep gradient in high temperatures, switching off the
air conditioning increases the available engine power and so improves the towing ability.

Recommendations for ventilation and air conditioning

If after an extended stop in sunshine,
the interior temperature is very high, first
ventilate the passenger compartment for
a few moments.
Put the air flow control at a setting high
enough to quickly change the air in the
passenger compartment.
The air conditioning system does not
contain chlorine and does not present
any danger to the ozone layer.

The condensation created by the air
conditioning results in a discharge
of water under the vehicle which is
perfectly normal.

Stop & Start

The heating and air conditioning systems only work when the engine is running.
To maintain a comfortable temperature in the passenger compartment, you can temporarily
deactivate the Stop & Start system.
For more information on Stop & Start, refer to the corresponding section.

Comfort

2008_en_Chap03_confort_ed01-2016

Suggested interior settings

I require...

Heating or Manual air conditioning

Air distribution

Air flow

Recirculation of interior air /

Intake of exterior air

Temperature

Manual AC

HOT

COLD

DEMISTING

DEFROSTING

Digital air conditioning: use the automatic mode in preference by pressing the "AUTO" button.

Comfort

2008_en_Chap03_confort_ed01-2016

If you place the air flow control at
position 0 (off), the temperature in the
vehicle will no longer be maintained.
However, a slight flow of air can still be
felt due to the movement of the vehicle.

Manual air conditioning

1.  Temperature adjustment.
2.  Air flow adjustment.
3.  Air distribution adjustment.
4.  Air intake/ air recirculation.
5.  Air conditioning On / Off.

Temperature

F Turn the knob from blue

(cold) to red (hot) to adjust the
temperature to your wishes.

Air flow

F Turn the knob from position 1 to

position 6, to obtain the desired
air flow.

Manual mode

Heating / Ventilation

Comfort

2008_en_Chap03_confort_ed01-2016

Air conditioning On / Off

It enables you to:
-

lower the temperature, in summer,

increase the effectiveness of the demisting
in winter, above 3 °C.

Switching on

F Press the "A/C" button, the button's

indicator lamp comes on.

Switching off

F Press the "A/C" button again, the button's

indicator lamp goes off.

Switching off may affect comfort levels
(humidity, condensation).

The air conditioning is designed to
operate effectively in all seasons,
with the windows closed.

The air conditioning does not operate
when the air flow adjustment control is
in position "0".

To obtain cooled air more quickly, you can use
recirculation of interior air for a few moments.
Then return to fresh air intake.

Air distribution

Windscreen and side windows.

Windscreen, side windows and
footwells.

Footwells.

Centre and side air vents.

The air distribution can be
modulated by placing the knob at an
intermediate position.

F Press the button to recirculate

the interior air: the indicator lamp
is on.

Air intake / Air recirculation

Recirculation of the air in the vehicle isolates
the passenger compartment from exterior
odours and fumes.
Return to the intake of exterior air as soon as
possible to avoid the risk of deterioration of air
quality and misting.

F Press the button again to allow the intake

of exterior air: the indicator lamp is off.

Comfort

2008_en_Chap03_confort_ed01-2016

Dual-zone digital air conditioning

AUTO mode

Automatic programme

When the engine is cold, the air flow will
only reach its optimum level gradually
to prevent too great a distribution of
cold air.
In cold weather, it favours the
distribution of warm air to the
windscreen, the side windows and the
footwells only.

Offers the best compromise between
a comfortable temperature and quiet
operation.

Provides soft and quiet operation by
limiting air flow.

Provides strong and effective air flow.

F Press the "AUTO" button

repeatedly. The indicator lamp
comes on at the first press; the
mode activated appears in the
digital air conditioning screen:

1.  Automatic comfort programme.
2.  Temperature adjustment on driver's side.
3.  Temperature adjustment on passenger's

side.

4.  Automatic visibility programme.
5.  Air conditioning On/Off.
6.  Air distribution adjustment.
7.  Air flow adjustment.
8.  Air intake/ Air recirculation.

Three modes allow the driver and front
passenger to adjust the system to suit their
individual requirements.

Switching off

F Press the "empty fan" air flow

button until the fan symbol
disappears.

Switching on

Comfort

2008_en_Chap03_confort_ed01-2016

A setting around 21 enables you to obtain an
optimum level of comfort. Depending on your
requirements, a setting between 18 and 24 is usual.
In addition, it is recommended that you avoid a left/
right setting difference of more than 3.

On entering the vehicle, if the interior
temperature is much colder or warmer
than the comfort value, there is no need
to alter the value displayed in order to
obtain the required level of comfort.
The system corrects the temperature
difference automatically and as quickly
as possible.

Auto - Visibility programme

Switching off may cause some
problems (humidity, misting).

F Press the "visibility" button for

faster demisting or defrosting
of the windscreen and side
windows.

F Press the "A/C" button, the

associated indicator lamp comes
on.

The air conditioning cannot operate when the
air flow is set to off.

F Press the "AUTO" button again

to return to the automatic comfort
programme.

Temperature

F Push the button down (blue) to

reduce the value or up (red) to
increase it.

Adjustment

The driver and front passenger can each set
the temperature to suit their requirements.
The value indicated in the screen corresponds
to a level of comfort and not to a temperature in
degrees Celsius or Fahrenheit.

Switching on

The system automatically manages the air
conditioning, and the air intake, flow and
distribution to the windscreen and side
windows to the best effect.

Switching off

F Press the "visibility" button

again or the "AUTO" button, the
indicator lamp in the button goes
off and the indicator lamp in the
"AUTO" button comes on.

The system reverts to the previous settings
used.

For maximum cooling or heating of
the passenger compartment, you can
exceed the minimum value of 14 or
the maximum value of 28.
F Push the button down until "LO"

is displayed or up until "HI" is
displayed.

Air conditioning

The air conditioning is designed to operate
efficiently in all seasons, with the windows
closed.
It allows you:
-

in summer, to lower the temperature,

in winter, above 3 °C, to improve demisting.

Switching on

Switching off

F Press the "A/C" button again; the

associated indicator lamp goes
off.

Comfort

2008_en_Chap03_confort_ed01-2016

F Press this button several times in

succession to direct the air flow
in turn towards:
- the windscreen, the side

windows and the footwells,

- the windscreen and side

windows (demisting or
defrosting),

- the central and side vents,
- the central vents, the side

vents and the footwells,

- the footwells.

F Press this button to recirculate

the interior air. The indicator
lamp in the button comes on and
the air recirculation symbol is
displayed.

When you modify a setting, the indicator lamp
in the "AUTO" button goes off.

F Press this "full fan" button to

increase the air flow.

F Press this "empty fan" button to

reduce the air flow.

Avoid prolonged operation in interior air
recirculation mode (risk of misting and
of deterioration of the air quality).

Avoid driving for too long with the
system switched off (risk of misting and
of deterioration of the air quality).

Air distribution

Air flow

The air flow symbol (a fan) appears in the
screen. It is filled in progressively in relation to
the value required.

Air intake/Air recirculation

Air recirculation prevents exterior odours
and fumes from entering the passenger
compartment. It is activated automatically when
operating the screenwash.

Manual mode

Switching the system off

Switching on

Switching off

F As soon as possible, press this button

again to permit the intake of exterior air and
prevent misting. The indicator lamp in the
button goes off.

Depending on your requirements, you can
make a different selection from that offered by
the system by changing a setting. The other
functions will still be controlled automatically.

F Press the "empty fan" air flow

button until the fan symbol
disappears and "---" appears.

This action switches off all of the functions of the
air conditioning system.
The temperature is no longer maintained at a
comfortable level. However, a slight flow of air, due
to the movement of the vehicle, can still be felt.

Pressing the "full fan" button
reactivates the system with the
settings prior to deactivation.

Comfort

2008_en_Chap03_confort_ed01-2016

F Switch off the demisting/defrosting

of the rear screen and door mirrors
as soon as appropriate, as lower
current consumption results in
reduced fuel consumption.

Front demist - defrost

Rear screen
demist -
defrost

The control button is located on the
air conditioning system control panel.

These markings on the control panel indicate the control positions for rapid demisting or
defrosting of the windscreen and side windows.

Manual air conditioning

Switching on

The rear screen demisting/defrosting can only
operate when the engine is running.
F Press this button to demist/defrost the

rear screen and (depending on version)
the door mirrors. The indicator lamp
associated with the button comes on.

With Stop & Start, when demisting has
been activated, the STOP mode is not
available.

Switching off

The demisting/defrosting switches off automatically
to prevent an excessive consumption of current.
F It is possible to stop the demisting/defrosting

operation before it is switched off automatically
by pressing the button again. The indicator
lamp associated with the button goes off.

Dual-zone digital air
conditioning

Auto - Visibility programme

F Press the "visibility" button to

demist or defrost the windscreen
and side windows as quickly as
possible.

Switching on

F Put the air flow, temperature and

distribution controls to the dedicated
marked position.

F Press the "A/C" button for air

conditioning; the indicator lamp in
the button comes on.

F Press the "A/C" button again;

the indicator lamp in the button
goes off.

Switching off

Switching on

The system automatically manages the air
conditioning, air flow and air intake, and
provides optimum distribution towards the
windscreen and side windows.

Switching off

F Press the "visibility" button

again or on "AUTO"; the indicator
lamp in the button goes off and
the indicator lamp in the "AUTO"
button comes on.

The system reverts to the previous settings.

Fittings

2008_en_Chap04_amenagements_ed01-2016

Interior fittings

1. Glove box

(see details on the following page)

2. Open storage compartment (depending

on version)

3. 12 V accessory socket (120 W)

Observe the maximum power rating to
avoid damaging your accessory.

(see details on following pages)

4. USB port / Auxiliary socket

(see details on following pages)

5.  Open storage compartments
6.  Cup holder
7.  Closed storage compartment or armrest

(depending on version)

(see details on following pages)

8. Door pockets

Fittings

2008_en_Chap04_amenagements_ed01-2016

12 V socket

F To connect a 12 V accessory (maximum

power: 120 Watts), lift the cover and
connect a suitable adaptor.

Glove box

It has dedicated locations for storing a water
bottle, the vehicle's handbook pack...
Its lid has locations for a pair of glasses...
F To open the glove box, raise the handle.

It houses the front passenger airbag
deactivation switch A.

If the vehicle is fitted with air conditioning, it
provides access to the ventilation nozzle B,
distributing the same conditioned air as the
vents in the passenger compartment.

Do not exceed the maximum power
rating of the socket (otherwise there is a
risk of damaging your portable device).

Front armrest

(depending on version)
The armrest can be inclined forward for your
comfort or folded fully back.

The connection of an electrical device
not approved by PEUGEOT, such as a
USB charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor telephone
reception or interference with displays
in the screens.

Fittings

2008_en_Chap04_amenagements_ed01-2016

USB port / Jack auxiliary socket

When the USB port is used, the portable device
charges automatically.
While charging, a message is displayed if the
current drawn by the portable device exceeds
the power rating of the vehicle's port.

For more information on the use of this
system, refer to the "Audio equipment
and telematics" section.

This connection box, consisting of an USB port
and a JACK auxiliary socket is located on the
centre console.
It allows the connection of portable device,
such as a digital audio player of the iPod

type

or a USB memory stick.
It reads the audio files which are transmitted to
your audio system and played via the vehicle's
speakers.
You can manage these files using the steering
mounted controls or the audio system control
panel and display them in the instrument panel
screen.

Fittings

2008_en_Chap04_amenagements_ed01-2016

To remove the mat on the driver's side:
F  move the seat as far back as possible,
F  unclip the fixings,
F  remove the mat.

Removal

Refitting

To avoid any risk of jamming of the
pedals:
-

only use mats which are suited to
the fixings already present in the
vehicle; these fixings must be used,

never fit one mat on top of another.

The use of mats not approved by
PEUGEOT may interfere with access to
the pedals and hinder the operation of
the cruise control / speed limiter.

To refit the mat on the driver's side:
F  position the mat correctly,
F  refit the fixings by pressing,
F  check that the mat is secured correctly.

Mats

Removable carpet protection.

Fittings

2008_en_Chap04_amenagements_ed01-2016

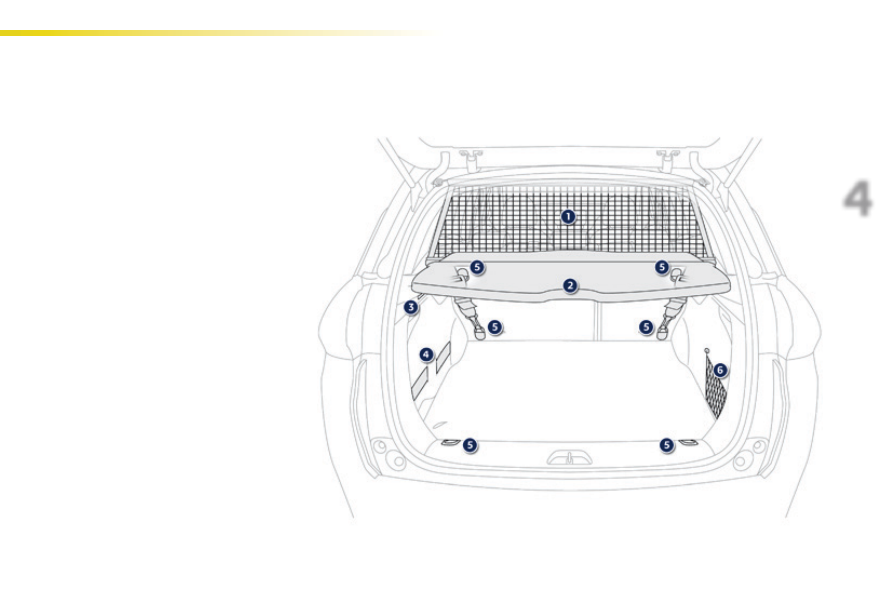

Boot fittings

1. High load retaining net (depending on

version)

(see following page for details)

2. Luggage cover

(see following page for details)

3.  Boot lamp
4.  Retaining strap
5.  Stowing rings (depending on version)
6.  Retaining net

Fittings

2008_en_Chap04_amenagements_ed01-2016

High load retaining net

Hooked onto the upper fixings and onto the
lower rings or the lugs, this permits use of the
entire loading volume up to the roof:
-

behind the rear seats (row 2),

behind the front seats (row 1) when the rear
seats are folded.

When positioning the net, check that
the strap loops are visible from the
boot; this will make slackening or
tightening easier.

Never use the ISOFIX ring intended for
fixing the upper strap of child seat to the
Top Tether.

To use it in row 1:
F  open the covers of the upper fixings 1,
F  unroll the high load retaining net,
F  position one of the ends of the net's metal

bar in the corresponding upper fixing 1,
then do the same with the other end,

F slacken the straps fully,
F fix the snap hook of each of the straps on

the corresponding lug 3, located under the
bench seat cushion,

F fold the rear seats,
F tighten the straps without raising the

bench seat,

F check that the net is hooked and tightened

correctly.

To use it in row 2:
F  fold or remove the load space cover,
F  open the covers of the upper fixings 2,
F  unroll the high load retaining net,
F  position one of the ends of the net's metal

bar in the corresponding upper fixing 2,
then do the same with the other end,

F attach the hook of each of the net's straps

in the corresponding lower ring 4,

F tighten the straps,
F check that the net is hooked and tightened

correctly.

Fittings

2008_en_Chap04_amenagements_ed01-2016

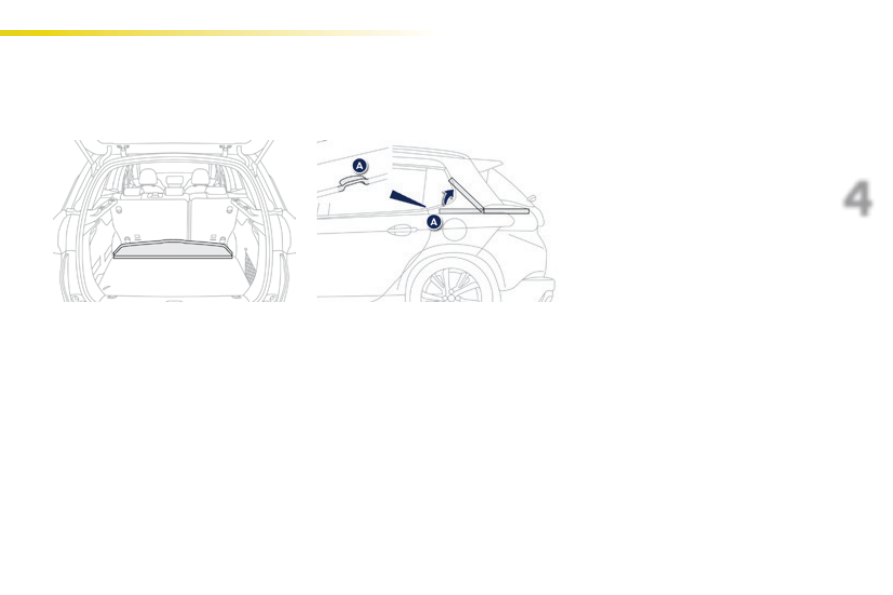

Rear parcel shelf

This consists of two sections which can be
folded back on each other.
To store it, fold it on itself and place it at the
bottom of the boot.

To gain access to the boot from the rear seats:
F raise the front section of the rear parcel

shelf using the grip A.

Fittings

2008_en_Chap04_amenagements_ed01-2016

Warning triangle (stowing)

Before leaving your vehicle to set up
and install the triangle, switch on the
hazard warning lamps and put on your
high visibility vest.

The dimensions of the triangle (once folded) or
its storage box must be:
-

A: length = 438 mm,

B: height = 56 mm,

C: width = 38 mm.

Placing the triangle in the road

F Place the triangle at a distance behind the

vehicle, in line with the driving regulations
in force in the country.

The location for stowing a folded triangle or its box is under the front seat or under the boot carpet (depending on version).

The triangle is available as an
accessory, contact a PEUGEOT dealer
or a qualified workshop.

To use the triangle, refer to the
manufacturer's instructions.

Content .. 3 4 5 6 ..
