Peugeot 1007 Dag (2005.5). Instruction - part 3

36 - Audio equipment and telematics

01-10-2005

Audio equipment and telematics

01-10-2005

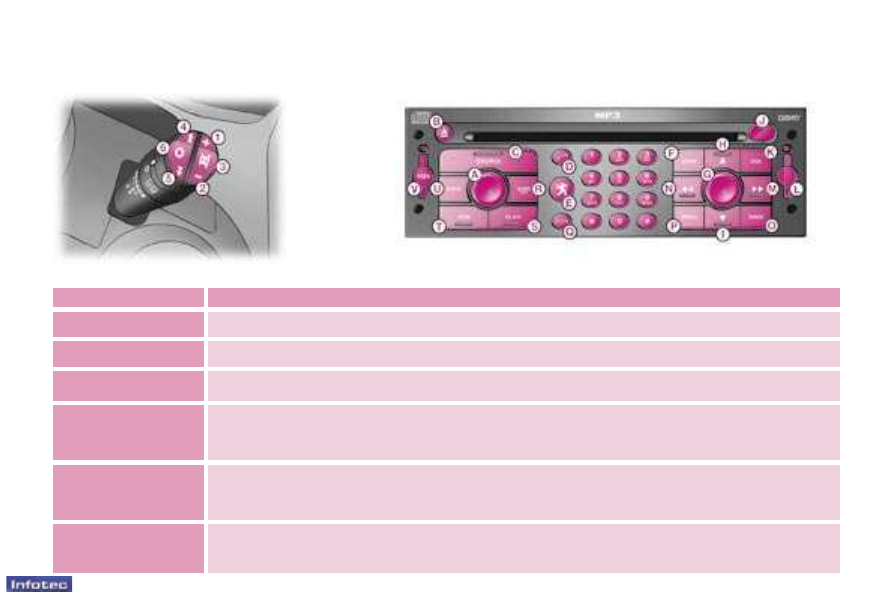

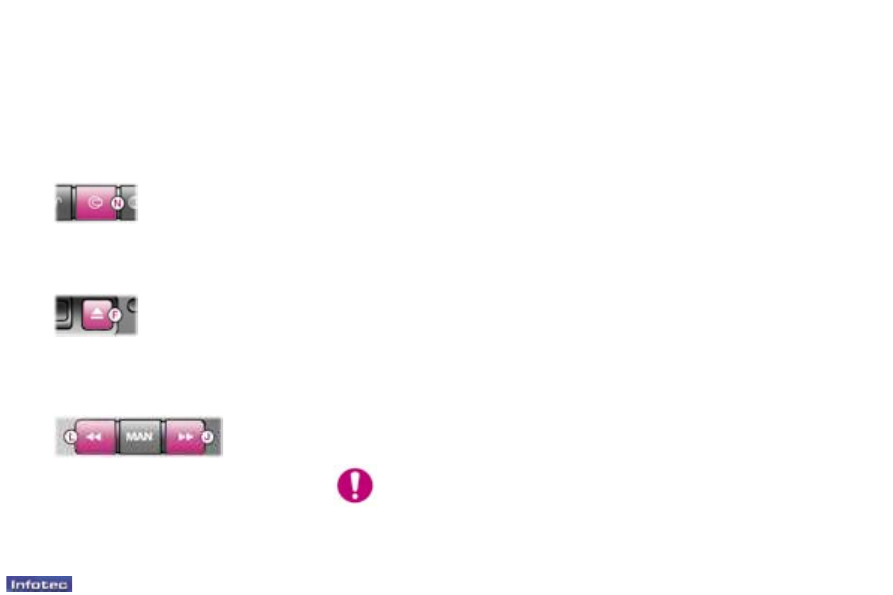

Button

Function

Manual and automatic search of higher frequency

Selection of next CD track and of the PTY (radio)

MAN

Manual/automatic operation of buttons

J and L

Manual and automatic search of lower frequency

Selection of previous CD track and of the PTY (radio)

CH. CD

Selection of CD changer

Press for more than 2 seconds: random play (RDM)

Selection of the CD source

Press for more than 2 seconds: random play (RDM)

Radio

Selection of the radio source. Selection of wavebands FM1, FM2, FMast, AM

Press for more than 2 seconds: automatic storing of stations (autostore)

1 to 6 1 2 3 4 5 6 Selection of station stored in memory

Press for more than 2 seconds: storing of a station in memory

1 to 5

1 2 3 4 5

Selection of the CDs in the CD changer

36 - Audio equipment and telematics

01-10-2005

Audio equipment and telematics

01-10-2005

GENERAL FUNCTIONS

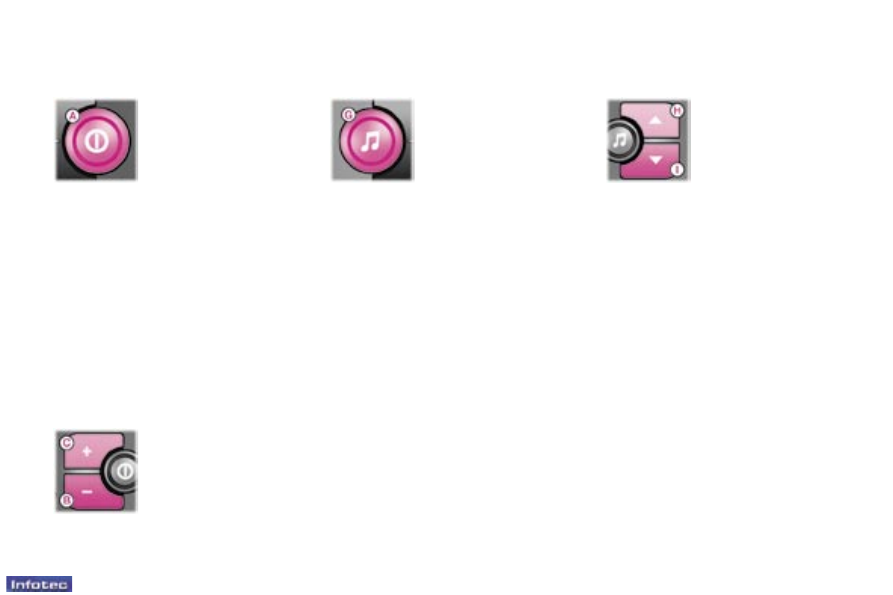

On/off

With the ignition key

in the accessories or

ignition position, press

button

A to switch the

set on or off.

The set can operate for 30 minutes

without the vehicle ignition being

switched on.

Anti-theft system

The audio system is coded in such a

way that it can operate only on your

vehicle. It would not function if itted

to another vehicle.

The anti-theft system is automatic

and requires no action on your

part.

Press button

G sev-

eral times in succes-

sion to access the

bass (

BASS), treble

(TREB),

loudness

(LOUD), fader (FAD),

balance (

BAL) and

automatic

volume

correction settings.

Exit from audio mode is automatic

after a few seconds without pressing

any button, or by pressing button

after coniguration of the automatic

volume correction.

Note: bass, treble and loudness set-

tings are speciic to each source. It

is possible to set them differently for

radio, CD or CD changer.

AUDIO SETTINGS

ADJUSTING THE VOLUME

When

"BASS" is

displayed, press but-

ton

H or I to vary the

setting.

"BASS -9" for a

minimum bass set-

ting,

"BASS 0" for a normal setting,

"BASS +9" for a maximum bass

setting.

Adjusting the bass

Press the button

C to

increase the volume,

or button

B to de-

crease it.

Continuous pressure

on buttons

B and C al-

lows a gradual adjust-

ment of the

volume.

Adjusting the treble

When

"TREB" is displayed, press

button

H or I to vary the setting.

"TREB -9" for a minimum treble

setting,

"TREB 0" for a normal setting,

"TREB +9" for a maximum treble

setting.

Adjusting the loudness

This function automatically empha-

sises bass and treble tones.

Press button

H or I to switch the func-

tion on or off.

38 - Audio equipment and telematics

01-10-2005

Audio equipment and telematics

01-10-2005

Adjusting the front/rear sound

distribution (Fader)

When

"FAD" is displayed, press but-

ton

H or I.

Button

H increases the volume at

the front.

Button

I increases the volume at the

rear.

Press button

Selecting radio mode

RADIO

Notes on radio reception

Your car radio is subject to pheno-

mena which do not affect domestic

radio sets. Both AM and FM recep-

tion are subject to various forms of

interference. This is no relection on

the quality of the equipment, but is due

to the nature of the signals and the

way in which they are transmitted.

On MW/LW, interference may be

noticed when passing under high

voltage power lines or bridges, or in

tunnels.

On FM, interference may be the result

of increasing distance from the trans-

mitter, delection of the signals by

obstacles (mountains, hills, buildings,

etc.), or of being in an area which is

not covered by a transmitter.

Selecting a waveband

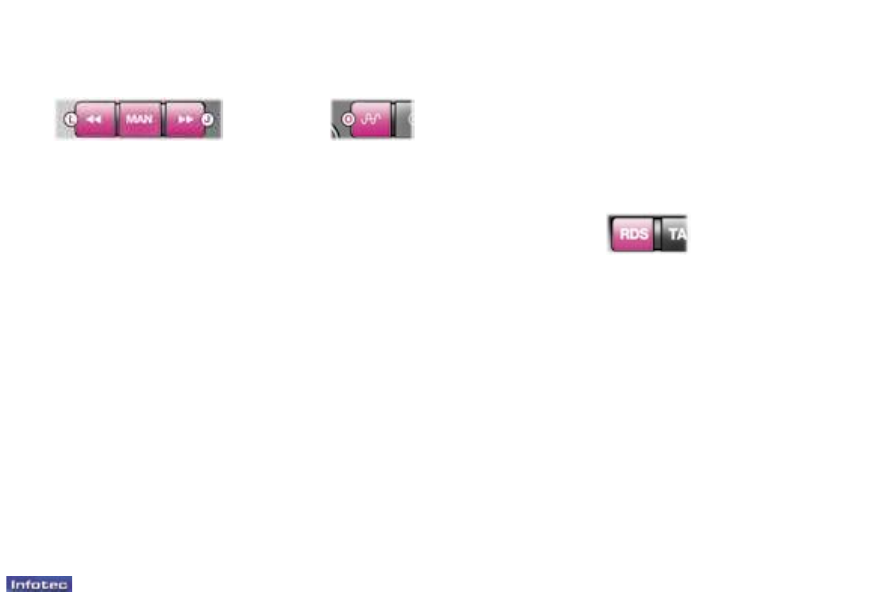

Press button

O several times in suc-

cession to select wavebands FM1,

FM2, FMast and AM.

Automatic station search

Briely press button

J or L to search

for the station immediately above or

below. By continuing to press the

button in the direction selected, you

will obtain continuous scrolling of the

frequency.

The scrolling stops at the irst sta-

tion found as soon as the button is

released.

If the

TA trafic program is selected,

only stations broadcasting this type

of program are selected.

Searching for a station occurs irst

"LO" sensitivity (selection of the

most powerful transmitters) during

scanning of the waveband, then in

"DX" sensitivity (selection of the

weakest and most distant transmit-

ters).

To make a direct search in

"DX" sen-

sitivity, press button

J or L twice.

Adjusting the right/left sound

distribution (Balance)

When

"BAL" is displayed, press but-

ton

H or I.

Button

H increases the volume on

the right-hand side.

Button

I increases the volume on the

left-hand side.

Automatic volume correction

This function enables the volume to

be automatically adjusted depending

on the level of noise produced by the

speed of the vehicle.

Press buttons

H or I to switch the

function on or off.

38 - Audio equipment and telematics

01-10-2005

Audio equipment and telematics

01-10-2005

Adjusting the front/rear sound

distribution (Fader)

When

"FAD" is displayed, press but-

ton

H or I.

Button

H increases the volume at

the front.

Button

I increases the volume at the

rear.

Press button

Selecting radio mode

RADIO

Notes on radio reception

Your car radio is subject to pheno-

mena which do not affect domestic

radio sets. Both AM and FM recep-

tion are subject to various forms of

interference. This is no relection on

the quality of the equipment, but is due

to the nature of the signals and the

way in which they are transmitted.

On MW/LW, interference may be

noticed when passing under high

voltage power lines or bridges, or in

tunnels.

On FM, interference may be the result

of increasing distance from the trans-

mitter, delection of the signals by

obstacles (mountains, hills, buildings,

etc.), or of being in an area which is

not covered by a transmitter.

Selecting a waveband

Press button

O several times in suc-

cession to select wavebands FM1,

FM2, FMast and AM.

Automatic station search

Briely press button

J or L to search

for the station immediately above or

below. By continuing to press the

button in the direction selected, you

will obtain continuous scrolling of the

frequency.

The scrolling stops at the irst sta-

tion found as soon as the button is

released.

If the

TA trafic program is selected,

only stations broadcasting this type

of program are selected.

Searching for a station occurs irst

"LO" sensitivity (selection of the

most powerful transmitters) during

scanning of the waveband, then in

"DX" sensitivity (selection of the

weakest and most distant transmit-

ters).

To make a direct search in

"DX" sen-

sitivity, press button

J or L twice.

Adjusting the right/left sound

distribution (Balance)

When

"BAL" is displayed, press but-

ton

H or I.

Button

H increases the volume on

the right-hand side.

Button

I increases the volume on the

left-hand side.

Automatic volume correction

This function enables the volume to

be automatically adjusted depending

on the level of noise produced by the

speed of the vehicle.

Press buttons

H or I to switch the

function on or off.

38 - Audio equipment and telematics

01-10-2005

Audio equipment and telematics

01-10-2005

Manual station search

Manual storing of stations in the

memory

Select the station required.

Press one of the buttons

"1" to "6"

for more than two seconds.

The sound stops then becomes audi-

ble again, conirming that the station

has been stored in the memory.

Press button

O down

for more than two

seconds.

Your radio automati-

cally stores the six stations with the

strongest signal in

FM. These sta-

tions are stored in the FMast wave-

band.

If it is not possible to ind 6 stations,

the remaining memories are empty.

Automatic storing of FM stations

in the memory (autostore)

Recalling stations stored in the

memory

For each waveband, briely press

one of the buttons

"1" to "6" to recall

the corresponding station.

RDS

Using the RDS (Radio Data

System) function on FM

Radio Data System allows you to

continue listening to the same station

whatever frequency it is using for the

region you are going through.

Briely press the

"RDS"

button to switch the

function on or off.

The multifunction display will show:

"RDS" if the function is selected,

"RDS" lashing or "(RDS)" if the

function is selected but not available.

Press the

"MAN" button.

Briely press button

J or L to in-

crease or decrease the frequency

displayed.

By continuing to press the button

in the direction selected, you will

obtain continuous scrolling of the

frequency.

The scrolling stops at the irst sta-

tion found as soon as the button is

released.

Pressing the

"MAN" button again

returns you to automatic station

search.

RDS station following

The display indicates the name of

the station selected. When the RDS

function is active, the radio continual-

ly searches for the transmitter which

transmits the station selected with

the best reception.

40 - Audio equipment and telematics

01-10-2005

Audio equipment and telematics

01-10-2005

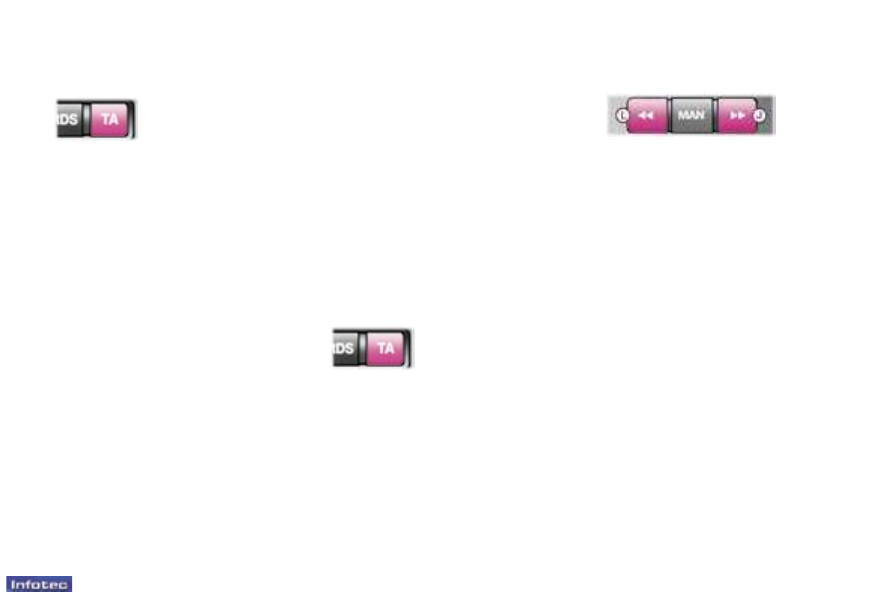

Press the

"TA" button

briely to switch the

function on or off.

The multifunction display will show:

"TA" if the function is selected,

"TA" lashing or "(TA)" if the func-

tion is selected but not available.

Any trafic information lash will be

given priority, whatever source you

are listening to (radio, CD or CD

changer).

If you wish to interrupt a message,

press the

"TA" button; this switches

the function off.

Note: the volume of the trafic

information is independent of the

volume of normal radio listening.

You can adjust it using the volume

button. The setting will be stored

and will be used when the next

messages are broadcast.

Trafic information program (TA)

Regional following mode (REG)

When they are part of a network,

certain stations broadcast regional

programs in the various areas they

serve. With regional following mode

you can keep listening to the same

program.

Press the

"RDS" button for more

than two seconds to switch the func-

tion on or off.

With

FM selected,

press the

"TA" but-

ton for more than two

seconds to switch this

function on or off.

Search by type of program (PTY)

This allows you to listen to stations

broadcasting a speciic type of program

(news, culture, sport, rock etc.).

To search for a

PTY program:

- select the

PTY function,

- briely press button

J or L to scroll

down the list of the various types of

programs offered,

- when the program of your choice

is displayed, keep button

J or L

pressed for more than two seconds

to carry out an automatic search

(after an automatic search the

PTY

function is switched off).

PTY mode the different types of

programs can be stored in memory.

To do this, press the preselection

buttons

"1" to "6" for more than two

seconds. Briely press the corre-

sponding button to recall the type of

program stored in the memory.

EON system

This connects stations which are part

of the same network. It enables the

broadcasting of trafic information or

of a type of

program by a station that

is part of the same network as the sta-

tion to which you are listening.

This service is available when you

have selected the

TA trafic informa-

tion program or the

PTY search by

type of program function.

40 - Audio equipment and telematics

01-10-2005

Audio equipment and telematics

01-10-2005

COMPACT DISC

Selecting CD mode

After insertion of a disc, printed face

upwards, the player starts automati-

cally.

If a disc is already

inserted, press but-

ton

Ejection of a disc

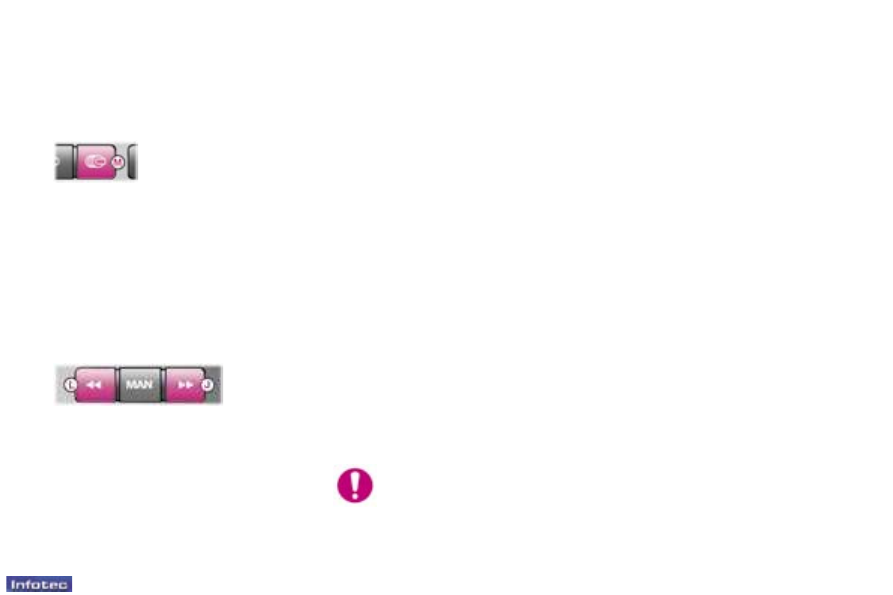

Accelerated play

Keep button

J or L pressed for for-

wards or backwards accelerated

play.

Accelerated play stops as soon as

the button is released.

Press button

F to

eject the disc from the

player.

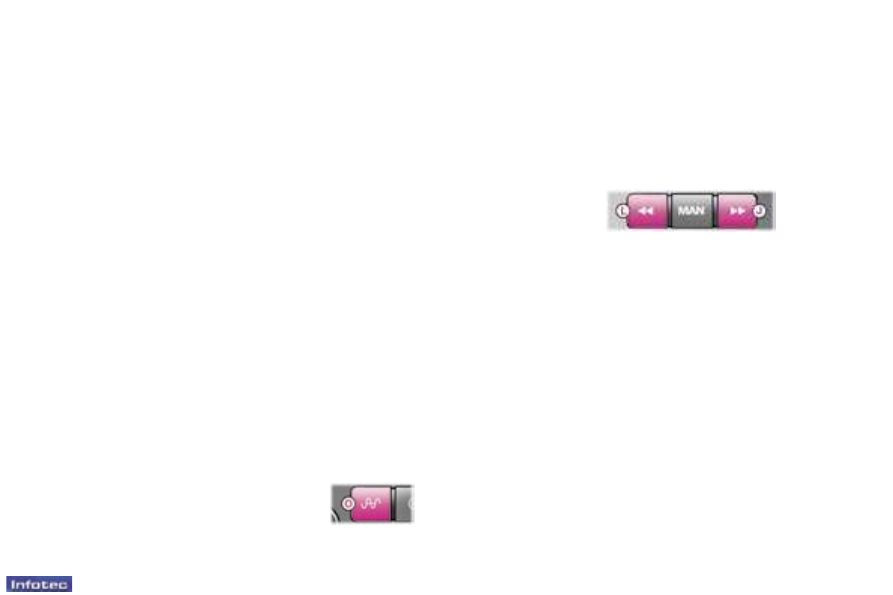

Selecting a track

Press button

J to select the next

track.

Press button

L to return to the start

of the current track or to select the

previous track.

The use of copied compact

discs may cause malfunc-

tions.

Insert circular compact discs

only.

Random play (RDM)

When the CD player is selected,

keep button

N pressed for two sec-

onds. The tracks will be played in

random sequence. Pressing the

button again for two seconds returns

you to normal play.

Random play mode is de-activated

each time the audio equipment is

switched off.

42 - Audio equipment and telematics

01-10-2005

Audio equipment and telematics

01-10-2005

CD CHANGER

Selecting CD changer mode

Press button

Selecting a disc

Press one of the buttons

"1" to "5"

on the radio to select the correspond-

ing disc.

Press button

J to select the next

track.

Press button

L to return to the start

of the current track or to select the

previous track.

Selecting a track

Accelerated play

Keep button

J or L pressed for for-

wards or backwards accelerated

play.

Accelerated play stops as soon as

the button is released.

Random play (RDM)

When the CD changer is selected,

keep button

M pressed down for two

seconds. The tracks will be played

in random sequence. Pressing the

button again for two seconds returns

you to normal play.

The use of copied compact

discs may cause malfunc-

tions.

Insert circular compact discs

only.

42 - Audio equipment and telematics

01-10-2005

Audio equipment and telematics

01-10-2005

CD CHANGER

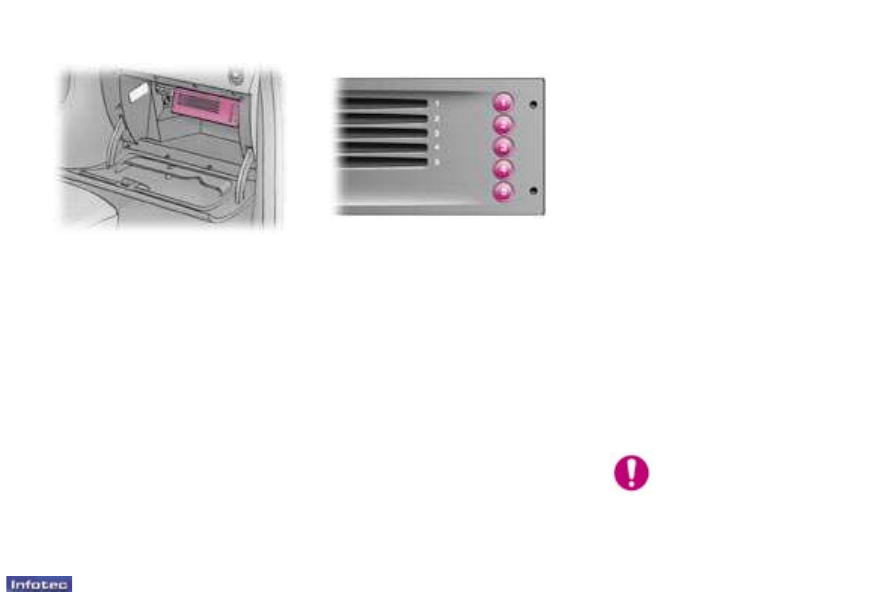

This is located in the glove box. It

holds up to 5 discs.

To load the changer, insert the discs

with the printed side upwards.

To select a disc, press the corre-

sponding button

"1" to "5" briely.

Play starts automatically.

To remove a disc, press the corre-

sponding button

"1" to "5" for more

than two seconds.

The use of copied compact

discs may cause faults.

Insert circular compact discs

only.

44 - Audio equipment and telematics

01-10-2005

AUDIO SYSTEM

Presentation

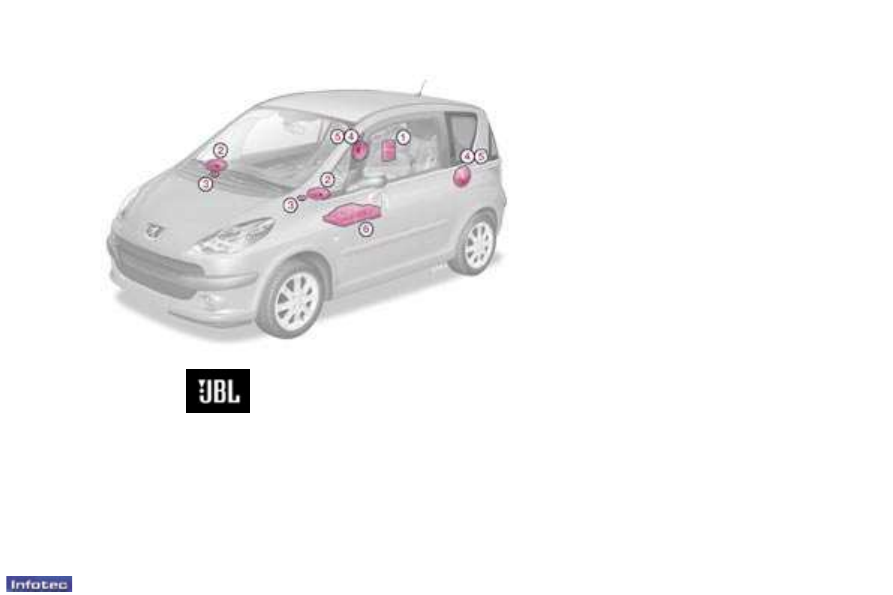

Your 1007 is itted with a JBL Audio

system, designed speciically for the

vehicle's passenger compartment.

At the heart of the system, a 240 Watt

multifunction ampliier (1), located in

the boot, independently controls 8

high acoustic deinition speakers

and a subwoofer.

This system makes it possible to

obtain optimum reproduction and

distribution of the sound in the ve-

hicle, in the front and in the rear.

The speakers are located:

- in the fascia: two

Woofers (2) for

reproduction of the bass tones (low

frequencies) and two

Tweeters (3)

for reproduction of the treble tones

(high frequencies),

- in the rear panels: two

Tweeters

(4) incorporated in two woofers

(5) for a balance of the frequencies

and a sound effect which ills the

passenger compartment,

- in the right storage tray: a speciic

Subwoofer (6) for reproduction of

the extreme bass sounds (low and

very low frequencies) throughout

the passenger compartment.

You will appreciate the dynamic

nature and depth of the JBL sys-

tem, noticing that the sound ills

the vehicle perfectly.

Adjustment in CD and radio mode

The basic functions remain those of

the audio equipment.

No additional adjustment is required.

However, to beneit fully from your

JBL audio system, you are advised to

adjust the AUDIO functions

(BASS,

TREB, FAD, BAL) to position "0"

(zero) and the Loudness

(LOUD) to

the

"ON" position in CD mode and to

the

"OFF" position in radio mode.

Audio equipment and telematics

01-10-2005

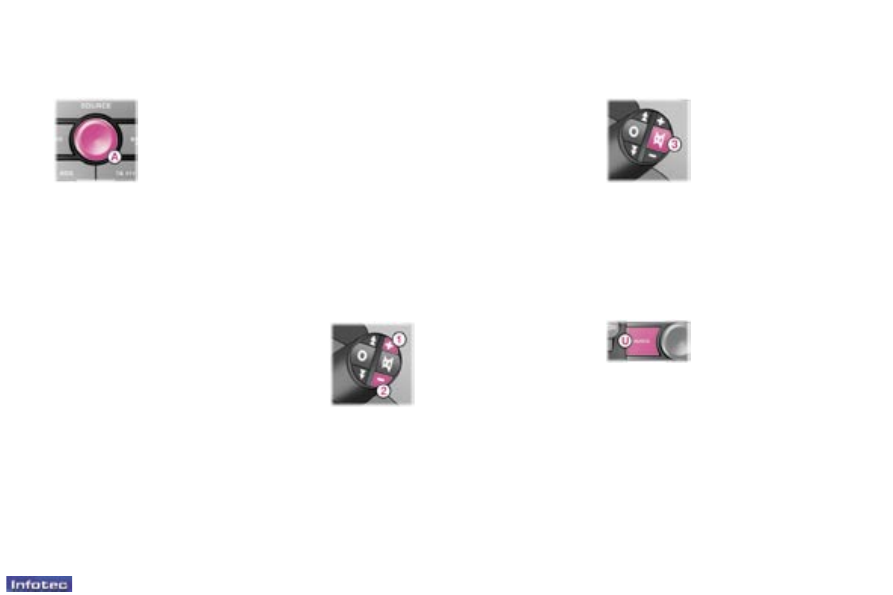

GPS AUDIO/TELEPHONE RT3

Stalk movement

Function

1 - Press

Increase volume

2 - Press

Decrease volume

3 - Press

Switch off sound (mute); restore sound by pressing a button

4 - Press

Automatic search of upper frequencies (radio) -

Selection of next track (CD/MP3/CD changer)

Continuous pressure until release: accelerated forwards play (CD/CD changer),

rapid scanning of following tracks (MP3)

5 - Press

Automatic search of lower frequencies (radio) -

Selection of previous track (CD/MP3/CD changer)

Continuous pressure until release: accelerated backwards play (CD/CD changer),

rapid scanning of previous tracks (MP3)

6 - Press

Displaying of the trip computer information

Press for more than 2 seconds: resetting of the route displayed to zero

46 - Audio equipment and telematics

01-10-2005

Audio equipment and telematics

01-10-2005

Button

Function

Press: audio/telephone on/off.

Rotation: volume adjustment.

Ejection of CD.

SOURCE

Selection of source: radio, CD,

MP3, CD changer or AUX.

Call connect (Tel/Incoming call) - Display contextual menu (Tel/Not engaged).

Access "PEUGEOT" services menu (if the options and services are available).

MODE

Change display.

Press: display contextual menu of display - Conirm inputting or adjustment.

Rotation: move within a menu - Select function/parameter - Audio settings: sound ambience, bass,

treble, loudness, fader (front/rear balance), balance (left/right balance), automatic volume.

Adjust higher frequency, step by step or continuous (long press).

Select previous MP3 directory (MP3).

Select previous CD (CD changer).

Adjust lower frequency, step by step or continuous (long press).

Select following MP3 directory (MP3).

Select following CD (CD changer).

Infra-red window (IrDA).

ESC

Cancel current operation.

SIM card cover.

Automatic search of higher frequency - Selection of following CD track.

Double press : change from LO mode to DX mode.

Press for more than 2 seconds: CD accelerated forwards play (CD/CD changer), rapid scanning of

the following tracks (MP3).

46 - Audio equipment and telematics

01-10-2005

Audio equipment and telematics

01-10-2005

Button

Function

Automatic search of lower frequency - Selection of previous CD track.

Double press: change from LO mode to DX mode.

Press for more than 2 seconds: CD accelerated backwards play (CD/CD changer), rapid scanning

of the previous tracks (MP3).

DARK

1st press: display top band (remainder of screen is black) -

2nd press: brightness removed (black screen) - 3rd press: return to normal screen.

Press for more than 10 seconds: reinitialisation of the system.

MENU

Display general menu - Press for more than 2 seconds: display help screen with list of voice

commands, a description of the version of your equipment, a demonstration mode and the status of

the services.

Disconnect.

BAND

AST

Select FM1, FM2, FMast, AM wavebands.

Press for more than 2 seconds: automatic storing of stations (autostore).

TA/PTY

Trafic information priority on/off.

Press for more than 2 seconds: PTY function on/off.

RDS

RDS function on/off.

Press for more than 2 seconds: regional following mode on/off.

AUDIO

Display window for adjusting sound ambience, bass, treble, loudness, sound distribution and

automatic correction of volume.

SOS

Press between 2 and 8 seconds: emergency call.

1 to 6 1 2 3 4 5 6

Select station in memory.

Press more than 2 seconds: store station being listened to in memory.

1 to 5

1 2 3 4 5

Selection of CDs in the CD changer.

0 to 9

* #

0 1 2 3 4 5

6 7 8 9 * # Alphanumeric keypad for entering text and telephone numbers.

48 - Audio equipment and telematics

01-10-2005

Audio equipment and telematics

01-10-2005

SELECTING THE SOURCE

Press the

SOURCE button to select

the audio source: RADIO, CD, CD

CHANGER, MP3 or audio/video aux-

iliary input (AUX)*.

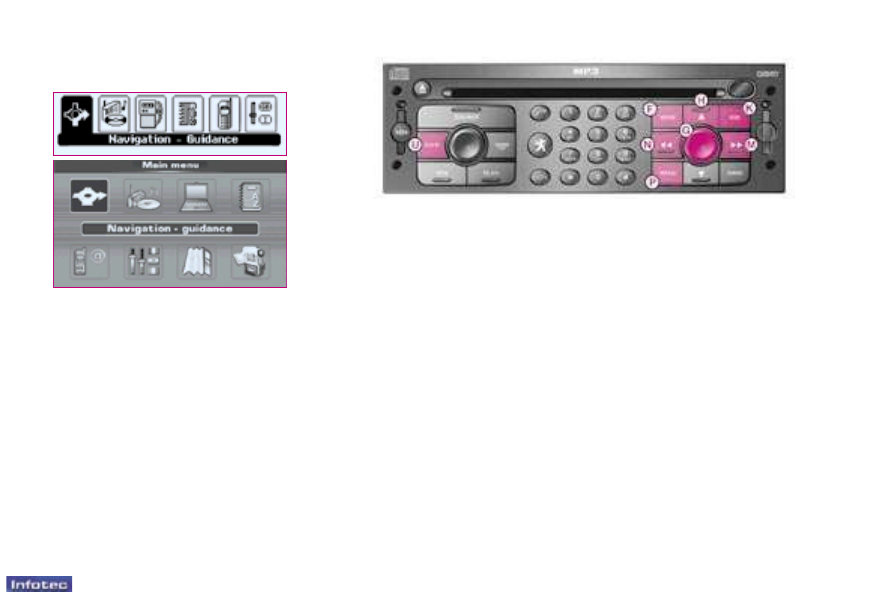

GENERAL MENU

Pressing button

"P" provides access

to all of the functions available on the

RT3 GPS audio/telephone:

"Navigation - Trafic info".

"Audio functions".

"Directory".

"Telephone and telematic serv-

ices".

"Coniguration" of your vehicle.

"Map"*.

"Video"*.

SCREEN

In accordance with your selections,

the screen displays the information

relating to the Navigation - Traf-

ic Information, Audio, Directory,

Telephone and Telematic Services,

Coniguration*, Map* and Video*

functions.

It is possible to change the informa-

tion displayed on the right-hand side

of your screen by pressing

"F", "G",

"P" and "U", or using the voice com-

mands.

The information on the left-hand side

and at the top of the screen depends

on the selection made for the right-

hand side.

Some information and actions (warn-

ing, settings, contextual menu) are

indicated by the temporary opening

of a window on the screen.

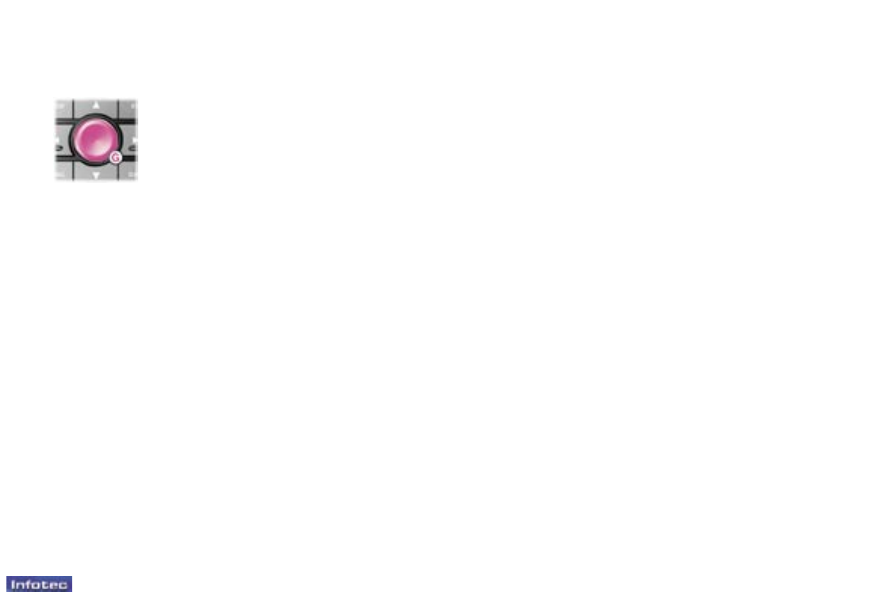

MOVING WITHIN THE MENUS

Buttons

"G", "H", "M", "I", "N" en-

able you to move within the menus

and pressing button

"G" conirms

your selections.

We recommend that you do not use

the RT3 GPS audio/telephone but-

tons while driving. In some countries,

certain buttons may be deactivated

(in accordance with national legisla-

tion).

* According to screen.

Auxiliary Input (AUX)*

The auxiliary input allows the con-

nection of portable equipment (MP3

player, ...).
F

Activate the auxiliary input via

the

"Coniguration" menu, then

"Sound" and inally "Activate aux

input

Connect the portable equipment

to the audio sockets (white and

red, type RCA) located in the

glovebox.

Press the

SOURCE button suc-

cessively and select AUX.

48 - Audio equipment and telematics

01-10-2005

Audio equipment and telematics

01-10-2005

GENERAL FUNCTIONS

On/off

With the ignition switch

in the accessories/

running position or

with the ignition on,

press button

A to

switch the audio func-

tion of the RT3 GPS

audio/telephone

or off.

Note: in the absence of an ignition

key, press button

A to switch the

telematics system on or off.

The RT3 GPS audio/telephone can

operate for 30 minutes without

switching the vehicle ignition on.

ADJUSTING THE VOLUME

Turn button

A clockwise to increase

the volume of the audio/telephone or

anti-clockwise to decrease it.

Anti-theft system

The RT3 GPS audio/telephone is

coded in such a way that it can op-

erate only on your vehicle. If itting

it to another vehicle, consult your

PEUGEOT dealer for coniguration

of the system.

The anti-theft system is automatic

and requires no action on your

part.

MUTE

Notes:

- the SIM card must be removed only

after the audio/telephone has been

switched off,

- following automatic switching off of

the audio/telephone after 30 minutes

it is possible to make a telephone call

by pressing button

- after the ignition has been switched

off, the audio/telephone can be

switched on again by pressing but-

tons

D, E, V or by inserting a CD in

the player.

AUDIO SETTINGS

Press button

U to ac-

cess the

Sound Am-

bience, Bass, Treble,

Loudness,

Fader

(front/rear balance),

Balance (left/

right balance) and

Automatic vol-

ume adjustment setting windows.

Exit from audio mode is automatic af-

ter a few seconds without any action,

or by pressing the

"ESC" button.

Note: bass, treble and loudness set-

tings are speciic to each source. It is

possible to have different settings for

radio, CD MP3, CD changer or AUX.

Notes

The volume setting is speciic to each

source. It is possible to have different

settings for radio, CD, CD or AUX.

The volume is adjusted automatically

in relation to the speed if the

auto-

matic volume function is active.

The volume when stationary will be

the same the next time the audio

equipment is switched on.

Use the controls on

the steering wheel to

activate this function.

The sound is cut off,

regardless of which

source is in use.

The permanent audio

sources (radio, CD,

CD changer, MP3, auxiliary input) re-

main cut off but not the others (guid-

ance instructions, for example).

To restore the sound, press one of

the two volume buttons.

You can also increase

or decrease the vol-

ume using the con-

trols on the steering

wheel.

50 - Audio equipment and telematics

01-10-2005

Audio equipment and telematics

01-10-2005

Sound ambience

This function per-

mits the selection of

a "None", "Rock",

"Classical",

"Jazz",

"Vocal" or "Techno"

sound ambience.

Turn button

G to select

the sound ambience.

Selecting "None" permits access

to all of the settings deined below.

Selecting another ambience sets the

bass and treble automatically.

Bass setting

When

'Bass' is displayed, turn but-

ton

G to vary the setting.

- '-9' for minimum bass setting

- '0' for normal setting

- '+9' for maximum bass setting

Treble setting

When

'Treble' is displayed, turn but-

ton

G to vary the setting.

- '-9' for minimum treble setting

- '0' for normal setting

- '+9' for maximum treble setting

Adjusting the loudness

This function automatically empha-

sises bass and treble tones when the

volume is low.

Rotate button

G to switch the func-

tion on or off.

Setting the front/rear sound

distribution (Fader)

When

'Fader' is displayed:

- Turn button

G clockwise to increase

the volume in the front.

- Turn button

G anti-clockwise to in-

crease the volume in the rear.

Setting the right/left sound

distribution (Balance)

When

"Balance" is displayed:

- Turn button

G clockwise to increase

the volume on the right.

- Turn button

G anti-clockwise to in-

crease the volume on the left.

Automatic volume adjustment

This function allows the volume to

be adjusted automatically depending

on the level of noise produced by the

speed of the vehicle.

Press button

G to switch the function

on or off.

Content .. 1 2 3 4 ..
