Peugeot 607 Dag (2009 year). Instruction

111

BATTERY

The battery is located behind the left
boot trim.

TOWING YOUR VEHICLE

Lifting
(2 wheels only on the road)

It is preferable to raise the vehicle using
professional lifting equipment.

Never use the radiator crossmember.

When towing with the engine
switched off, there is no brak-
ing or steering assistance.

Special features of the

automatic gearbox

Towing a vehicle with an automatic
gearbox in reverse gear is prohibited
(absence of lubrication).

Without lifting

(4 wheels on the road)

You should always use a towbar.
The towing eye is inside the spare
wheel.

When being towed with all
four wheels on the ground, it
is imperative that the following
rules are obeyed:

selector lever in position N ,

the vehicle must be towed at a speed
of less than 30 mph (50 km/h) over
a maximum distance of 30 miles
(50 km),

do not add oil to the gearbox.

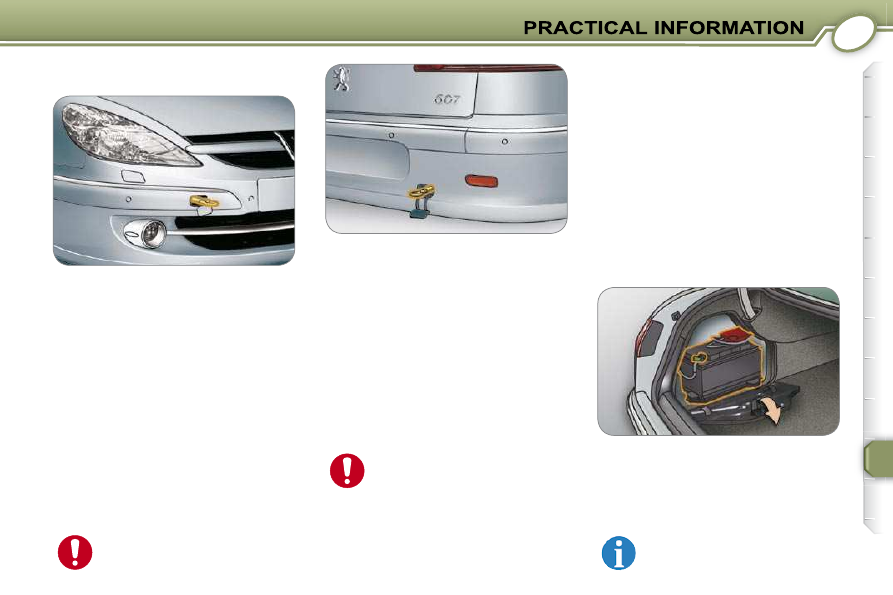

From the front:
 Carefully unclip the bottom of the

cover, using a small screwdriver.

 Screw in the towing eye until it

locks.

From the rear:
 Carefully unclip the top of the cover

using a small screwdriver.

 Screw in the towing eye until it

locks.

To disconnect the battery:
 pull the handle downwards and

fold back the panel to gain access
to the battery,

 disconnect the green terminal (-) of

the battery.

It is advisable to disconnect
the battery if the vehicle is not
to be used for a period of more
than one month.

Vehicles fitted with a manual

gearbox (Diesel version)

On vehicles ﬁ tted with a manual gear-

box, the gear lever must be in neutral.
Failure  to  observe  this  special  condi-
tion  may  result  in  damage  to  certain
braking components and the absence
of braking assistance when the engine
is restarted.

111

BATTERY

The battery is located behind the left
boot trim.

TOWING YOUR VEHICLE

Lifting
(2 wheels only on the road)

It is preferable to raise the vehicle using
professional lifting equipment.

Never use the radiator crossmember.

When towing with the engine
switched off, there is no brak-
ing or steering assistance.

Special features of the

automatic gearbox

Towing a vehicle with an automatic
gearbox in reverse gear is prohibited
(absence of lubrication).

Without lifting

(4 wheels on the road)

You should always use a towbar.
The towing eye is inside the spare
wheel.

When being towed with all
four wheels on the ground, it
is imperative that the following
rules are obeyed:

selector lever in position N ,

the vehicle must be towed at a speed
of less than 30 mph (50 km/h) over
a maximum distance of 30 miles
(50 km),

do not add oil to the gearbox.

From the front:
 Carefully unclip the bottom of the

cover, using a small screwdriver.

 Screw in the towing eye until it

locks.

From the rear:
 Carefully unclip the top of the cover

using a small screwdriver.

 Screw in the towing eye until it

locks.

To disconnect the battery:
 pull the handle downwards and

fold back the panel to gain access
to the battery,

 disconnect the green terminal (-) of

the battery.

It is advisable to disconnect
the battery if the vehicle is not
to be used for a period of more
than one month.

Vehicles fitted with a manual

gearbox (Diesel version)

On vehicles ﬁ tted with a manual gear-

112

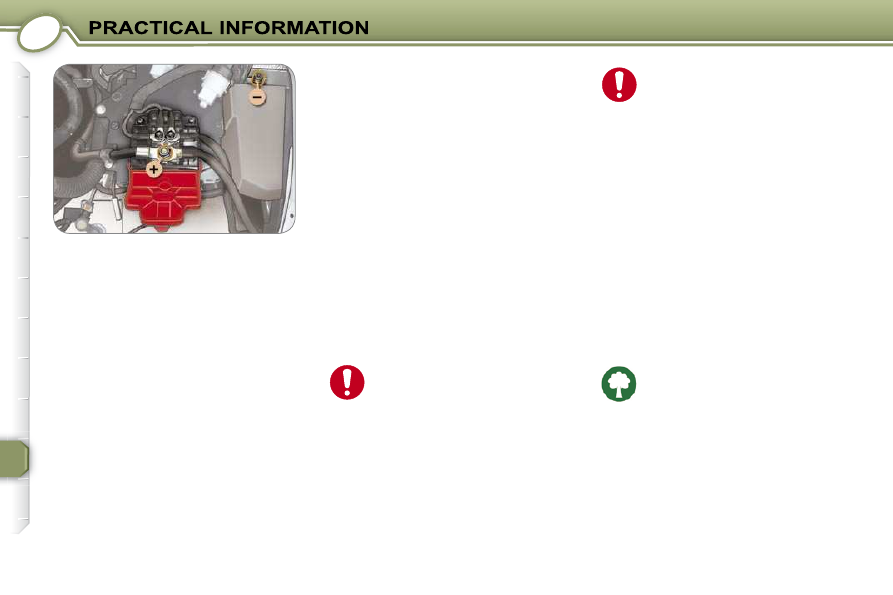

To start the vehicle from another

battery, use the front additional

terminal:
      open the bonnet,
     remove the left side cover,
     use  the  two  additional  (+)  and  (-)

terminals located under the bonnet
and only these,

 open the red cover of the (+) terminal,
 connect the red cable between the

(+) terminal and the (+) terminal of
the slave battery,

 connect the green or black cable

between the (-) terminal and the
negative (-) terminal of the slave
battery,

 start the engine and let it run,
 wait for the engine to return to idle

then disconnect the cables,

 close the red cover of the (+) terminal,


reﬁ t the left side cover,

 close the bonnet.

Never disconnect a terminal
when the engine is running.
Close the windows and sun-
roof fully before disconnecting
the battery.

It is imperative that cables of profession-
al quality and suitable cross-section are
used; for further information, contact a
PEUGEOT dealer.

Batteries

contain

harmful

substances such as sulphu-
ric acid and lead. They must
be disposed of in accordance

with  regulations  and  must  not,  in  any
circumstances,  be  discarded  with
household waste.
Take  used  batteries  to  an  approved
collection point.

  To charge the battery:
      open the bonnet,
     remove the left side cover,
     use the two additional (+) and (-) ter-

minals located under the bonnet,

 open the red cover of the (+) terminal,
 follow the instructions for use pro-

vided by the manufacturer of the
charger,

 close the red cover of the (+) terminal,


reﬁ t the left side cover,

 close the bonnet.
Do not start the vehicle while the charger
is connected.

After  every  re-connection  of
the  battery,  switch  on  the  ig-
nition  and  wait  for  1  minute
before  starting,  to  allow  the
electronic systems to be initial-

ised. However, if slight difﬁ culties are

experienced  after  this,  please  contact
a PEUGEOT dealer. If electrical work is
carried out, disconnect the battery.
When charging or replacement of the
battery is necessary, do not close the
boot  as,  since  it  is  only  opened  elec-
trically,  it  would  then  be  necessary  to
use  the  emergency  control  (see  cor-
responding section).

Do not connect a slave battery to the

(+) and (-) terminals located under

the bonnet if there is no battery in

the boot (risk of short circuit).

113

TOWING A TRAILER,
CARAVAN, BOAT, ETC...

We recommend the use of original
PEUGEOT towbars and their harnesses
which have been tested and approved
from the design stage of your vehicle and

that you entrust the ﬁ tting of the towbar to

a PEUGEOT dealer.
If the towbar is not ﬁ tted by a PEUGEOT

dealer, it is imperative that it is ﬁ tted us-

ing the electrical pre-equipment installed
at the rear of the vehicle, in accordance
with the manufacturer's instructions.

  Note:  in certain cases of par-
ticularly  arduous  use  (towing
the  maximum  load  in  high
temperatures

steep

slope),  the  engine  automatically  lim-
its its power and selects the appropri-
ate automatic gearbox gear in manual
mode.  In  this  case,  cutting  off  the  air
conditioning  allows  the  engine  power
to  be  recovered,  and  therefore  the
towing capacity to be increased.

   Automatic adjustment
To  avoid  causing  a  nuisance  to  other
road  users,  this  system  automatical-
ly  corrects  the  height  of  the  beam  of
xenon  bulbs  in  relation  to  the  vehicle
load  after  approximately  2  minutes.
The  driver  is  then  assured  of  having
optimum lighting.

Driving advice

Distribution of loads: distribute the

load  in  the  trailer  so  that  the  heavi-
est  loads  are  as  close  as  possible  to
the axle and the nose weight is close
to  the  maximum  authorised  without,
however, exceeding it.

Lighting

Tyres: check the tyre pressures of the
towing vehicle (label on the central
door pillar on the driver's side) and of
the trailer towed, observing the recom-
mended pressure.

If  the  coolant  temperature
warning  light  comes  on,  stop
the  vehicle  and  switch  off  the
engine as soon as possible.

In the case of vehicles ﬁ tted with an

HDI  engine,  it  is  advisable,  following
intensive  use  (towing  on  a  motorway,
prolonged driving, ...), to leave the en-
gine  running  at  idle  for  approximately
20 seconds  before  switching  off  the
ignition. This limits any increase in the
temperature of the engine after it has
been switched off.
In all cases, pay attention to the coolant
temperature.

Brakes: towing increases the braking
distance. Drive at a moderate speed,
change down early and brake gradually.

Side wind: sensitivity to side wind is

increased. Drive smoothly and at a
moderate speed.

Cooling: towing a trailer on a slope in-
creases the coolant temperature.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.

114

ACCESSORIES FOR YOUR 607

A  wide  range  of  accessories  recom-
mended  by  PEUGEOT  and  original
parts are offered by the network.
They  all  beneﬁ t  from  PEUGEOT's

recommendation.
These  accessories  and  parts,  having
been tested and approved for reliabil-
ity and safety, are all adapted to your
PEUGEOT vehicle.
The  product  range  offered  by  PEUGEOT
Accessories  is  structured  around  5 catego-
ries:  PROTECTION -  TOURING -  IN-CAR
TECHNOLOGY - STYLING - UNIVERSAL.

The ﬁ tting of electrical equipment

or  accessories  which  are  not
recommended  by  PEUGEOT
may  result  in  a  failure  of  your
vehicle's electronic system.

Please note this speciﬁ c warning. You

are  advised  to  contact  a  representa-
tive  of  the  Marque  to  be  shown  the
range  of  recommended  equipment
and accessories.

  "Protection":
  parking  assistance,  anti-theft
alarm,  stolen  vehicles  recov-
ery  system * ,  engraved  win-

dows, locking wheel nuts, ﬁ rst

aid kit, warning triangle, high
visibility safety jacket, snow
chains.

  "Touring":
covers  compatible  with  air
bag components, mats, boot
tray,  luggage  retaining  net,
sill protectors.
For  leisure  pursuits:  roof

bars, transportation accessories (bi-
cycle carrier, ski carrier), roof box,
child seats and booster cushions, rear
screen blind, audio/telephone console,
cool box.
Trailer towbar which must be ﬁ tted by

the PEUGEOT network.

  "In-Car Technology":
hands-free kits, satellite navi-
gation systems, CD changer,
DVD player, video screen.
You  are  advised  to  contact
a  PEUGEOT  dealer  before

installing  accessory  radiocommunica-
tion  transmitters  with  external  aerial
on your vehicle.
Your PEUGEOT dealer will inform you
of the characteristics (frequency band,
maximum  output  power,  aerial  posi-

tion, speciﬁ c installation conditions) of

the transmitters which can be ﬁ tted,

in  accordance  with  the  Motor  Vehicle
Electromagnetic  Compatibility  Direc-
tive (2004/104/EC).

  "Styling":
alloy  wheels,  wheel  trims,
spoiler,  leather  gear  lever
knob, styling strips, door spoil-
ers, sport exhaust.

"Universal":
windscreen wash ﬂ uid, interi-

or and exterior cleaning and
maintenance products.

  Depending  on  the  country  in
which  the  vehicle  is  sold,  it  is
compulsory  to  have  a  safety
jacket,  warning  triangle  and
spare  bulbs  available  in  the
vehicle.

Wheels which are ﬁ tted with

235/45 R 18 tyres cannot be ﬁ tted

with snow chains. For further infor-

mation, contact a PEUGEOT dealer.

  Note
To  prevent  the  mat  from  becoming
caught under the pedals:
   -

ensure that the mat is positioned
and secured correctly,

- never ﬁ t one mat on top of another.

* According to country.

115

MODELS: Model codes 9U...

DIESEL

RHLH

RHRH

UHZJ

ENGINES

2 litre HDI

2.7 litre V6

HDI 24V

Capacity (cm

)

1 997

2 720

Bore x stroke (mm)

85 x 88

81 x 88

Number of valves

Max power: EU standard (KW)

100

150

Max power engine speed (rpm)

4 000

Max torque: EU standard (Nm)

320

440

Max torque engine speed (rpm)

2 000

1 900

Fuel

Diesel

Catalytic converter

Yes

Particle emission ﬁ lter (PEF)

Yes

Electronic injection

Yes

GEARBOX

Manual

(6-speed)

Automatic

(6-speed)

CAPACITIES (in litres)

Engines (with cartridge replacement)

5.25 (1)

5.5 (1)/5.75 (2)

ENGINES AND GEARBOXES

(1) Draining by gravity - (2) Draining by suction

116

CONSUMPTION

As per EC Directive 80/1268 (as amended)

Engine

Gearbox

Model

codes 9U...

Urban driving

(litres/100 km)

Extra-urban

driving

(litres/100 km)

Mixed driving

(litres/100 km)

Emission by
mass of CO

(g/km)

2 litre HDI 16V

Manual

RHLH

RHRH

8.1

5.0

6.1

159

2.7 litre V6 HDI 24V

Automatic

UHZJ

11.6

6.6

8.4

223

Fuel consumption values correct at time of printing. These consumption values were established in accordance with

EC Directive 80/1268 (as amended). They may vary depending on the style of driving, trafﬁ c conditions, weather conditions,

the load in the vehicle, the maintenance of the vehicle and the use of the equipment.

117

WEIGHTS AND TOWING LOADS (IN KG)

Engines

DIESEL

2 litre

HDI 16V

2.7 litre V6

HDI 24V

Gearboxes

Manual

Automatic

Model codes: 9U...

RHLH

RHRH

UHZJ

• Kerb weight

1 590

1 723

• Payload

493

480

• Gross vehicle weight (GVW)

2 083

2 203

• Gross train weight (GTW) *

on 12 % gradient

3 583

3 603

on 8 % gradient

3 883

3 853

• Braked trailer (within GTW limit)

on 12 % gradient

1 500

1 400

on 10 % gradient

1 500

1 400

on 8 % gradient

1 800

1 650

• Braked trailer ** (with load transfer within

GTW limit)

1 760

1 700

• Unbraked trailer

750

• Recommended nose weight

* The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).

according to the legislation in force in the country

** The weight of the braked trailer may be increased, within the GTW limit, by the same amount by which the GVW of the towing

vehicle is reduced; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.

The GTW values and the towing loads indicated are valid for a maximum altitude of 1 000 metres; the towing load mentioned
must be reduced by 10 % for every 1 000 additional metres.
High exterior temperatures may result in lowering of the performance of the vehicle in order to protect the engine; when the
exterior temperature is above 37 °C, limit the towed load.

121

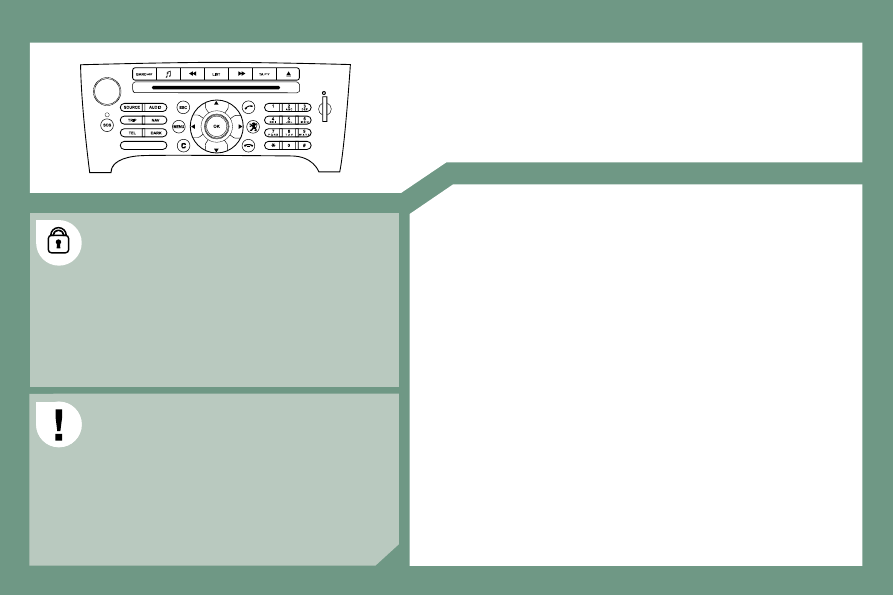

PC Com

MULTIMEDIA AUDIO EQUIPMENT/TELEPHONE

JUKEBOX FUNCTION (10 GB)/GPS (EUROPE)

The PC Com is coded in such a way that it will only
operate in your vehicle, contact your PEUGEOT dealer

for conﬁ guration of the system.
For safety reasons, it is imperative that the driver carries

out operations which require prolonged attention while

the vehicle is stationary.

When the engine is switched off and to prevent

discharging of the battery, the PC Com may switch off

after a few minutes.

CONTENTS

01 First steps

pg. 122

02 Display and General menu pg. 123

03 GPS

pg. 126

04 Trafﬁ c information

pg. 135

05 Audio/Video

pg. 137

06 Telephone

pg. 145

07 Trip computer

pg. 150

08 Steering wheel controls pg. 152

09 Conﬁ guration

pg. 154

10 Display ﬂ ow charts

pg. 155

Frequently asked questions pg. 160

JBL equipment

pg. 164

122

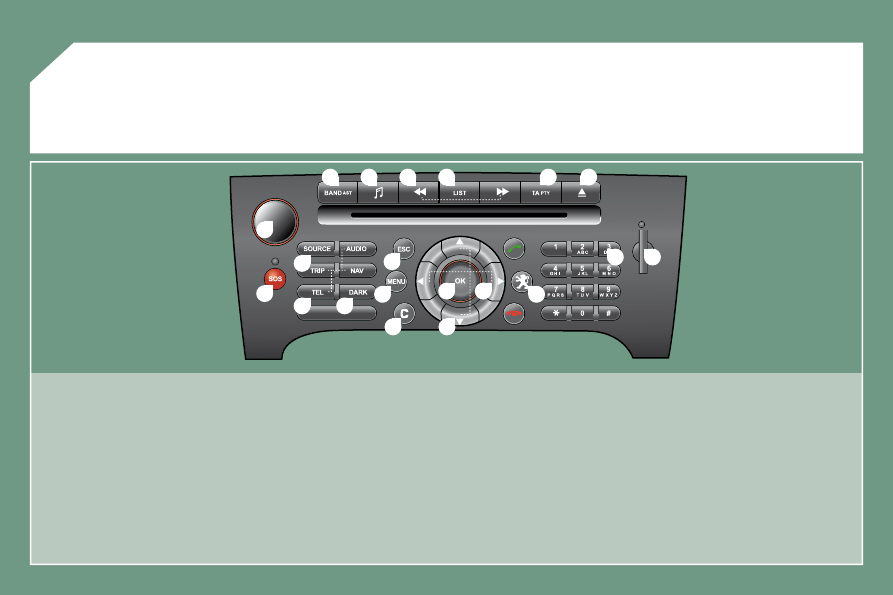

On/Off and Volume adjustment.

Selection of the wavebands FM1, FM2, FMast, AM.

Audio option adjustments: front/rear, left/right balance,

loudness, sound ambiences.

Automatic search for a lower/higher frequency.

Selection of the previous/next CD, MP3 or Jukebox track.

Displaying of the list of local radio stations, of the tracks on

the CD or of the MP3/Jukebox folders.

Long press: updating of the local radio stations.

TA (Trafﬁ c Announcement) function on/off.

Long press: access to the PTY (radio Programme TYpes)

mode.

Ejection of the CD.

SIM card slot.

Keypad for entering descriptions by successive presses.

10. Access to the "PEUGEOT" services menu.

11. Selection of a lower/higher frequency.

12. Selection and conﬁ rmation.

13. Selection of the previous/next CD.

Selection of the previous/next MP3/Jukebox folder.

14. Cancellation of the current operation.

Long press: return to the current application.

15. Displaying of the general menu.

16. Deletion of the last character entered or of the entire line.

17. Modiﬁ cation of the screen display.

Long press: reinitialisation of the RT4 GPS audio/telephone.

18. Selection of the source: radio, Jukebox, CD, CD changer

and auxiliary (AUX, if activated on the Conﬁ guration menu).

Long press: CD copy to hard disc.

19. Selection of the display on the screen from the modes:

TRIP, TEL, NAV and AUDIO.

20. Long press on the SOS button: emergency call.

FIRST STEPS

123

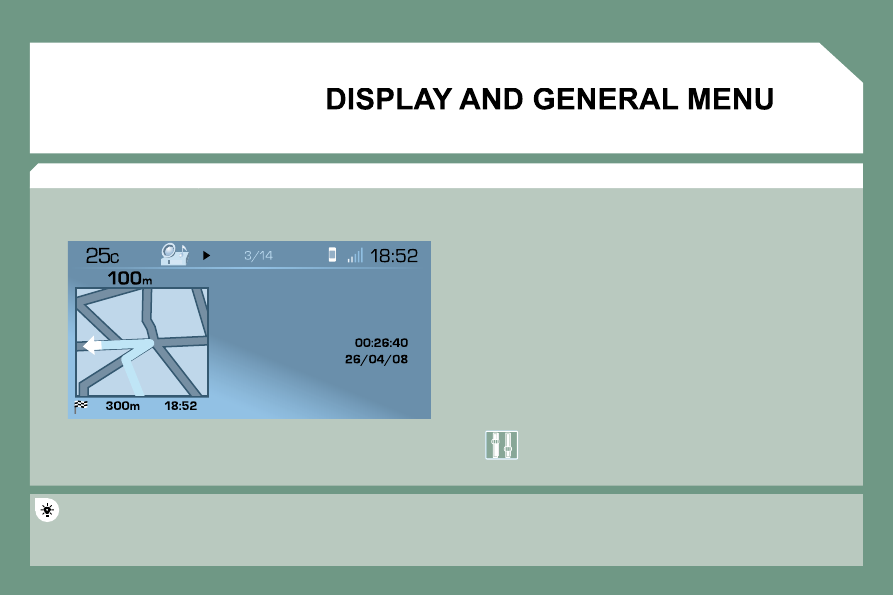

> COLOUR SCREEN

  This displays the following information, via the audio control panel:
   -   time,
  -   date,

- ambient temperature (if there is a risk of ice, you are warned by a

message),

- audio source displays (radio, CD, jukebox, ...),

- telematic system displays (telephone, services, ...),

- check of openings (doors, boot, ...),

- warning messages (e.g.: "Fuel level low") and vehicle function status

messages (e.g.: "Auto lighting activated") displayed temporarily,

- trip computer information,

- GPS (Europe) satellite navigation system information.

New

The system uses the complete and detailed NAVTEQ maps installed directly on the equipment’s hard disc. There is no need to keep a mapping CD

in the CD player. Updates of the maps of France and of the other European countries, offered by our partner NAVTEQ, will be available from the

PEUGEOT network.

Screen conﬁ guration: refer to the section - Display ﬂ ow

charts.

Telephone

Orange

Time:
Date:

124

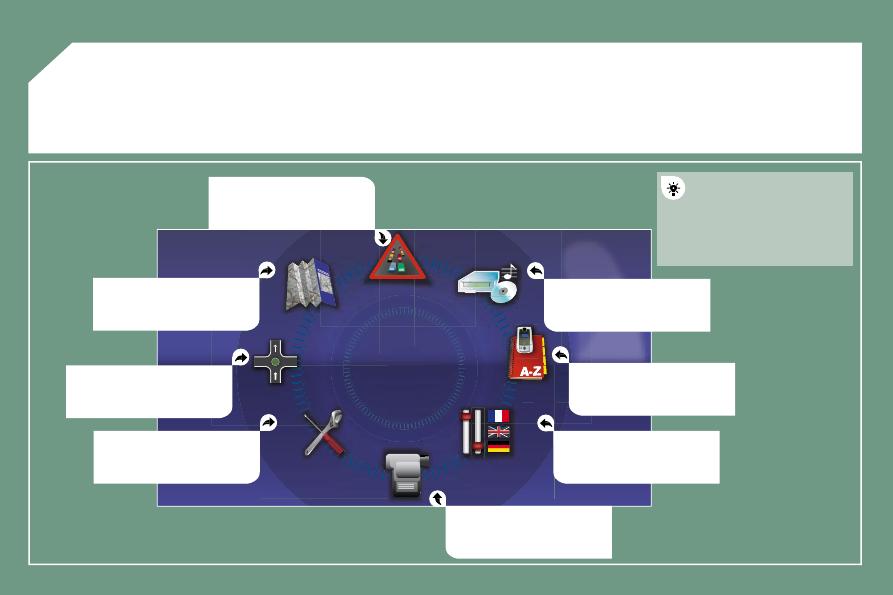

02 GENERAL MENU

MAP:

orientation, details, display.

AUDIO FUNCTIONS:

radio, CD, Jukebox, options.

For maintenance of the
display, the use of a

soft, non-abrasive cloth

(spectacles cloth) is
recommended without any

additional product.

TELEMATIC:

telephone, directory, SMS.

CONFIGURATION:

vehicle, display, time,

languages, voice, auxiliary

socket (AUX) parameters.

VIDEO:

activation, parameters.

VEHICLE DIAGNOSTICS:

warnings log, status of the

functions.

NAVIGATION GUIDANCE:

GPS, stages, options.

TRAFFIC INFORMATION:

TMC information,

messages.

125

02 DISPLAY AND GENERAL MENU

Press the OK dial to access short-cut

menus according to the display on the

screen.

INTERNAL TELEPHONE:

call list

dial

phone book

voice mail

NAVIGATION (IF NAVIGATION IS IN PROGRESS):

resume/stop guidance

divert route

route type

consult trafﬁ c info

zoom/scroll map

TRIP COMPUTER:

alert log

status of functions

BLUETOOTH TELEPHONE:

call list

call

phone book

private mode/hands-free mode

place call on hold/resume call

CD (MP3 OR AUDIO):

copy CD to JBX/stop copy

activate/deactivate Introscan

activate/deactivate random play

activate/deactivate repeat

RADIO:

enter a frequency

activate/deactivate RDS

activate/deactivate REG mode

hide/display "Radio Text"

JUKEBOX:

select playlist

activate/deactivate Introscan

activate/deactivate random play

activate/deactivate repeat

USB:

copy USB to JBX/stop copy

eject USB

activate/deactivate Introscan

activate/deactivate random play

activate/deactivate repeat

DISPLAY ACCORDING TO THE CONTEXT

IN "ZOOM/SCROLL" MODE:

position info

select as destination

select as stage

store this position

exit map mode

guidance option

126

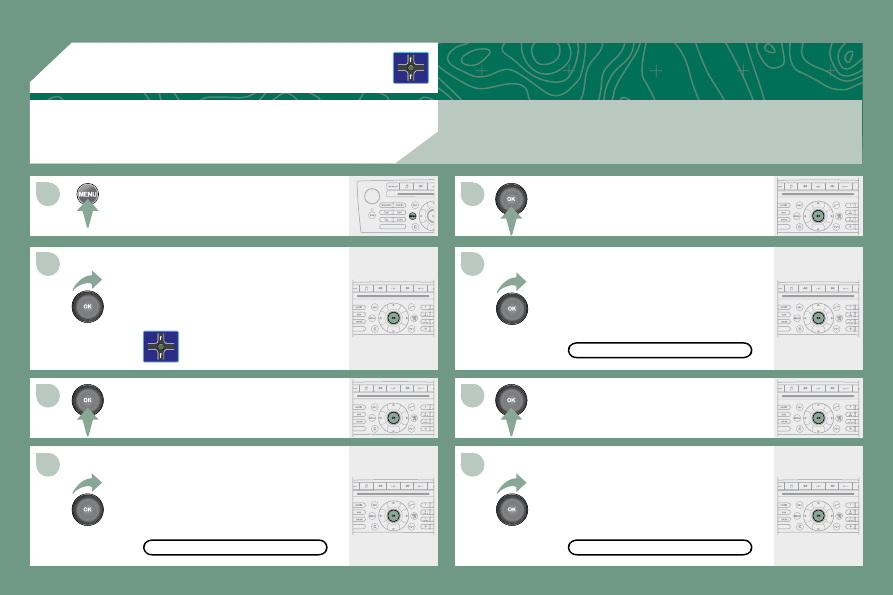

SELECTING A DESTINATION

Tip: for a detailed global view of the menus available, refer to the "Display ﬂ ow charts" part of this
PC Com section.

Press the MENU button.

Turn the dial and select the

NAVIGATION GUIDANCE function.

Press the dial to conﬁ rm the selection.

Turn the dial and select the

DESTINATION CHOICE function.

Press the dial to conﬁ rm the selection.

Turn the dial and select the

ENTER AN ADDRESS function.

When the country has been selected,

turn the dial and select the TOWN

function.

GPS

TOWN

ENTER AN ADDRESS

DESTINATION CHOICE

Peugeot 607 Dag (2009 year). Instruction - part 9
