Peugeot 607 Dag (2009 year). Instruction

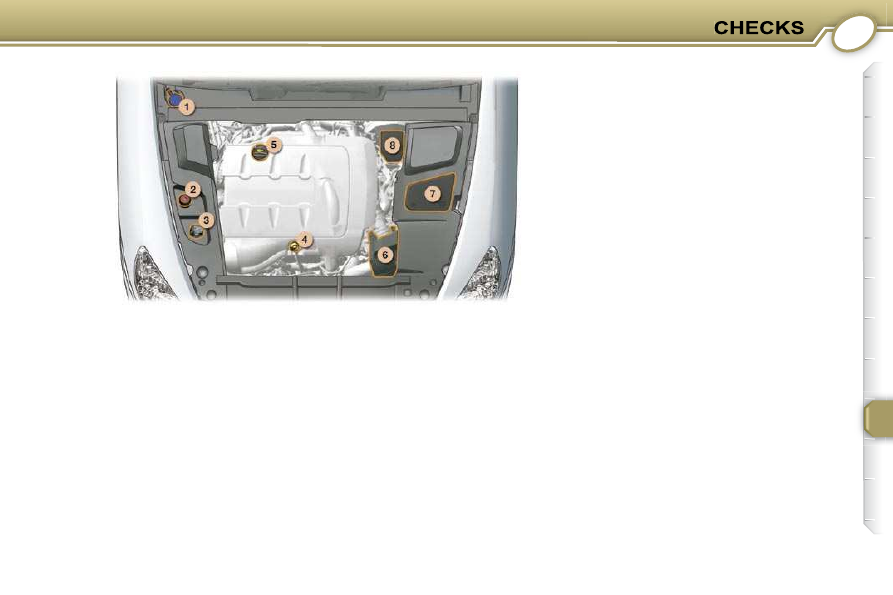

2.7 LITRE V6 24V HDI DIESEL
ENGINE

1. Windscreen/headlamp wash

reservoir.

2. Power steering reservoir.

3. Coolant reservoir.

4. Dipstick.

Engine oil ﬁ ller cap.

Air ﬁ lter.

7. Fuse box.

Brake ﬂ uid reservoir.

CHECKING THE LEVELS

There  are  two  marks  on
the dipstick:
  A  = maximum
Never ﬁ ll past this mark.
  B  = minimum
To  maintain  the  reliability
of  engines  and  emission
control  systems,  the  use
of additives in engine oil is
prohibited.

Dipstick

  Oil change
According  to  the  information  given  in
the servicing booklet.

The level must always be between the
DANGER and MAXIMUM marks in the
reservoir.
If the level drops substantially, contact
a PEUGEOT dealer immediately.

Windscreen and headlamp
wash level

For best quality cleaning and for your
safety, we advise that you use prod-
ucts recommended by PEUGEOT
(reservoir capacity 4 litres or 6.5 litres
with headlamp wash).

Viscosity selection
In all cases, the oil selected must meet
the manufacturer's requirements.

Fluid change:
-

must be carried out according
to the manufacturer's servicing
schedule.

- use ﬂ uids recommended by the

manufacturer, which fulﬁ l DOT4

standards.

Used oil

Prevent used oil from coming
into prolonged contact with
the skin.

Brake and clutch ﬂ uid is harmful to

health and very corrosive.
Do not dispose of used oil, brake and

clutch ﬂ uid or coolant into drains or

onto the ground.

Power steering reservoir

 Open the reservoir, with the engine

cold  at  ambient  temperature.  The
level  should  always  be  above  the
MINI  mark  and  close  to  the  MAXI
mark.

Oil level

 Check the level regularly and top

up between changes.

Carry  out  this  check  with  the  vehicle
level,  engine  cold,  using  the  oil  level
gauge  on  the  instrument  panel  or  the
dipstick.

Characteristics of the ﬂ uid
For best quality cleaning and to pre-

vent freezing, this ﬂ uid must not be

topped up or replaced with water.

CHECKS

Handbrake

Where the handbrake travel
is too great or there is a re-

duction in the performance of the
system, the handbrake should be ad-
justed. Have the system checked by a
PEUGEOT dealer.

Only  use  products  recom-
mended  by  PEUGEOT  or
products  of  equivalent  quality

and speciﬁ cation.

To ensure best performance from
components as important as the pow-
er steering and the braking system,

PEUGEOT selects and offers speciﬁ c

products.
To prevent damage to the electrical
units, high pressure washing of the en-
gine compartment is strictly prohibited .

In order to check the main levels
and certain components, in accord-
ance with the manufacturer's servi-
cing schedule, refer to the pages of
the servicing booklet which corres-
pond to your vehicle's engine.

Battery

At  the  start  of  winter,  have
your  battery  checked  by  a
PEUGEOT dealer.

Air filter and passenger
compartment filter

Have the ﬁ lter elements re-

placed regularly. If you drive

in dusty conditions, change them
twice as often .

Particulate emission filter -
Additive reservoir (Diesel)

Maintenance of the particulate emis-

sion ﬁ lter and ﬁ lling of the additive

reservoir  must  be  carried  out  by  a
PEUGEOT  dealer,  according  to  the
manufacturer's servicing schedule.

Brake pads

Brake pad wear depends on
the style of driving, in particu-

lar for vehicles which are used in town,
over short distances.

Manual gearbox

This  does  not  need  an  oil  change.
Have  the  level  checked,  according  to
the manufacturer's servicing schedule.

Automatic gearbox

This does not need an oil change. Have
the level checked by a PEUGEOT
dealer, according to the manufacturer's
servicing schedule.

Oil filter

Change the ﬁ lter regularly, in accord-

ance with the servicing schedule.

It may be necessary to check
the thickness of the pads,
even between services.

Disc wear condition

For any information relating to check-
ing of the disc wear condition, contact
a PEUGEOT dealer.

100

  Access to the spare wheel and the
jack in the boot
      Detach the luggage net.
     Lift the boot carpet using the lifting

hook. Secure this hook behind the
boot seal.

CHANGING A WHEEL

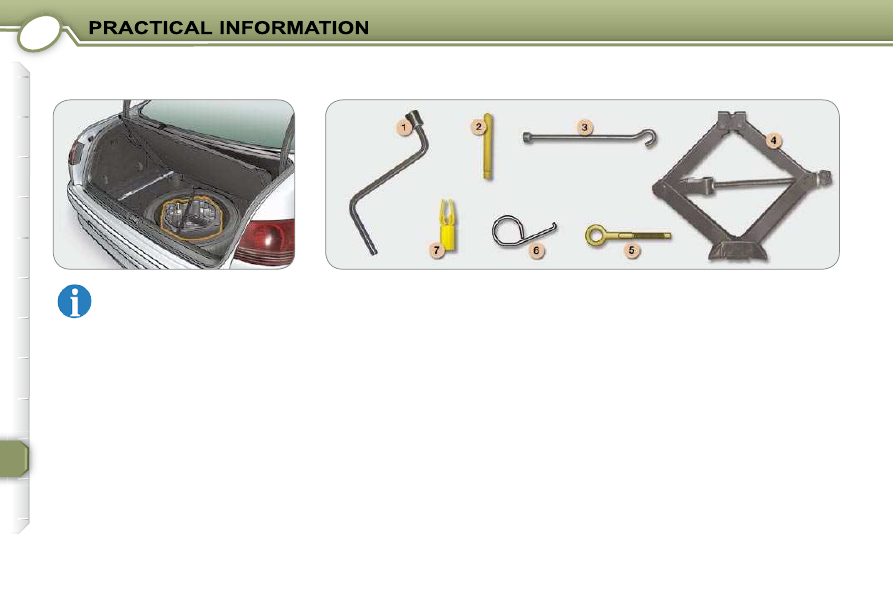

  Tools available
The  following  tools  are  located  in  the
polystyrene holder in the centre of the
spare wheel:
   1.   Wheelbrace.
  2.   Centralising tool.
  3.   Wheelbrace extension.
  4.   Jack.
  5.   Removable towing eye.
  6.   Alloy wheel trim remover.
  7.   Trim cover tool.

Removal


For vehicles with alloy wheels ﬁ tted

with wheel trims, pull the centre trim
by using tool 6 in one of the holes.

     Loosen the wheel bolts.
     Take the jack  4  from the tool kit  .

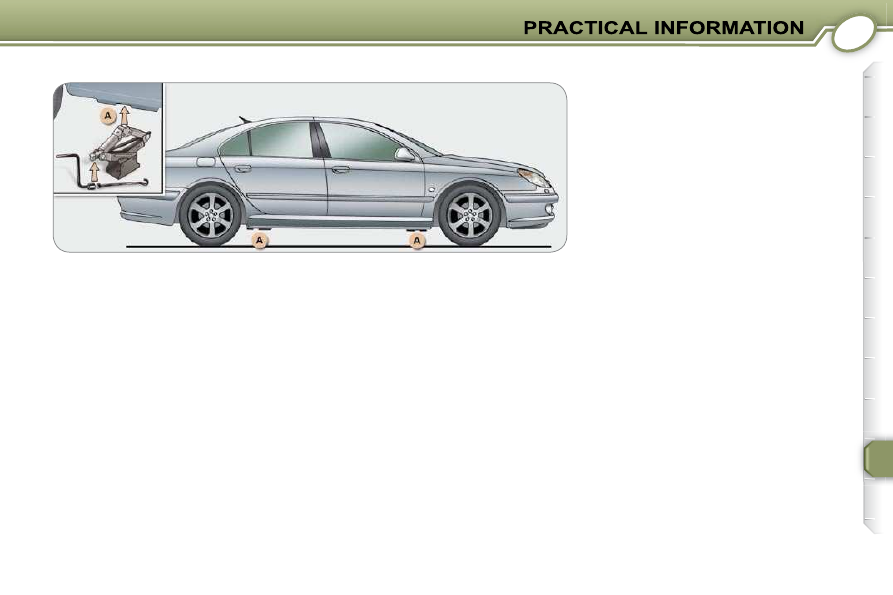

     Place  the  jack  in  one  of  the  four

locations A underneath the vehicle
(the nearest one to the wheel to be
changed).

 Extend the jack using wheelbrace 1

and the extension 3 .

 Remove a wheel bolt at the top

and ﬁ t the centralising tool 2 in its

place.

 Unscrew the other bolts and remove

the wheel.

Park the vehicle so that it does

not obstruct trafﬁ c: the ground

must be level, stable and non-
slippery.

Apply the handbrake, switch off the igni-

tion and engage ﬁ rst or reverse gear (po-

sition P for the automatic gearbox).
It is imperative to ensure that the occu-
pants get out of the vehicle and wait in
a safe location.
Never go underneath a vehicle which is
supported only by a jack; use a ramp.
The jack and all of the tools are speciﬁ c

to your vehicle. Do not use them for other
purposes.

101

Fitting a wheel

 Put the tool holder back in position.

This helps to keep the boot ﬂ oor in its

correct position, to prevent any defor-

mation of the ﬂ oor when loaded.

 Tighten the spare wheel securing

strap to prevent noise and for your
safety in the event of impact.

After changing the wheel:
-

have the tightening of the bolts and
the tyre pressure checked by a
PEUGEOT dealer as soon as pos-
sible,

have the punctured wheel repaired

and reﬁ t it to the vehicle as soon as

possible,

the steel spare wheel must only be
used for a very short time.

 Position the wheel using the cen-

tralising tool 2 to assist you.

 Tighten the bolts by hand and re-

move the centralising tool.

 Partly tighten the bolts using the

wheelbrace 1 .

 Fold the jack 4 and remove it.
 Fully tighten the bolts using the

wheelbrace.

 Replace the wheel trim.
 For the alloy trims, position the re-

moval hole opposite the valve.

Tyres ﬁ tted with the Tyre

Under-Inﬂ ation Detection System.
These wheels have a pressure sensor.
Have them repaired by a PEUGEOT
dealer.

102

Special features of alloy

wheels

Fitting the spare wheel

Anti-theft bolts

Fitting snow tyres
If you wish to ﬁ t snow chains on your

vehicle, contact a PEUGEOT dealer

to ﬁ nd out which models are recom-

mended for your vehicle.

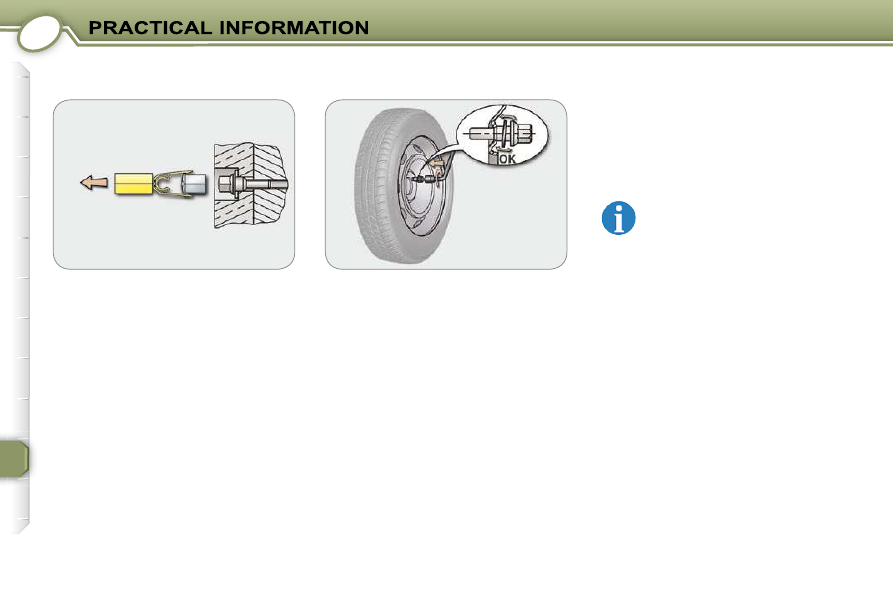

  Bolt covers
Alloy wheel bolts are covered by chrome
trims.
Use  the  yellow  tool  7  to  remove  the
trims before slackening the bolts.

If your vehicle is ﬁ tted with a steel spare

wheel, when ﬁ tting it, it is normal to no-

tice when tightening the bolts that the
washers do not come into contact with
the rim. The spare wheel is secured by
the cone-shape of each bolt.

If your wheels are ﬁ tted with an anti-theft

bolt (one per wheel), the chrome trim
must be removed using the yellow tool,
before unscrewing the bolt using the
anti-theft socket and the wheel brace.

  Note:   the  anti-theft  socket
was  given  to  you  on  delivery
of your vehicle  along  with the

duplicate keys and the conﬁ -

dential card.

Make  a  careful  note  of  the  code
number  engraved  on  the  head  of  the
anti-theft  socket.  This  will  enable  you
to  obtain  a  duplicate  socket  from  a
PEUGEOT dealer.

103

CHANGING A BULB

2 - Main beam headlamps: H1-55 W.
 Turn the protective cover of the

faulty bulb a quarter of a turn and
remove it.

 Disconnect the connector.
 Press the end of the securing clip

to free it. Change the bulb.



When ﬁ tting the new bulb, ensure

that the direction notches are po-
sitioned correctly and the securing

clip is ﬁ xed properly.

 Reconnect the connector.


Reﬁ t the protective cover.

  3 - Side lights: W 5 W.
      Pull the socket rearwards.
     Remove the bulb and change it.

Front foglamps: H1-55 W.

Handle the bulbs with a dry
cloth.
The headlamps are ﬁ tted with

polycarbonate glass with a

protective coating. Do not clean them
with a dry or abrasive cloth, nor with a
detergent or solvent product.
Use a soft, damp cloth with soapy water.

In the engine compartment, remove
the style cover secured by one or two

butterﬂ y screws, a plastic retainer clip

and two quarter turn screws.
On the left-hand side, remove the par-
tition by lifting it to gain access to the
lights.
When you have ﬁ nished, do not forget

to put everything back correctly.

WARNING: RISK OF ELEC-

TROCUTION
Xenon bulbs must be replaced
by a PEUGEOT dealer.

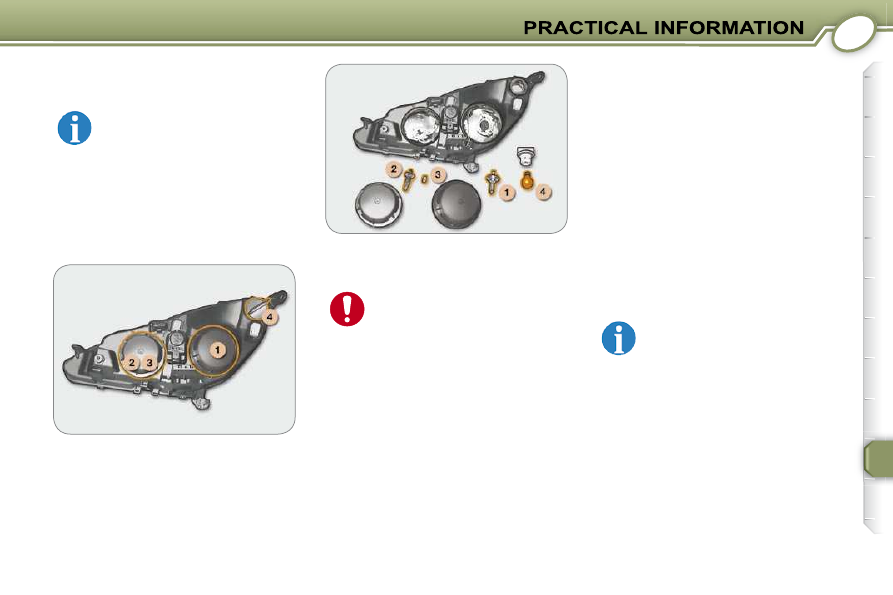

Front lights

1 - Dipped beam headlamps:

Xenon bulb.

4 - Direction indicators:

PY 21 W (amber).

 Turn the bulb holder a quarter turn

and remove it.

 Remove the bulb and change it.


Reﬁ t the style cover.

High pressure washing
When  using  this  type  of  washing  on
stubborn  dirt,  do  not  persist  on  the
headlamps,  the  lights  and  their  sur-
rounds  to  avoid  damaging  their  var-
nish and their seal.

In  certain  climatic  conditions
(low  temperature,  humidity),
condensation  on  the  inside
surface  of  the  glass  of  the

headlamps and rear lights is normal;
it disappears a few minutes after the
lights are switched on.

104

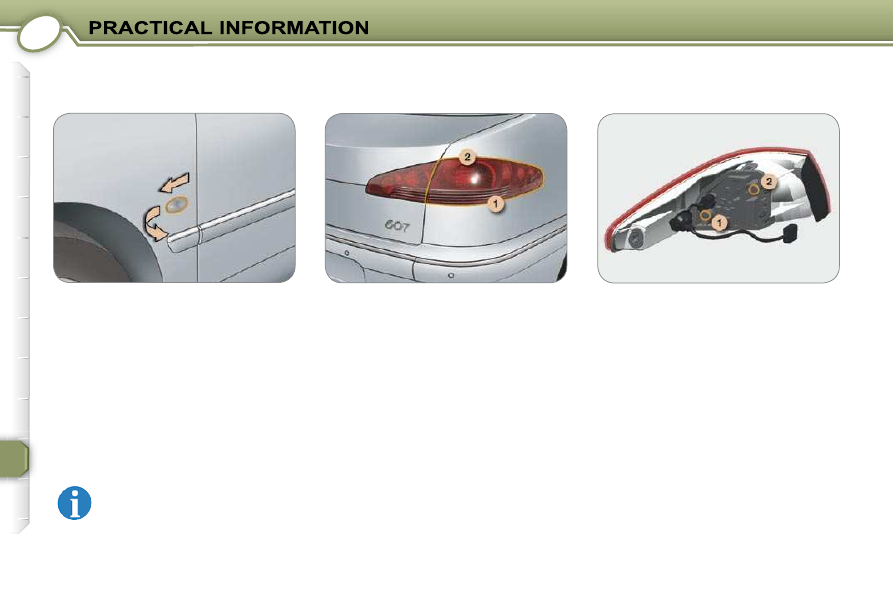

Integrated direction indicator
repeaters

  Amber  coloured  bulbs,  such
as the direction indicators and
side  repeaters,  must  be  re-
placed  with  bulbs  of  identical

speciﬁ cation and colour.

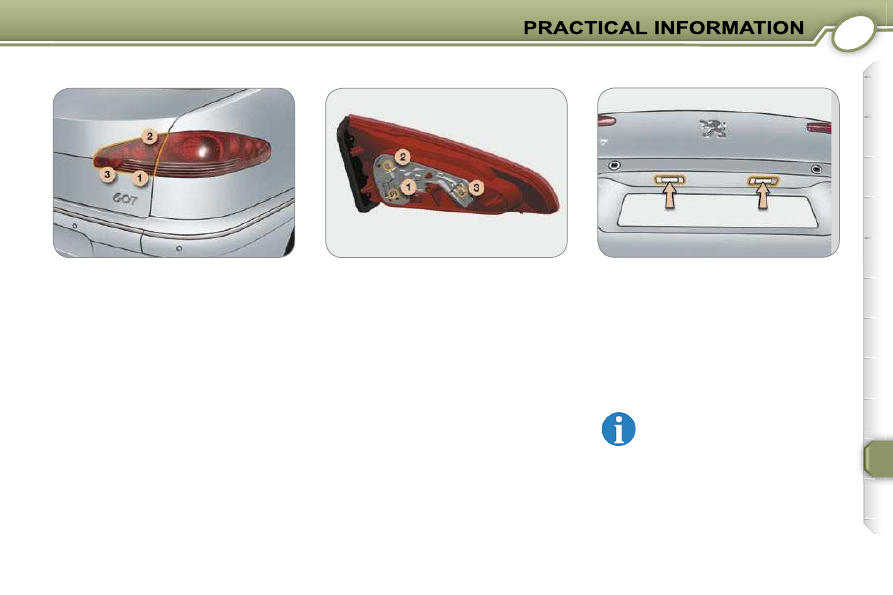

Rear lights



Remove the two butterﬂ y nuts se-

curing the light.

     Remove the eyelet.
     Take out the lamp.
     Unclip the bulb holder.
     Change the faulty bulb.
     Clip the bulb holder.
When reﬁ tting it, ensure that the lamp

is correctly positioned and secured.

Direction indicators: Hp16.

  2.    Brake lights/side lights: Hp16.
      Detach the luggage net.
     Lift  the  boot  carpet  with  the  lifting

hook. Secure this hook behind the
boot seal.

 Unclip the lower part of the sill trim,

then dislodge it by pulling upwards.

 Remove the plastic retainer clip

securing the side trim to the ﬂ oor.

 Unclip the side trim.

 Push the repeater forwards and re-

lease it.

 Remove the repeater and change it.
This can be obtained from a PEUGEOT
dealer.

Rear wing lights

104

Integrated direction indicator
repeaters

  Amber  coloured  bulbs,  such
as the direction indicators and
side  repeaters,  must  be  re-
placed  with  bulbs  of  identical

speciﬁ cation and colour.

Rear lights



Remove the two butterﬂ y nuts se-

curing the light.

     Remove the eyelet.
     Take out the lamp.
     Unclip the bulb holder.
     Change the faulty bulb.
     Clip the bulb holder.
When reﬁ tting it, ensure that the lamp

is correctly positioned and secured.

Direction indicators: Hp16.

  2.    Brake lights/side lights: Hp16.
      Detach the luggage net.
     Lift  the  boot  carpet  with  the  lifting

hook. Secure this hook behind the
boot seal.

 Unclip the lower part of the sill trim,

then dislodge it by pulling upwards.

 Remove the plastic retainer clip

securing the side trim to the ﬂ oor.

 Unclip the side trim.

 Push the repeater forwards and re-

lease it.

 Remove the repeater and change it.
This can be obtained from a PEUGEOT
dealer.

Rear wing lights

105

 Remove the three plastic retainer

clips securing the cover trim (those
nearest to the lamp).

     Move aside the trim.
     Disconnect the lamp harness.
     Extract the lamp from its housing.
  

Remove the ﬂ at seal.

     Unclip the bulb holder.
     Change the faulty bulb.
     Clip the bulb holder.
  

Put the ﬂ at seal back in place.

When reﬁ tting it, ensure that the lamp

is correctly positioned and secured.

Number plate lights: W 5 W.
 Remove the transparent cover using

a screwdriver blade.

 Change the faulty bulb.

Boot lid lights

1. Reversing lights: Hp16.

Side lights: Hp16.

3. Fog lamps: Hp16.

If you encounter any difﬁ culties,

contact a PEUGEOT dealer.

106

CHANGING A FUSE

The fuse boxes are placed in the lower
part of the fascia (driver's side), in the
engine compartment (left-hand side)
and in the left boot trim.

Replacing a fuse

Before replacing a fuse, the cause of
the incident must be found and recti-

ﬁ ed. The fuse numbers are indicated

on the fuse box.

Correct

Incorrect

Fuse N°

Rating

Functions

F31

5 A

Right-hand brake light.

F32

5 A

Left-hand brake light.

F33

5 A

Third brake light.

F34

Not used.

F35

5 A

Tyre under-inﬂ ation detection control unit, CD changer.

F36

30 A

Passenger seat relay.

F37

30 A

Passenger and rear right heated seats.

F38

30 A

Driver's and rear left heated seats.

F39

30 A

Driver's seat relay.

F40

5 A

Diagnostics socket.

Always replace a faulty fuse
with a fuse of the same rating
(same colour).
Use the special pliers located

on the support next to the fuse box,
this support also contains the replace-
ment fuses.

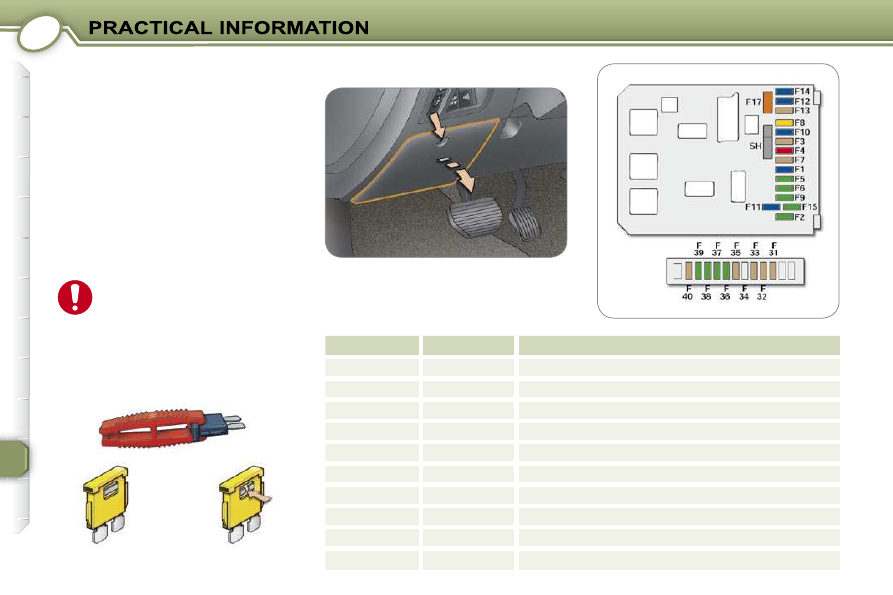

Fascia fuses

To  access  the  fuses,  open  the  cover
of  the  storage  compartment  on  the
driver's  side.  Tilt  the  fuse  box  down-
wards.

106

CHANGING A FUSE

The fuse boxes are placed in the lower
part of the fascia (driver's side), in the
engine compartment (left-hand side)
and in the left boot trim.

Replacing a fuse

Before replacing a fuse, the cause of
the incident must be found and recti-

ﬁ ed. The fuse numbers are indicated

on the fuse box.

Correct

Incorrect

Fuse N°

Rating

Functions

F31

5 A

Right-hand brake light.

F32

5 A

Left-hand brake light.

F33

5 A

Third brake light.

F34

Not used.

F35

5 A

Tyre under-inﬂ ation detection control unit, CD changer.

F36

30 A

Passenger seat relay.

F37

30 A

Passenger and rear right heated seats.

F38

30 A

Driver's and rear left heated seats.

F39

30 A

Driver's seat relay.

F40

5 A

Diagnostics socket.

Always replace a faulty fuse
with a fuse of the same rating
(same colour).
Use the special pliers located

on the support next to the fuse box,
this support also contains the replace-
ment fuses.

Fascia fuses

To  access  the  fuses,  open  the  cover
of  the  storage  compartment  on  the
driver's  side.  Tilt  the  fuse  box  down-
wards.

107

Fuse N°

Rating

Functions

15 A

Front wash-wipe pump and wash-wipe ﬂ uid level sensor.

30 A

Locking and deadlocking earth.

5 A

Air bags.

10 A

Clutch switch, brake dual-function switch, diagnostic connector, ESP sensor,
electrochromatic mirror.

30 A

Front electric windows and sunroof supply.

30 A

Rear electric windows supply.

5 A

Glove box switch, courtesy lights, map reading lights, courtesy mirrors.

20 A

Multifunction display supply, steering wheel control, alarm siren, trailer fusebox supply,
PC Com, electric mirror and front and rear electric window controls.

30 A

Front and rear lighters (100 W max.).

F10

15 A

Additive reservoir control unit supply.

F11

15 A

Automatic gearbox control unit, automatic gearbox positions selection switch, ignition switch.

F12

15 A

Trailer fusebox supply, hands-free kit, seats relay, seat memory unit, rain and brightness
sensor.

F13

5 A

Engine fusebox supply.

F14

15 A

Parking assistance control unit supply, instrument panel, air conditioning, air bags and
pre-tensioners unit.

F15

30 A

Locking and deadlocking supply.

F17

40 A

Hi-Fi ampliﬁ er, heated mirrors.

108

Engine compartment fuses

Fuse N°

Rating

Functions

20 A

Engine management control unit.

15 A

Horn.

10 A

Rear electric blind.

20 A

Headlamp wash.

15 A

Fuel pump (except 2 litre HDI 16V), diesel heater (2 litre HDI 16V), turbocharger and diesel
pre-heat unit (2.7 litre HDI 24V).

10 A

Power steering, suspension control unit, automatic gearbox, automatic headlamp
adjustment unit.

10 A

ESP control unit.

25 A

Starter coil.

10 A

Coolant level sensor, passenger compartment heating (HDI), STOP switch.

F10

30 A

Engine management actuators (injectors, ignition coil, solenoid valves, oxygen sensors).

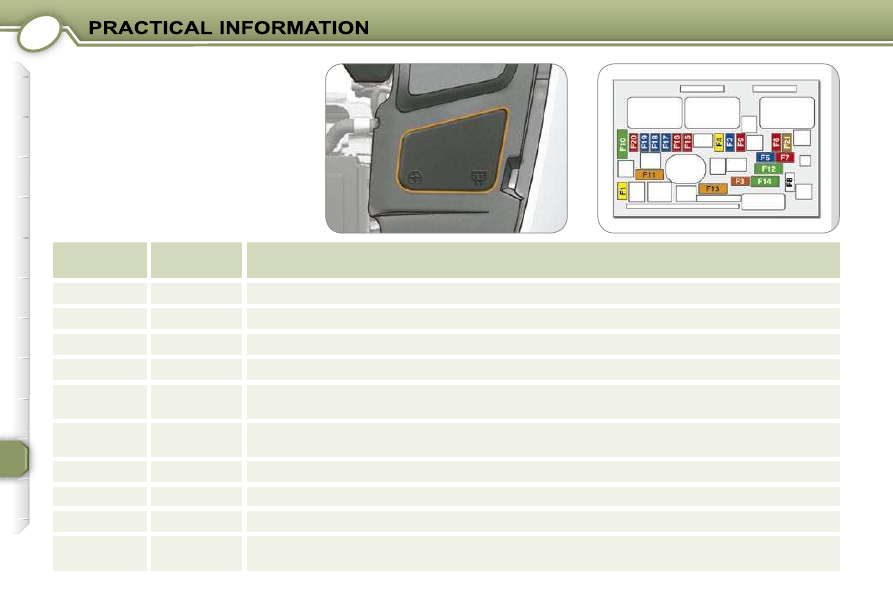

To access the fuses located in the en-
gine compartment, remove the cover
and unclip the fuse box lid.
When you have ﬁ nished, close the lid

carefully to guarantee the sealing of

the fuse box and reﬁ t the cover.

109

The electrical system of your vehicle is designed to operate with standard or optional equipment.
Before installing other electrical equipment or accessories on your vehicle, contact a PEUGEOT dealer.

Fuse N°

Rating

Functions

F11

40 A

Air conditioning blower relay.

F12

30 A

Wipers relay.

F13

40 A

Built-in systems interface supply (ignition positive).

F14

30 A

Air pump.

F15

10 A

Right-hand main beam headlamp.

F16

10 A

Left-hand main beam headlamp.

F17

15 A

Left-hand dipped headlamp.

F18

15 A

Right-hand dipped headlamp.

F19

15 A

Oil vapour heater (2 litre HDI 16V), inlet air heating solenoid valve (2 litre HDI 16V), air ﬂ ow

sensor (2 litre HDI 16V and 2.7 litre V6 HDI 24V), oxygen sensor.

F20

10 A

Water in diesel sensor (2 litre HDI 16V) injection pump (2.7 litre V6 HDI 24V), turbo
regulation solenoid valve (2 litre HDI 16V).

F21

10 A

Fan assembly relay control, additional fan assembly (2.7 litre V6 HDI 24V).

PEUGEOT will not accept responsibility for the cost incurred in repairing your vehicle or for rectifying the malfunctions resulting
from the installation of accessories not supplied and not recommended by PEUGEOT and not installed in accordance with its
instructions, in particular when the combined consumption of all of the additional equipment connected exceeds 10 milliamperes.

110

CHANGING A WINDSCREEN

WIPER BLADE

Placing the wiper blades in the
maintenance position
 Less than one minute after switching

off the ignition, press the windscreen
wiper stalk down once to position the
blades at the top of the windscreen
(maintenance position).

ENERGY ECONOMY MODE

After  the  engine  has  stopped,  certain
functions  (windscreen  wiper,  elec-
tric  windows,  sunroof,  electric  seats,
audio  equipment,  telephone,  dipped
headlamps,  video,  etc.)  can  only  be
used  for  a  limited  combined  duration,
to prevent discharging of the battery.
Once  this  period  has  elapsed,  a
switching to economy mode message
appears  on  the  multifunction  display
and  the  active  functions  are  put  on
standby.
These  functions  are  reactivated  au-
tomatically  next  time  the  vehicle  is
driven.
In order to exit the economy mode and
resume the use of these functions im-
mediately, the engine must be started
and left to run for a few minutes.
If  the  engine  has  been  running  for  at
least  10  minutes,  all  of  the  functions
are active for 30 minutes.
If  the  engine  has  been  running  for
less  than  10  minutes,  this  duration
before  returning  to  economy  mode  is
5  minutes.

All of these functions are
available when the engine is
running.
If the telephone is being used

when economy mode starts, it will still

be possible to ﬁ nish the call.

LOAD REDUCTION FUNCTION

When driving, certain functions (air con-
ditioning,  heated  rear  screen,  heating
system  for  passenger  compartment  of
diesel  vehicles,  etc.)  may  be  switched
off  temporarily,  depending  on  the  level
of battery charge.
Reactivation  of  these  functions  is  au-
tomatic,  once  the  battery  charge  is

sufﬁ cient.

Note: at the risk of discharging the
battery, the functions that have been
switched off may be reactivated manually.

Replacing a blade
 Lift the arm, then unclip the blade

and remove it.

 Fit the new blade and fold down

the arm.

To reposition the blades, switch on the
ignition and operate the windscreen
wiper stalk.

A ﬂ at battery prevents the en-

gine from starting.
If the doors or boot are opened
several times or if the alarm is

triggered, this may result in activation
of the energy economy mode.

Peugeot 607 Dag (2009 year). Instruction - part 8
