Peugeot 508 Hybrid Dag (2012.5). Instruction

255

04 NAVIGATION - GUIDANCE

UPDATING THE RISK AREAS POIs

The detailed procedure is available from PEUGEOT dealers.

The fi les must be copied to the root on the chosen medium.

Successful downloading is confi rmed by a message.
The medium used must not contain any other data.

Insert the medium (CD ROM or USB memory stick)

containing the POI database into the system's CD

player or USB port.
The system detects the medium inserted

automatically. Confi rm the start of the update by

validating "YES".

Download the "Risk areas POIs" update fi le onto a

CD ROM or USB memory stick from the Internet.
This service * is available at http://peugeot.navigation.com

or https://www.peugeot-connect-downloads.co.uk.

* Available in certain countries.

256

04 NAVIGATION - GUIDANCE

ALERT PARAMETERS
RISK AREAS

Press NAV to display the "Navigation -

guidance" menu.

Select:
-

"Visual alert"

"Audible alert"

"Alert only in guidance"

"Overspeed alarm only".

The choice of time of notifi cation defi nes

how long in advance that Risk area

warnings are given.
Select " OK " to confi rm the screen.

Select " Guidance options " and confi rm,

then select "Set parameters for risk

areas " and confi rm.

These functions are only available if risk areas have been

downloaded and installed on the system.
The detailed procedure for updating risk area POIs can be found at

www.peugeot.com.

257

04 NAVIGATION - GUIDANCE

ADDING A STAGE

Press NAV to display the "Navigation -

guidance" menu.

Select " Journey leg and route " then

confi rm.

Select " Close to " a route passing

close to the stage or "Strict " for a route

passing through the stage.
Confi rm " OK " to start the guidance, and

give a general indication of the guidance

route.

Select " Add a stage " then confi rm .
The address of the stage is entered as

a destination, by " Enter an address",

a contact in "Directory ", or "Previous

destinations".

ORGANISING STAGES

To organise stages, carry out

operations 1 to 2 again, then select

" Order/delete journey legs" and

confi rm.

Select and confi rm to save the

modifi cations.

Select the stage that you want to move

in the order.

Select "Delete " to delete the stage.

258

04 NAVIGATION - GUIDANCE

ROUTE OPTIONS

CALCULATION CRITERIA

Select " Guidance options " and confi rm.

Select " OK " and confi rm to save the

modifi cations.

Select " Defi ne calculation criteria" and

confi rm.
This function allows modifi cation of:
- the

guidance criteria: (" Fastest

route", " Shortest route",

"Distance/Time "),

the exclusion criteria: (" With tolls"

or "With Ferry "),

- traffi c avoidance: (" Traffi c info ").

Press NAV to display the " Navigation -

guidance" menu.

If traffi c avoidance (Traffi c info) is selected, the system suggests

an alternative route if there is a delay on the guidance route.

259

04 NAVIGATION - GUIDANCE

Press NAV to display the " Navigation -

guidance" menu.

MAP MANAGEMENT

SELECTING THE POINTS OF INTEREST DISPLAYED

ON THE MAP

Select " Map management " and confi rm.

Select from the various categories the

ones that you want to display on the

screen.

Select " Map details " and confi rm.

Select " By default" to have only "Oil stations, garages" and

"Accident-prone area " appear on the map (if installed in the

system).

Select " OK " then confi rm and select

"OK" again then confi rm to save the

modifi cations.

260

Select " Map management " and confi rm.

Select:
-

"Vehicle direction" to have the map

follow the direction of travel,

"North direction" to keep the map

always North up,

"Perspective view " to display a

perspective view.

Select " Map orientation" and confi rm.

The colour of the map, different from the day and night mode, is

confi gured in the " SETUP" menu.

MAP ORIENTATION

Press NAV to display the " Navigation -

guidance" menu.

Street names are visible on the map from the 100 m scale.

261

04 NAVIGATION - GUIDANCE

Press NAV to display the " Navigation -

guidance" menu.

ADJUSTING THE GUIDANCE SPEECH SYNTHESIS

Select " Guidance options " and confi rm.

ADJUSTING THE VOLUME/DEACTIVATION

Select " Set speech synthesis" and

confi rm.

Select the volume graph and confi rm.

Select "Deactivate " to deactivate voice messages.

Select " OK " and press the dial to

confi rm.

Adjust the volume to the desired level

and confi rm.

The volume of messages can be adjusted during the transmission

of the message using the volume adjustment control.

The volume setting of guidance messages is also accessible via the

"SETUP" /" Voice synthesis " menu.

262

04 NAVIGATION - GUIDANCE

MALE VOICE / FEMALE VOICE

Press SETUP to display the

confi guration menu.

Select "Select male voice " or "Select

female voice" then confi rm " Yes

to activate a male or female voice.

The system restarts.

Select "Voice synthesis " and confi rm.

263

05 TRAFFIC INFORMATION

Access to the "TRAFFIC INFORMATION" menu

Go from the list to the menu (left/right).

""""""" a c

at o

Traffi c information

Traffic information

T ffi i f

"""""""

Press " TRAFFIC ".

264

05 TRAFFIC INFORMATION

CONFIGURE THE FILTERING AND DISPLAY OF TMC MESSAGES

TMC (Traffi c Message Channel) messages contain information on traffi c and weather conditions, received in real time and transmitted to the

driver in the form of audible announcements and symbols on the navigation map.
The navigation system can then suggest an alternative route to avoid a traffi c problem.

Press the TRAFFIC button to display the

Traffi c information menu.

Select the "Geographic fi lter" function

and confi rm.

The system offers a choice of:
- "

Retain all the messages",

or
-

"Retain the messages"

● "Around the vehicle ", (confi rm

the mileage to modify and select

the distance),

● "

On the route".

Confi rm " OK " to save the modifi cations.

We recommend:
-

a fi lter on the route and

a fi lter around the vehicle of:

- 12

miles

(20 km) in urban areas,

- 30

miles

(50 km) on motorways.

265

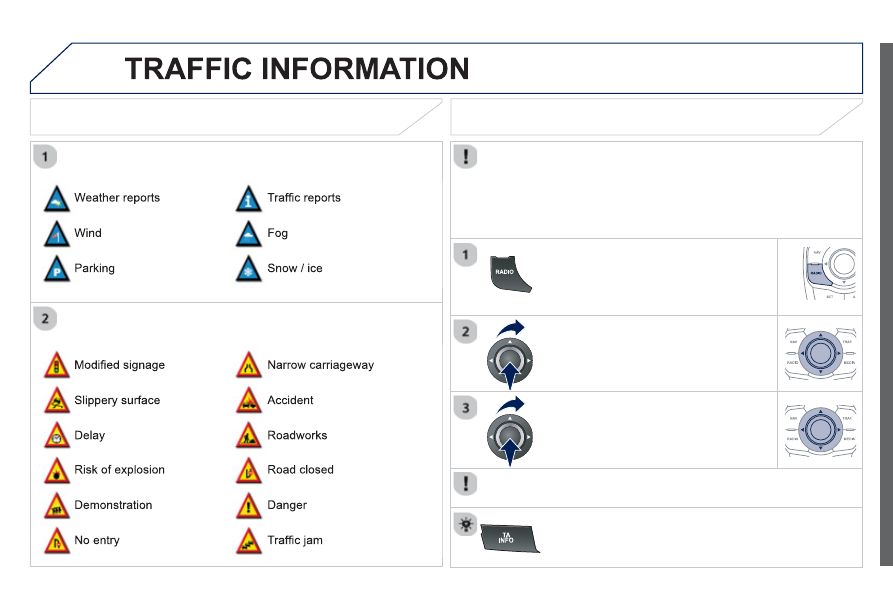

PRINCIPAL TMC SYMBOLS

Red and yellow triangle: traffi c information, for example:

Black and blue triangle: general information, for example:

RECEIVING TA MESSAGES

The TA (Traffi c Announcement) function gives priority to TA alert

messages. To operate, this function needs good reception of a

radio station transmitting this type of message. When a traffi c report

is transmitted, the current audio source (Radio, CD, USB, ...) is

interrupted automatically to play the TA message. Normal playback

of the audio source resumes at the end of the transmission of the

message.

Press RADIO to display the "FM / AM

band " menu.

Select " Guidance options " then

confi rm.

Select " Activate / Deactivate TA" then

confi rm.

The volume setting for TA messages can be adjusted only during the

transmission of this type of alert.

Activate or deactivate the function at any time by pressing

the button.
During a message, press the button to interrupt it.

266

06 USING THE TELEPHONE

Access to the "TELEPHONE" menu

"""""""

o e

Phone

"""""""

Press this button.

In "Call list ", select a number in the list and confi rm OK to

start the call.

Connecting a different telephone deletes the list of

recent calls.

No telephone connected.

Telephone connected.

Incoming call.

Outgoing call.

Synchronization

of address book in

progress.
Telephone call in

progress.

In the top bar of the permanent

display

Calls received.

Calls sent.

267

PAIRING A BLUETOOTH

TELEPHONE
FIRST CONNECTION

For reasons of safety and because they require prolonged attention

on the part of the driver, the operations for pairing the Bluetooth

mobile telephone to the hands-free system of the audio unit must be

carried out with the vehicle stationary.

Activate the telephone's Bluetooth

function and ensure that it is "shown to

all" (telephone confi guration).

Press this button.

Select the name of the desired

peripheral from the list of devices

detected then select "Connect" and

confi rm.

The system offers to connect the

telephone:
- in

Hands-free mode " (telephone

only),

- in

Audio " mode (streaming: playing

music fi les on the telephone),

or "All" (for selection of both

modes).

Select "OK" and confi rm.

Select " Bluetooth functions " and

confi rm.

Select "Peripherals search" and

confi rm.
The list of peripherals detected is

displayed. Wait until the " Connect"

button is available.

USING THE TELEPHONE

Visit www.peugeot.co.uk for more information (compatibility,

additional help, ...).

268

Enter the same code on the telephone then accept

the connection.

Then accept automatic connection on the telephone to allow the

telephone to reconnect automatically every time the vehicle is

started.

Depending on the type of telephone, the system will ask you to

accept or not the transfer of your contacts.

USING THE TELEPHONE

The "Hands-free mode" should be used in preference if

"Streaming" is not desired.

The services available depend on the network, the SIM card and the compatibility of the Bluetooth telephone used. Check the telephone

manual and with your network provider for details of the services available to you.

The ability of the system to connect in only one mode depends on

the telephone. The two modes may both connect by default.

Select a code for the connection then

confi rm " OK ".

On return to the vehicle,the last telephone connected

automatically reconnects, within around 30 seconds after

switching on the ignition (Bluetooth activated and visible).
To modify the automatic connection mode, remove the pairing and

pair the telephone again with the desired mode.

269

06 USING THE TELEPHONE

Press this button.

Select " Dial" then confi rm.

Select " Directory of contacts" then

confi rm.

Dial the telephone number using the

virtual keypad selecting each number

in turn.
Confi rm " OK " to make the call.

Press this button or make long press on

the steering mounted TEL/SRC button.

CALLING A NEW NUMBER

CALLING A CONTACT

Select the desired contact and confi rm.

Select the number and confi rm to start

the call.

MAKING A CALL

Use of the telephone is not recommended while driving. We

recommended that you park safely or make use of the steering

mounted controls.

270

06 USING THE TELEPHONE

CALLING A RECENTLY DIALLED NUMBER

Press this button or make a long press

on TEL/SRC, select "Call list" and

confi rm.

Select the desired number and confi rm.

To erase the calls log, press PHONE , select " Telephone

options" and confi rm then select " Delete calls log " and confi rm.

ENDING A CALL

Press HANG UP

or
Make a long press on the steering

mounted TEL/SRC button.

It is always possible to make a call directly from the telephone;

park the vehicle fi rst as a safety measure.
