Peugeot 508 Hybrid Dag (2012.5). Instruction

127

Driving

Memorising speeds

This memorising of speeds applies to both the speed limiter and the cruise control.

You can memorise up to 5 speeds in the
system.
By default, some speeds are already
memorised.
)

Go to the main menu in the instrument
panel screen by pressing the "CONFIG"
button.

)

Select the "Personalisation-configuration"
menu and confirm.

To select a memorised speed:
)

press and hold the "+" or
" -" button; the system stops
at the nearest memorised
speed,

For safety reasons, the driver must
carry out these operations when
stationary, using the instrument panel
screen.
These operations are only possible
when stationary.

Operation

)

Select the "Vehicle parameters" menu and

confirm.

)

Select the "Driving assistance" line and

conform.

)

Select the "Speeds memorised" line and

confirm.

)

Modify the speed.

)

Select " OK" and confirm to save the

modifications.

Selection

)

press

and hold again the "+ " or " - " button to

select another memorised speed.

A reminder of the speed and the state of the
system (on / off) is displayed in the instrument
panel.

128

Driving

Speed limiter

exceeding the speed programmed by the driver.
When the programmed speed limit is reached,
pressing the accelerator pedal no longer
has any effect unless it is pressed firmly,
which allows you to temporarily exceed the
programmed speed.
To return to the programmed speed, simply
slow down to a speed below the programmed
speed by releasing the accelerator.

The speed limiter is switched on manually:
it requires a programmed speed of at least
20 mph (30 km/h).

The speed limiter is switched off by manual

operation of the control.

The programmed speed remains in the memory
when the ignition is switched off.

The speed limiter cannot, in any
circumstances, replace the need to
observe speed limits, nor can it replace
the need for vigilance and responsibility
on the part of the driver.

This information also appears in the
head-up display.
For more information, refer to the
"Head-up display" section.

1. Speed limiter mode selection button
2.  Programmed value decrease button
3.  Programmed value increase button
4. Suspend/restore speed limiter (pause)
5. Speed limiter off button

Steering mounted controls

The programmed information is grouped
together in the instrument panel screen.

Displays in the instrument

panel

A. Speed limiter on / pause indication
B. Speed limiter mode selection indication
C. Programmed speed value

129

Driving

)

Press 1, the speed limiter mode is

activated but remains paused.

You do not have to switch the speed limiter
on in order to set the speed.
)

Set the speed value by pressing

button 2 or 3 (e.g.: 55 mph (90 km/h)).

Programming

Exceeding the programmed speed

Pressing the accelerator pedal to exceed the programmed speed will
not have any effect unless you press the pedal firmly past the point of
resistance.
The speed limiter is deactivated temporarily and the programmed
speed, which is still displayed, flashes.
Returning to the programmed speed, by means of intentional or
unintentional deceleration of the vehicle, automatically cancels the
flashing of the programmed speed.

Off / Return to normal

driving

)

Press 5, the speed limiter is deactivated.

On a steep descent or in the event of
sharp acceleration, the speed limiter will
not be able to prevent the vehicle from
exceeding the programmed speed.
The use of mats not approved by
PEUGEOT may adversely affect the
normal operation of the accelerator
pedal and impede the operation of the
speed limiter.
Mats approved by PEUGEOT have a
third fixing in the area of the pedals to
avoid any risk of interference with the
pedals.

In the event of a speed limiter fault, the speed
is cleared resulting in flashing of the dashes.
Have it checked by a PEUGEOT dealer or a
qualified workshop.

Operating fault

You can then change the programmed speed using buttons 2 and 3:
-

by + or - 1 mph (km/h) = short press,

by + or - 5 mph (km/h) = long press,

in steps of + or - 5 mph (km/h) = maintained press.

)

Switch the speed limiter on by pressing button 4 .

)

Suspend the speed limiter by pressing button 4: the screen
confirms the suspension with "Pause".

)

Switch the speed limiter back on by pressing button 4 again.

130

Driving

Cruise control

speed of the vehicle at the value programmed
by the driver, without any action on the
accelerator pedal.
The cruise control is switched on manually:
it requires a minimum vehicle speed of 25 mph
(40 km/h) and the engaging:
-

4th gear or higher on a manual gearbox,

- 2nd

gear or higher on an electronic gear

control gearbox or automatic gearbox,

- position

A on the electronic gear control

gearbox or D on the automatic gearbox.

The cruise control is switched off manually

or by pressing the brake or clutch pedal or
on triggering of the ESC system for safety
reasons.

It is possible to exceed the programmed speed
temporarily by pressing the accelerator pedal.
To return to the programmed speed, simply
release the accelerator pedal.

Switching off the ignition cancels any
programmed speed value.

1. Cruise control mode selection button
2. Speed

programming / programmed value

decrease button

3. Speed

programming / programmed value

increase button

4. Cruise control suspension / resume button

(pause)

5. Cruise control off button

Steering mounted controls

The cruise control cannot, in any
circumstances, replace the need to
observe speed limits, nor can it replace
the need for vigilance and responsibility
on the part of the driver.

This information also appears in the
head-up display.
For more information, refer to the
"Head-up display" section.

The programmed information is grouped
together in the instrument panel screen.

Displays in the instrument

panel

A. Cruise control on / pause indication
B. Cruise control mode selection indication
C. Programmed speed value

131

Driving

)

Press 1, the cruise control is activated

but remains paused.

)

Set the programmed speed by

accelerating to the required speed,
then press button 2 or 3 (e.g.: 70 mph
(110 km/h)).

Programming

You can then change the programmed speed using buttons 2 and 3 :
-

by + or - 1 mph (km/h) = short press,

by + or - 5 mph (km/h) = long press,

in steps of + or - 5 mph (km/h) = maintained press.

)

Pause the cruise control by pressing button 4 : the screen confirms
the suspension with with "Pause".

)

Switch the cruise control back on by pressing button 4 again.

Exceeding the programmed speed

Intentional or unintentional exceeding of the programmed speed results
in flashing of this speed on the display.
Return to the programmed speed, by means of intentional or
unintentional deceleration of the vehicle, automatically cancels the
flashing of the speed.

When the cruise control is switched on,
be careful if you maintain the pressure
on one of the programmed speed
changing buttons: this may result in a
very rapid change in the speed of your
vehicle.
Do not use the cruise control on
slippery roads or in heavy traffic.
On a steep descent, the cruise control
will not be able to prevent the vehicle
from exceeding the programmed speed.
To avoid any risk of jamming of the
pedals:
-

ensure that the mat is positioned
correctly,

never fit one mat on top of another.

In the event of a cruise control fault, the speed
is cleared resulting in flashing of the dashes.
Have it checked by a PEUGEOT dealer or a
qualified workshop.

Operating fault

Off / Return to normal driving

)

Press 5 ; cruise control mode is deactivated The screen returns to
the distance recorder.

132

Driving

This system indicates the proximity of an
obstacle (person, vehicle, tree, gate, etc.) which
comes within the field of detection of sensors
located in the bumper.
Certain types of obstacle (stake, roadworks
cone, etc.) detected initially will no longer be
detected at the end of the manoeuvre due to
the presence of blind spots.

Parking sensors

This function cannot, in any
circumstances, take the place of the
vigilance and responsibility of the driver.

The system is switched on by engaging reverse
gear. This is accompanied by an audible signal.
The system is switched off when you exit
reverse gear.

Rear parking sensors

Audible assistance

The proximity information is given by an
intermittent audible signal, the frequency of
which increases as the vehicle approaches the
obstacle.
The sound emitted by the speaker (right or
left) indicates the side on which the obstacle is
located.
When the distance between the vehicle and
the obstacle becomes less than approximately
thirty centimetres, the audible signal becomes
continuous.

Visual assistance

This supplements the audible signal by
displaying bars in the multifunction screen
which move progressively nearer to the vehicle.
When the obstacle is near, the "Danger"
symbol is also displayed in the screen.

133

Driving

In bad weather or in winter, ensure
that the sensors are not covered with
mud, ice or snow. When reverse gear is
engaged, an audible signal (long beep)
indicates that the sensors may be dirty.
Certain sound sources (motorcycle,
lorry, pneumatic drill, etc.) may trigger
the audible signals of the parking
sensor system.

In the event of a malfunction
of the system, when reverse
gear is engaged this warning

lamp is displayed in the instrument panel
and/or a message appears in the screen,
accompanied by an audible signal (short beep).
Contact a PEUGEOT dealer or a qualified
workshop.

Operating fault

In addition to the rear parking sensors, the front
parking sensors are triggered when an obstacle
is detected in front and the speed of the vehicle
is still below 6 mph (10 km/h).
The front parking sensors are interrupted if
the vehicle stops for more than three seconds
in forward gear, if no further obstacles are
detected or when the speed of the vehicle
exceeds 6 mph (10 km/h).

Front parking sensors

The function will be deactivated
automatically if a trailer is being towed
or a bicycle carrier is fitted (vehicle
fitted with a towbar or bicycle carrier
recommended by PEUGEOT).

Deactivation / Activation of the

front and rear parking sensors

The function is deactivated by pressing this
button. The indicator lamp in the button
comes on.
Pressing this button again reactivates the
function. The indicator lamp in the button
goes off.

The sound emitted by the speaker (front
or rear) indicates whether the obstacle
is in front or behind.

134

Driving

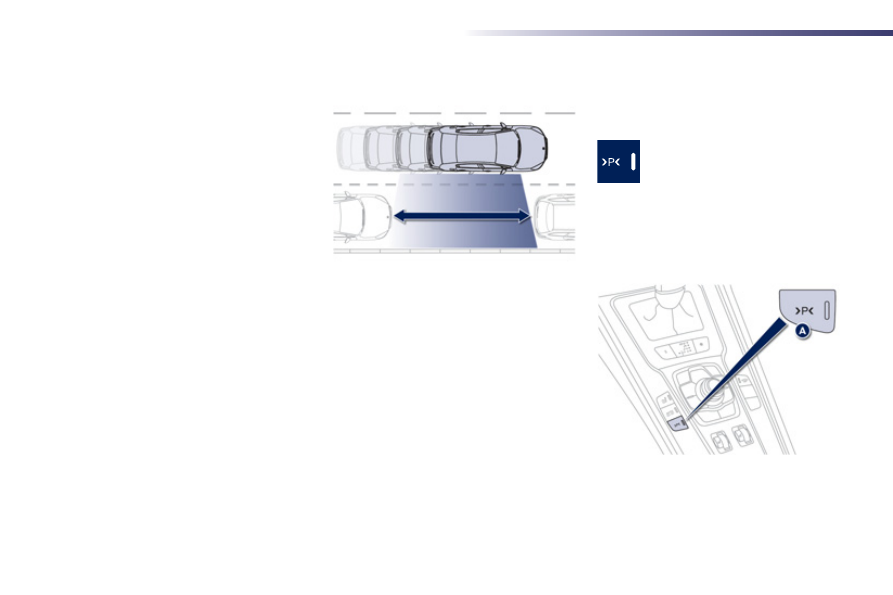

System which measures the parking space
available between two vehicles or obstacles. It
measures the size of the space and gives you
information on:
- the

possibility of fitting into a free space,

depending on the dimensions of your
vehicle and the distances needed for
manoeuvring,

the level of difficulty of the parking
manoeuvre.

The system does not measure spaces which
are clearly much smaller or larger than the size
of the vehicle.

The warning lamp in the control A
can have two different states:

Displays

on fixed: the system is switched on by a
press on control A.

off: the system is not switched on,

Parking space sensors

135

Driving

When you have identified a parking space:
)

Engage a gear on a manual gearbox or put
the gear lever in position A (electronic gear
control gearbox) or in position D (automatic
gearbox).

)

Press button A to start the system.

)

Operate the direction indicator on the
side where the space is to be measured;
a message is displayed and the warning
lamp flashes to confirm that measurement
is in progress.

)

During measurement, go forward the
length of the space, at a speed less than
12 mph (20 km/h), to prepare for your
manoeuvre.

)

Once the measurement has been
completed, the system informs you of
the level of difficulty of the manoeuvre
by a message in the multifunction screen
accompanied by an audible signal.

The system displays one of the following
messages:

Parking possible

Parking difficult

Parking not advised

If the lateral distance between your
vehicle and the parking space is too
great, the system may not be able to
measure the space.

The system remains available after
each measurement and can therefore
measure several spaces in succession.
In poor or wintry weather, ensure that
the sensors are free of dirt, ice or snow.
The parking space sensor system
deactivates the front parking sensors
when measuring forwards.
If there is a fault, have the system
checked by a PEUGEOT dealer or a
qualified workshop.

The system switches itself off automatically:
-

when you engage reverse gear,

- when

you switch off the ignition,

- if

measuring is not requested,

within five minutes of switching on the
system,

if the vehicle speed exceeds the threshold
of 45 mph (70 km/h) for one minute.

136

Visibility

Lighting controls

System for selection and control of the various front and rear lamps providing the vehicle's lighting and signalling.

Main lighting

There are various lamps on the vehicle:
-

sidelamps, to be seen,

dipped beam headlamps to see without
dazzling other drivers,

main beam headlamps to see clearly when
the road is clear,

- directional

headlamps

for improved

visibility when cornering.

Additional lighting

Other lamps are installed to fulfil the
requirements of particular driving conditions:
- rear

foglamps to better signal the presence

of the vehicle in foggy conditions,

- front

foglamps for better visibility in foggy

conditions and to improve lighting at
intersections and when parking,

daytime running lamps to be seen during
the day.

Automatic lighting

functions

Various automatic lighting functions are also
available depending on options:
-

guide-me-home lighting,

directional headlamps,

- welcome lighting,
-

daytime running lamps,

automatic illumination of headlamps,

- adaptive

lighting.

137

Visibility

Model without AUTO lighting

Model with AUTO lighting

Selection ring for main lighting

mode

Turn the ring to position the symbol required
facing the mark.

Lighting off.

Automatic illumination of headlamps.

Sidelamps only.

Dipped or main beam headlamps.

Stalk for switching headlamps

Pull the stalk to switch the lighting between
dipped / main beam headlamps.

In the lighting off and sidelamps modes, the
driver can switch on the main beam headlamps
temporarily ("headlamp flash") by maintaining a
pull on the stalk.

Displays

Illumination of the corresponding indicator lamp
in the instrument panel confirms the lighting
switched on.

138

Visibility

Foglamps selection ring

The foglamps operate with dipped and main beam headlamps.

Front and

rear foglamps

Rotate and release the ring:
)

forwards a first time to switch on the front
foglamps,

)

forwards a second time to switch on the
rear foglamps,

)

rearwards a first time to switch off the rear
foglamps,

)

rearwards a second time to switch of the
front fog lamps.

When the headlamps switch off with automatic
illumination of headlamps (AUTO model) or
when the dipped beam headlamps are switched
off manually, the foglamps and sidelamps
remain on.
)

Turn the ring rearwards to switch off the

foglamps, the sidelamps will then switch
off.

In good or rainy weather, both day
and night, the front foglamps and the
rear foglamps are prohibited. In these
situations, the power of their beams
may dazzle other drivers. They should
only be used in fog or snow.
In these weather conditions, it is your
responsibility to switch on the foglamps
and dipped headlamps manually as the
sunshine sensor may detect sufficient
light.
Do not forget to switch off the front
foglamps and the rear foglamps when
they are no longer needed.

139

Visibility

Lighting left on audible

signal

An audible signal when a front door
is opened warns the driver that the
vehicle's exterior lighting is on, with the
ignition off and in manual lighting mode.
In this case, switching off the lighting
stops the audible signal.
With the ignition off, if the dipped
headlamps remain on, the vehicle goes
into "ECO" mode to avoid discharging
the battery.

In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal surface of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.

Daytime lighting, compulsory in certain
countries, which comes on automatically when
the engine is started making the vehicle more
visible to other road users.

Daytime running lamps

This function is assured:
-

in countries where it is imposed by
regulations, by illumination of the dipped
beam headlamps with the sidelamps and
number plate lamps.

for other countries where it is provided, by
the use of dedicated lamps.

This function can be activated
or deactivated via the vehicle
configuration menu.

The lighting goes off when you switch
off the ignition, but you can always
switch it on again using the lighting
control stalk.

140

Visibility

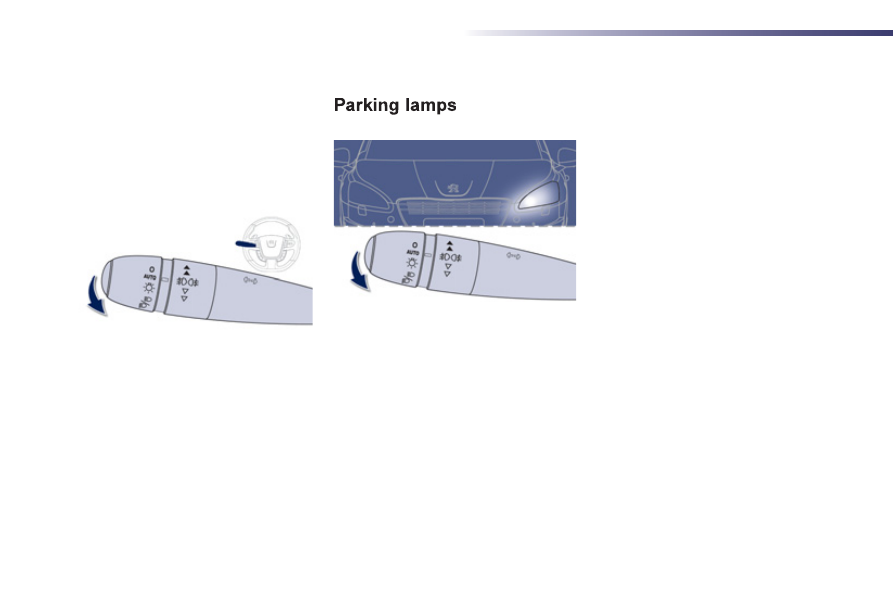

Side markers for the vehicle by illumination of
the sidelamps on the traffic side only.
)

Within one minute of switching off the

ignition, operate the lighting control stalk up
or down depending on the traffic side (for
example: when parking on the left; lighting
control stalk upwards; the right hand
sidelamps are on).

This is confirmed by an audible signal and
illumination of the corresponding direction
indicator warning lamp in the instrument panel.
To switch off the parking lamps, return the
lighting control stalk to the middle position or
switch on the ignition.

Temporarily keeping the dipped beam
headlamps on after the ignition has been
switched off makes the driver's exit easier when
the light is poor.

Manual guide-me-home

lighting

Switching on

)

Within 30 seconds or a minute after
switching of the ignition (according to the
automatic guide-me-home lighting duration
programmed in the configuration menu),
"flash" the headlamps using the lighting
stalk.

)

A further "headlamp flash" switches the
function off.

Switching off

The manual guide-me-home lighting switches
off automatically after about 30 seconds.

141

Visibility

The sidelamps and dipped beam headlamps are
switched on automatically, without any action
on the part of the driver, when a low level of
external light is detected or in certain cases of
activation of the windscreen wipers.
As soon as the brightness returns to a sufficient
level or after the windscreen wipers are switched
off, the lamps are switched off automatically.

Automatic illumination of

headlamps

Activation

)

Turn the ring to the "AUTO" position. The automatic
illumination of headlamps is accompanied by a
message in the instrument panel screen.

Deactivation

)

Turn the ring to another position.
Deactivation is accompanied by a message
in the instrument panel screen.

Association with automatic

guide-me-home lighting

Association with automatic illumination of
headlamps provides the guide-me-home
lighting with the following additional options:
-

selection of the lighting duration of 15, 30
or 60 seconds,

- automatic

activation

of guide-me-home

lighting when the automatic illumination of
headlamps is in operation.

Operating fault

In the event of a fault with the
sunshine sensor, the lighting
comes on, this warning lamp

is displayed in the instrument panel and/or
a message appears in the instrument panel
screen, accompanied by an audible signal.
Contact a PEUGEOT dealer or a qualified
workshop.

In fog or snow, the sunshine sensor may
detect sufficient light. In this case, the
lighting will not come on automatically.
Do not cover the sunshine sensor,
coupled with the rain sensor and
located in the centre of the windscreen
behind the rear view mirror; the
associated functions would no longer
be controlled.

Programming

Selection of the duration of the
guide-me-home lighting is done
in the configuration menu vehicle
parameters, in the instrument panel
screen.

142

Visibility

Adaptive lighting

Switching on

The driver can take over at any time, if the
circumstances dictate:

System which automatically changes between
dipped and main beam according to the driving
conditions, using a sensor in the rear view
mirror.
The system is active from 15 mph (25 km/h)
and is deactivated below 9 mph (15 km/h).

)

put the lighting control stalk on the "AUTO"
or "Dipped/main beam headlamps"
position,

Switching off

)

by dipping the headlamps manually

using the lighting control stalk, whether
in the "AUTO" or "Dipped/main beam
headlamps" position.

Flashing the headlamps does not
deactivate the system.
The state of the system is stored in
memory when switching off the ignition.
This automatic headlamp dipping
system is a driving aid. The driver
remains responsible for the vehicle's
lighting and its correct use for the
prevailing conditions of light, visibility
and traffic.

The system may suffer interference or
not work correctly:
-

under conditions of poor visibility
(for example, snowfall, heavy rain
or thick fog, ...),

if the windscreen is dirty, misted or
obscured (by a sticker, ...) in front of
the sensor,

if the vehicle is facing highly
reflective signs.

The system is not able to detect:
-

road users that do not have their
own lighting, such as pedestrians,

road users whose lighting is
obscured, such as vehicles running
behind a safety barrier (on a
motorway, for example),

road users at the top or bottom of
a steep slope, on twisty roads, on
crossroads.

)

press this button, the
warning lamp goes off,

)

press this button, the

warning lamp comes on.

Peugeot 508 Hybrid Dag (2012.5). Instruction - part 9
