PRACTICAL INFORMATION

125

Without lifting (4 wheels on
the ground)

You must always use a towing bar.
The removable towing eye is inside
the spare wheel.

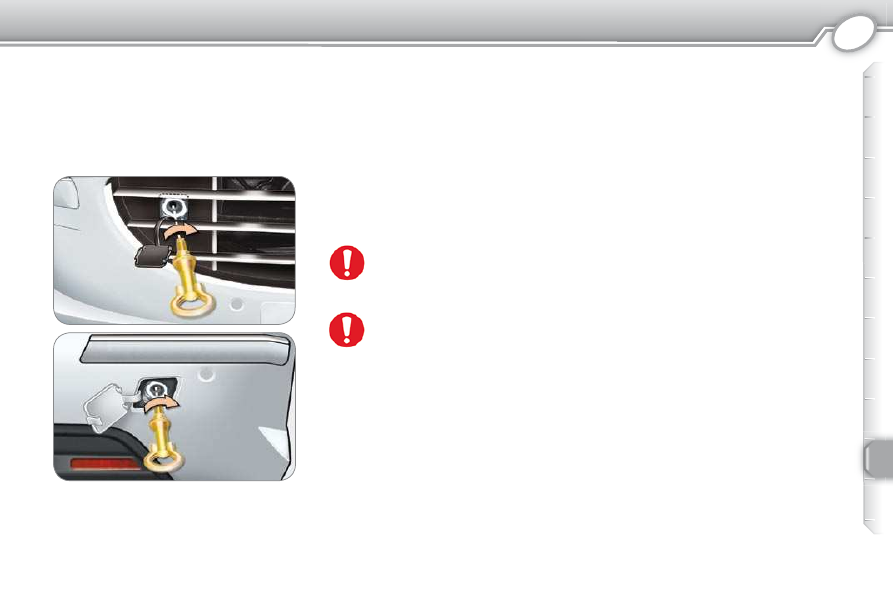

At the front and at the rear:

 Unclip the cover,
 Screw in the towing eye as far as it

will go.

Special requirements with an
automatic gearbox

When towing with the engine switched
off, there is no braking or steering as-
sistance.
Failure to observe this special require-
ment may lead to the destruction of
certain braking units and the absence
of braking assistance when the engine
is re-started.

TOWING YOUR VEHICLE

Lifting (2 wheels only on
the ground)

It is preferable to raise the vehicle with
a professional lifting device.

Place the gear lever in neutral
(position N in the case of the
automatic gearbox).

Towing a vehicle with an auto-
matic gearbox in reverse gear
is prohibited (no lubrication).

When  towing  with  four  wheels  on  the
ground,  the  following  rules  must  be
observed:
   -

lever in position N ,

tow the vehicle at less than 30 mph
(50 km/h) over a maximum dis-
tance of 30 miles (50 km).

do not add oil to the gearbox.

PRACTICAL INFORMATION

126

FITTING ROOF BARS
(SALOON)

When ﬁ tting transverse roof bars,

use the four quick-ﬁ t ﬁ xings provided

for this purpose. Lift the concealing

ﬂ aps and adjust the roof bar quick-ﬁ t

ﬁ xings.

Maximum  authorised  weight
on the roof rack, for a loading
height  not  exceeding  40  cm
(with  the  exception  of  bicycle
carriers): 80 kg.

If the height exceeds 40 cm, adapt the

speed of the vehicle to the proﬁ le of

the road to avoid damaging the roof

bars and the ﬁ xings on the roof.
Be sure to refer to national legislation
in order to comply with the regulations
for transporting objects which are lon-
ger than the vehicle.

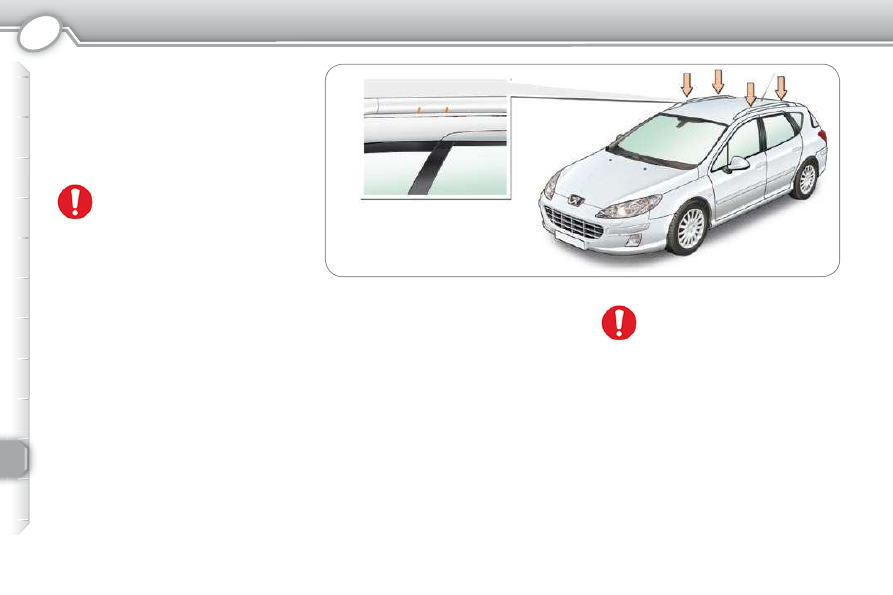

FITTING ROOF BARS (407SW)

When ﬁ tting transverse roof bars, en-

sure that they are positioned correctly.
The correct positions are shown by
marks on each of the longitudinal
bars.
Use accessories approved by PEUGEOT

and follow the manufacturer's ﬁ tting in-

structions.

Maximum  authorised  weight
on  the  roof  bars,  for  a  loading
height  not  exceeding  40  cm
(except bicycle carriers): 100 kg.

If the height exceeds 40 cm, adapt the
speed of the vehicle to the condition of
the road, to avoid damaging the roof
bars.
Please refer to national legislation to
comply with the regulations regarding
the transportation of objects which are
longer than the vehicle.

PRACTICAL INFORMATION

127

In all cases, pay attention to the coolant
temperature.

Lighting

TOWING A TRAILER, BOAT,
CARAVAN, ETC...

We  recommend  the  use  of  original
PEUGEOT towbars and their harness-
es  which  have  been  tested  and  ap-
proved  from  the  design  stage  of  your

vehicle and that you entrust the ﬁ tting

of the towbar to a PEUGEOT dealer.

If the towbar is not ﬁ tted by a PEUGEOT

dealer, it is imperative that it is ﬁ tted us-

ing the electrical pre-equipment installed
at the rear of the vehicle, in accordance
with the manufacturer's instructions.

Driving advice

  Distribution  of  loads:   distribute  the
load  in  the  trailer  so  that  the  heavi-
est  loads  are  as  close  as  possible  to
the axle and the nose weight is close
to  the  maximum  authorised  without,
however, exceeding it.
  Cooling:  towing a trailer on a slope in-
creases the coolant temperature.
As the fan is electrically controlled, its
cooling  capacity  is  not  dependent  on
the engine speed.

In the case of vehicles ﬁ tted with an

HDI  engine,  it  is  advisable,  following
intensive  use  (towing  on  a  motorway,
prolonged driving, ...), to leave the en-
gine  running  at  idle  for  approximately
20 seconds before switching off the ig-
nition.  This  limits  any  increase  in  the
temperature of the engine after it has
been switched off.

  Note:  in certain cases of par-
ticularly  arduous  use  (towing
the  maximum  load  in  high
temperatures

steep

slope), the engine automatically lim-
its its power and selects the appropri-
ate automatic gearbox gear in manual
mode. In this case, switching off the air
conditioning saves engine power and
increases towing capacity.

If the coolant temperature
warning lamp comes on, stop
the vehicle and switch off the
engine as soon as possible.

  Tyres:  check the tyre pressures of the
towing  vehicle  (label  on  the  central
door pillar on the driver's side) and of
the trailer towed, observing the recom-
mended pressures.
  Brakes:  towing increases the braking
distance.  Drive  at  a  moderate  speed,
change  down  early  and  brake  gradu-
ally.
  Side  wind:   sensitivity  to  side  wind  is
increased.  Drive  smoothly  and  at  a
moderate speed.

Automatic adjustment

To  avoid  causing  a  nuisance  to  other
road  users,  this  system  automatical-
ly  corrects  the  height  of  the  beam  of
xenon  bulbs  in  relation  to  the  vehicle
load  after  approximately  2 minutes.
The  driver  is  then  assured  of  having
optimum lighting.

PRACTICAL INFORMATION

128

ACCESSORIES

A wide range of accessories recom-
mended by PEUGEOT and original parts
are offered by the dealer network.

They all beneﬁ t from PEUGEOT rec-

ommendation.
These  accessories  and  parts,  having
been tested and approved for reliabil-
ity and safety, are all adapted to your
PEUGEOT vehicle.
The  product  range  offered  by  PEUGEOT
Accessories is structured around 5 catego-
ries:  PROTECTION -  TOURING  -  IN-CAR
TECHNOLOGY - STYLING - UNIVERSAL.

Anti-theft alarm, parking sen-
sors, etched windows, wheel

security bolts, ﬁ rst aid kit,

warning  triangle,  high  vis-
ibility  safety  jacket,  snow
chains,  anti-slip  covers,  dog
guard, etc.

"Protection":

Seat  covers  compatible  with
lateral airbags, mats, boot tray.
For  leisure  pursuits:  roof
bars,  transport  accessories
(bicycle  carrier,  ski  carrier),
roof  box,  child  seats  and

booster cushions, rear screen blind,
audio/telephone console, side blinds,
cool box.

Trailer towbar which must be ﬁ tted by

the PEUGEOT Network.

"Touring":

Telephone,  Bluetooth  sys-
tem,  satellite  navigation,  CD
changer, multimedia, connec-
tion  for  portable  MP3  player
(in the glove box), USB Box.

"In-Car Technology":

Alloy wheels, wheel trims,
spoiler,

leather

steering

wheel, styling strips, door
spoilers, stainless steel sill
protectors.

"Styling":

Windscreen wash ﬂ uid, inte-

rior and exterior cleaning and
maintenance products.

"Universal":

The ﬁ tting of electrical equipment

or accessories which are not rec-
ommended by PEUGEOT may
result in a failure of your vehicle's
electronic system.

Please note this speciﬁ c warning. You

are  advised  to  contact  a  representa-
tive  of  the  Marque  to  be  shown  the
range  of  recommended  equipment
and accessories.

Note
To avoid any jamming under the pedals:
-

ensure that the mat is positioned
and secured correctly,

never place one mat on top of an-
other.

Depending  on  the  country  in
which  the  vehicle  is  sold,  it
may  be  compulsory  to  have
a  high  visibility  safety  jacket,
warning  triangle  and  spare
bulbs available in the vehicle.

  Installation  of  radiocommunication
transmitters
It is advisable to contact a representa-
tive  of  the  PEUGEOT  marque  before
installing  accessory  radiocommunica-
tion  transmitters  with  external  aerial
on your vehicle.

The PEUGEOT network will inform

you of the speciﬁ cations (frequency

waveband, maximum output power,

aerial position, speciﬁ c installation

conditions) of the transmitters which

can be ﬁ tted, in accordance with the

Motor Vehicle Electromagnetic Com-
patibility Directive (2004/104/EC).

407SW: you can obtain "Van" conver-
sion kits to convert from a private ve-
hicle to a van.

TECHNICAL DATA

129

* Draining by gravity with oil ﬁ ller cap open.

Model codes:
6D.../6E...

6FYC

RFJC

RFJF

XFVJ

Engines

1.8 litre 16V

2 litre 16V

BioFlex

3 litre V6 24V

Cubic capacity (cc)

1 749

1 997

2 946

Bore x stroke (mm)

82.7 x 81.4

85 x 88

87 x 82.6

EU standard maximum

power (kW)

103

155

Maximum power engine

speed (rpm)

5 500

6 000

EU standard maximum

torque (Nm)

163

191/200

200

290

Maximum torque engine

speed (rpm)

4 500

4 100/4 000

4 100

3 750

Fuel

Unleaded

E85

Unleaded

Catalytic converter

Yes

Gearbox - speeds

Manual - 5

Automatic - 4

Manual - 5

Automatic - 6

Oil capacity (in litres)

Engine (with ﬁ lter

replacement) *

4.25

4.75

ENGINES AND GEARBOXES: PETROL

TECHNICAL DATA

130

Model codes:
6D.../6E...

9HZC

RHRH

RHRJ

RHHA

4HPH

4HTH

Engines

1.6 litre HDI

16V

2 litre HDI 16V

2.2 litre HDI 16V

Cubic capacity (cm

)

1 560

1 997

2 179

Bore x stroke (mm)

75 x 88.3

85 x 88

85 x 96

EU standard maximum

power (kW)

103

100

120

125

Maximum power engine

speed (rpm)

4 000

3 750

4 000

EU standard maximum

torque (Nm)

240

320

340

370

Maximum torque engine

speed (rpm)

1 750

2 000

1 500

Fuel

Diesel

Catalytic converter

Yes

Particle emission ﬁ lter (PEF)

Yes

Gearbox - speeds

Manual - 5

Manual - 6

Automatic - 6 Automatic - 6

Manual - 6

Oil capacity (in litres)

Engine (with ﬁ lter

replacement) *

3.5

5.25

ENGINES AND GEARBOXES: DIESEL

* Draining by gravity with oil ﬁ ller cap open.

TECHNICAL DATA

131

Engines

1.8 litre 16V

2 litre 16V

2 litre 16V BioFlex

2 litre 16V

Gearbox

Manual

Automatic

Model codes: 6D...

6FYC

RFJC

RFJF

Kerb weight *

1 559

1 582

1 613

Gross vehicle weight (GVW)

1 980

1 995

2 020

Gross train weight (GTW) **

3 280

3 495

3 520

Unbraked trailer weight

735

745

750

Braked trailer weight (a)

1 300 (1)

1 500 (1)

Recommended nose weight

Engines

3 litre V6 24V

Gearbox

Automatic

Model codes: 6D...

XFVJ

Kerb weight *

1 729

Gross vehicle weight (GVW)

2 140

Gross train weight (GTW) **

3 740

Unbraked trailer weight

750

Braked trailer weight (a)

1 600 (1)

Recommended nose weight

(a) The braked trailer value corresponds to the towing capacity of the vehicle on a 12 % incline.

The braked trailer weight may be increased by (1) 300 kg, on condition that the load in the vehicle is reduced so that the GTW

is not exceeded.

High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when

the ambient temperature is above 37 °C, restrict the towed weight to 600 kg, with no load transfer.

* The kerb weight is equal to the unladen vehicle + driver (75 kg).

** The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).

SALOON WEIGHTS AND TOWED LOADS (IN KG): PETROL

TECHNICAL DATA

132

SALOON WEIGHTS AND TOWED LOADS (IN KG): DIESEL

Engines

1.6 litre HDI 16V

2 litre HDI 16V

Gearbox

Manual

Automatic

Model codes: 6D...

9HZC

RHRH

RHRJ

RHHA

Kerb weight *

1 596

1 672

1 732

1 751

Gross vehicle weight (GVW)

2 020

2 080

2 115

2 140

Gross train weight (GTW) **

3 020

3 680

3 215

3 240

Unbraked trailer weight

750

Braked trailer weight (a)

1 000 (1)

1 600 (1)

1 100 (1)

Recommended nose weight

Engines

2.2 litre HDI 16V

Gearbox

Manual

Model codes: 6D...

4HTH

4HPH

Kerb weight *

1 772

Gross vehicle weight (GVW)

2 125

Gross train weight (GTW) **

3 725

Unbraked trailer weight

750

Braked trailer weight (a)

1 600 (2)

Recommended nose weight

(a) The braked trailer value corresponds to the towing capacity of the vehicle on a 12 % incline.

The braked trailer weight may be increased by (1) 300 kg or (2) 250 kg, on condition that the load in the vehicle is reduced

so that the GTW is not exceeded. High ambient temperatures may result in a reduction in the performance of the vehicle in

order to protect the engine; when the ambient temperature is above 37 °C, restrict the towed weight to 600 kg, with no load

transfer.

* The kerb weight is equal to the unladen vehicle + driver (75 kg).

** The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).

TECHNICAL DATA

133

407 SW WEIGHTS AND TOWED LOADS (IN KG): PETROL

* The kerb weight is equal to the unladen vehicle + driver (75 kg).

** The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).

(a) The braked trailer value corresponds to the towing capacity of the vehicle on a 12 % incline.

The braked trailer weight may be increased by (1) 300 kg or (2) 100 kg, on condition that the load in the vehicle is reduced

so that the GTW is not exceeded.

High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when

the ambient temperature is above 37 °C, restrict the towed weight to 600 kg, with no load transfer.

Engines

1.8 litre 16V

2 litre 16V

2 litre 16V BioFlex

2 litre 16V

Gearbox

Manual

Automatic

Model codes: 6E...

6FYC

RFJC

RFJF

Kerb weight *

1 622

1 645

1 676

Gross vehicle weight (GVW)

2 090

2 105

2 136

Gross train weight (GTW) **

3 390

3 605

3 636

Unbraked trailer weight

750

Braked trailer weight (a)

1 300

1 500

Recommended nose weight

Engines

3 litre V6 24V

Gearbox

Automatic

Model codes: 6E...

XFVJ

Kerb weight *

1 792

Gross vehicle weight (GVW)

2 260

Gross train weight (GTW) **

3 760

Unbraked trailer weight

750

Braked trailer weight (a)

1 500

Recommended nose weight

TECHNICAL DATA

134

* The kerb weight is equal to the unladen vehicle + driver (75 kg).

** The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).

(a) The braked trailer value corresponds to the towing capacity of the vehicle on a 12 % incline.

The braked trailer weight may be increased by 300 kg, on condition that the load in the vehicle is reduced so that the GTW

is not exceeded.

High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when

the ambient temperature is above 37 °C, restrict the towed weight to 600 kg, with no load transfer.

407 SW WEIGHTS AND TOWED LOADS (IN KG): DIESEL

Engines

1.6 litre HDI 16V

2 litre HDI 16V

Gearbox

Manual

Automatic

Model codes: 6E...

9HZC

RHRH

RHRJ

RHHA

Kerb weight *

1 659

1 735

1 797

1 815

Gross vehicle weight (GVW)

2 127

2 195

2 215

2 230

Gross train weight (GTW) **

3 127

3 795

3 215

3 320

Unbraked trailer weight

750

Braked trailer weight (a)

1 000 (1)

1 600

1 000 (1)

Recommended nose weight

Engines

2.2 litre HDI 16V

Gearbox

Manual

Model codes: 6E...

4HTH

4HPH

Kerb weight *

1 835

Gross vehicle weight (GVW)

2 275

Gross train weight (GTW) **

3 875

Unbraked trailer weight

750

Braked trailer weight (a)

1 600 (1)

Recommended nose weight

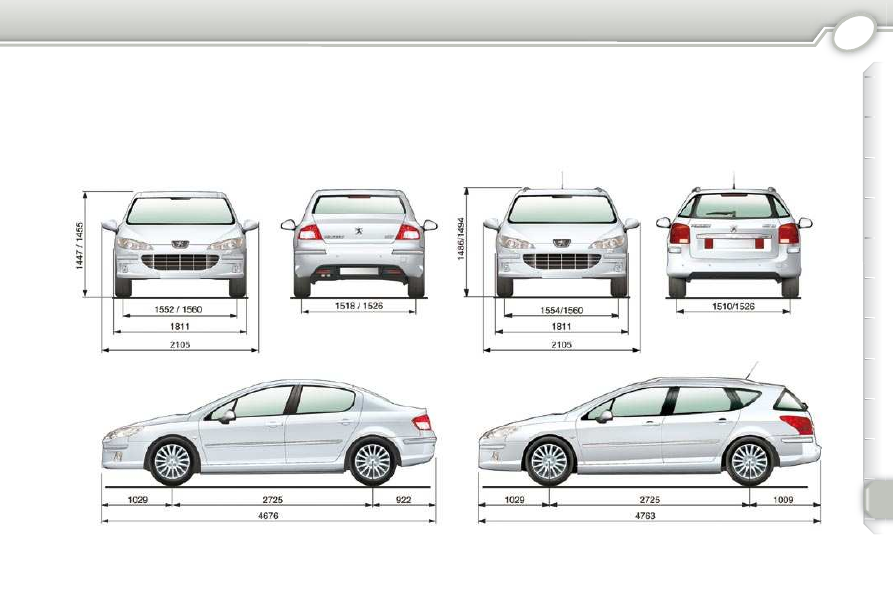

TECHNICAL DATA

136

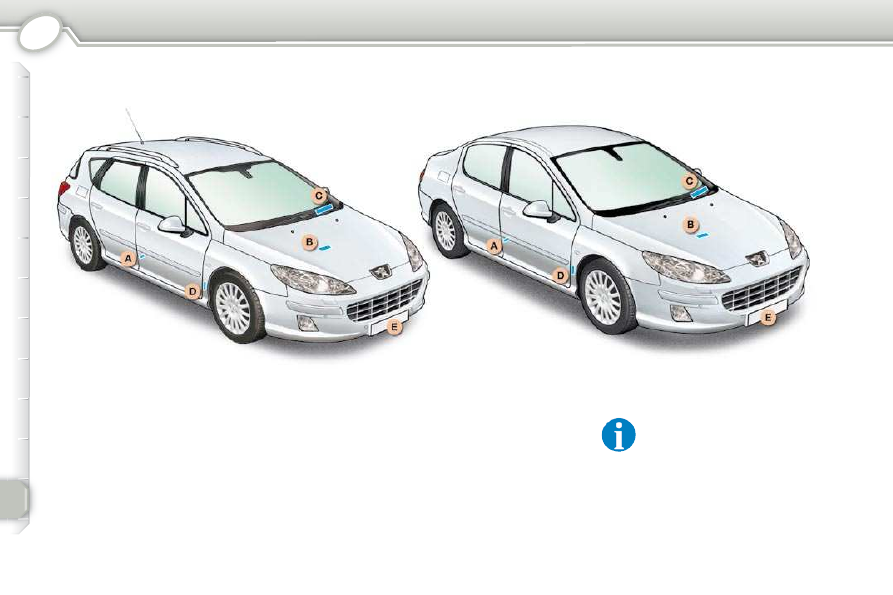

Manufacturer's plate.

Vehicle Identiﬁ cation Number (VIN)

on the bodywork.

VIN on the dashboard (visible at

the bottom of the windscreen).

Tyre pressures and paint colour

code label.

The label D on the pillar near to the door

hinges on the driver's side indicates:

- the wheel and tyre sizes,
- the brands of tyres approved by

the manufacturer,

- the tyre pressures (the pressures

must be checked cold

, atleast

once a month

- the paint colour code.

Front number plate.

IDENTIFICATION MARKINGS

In the event of replacement, a

front number plate of a height

less than or equal to 110 mm

must be ﬁ tted provided that this

size conforms to current regulations.

Otherwise, contact a PEUGEOT dealer.

138

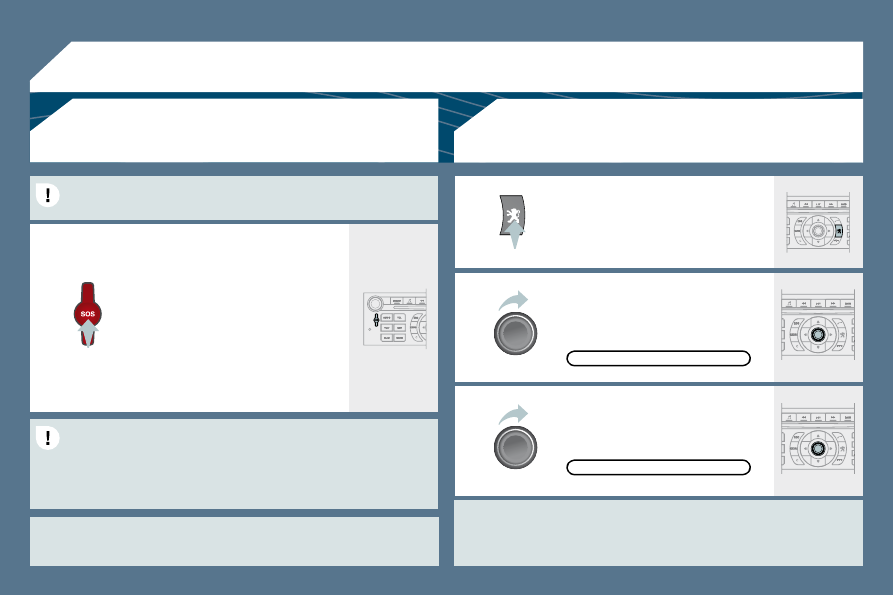

PEUGEOT ASSISTANCE

CUSTOMER CALL

* These services and options are subject to conditions and availability.

CONSULTING THE SERVICES

EMERGENCY CALL

Press this button to gain access to the
PEUGEOT services * .

Select "Customer call" to request
any information about the PEUGEOT
marque.

Select "PEUGEOT Assistance" to
make a breakdown assistance call.

  In an emergency, press the SOS
button until a CONFIRMATION/
CANCELLATION screen is displayed.
A call is made *  directly to PEUGEOT
Emergency which receives locating
information from the vehicle and
can send a detailed alert to the
appropriate emergency services. In
countries where the call centre is not
operational, the call is directed to the
national emergency services (112).

* This service is subject to conditions and availability.
Consult a PEUGEOT dealer.

If necessary, the internal telephone is activated automa

utomatically to

make an emergency call.

In order for an emergency call to be made, a valid SIM c

SIM card must be

inserted.

EMERGENCY OR ASSISTANCE CALL using PC Com

139

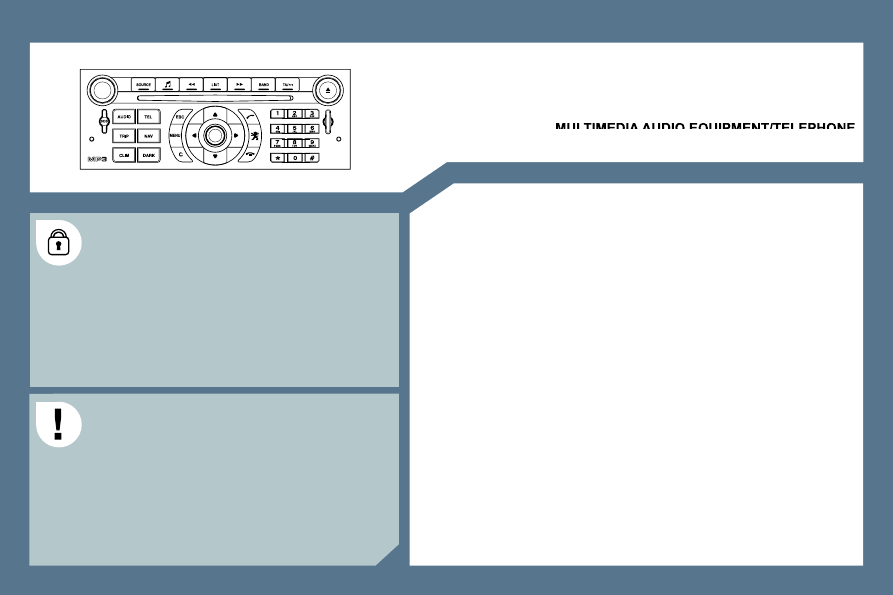

Peugeot Connect Media

MULTIMEDIA AUDIO EQUIPMENT/TELEPHONE

ugeot Connect Media

JUKEBOX FUNCTION (10 GB)/GPS (EUROPE)

The Peugeot Connect Media is coded in such a way that
it will only operate in your vehicle. If it is to be installed
in another vehicle, contact a PEUGEOT dealer for

conﬁ guration of the system.

For safety reasons, it is imperative that the driver carries
out operations which require prolonged attention while
the vehicle is stationary.
When the engine is switched off and to prevent
discharging of the battery, the PC Com may switch off
after a few minutes.

CONTENTS

01 First steps

02 Voice commands and

steering mounted controls p.

03 Screen and main menu

04 Navigation - guidance

05 Trafﬁ c information

06 Audio/Video

07 Telephone

08 Trip computer

09 Conﬁ guration

10 Screen menu map

Frequently asked questions

140

141

143

146

156

159

168

172

174

175

180

140

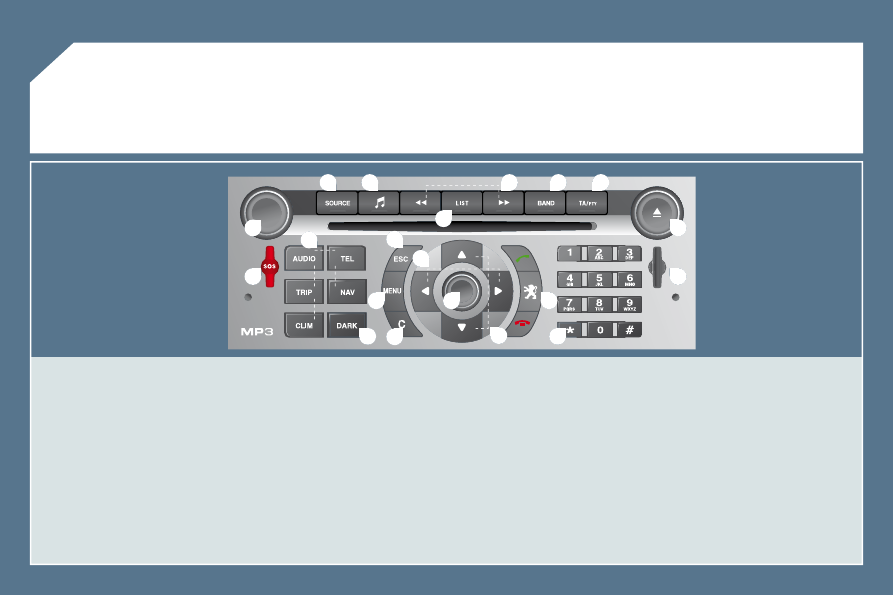

FIRST STEPS

1. On/Off and Volume adjustment.
2. Selection of the source: radio, Jukebox, CD/DVD, CD

changer and auxiliary (AUX, if activated on the Conﬁ guration

menu). Long press: CD copy to hard disc.

3. Audio option adjustments: front/rear, left/right balance,

loudness, sound ambiences.

4. Display the list of local radio stations, the tracks on the

CD/DVD or the MP3/USB/Jukebox directories.

Long press: update the local radio stations.

5. Automatic search for a lower/higher frequency. Selection of

the previous/next CD/DVD, MP3, USB or Jukebox track.

Long press: fast forward and backward play.

6. Selection of the wavebands FM1, FM2, FMast, AM.

7. TA (Trafﬁ c Announcement) function on/off.

Long press: access to the PTY mode

(radio Programme TYpes).

  8.   Ejection of the CD/DVD.
  9.   SIM card slot.
  10.   Keypad for entering descriptions by successive presses.
  11.   Access to the "PEUGEOT" services menu.
  12.   Selection and conﬁ rmation.
  13.   Selection of the previous/next CD/DVD. Selection of the

previous/next MP3/USB/Jukebox directory.

14. Selection of a lower/higher frequency.
15. Cancellation of the current operation.

Long press: return to the current application.

  16.   Display the main menu.
  17.   Deletion of the last character entered or of the entire line.
  18.   Modiﬁ cation of the screen display.

Long press: reinitialisation of the Peugeot Connect Media
system.

19. Selection of the display on the screen from the modes: TRIP,

TEL, CLIM, NAV and AUDIO.

20. Long press on the SOS button: emergency call.

141

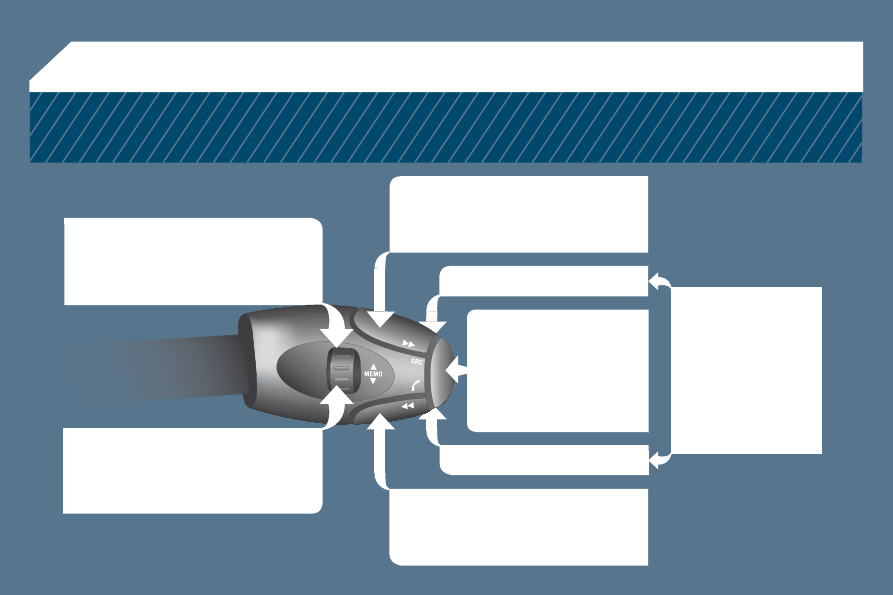

02 VOICE COMMANDS AND STEERING MOUNTED CONTROLS

RADIO: selection of the next stored station.
MP3/USB/JUKEBOX: selection of the next
directory.
Selection of the next item on a menu.

RADIO: selection of the previous stored station.
MP3/USB/JUKEBOX: selection of the previous
directory.
Selection of the previous item on a menu.

RADIO: automatic search for a higher
frequency.
CD/MP3/USB/JUKEBOX: selection of the next
track.
CD/USB: continuous press: fast forwards play.

RADIO: automatic search for a lower frequency.
CD/MP3/USB/JUKEBOX: selection of the
previous track.
CD/USB: continuous press: fast backwards
play.

- Change of sound source.

- Conﬁ rmation of a selection.
- Pick up/Hang up the

telephone.

- Press for more than

2 seconds: access to the
telephone menu.

Volume increase.

Volume decrease.

Mute: by pressing
the volume increase
and decrease buttons
simultaneously.

The sound is restored by
pressing one of the two
volume buttons.

Peugeot 407 (2010 year). Instruction - part 10
