Peugeot 407 (2010 year). Instruction - part 9





10

10

PRACTICAL INFORMATION

114

  Fitting a wheel

      Position the wheel.
     Tighten the bolts by hand.
     Partly  tighten  the  bolts  using  the

wheelbrace.

     Fold the jack  2  and remove it.
     Fully  tighten  the  bolts  using  the

wheelbrace  1 .

     For vehicles with steel wheels, re-

fi t the wheel trim starting by plac-

ing  its  notch  facing  the  valve  and
press with the palm of the hand.

  

   For vehicles with alloy wheels, refi t

the covers.

     Put the tool holder back in position.

This helps to keep the boot fl oor in its

correct  position,  to  prevent  any  de-

formation of the fl oor when loaded.



   Tighten  the  spare  wheel  securing

strap to prevent noise and for your
safety in the event of impact.

  Punctured tyre warning
lamp

  Information on the instrument
panel:

  Reminder:   for  your  safety,  always
change a wheel:
   -

on level, stable, non-slippery ground,

  -

with the parking brake applied,

  -   with fi rst or reverse gear engaged

(position  P  for the automatic gear-
box),

  -

never  go  underneath  a  vehicle
which is supported only by a jack.

  Tyre under-infl ation detection

system warning lamp

 These  original  equipment  wheels  are

fi tted  with  a  pressure  sensor  (see

paragraph "Tyre under-infl ation detec-

tion").  The  warning  which  detects  the

removal  or  absence  of  a  wheel  fi tted

with  the  pressure  sensor  signals  the
anomaly. Have the wheel repaired and
checked by a PEUGEOT dealer.

  After changing the wheel:

   -

have the tightness of the bolts and
the tyre pressure of the spare wheel
checked as soon as possible.

  -

have the punctured wheel repaired

and refi t it to the vehicle as soon as

possible.

  -

have the spare wheel checked and
replace it in its boot recess.

  Recommendations when using
the temporary spare wheel *

 Your  vehicle  may  be  equipped  with  a
spare wheel with a different rim to that
of the standard wheel.
 After use, replace it as soon as possible.
 Follow  the  recommendations  below
to avoid any alteration in vehicle han-
dling:
   -

do not drive above  50 mph (80 km/h) ,



-   do not fi t a wheel trim,
  -

drive carefully,

  -   check the infl ation pressure indicated

on the label.

  *   According to version and country.

10

10

PRACTICAL INFORMATION

  Bolt covers

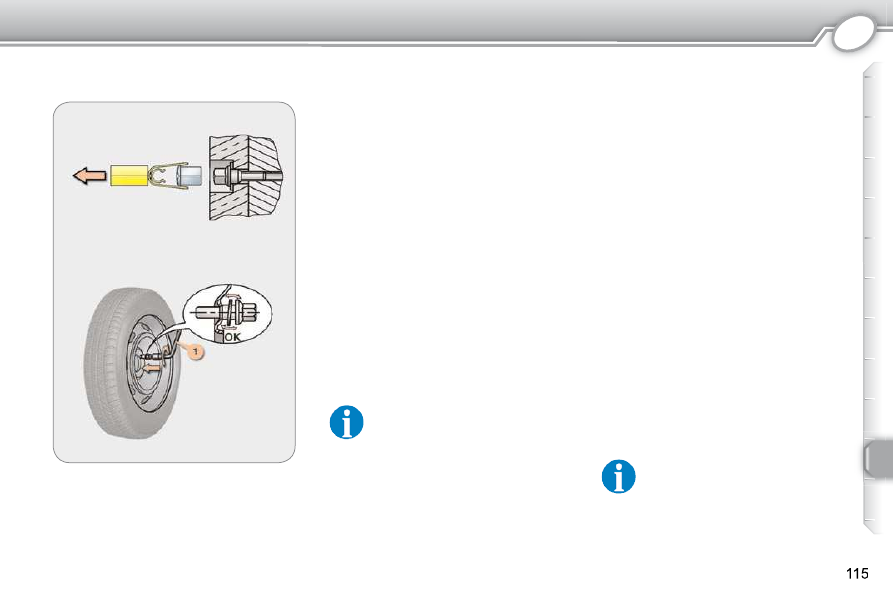

 Alloy  wheel  bolts  are  covered  by
chrome trims.
 Use the yellow tool to remove the trims
before slackening the bolts.

  Fitting the spare wheel
 If your vehicle is fi tted with a steel spare

wheel, when fi tting it, it is  normal  when

tightening  the  bolts  to  notice  that  the
washers do not come into contact with
the rim. The spare wheel is secured by
the cone shape of each bolt.

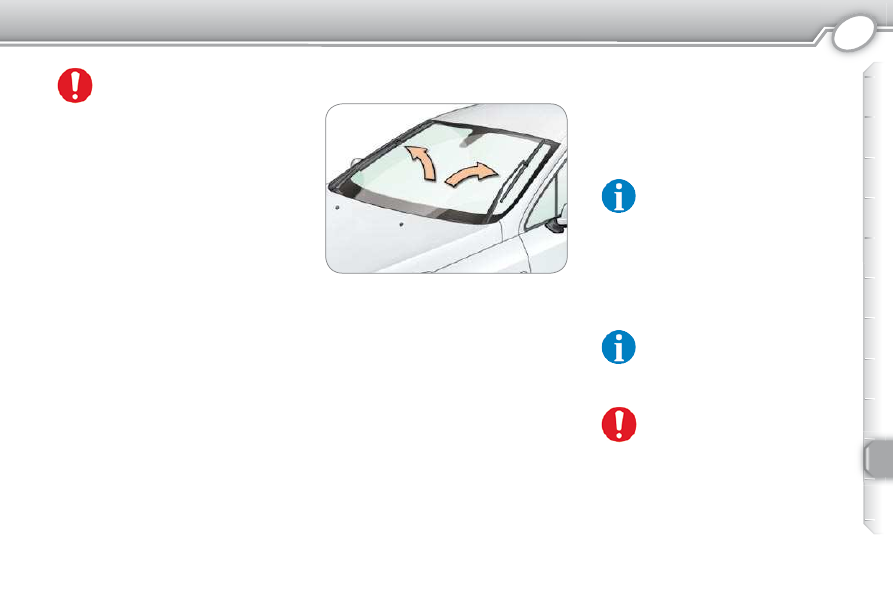

 VERY COLD CLIMATE SCREEN *

 The very cold climate screen is a par-
tial  removable  cover  which  is  clipped
onto the air intake grille to prevent the
accumulation  of  snow  due  to  direct
splashes.

 Once it has been fi tted on your vehicle,

it must be removed when the ambient
temperature rises above 10 °C again.
 Consult a PEUGEOT dealer.

  215/55  R17  tyres  cannot  be

fi tted  with  standard  snow

chains,  contact  a  PEUGEOT
dealer.

  *   According to country.

  Special features of alloy
wheels

  Security bolts

 Your  wheels  are  fi tted  with  security

bolts  (one  per  wheel),  placed  under
chrome trims which must be removed
using the yellow tool, before the bolts
are unscrewed using the security bolt
socket and the wheelbrace  1 .

  Fitting snow tyres
   If you fi t snow tyres mounted on steel

wheels onto your vehicle, it is  essen-
tial
  to use special bolts available from
your  PEUGEOT  dealer.

 This  security  bolt  socket  was
given  to  you  on  delivery  of
your vehicle with the duplicate
keys.  Make  a  careful  note  of

the  code  number  engraved  on  the
head  of  the  security  bolt  socket.  This
will  enable  you  to  obtain  a  duplicate
security bolt socket from a PEUGEOT
dealer. You are advised to do the same
for the duplicate keys.

10

10

PRACTICAL INFORMATION

  Bolt covers

 Alloy  wheel  bolts  are  covered  by
chrome trims.
 Use the yellow tool to remove the trims
before slackening the bolts.

  Fitting the spare wheel
 If your vehicle is fi tted with a steel spare

wheel, when fi tting it, it is  normal  when

tightening  the  bolts  to  notice  that  the
washers do not come into contact with
the rim. The spare wheel is secured by
the cone shape of each bolt.

 VERY COLD CLIMATE SCREEN *

 The very cold climate screen is a par-
tial  removable  cover  which  is  clipped
onto the air intake grille to prevent the
accumulation  of  snow  due  to  direct
splashes.

 Once it has been fi tted on your vehicle,

it must be removed when the ambient
temperature rises above 10 °C again.
 Consult a PEUGEOT dealer.

  215/55  R17  tyres  cannot  be

fi tted  with  standard  snow

chains,  contact  a  PEUGEOT
dealer.

  *   According to country.

  Special features of alloy
wheels

  Security bolts

 Your  wheels  are  fi tted  with  security

bolts  (one  per  wheel),  placed  under
chrome trims which must be removed
using the yellow tool, before the bolts
are unscrewed using the security bolt
socket and the wheelbrace  1 .

  Fitting snow tyres
   If you fi t snow tyres mounted on steel

wheels onto your vehicle, it is  essen-
tial
  to use special bolts available from
your  PEUGEOT  dealer.

 This  security  bolt  socket  was
given  to  you  on  delivery  of
your vehicle with the duplicate
keys.  Make  a  careful  note  of

the  code  number  engraved  on  the
head  of  the  security  bolt  socket.  This
will  enable  you  to  obtain  a  duplicate
security bolt socket from a PEUGEOT
dealer. You are advised to do the same
for the duplicate keys.

10

10

PRACTICAL INFORMATION

116

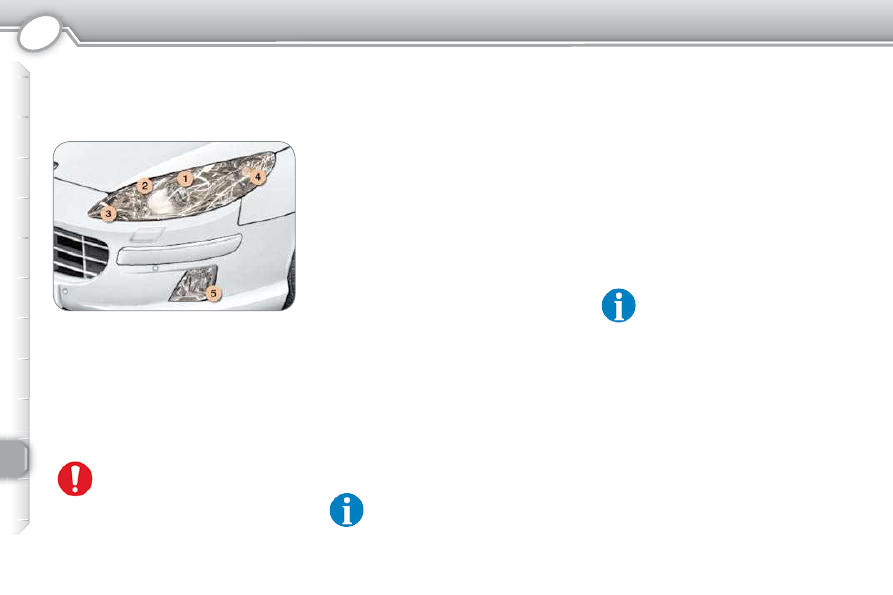

 CHANGING A FRONT BULB

 Handle the bulbs with a dry cloth.

  2 - Main beam headlamps:  H7-55W.
      Remove  the  protective  cover  cor-

responding to the faulty bulb.

     Disconnect the connector.
     Press the end of the securing clips

to free the bulb. Change the bulb.

  

   When fi tting the new bulb, ensure

that  the  direction  notches  are  po-
sitioned correctly and the securing

clips are fi xed properly.

     Reconnect the connector.
  

   Refi t the protective cover.

  4 -  Direction indicators:

PY21W (amber).

      Turn the bulb holder a quarter turn

and remove it.

     Change the bulb.

  WARNING:  RISK  OF  ELEC-
TROCUTION


  Front lamps

 In  the  engine  compartment,  remove
the  cover  secured  by  one  or  two  but-

terfl y screws, a plastic retainer clip and

two quarter turn screws.
  1 -  Dipped beam headlamps:  H1-55W

or D2S-35W xenon bulb.

 Xenon  bulbs  must  be  replaced  by  a
PEUGEOT dealer.

  Amber  coloured  bulbs  (direc-
tion  indicators  and  side  re-
peaters)  must  be  replaced

with bulbs of identical specifi -

cation and colour.

  5 - Front foglamps:  H11 - 55W.
 Turn the wheels to full lock.

 Access to the bulb is via the fl ap in the

front mud fl ap.
 Consult a PEUGEOT dealer.

 The headlamps are fi tted with polycar-

bonate glass with a protective coating.
Do not clean them with a dry or abra-
sive cloth, nor with a detergent or sol-
vent product.

 Ensure  that  the  liquid  used  to  fi ll  the

wash-wipe and headlamp wash reser-
voir is of good quality.

  High

pressure

washing :

when  using  a  high  pressure
washer  on  stubborn  dirt,  do
not persist on the headlamps,

the  other  lamps  and  their  surrounds
to  avoid  damaging  their  coating  and
seals.
 In certain climatic conditions (low tem-
perature,  humidity),  condensation  on
the  inside  surface  of  the  headlamp
glass  and  rear  lights  glass  is  normal;
it  disappears  a  few  minutes  after  the
lighting is switched on.

  3 - Sidelamps:  W5W.
      Remove  the  protective  cover,  dis-

connect  the  connector  and  then
remove the bulb and change it.

     Put the connector back in place.
     Reconnect the connector.
  

   Refi t the protective cover.

10

10

PRACTICAL INFORMATION

117

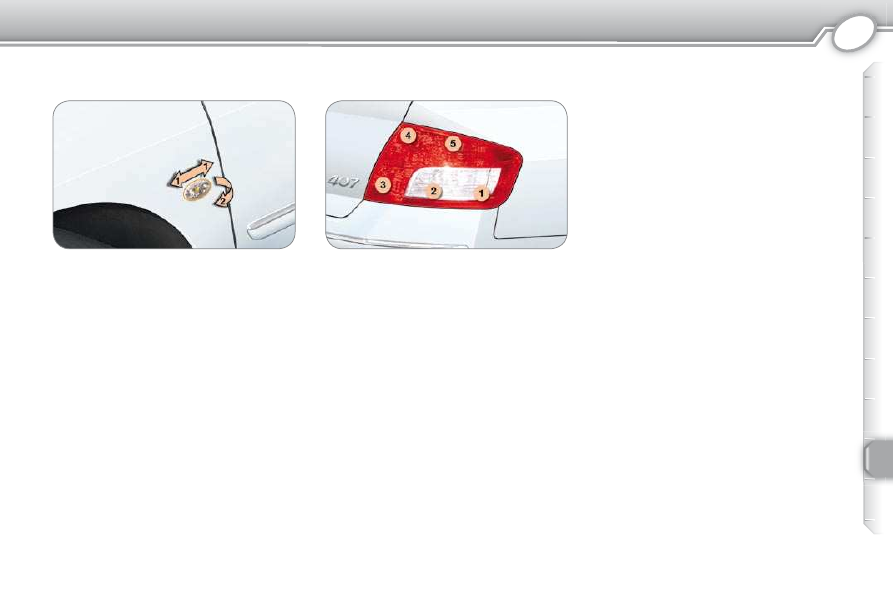

  Integrated direction indicator side
repeaters

 CHANGING A REAR BULB
(SALOON)

  Third brake light:

 Five W 5 W bulbs.

      Remove the plastic cover carefully

by  unclipping  it  at  the  centre  and
on either side, perpendicular to its
direction of engagement.

     Press  on  the  two  tabs  located  at

the rear, near the rear screen.

     Pull  the  red  transparent  cover  out-

wards while maintaining the pressure
on the tabs.

     Change the faulty bulb.
  

   When  refi tting,  ensure  that  the

tabs  of  the  red  transparent  cover
are engaged correctly and that the
upper  trim  has  been  put  back  in
place correctly.

  

   Refi t  the  lamp  fi xing  nuts  inside

the  boot  using  the  towing  eye,  if

necessary.  When  refi tting,  ensure

that the lamp unit is positioned and

fi xed correctly.

     Reconnect the electrical connector.

  Number plate lamps : W5W.
      Remove the transparent cover us-

ing a screwdriver blade.

     Change the faulty bulb.

      Push  the  repeater  forwards  or

backwards and release it.

     Unclip the repeater and change it.
 Repeaters  can  be  obtained  from
PEUGEOT dealers.
 Amber  coloured  bulbs  (direction  indi-
cators  and  side  repeaters),  must  be
replaced with bulbs of identical speci-

fi cation and colour.

   1.    Direction indicators :

PY21W (amber).

  2.    Reversing lamps : P21W.
  3.    Foglamps/sidelamps :

P21/4W.

  4.    Sidelamps : P21/4W.
  5.    Brake lamps/sidelamps : P21/4W.
      Disconnect the electrical connector.
  

   Unscrew  the  lamp  fi xing  nuts  in-

side the boot using the towing eye
(stored  inside  the  spare  wheel),  if
necessary.

     Remove the seal.
     Unclip  the  bulb  holder  moving

aside the 5 tabs.

     Unscrew the bulb and change it.
  

   Refi t the bulb holder.

     Reposition the seal.

10

10

PRACTICAL INFORMATION

117

  Integrated direction indicator side
repeaters

 CHANGING A REAR BULB
(SALOON)

  Third brake light:

 Five W 5 W bulbs.

      Remove the plastic cover carefully

by  unclipping  it  at  the  centre  and
on either side, perpendicular to its
direction of engagement.

     Press  on  the  two  tabs  located  at

the rear, near the rear screen.

     Pull  the  red  transparent  cover  out-

wards while maintaining the pressure
on the tabs.

     Change the faulty bulb.
  

   When  refi tting,  ensure  that  the

tabs  of  the  red  transparent  cover
are engaged correctly and that the
upper  trim  has  been  put  back  in
place correctly.

  

   Refi t  the  lamp  fi xing  nuts  inside

the  boot  using  the  towing  eye,  if

necessary.  When  refi tting,  ensure

that the lamp unit is positioned and

fi xed correctly.

     Reconnect the electrical connector.

  Number plate lamps : W5W.
      Remove the transparent cover us-

ing a screwdriver blade.

     Change the faulty bulb.

      Push  the  repeater  forwards  or

backwards and release it.

     Unclip the repeater and change it.
 Repeaters  can  be  obtained  from
PEUGEOT dealers.
 Amber  coloured  bulbs  (direction  indi-
cators  and  side  repeaters),  must  be
replaced with bulbs of identical speci-

fi cation and colour.

   1.    Direction indicators :

PY21W (amber).

  2.    Reversing lamps : P21W.
  3.    Foglamps/sidelamps :

P21/4W.

  4.    Sidelamps : P21/4W.
  5.    Brake lamps/sidelamps : P21/4W.
      Disconnect the electrical connector.
  

   Unscrew  the  lamp  fi xing  nuts  in-

side the boot using the towing eye
(stored  inside  the  spare  wheel),  if
necessary.

     Remove the seal.
     Unclip  the  bulb  holder  moving

aside the 5 tabs.

     Unscrew the bulb and change it.
  

   Refi t the bulb holder.

     Reposition the seal.

10

10

PRACTICAL INFORMATION

118

 CHANGING A REAR BULB
(407SW)

  Left and right foglamps:  P21W.
      Carefully unclip the tailgate interior

trim.

  

   Detach the sealing fi lm located be-

hind the lamp in question.

     Remove the bulb holder turning it a

quarter of a turn.

     Change the faulty bulb.
 When refi tting, ensure that the bulb is

positioned correctly in the bulb holder.

      Unclip the lamp (2 clips).
     Disconnect  the  connector  and  re-

move the lamp.

     Unclip  the  bulb  holder  moving

aside the 4 tabs.

     Unscrew the bulb and change it.
     Reconnect the connector.
  

   Refi t the bulb holder. When refi tting

it, ensure that the lamp is correctly
positioned and secured, reclipping
the rear part then the front part.

  Number plate lamps:  W5W.
      Insert  a  thin  screwdriver  in  one  of

the  exterior  holes  of  the  transpar-
ent cover.

     Push it towards the outside to unclip it.
     Remove the transparent cover.
     Change the faulty bulb.

  Third brake lamp (diodes)

 All  work  on  the  diode  lamps  must  be
carried out by a PEUGEOT dealer.

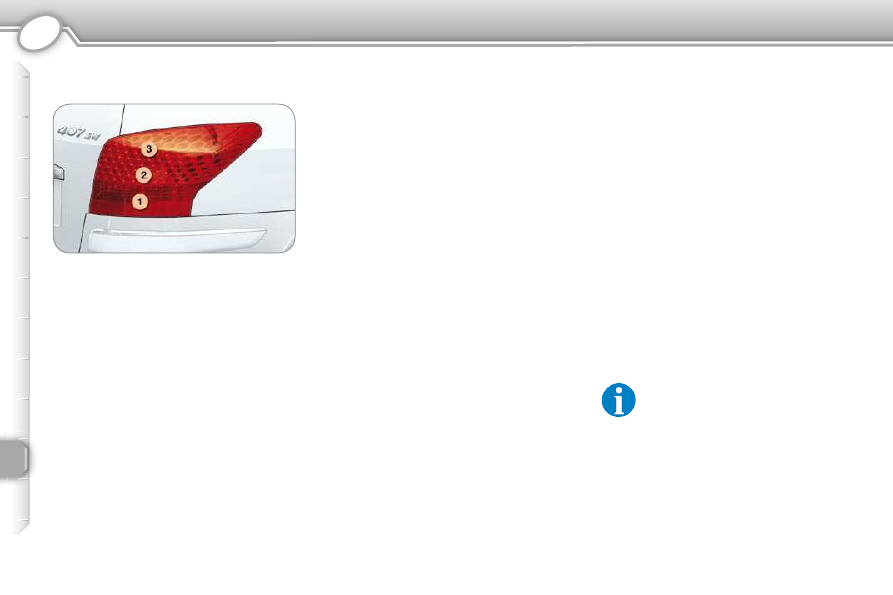

  Wing lamps

   1.    Brake lamps/sidelamps:  P21/5W.
  2.    Reversing lamps:  P21W.
  3.    Direction indicators:  P21W.
 These three bulbs are changed by re-
moving the lamp.
      Remove  the  corresponding  boot

side  fl ap  to  gain  access  to  the

lamp.

  

   Remove the lamp fi xing nut inside

the boot.

 Note: if necessary, use the wheelbrace
to remove the nuts.

 In  some  climatic  conditions
(e.g.  low  temperature  or  hu-
midity), the presence of misting
on  the  internal  surface  of  the

glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.

10

10

PRACTICAL INFORMATION

119

 CHANGING A FUSE

 The fuse boxes are placed in the lower
part  of  the  fascia  (passenger  side  in
the glove box) and in the engine com-
partment (left-hand side).

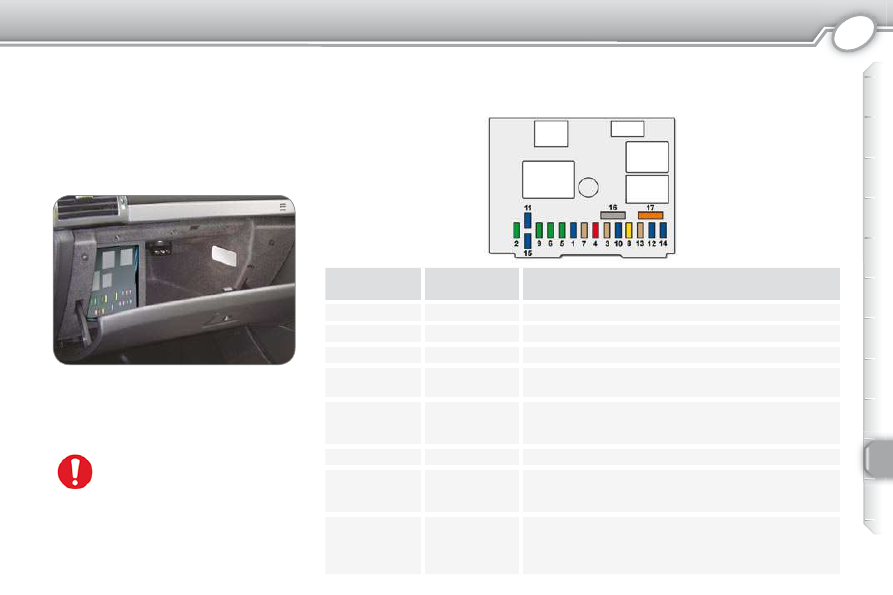

  Fascia fuses

 To access the fuses, open the glove box. Open the fuse box cover by pressing the
two tabs at the top.

  Replacing a fuse

 Before  replacing  a  fuse,  the  cause  of
the  incident  must  be  found  and  recti-

fi ed. The  fuse  numbers  are  indicated

on the fuse box.

 Always  replace  a  faulty  fuse
with a fuse of the same rating
(same colour).
 Use the special pliers located

on  the  support  next  to  the  fuse  box,
this support also contains the replace-
ment fuses.

   Fuse N°

   Rating

 A

   Functions

   F1

   15

 Rear wiper.

   F2

   30

 Central locking/deadlocking.

   F3

   5

 Air bags.

   F4

   10

 ESP dual function sensor, diagnostic connector,
sunroof (Saloon), steering wheel angle sensor.

   F5

   30

 Front  one-touch  electric  windows,  sunroof

(Saloon),  panoramic  roof  concealing  fl ap

(407SW).

   F6

   30

 Rear one-touch electric windows.

   F7

   5

 Glove box lighting, side repeaters, front and rear
courtesy  lamps,  map  reading  lamps,  courtesy
mirror.

   F8

   20

 Multifunction display, audio equipment, steering
wheel control, trailer fuse box, alarm control unit,
navigation-telematics (according to country).

10

10

PRACTICAL INFORMATION

119

 CHANGING A FUSE

 The fuse boxes are placed in the lower
part  of  the  fascia  (passenger  side  in
the glove box) and in the engine com-
partment (left-hand side).

  Fascia fuses

 To access the fuses, open the glove box. Open the fuse box cover by pressing the
two tabs at the top.

  Replacing a fuse

 Before  replacing  a  fuse,  the  cause  of
the  incident  must  be  found  and  recti-

fi ed. The  fuse  numbers  are  indicated

on the fuse box.

 Always  replace  a  faulty  fuse
with a fuse of the same rating
(same colour).
 Use the special pliers located

on  the  support  next  to  the  fuse  box,
this support also contains the replace-
ment fuses.

   Fuse N°

   Rating

 A

   Functions

   F1

   15

 Rear wiper.

   F2

   30

 Central locking/deadlocking.

   F3

   5

 Air bags.

   F4

   10

 ESP dual function sensor, diagnostic connector,
sunroof (Saloon), steering wheel angle sensor.

   F5

   30

 Front  one-touch  electric  windows,  sunroof

(Saloon),  panoramic  roof  concealing  fl ap

(407SW).

   F6

   30

 Rear one-touch electric windows.

   F7

   5

 Glove box lighting, side repeaters, front and rear
courtesy  lamps,  map  reading  lamps,  courtesy
mirror.

   F8

   20

 Multifunction display, audio equipment, steering
wheel control, trailer fuse box, alarm control unit,
navigation-telematics (according to country).

10

10

PRACTICAL INFORMATION

120

   Fuse N°

   Rating

 A

   Functions

   F9

   30

 Lighter, telematics (according to country), rear 12 V accessories socket (100 W max).

   F10

   15

 Tyre under-infl ation detection unit.

   F11

   15

 Diagnostic socket, ignition switch.

   F12

   30

 Hands-free kit, trailer socket, trailer fuse box, audible rear parking assistance, passenger’s
electric seat, rain and brightness sensor, alarm.

   F13

   5

 Engine fuse box, windscreen wipers relay control.

   F14

   15

 Driver’s electric seat, instrument panel, air conditioning control panel, air bags control unit.

   F15

   15

 Electric child lock, rear doors deadlocking.

   F17

   40

 Heated rear screen.

   FS1

   -

 PARC shunt.

10

10

PRACTICAL INFORMATION

121

   Fuse N°

   Rating

 A

   Functions

   G29

   5

 Telematics (according to country).

   G30

   30

 Driver’s electric seat.

   G31

   30

 Passenger’s electric seat.

   G32

   15

 Rear 12 V accessories socket (100 W max).

   G33

   -

 Not used.

   G34

   -

 Not used.

   G35

   -

 Not used.

   G36

   -

 Not used.

   G37

   15

 Six-speed automatic gearbox supply.

   G38

   30

 Right and left heated seats.

   G39

   -

 Trailer fuse box (accessory).

   G40

   30

 Audio Hi-Fi assembly.

10

10

PRACTICAL INFORMATION

123

 The  electrical  system  of  your
vehicle  is  designed  to  oper-
ate  with  standard  or  optional
equipment.

 Before installing other electrical equip-
ment  or  accessories  on  your  vehicle,
contact a PEUGEOT dealer.
 PEUGEOT  will  not  accept  responsi-
bility  for  the  cost  incurred  in  repairing
your  vehicle  or  for  rectifying  the  mal-
functions resulting from the installation
of  accessories  not  supplied  and  not
recommended  by  PEUGEOT  and  not
installed in accordance with its instruc-
tions, in particular when the combined
consumption  of  all  of  the  additional
equipment connected exceeds 10 mil-
liamperes.
 The  maxi-fuses  provide  additional  pro-
tection for the electrical systems. All work
must  be  carried  out  by  a  PEUGEOT
dealer.

 CHANGING A WINDSCREEN
WIPER BLADE

 ECONOMY MODE FUNCTION

 After  the  engine  has  stopped,  certain
electrical  functions  can  be  used  for  a
maximum  duration  of  approximately
one hour, to prevent discharging of the
battery.

 A fl at battery prevents the en-

gine from starting.

 If the telephone is being used
when  economy  mode  starts,

it will still be possible to fi nish

the call.

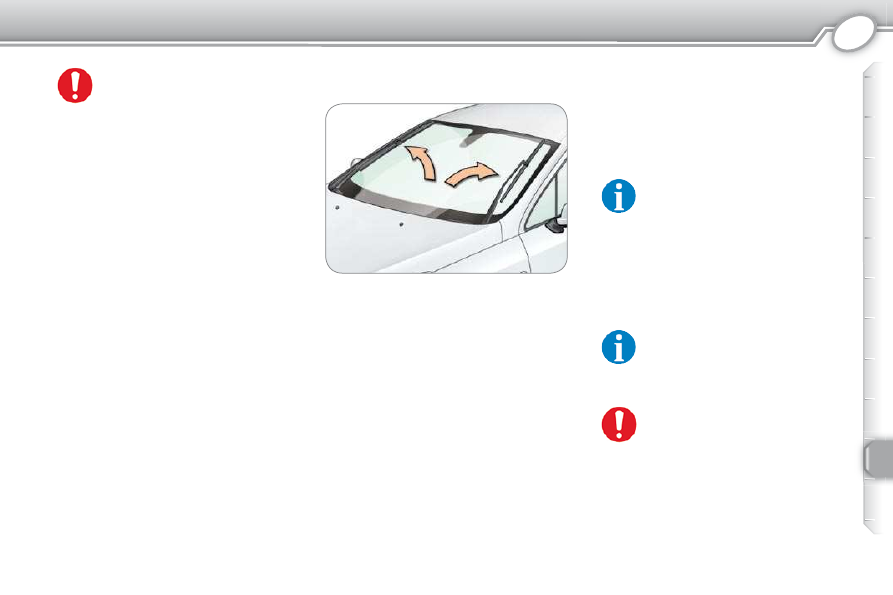

  Placing the wiper blades in
the maintenance position

      Less  than  one  minute  after  swit-

ching  off  the  ignition,  press  the
windscreen wiper stalk down once
to position the blades vertically on
the  windscreen  (maintenance  po-
sition).

  Replacing a blade

      Lift  the  arm,  then  unclip  the  blade

and remove it.

     Fit  the  new  blade  and  fold  down

the arm.

 To reposition the blades, switch on the
ignition  and  operate  the  windscreen
wiper stalk.

 This  period  may  be  signifi -

cantly  reduced  if  the  battery
charge is low.

 Once the hour is over, a message ap-
pears  on  the  multi-function  display
and  the  active  functions  are  put  on
standby.
 These  functions  are  automatically  re-
activated when the vehicle is started.

 As winter approaches, have your bat-
tery checked by a PEUGEOT dealer.

10

10

PRACTICAL INFORMATION

122

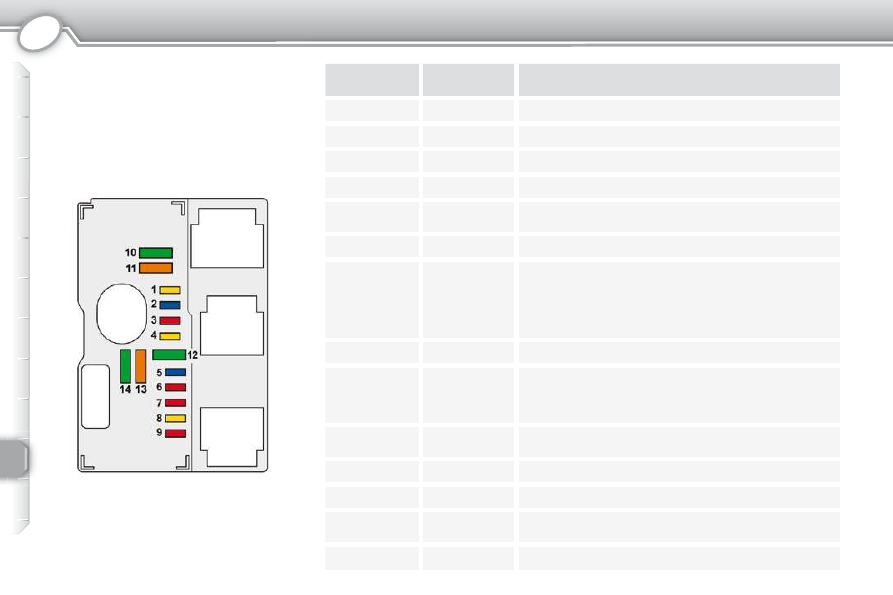

  Engine compartment fuses

 To  access  the  fuses  located  in  the
engine  compartment  (next  to  the  bat-
tery),  remove  the  battery  cover  and
unclip the fuse box cover.
 Close the fuse box cover carefully and

refi t the battery cover when you have

fi nished.

   Fuse N°

   Rating

 A

   Functions

   1

   20

 Engine management control unit.

   2

   15

 Horn.

   3

   10

 Front and rear wash-wipe.

   4

   20

 Headlamp wash.

   5

   15

 Engine management actuators (fuel pump,
purge canister solenoid valves, ...).

   6

   10

 Automatic gearbox control unit.

   7

   10

 Switching and protection unit, intake air fl ow

sensor, clutch switch, six-speed automatic gear-
box switch, STOP switches, electrochromatic

mirror, panoramic roof concealing fl ap controls

(407SW).

   8

   20

 Starter coil.

   9

   10

 Xenon bulb electronic supply, STOP switch,
power steering electropump assembly, four-
speed automatic gearbox control unit, automatic
gearbox locking relay.

   10

   30

 Engine management actuators (ignition coil,
solenoid valves, oxygen sensors).

   11

   40

 Air conditioning blower or not used.

   12

   30

 Windscreen wipers.

   13

   40

 Built-in systems interface supply (ignition positive).

   14

   30

 Air pump.

10

10

PRACTICAL INFORMATION

123

 The  electrical  system  of  your
vehicle  is  designed  to  oper-
ate  with  standard  or  optional
equipment.

 Before installing other electrical equip-
ment  or  accessories  on  your  vehicle,
contact a PEUGEOT dealer.
 PEUGEOT  will  not  accept  responsi-
bility  for  the  cost  incurred  in  repairing
your  vehicle  or  for  rectifying  the  mal-
functions resulting from the installation
of  accessories  not  supplied  and  not
recommended  by  PEUGEOT  and  not
installed in accordance with its instruc-
tions, in particular when the combined
consumption  of  all  of  the  additional
equipment connected exceeds 10 mil-
liamperes.
 The  maxi-fuses  provide  additional  pro-
tection for the electrical systems. All work
must  be  carried  out  by  a  PEUGEOT
dealer.

 CHANGING A WINDSCREEN
WIPER BLADE

 ECONOMY MODE FUNCTION

 After  the  engine  has  stopped,  certain
electrical  functions  can  be  used  for  a
maximum  duration  of  approximately
one hour, to prevent discharging of the
battery.

 A fl at battery prevents the en-

gine from starting.

 If the telephone is being used
when  economy  mode  starts,

it will still be possible to fi nish

the call.

  Placing the wiper blades in
the maintenance position

      Less  than  one  minute  after  swit-

ching  off  the  ignition,  press  the
windscreen wiper stalk down once
to position the blades vertically on
the  windscreen  (maintenance  po-
sition).

  Replacing a blade

      Lift  the  arm,  then  unclip  the  blade

and remove it.

     Fit  the  new  blade  and  fold  down

the arm.

 To reposition the blades, switch on the
ignition  and  operate  the  windscreen
wiper stalk.

 This  period  may  be  signifi -

cantly  reduced  if  the  battery
charge is low.

 Once the hour is over, a message ap-
pears  on  the  multi-function  display
and  the  active  functions  are  put  on
standby.
 These  functions  are  automatically  re-
activated when the vehicle is started.

 As winter approaches, have your bat-
tery checked by a PEUGEOT dealer.

10

10

PRACTICAL INFORMATION

123

 The  electrical  system  of  your
vehicle  is  designed  to  oper-
ate  with  standard  or  optional
equipment.

 Before installing other electrical equip-
ment  or  accessories  on  your  vehicle,
contact a PEUGEOT dealer.
 PEUGEOT  will  not  accept  responsi-
bility  for  the  cost  incurred  in  repairing
your  vehicle  or  for  rectifying  the  mal-
functions resulting from the installation
of  accessories  not  supplied  and  not
recommended  by  PEUGEOT  and  not
installed in accordance with its instruc-
tions, in particular when the combined
consumption  of  all  of  the  additional
equipment connected exceeds 10 mil-
liamperes.
 The  maxi-fuses  provide  additional  pro-
tection for the electrical systems. All work
must  be  carried  out  by  a  PEUGEOT
dealer.

 CHANGING A WINDSCREEN
WIPER BLADE

 ECONOMY MODE FUNCTION

 After  the  engine  has  stopped,  certain
electrical  functions  can  be  used  for  a
maximum  duration  of  approximately
one hour, to prevent discharging of the
battery.

 A fl at battery prevents the en-

gine from starting.

 If the telephone is being used
when  economy  mode  starts,

it will still be possible to fi nish

the call.

  Placing the wiper blades in
the maintenance position

      Less  than  one  minute  after  swit-

ching  off  the  ignition,  press  the
windscreen wiper stalk down once
to position the blades vertically on
the  windscreen  (maintenance  po-
sition).

  Replacing a blade

      Lift  the  arm,  then  unclip  the  blade

and remove it.

     Fit  the  new  blade  and  fold  down

the arm.

 To reposition the blades, switch on the
ignition  and  operate  the  windscreen
wiper stalk.

 This  period  may  be  signifi -

cantly  reduced  if  the  battery
charge is low.

 Once the hour is over, a message ap-
pears  on  the  multi-function  display
and  the  active  functions  are  put  on
standby.
 These  functions  are  automatically  re-
activated when the vehicle is started.

 As winter approaches, have your bat-
tery checked by a PEUGEOT dealer.

10

10

PRACTICAL INFORMATION

124

  To start the vehicle from another
battery:

   -

Connect the red cable to the positive
(+) terminals of the two batteries,

  -

Connect  one  end  of  the  green  or
black cable to the negative (-) ter-
minal of the slave battery,

  -

Connect the other end of the green
or black cable to an earth point on
the broken down vehicle as far as
possible from the battery,

  -

Operate the starter, let the engine
run,

  -

Wait for the engine to return to idle,
then disconnect the cables.

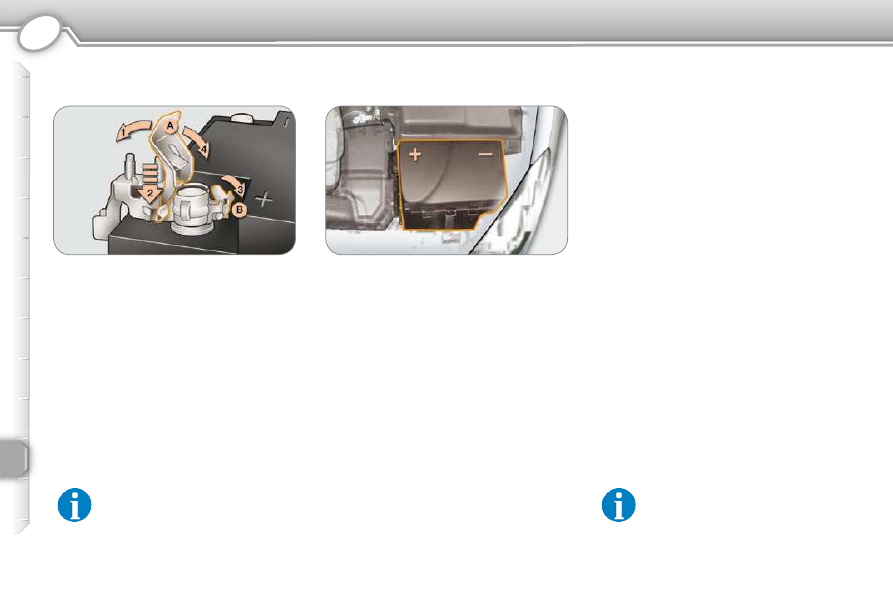

 BATTERY (LOCATED IN THE
ENGINE COMPARTMENT)

  Disconnecting/Reconnecting
the cables

   1.   Raise the locking plate  A .
  2.   Position the open clip of the cable

on  the  positive  (+)  terminal  of  the
battery.

  3.   Press  until  the  position  checking

system  B  tilts.

  4.   Lock  the  clip  by  lowering  the  lock-

ing plate while pressing on the clip.

 It  is  advisable  to  disconnect
the battery if the vehicle is not
to be used for a period of more
than one month.

  To charge the battery using a
battery charger:

   -

Disconnect the battery,

  -

Follow the instructions for use giv-
en by the manufacturer the battery
charger,

  -

Reconnect  starting  with  the  nega-
tive (-) terminal,

  -

Check that the terminals and connec-
tors are clean. If they are covered with
sulphate (white or greenish deposit),
disconnect them and clean them.

 Do not force the plate as lock-
ing is not possible if the clip is
not positioned correctly.

 Start the procedure again.















Content   ..  7  8  9  10   ..
