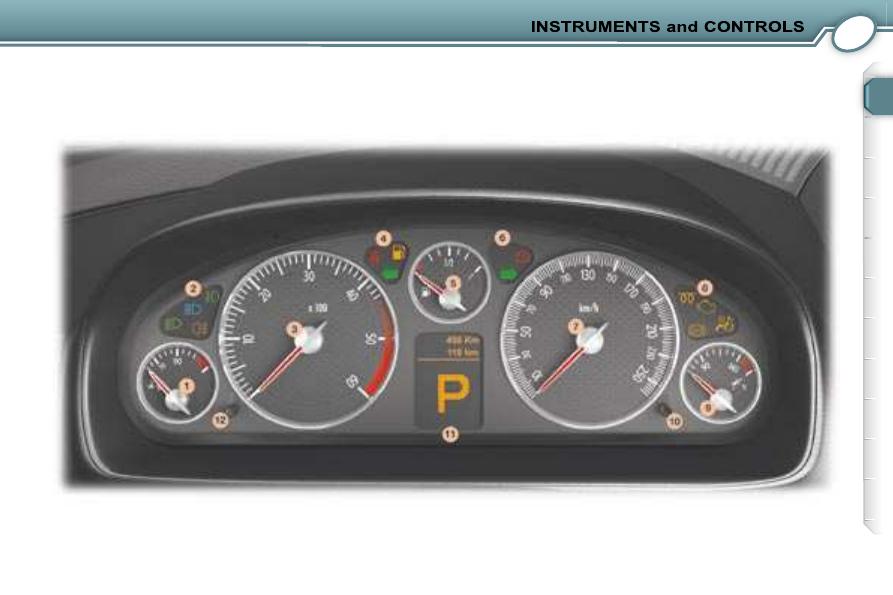

Peugeot 407 C Dag (2008 year). Instruction

1. Coolant temperature indicator dial.

2. Lights on indicators:

dipped headlamps.

main beam headlamps.

front fog lamps.

rear fog lamps.

3. Rev counter dial.

4. Warning lights:

seat belts not fastened in the
front.

fuel level.

left direction indicator.

5. Fuel level indicator dial.

5-DIAL PETROL-DIESEL MANUAL AND AUTOMATIC GEARBOX INSTRUMENT PANELS

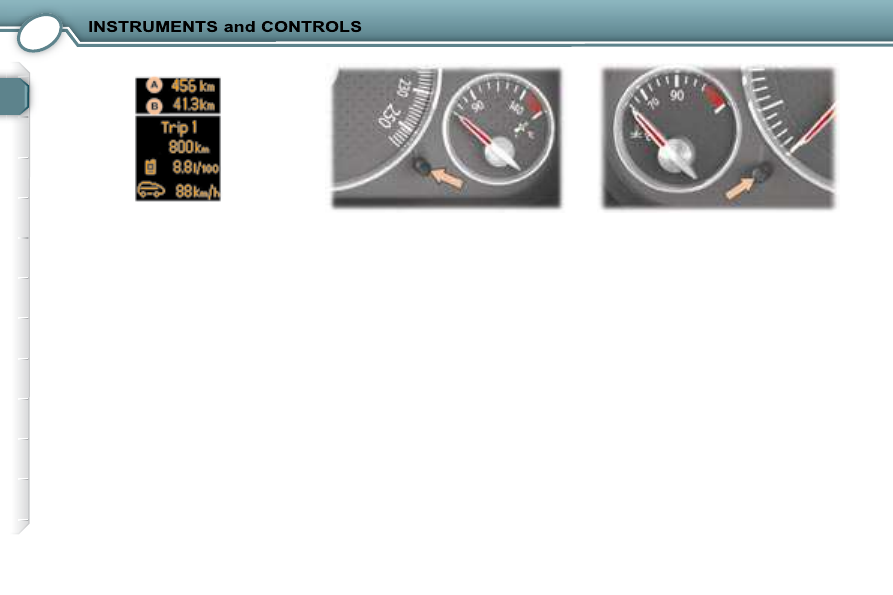

10. CHECK and trip recorder zero

reset and service display button.

11. Instrument panel display:

Total distance recorder.

Trip recorder.

Cruise control/speed limiter
reference value.

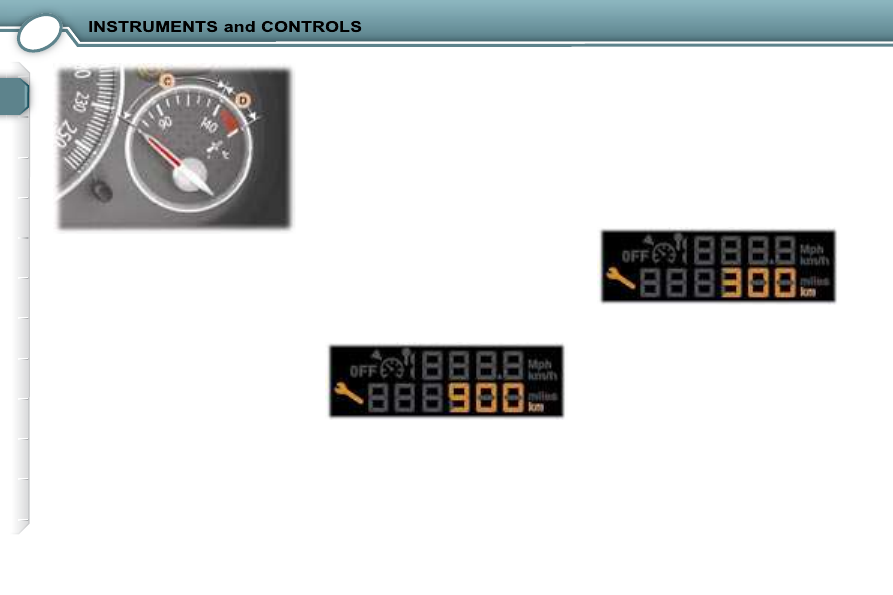

Service indicator.

Direction advice (navigation)

CHECK (vehicle autotest).

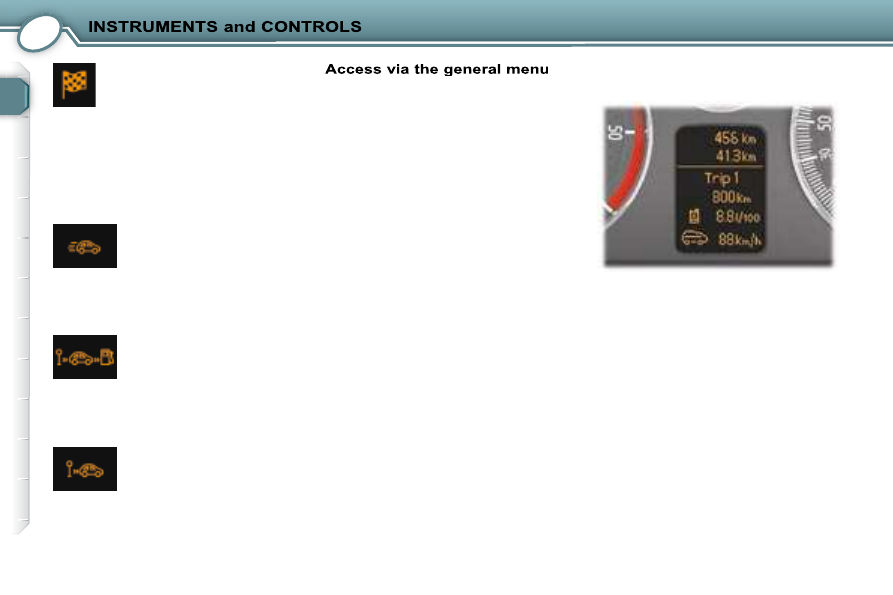

Trip computer information
displays.

Warning and status displays.

6. Warning lights:

handbrake applied

or brake ﬂ uid level or

electronic brake force
distribution fault.

right direction indicator.

7. Speedometer dial.

8. Warning lights:

emission control system.

anti-lock braking system
(ABS).

passenger air bag
disarmed.

pre-heat
(Diesel engine starting)

9. Engine oil temperature indicator

dial.

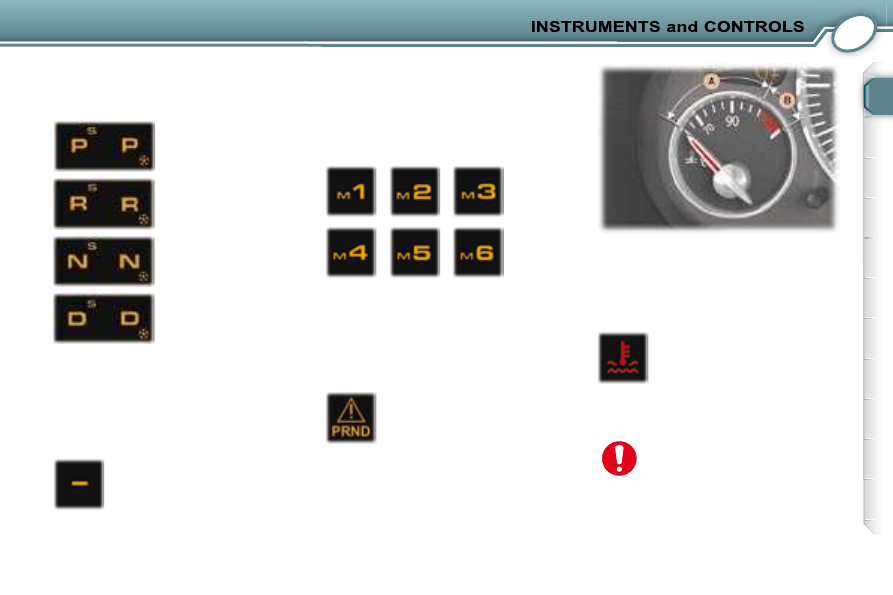

Automatic gearbox lever position
indicator.

12. Instrument panel lighting rheostat.

CHECK (vehicle autotest)

In the presence of a fault

A  "minor"  fault  has  been  detected:
when  the  CHECK  OK  indicator  light
has  been  displayed,  the  warning
light(s) is (are) displayed.
You  can  start  your  vehicle;  however,
contact  a   PEUGEOT   dealer  as  soon
as possible.
A  "major"  fault  has  been  detected:
the  CHECK  OK  indicator  light  does
not appear and the warning light(s) is
(are) displayed.
Do not start your vehicle.
Call a  PEUGEOT  dealer without delay.

* According to country.

Automatic CHECK
With the key in the ignition on position,
all of the warning lights of the functions
tested are displayed. They are switched
off after a few seconds.
At the same time, an automatic CHECK
(vehicle autotest) is carried out.

No "major" fault has been de-
tected: the CHECK OK indi-
cator light is displayed after a
few seconds.
You can start your vehicle.

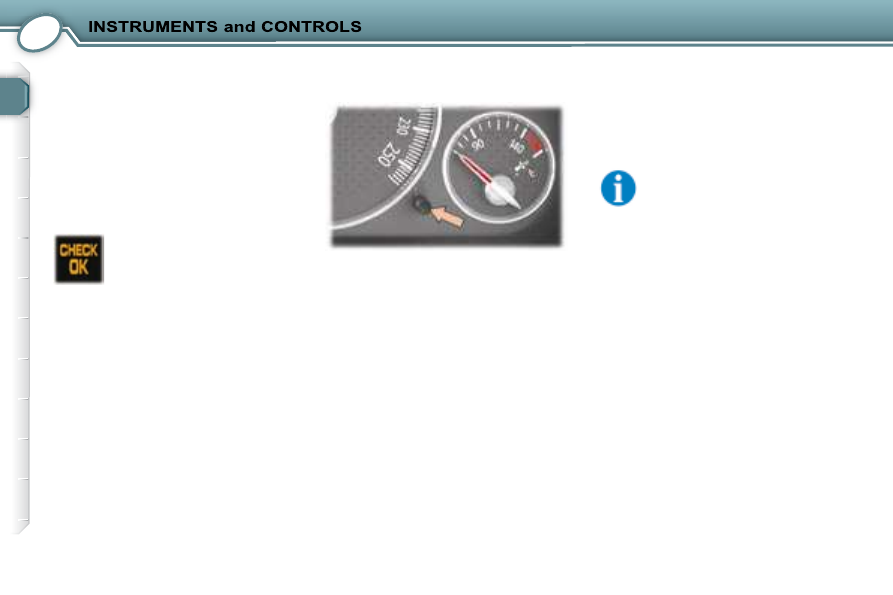

Manual CHECK
Pressing the "CHECK/000" button on
the instrument panel starts the manual
CHECK (vehicle autotest).
This function enables you to ﬁ nd out, at

any time (with the key in the ignition on
position or with the engine running):
-

the warnings present,

the status of the functions activated
or deactivated (wipers, automatic
switching on of the lights).

The passenger air bag disarmed
indicator light * remains on while
the air bag is disarmed.

  With the engine running and the ve-
hicle  moving,  the  instrument  panel
screen  displays   the  warning  lights
(in the event of a fault).

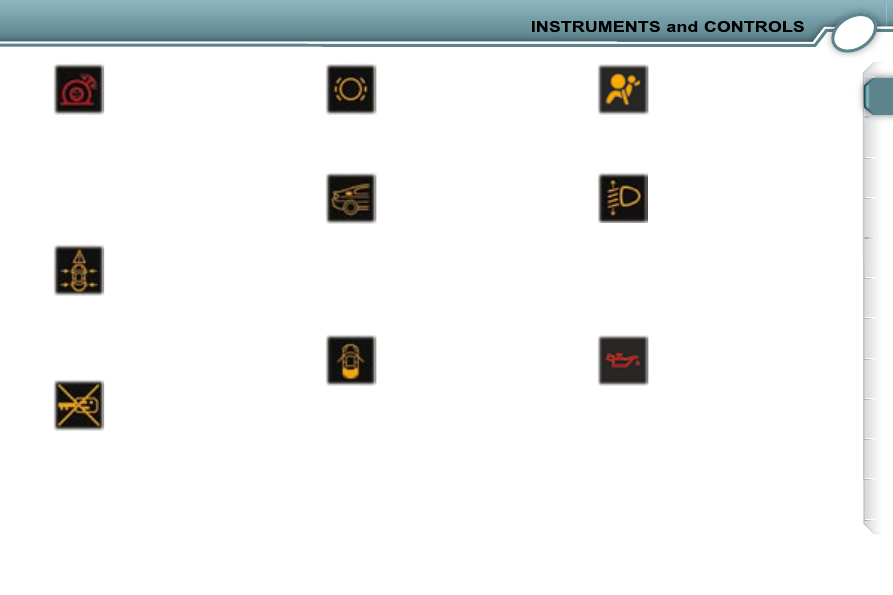

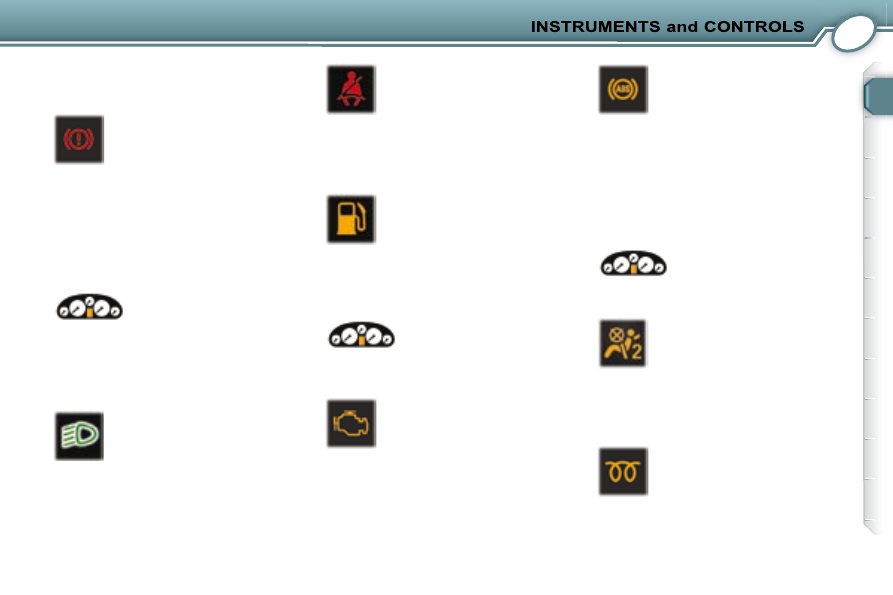

Braking system warning
light

This indicates:

handbrake applied or incorrectly
released,

- an excessive drop in the brake ﬂ uid

level, in this case linked with the
STOP warning light,

an  electronic  brake  force  distribu-
tion  malfunction,  linked  with  the
STOP  warning light.

WARNING LIGHTS WHICH
ARE DISPLAYED ON THE
INSTRUMENT PANEL

  Seat belt warning light
When the ignition is switched
on,  the  warning  light  comes
on if a front occupant has not
fastened his seat belt or if he
unfastens it.

Fuel warning light
In certain driving conditions and
depending on the engine, the
distance which you will be able
to travel with the remaining fuel

may be less than 30 miles (50 kilometres)
(the capacity of the tank is approximately
67 litres).

  Emission control system
warning light
This  should  switch  off  a  few
seconds  after  the  engine  is
switched on.

When the engine is running, if the warn-

ing light ﬂ ashes or comes on continu-

ously, this indicates an emission control
system malfunction.
Contact a PEUGEOT dealer as soon
as possible.

  Passenger air bag
disarmed warning light *
If  the  warning  light  remains
on,  this  indicates  that  the
passenger  air  bag  has  been
disarmed intentionally.

This  warning  light  is  re-
peated  on  the  instrument
panel  screen  in  the  case
of the last 2 faults.

Stop immediately in the two latter
cases. Consult a PEUGEOT dealer.

  Anti-lock braking system
(ABS) warning light
If  it  comes  on  continuously
above  6  mph  (10  km/h),  it
indica tes an ABS fault.

However, the vehicle retains conven-
tional servo-assisted braking.
Consult a PEUGEOT dealer.

This  warning  light  is  re-
peated  on  the  instrument
panel screen.

Directional headlamps
warning light
When this ﬂ ashes, it indicates

a malfunction of the directional
headlamps.

Consult a PEUGEOT dealer.

   Diesel engine pre-heat
warning light
Wait  for  the  warning  light  to
switch  off  before  starting.
The  duration  of  the  display
is determined by the exterior
climatic conditions.

This  warning  light  is  re-
peated  on  the  instrument
panel screen.

Tyre under-inﬂ ation

warning light
This indicates that the tyre
pressure is too low.

A message on the multifunction display
indicates the wheel(s) concerned.
Refer to the information label afﬁ xed to

the central pillar of the driver's door. For
your safety, check the tyre pressures
as soon as possible.

Electronic stability control system
(ESP) warning lights

Activation warning light

Operation warning light

Deactivation warning light

Malfunction warning light

Handbrake warning light
This indicates that the hand-
brake is still applied or has
not been released correctly.

It is linked with the braking system
warning light.

Low wash-wipe and

headlamp wash ﬂ uid level

warning light
When the wipers are switched

on, this indicates that the ﬂ uid

level is too low.

Fill the wash-wipe and headlamp wash

ﬂ uid reservoir.

Battery charge warning
light
When the engine is running,
this indicates a charging circuit
malfunction (battery terminals,
alternator belt).

Consult a PEUGEOT dealer.

Engine oil level warning
light
This indicates a low engine
oil level.

Stop immediately.
Consult a PEUGEOT dealer.

WARNING LIGHTS WHICH
ARE DISPLAYED ON THE
INSTRUMENT PANEL SCREEN

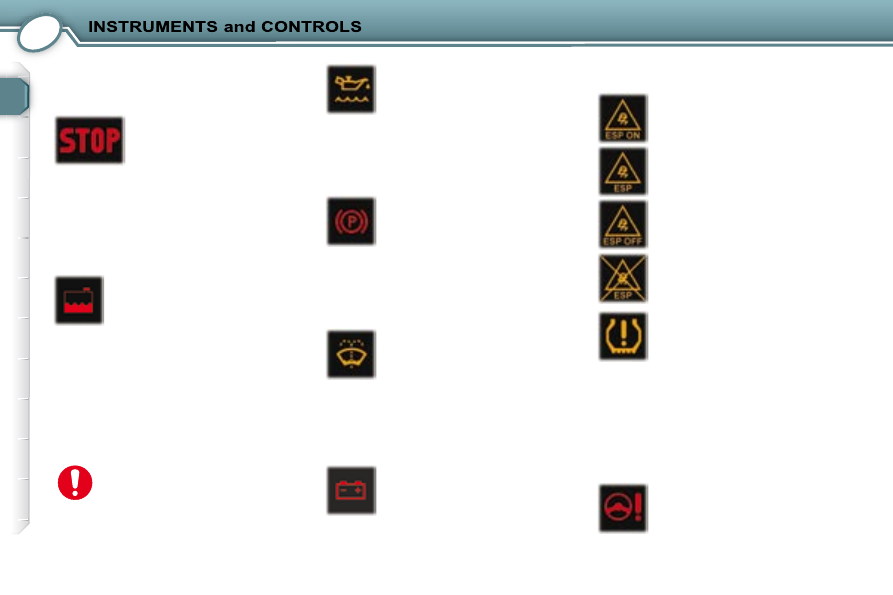

  STOP warning light
It comes on linked with the
engine oil pressure, cool-
ant  temperature,  power
steering,  braking  system

or punctured tyre warning lights.
Stop immediately.
Consult a PEUGEOT dealer.

Low coolant level warning
light (according to
version)
This warning light indicates

an insufﬁ cient cooling circuit

level.

  Stop immediately.
  Consult a PEUGEOT dealer.
Warning:  the  cooling  circuit  is  pres-
surised,  wait  for  the  engine  to  cool
down before topping up the level.

When topping up, and in order
to prevent any risk of scalding,
unscrew the cap by two turns
to allow the pressure to drop.

When the pressure has dropped, re-
move the cap and top up the level with
coolant.

Power steering warning
light
This indicates a power steering
fault.

It is linked with the STOP warning light.
Consult a PEUGEOT dealer.

Tyre under-inﬂ ation

detection system warning
light
This indicates the absence or
malfunction of one or more

tyre pressure sensors or a system
fault.
Consult a PEUGEOT dealer.

  Electronic engine
immobiliser warning light
This  indicates  an  electronic
engine  immobiliser  system
malfunction.

Consult a PEUGEOT dealer.

Front brake pads wear
warning light
This indicates that the brake
pads are worn.

For your safety, have them replaced
by a PEUGEOT dealer.

  Fuel tank cap warning light
(according to version)
  With the engine running, this
indicates  that  the  fuel  tank
cap  is  incorrectly  secured  or
absent.

It comes on in orange if the vehicle
speed is below 6 mph (10 km/h) and in
red if the vehicle speed is above 6 mph
(10 km/h).

Door/boot open warning
light
With the engine running, this
indicates that an access has
not been closed correctly.

An illustration on the multifunction

display identiﬁ es the access(es) con-

cerned.
It comes on in orange if the vehicle
speed is below 6 mph (10 km/h) and in
red if the vehicle speed is above 6 mph
(10 km/h).

  Air bags warning light
This  indicates  an  air  bag
fault.
  Consult a PEUGEOT dealer.

  Automatic headlamp
beam adjustment system
warning light
This  indicates  that  the  auto-
matic  headlamp  height  ad-
juster is faulty.

Consult a PEUGEOT dealer.

  Punctured tyre warning
light
This  indicates  that  one  or
more  punctured  tyres  have
been detected.

A message on the multifunction display

identiﬁ es the wheel(s) concerned.
It  is  linked  with  the   STOP   warning
light.
  Stop immediately.
Change the damaged wheel and have
it repaired by a  PEUGEOT  dealer.

Engine oil pressure
warning light
This indicates that the engine
oil pressure is too low.

It  is  linked  with  the   STOP   warning
light.
  Stop immediately  if it comes on while
the engine is running.
If there is a lack of oil in the lubrication
circuit,  top  up  the  level  and  contact  a
PEUGEOT  dealer as soon as possible.

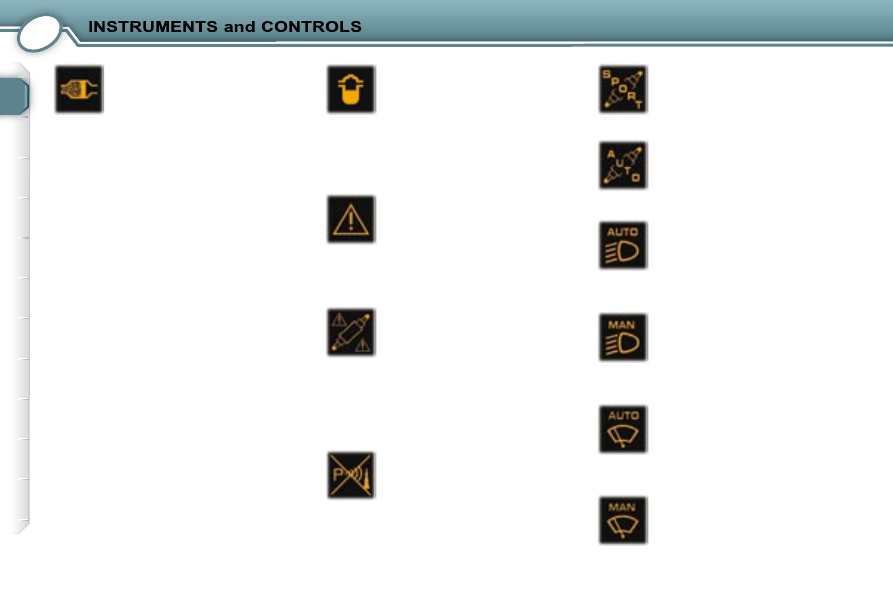

Electronically controlled
suspension indicator
lights
This comes on when the
SPORT function is activated.

  Automatic switching on of
the lights indicator light
This  comes  on  when  the
AUTO function is activated.

Automatic switching on
of the lights deactivation
indicator light
This comes on when the AUTO
function is deactivated.

  Automatic wipers indicator
light
This  comes  on  when  the
AUTO function is activated.

Automatic wipers
deactivation indicator light
This comes on when the AUTO
function is deactivated.

Service warning light
This is displayed to indicate an
engine management system
fault.

Contact a PEUGEOT dealer as soon
as possible.

  Electronically controlled
suspension fault warning
light
  This indicates an electronically
controlled  suspension  mal-
function.

Select automatic operation and contact a
PEUGEOT dealer as soon as possible.

Obstacle proximity
detection system warning
light
In forward and/or reverse gear,
this indicates an obstacle proxi-
mity detection system fault.

Consult a PEUGEOT dealer.

This comes on when the
SPORT function is deactivated.

Particle emission ﬁ lter

saturation warning light
(Diesel engine)
With the engine running, this
indicates that the particle

emission ﬁ lter is starting to become

saturated (exceptionally prolonged ur-
ban driving type conditions: low speed,

long trafﬁ c jams...) or a low diesel ad-

ditive reservoir level.
In order to regenerate the ﬁ lter, you are

advised to drive, as soon as possible

when the trafﬁ c conditions permit, at a

speed of 40 mph (60 km/h) or above for

at least ﬁ ve minutes (until the warning

light is switched off).
If the warning light remains on, contact
a  PEUGEOT  dealer.
Following prolonged use of the vehicle at
very low speeds or at idle, you may, ex-
ceptionally,  notice  an  emission  of  water
vapour  at  the  exhaust  during  accelera-
tion. This does not affect the performance
of the vehicle or the environment.

Water in diesel ﬁ lter

warning light
This indicates the presence

of water in the diesel ﬁ lter.

There is a risk of damage to

the injection system.

Contact a PEUGEOT dealer as soon
as possible.

Coolant temperature indicator

When the needle is in zone A , the
temperature is correct.
When the needle is in zone B , the
temperature is too high.

If  the  coolant  temperature
warning light comes on (linked
with the  STOP  warning light),
stop immediately.
Wait  for  the  engine  to  cool

down before topping up the level, if
necessary.

As  the  cooling  circuit  is  pres-
surised,  in  order  to  prevent
any  risk  of  scalding,  unscrew
the  cap  by  two  turns  to  allow

the pressure to drop.
When the pressure has dropped, remove
the cap and top up the level with coolant,
if necessary.
Consult a PEUGEOT dealer.

This indicates an automatic
gearbox programme fault.

Automatic gearbox lever
position indicator lights

Automatic gearbox fault
warning light
This indicates an automatic
gearbox fault.

The gearbox will operate in down-grade
mode, locked in 3rd gear.
Never force the selector lever.
Consult a PEUGEOT dealer.

6 speed automatic gearbox

"Park" indicator
lights

"Reverse" indicator
lights

"Neutral" indicator
lights

"Drive" indicator
lights

The letter S or the symbol , associa-
ted with the gate lever position indicator
lights, corresponds to the Sport or Snow
programme selected intentionally.

"Manual" indicator lights
These correspond to the manual control
of the gearbox.

When the engine speed is too low or too
high in relation to the gear engaged, the

gear selected ﬂ ashes for a few seconds,

then the actual gear is displayed, the
auto-adaptive programme having taken
control temporarily.

SERVICE INDICATOR

This is a visual reminder of when the next
service is due. This service is to be car-
ried out according to the manufacturer's
servicing schedule.

Once an engine oil level indication has
been displayed, the display indicates
the total and trip distances.

If the service is overdue, each time the
ignition is switched on and for 5 seconds,

the distance and the spanner ﬂ ash.
  Example:  when the ignition is switched
on  and  for  5  seconds,  the  display  in-
dicates that the service is overdue by
300  miles/km.  The  service  should  be
carried out very shortly.

Once the servicing and oil level informa-
tion has been displayed, the total distance
recorder resumes normal operation and
the spanner remains lit.
The point at which a service is due is
calculated using two parameters:
-

the total distance travelled,

the time elapsed since the last ser-
vice.

The distance remaining may be weight-
ed by the time factor, depending on the
user's driving habits.

Engine oil temperature
indicator

When the ignition is switched on or while
the vehicle is moving, this indicates the
engine oil temperature.
When  the  needle  is  in  zone   C ,  the
temperature is correct.
When  the  needle  is  in  zone   D ,  the
temperature is too high.
Reduce your speed to lower the tem-
perature.

  Operation
As soon as the ignition is switched on
and  for  5  seconds,  the  spanner  sym-
bolising  the  service  operations  is  lit.
The  trip  recorder  display  shows  the

distance remaining (in round ﬁ gures)

before the next service.
Example: when switching on the igni-
tion and for 5 seconds, the display
shows that 900 miles/km remain before
the next service is due.

SERVICE INDICATOR

This is a visual reminder of when the next
service is due. This service is to be car-
ried out according to the manufacturer's
servicing schedule.

Once an engine oil level indication has
been displayed, the display indicates
the total and trip distances.

If the service is overdue, each time the
ignition is switched on and for 5 seconds,

the total distance travelled,

the time elapsed since the last ser-
vice.

The distance remaining may be weight-
ed by the time factor, depending on the
user's driving habits.

Engine oil temperature
indicator

  Operation
As soon as the ignition is switched on
and  for  5  seconds,  the  spanner  sym-
bolising  the  service  operations  is  lit.
The  trip  recorder  display  shows  the

distance remaining (in round ﬁ gures)

before the next service.
Example: when switching on the igni-
tion and for 5 seconds, the display
shows that 900 miles/km remain before
the next service is due.

Service indicator zero re-set

   Your  PEUGEOT  dealer carries out this
operation after each service.
However, if you carry out the service your-
self, the re-set procedure is as follows:
      Switch off the ignition,
     Press and hold the trip recorder re-set

button,

 Switch on the ignition.
The display begins a countdown.
When the display shows "=0" , release
the button; the spanner disappears.

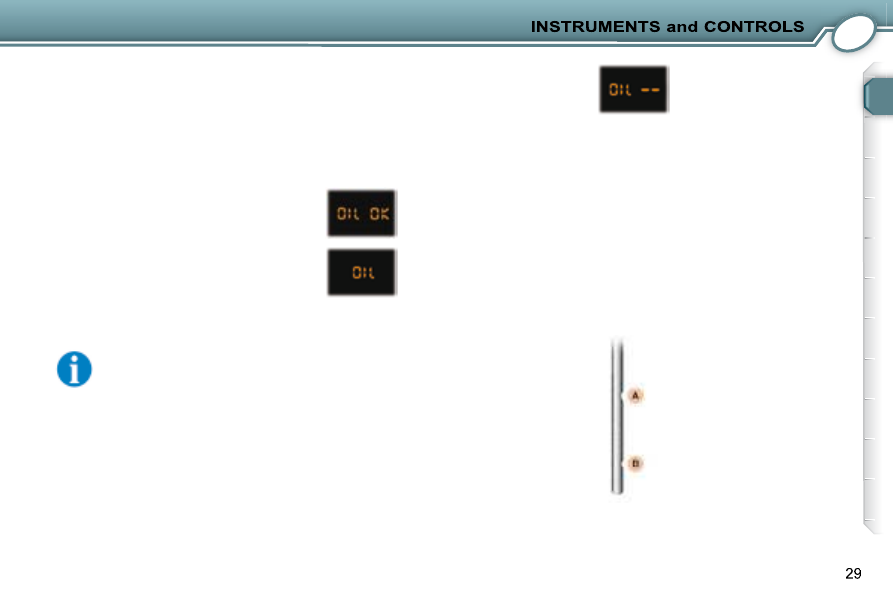

Engine oil level indicator

When the ignition is switched on, the
engine oil level is indicated for approxi-
mately 5 seconds, after the service
information.

  Dipstick
There are 2 level marks on
the  dipstick:  never  exceed
level  A .
In  position   B ,  top  up  the
level  via  the  oil  reservoir
cap,  using  the  type  of  oil
suited to your engine.
  A  = max.
  B  = min.

Oil level correct

Lack of oil

Flashing indicates a lack of oil which
may damage the engine.
If the lack of oil is conﬁ rmed by checking

using the dipstick, it is imperative that
the level is topped up.

Oil level gauge fault

(ﬂ ashing segments)

Check the oil level using the dipstick.
If the level is correct, the ﬂ ashing

indicates  an  engine  oil  level  gauge
malfunction.
  Consult a PEUGEOT dealer.
The  level  observed  on  the  dipstick  is
only  valid  if  the  vehicle  is  parked  on
level ground and the engine has been
off for more than 15 minutes.

After this operation, if you wish
to disconnect the battery, lock
the vehicle and wait for at least

ﬁ ve minutes, otherwise the

zero re-set will not be regis-
tered.

Service indicator zero re-set

button,

 Switch on the ignition.
The display begins a countdown.
When the display shows "=0" , release
the button; the spanner disappears.

Engine oil level indicator

When the ignition is switched on, the
engine oil level is indicated for approxi-
mately 5 seconds, after the service
information.

Oil level correct

Lack of oil

Flashing indicates a lack of oil which
may damage the engine.
If the lack of oil is conﬁ rmed by checking

using the dipstick, it is imperative that
the level is topped up.

Oil level gauge fault

(ﬂ ashing segments)

Check the oil level using the dipstick.
If the level is correct, the ﬂ ashing

After this operation, if you wish
to disconnect the battery, lock
the vehicle and wait for at least

ﬁ ve minutes, otherwise the

zero re-set will not be regis-
tered.

Trip recorder zero reset

With the trip distance displayed, press
the button for a few seconds.

Distance recorder

The total distance is displayed in zone
A of the display and the trip distance
in zone B .

LIGHTING RHEOSTAT

With the lights on, press the button to
vary the intensity of the lighting of the
instruments and controls. When the
lighting reaches the minimum (or maxi-
mum) setting, release the button then
press it again to increase (or reduce)
the brightness.
As soon as the lighting is of the required
brightness, release the button.

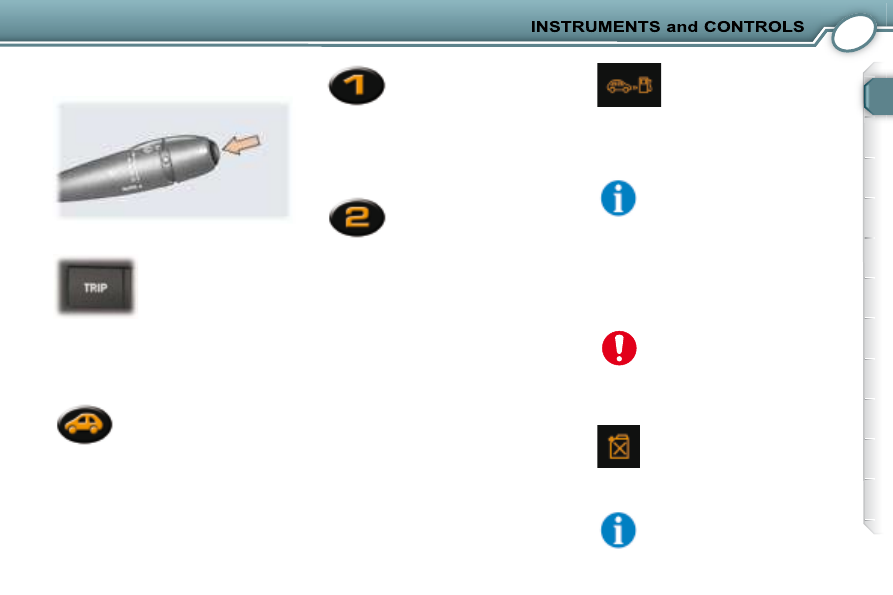

TRIP COMPUTER

TRIP (Route): access
to the trip computer dis-
plays.

  Zero reset
When the required route is displayed,
press  the  control  for  more  than
two seconds.

- the route "1" tab with:

the distance travelled,

the average consump-

tion,

the average speed,

for the ﬁ rst route.

- the route "2" tab with.

the distance travelled,

the average consump-

tion,

the average speed,
for the second route.

  The routes
The  routes   "1"   and   ''2''   are  indepen-
dent but have identical application.
Route   "1"   for  example  allows  you  to
make  daily  calculations  and  route
  "2"  monthly calculations.

Each successive press on the button
located at the end of the wipers stalk
displays different information.

- the "vehicle" tab with:

the range,

the current consump-

tion,

the distance remaining.

Range (km or miles)

Current consumption
(l/100 or km/l or mpg)

This is the average quantity of
fuel consumed during the last
few seconds.

This  shows  the  distance  that  can  still
be  covered  with  the  fuel  remaining  in
the  tank  in  accordance  with  the  ave-
rage  consumption  over  the  last  few
miles (kilometres).

This ﬁ gure may increase if

there is a change in the style
of driving or the road surface,

producing a signiﬁ cant drop in

current consumption.

When the range is less than 20 miles
(30 km), four segments are displayed.

After ﬁ lling with fuel, the range is dis-

played when it exceeds 62 miles
(100 km).

If horizontal segments are dis-
played for long periods instead
of digits, contact a PEUGEOT
dealer.

This function is displayed only
when the vehicle is travelling at
a speed greater than 20 mph
(30 km/h).

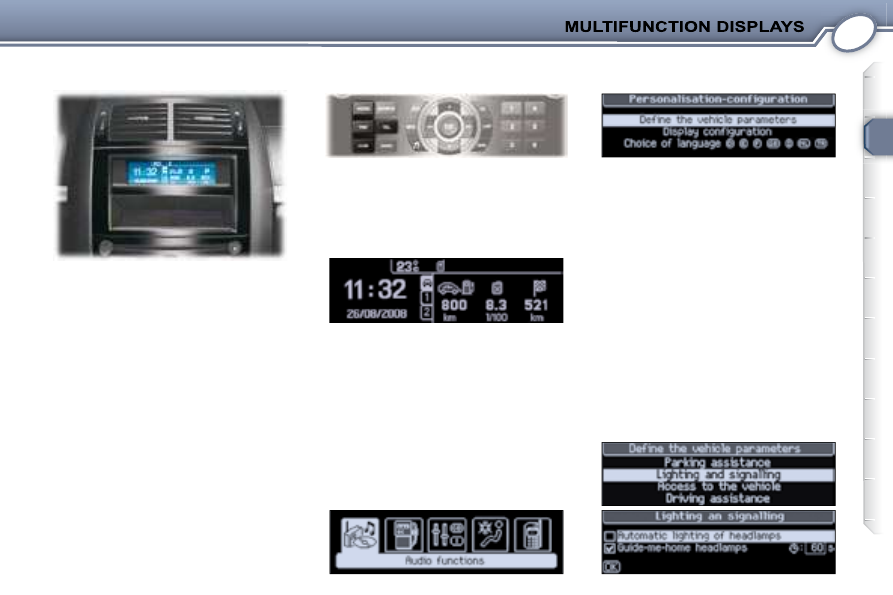

Press the  "MENU"  button to gain access
to the general menu.
Select the  "Trip computer"  or  "Vehicle
diagnostics"  application using the navi-

gator, then conﬁ rm or press the "MODE"

button until you reach the trip computer

screen, then conﬁ rm using  "OK" .
The  "Trip  computer"  or  "Vehicle  diag-
nostics" menu offers various options:
   -

Warnings log,

Status of the functions,

Inputting of the distance to be trav-
elled.

  Warnings log
This  summarises  the  active  warning
messages,  displaying  them  on  the
multifunction display in succession.

Status of the functions
This summarises the active or inactive
status of the functions present on the
vehicle.

  Distance remaining
When  guidance  is  not  activated,  this
enables  you  to  enter  an  approximate
distance to be travelled value.

Display on the instrument
panel screen

All of the various items of trip computer
information also appear on the instrument
panel screen at the same time.

Distance remaining
to be travelled
(km or miles)

Average speed
(km/h or mph)

Average consumption
(l/100 or km/l or mpg)

Distance travelled
(km or miles)

This  is  the  average  speed  calculated
since  the  computer  was  last  set  to
zero (with the ignition on).

This  is  the  distance  remaining  to  the
destination,  either  calculated  at  any
time  by  the  navigation  if  guidance  is
activated or entered by the user, minus
the distance covered since the distance
was entered.
If  digits  are  missing,  dashes  are  dis-
played in their place.

This  is  the  average  fuel  consumption
since  the  computer  was  last  set  to
zero.

This  indicates  the  distance  travelled
since  the  computer  was  last  set  to
zero.

"TRIP" (Route) menu

COLOUR SCREEN C

This displays the following information,
via the WIP Sound audio system control
pad:
-

the time,

the date,

the exterior temperature (the value

displayed ﬂ ashes if there is a risk

of ice),

- the accesses check,
-

the warning messages,

the audio functions,

the trip computer information,

- the personalisation and conﬁ guration

displays,

the air conditioning parameters,

- the front and rear parking assistance

display,

- the hands-free kit displays.

Management of the displays

  General menu
Press the  "MENU"  button to gain access
to  the general menu  and select one of
the following functions:
   -

"Audio functions",

"Trip computer",

- "Personalisation-Conﬁ guration",
-

"Air conditioning",

- "Telephone".

"Personalisation-Conﬁ guration"

menu

This provides access to successive

conﬁ rmation windows.

Deﬁ ning the vehicle parameters
This enables you to activate or deactivate
certain driving and comfort elements:
-

"Automatic switching on of the
lights",

"Follow-me-home

lighting"

and

"Duration",

"Remote control action",

- "Permanent locking of the boot",

- "Directional headlamps".

The   "AUDIO" ,   "TRIP" ,   "CLIM"   and
"TEL"  buttons on the RD4 audio equip-
ment  control  pad  permit  displaying  in

the main window.
Example: "TRIP"

Example: "Audio functions"

Example: "Automatic switching on of
the lights"

Peugeot 407 C Dag (2008 year). Instruction - part 2
