FITTINGS

ILLUMINATED GLOVE BOX

This has areas for storing a bottle of wa-

ter, the vehicle's handbook pack...
Its lid has areas for storing a pen, a pair

of spectacles, tokens, cards, a can...

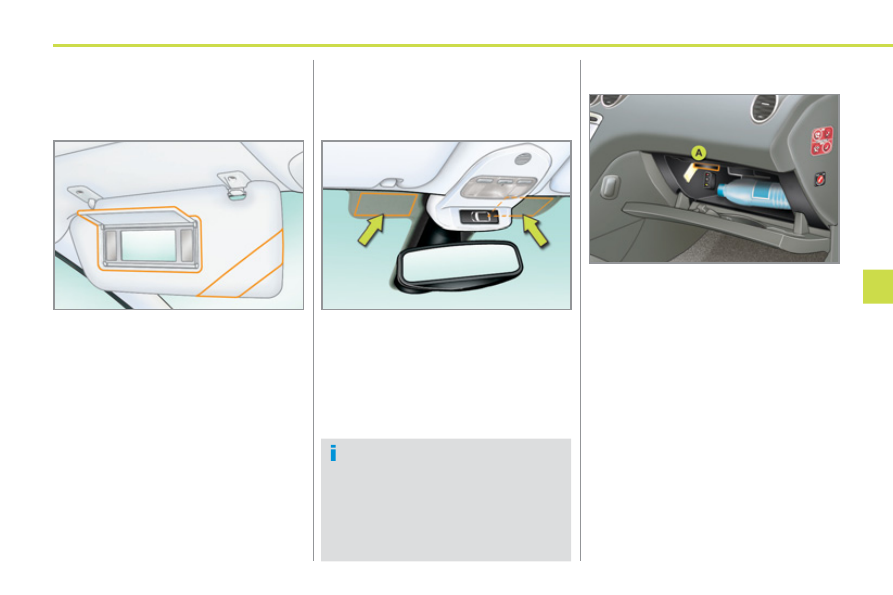

SUN VISOR

Component which protects against sunlight

from the front or the side, also equipped

with an illuminated courtesy mirror.

) With the ignition on, raise the con-

cealing fl ap; the mirror is lit automat-

ically.

This sun visor is also equipped with a

ticket holder.

TOLL CARD / CAR PARK

TICKET WINDOWS

Facility for affi xing toll cards and/or car

park tickets.

These windows are located on each

side of the base of the rear view mirror.
They are two non-refl ective areas of the

athermic windscreen.

The athermic windscreen limits

heating of the passenger compart-

ment by reducing the effects of the

sun's rays (ultra-violet). It consists

of a refl ective layer, which also

blocks certain radio-electric signals

(toll card payments, ...).

) To open the glove box, raise the

handle.

The lamp comes on when the lid is

opened.

If your vehicle is fi tted with air condition-

ing, the glove box has an air vent

A ,

which can be opened or closed. This

distributes the same conditioned air as

the vents in the passenger compart-

ment.

112

FITTINGS

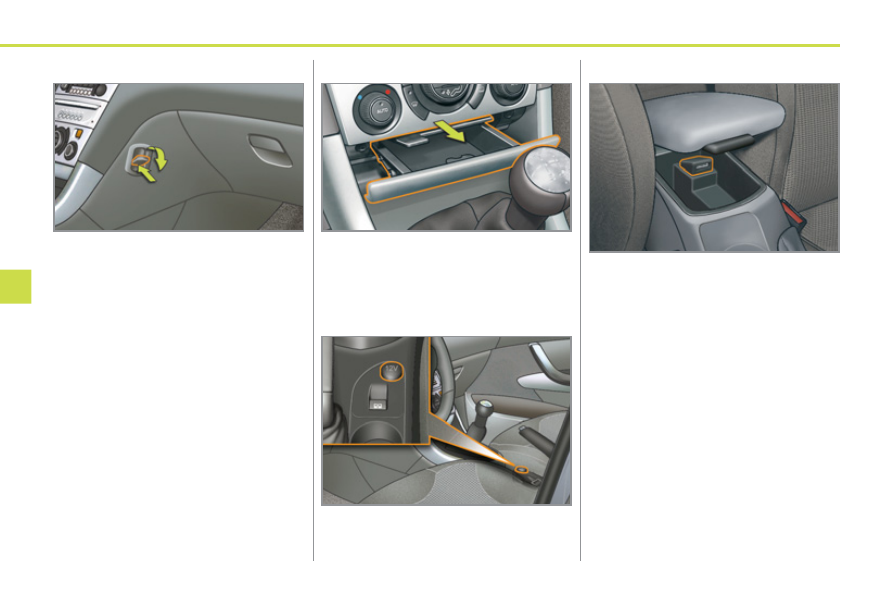

12 V ACCESSORY SOCKET

) To connect a 12 V accessory (max

power: 120 W), lift the cover and

connect a suitable adaptor.

ILLUMINATED ASHTRAY

) Pull the drawer for access to the

ashtray.

) To empty the ashtray, after opening,

press the tab and remove the ash-

tray.

BAG HOOK

) Press the lower part of the hook to

unfold it.

) Hang the strap of your bag on the

hook to secure it.

PEUGEOT CONNECT USB

This connection box, consisting of a

USB port, is located in the front arm-

rest.
It permits the connection of portable

equipment, such as an iPod

digital au-

dio player of generation 5 or later or a

USB stick.
It reads the audio fi le formats (mp3,

ogg, wma, wav...) which are transmitted

to your audio equipment and played via

the vehicle's speakers.
You can manage these fi les using the

steering wheel controls or the audio

equipment control panel and display

them on the multifunction screen.

When it is in use, the portable equip-

ment charges automatically.

For more information on the use of this

equipment, refer to the "Audio and Tele-

matics" section.

113

FITTINGS

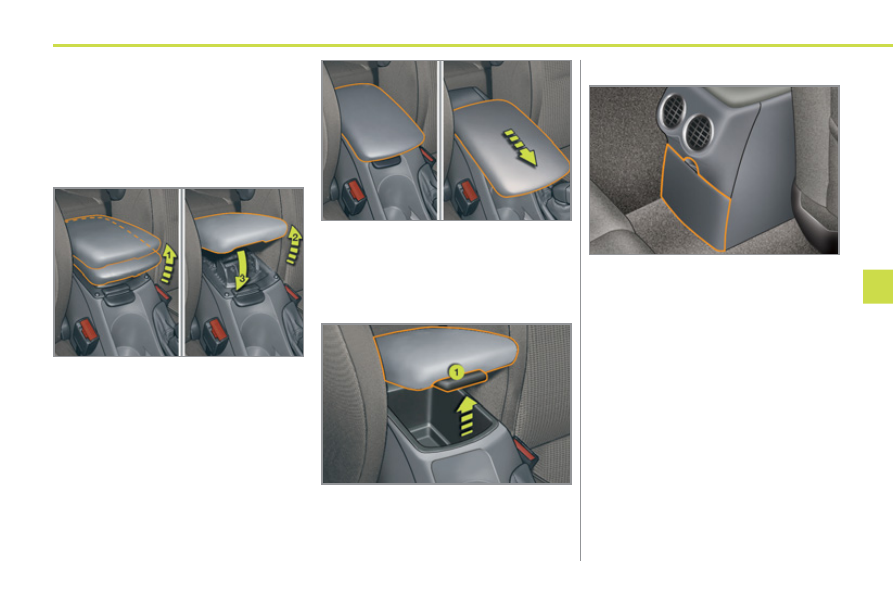

FRONT ARMREST

Comfort and storage device for the driv-

er and front passenger.

The height and length of the armrest

cover can be adjusted for greater com-

fort.

Height adjustment

) Raise the cover to the required posi-

tion (low, intermediate or high).

) If you raise the cover slightly beyond

the high position, guide it when low-

ering it to the low position.

STORAGE BOX

Storage area, built into the rear of the

front armrest, for the rear passengers.
) To empty the box, after opening,

press the tab and remove it.

Storage

The armrest's compartment can hold up

to 6 CDs.
) Raise the lever 1 .
) Raise the cover fully.

Longitudinal adjustment

) Slide the cover fully forwards or

rearwards.

114

FITTINGS

To avoid any risk of jamming of the

pedals:
- only use mats which are suited

to the fi xings already present in

the vehicle; these fi xings must

be used,

- never

fi t one mat on top of an-

other.

The use of mats not approved by

PEUGEOT may interfere with ac-

cess to the pedals and hinder the

operation of the cruise control /

speed limiter.

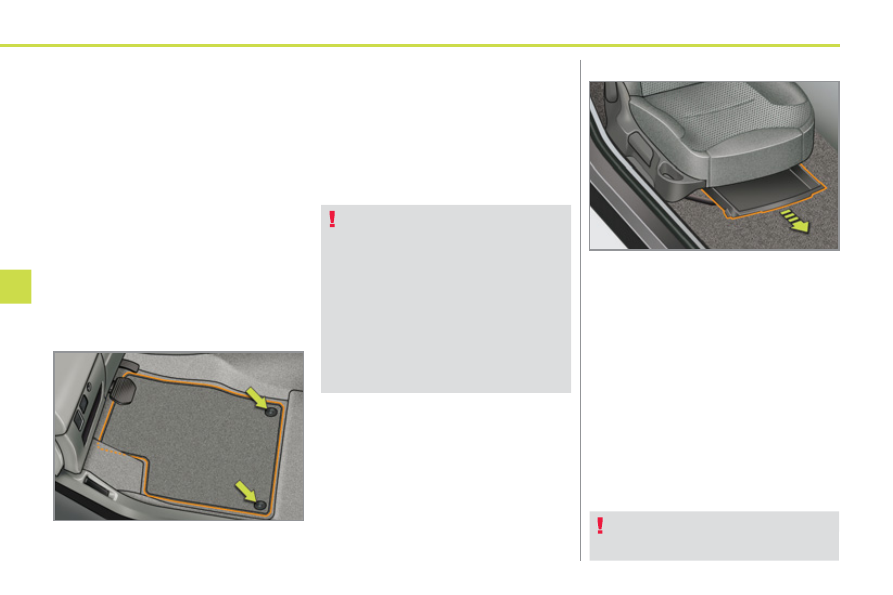

MATS

Removable carpet protection.

Refitting

To refi t the mat on the driver's side:
   )   position the mat correctly,
  )  refi t the fi xings by pressing,
  )   check that the mat is secured cor-

rectly.

Fitting

When fi tting the mat for the fi rst time,

on the driver's side use only the fi xings

provided in the wallet attached.
The other mats are simply placed on

the carpet.

Removal

To remove the mat on the driver's side:
) move the seat as far back as pos-

sible,

) unclip the fi xings,
) remove the mat.

STORAGE DRAWER

Opening

) Raise the front of the drawer and pull it.

Do not place heavy objects in the

drawer.

Removal

) Bring the drawer to the end of its

travel.

) Press the ends of the slides.
) Raise the drawer and pull it fully.

Refitting

) Engage the drawer in its slides.
) At the end of its travel, press on the

top of the drawer to secure it.

The storage drawer is located under the

front passenger's seat.

FITTINGS

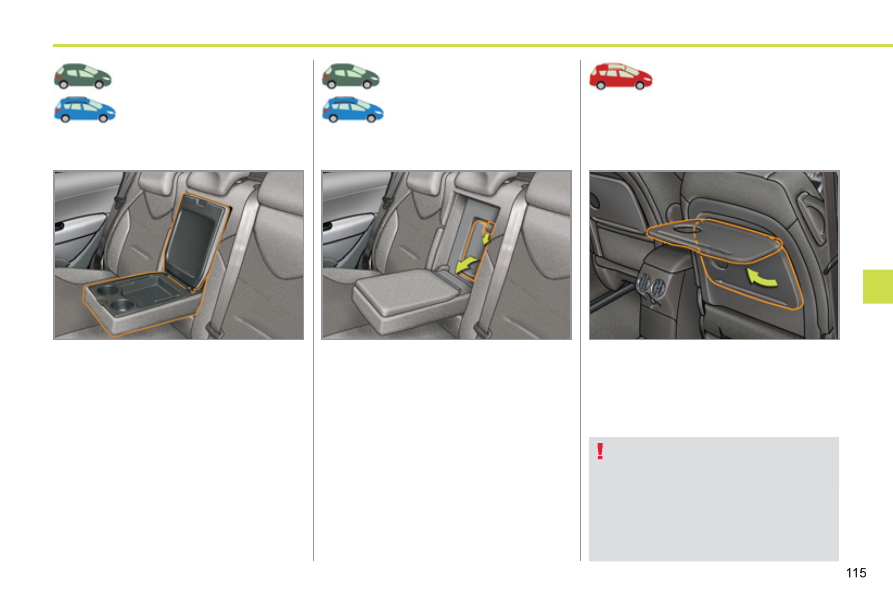

REAR ARMREST

SKI FLAP

Opening

   )   Lower the rear armrest.
  )  Pull the fl ap handle downwards.
  )  Lower the fl ap.
  )  Load the objects from inside the

boot.

) Lower the rear armrest for a more

comfortable position.

) Raise the cover to gain access to its

storage compartment.

This has a storage tray, two cup holders

and two pen holders.

"AIRCRAFT" TYPE

TABLES

) To use the table, raise it fully until it

locks in the high position.

) To store the table, lower it, passing

the point of resistance, to the low

position.

On the passenger side, do not for-

get to fold the "aircraft" type table

before placing the seat in the table

position.
Do not place hard or heavy objects

on the table. They could become

dangerous projectiles in the event

of emergency braking or impact.

Comfort and storage device for the rear

passengers.

Arrangement for storing and transport-

ing long objects.

Installed on the back of each front seat,

these allow you to set down objects and

each is equipped with a cup holder.

116

FITTINGS

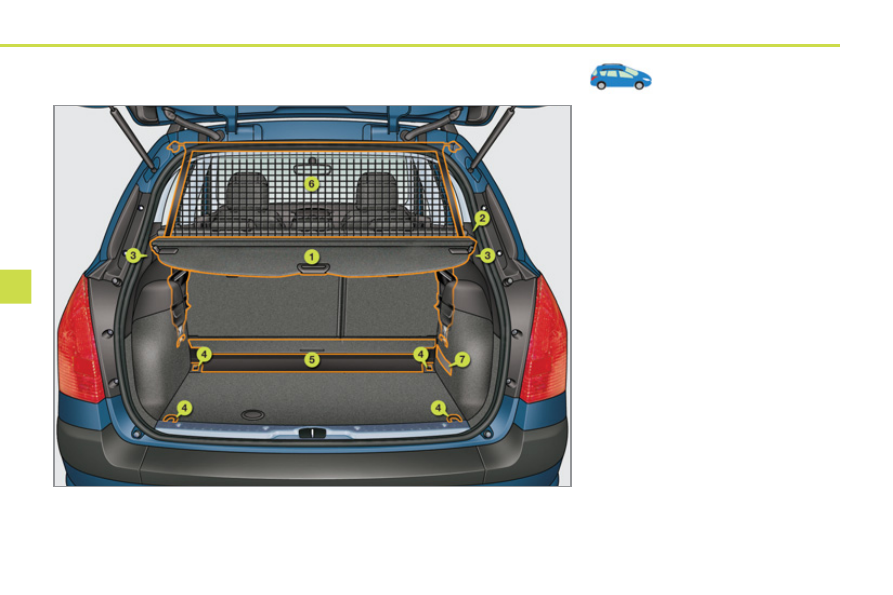

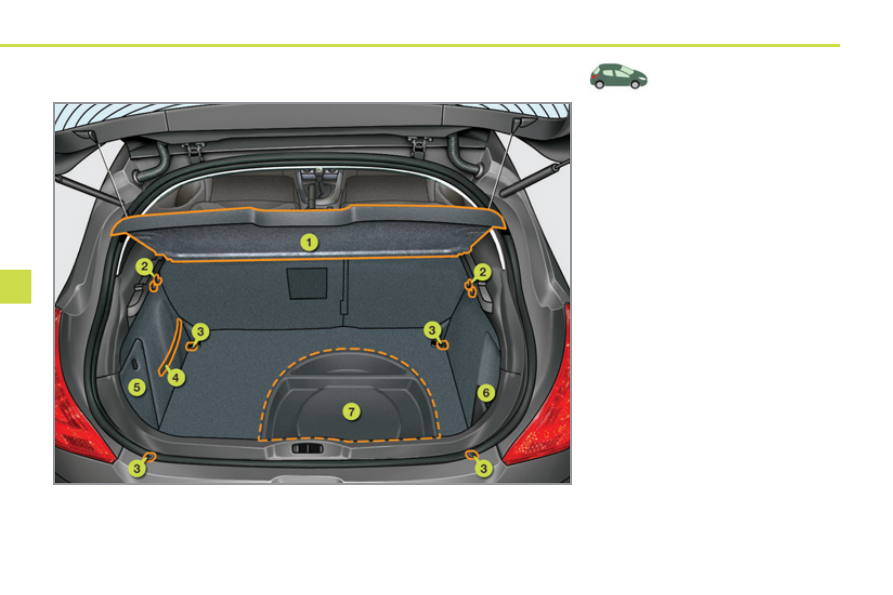

BOOT FITTINGS

1. Rear parcel shelf

(see details on following page)

2. Hooks

(see details on following page)

3. Stowing rings

4. Luggage retaining strap

5. Enclosed storage tray

6. Open storage tray

7. Storage box

(see details on following page)

117

FITTINGS

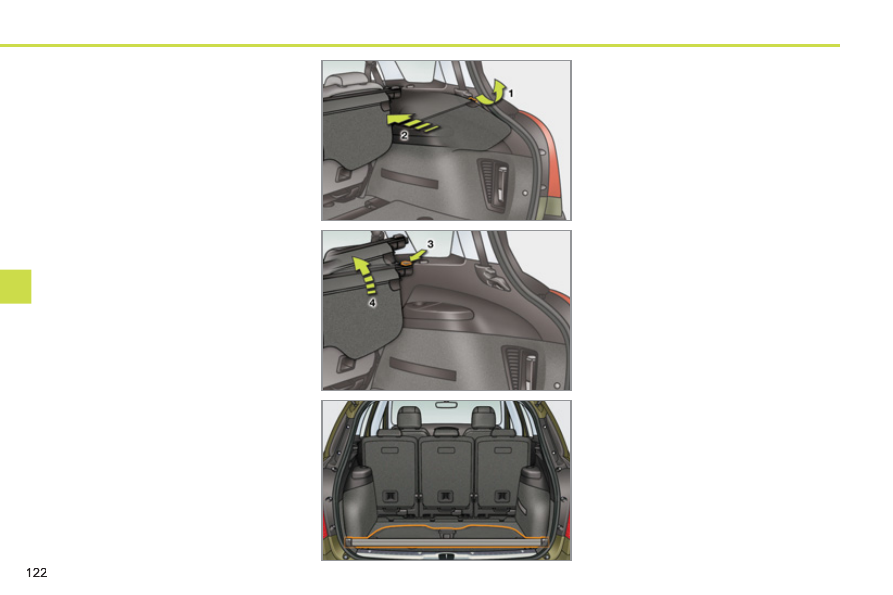

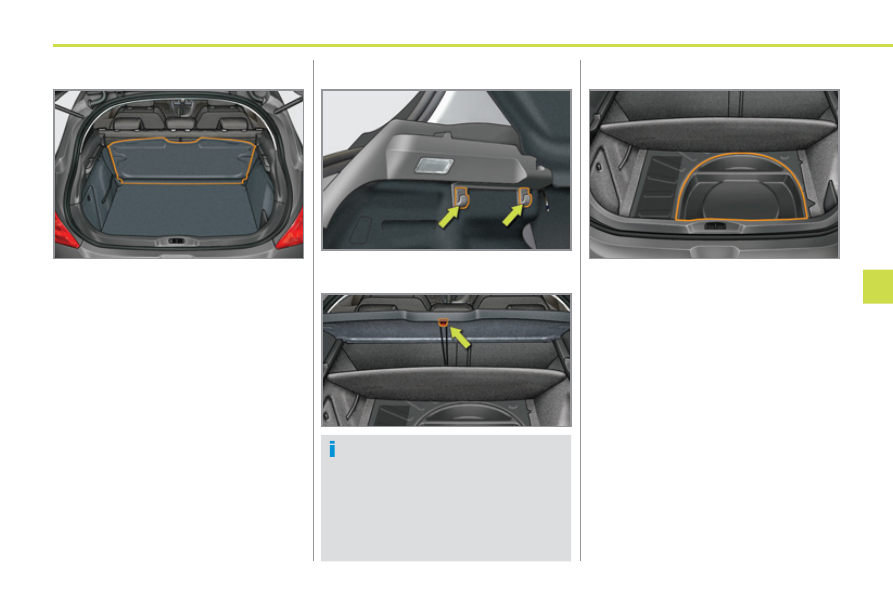

To remove the shelf:
) unhook the two cords,
) raise the shelf slightly, then remove it.

Rear parcel shelf

Access to the storage box
An additional hook under the shelf

is used to hold up the boot fl oor us-

ing its cord, to facilitate access to

the tools and spare wheel or the

temporary puncture repair kit...

The hooks can be used to secure shop-

ping bags.

Hooks

There are several options for storing the

shelf:
- either upright behind the front

seats,

- or

fl at at the base of the boot.

) Raise the boot carpet for access to

the storage box.

This has areas for the storage a box of

spare bulbs, a fi rst aid kit, two warning

triangles...
It also contains the vehicle tools, the

temporary puncture repair kit...

Storage box

118

FITTINGS

BOOT FITTINGS

1. Rear parcel shelf

(see details on following page)

2. 12 V accessories socket

(see details on following page)

3. Hooks

(see details on following page)

4. Stowing rings

5. Storage tray

6. High load retaining net

(see details on following page)

7. Luggage retaining strap

119

FITTINGS

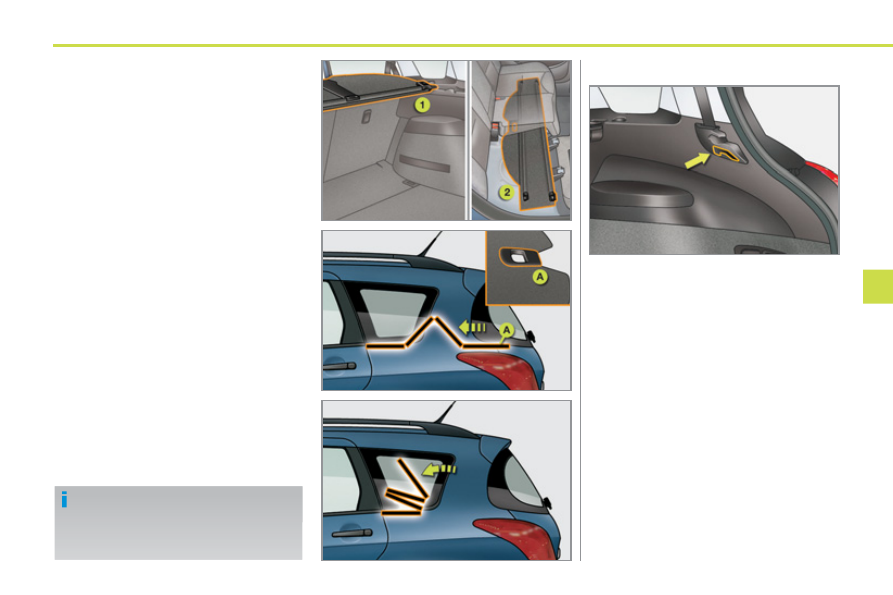

Rear parcel shelf

This consists of four sections three of

which can be folded back on each other.

There are several options for storing the

rear parcel shelf:
- either folded back on itself near the

rear seats (1),

- or folded back on itself and stored

in a location provided under the rear

seats (2).

To fold it from the boot:
) unclip the load space cover from its

side supports,

) take hold of the load space cover by

its handle A ,

) fold it concertina-style to the rear

seats.

To unfold it from the boot:
) take hold of the load space cover by

its handle A ,

) unfold it to the boot pillars,
) clip the load space cover on its side

supports.

Hooks

Maximum loads
7.5 kg, rear parcel shelf unfolded

with high load retaining net at row 2.

The hooks can be used to hold shop-

ping bags.

120

FITTINGS

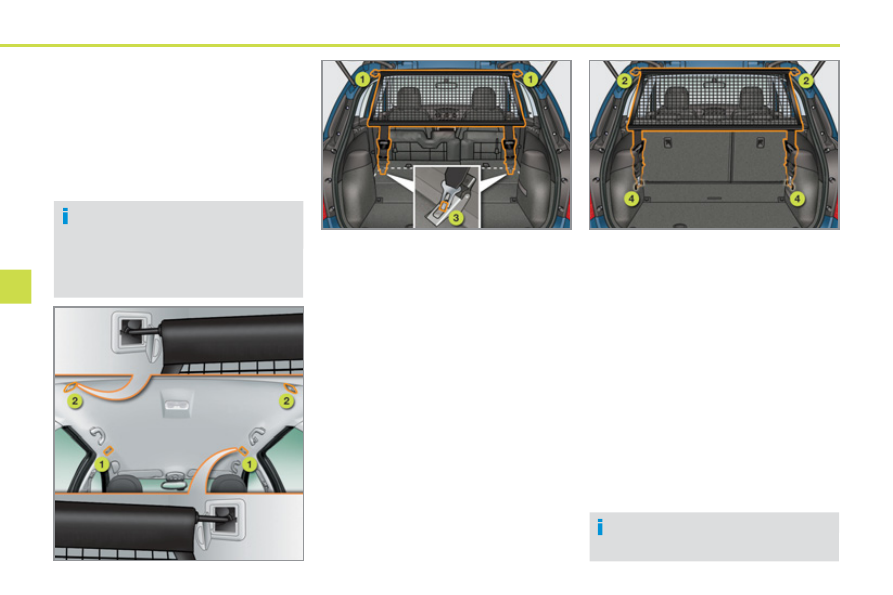

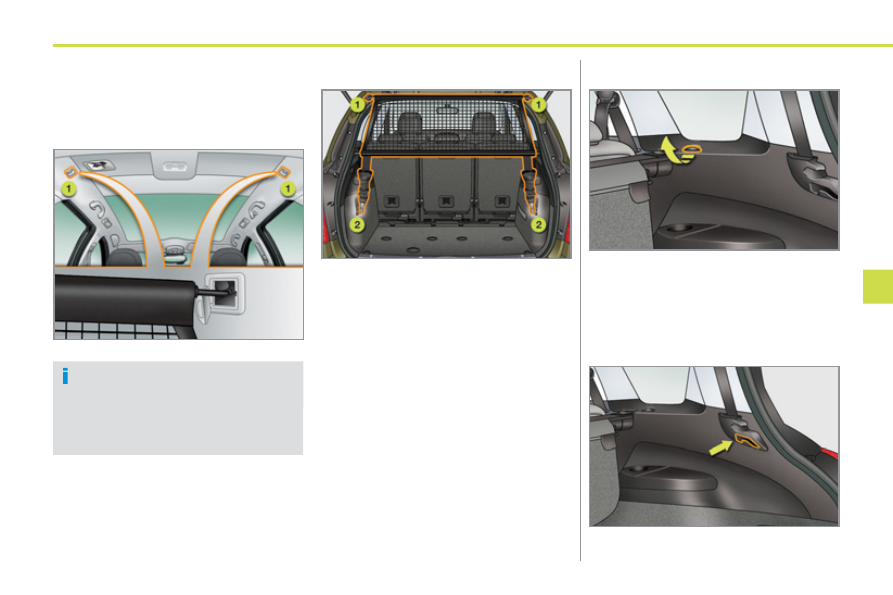

High load retaining net

Hooked onto the special upper and low-

er fi xings, this permits use of the entire

loading volume up to the roof:
-

behind the rear seats (row 2),

- behind the front seats (row 1) when

the rear seats are folded.

To use it in row 1:
   )   open the covers of the upper fi xings  1 ,
  )   unroll the high load retaining net,
  )   position one of the ends of the net's

metal bar in the corresponding up-

per fi xing 1 , then do the same with

the other end,

) slacken the straps fully,
) fi x the snap hook of each of the

straps on the corresponding bar 3 ,

located under the cushion of the

rear seats,

  )   fold the rear seats,
  )   tighten the straps,
  )   check that the net is hooked and

tightened correctly.

To use it in row 2:
   )   fold or remove the load space cover,
  )   open the covers of the upper fi xings  2 ,
  )   unroll the high load retaining net,
  )   position one of the ends of the net's

metal bar in the corresponding up-

per fi xing 2 , then do the same with

the other end,

) fi x the snap hook of each of the

straps in the corresponding ring 4 ,

located on the rear seats mecha-

nism support,

) tighten the straps,
) check that the net is hooked and

tightened correctly.

When positioning the net, check

that the strap loops are visible from

the boot; this will make slackening

or tightening easier.

This net can be stored in the stor-

age tray on the fl oor.

121

FITTINGS

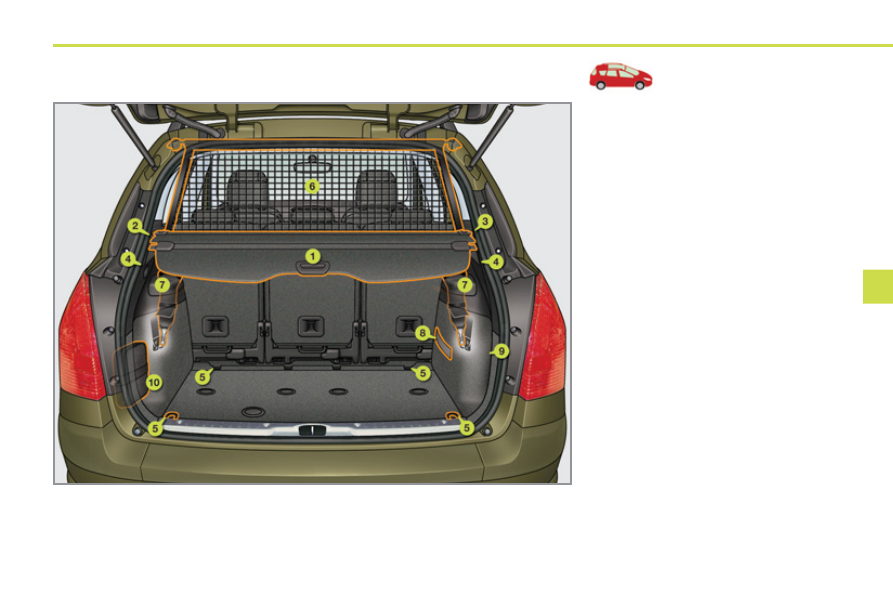

BOOT FITTINGS

1. Load space screen

(see details on following page)

2. Storage box

3. 12 V accessory socket

(see details on following page)

4. Hooks

(see details on following page)

5. Stowing rings

6. High load retaining net

(see details on following page)

7. Rear armrests with cup holder

8. Luggage retaining strap

9. Location for torch or for Hi-Fi am-

plifi er

(see details on following page)

10. Temporary puncture repair kit

FITTINGS

Load space screen

To install the load space screen:
) position one of the ends of the roller

in its support,

) insert the second end in its support;

the catch locks automatically,

) unroll the load space screen to the

boot pillars,

) insert the load space screen guides

in the rails on the boot pillars.

To remove the load space screen:
) remove the load space screen

guides from the rails on the boot pil-

lars,

) roll up the load space screen in its

roller,

) pull and support the catch at one of

the ends of the roller to release it,

) remove the roller from its support

from the released end, then from the

second.

To store the load space screen, place it

at the boot sill, roller uppermost and fl ap

facing inwards.

123

FITTINGS

High load retaining net

Hooked onto the special upper and low-

er fi xings, this permits use of the entire

loading volume up to the roof behind

the seats of the 2nd row.

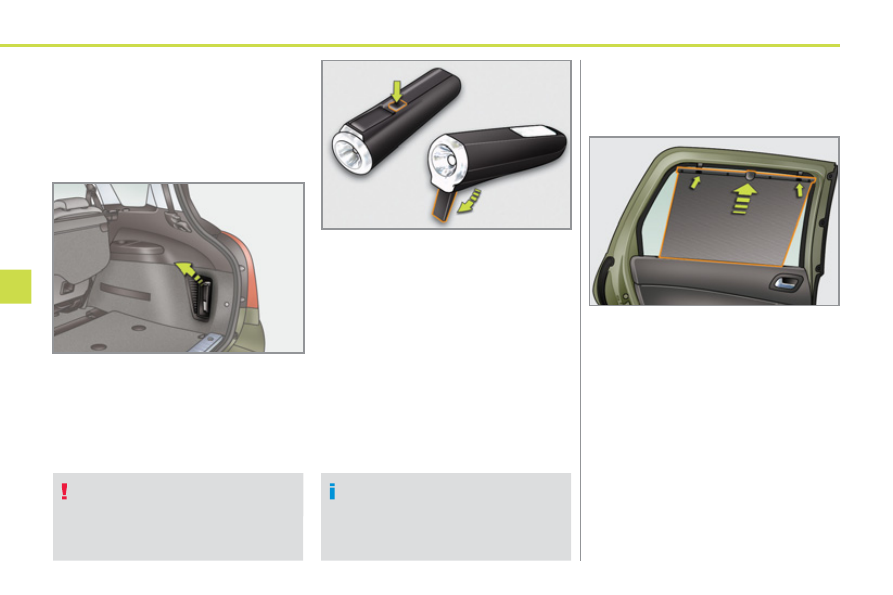

12 V accessory socket

) To connect a 12 V accessory (max

power: 120 W), remove the cap and

connect an appropriate adaptor.

) Turn the key to the ignition on posi-

tion.

To use the net in the 2nd row (additional

seats folded or removed):
) roll up or remove the load space

screen,

  )   open the covers of the upper fi xings  1 ,
  )   unroll the high load retaining net,
  )   position one of the ends of the net's

metal bar in the corresponding up-

per fi xing 1 , then do the same with

the other end,

) attach the snap hook of each of the

net's straps in the corresponding

ring 2 , located on the lower fi xing of

the rear side seat belt,

) tighten the straps,
) check that the net is hooked and

tightened correctly.

When positioning the net, check

that the strap loops are visible from

the boot; this will make slackening

or tightening easier.

Hooks

The hooks can be used to hold shop-

ping bags.

124

FITTINGS

Torch

This is a removable lamp, fi tted in the

boot wall, which can be used to light the

boot or as a torch.
For the boot lamp function, refer to the

"Visibility - § Boot lamp" section.

Operation
This torch operates with NiMH type re-

chargeable batteries.
It has a battery life of approximately

45 minutes and charges while you are

driving.

Use
) Extract the torch from its location

pulling it upwards.

) Press the switch, located on the

back, to switch the torch on or off.

) Unfold the support, located on the

back, to set down and raise the

torch; for example, when changing

a wheel.

Storing
) Put the torch back in place in its lo-

cation starting with the lower part.

If you have forgotten to switch off

the torch, this switches it off auto-

matically.

Side blinds

Fitted on the rear windows of the 2nd

row, these protect your young children

from the sun.

) Pull the blind by the central tab.
) Position the blind attachments on

the corresponding hooks.

Observe the polarities when fi tting

the rechargeable batteries.
Never replace the rechargeable

batteries with normal disposable

batteries.

It the torch is not engaged correct-

ly, it may not charge and may not

come on when the boot is opened.

125

CHILD SAFETY

PEUGEOT recommends that chil-

dren should travel in the rear seats

of your vehicle:
-

"rearwards-facing" up to the

age of 2,

"forwards-facing" over the

age of 2.

GENERAL POINTS RELATING

TO CHILD SEATS

CHILD SEAT IN THE FRONT

"Forwards-facing"
When a "forwards-facing" child seat is

installed on the front passenger seat ,

adjust the vehicle's seat to the interme-

diate longitudinal position with the seat

back upright and leave the passenger

airbag activated.

"Rearwards-facing"
When a "rearwards-facing" child seat is

installed on the front passenger seat ,

it is essential that the passenger airbag

is deactivated. Otherwise,

the child

would risk being seriously injured or

killed if the airbag were to infl ate .

* The rules for carrying children are

specifi c to each country. Refer to the

current legislation in your country.

Although one of PEUGEOT's main cri-

teria when designing your vehicle, the

safety of your children also depends on

you.
For maximum safety, please observe

the following recommendations:
- in accordance with European reg-

ulations,

all children under the

age of 12 or less than one and a

half metres tall must travel in ap-

proved child seats suited to their

weight , on seats fi tted with a seat

belt or ISOFIX mountings * ,

statistically, the safest seats in

your vehicle for carrying children

are the rear seats,

a child weighing less than 9 kg

must travel in the "rearwards-fac-

ing" position both in the front and

in the rear.

Intermediate longitudinal position

126

CHILD SAFETY

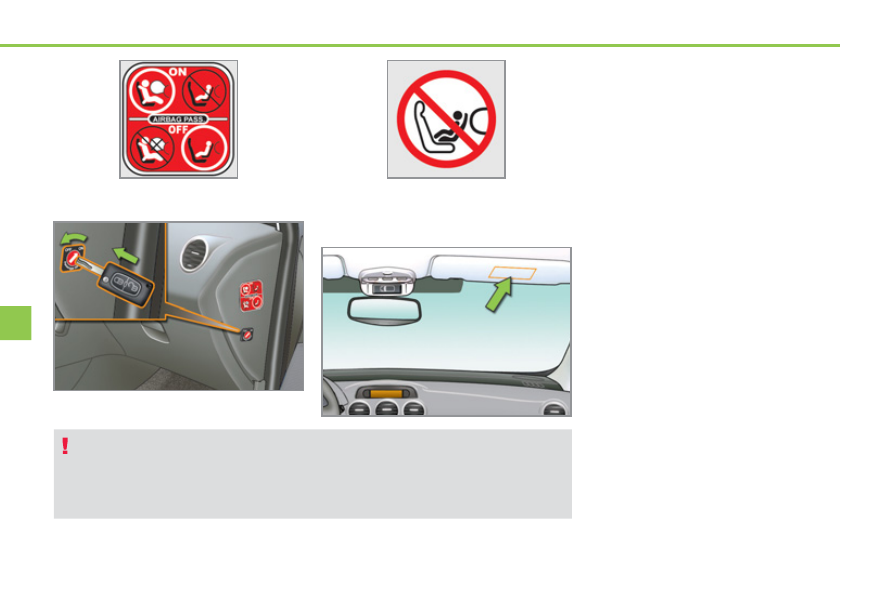

Passenger airbag OFF

Refer to the advice given on the label

present on both sides of the passen-

ger's sun visor.

To assure the safety of your child, you must deactivate the passenger's front

airbag when you install a child seat in the rearwards facing position on the

front passenger's seat.
Otherwise, there is a risk that the child could be seriously injured or killed if

the airbag were deployed.
