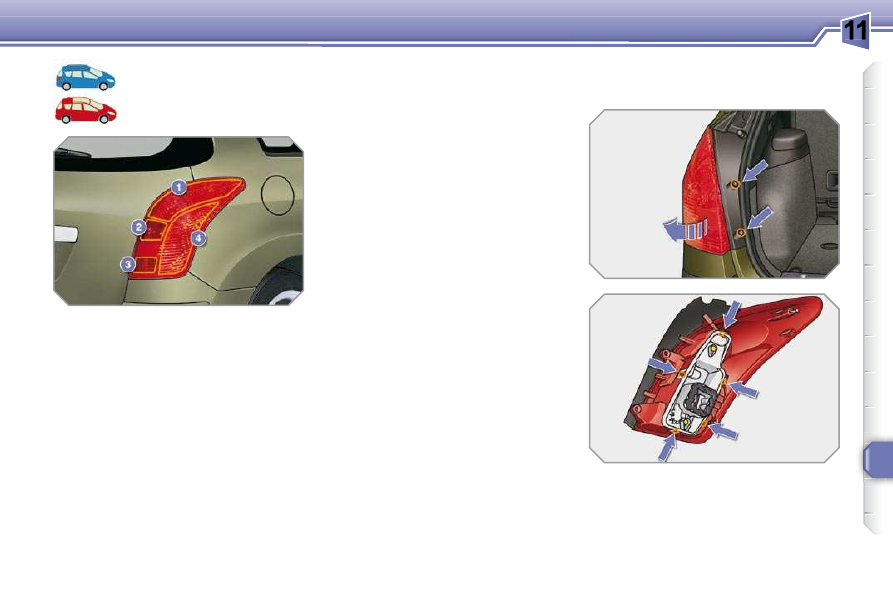

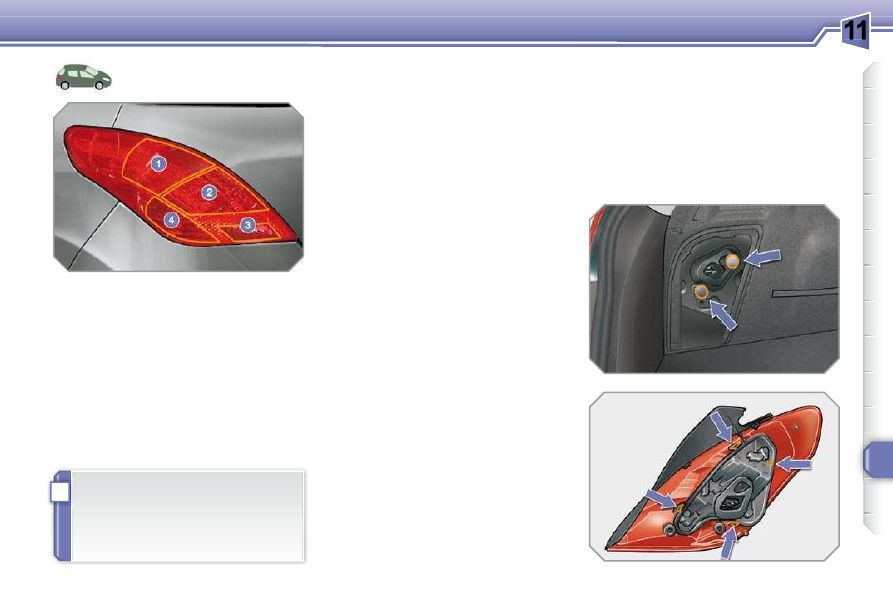

Rear lamps

   1.    Brake   lamps/    sidelamps   (  P21  /  5W  ).
  2.    Sidelamps   (  P21  /  5W  ).
  3.    Foglamp,   left-hand side (  P21W  ).

Reversing lamp, right-hand side
( P21W ).

4. Direction indicators ( P21W ).

Changing bulbs
These ﬁ ve bulbs are changed from out-

side the boot:



remove the two lamp ﬁ xing nuts,



extract the lamp carefully from the

outside,

 disconnect the lamp connector,

 press the four tabs and remove the

bulb holder,

 turn the bulb a quarter of a turn and

change it.

To reﬁ t, carry out these operations in re-

verse order.

If the vehicle is ﬁ tted with the JBL

audio system, on the right-hand

side, ﬁ rst remove the three ﬁ xing

bolts, then move the box.

 on the right-hand side; remove the

access ﬂ ap,



on the left-hand side; turn the ﬁ xing

bolt a quarter of a turn and remove

the storage box cover,



unclip the storage box,

182

PRACTICAL INFORMATION

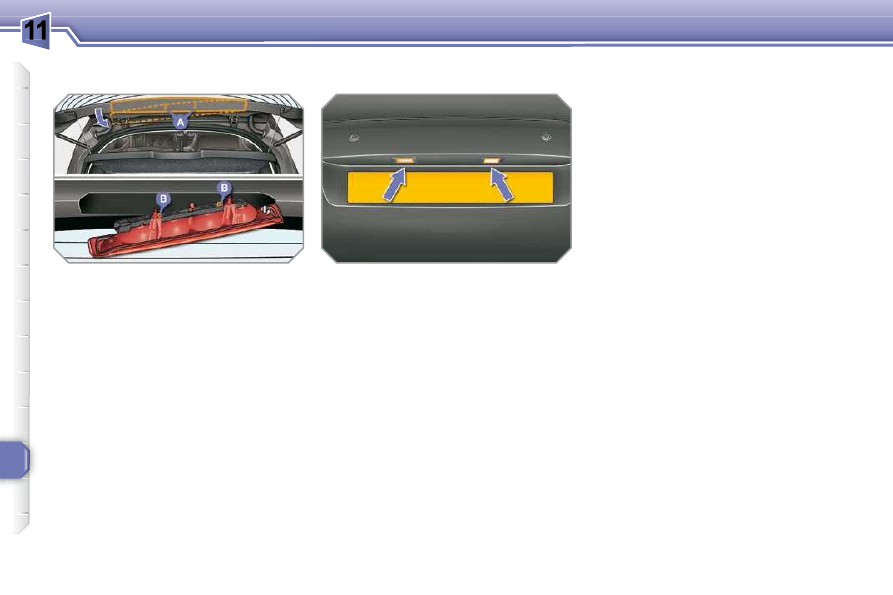

Changing third brake lamp bulbs
(4 bulbs W5W)

 Unclip the tailgate upper trim from

left to right.



Unscrew the two lamp ﬁ xing nuts A .

 Unclip the lamp's central pin.


Extract the lamp from the outside.

 Disconnect the bulb holder connector

and the wash-wipe pipe.

 Unclip the bulb holder from the lamp

by pressing on the two tabs B .

 Pull the bulb and change it.
To reﬁ t, carry out these operations in re-

verse order.
Do not apply force to the lamp when
tightening the nuts.

Changing the number plate lamp
bulbs (W5W)

 Insert a thin screwdriver into one of

the outer holes of the lens.

     Push it outwards to unclip.
     Remove the lens.
     Pull the bulb and change it.

183

PRACTICAL INFORMATION

Rear lamps

   1.    Brake   lamps/    sidelamps   (  P21  /  5W  ).
  2.    Sidelamps   (  P21  /  5W  ).
  3.    Foglamp,   left-hand side (  P21W  )

Reversing lamp, right-hand side
( P21W ).

4. Direction indicators ( P21W )

Changing bulbs
These ﬁ ve bulbs are changed from out-

side the boot:

 unclip the lamp connector,


separate the ﬁ ve tabs and remove

the bulb holder,

 turn the bulb a quarter of a turn and

change it.

 open the boot,


unscrew the two lamp ﬁ xing bolts,



extract the lamp carefully pulling

it from the bottom and pivoting it
towards the outside,

To reﬁ t, carry out these operations in re-

verse order.
Take care to engage the lamp in its
guides keeping it in line with the vehicle.

184

PRACTICAL INFORMATION

Changing the number plate lamp
bulbs (W5W)

 Insert a thin screwdriver into one of

the outer holes of the lens.

     Push it outwards to unclip.
     Remove the lens.
     Pull the bulb and change it.

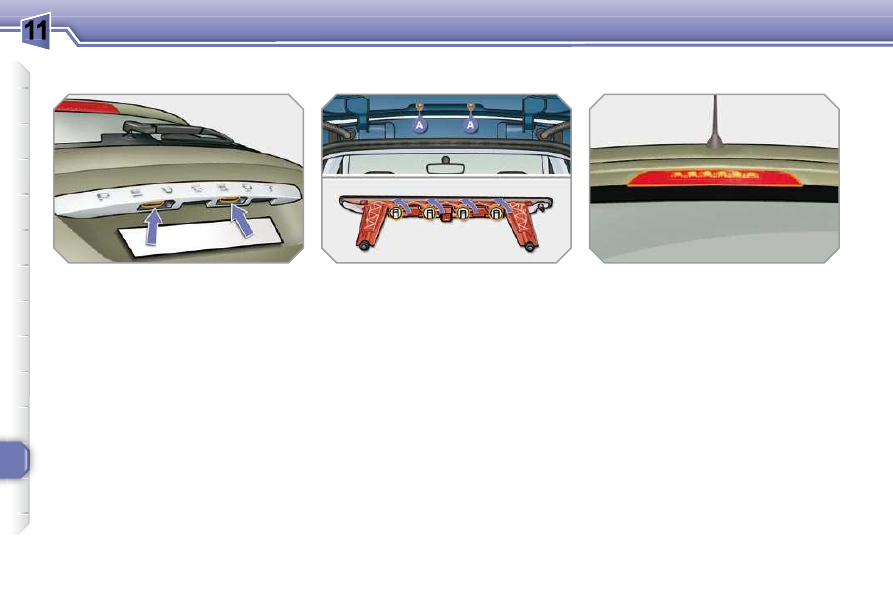

Changing the third brake lamp
(SW - diodes)

On  the  versions  with  opening  rear
screen, for the replacement of this type
of  diode  lamp,  contact  a  PEUGEOT
dealer.

Changing the third brake lamp
(SW - 4 bulbs W5W)



Remove the two lamp ﬁ xing nuts A .

 Take out the lamp from the outside.
 Disconnect the connector and the

screenwash pipe from the lamp.

 Turn the bulb holder corresponding

to the faulty bulb a quarter of a turn.

 Pull the bulb and change it.
To reﬁ t, carry out these operations in re-

verse order.
Do not force the lamp when tightening
the nuts.

185

PRACTICAL INFORMATION

PEUGEOT  will  not  accept  re-
sponsibility for the cost incurred in
repairing  your  vehicle  or  for  recti-
fying  malfunctions  resulting  from
the  installation  of  accessories  not
supplied  and  not  recommended
by  PEUGEOT  and  not  installed  in
accordance  with  its  instructions,
in  particular  when  the  combined
consumption  of  all  of  the  addition-

al equipment connected exceeds

10 milliamperes.

  Installing electrical accessories
Your  vehicle's  electrical  system  is
designed  to  operate  with  standard
or optional equipment.
Before  installing  other  electrical

equipment or accessories on your
vehicle, contact a PEUGEOT dealer.

CHANGING A FUSE

Access to the tools

The extraction pliers and the spare fus-

es are installed on the back of the dash-

board fusebox cover.

To gain access to them:
 turn the screw a quarter of a turn to

the left,

 unclip the cover by pulling at the top

right,

 remove the cover completely,
 remove the pliers.

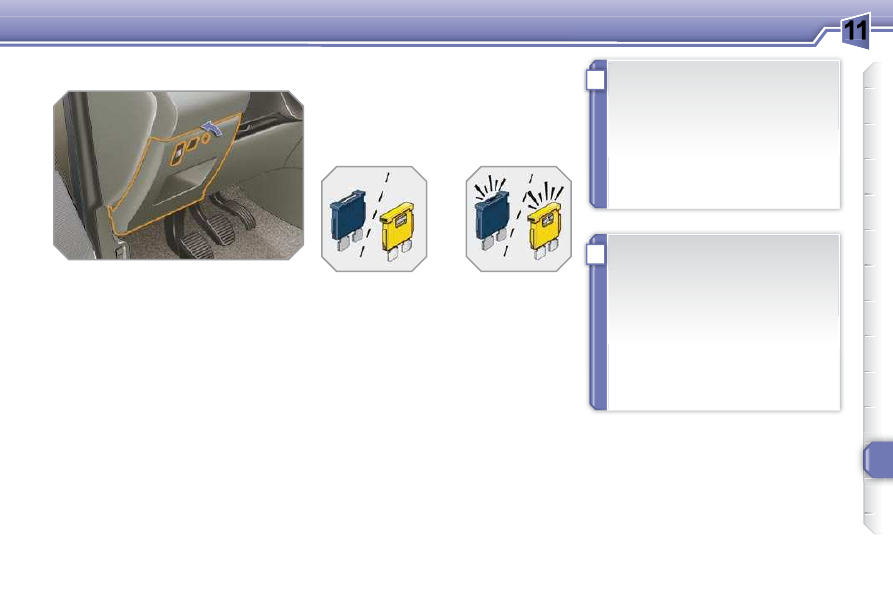

Changing a fuse

Before changing a fuse, the cause of

the failure must be identiﬁ ed and recti-

ﬁ ed.
 Identify the faulty fuse by checking

the condition of its ﬁ lament.



Use the special pliers to extract the

fuse from its housing.

 Always replace the faulty fuse with a

fuse of the same rating.

 Check the correspondence between

the number etched on the box, the

rating etched on the fuse and the
tables below.

Correct

Incorrect

PRACTICAL INFORMATION

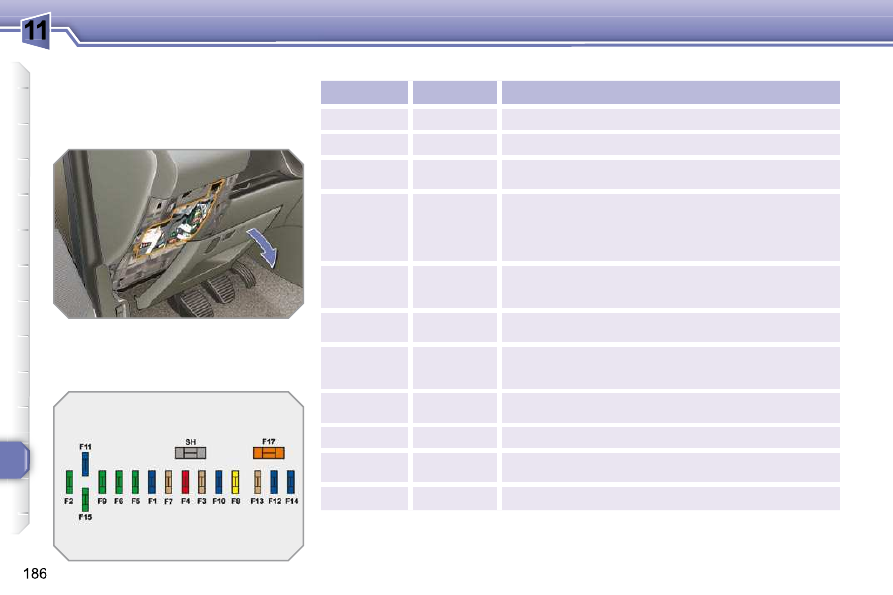

Dashboard fuses

The fusebox is placed in the lower sec-

tion of the dashboard (left-hand side).

Access to the fuses
 refer to the paragraph "Access to

the tools".

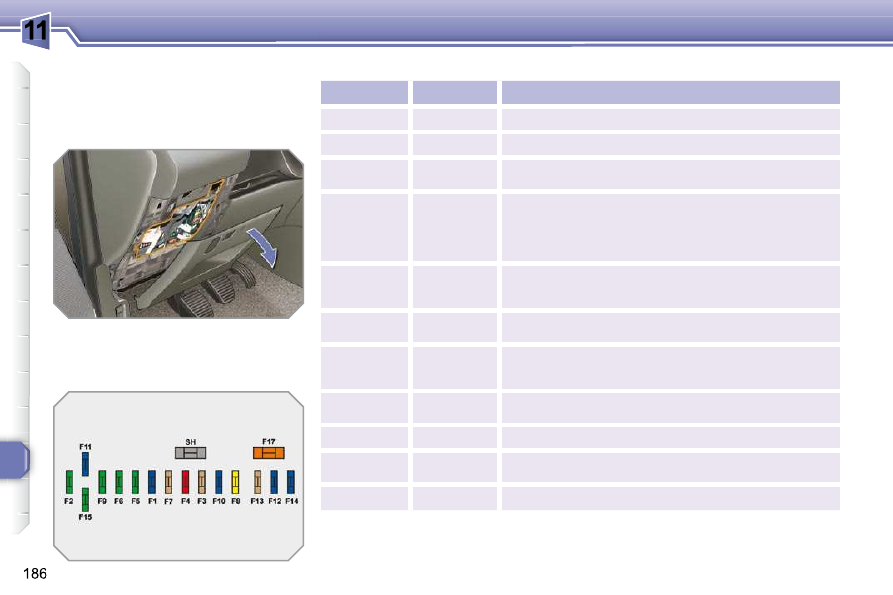

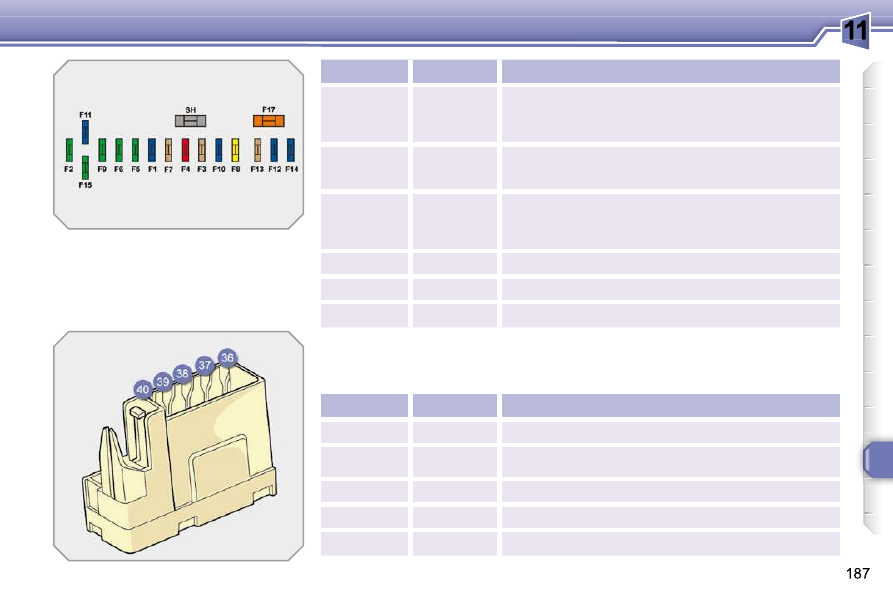

Fuse tables

Fuse N°

Rating

Functions

15 A

Rear wiper.

30 A

Locking and deadlocking earth.

5 A

Airbags and pretensioners control unit.

10 A

Clutch pedal and dual-function brake switches,
electrochromatic rear view mirror, air conditioning,

steering wheel angle sensor, automatic gearbox,

switching and protection unit.

30 A

Front one-touch electric windows, folding mirrors
supply, panoramic sunroof blind.

30 A

Rear one-touch electric windows, trailer fusebox.

5 A

Front and rear courtesy lamps, map reading lamps,

rear reading lamps, sun visor illumination, glove box

illumination, torch.

20 A

Audio equipment, audio/telephone, CD changer,

multifunction screen, tyre under-inﬂ ation detection.

30 A

Front 12 V socket.

F10

15 A

Steering mounted controls, alarm siren, alarm
control unit.

F11

15 A

Low current ignition switch.

PRACTICAL INFORMATION

Fuse N°

Rating

Functions

G36

30 A

Driver and passenger heated seats.

G37

5 A

Driving position memory unit, lighting rheostat.

G38

30 A

Driver's seat memory unit.

G39

30 A

Trailer fusebox supply.

G40

30 A

Hi-Fi ampliﬁ er.

Fuse N°

Rating

Functions

F12

15 A

Instrument panel, seat belt and passenger's front airbag
warning lamps display, air conditioning, driver's seat
memory unit, 2nd row rear seat switches, driving school
module.

F13

5 A

Engine fusebox, airbags, electronic gear control

gearbox gear lever, trailer fusebox.

F14

15 A

Multifunction screen, ampliﬁ er, Bluetooth system,

rain/brightness sensor, parking sensors control
unit.

F15

30 A

Locking and deadlocking.

F17

40 A

Rear screen and door mirrors demist/defrost.

PARC shunt.

188

PRACTICAL INFORMATION

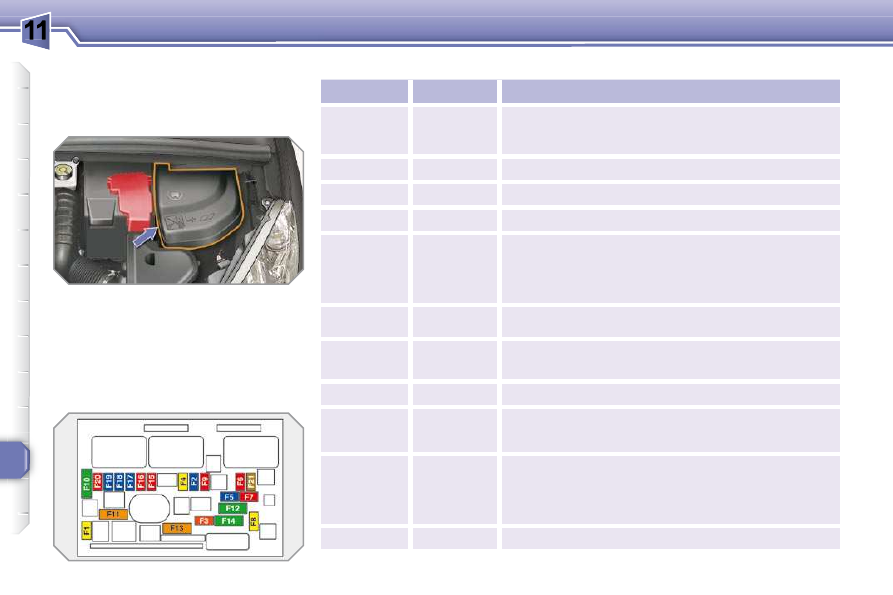

Engine compartment fuses

The fusebox is placed in the engine

compartment near the battery (left-hand

side).

  Access to the fuses
      Unclip the cover.
     Change the fuse (see corresponding

paragraph).



When you have ﬁ nished, close the

cover carefully to ensure sealing of

the fusebox.

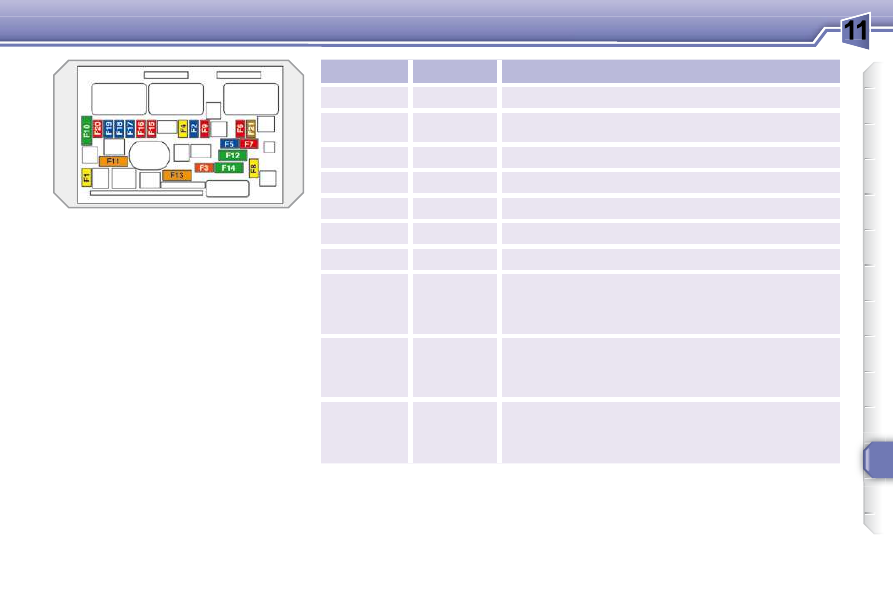

Fuse table

Fuse N°

Rating

Functions

20 A

Engine control unit supply, injection pump and EGR

electrovalves (2 l HDI 16V), injectors (2 l HDI 16V).

15 A

Horn.

10 A

Front/rear wash-wipe.

20 A

Headlamp wash.

15 A

Purge canister, turbine discharge and Turbo

pressure regulation electrovalves (1.6 l THP 16V),

oil vapour heater (1.6 l THP 16V), diesel heater

(1.6 l HDI 16V).

10 A

Vehicle speed sensor, ABS/ESP control unit.

10 A

Power steering control unit, automatic gearbox,

engine coolant level detector.

25 A

Starter motor control.

10 A

Diagnostic socket, directional headlamps, air

ﬂ ow sensor (Diesel), particle emission ﬁ lter pump

(Diesel).

F10

30 A

Engine control unit actuators (petrol: ignition

coils, electrovalves, oxygen sensors, injectors,

heaters, fuel pump, electronic thermostat) (Diesel:

electrovalves, heaters).

F11

40 A

Air conditioning blower.

189

PRACTICAL INFORMATION

Fuse N°

Rating

Functions

F12

30 A

Windscreen wipers slow/fast speed.

F13

40 A

Built-in systems interface supply (ignition positive).

F14

30 A

Air pump.

F15

10 A

Right-hand main beam headlamp.

F16

10 A

Left-hand main beam headlamp.

F17

15 A

Left-hand dipped headlamp.

F18

15 A

Right-hand dipped headlamp.

F19

15 A

Oil vapour heater (1.4 l 16V and 1,6 l VTi 16V),

canister purge electrovalve (1.4 l 16V and 1.6 l

VTi 16V), oxygen sensors (petrol), air cooling

electrovalves (Diesel).

F20

10 A

Electronic thermostat, variable timing solenoid
valves, Turbo pressure regulation electrovalve

(Diesel), engine coolant level detector (Diesel).

F21

5 A

Fan assembly relay supply, Valvetronic relay

control (1.4 l 16V and 1.6 l VTi 16V), Turbo cooling

(1.6 l THP 16V), air ﬂ ow sensor (1.6 l HDI 16V).

190

PRACTICAL INFORMATION

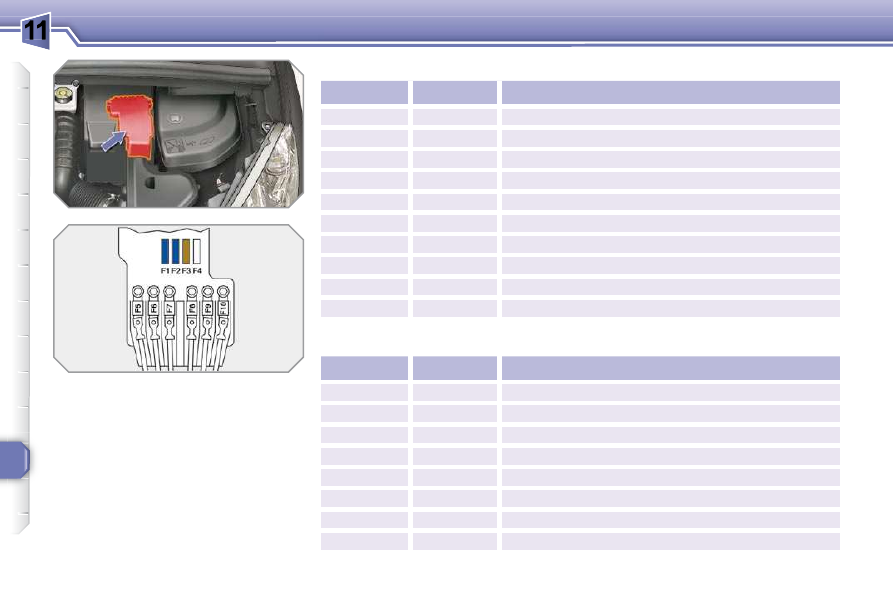

Table of mini and midi-fuses above the battery

Table of maxi-fuses

Fuse N°

Rating

Functions

15 A

Gearbox (electronic gear control or automatic).

15 A

Diagnostic socket, daytime running lamps.

5 A

Dual-function brake switch.

Not used.

F5 *

80 A

Power steering electropump assembly.

F6 *

70 A

Heating unit (Diesel).

F7 *

100 A

Switching and protection unit.

Not used.

F9 *

30 A

Electronic gear control gearbox electropump assembly.

F10 *

30 A

Valvetronic electric motor (1.6 l THP 16V).

Fuse N°

Rating

Functions

MF1 *

50 A

Fan assembly.

MF2 *

50 A

Dashboard fusebox.

MF3 *

80 A

Built-in systems interface.

MF4 *

Not used.

MF5 *

50 A

ABS/ESP control unit.

MF6 *

30 A

ABS/ESP control unit.

MF7 *

80 A

Built-in systems interface.

MF8 *

Not used.

* The midi-fuses and maxi-fuses pro-

vide  additional  protection  for  the
electrical  systems.  All  work  on  these
types of fuse must be carried out by a
PEUGEOT dealer.

191

PRACTICAL INFORMATION

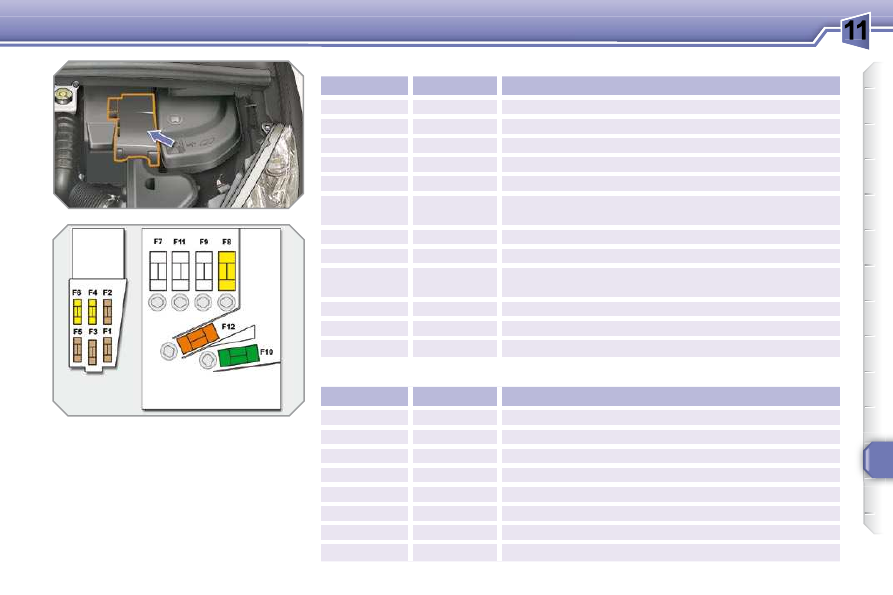

Table of maxi-fuses **

Table of mini and midi-fuses above the battery **

* The midi-fuses and maxi-fuses provide

additional protection for the electrical sys-
tems. All work on these types of fuse must
be carried out by a PEUGEOT dealer.

** During the year.

Fuse N°

Rating

Functions

Not used.

5 A

Dual-function brake switch.

5 A

Battery charge unit.

25 A

ABS/ESP electrovalves.

Not used.

15 A

Gearbox (electronic gear control or automatic).

F7 *

80 A

Power steering electropump assembly.

F8 *

60 A

Fan assembly.

F9 *

70 A/30 A

Pre-heat unit (Diesel)/Valvetronic electric motor

(1.6 l THP 16V).

F10 *

40 A

ABS/ESP electropump assembly.

F11 *

100 A

Switching and protection unit.

F12 *

30 A

Electronic gear control gearbox electropump assembly.

Fuse N°

Rating

Functions

MF1 *

Not used.

MF2 *

30 A

Trailer fusebox.

MF3 *

50 A

Dashboard fusebox.

MF4 *

80 A

Built-in systems interface.

MF5 *

80 A

Built-in systems interface.

MF6 *

Not used.

MF7 *

30 A

Heated seats.

MF8 *

20 A

Headlamp wash.

192

PRACTICAL INFORMATION

BATTERY

Procedure for charging your battery

when it is ﬂ at or for starting the engine

using another battery.

Access to the battery

Disconnecting/Reconnecting
the cables

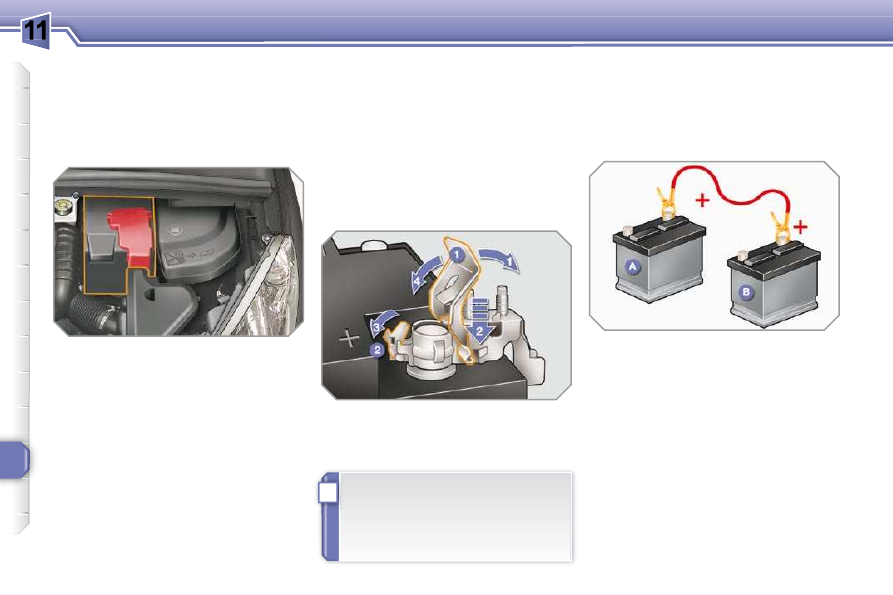

 Raise the locking plate 1 fully.
 Position the open clip of the cable

on the positive terminal (+) of the

battery.

 Press vertically on the clip 2 to

position it correctly against the
battery.

 Lock the clip by lowering the plate 1 .

Starting using another battery

Do not force the plate as locking is
impossible  if  the  clip  is  positioned
incorrectly.
Start the procedure again.

 Connect the red cable to the positive

terminal (+) of the ﬂ at battery A ,

then to the positive terminal (+) of

the slave battery B .

The battery is located under the bonnet.
To gain access to it:
 open the bonnet using the interior

release lever, then the exterior

safety catch,

 secure the bonnet stay,
 remove the plastic cover to gain

access to the two terminals,



unclip the fuse box to remove the

battery, if necessary.

193

PRACTICAL INFORMATION

Do not disconnect the terminals
while the engine is running.
Do not charge the batteries without

disconnecting the terminals ﬁ rst.
Do not push the vehicle to start the

engine if it is ﬁ tted with a 6-speed

electronic gear control gearbox.

The batteries contain harmful sub-
stances such as sulphuric acid and
lead. They  must  be  disposed  of  in
accordance  with  regulations  and
must not, in any circumstances, be
discarded with household waste.
Take used remote control batteries
and  vehicle  batteries  to  a  special
collection point.

It is advisable to disconnect the
battery if the vehicle is to be left un-
used for more than one month.

  Before disconnecting the
battery
Wait  2  minutes  after  switching  off
the  ignition  before  disconnecting
the battery.
Close  the  windows  and  the  doors
before disconnecting the battery.

  Following reconnection of the
battery
Following  reconnection  of  the  bat-
tery, switch on the ignition and wait
1  minute  before  starting  to  permit
initialisation  of  the  electronic  sys-
tems. However, if problems are en-
countered  following  this  operation,
contact a PEUGEOT dealer.
Referring to the corresponding sec-

tion, you must yourself reinitialise:
-

the remote control key,

the panoramic sunroof blind,

the GPS satellite navigation
system.

Charging the battery using a
battery charger

 Disconnect the battery from the

vehicle.

 Follow the instructions for use

provided by the manufacturer of the
charger.

 Reconnect starting with the negative

terminal (-).

 Check

that

the

terminals

and

connectors are clean. If they are
covered with sulphate (whitish or

greenish deposit), remove them and

clean them.

 Connect one end of the green

or black cable to the negative

terminal (-) of the slave battery B .

 Connect the other end of the green

or black cable to the earth point C
on the broken down vehicle.

 Operate the starter, let the engine

run.

 Wait until the engine returns to idle

and disconnect the cables.

194

PRACTICAL INFORMATION

A ﬂ at battery prevents the engine

from starting (refer to the corre-

sponding paragraph).

If the telephone is being used at

this time:
-

will

maintained

for

10 minutes with the hands-free
kit of your PC Sound,

it will be maintained for 10 minutes
with the PC Nav or the PC Com
3D,  then  it  will  transfer  to  your
telephone  depending  on  the
telephone model.

ENERGY ECONOMY MODE

System which manages the duration of
use of certain functions to conserve a

sufﬁ cient level of charge in the battery.
After the engine has stopped, you can
still use functions such as the audio and
telematics system, windscreen wip-
ers, dipped beam headlamps, courtesy

lamps, etc. for a maximum combined

duration of thirty minutes.

Exiting economy mode

These functions are reactivated auto-

matically next time the vehicle is driven.
 In order to resume the use of these

functions immediately, start the

engine and let it run:

- for less than ten minutes, to use

the equipment for approximately

ﬁ ve minutes,

- for more than ten minutes, to

use the equipment for up to

approximately thirty minutes.

Switching to economy mode

Once the thirty minutes are over, a
message appears on the multi-function
screen indicating that the vehicle has
switched to economy mode and the active
functions are put on standby.

CHANGING A WIPER BLADE

Removing

 Raise the corresponding wiper arm.
 Unclip the wiper blade and remove it.

Fitting

 Put the corresponding new wiper

blade in place and clip it.

 Fold down the wiper arm carefully.

Before removing a front wiper
blade

 Within one minute after switching off

the ignition, operate the wiper stalk
to position the wiper blades vertically
on the windscreen.

After fitting a front wiper blade

 Switch on the ignition.
 Operate the wiper stalk again to

park the wiper blades.

LOAD REDUCTION MODE

System which manages the use of cer-
tain functions according to the level of
charge remaining in the battery.
When the vehicle is being driven, the
load reduction function temporarily deac-
tivates certain functions, such as the air
conditioning, the heated rear screen...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.

195

PRACTICAL INFORMATION

TOWING THE VEHICLE

Access to the tools

Towing your vehicle

 On the front bumper, unclip the

cover by pressing at the bottom.

     Screw the towing eye in fully.
     Install the towing bar.
     Switch on the hazard warning lamps

on the towed vehicle.

 On the rear bumper, unclip the cover

by pressing at the bottom.

     Screw the towing eye in fully.
     Install the towing bar.
     Switch on the hazard warning lamps

on the towed vehicle.

Towing another vehicle

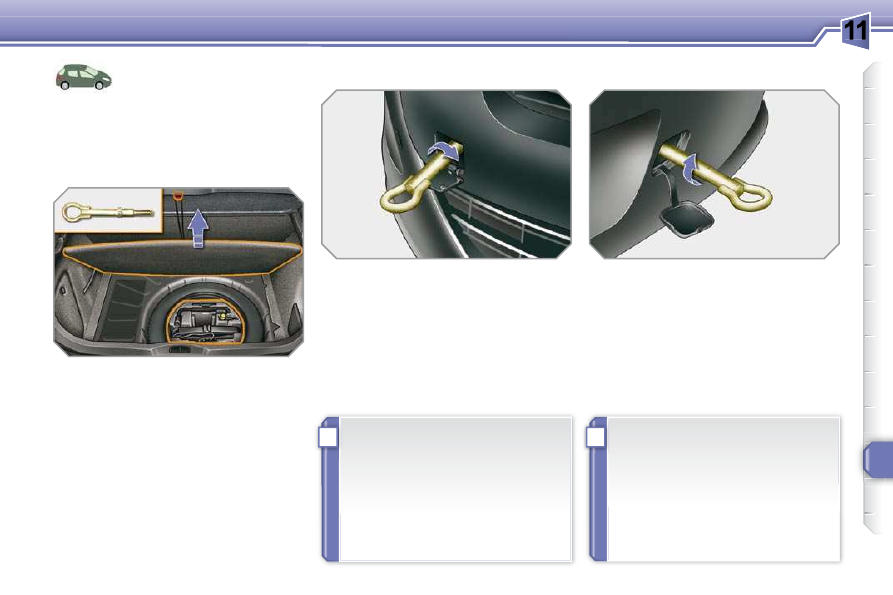

The towing eye is installed in the boot

under the ﬂ oor.

To gain access to it:
 open the boot,


raise the ﬂ oor,

 secure it by hooking its cord on the

hook on the shelf support,

 remove the polystyrene storage

box,

 remove the towing eye from the

holder.

When  towing  with  all  four  wheels  on
the ground, always use a towing bar.
When towing with only two wheels
on the ground, always use profes-
sional lifting equipment.
When  towing  with  the  engine  off,
there  is  no  longer  any  braking  or
steering assistance.

 Place the gear lever in neutral

(position N on the electronic

gear

control

gearbox

automatic gearbox).

Failure  to  observe  this  special
condition could result in damage
to  certain  braking  components
and  the  absence  of  braking

assistance the next time the

engine is started.

Procedure for having your vehicle towed
or for towing another vehicle using a re-
movable towing eye.

196

PRACTICAL INFORMATION

TOWING THE VEHICLE

Procedure  for  having  your
vehicle  towed  or  for  towing
another  vehicle  using  a  re-
movable towing eye.

Access to the tools

Towing your vehicle

 On the front bumper, unclip the

cover by pressing it on the left.

     Screw the towing eye in fully.
     Install the towing bar.
     Switch on the hazard warning lamps

on the towed vehicle.

 On the rear bumper, unclip the cover

by pressing it on the left.

     Screw the towing eye in fully.
     Install the towing bar.
     Switch on the hazard warning lamps

on the towed vehicle.

Towing another vehicle

The  towing  eye  is  installed  in  the  left-
hand side trim of the boot.
To gain access to it:
      open the boot,
  

open the access ﬂ ap in the left-hand

side trim,

 remove the wheelbrace from its

support,

 remove the towing eye from the

same support.

When  towing  with  all  four  wheels
on  the  ground,  always  use  a  tow-
ing bar.
When towing with only two wheels
on the ground, always use profes-
sional lifting equipment.
When  towing  with  the  engine  off,
there  is  no  longer  any  braking  or
steering assistance.

 Place the gear lever in neutral

(position N on the automatic

gearbox).

Failure  to  observe  this  special
condition could result in damage
to  certain  braking  components
and  the  absence  of  braking

assistance the next time the

engine is started.

Peugeot 308 SW BL Dag (2009.5). Instruction - part 12
