Peugeot 308 Dag (2007.5). Instruction - part 7

AMBIENT LIGHTING

This comes on automatically when the

boot is opened and switches off auto-

matically when the boot is closed.

INTERIOR WELCOME LIGHTING BOOT LIGHTING

The remote switching on of the passenger

compartment lighting makes your approach

to the vehicle easier in poor light when in

automatic switching on of the lights mode.

Switching on



Press the open padlock on the re-

mote control.

The front and rear door sill lighting,

the footwell lighting and the courtesy

lights come on; your vehicle is also

unlocked.

Switching off

The interior welcome lighting switches

off automatically after a set time or when

one of the doors is opened.

Programming

The dimmed passenger compartment

lighting improves visibility in the vehicle

when the light is poor.

Switching on

At night, the footwell lighting and the

front courtesy light ambient lamp

come on automatically when the side

lights are switched on.

Switching off

The ambient lighting switches off auto-

matically when the dipped headlamps

are switched off.

Programming

The function is activated or

deactivated via the multi-

function display conﬁgura-

tion menu.

This function is activated

by default.

The duration of maintaining

of the lighting is selected

via the multifunction dis-

play conﬁguration menu.

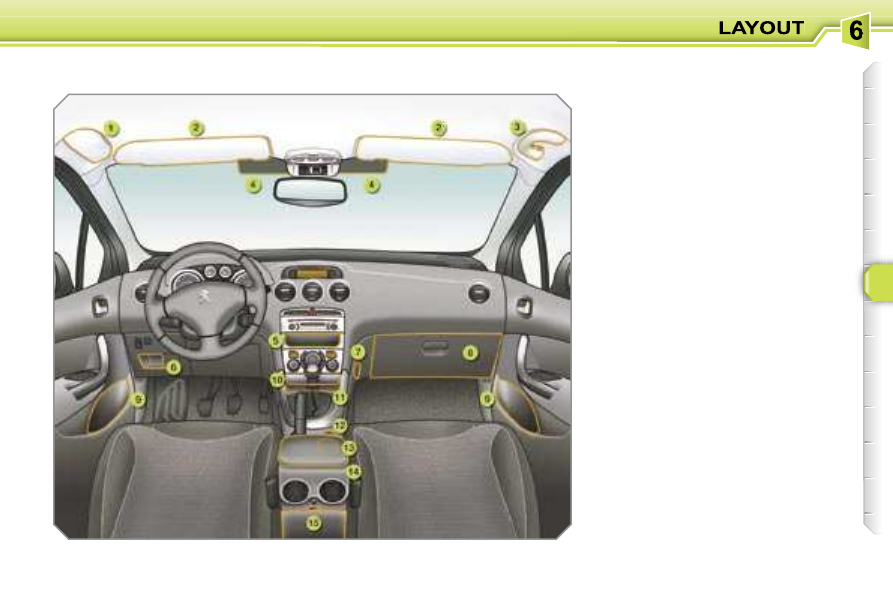

INTERIOR LAYOUT

1. Spectacles storage
2. Sun visor

(see details on following page)

3. Grab handle with coat hook
4. Toll card/car park ticket

windows

(see details on following page)

5.  Storage compartment
6.  Storage compartment
7.  Bag hook
8.  Glove box with light

(see details on following page)

9. Door trays
10. Ashtray with light

(see details on following page)

11. Storage compartment with

non-slip carpet

12. Lighter/12 V accessories socket

(see details on following page)

13. Can holder
14. Front armrest

(see details on following page)

15. Storage box

GLOVE BOX WITH LIGHT

This has areas for storing a bottle of wa-

ter, the vehicle’s handbook, ...

Its lid has areas for storing a pen, a pair

of spectacles, tokens, cards, a can, fra-

grance cartridges, ...



To open the glove box, raise the handle.

The light comes on when the lid is

opened.

If the vehicle is ﬁtted with air condition-

ing, it provides access to the air vent

which can be opened or closed, distri-

buting the same conditioned air as the

vents in the passenger compartment.

SUN VISOR

Component which protects against

sunlight from the front or the side, also

equipped with an illuminated courtesy

mirror.



With the ignition on, raise the con-

cealing ﬂap; the mirror is lit automati-

cally.

This sun visor is also equipped with a

ticket holder.

TOLL CARD/CAR PARK TICKET

WINDOWS

Facility for afﬁxing toll cards and/or car

park tickets.

These windows are located on each

side of the base of the interior mirror.

They are two non-reﬂective areas of the

athermic windscreen.

LIGHTER/12 V ACCESSORIES

SOCKET



To use the lighter, press it in and wait

a few seconds until it pops out auto-

matically.



To connect a 12 V accessory (max

power: 100 Watts), remove the light-

er and connect a suitable adaptor.

ASHTRAY WITH LIGHT



Pull the drawer to gain access to the

ashtray.



To empty the ashtray, after opening,

press the tab and remove the ash-

tray.

BAG HOOK



Press the lower part of the hook to

unfold it.



Hang the strap of your bag on the

hook to secure it.

FRONT ARMREST

Comfort and storage device for the driver

and front passenger.

The height and longitudinal position of

the armrest cover can be adjusted for

greater comfort.

Height adjustment



Raise the cover to the required posi-

tion (low, intermediate or high).



If you raise the cover slightly beyond

the high position, guide it when low-

ering it to the low position.

STORAGE BOX



To empty the box, after opening,

press the tab and remove it.

Storage

The armrest’s compartment can hold up

to 6 CDs.


Raise the lever



Raise the cover fully.

Longitudinal adjustment



Slide the cover fully forwards or rear-

wards.

MAT

Removable component which protects

the carpet against exterior dirt.

Reﬁtting

To reﬁt the mat on the driver’s side:


position the mat correctly,



reﬁt the ﬁxings by pressing,



check that the mat is secured cor-

rectly.

Fitting

When ﬁtting the mat for the ﬁrst time,

use only the ﬁxings provided in the wal-

let attached.

Removal

To remove the mat on the driver’s side:


move the seat as far back as pos-

sible,



unclip the ﬁxings,



remove the mat.

STORAGE DRAWERS*

Opening



Raise the front of the drawer and pull it.

* Except on electric seat.

Removal



Bring the drawer to the end of its travel.



Press the ends of the slides.



Raise the drawer and pull it fully.

Reﬁtting



Engage the drawer in its slides.



At the end of its travel, press on the

top of the drawer to secure it.

REAR ARMREST

Comfort and storage device for the rear

passengers.

SKI FLAP

Device for storing and transporting long

objects.

Opening



Lower the rear armrest.



Pull the ﬂap handle downwards.



Lower the ﬂap.



Load the objects from inside the boot.



Lower the rear armrest for a more

comfortable position.



Raise the cover to gain access to its

storage compartment.

This has a storage tray, two can holders

and two pen holders.

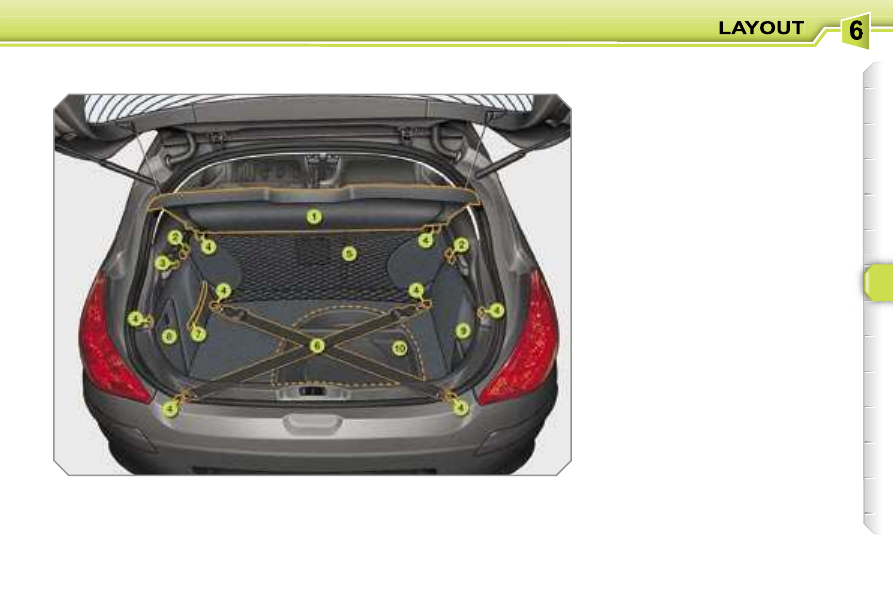

BOOT LAYOUT

1. Rear shelf or shelf with

integrated storage compartment

(see details on following page)

2. Hooks

(see details on following page)

3. 12 V accessories socket

(see details on following page)

4. Stowing rings

5. Luggage retaining net

(see details on following page)

6. Movable straps

(see details on following page)

7. Luggage retaining strap

8. Enclosed storage tray

9. Open storage tray

10. Storage box

(see details on following page)

To remove the shelf:


unhook the two cords,



raise the shelf slightly, then remove it.

There are several options for storing the

shelf:

- either upright behind the front seats,

- or upright behind the rear seats using

one of the movable straps.

Rear shelf

To remove the shelf:


unhook the two cords,



raise the shelf slightly, then remove it.

There are several options for storing the

shelf:

- either upright behind the front seats,

- or upright behind the rear seats using

one of the movable straps.



To open the cover, from inside or out-

side, raise one of the two handles.



To close the cover, ﬁrst raise the

handle.



To remove the cover, raise both hand-

les at the same time.

Shelf with integrated storage compartment

The hooks permit the securing of shop-

ping bags.

Hooks

This permits the storage of any object so

that it cannot be seen from the outside

and without hindering rearward visibility.

Hooked onto the stowing rings, this en-

ables you to secure your luggage.

Luggage retaining net



Raise the boot carpet to gain access

to the storage box.

This has areas for storing a box of spare

bulbs, a ﬁrst aid kit, a puncture repair

kit, two warning triangles, ...

Storage box



In order to connect a 12 V accesso-

ry (max power: 100 Watts), remove

the cap and connect the appropriate

adaptor.



Turn the key to the ignition position.

12 V accessories socket

There are three possible positions:

- ﬂat at the bottom of the boot,

- horizontal at the rear shelf,

- vertical at the back of the rear seats.

Movable straps

Hooked onto the stowing rings, they

permit securing of your luggage.

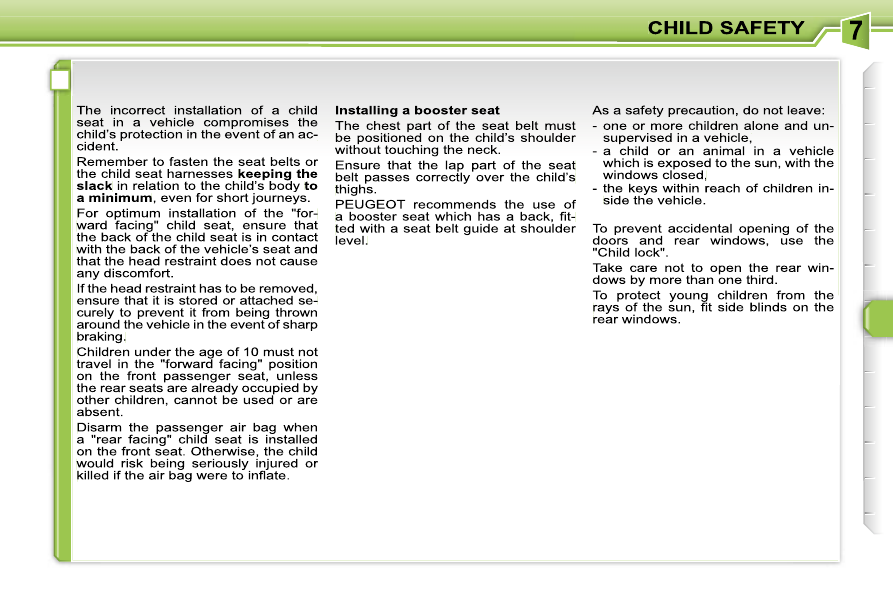

GENERAL POINTS RELATING

TO CHILD SEATS

Although one of PEUGEOT’s main cri-

teria when designing your vehicle, the

safety of your children also depends on

you.

For maximum safety, please follow

these precautions:

- in accordance with Directive 2003/20,

all children under the age of 12 or

less than one metre ﬁfty tall must

travel in approved child seats suited

to their weight, on seats ﬁtted with a

seat belt or ISOFIX mountings*.

statistically, the safest seats in

your vehicle for the transportation

of children are the rear seats,

a child weighing less than 9 kg must

travel in the "rearwards-facing" position

both in the front and in the rear.

INSTALLING A CHILD SEAT

USING A THREE POINT SEAT

BELT

"Forwards-facing"

When a "forwards-facing" child seat is

installed on the

front passenger seat,

adjust the vehicle’s seat to the interme-

diate longitudinal position with the seat

back upright and leave the passenger

air bag armed.

"Rearwards-facing"

When a "rearwards-facing" child seat is

installed on the

front passenger seat,

it is essential that the passenger air

bag is disarmed. Otherwise,

the child

would risk being seriously injured or

killed if the air bag were to inﬂate.

Intermediate longitudinal

position

* The rules for transporting children are

speciﬁc to each country. Consult the

current legislation in your country.

Passenger air bag OFF

CHILD SEATS RECOMMENDED BY PEUGEOT

PEUGEOT offers a complete range of recommended child seats which are secu-

red using a

three point seat belt:

Group 0: from birth to 10 kg

Group 0+: from birth to 13 kg

Groups 1, 2 and 3: from 9 to 36 kg

"ROMER

Baby-Safe Plus"

Installed in the

rear-facing position.

"KIDDY Life"

For the safety

of young children

(from 9 to 18 kg),

PEUGEOT

recommends use

of the restraining

cushion.

Groups 2 and 3: from 15 to 36 kg

"RECARO Start".

"KLIPPAN Optima"

From the age

of 6 years

(approximately 22 kg),

the booster is used

on its own.

Passenger air bag OFF

CHILD SEATS RECOMMENDED BY PEUGEOT

PEUGEOT offers a complete range of recommended child seats which are secu-

red using a

three point seat belt:

Group 0: from birth to 10 kg

Group 0+: from birth to 13 kg

Groups 1, 2 and 3: from 9 to 36 kg

"ROMER

Baby-Safe Plus"

Installed in the

rear-facing position.

"KIDDY Life"

For the safety

of young children

(from 9 to 18 kg),

PEUGEOT

recommends use

of the restraining

cushion.

Groups 2 and 3: from 15 to 36 kg

"RECARO Start".

"KLIPPAN Optima"

From the age

of 6 years

(approximately 22 kg),

the booster is used

on its own.

LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT

In accordance with European regulations (Directive 2005/40), this table indicates the options for installing child seats secured

using the seat belt and universally approved (a) in relation to the weight of the child and the seat in the vehicle.

(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.

(b) Group 0: from birth to 10 kg.

U: seat suitable for the installation of a child seat secured using the seat belt and univerally approved "rear facing" and/or

"forward facing".

U (R1): identical to U, with the vehicle’s seat adjusted to the intermediate longitudinal position.

U (R2): identical to U, with the vehicle’s seat adjusted to the highest position.

L-: only the child seats indicated can be installed on the seat concerned (according to country).

* The seat’s head restraint must be removed and stored.

Seat

Weight of the child/indicative age

Less than 13 kg

(groups 0 (b)

and 0+)

Up to ≈ 1 year

From 9 to 18 kg

(group 1)

From 1 to ≈ 3 years

From 15 to 25 kg

(group 2)

From 3 to ≈ 6 years

From 22 to 36 kg

(group 3)

From 6 to ≈ 10 years

Front passenger seat (c)

- ﬁxed

- height adjustable

U (R1)

U (R2)

U (R1)

U (R2)

U (R1)

U (R2)

U (R1)

U (R2)

Rear side seats

Rear centre seat

(except L2)

U*
L3

ADVICE ON CHILD SEATS

100

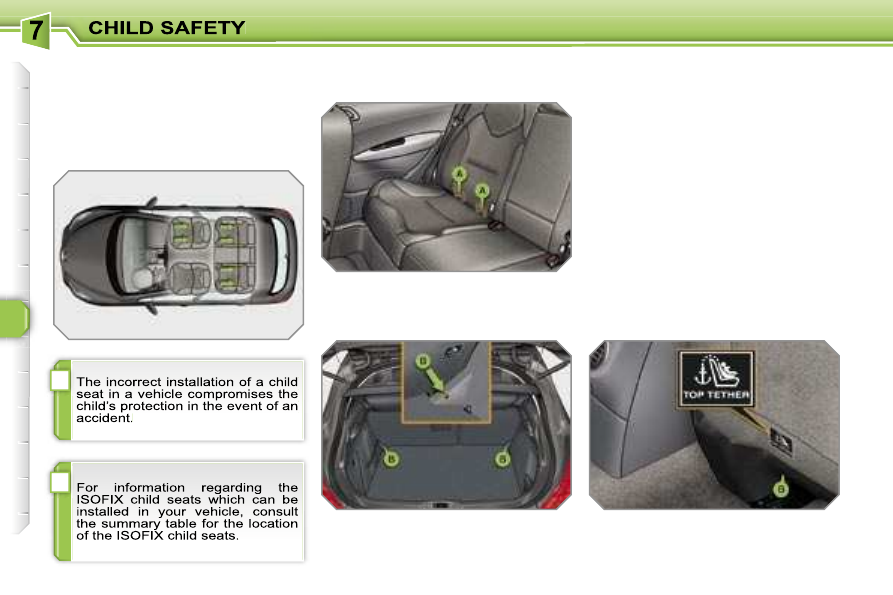

"ISOFIX" MOUNTINGS

Your vehicle has been approved in accord-

ance with the

new ISOFIX regulation.

The seats, represented below, are ﬁtted

with regulation ISOFIX mountings:

The Isoﬁx mountings are three rings for

each seat:

- two rings

A, located between the ve-

hicle seat back and cushion, indicated

by a label,

- a ring

B, for ﬁxing the upper strap re-

ferred to as the

TOP TETHER.

This ISOFIX mounting system guaran-

tees you fast, reliable and safe ﬁtting of

the child seat in your vehicle.

The

ISOFIX child seats are ﬁtted with

two locks which are secured easily on

the two rings

Some also have an

upper strap which

is attached to ring

To attach this strap, raise the vehicle

seat’s head restraint then pass the hook

between its rods. Then ﬁx the hook on

ring

B and tighten the upper strap.

Content .. 5 6 7 8 ..
