Peugeot 308 Dag (2007.5). Instruction

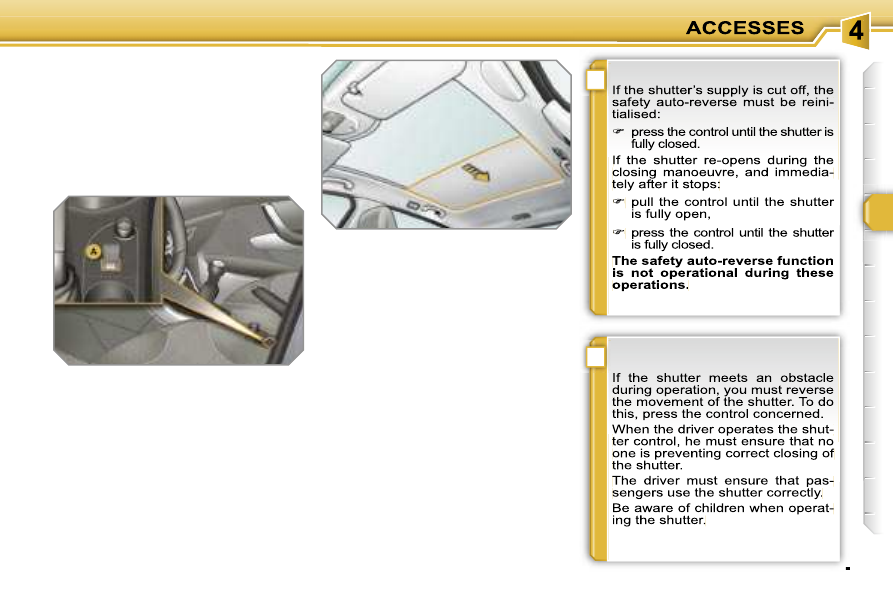

GLASS PANORAMIC ROOF

Component which has a tinted glass

panoramic surface to increase the light

and visibility in the passenger compart-

ment. Fitted with an electric shutter in

several sections to improve tempera-

ture and noise related comfort.

- manual mode


Pull or press control

A gently.

The shutter stops when you release

the control.

- automatic mode


Pull or press control

A ﬁrmly.

One press opens or closes the shutter

completely.

Pressing the control again stops the

shutter.

Safety auto-reverse

In automatic mode and at the end of its

travel, if the shutter meets an obstacle

while closing it stops and moves back

slightly.

One-touch electric shutter

There are two options for opening and

closing:

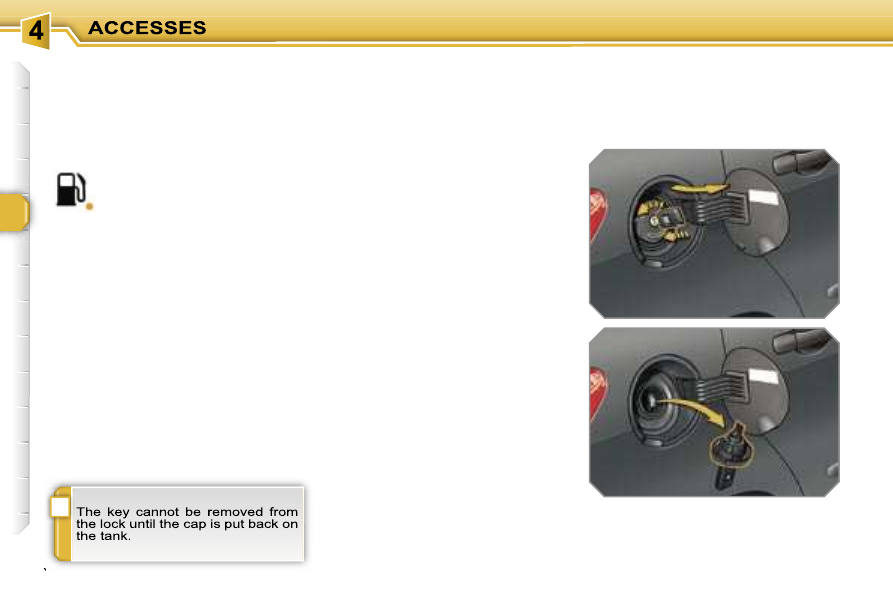

FUEL TANK

Capacity of the tank: approximately

60 litres.

To ﬁll the tank safely:


it is essential that the engine is

switched off,



open the fuel ﬁller ﬂap,



insert the key in the cap, then turn it

to the left,

When ﬁlling is complete:


put the cap back in place,



turn the key to the right, then remove

it from the cap,



close the ﬂap.



remove the cap and secure it on the

hook, located on the inside of the

ﬂap,



ﬁll the tank, but

do not continue

after the 3rd cut-off of the nozzle;

this could cause malfunctions.

Low fuel level

Filling

A label afﬁxed to the inside of the ﬂap

reminds you of the type of fuel to be

used according to your engine.

Operating fault

A fuel gauge malfunction is indicated by

the return of the fuel level indicator nee-

dle to zero.

Contact a PEUGEOT dealer.

When the fuel tank minimum

level is reached, this warning

light comes on on the instru-

ment panel, accompanied by

an audible signal and a message on the

multifunction display.

You have enough fuel left to drive

approximately 30 miles (50 km).

If you run out of fuel, refer to the "Practi-

cal information» section also.

LIGHTING CONTROLS

System for selection and control of the

various front and rear lights providing

the vehicle’s lighting.

Main lighting

The various front and rear lights of the

vehicle are designed to adapt the driv-

er’s visibility progressively in relation to

the climatic conditions:

- side lights, to be seen,

- dipped headlamps to see without daz-

zling other drivers,

- main beam headlamps to see clearly

when the road is clear,

- directional headlamps for improved

visibility when cornering.

Additional lighting

Other lights are installed to fulﬁl the re-

quirements of particular driving condi-

tions:

- rear fog lamps to be seen from a dis-

tance,

- front fog lamps for even better visibil-

ity,

- daytime lights to be seen during the

day.

Programming

Various automatic lighting control

modes are also available according to

the following options:

- follow-me-home lighting,

- automatic lighting,

- directional lighting.

Model without AUTO lighting

Model with AUTO lighting

automatic switching on of

the lights,

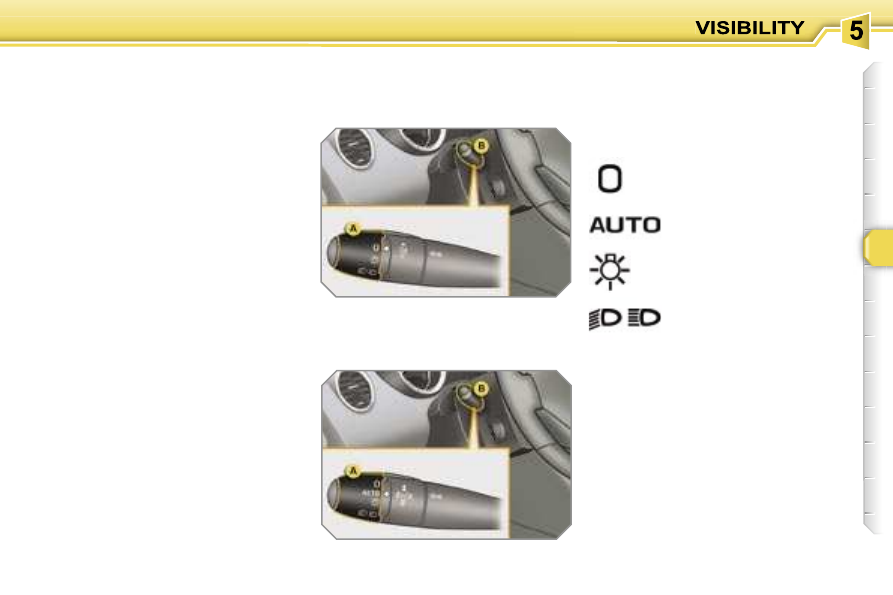

Manual controls

The lighting commands are issued di-

rectly by the driver by means of the ring

A and the lever B.

A. main lighting mode selection ring,

with:

lights off,

side lights only,

B. lever for inversion of the lights by

pulling: dipped headlamps/main

beam headlamps.

In the lights off and side lights modes,

the driver can switch on the main beam

headlamps directly ("headlamp ﬂash")

for as long as he pulls the lever.

dipped headlamps or main

beam headlamps.

Displays

Lighting of the corresponding indicator

light on the instrument panel conﬁrms

the selective switching on of the lighting

selected.

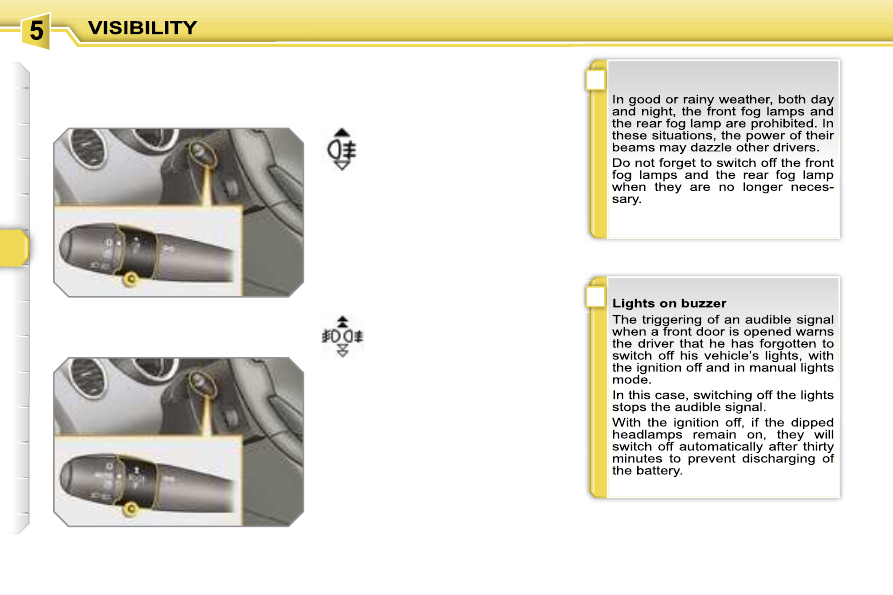

Model with rear fog lamp only

rear fog lamp



To switch on the fog lamp, turn the

ring

C forwards.

When the lights are switched off auto-

matically (with AUTO model), the fog

lamp and the dipped headlamps will re-

main on.


To switch off all of the lights, turn the

ring

C rearwards.

Model with front and rear fog lamps

front and rear fog lamps



To switch on the fog lamps, turn the

ring

C forwards.



To switch off the rear fog lamp, turn

the ring

C rearwards twice in succes-

sion.

When the lights are switched off auto-

matically (with AUTO model) or when

the dipped headlamps are switched off

manually, the fog lamps and the side

lights will remain on.


Turn the ring rearwards to switch

off the fog lamps, the side lights will

then switch off.

C. fog lamps selection ring.

The fog lamps operate with the dipped

and main beam headlamps.

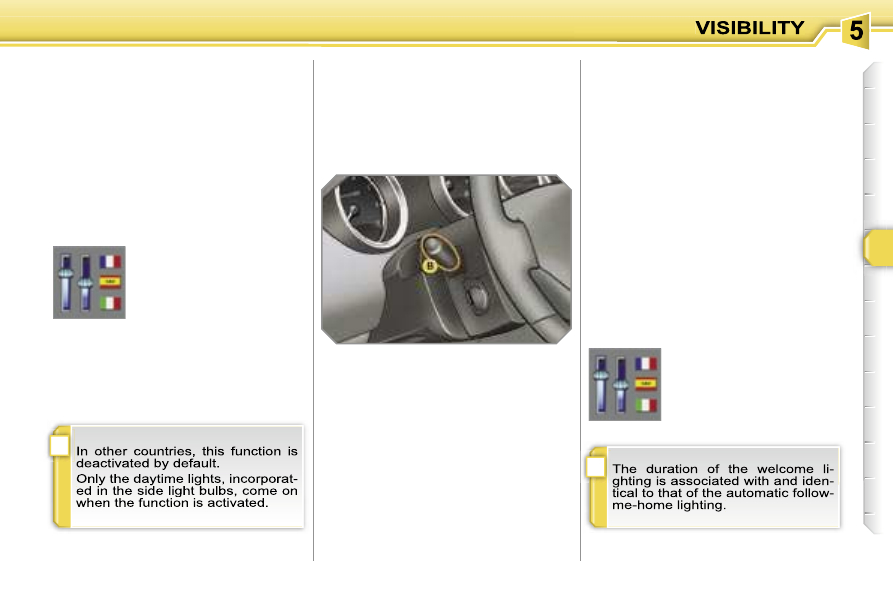

Follow-me-home lighting

The temporary maintaining of the

dipped headlamps lighting after the ve-

hicle’s ignition has been switched off

makes the driver’s exit easier when the

light is poor.

Switching on


With the ignition off, "ﬂash" the head-

lamps using the lever



A second "headlamp ﬂash" switches

the function off again.

Switching off

The follow-me-home lighting switches

off automatically after a set time.

Daytime lights

On vehicles ﬁtted with daytime lights,

the corresponding lights comes on

when the vehicle is started*.

* According to country.

The instruments and controls (instru-

ment panel, multifunction display, air

conditioning control panel, ...) are not

lit, except on switching to the automatic

switching on of the lights mode or when

the lights are switched on manually.

Exterior welcome lighting

The remote switching on of the lights

makes your approach to the vehicle

easier in poor light when in automatic

switching on of the lights mode.

Switching on


Press the open padlock on the re-

mote control.

The dipped headlamps and the side

lights come on; your vehicle is also

unlocked.

Switching off

The exterior welcome lighting switches

off automatically after a set time, when

the ignition is switched on or on locking

the vehicle.

Programming

The function is activated or

deactivated via the multi-

function display conﬁgura-

tion menu.

Programming

The duration of maintaining

of the lighting is selected

via the multifunction dis-

play conﬁguration menu.

In countries in which this function is im-

posed by regulations*, it is activated by

default.

The side lights and the number plate

lights are also switched on.

Coupling with the "Follow-me-

home" lighting

Association with the automatic lighting

provides the "follow-me-home" lighting

with the following additional options:

- selection of the duration of maintaining

of the lighting for 15, 30 or 60 seconds

in the vehicle parameters on the multi-

function display conﬁguration menu,

- automatic activation of "follow-me-

home" lighting when automatic light-

ing is in operation.

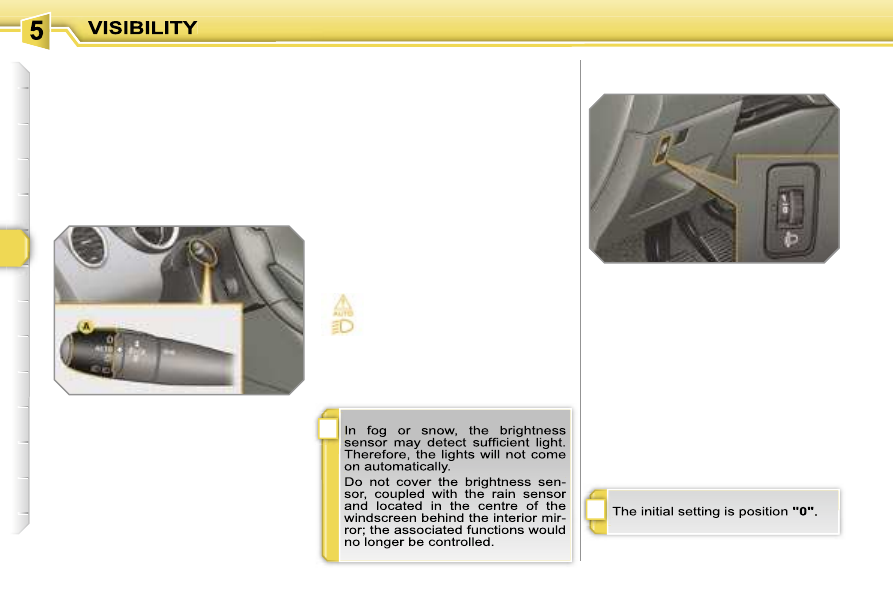

Automatic lighting

The side lights and dipped headlamps

are switched on automatically, without

any action on the part of the driver,

when a low level of external light is de-

tected or in certain cases of activation

of the windscreen wipers.

As soon as the brightness returns to a

sufﬁcient level or after the windscreen

wipers are switched off, the lights are

switched off automatically.

Activation


Turn ring

A to the "AUTO" position.

The automatic lighting is accompa-

nied by a message on the multifunc-

tion display.

Deactivation


Turn ring

A to a position other than

"AUTO". Deactivation is accompa-

nied by a message on the multifunc-

tion display.

Operating fault

In the event of a malfunction

of the brightness sensor, the li-

ghts come on, this warning light

is displayed on the instrument

panel and/or a message appears on the

multifunction display, accompanied by

an audible signal.

In this case, contact a PEUGEOT dealer.

MANUAL HEADLAMP

ADJUSTMENT

To avoid causing a nuisance to other

road users, the height of the halogen

headlamps should be adjusted in rela-

tion to the load in the vehicle.

0. 1 or 2 people in the front seats.

-. 3 people.

1. 5 people.

2. 5 people + maximum authorised

load.

3. Driver + maximum authorised load.

Follow-me-home lighting

The temporary maintaining of the

dipped headlamps lighting after the ve-

hicle’s ignition has been switched off

makes the driver’s exit easier when the

light is poor.

Switching on


With the ignition off, "ﬂash" the head-

lamps using the lever



A second "headlamp ﬂash" switches

the function off again.

Switching off

The follow-me-home lighting switches

off automatically after a set time.

Daytime lights

On vehicles ﬁtted with daytime lights,

the corresponding lights comes on

when the vehicle is started*.

* According to country.

The instruments and controls (instru-

ment panel, multifunction display, air

conditioning control panel, ...) are not

lit, except on switching to the automatic

switching on of the lights mode or when

the lights are switched on manually.

Exterior welcome lighting

The remote switching on of the lights

makes your approach to the vehicle

easier in poor light when in automatic

switching on of the lights mode.

Switching on


Press the open padlock on the re-

mote control.

The dipped headlamps and the side

lights come on; your vehicle is also

unlocked.

Switching off

The exterior welcome lighting switches

off automatically after a set time, when

the ignition is switched on or on locking

the vehicle.

Programming

The function is activated or

deactivated via the multi-

function display conﬁgura-

tion menu.

Programming

The duration of maintaining

of the lighting is selected

via the multifunction dis-

play conﬁguration menu.

In countries in which this function is im-

posed by regulations*, it is activated by

default.

The side lights and the number plate

lights are also switched on.

Coupling with the "Follow-me-

home" lighting

Association with the automatic lighting

provides the "follow-me-home" lighting

with the following additional options:

- selection of the duration of maintaining

of the lighting for 15, 30 or 60 seconds

in the vehicle parameters on the multi-

function display conﬁguration menu,

- automatic activation of "follow-me-

home" lighting when automatic light-

ing is in operation.

Automatic lighting

The side lights and dipped headlamps

are switched on automatically, without

any action on the part of the driver,

when a low level of external light is de-

tected or in certain cases of activation

of the windscreen wipers.

As soon as the brightness returns to a

sufﬁcient level or after the windscreen

wipers are switched off, the lights are

switched off automatically.

Activation


Turn ring

A to the "AUTO" position.

The automatic lighting is accompa-

nied by a message on the multifunc-

tion display.

Deactivation


Turn ring

A to a position other than

"AUTO". Deactivation is accompa-

nied by a message on the multifunc-

tion display.

Operating fault

In the event of a malfunction

of the brightness sensor, the li-

ghts come on, this warning light

is displayed on the instrument

panel and/or a message appears on the

multifunction display, accompanied by

an audible signal.

In this case, contact a PEUGEOT dealer.

MANUAL HEADLAMP

ADJUSTMENT

To avoid causing a nuisance to other

road users, the height of the halogen

headlamps should be adjusted in rela-

tion to the load in the vehicle.

0. 1 or 2 people in the front seats.

-. 3 people.

1. 5 people.

2. 5 people + maximum authorised

load.

3. Driver + maximum authorised load.

Coupling with the "Follow-me-

home" lighting

Association with the automatic lighting

provides the "follow-me-home" lighting

with the following additional options:

- selection of the duration of maintaining

of the lighting for 15, 30 or 60 seconds

in the vehicle parameters on the multi-

function display conﬁguration menu,

- automatic activation of "follow-me-

home" lighting when automatic light-

ing is in operation.

Automatic lighting

The side lights and dipped headlamps

are switched on automatically, without

any action on the part of the driver,

when a low level of external light is de-

tected or in certain cases of activation

of the windscreen wipers.

As soon as the brightness returns to a

sufﬁcient level or after the windscreen

wipers are switched off, the lights are

switched off automatically.

Activation


Turn ring

A to the "AUTO" position.

The automatic lighting is accompa-

nied by a message on the multifunc-

tion display.

Deactivation


Turn ring

A to a position other than

"AUTO". Deactivation is accompa-

nied by a message on the multifunc-

tion display.

Operating fault

In the event of a malfunction

of the brightness sensor, the li-

ghts come on, this warning light

is displayed on the instrument

panel and/or a message appears on the

multifunction display, accompanied by

an audible signal.

In this case, contact a PEUGEOT dealer.

MANUAL HEADLAMP

ADJUSTMENT

To avoid causing a nuisance to other

road users, the height of the halogen

headlamps should be adjusted in rela-

tion to the load in the vehicle.

0. 1 or 2 people in the front seats.

-. 3 people.

1. 5 people.

2. 5 people + maximum authorised

load.

3. Driver + maximum authorised load.

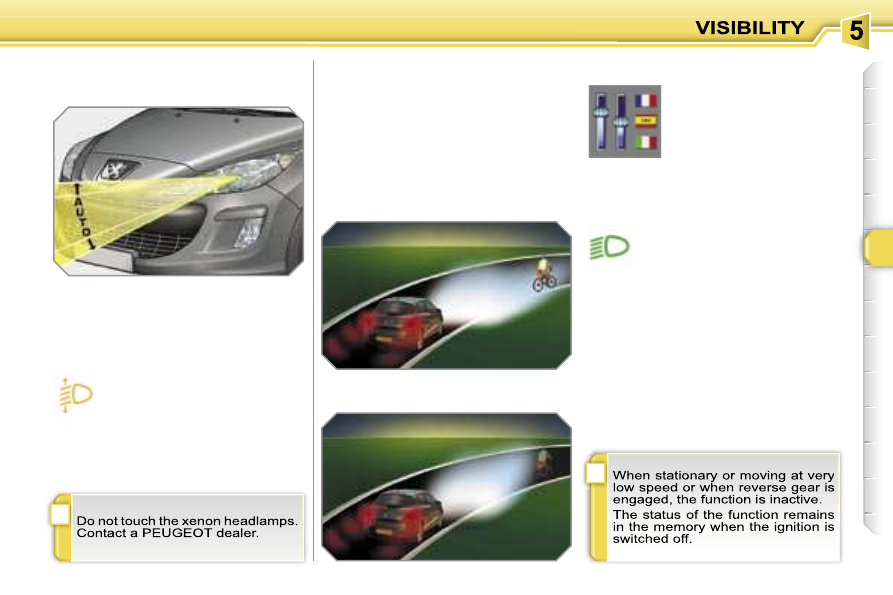

DIRECTIONAL LIGHTING

When the dipped or main beam head-

lamps are on, this function enables the

light beam to follow the direction of the

road.

The use of this function, coupled with

the xenon headlamps only, considera-

bly improves the quality of your lighting

when cornering.

with directional lighting

without directional lighting

Programming

Operating fault

The function is activated or

deactivated via the multi-

function display conﬁgura-

tion menu.

If a malfunction occurs, this

warning light ﬂashes on the in-

strument panel, accompanied

by a message on the multifunc-

tion display.

Contact a PEUGEOT dealer.

AUTOMATIC ADJUSTMENT

OF THE DIRECTIONAL

HEADLAMPS

In order to avoid causing a nuisance to

other road users, this system corrects

the height of the xenon headlamps beam

automatically and when stationary, in re-

lation to the load in the vehicle.

If a malfunction occurs, this

warning light and/or the service

warning light is displayed on the

instrument panel, accompanied

by an audible signal and a message on

the multifunction display.

The system then places your head-

lamps inb the lowest position.

DIRECTIONAL LIGHTING

When the dipped or main beam head-

lamps are on, this function enables the

light beam to follow the direction of the

road.

The use of this function, coupled with

the xenon headlamps only, considera-

bly improves the quality of your lighting

when cornering.

with directional lighting

without directional lighting

Programming

Operating fault

The function is activated or

deactivated via the multi-

function display conﬁgura-

tion menu.

If a malfunction occurs, this

warning light ﬂashes on the in-

strument panel, accompanied

by a message on the multifunc-

tion display.

Contact a PEUGEOT dealer.

AUTOMATIC ADJUSTMENT

OF THE DIRECTIONAL

HEADLAMPS

In order to avoid causing a nuisance to

other road users, this system corrects

the height of the xenon headlamps beam

automatically and when stationary, in re-

lation to the load in the vehicle.

If a malfunction occurs, this

warning light and/or the service

warning light is displayed on the

instrument panel, accompanied

by an audible signal and a message on

the multifunction display.

The system then places your head-

lamps inb the lowest position.

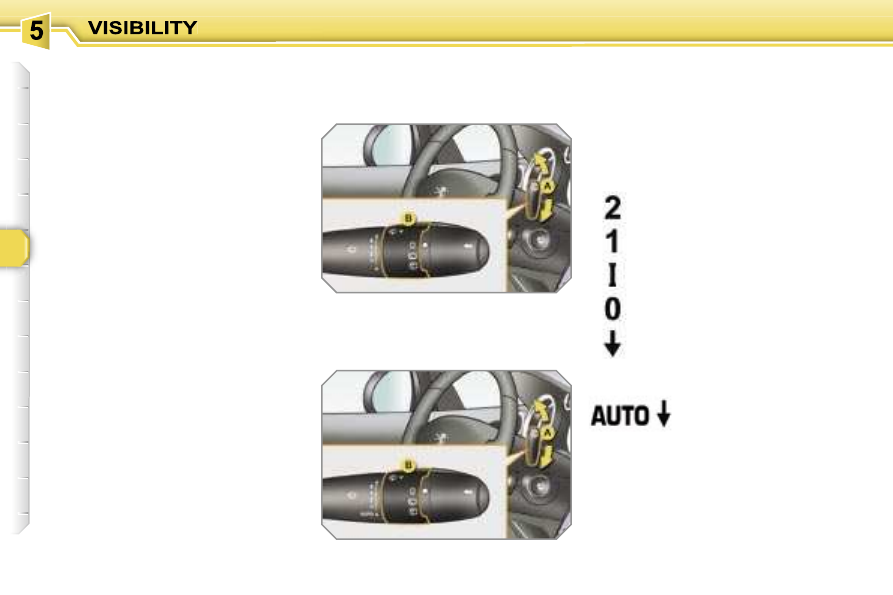

WIPER CONTROLS

System for selection and control of the

various front and rear wiping modes for

the elimination of rain and cleaning.

The vehicle’s various front and rear wip-

ers are designed to improve the driver’s

visibility progressively in relation to the

climatic conditions.

Manual controls

The wiper commands are issued direct-

ly by the driver by means of the lever

and the ring

Model with intermittent wiping

Model with AUTO wiping

fast (heavy rain),

normal (moderate rain),

intermittent (proportional to

the speed of the vehicle),

automatic, then single

wipe (see following

page).

park,

single wipe (press down-

wards),

Programming

Various automatic wiper control modes

are also available according to the fol-

lowing options:

- automatic wiping for the windscreen

wipers,

- rear wiping on engaging reverse

gear.

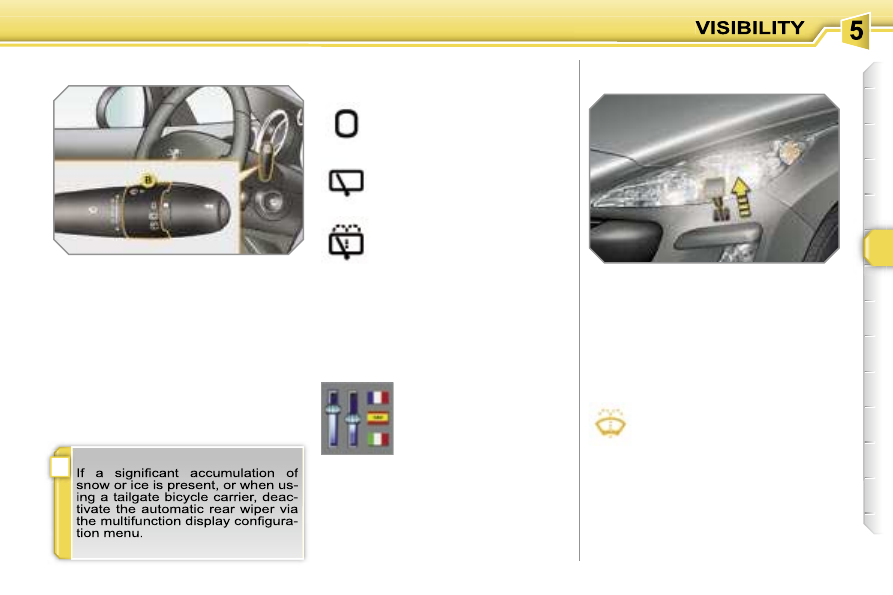

Windscreen wipers

A. wiping speed selection lever:

Windscreen and headlamp wash

B. rear wiper selection ring:

park,

intermittent wipe,

wash-wipe (set duration).

Reverse gear

When reverse gear is engaged, the

rear wiper will come into operation if the

windscreen wipers are operating.

Programming



Pull the windscreen wiper stalk to-

wards you. The windscreen wash

then the windscreen wipers operate

for a ﬁxed period.

If the dipped headlamps are on, the

headlamp washers operate at the same

time.

Rear wiper

The function is activated or

deactivated via the multi-

function display conﬁgura-

tion menu.

This function is activated

by default.

Screenwash/headlamp

wash low

In the case of vehicles ﬁtted with

headlamp washers, when the

minimum level of the reservoir is

reached, this warning light and/or

the service warning light is displayed on

the instrument panel, accompanied by an

audible signal and a message on the mul-

tifunction display.

Next time you stop, ﬁll the screenwash/

headlamp wash reservoir.

The warning light is displayed when the ig-

nition is switched on, or every time the stalk

is operated, until the reservoir is ﬁlled.

Special position of the

windscreen wipers

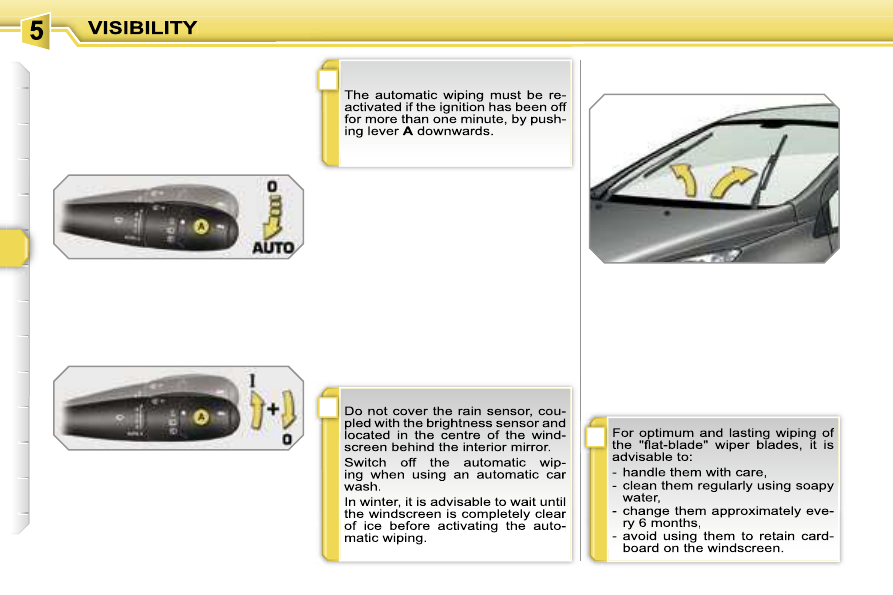

Automatic windscreen wiping

The windscreen wipers operate auto-

matically, without any action on the part

of the driver, if rain is detected (sensor

behind the interior mirror), adapting their

speed to the intensity of the rainfall.

Activation

This is controlled manually by the dri-

ver by pushing lever

A to the "AUTO"

position.

It is accompanied by a message on the

multifunction display.

In the minute following switching off of

the ignition, any action on the stalk po-

sitions the wipers in the centre of the

windscreen.

This action enables you to position the

wiper blades for winter parking, clean-

ing or replacement.

To park the wipers after this has been

done, switch on the ignition and operate

the stalk.

Switching off

This is controlled manually by the driver

by moving lever

A upwards and return-

ing it to position

"0".

It is accompanied by a message on the

multifunction display.

Operating fault

If an automatic wiping malfunction oc-

curs, the wipers will operate in intermit-

tent mode.

Contact a PEUGEOT dealer to have the

system checked.

Special position of the

windscreen wipers

Automatic windscreen wiping

The windscreen wipers operate auto-

matically, without any action on the part

of the driver, if rain is detected (sensor

behind the interior mirror), adapting their

speed to the intensity of the rainfall.

Activation

This is controlled manually by the dri-

ver by pushing lever

A to the "AUTO"

position.

It is accompanied by a message on the

multifunction display.

In the minute following switching off of

the ignition, any action on the stalk po-

sitions the wipers in the centre of the

windscreen.

This action enables you to position the

wiper blades for winter parking, clean-

ing or replacement.

To park the wipers after this has been

done, switch on the ignition and operate

the stalk.

Switching off

This is controlled manually by the driver

by moving lever

A upwards and return-

ing it to position

"0".

It is accompanied by a message on the

multifunction display.

Operating fault

If an automatic wiping malfunction oc-

curs, the wipers will operate in intermit-

tent mode.

Contact a PEUGEOT dealer to have the

system checked.

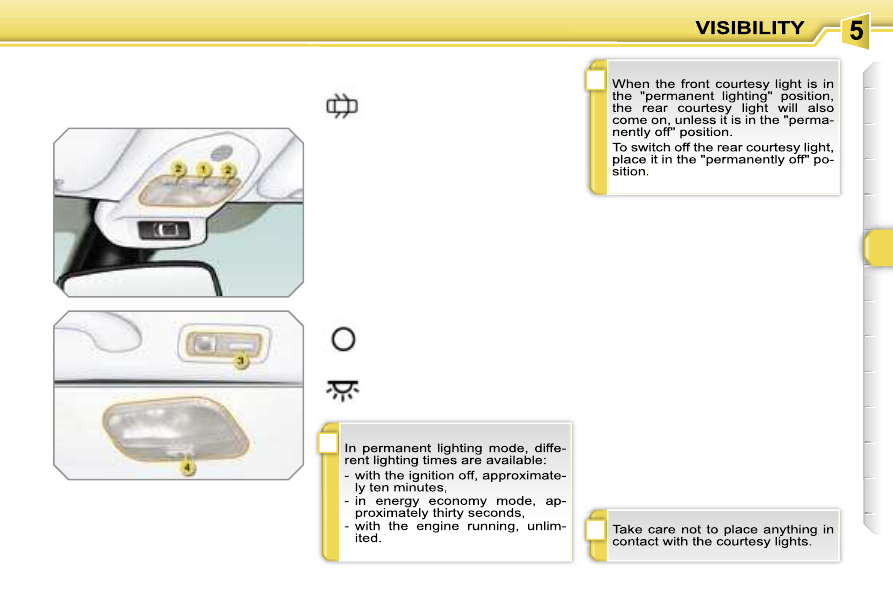

COURTESY LIGHTS

Selection and control of the various

passenger compartment lights.

1. Front courtesy light

2. Map reading lights

3. Rear side reading lights

4. Rear courtesy light

Front and rear courtesy lights

In this position, the courtesy li-

ght comes on gradually:

Map reading lights



With the ignition on, press the cor-

responding switch.

- when the vehicle is unlocked,

- when the key is removed from the ig-

nition,

- when a door is opened,

- when the remote control locking button is

activated, in order to locate your vehicle.

It switches off gradually:

- when the vehicle is locked,

- when the ignition is switched on,

- 30 seconds after the last door is closed.

Permanently off.

Permanent lighting.

Rear side reading lights



With the ignition on, the ﬁrst press of

the corresponding switch switches

on the reading light concerned in

permanent lighting mode.



Following a second press, it comes on:

- when the vehicle is unlocked,

- when the key is removed from the

ignition,

- when a door is opened,

- when the remote control locking

button is pressed, in order to locate

your vehicle.

It switches off gradually:

- when the vehicle is locked,

- when the ignition is switched on,

- 30 seconds after the last door is

closed.

Peugeot 308 Dag (2007.5). Instruction - part 6
