Peugeot 308 CC (2014 year). Instruction - part 12

175

TECHNICAL DATA

IDENTIFICATION MARKINGS

Various visible markings for the identiﬁ -

cation of your vehicle.

If the inﬂ ation pressures are too

low, this increases fuel consump-

tion.

The inﬂ ation pressures must be

checked when the tyres are cold,

at least once a month.

A. Vehicle identiﬁ cation number (VIN)

under the bonnet.

This number is engraved on the

bodywork near the damper support.

For access to it, raise the plastic

cover.

B. VIN on the windscreen lower

cross member.

This number is indicated on a self-

adhesive label which is visible

through the windscreen.

C. Manufacturer's label.

This number is indicated on a self-

destroying label afﬁ xed to the door

aperture, below the door striker, on

the right-hand side.

D. Tyre/paint label.

This label is afﬁ xed to the door aper-

ture, on the driver's side.

It bears the following information:

- the tyre inﬂ ation pressures, laden

and unladen,

the tyre sizes,

- the inﬂ ation pressure of the spare

wheel,

the paint colour code.

176

TECHNICAL DATA

177

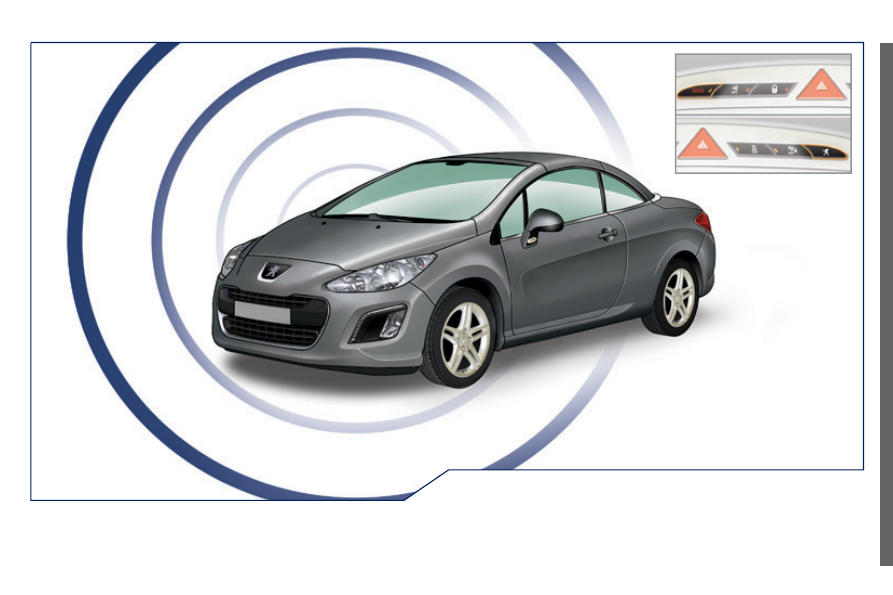

EMERGENCY OR ASSISTANCE CALL

178

EMERGENCY OR ASSISTANCE CALL

In an emergency, press this button for more than

2 seconds. Flashing of the green LED and a voice

message conﬁ rm that the call has been made to the

"PEUGEOT Connect SOS" centre * .

The green LED remains on (without ﬂ ashing) when communication is

established. It goes off at the end of communication.

When the ignition is switched on, the green

LED comes on for 3 seconds indicating that

the system is operating correctly.

Pressing this button again immediately cancels the request.

The cancellation is conﬁ rmed by a voice message.

Press this button for more than 2 seconds to request

assistance if the vehicle breaks down.

A voice message conﬁ rms that the call has been made ** .

Pressing this button again immediately cancels the request. The green

LED goes off. Cancellation is conﬁ rmed by a voice message

To cancel a call, tell the "PEUGEOT Connect SOS" call centre that the call

was a mistake.

"PEUGEOT Connect SOS" immediately locates your vehicle, starts

communication with you in your language ** , and where necessary sends

the appropriate public emergency services ** . In countries where the

service is not available, or when the locating service has been expressly

declined, the call sent directly to the emergency services (112) without the

vehicle location.

If an impact is detected by the airbag control unit, and

independently of the deployment of any airbags, an emergency call

is made automatically.

* Subject to the general conditions for the service available from dealers

and to technological and technical limitations.

If the orange LED ﬂ ashes: there is a system

fault.

If the orange LED is on continuously: the

backup battery must be replaced.

In either case, contact a PEUGEOT dealer.

If you purchased your vehicle outside the PEUGEOT dealer network,

we invite you to have a dealer check the conﬁ guration of these services

and, if desired, modiﬁ ed to suit your wishes. In a multi-lingual country,

conﬁ guration is possible in the ofﬁ cial national language of your choice.

For technical reasons and in particular to improve the quality of

"PEUGEOT CONNECT services" services to customers, the manufacturer

reserves the right to carry out updates to the vehicle's on-board

telematic system.

PEUGEOT Connect SOS

PEUGEOT Connect Assistance

Operation of the system

** Depending on the geographical cover of "PEUGEOT Connect SOS",

"PEUGEOT Connect Assistance" and the ofﬁ cial national language

selected by the owner of the vehicle.

The list of countries covered and PEUGEOT CONNECT services

services is available from dealers or at www.peugeot.co.uk.

179

The system is protected in such a way that it will only

operate in your vehicle.

PEUGEOT Connect Navigation (RT6)

01 First steps - Control panel

For safety reasons, the driver must only carry out

operations which require prolonged attention while the

vehicle is stationary.

When the engine is switched off and to prevent

discharging of the battery, the system switches off

following the activation of the energy economy mode.

CONTENTS

  02  Steering  mounted  controls
  03  General  operation
  04  Navigation  -  Guidance
  05  Traffic  information
  06  Using  the  telephone
  07  Radio
  08  Music  media  players
  09  Audio  settings
  10  Configuration
  11  Screen  menu  map

p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.

180
182
183
185
198
201

211

214
220
221
222

SATELLITE NAVIGATION SYSTEM

MULTIMEDIA BLUETOOTH

TELEPHONE AUDIO SYSTEM

Frequently asked questions

226

180

Select:

- the next lower / higher radio

frequency automatically.

- the previous / next CD track, MP3

track or media.

- the left / right of the screen when a

menu is displayed.

Move left / right in "

Move the map " mode.

Abandon the current

operation, up one level

in the menu.

Long press: return to

the permanent display.

Open the

Conﬁ guration " menu.

Long press: access

to the GPS coverage

and the navigation

demonstration mode.

Open the "

Trafﬁ c

information " menu

and display the current

trafﬁ c alerts.

Select:

- the previous/next line in a list or menu.

- the previous / next media folder.

- step by step selection of the previous/

next radio frequency.

- the previous / next MP3 folder.

Move up/down, in "

Move the map " mode.

FIRST STEPS

Access to the

Navigation - guidance "

menu and display the

recent destinations.

Short press without the

engine running: on / off.

Short press with the engine

running: audio source off /

restore.

MODE button: Selection

of the type of permanent

display.

Long press: black screen

(DARK).

Selection and conﬁ rmation OK dial:

Selection of an item on the screen or in a list or a menu,

then conﬁ rmation with a short press.

Other than for menus and lists, a short press displays a

contextual menu depending on the current screen.

Rotation with map displayed: zoom the map scale in and out.

Volume adjustment (each

source is independent,

including TA messages and

navigation instructions).

181

Continuous press:

reinitialisation of the system.

Open the "

Telephone " menu

and display the list of recent

calls or accept an incoming call.

FIRST STEPS

Short press: select pre-set radio station.

Long press: pre-set the current station.

Access to the "

MUSIC " menu, and display of the CD/MP3/

Apple

tracks and folders.

Long press: display the audio settings screen for the

MEDIA " (CD/USB/iPod/Streaming/AUX) sources.

Access to the "

RADIO " menu and

display the list of stations received.

Long press: display the audio settings

screen for the radio tuner source.

182

RADIO: select the previous/next preset

station.

Select the next entry in the address book.

SRC/TEL button:

change the audio source,

start a call from the address book,

call/end call on the telephone,

press for more than 2 seconds: access

to the address book.

RADIO: change to the previous radio

station in the list.

Long press: automatic search for a

lower frequency.

CD: select the previous track.

CD: continuous press: fast reverse.

RADIO: change to the next radio station in the list.

Long press: automatic search for a higher frequency.

CD: select the next track.

CD: continuous press: fast forward play.

Volume increase.

Volume decrease.

Mute: press the volume

increase and decrease

buttons simultaneously.

Restore the sound by

pressing one of the two

volume buttons.

STEERING MOUNTED CONTROLS

183

For the details of the menus, refer to the "Screen menu map"

section.

For cleaning the screen, the use of a soft, non-abrasive cloth

(spectacles cloth) is recommended, with no additional product.

RADIO "

TELEPHONE "

(If conversation in progress)

SETUP : PARAMETERS

date and time, display conﬁ guration, sound, vehicle

settings.

Changing the audio source:

RADIO : RADIO broadcasts.

MUSIC : playing MUSIC.

Press the

MODE button several times in succession for access to the following displays:

FULL SCREEN MAP "

MAP IN WINDOW "

(If navigation guidance in

progress)

GENERAL OPERATION

184

A press on the knob gives access

to short-cut menus according to the

display in the screen.

Display according to context

RADIO:

Activate / Deactivate TA
Activate / Deactivate RDS

MUSIC MEDIA PLAYERS,

CD or USB (according to

media):

Play modes:

Normal
Random
Random on all media
Repetition

TELEPHONE (call in

progress):

Private mode

FULL SCREEN MAP OR

IN A NEW WINDOW:

Stop / Restore guidance

Select destination

Enter an address

Directory

GPS coordinates

Divert route
Move the map

Info. on location

Select as destination

Select as stage

Save this place (contacts)

Quit map mode

Guidance criteria

Put call on hold

DTMF ring tones
Hang up

Change waveband

GENERAL OPERATION

185

" " " " " " " " " " " " " " " " " " " " " " "

Navigation - guidance

Navigation - guidance " " " " " " " " " " " " " " " " " " " " " " "

To delete the list of recent destinations, select "

Guidance

options " in the navigation menu then select " Delete last

destinations " and conﬁ rm. Select " Yes

" and conﬁ rm. Select "

" then conﬁ rm.

Deleting just one destination is not possible.

Go from the list to the menu (left/right).

Press

NAV .

To make full use of all of the

functions of your navigation

system, update the mapping

regularly. Contact a

PEUGEOT dealer or order

your mapping update at

http://peugeot.navigation.com

A short press on the end of the

lighting control stalk repeats

the last navigation message.

NAVIGATION - GUIDANCE

Access to the "NAVIGATION" menu

Press

NAV to display the

Navigation - guidance " menu.

Towards a new destination

Selecting a destination

Select "

Select destination " and

conﬁ rm, then select "

Enter an address "

and conﬁ rm.

Select the "

Country " function then

conﬁ rm.

Select the "

Town " or " Post code "

function then conﬁ rm.

Select the letters in the name of the

town or the characters in a post code

one at a time, conﬁ rming each one with

the knob.

Selection the town from the list offered,

then conﬁ rm .

A pre-set list (by entering the ﬁ rst few

letters) of the towns in the country selected

can be accessed directly by selecting and

conﬁ rming "

List " in the screen.

List

If possible, enter the "

Road " and " N°/X "

information in the same way.

Select "

Archive " to save the address entered in a contact ﬁ le.

The system allows up to 400 contact ﬁ les to be recorded.

Conﬁ rm "

OK " to start guidance.

Select the guidance criteria: "

Fastest

route ", " Shortest route " or optimised

Distance/Time ", then select the

desired restriction criteria: "

With tolls ",

With Ferry ", or " Trafﬁ c info " then

conﬁ rm "

OK ".

NAVIGATION - GUIDANCE

187

Towards a recent destination

Press

NAV to display the

Navigation - guidance " menu.

Select the desired destination and

conﬁ rm to start guidance.

Towards a contact in the contacts directory

Select "

Select destination " and

conﬁ rm, then select "

Directory " and

conﬁ rm.

Selection the desired destination from

your contacts and conﬁ rm "

OK " to start

the guidance.

Press

NAV to display the

Navigation - guidance " menu.

Navigation towards a contact is only possible if it has an address

entered in the audio navigation system.

Delete recent destinations

Press

NAV to display the

Navigation - guidance " menu.

Select "

Options " and conﬁ rm and then

Delete recent destinations " and

conﬁ rm.

NAVIGATION - GUIDANCE

188

Select "

Select destination " and

conﬁ rm, then select "

GPS coordinates "

and conﬁ rm.

Enter the GPS coordinates and conﬁ rm

OK " to start the guidance.

Press

NAV to display the

Navigation - guidance " menu.

Towards GPS coordinates

Towards a point on the map

With the map displayed, press

OK to

display the contextual menu. Select

Move the map " and conﬁ rm.

Press

OK to display the contextual

menu for "

Move the map " mode.

Select "

Select as destination " or

Select as stage " and conﬁ rm.

Move the cursor using the control to

identify the desired destination.

NAVIGATION - GUIDANCE

189

Towards points of interest (POI)

The points of interest (POI) indicate all of the service locations in the vicinity

(hotels, various businesses, airports…).

Select the "

Enter an address " function

and conﬁ rm, then select

Select

destination and conﬁ rm.

To select a POI close to your current location,

select "

POI " and conﬁ rm, then select " Around

the current place " and conﬁ rm.

To select a POI as a stage on the route,

select "

POI " and conﬁ rm, then select " On

the route " and conﬁ rm.

To select a POI as a destination, ﬁ rst

enter the country and town (see "Towards

a new destination"), select "

POI " and

conﬁ rm, ﬁ nally select "

Near " and conﬁ rm.

Near

Search for POIs in the categories

suggested in the following pages.

Select "

Search by Name " to search for POIs by name and not by

proximity.

Select the POI and conﬁ rm "

OK " to start

the guidance.

Press

NAV to display the

Navigation - guidance " menu.

NAVIGATION - GUIDANCE

190

NAVIGATION - GUIDANCE

This icon appears when several POIs are grouped

together in the same area. Zooming in on this icon

shows details of the POIs.

List of principal points of interest (POI)

* According to availability in the country.

An annual mapping update allows new points of interest to be presented to you.

You can also update the Risk areas / Danger areas every month.

The detailed procedure is available on:

http://peugeot.navigation.com.

Content .. 10 11 12 13 ..
