FAMILIARISATION

* Depending on version.

MONITORING

Instrument panel

Switch panel

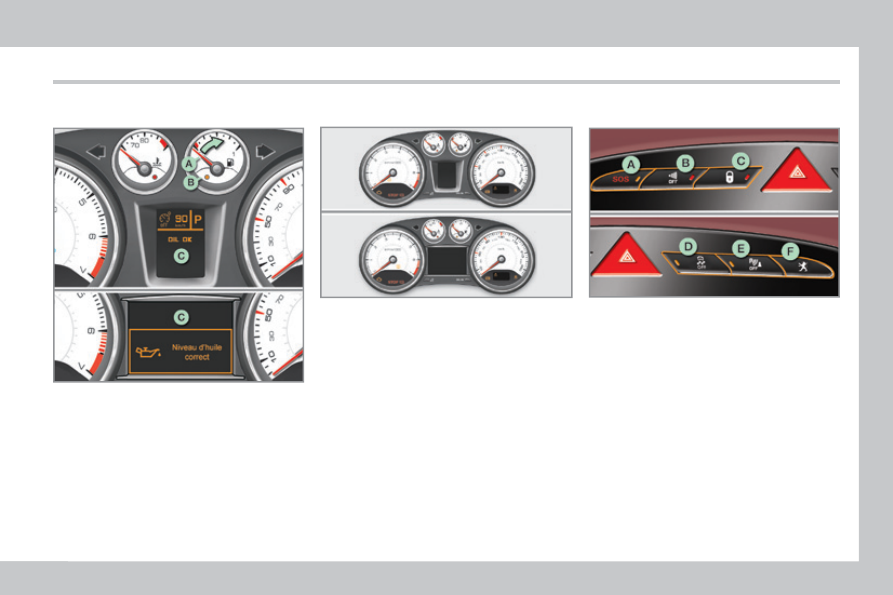

A. With the ignition on, the needle should

indicate the level of fuel remaining.

B. With the engine running, its associ-

ated low level warning lamp should

go off.

C. With the ignition on, the oil level indi-

cator * should display for a few sec-

onds that this level is correct.

If the levels are not correct, top up the

l evels which are low.

Illumination of the indicator lamp indicates

the status of the corresponding function.

A. Emergency call in progress.

1. With the ignition on, the orange and

red warning lamps come on.

With the engine running, these

warning lamps should go off.

If warning lamps remain on, refer to the

table concerned.

Warning lamps

Deactivation of the alarm interior

volumetric monitoring.

C. Central locking.

D. Deactivation of the DSC/ASR systems.

E. Deactivation of the front and rear

parking sensors.

F. Access to PEUGEOT services.



101



97, 101



FAMILIARISATION

Passenger's front airbag

STARTING

1. Insert the key.

2. Select position:

"OFF"

(deactivation), with "rear-

ward facing" child seat,

"ON" (activation), with front passen-

ger or "forward facing" child seat.

3. Remove the key keeping the switch

in the new position.

1. Stop position.

2. Ignition on (Running) position.

3. Starting position.

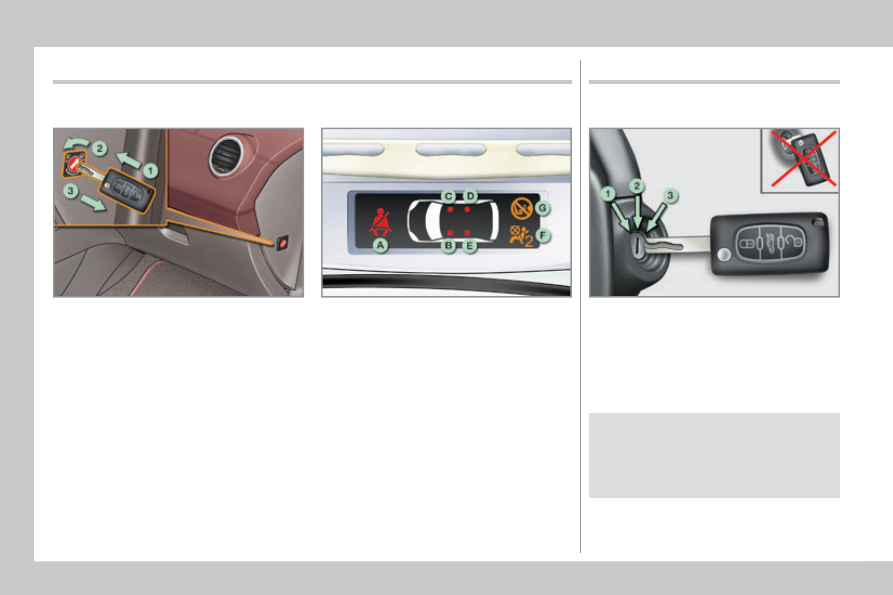

A. Front and/or rear seat belts not fas-

tened / unfastened warning lamp.

B. Front left seat belt warning lamp.

C. Front right seat belt warning lamp.

D. Rear right seat belt warning lamp.

E. Rear left seat belt warning lamp.

F. Passenger's front airbag deactivated

warning lamp.

G. Passenger's front airbag activated

warning lamp.

Seat belts and passenger's

front airbag

PASSENGER SAFETY

Ignition switch

Avoid attaching any heavy objects

to the key which would weigh down

on its shaft in the ignition switch;

this could cause a malfunction.



119



120

FAMILIARISATION

DRIVING SAFELY

Stop & Start

The

"ECO" warning lamp comes on

in the instrument panel and the en-

gine is put automatically into standby:

The

"ECO" warning lamp goes

off and the engine restarts au-

tomatically:

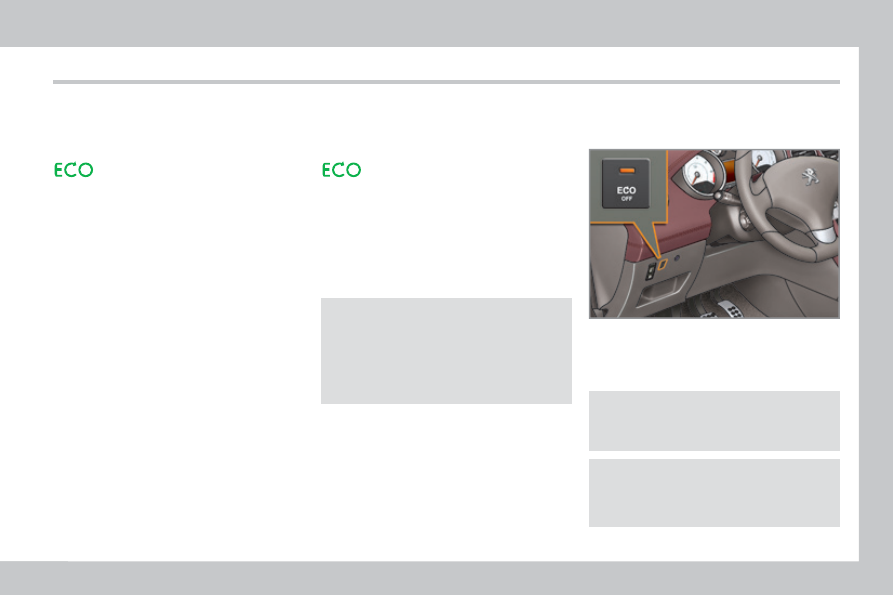

You can deactivate the system at

any time by pressing the

"ECO OFF"

switch; the warning lamp in the button

comes on.

Activation / Reactivation

Going into engine STOP mode

Going into engine START mode

with a manual gearbox; at speeds

below 12 mph (20 km/h), when you

place the gear lever into neutral and

release the clutch pedal.

In certain circumstances, STOP mode

may not be available; the

"ECO" warn-

ing lamp ﬂ ashes for a few seconds,

then goes off.

with a manual gearbox; when you

fully depress the clutch pedal.

If you engage a gear without fully

depressing the clutch pedal, the

engine will not restart automatical-

ly. An alert message is displayed

asking you fully depress the clutch

pedal.

The system is reactivated auto-

matically every time the engine is

started with the key.

Before refuelling or doing anything

under the bonnet, you must switch

off the ignition with the key.

In certain circumstances, START mode

may be invoked automatically; the

"ECO" warning lamp ﬂ ashes for a few

seconds, then goes off.



126



124

FAMILIARISATION

DRIVING SAFELY

Speed limiter "LIMIT"

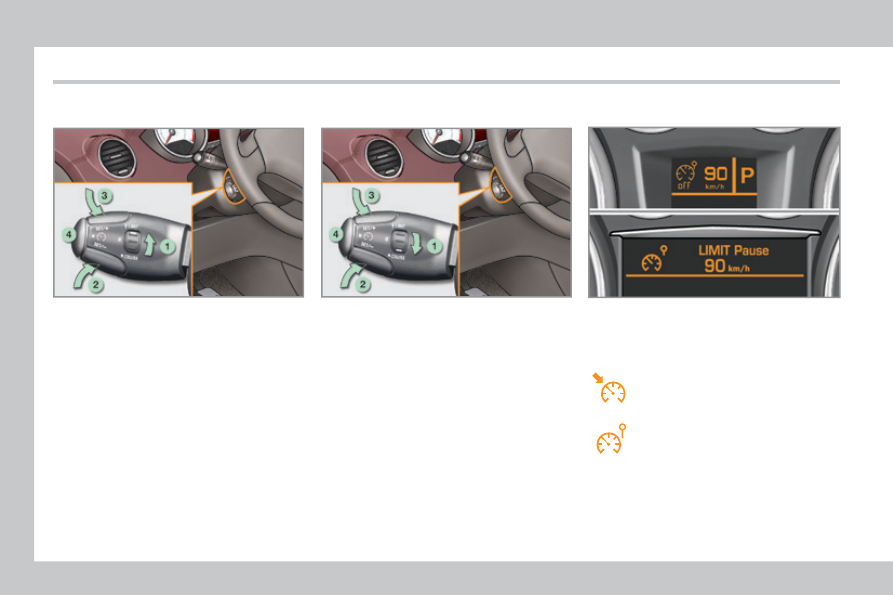

1. Limiter mode Selection / Off.

2. Decrease the programmed value.

3. Increase the programmed value.

4. Speed limiter On / Off.

1. Cruise control mode Selection / Off.

2. Programme a speed / Decrease the

programmed value.

3. Programme a speed / Increase the

programmed value.

4. Cruise control Off / Resume.

Cruise control "CRUISE"

In order to be programmed or activated,

the vehicle speed must be higher than

25 mph (40 km/h), with at least fourth

gear engaged on the manual gearbox

(second gear for the automatic gearbox).

The values must be set with the engine

running.

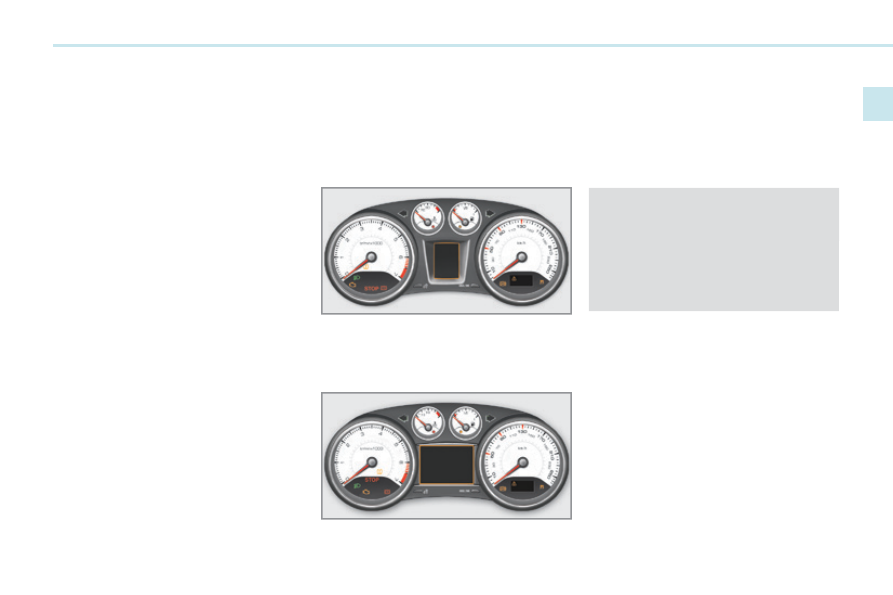

Display in the instrument panel

The cruise control or speed limiter

mode appears in the instrument panel

when it is selected.

Cruise control

Speed limiter

ECO-DRIVING

Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO

emissions.

Optimise the use of your gearbox

With a manual gearbox, move off gently and change up

without waiting. During acceleration change up early.

With an automatic or electronic gearbox, give preference to

automatic mode and avoid pressing the accelerator pedal

heavily or suddenly.

The gear shift indicator invites you engage the most suitable

gear: as soon as the indication is displayed in the instru-

ment panel, follow it straight away.

For vehicles ﬁ tted with an electronic or automatic gearbox,

this indicator appears only in manual mode.

Drive smoothly

Maintain a safe distance between vehicles, use engine

braking rather than the brake pedal, and press the accel-

erator progressively. These practices contribute towards a

reduction in fuel consumption and CO

emissions and also

helps reduce the background trafﬁ c noise.

If your vehicle has cruise control, make use of the system at

speeds above 25 mph (40 km/h) when the trafﬁ c is ﬂ owing

well.

Control the use of your electrical equipment

Before moving off, if the passenger compartment is too

warm, ventilate it by opening the windows and air vents

b efore using the air conditioning.

Above 30 mph (50 km/h), close the windows and leave the

air vents open.

Remember to make use of equipment that can help keep the

temperature in the passenger compartment down (s unroof

and window blinds...).

Switch off the air conditioning, unless it has automatic regu-

lation, as soon as the desired temperature is attained.

Switch off the demisting and defrosting controls, if not

a utomatic.

Switch off the heated seat as soon as possible.

Switch off the headlamps and front foglamps when the level

of light does not require their use.

Avoid running the engine before moving off, particularly in

winter; your vehicle will warm up much faster while driving.

As a passenger, if you avoid connecting your multimedia

devices (ﬁ lm, music, video game...), you will contribute

t owards limiting the consumption of electrical energy, and

so of fuel.

Disconnect your portable devices before leaving the vehicle.

Limit the causes of excess consumption

Spread loads throughout the vehicle; place the heaviest

items in the bottom of the boot, as close as possible to the

rear seats.

Limit the loads carried in the vehicle and reduce wind resis-

tance (roof bars, roof rack, bicycle carrier, trailer...). Use a

roof box in preference.

Remove roof bars and roof racks after use.

At the end of winter, remove snow tyres and reﬁ t your sum-

mer tyres.

Observe the recommendations on maintenance

Check the tyre pressures regularly, when cold, referring to

the label in the door aperture, driver's side.

Carry out this check in particular:

before a long journey,

- at each change of season,

- after a long period out of use.

Don't forget the spare wheel and the tyres on any trailer or

caravan.

Have your vehicle serviced regularly (engine oil, oil ﬁ lter,

air ﬁ lter, passenger compartment ﬁ lter...) and observe the

schedule of operations recommended in the warranty and

maintenance record.

When refuelling, do not continue after the third cut-off of the

nozzle to avoid any overﬂ ow.

At the wheel of your new vehicle, it is only after the ﬁ rst

1 800 miles (3 000 kilometres) that you will see the fuel

c onsumption settle down to a consistent average.

MONITORING

INSTRUMENT PANELS, PETROL OR DIESEL, MANUAL

OR AUTOMATIC GEARBOX

5. Small screen.

6. Central screen.

7. Control button.

Starts a manual CHECK and recalls

the service information.

Resets the function to zero (trip dis-

tance recorder or service indicator).

8. Instrument panel lighting dimmer.

Adjusts the brightness of the lighting

of the instruments and controls.

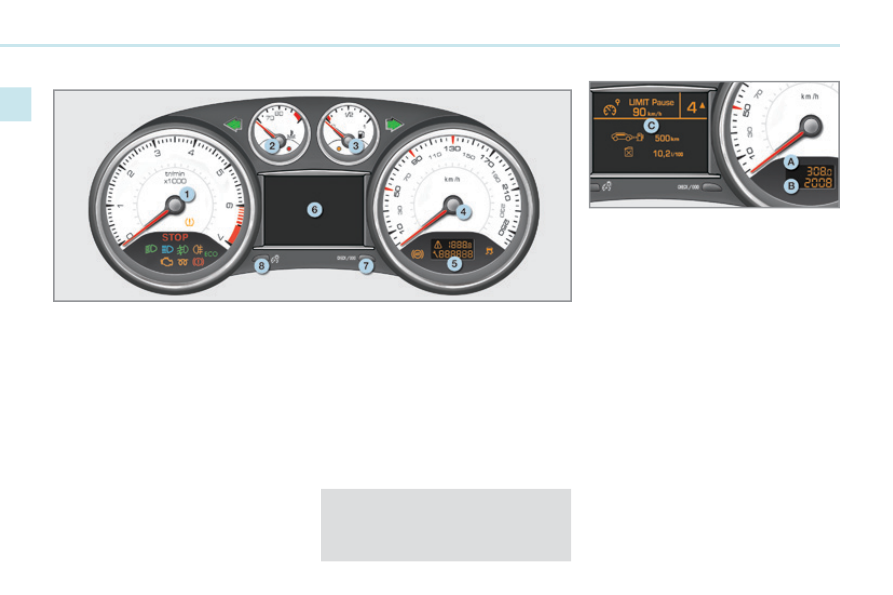

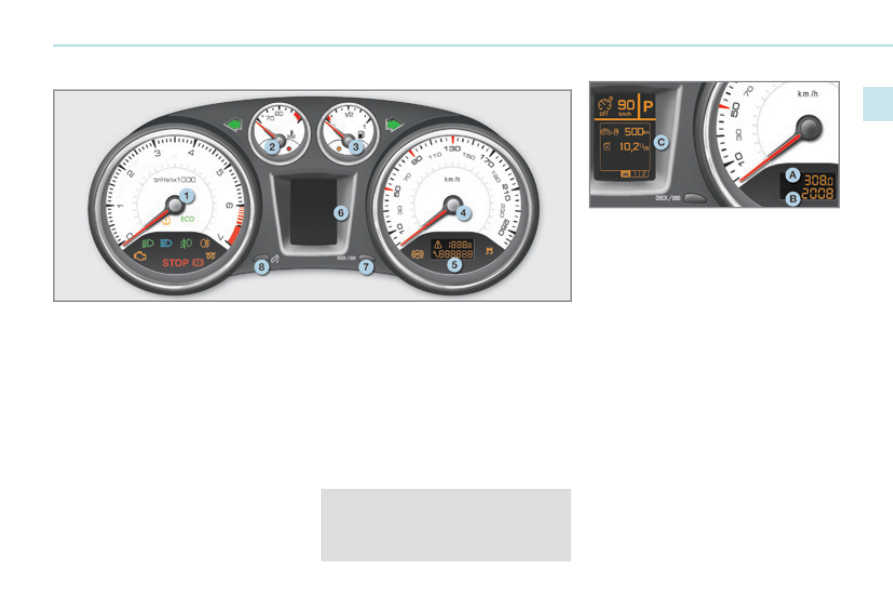

Dials

1. Rev counter.

Indicates the speed of rotation of the

engine (x 1000 rpm).

2. Coolant temperature.

Indicates the temperature of the en-

gine coolant (°Celsius).

3. Fuel level.

Indicates the quantity of fuel remain-

ing in the tank.

4. Vehicle speed.

Indicates the current speed of the

moving vehicle (mph or km/h).

A. Trip distance recorder.

(miles or km)

B. Distance recorder.

(miles or km)

C. Engine oil level indicator * ,

service indicator.

(miles or km)

These two functions are displayed

when the ignition is switched on,

then disappear after a few seconds.

Displays

For more information, refer to the

section related to the button or

function and its associated display.

The following functions are displayed in

accordance with the selection.

Result of the CHECK.

Alert messages symbol.

Speed limiter / Cruise control.

Gear shift indicator.

Automatic gearbox.

Trip computer.

* Depending on version.

MONITORING

INSTRUMENT PANELS, PETROL OR DIESEL, MANUAL

OR AUTOMATIC GEARBOX, WITH NAVIGATION

* Depending on version.

Dials

1. Rev counter.

Indicates the speed of rotation of the

engine (x 1000 rpm).

2. Coolant temperature.

Indicates the temperature of the en-

gine coolant (°Celsius).

3. Fuel level.

Indicates the quantity of fuel remain-

ing in the tank.

4. Vehicle speed.

Indicates the current speed of the

moving vehicle (mph or km/h).

5. Small screen.

6. Central screen.

7. Control button.

Starts a manual CHECK and recalls

the service information.

Resets the function to zero (trip dis-

tance recorder or service indicator).

8. Instrument panel lighting dimmer.

Adjusts the brightness of the lighting

of the instruments and controls.

For more information, refer to the

section related to the button or

function and its associated display.

Displays

A. Trip distance recorder.

(miles or km)

B. Distance recorder.

(miles or km)

C. Engine oil level indicator * ,

service indicator.

(miles or km)

These two functions are displayed

when the ignition is switched on,

then disappear after a few seconds.

The following functions are displayed in

accordance with the selection.

Result of the CHECK.

Alert messages.

Speed limiter / Cruise control.

Gear shift indicator.

Automatic gearbox.

Navigation - Guidance / Trip computer.

Repeat of the current speed.

MONITORING

The illumination of a warning lamp

is always accompanied by the dis-

play of an additional message, to

assist you in identifying the fault.

If you encounter any problems,

contact a PEUGEOT dealer or a

qualiﬁ ed workshop.

Warning and indicator lamps

Visual indicators which inform the driver

of the occurrence of a fault (warning

lamp) or of the operation of a system

(operation or deactivation indicator

lamp).

Associated warnings
The illumination, ﬁ xed or ﬂ ashing, of certain

warning lamps may be accompanied by an

audible signal and a message in the screen.

Depending on your version of instrument

panel, illumination of the warning lamp is

also accompanied by:

When the ignition is switched on

Certain warning lamps come on for

a few seconds when the ignition is

switched on.

When the engine is started, these warn-

ing lamps should go off.

If they remain on, before moving off,

refer to the information for the warning

lamp concerned.

Warning lamps
When the engine is running or the ve-

hicle is being driven, the illumination of

one of the following warning lamps in-

dicates a fault which requires action on

the part of the driver.

- a symbol in the central instrument

panel screen and a message in the

multi-function screen,

a symbol and a message in the

central instrument panel screen.

MONITORING

Warning lamp

is on

Cause

Action/Observations

STOP

ﬁ xed, alone

or associated

with another

warning lamp,

accompanied

by an audible

signal and a

message in the

screen.

Illumination of this warning

lamp is associated with

a serious fault with the

braking system, power

steering, engine lubrication

system or cooling system.

Stop as soon as it is safe to do so as there is a

risk that the engine will cut out while driving.

Park, switch off the ignition and contact a

PEUGEOT dealer or a qualiﬁ ed workshop.

Braking

ﬁ xed,

associated

with the STOP

warning lamp.

The braking system ﬂ uid

level is too low.

You must stop as soon as it is safe to do so.

Top up with brake ﬂ uid recommended by

PEUGEOT.

If the problem persists, have the system checked

by a PEUGEOT dealer or a qualiﬁ ed workshop.

ﬁ xed, associated

with the STOP

and ABS

warning lamp.

The electronic brake force

distribution (EBFD) system

has a fault.

You must stop as soon as it is safe to do so.

Have it checked by a PEUGEOT dealer or a

qualiﬁ ed workshop.

Maximum

coolant

temperature

ﬁ xed with the

needle in the

red zone.

The temperature of the

cooling system is too high.

Stop as soon as it is safe to do so.

Wait until the engine has cooled down before

topping up the level, if necessary.

If the problem persists, contact a PEUGEOT

dealer or a qualiﬁ ed workshop.

Seat belt not

fastened /

unfastened

ﬁ xed, then

ﬂ ashing in the

passenger's

seat belt and

front airbag

warning lamp

display.

The driver or front

passenger has not fastened

or has unfastened their seat

belt.

Pull on the belt in question and insert the tongue

in the buckle.

For more information, refer to the "Seat belts"

section.

At least one rear passenger

has unfastened their seat

belt.

MONITORING

Service

temporarily,

accompanied

by a message.

Minor faults have occurred

for which there is no

speciﬁ c warning lamp.

Identify the fault by reading the message

displayed in the screen, such as, for example:

doors, boot or bonnet open,

low engine oil level,

low screenwash/headlamp wash reservoir

level,

- remote control battery ﬂ at,

- a fault with tyre under-inﬂ ation detection,

- saturation of the particle emission ﬁ lter

(Diesel) (see the "Checks" - "Checking

levels / Particle emissions ﬁ lter" section).

For any other faults, contact a PEUGEOT dealer

or a qualiﬁ ed workshop.

ﬁ xed,

accompanied

by a message

and an audible

signal.

Major faults have occurred

for which there is no

speciﬁ c warning lamp.

Identify the fault by reading the message shown

in the screen and

you must then contact a

PEUGEOT dealer or a qualiﬁ ed workshop.

Warning lamp

is on

Cause

Action/Observations

Engine

autodiagnosis

system

ﬂ ashing.

The engine management

system has a fault.

Risk of destruction of the catalytic converter.

Have it checked by a PEUGEOT dealer or a

qualiﬁ ed workshop.

ﬁ xed.

The emission control

system has a fault.

The warning lamp should go off when the engine

is started.

If it does not go off, contact a PEUGEOT dealer

or qualiﬁ ed workshop without delay.

Directional

headlamps

ﬂ ashing.

The directional headlamps

system has a fault.

Have it checked by a PEUGEOT dealer or a

qualiﬁ ed workshop.

MONITORING

Low fuel level

ﬁ xed with the

needle in the

red zone,

accompanied

by an audible

signal and a

message.

When it ﬁ rst comes on there

remains approximately

6 litres of fuel in the tank.

At this point, you begin to

use the fuel reserve.

Refuel as soon as possible to avoid running out

of fuel.

Until sufﬁ cient fuel has been added, this warning

lamp will come on every time the ignition is

switched on, accompanied by an audible signal

and a message.

This audible signal and message are repeated

with increasing frequency as the fuel level drops

towards

"0" .

Fuel tank capacity: approximately

60 litres .

Never continue to drive until you run out of fuel,

as this could damage the emission control and

injection systems.

Warning lamp

is on

Cause

Action/Observations

Anti-lock

Braking

System

(ABS)

ﬁ xed.

The anti-lock braking

system has a fault.

The vehicle retains conventional braking.

Drive carefully at reduced speed and contact

a PEUGEOT dealer or a qualiﬁ ed workshop

without delay.

Dynamic

stability

control

(DSC/ASR)

ﬂ ashing.

The DSC/ASR regulation is

operating.

The system optimises traction and improves the

directional stability of the vehicle in the event of

loss of grip or trajectory.

ﬁ xed.

The DSC/ASR system has

a fault.

Have it checked by a PEUGEOT dealer or a

qualiﬁ ed workshop.

Under-

inﬂ ation

ﬁ xed.

The pressure in one or

more wheels is too low.

Check the pressure of the tyres as soon as possible.

This check should preferably be carried out when

the tyres are cold.

ﬂ ashing

then ﬁ xed,

accompanied

by the Service

warning lamp.

The tyre pressure

monitoring system has

a fault or no sensor is

detected on one of the

wheels.

Under-inﬂ ation detection is not assured.

Have the system checked by a PEUGEOT dealer

or a qualiﬁ ed workshop.

MONITORING

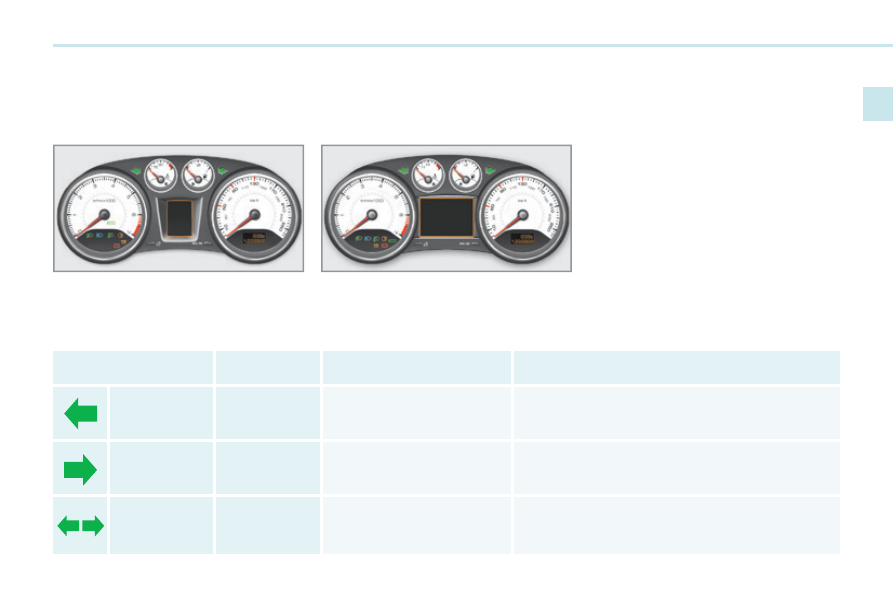

Operation indicator lamps
If one of the following indicator lamps comes on, this conﬁ rms that the corresponding system has come into operation.

It may be accompanied by an audible signal.

Depending on your version of instrument panel, illumination of the indicator lamp may also be accompanied by:

Warning lamp

is on

Cause

Action/Observations

Left-hand

direction

indicato r

ﬂ ashing with

buzzer.

The lighting stalk is pushed

down.

Right-hand

direction

indicator

ﬂ ashing with

buzzer.

The lighting stalk is pushed

up.

Hazard

warning

lamps

ﬂ ashing with

audible signal.

The hazard warning

lamps switch, located on

the dashboard, has been

operated.

The left-hand and right-hand direction indicators

and their associated indicator lamps ﬂ ash

simultaneously.

- a symbol in the central instrument

panel screen and a message in the

multifunction screen,

a symbol and a message in the

central instrument panel screen.

MONITORING

Warning lamp

is on

Cause

Action/Observations

Front

foglamps

ﬁ xed.

The front foglamps are

switched on.

Turn the ring on the stalk rearwards twice to

switch off the front foglamps.

Rear

foglamps

ﬁ xed.

The rear foglamps are

switched on.

Turn the ring on the stalk rearwards to switch off

the rear foglamps.

Diesel engine

pre-heating

ﬁ xed.

The ignition switch is at the

2nd position (ignition on).

Wait until the warning lamp has switched off before starting.

The duration for which the warning lamp is on is

determined by the climatic conditions.

Stop & Start

ﬁ xed.

When the vehicle stops (red

lights, trafﬁ c jams,...) the

Stop & Start system has

put the engine into STOP

mode.

The warning lamp goes off and the engine

restarts automatically in START mode, as soon

as you want to move off.

ﬂ ashes for a

few seconds,

then goes off.

STOP mode is temporarily

unavailable.

START mode is invoked

automatically.

For more information on special cases with

STOP mode and START mode, refer to the

"Stop & Start" section.

Dipped beam

headlamps

ﬁ xed.

The lighting stalk is in the

"Dipped beam headlamps"

position or in the "AUTO"

position in conditions of low

light.

Main beam

headlamps

ﬁ xed.

The lighting stalk is pulled

towards you.

Pull the stalk again to return to dipped beam

headlamps.

MONITORING

Warning lamp

is on

Cause

Action/Observations

Passenger's

front airbag

ﬁ xed on the

seat belt and

passenger's

front airbag

warning lamps

display.

The control switch, located

on the passenger's side of

the dashboard, has been

placed in the

"ON" position.

The passenger's front

airbag is activated.

In this case,

do not install

a "rearward facing" child

seat.

While you do not have a rearward facing child

seat ﬁ tted to the front passenger seat, it is

recommended that the passenger's front airbag

be activated.

On the other hand, before ﬁ tting a rearward

facing child seat, you must turn the control switch

to the

"OFF" position.

Parking brake

ﬁ xed.

The parking brake is

applied or not properly

released.

Release the parking brake to switch off the

warning lamp, keeping your foot on the brake

pedal.

Observe the safety recommendations.

For further information on the parking brake, refer

to the "Parking brake" section.

MONITORING

Warning lamp

is on

Cause

Action/Observations

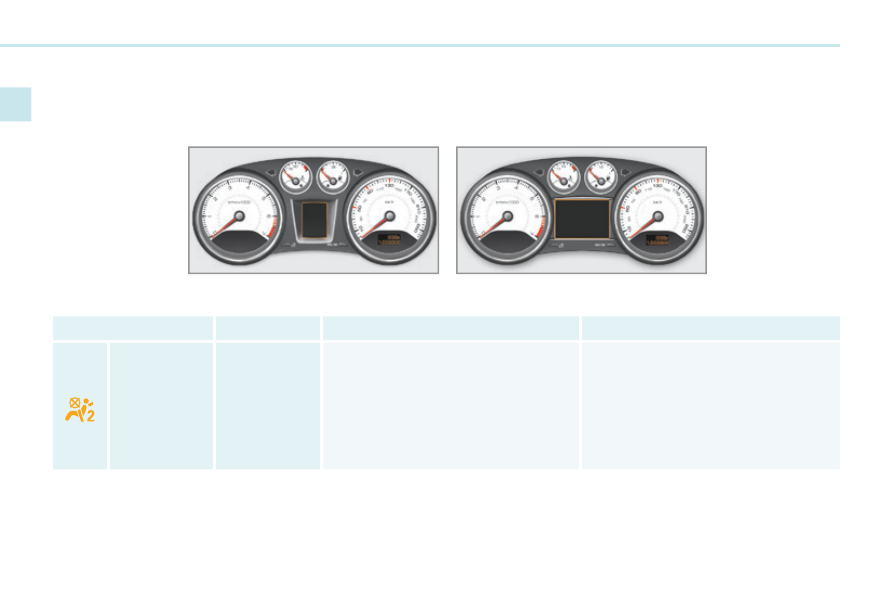

Deactivation warning lamps
The other deactivation indicators appear in the form of pictograms in the large screen, located in the centre of the instrument

panel.

Their display may be accompanied by an audible signal and a message in the screen.

Passenger's

front airbag

ﬁ xed in the

seat belt

and front

passenger's

airbag warning

lamps display.

The control switch, located on the

passenger's end of the dashboard, is

set to the

"OFF" position.

The passenger's front airbag is

deactivated.

You can install a rear-facing child seat

on the front passenger seat.

To activate the front passenger's

airbag, set the switch to the

"ON" position; in this case, it is not

possible to ﬁ t a child seat in the rear-

facing position on this seat.

Peugeot 308 CC (2014 year). Instruction - part 2
