Peugeot 308 CC (2014 year). Instruction - part 1

Thank you for choosing a 308 CC, a

symbol of conﬁ dence, passion and in-

spiration.

Page reference:

this symbol invites you to refer to

the pages which provide details

of the function.

Key

Protection of

the environment:

this symbol accompanies advice

relating to protection of the envi-

ronment.

Information:

this symbol draws your attention

to additional information for better

use of your vehicle.

Warning:

this symbol marks warnings which

it is essential to observe for your

own safety, for the safety of others

or to avoid any risk of damaging

your vehicle.

Your vehicle is ﬁ tted with only some of the

equipment described in this document,

depending on its trim level, version and

the speciﬁ cation for the country in which

it was sold.

WELCOME

This handbook has been designed to

enable you to make the most of your

vehicle in all situations.

Therefore, on the ﬁ rst few pages, you

will ﬁ nd a list of contents followed by a

quick reference guide intended to make

it easier for you to become familiar with

your vehicle.

All of the details speciﬁ c to your ve-

hicle, comfort, safety, driving, are then

presented in this handbook, to increase

your appreciation of the vehicle and to

help you make the most of it.

CONTENTS



Instrument panels



Warning and indicator lamps



Indicators 31



Instrument panel buttons



Trip computer



Ventilation 45



Rear screen demist - defrost



Dual-zone digital

air conditioning



Windstop 50



Front seats



"AIRWAVE" system



Rear seats



Mirrors 58



Steering wheel adjustment

COMFORT 45





Remote control key



Alarm 66



Electric windows



Doors 70



Boot 73



Fuel tank



Misfuel prevention (Diesel)

ACCESS 61





Lighting controls



LED lamps



Daytime running lamps



Automatic illumination of

headlamps 79



Welcome lighting



Headlamp adjustment



Directional lighting



Wiper controls



Automatic rain sensitive wipers 83



Courtesy lamps



Interior mood lighting

VISIBILITY 76



FAMILIARISATION 4



MONITORING





Monochrome screen C

(PEUGEOT Connect Sound

(RD5)) 39



Setting the date / time



Retractable colour screen

(PEUGEOT Connect Navigation

(RT6)) 42



Setting the date / time

MULTIFUNCTION

SCREENS 39





Interior ﬁ ttings



Lockable glove box



Lockable front armrest



Boot ﬁ ttings

FITTINGS



ECO-DRIVING 19



CONTENTS



Direction indicators



Hazard warning lamps



Horn 93



Emergency or assistance call 94



Braking assistance systems



Trajectory control systems



Front seat belts



Airbags 100



Child seats

104



Deactivating the passenger's

front airbag

105



ISOFIX child seats

110

SAFETY 93



113



Parking brake

114



Manual gearbox

114



Gear shift indicator

115



Automatic gearbox

116



Stop & Start

119



Tyre under-inﬂ ation detection 122



Speed limiter

124



Cruise control

126



Parking sensors

128

DRIVING 114



129



Bonnet 131



Running out of fuel (Diesel)

132



Petrol engines

133



Diesel engines

134



Checking levels

135



Checks 138

CHECKS

130



139



Temporary puncture repair kit 140



Changing a wheel

145



Snow chains

149



Changing a bulb

150



Changing a fuse

155



12 V battery

161



Energy economy mode

164



Changing a wiper blade

165



Towing the vehicle

165



Towing a trailer

167



Very cold climate screen

168



Accessories 168

PRACTICAL

INFORMATION 140  169



Petrol engines

170



Weights (petrol)

171



Diesel engines

172



Weights (Diesel)

173



Dimensions 174



Identiﬁ cation markings

175

TECHNICAL

DATA 170

DATA



176

AUDIO EQUIPMENT and

TELEMATICS 177



251

VISUAL

SEARCH 252



255

ALPHABETICAL

INDEX 256



260



Emergency or assistance

177



PEUGEOT Connect Navigation (RT6)

PEUGEOT

179



PEUGEOT Connect Sound (RD5)

PEUGEOT

233



140



119



FAMILIARISATION

Directional lighting

This lighting automatically provides

additional visibility when cornering.

Retractable roof
This system changes from the "coupé"

conﬁ guration to the "cabriolet" conﬁ gura-

tion and vice versa with a single action.

Windstop
In the "cabriolet" conﬁ guration,

this comfort system reduces

air swirl at the front seats.

EXTERIOR

Temporary puncture repair

kit

This kit is a complete system,

consisting of a compressor

and a sealant cartridge, for the

temporary repair of a tyre.

Stop & Start
This system puts the engine temporar-

ily into standby during stops in the traf-

ﬁ c (red lights, trafﬁ c jams, etc....). The

engine restarts automatically as soon

as you want to move off. The Stop &

Start system reduces fuel consumption,

exhaust emissions and the noise level

when stationary.



FAMILIARISATION

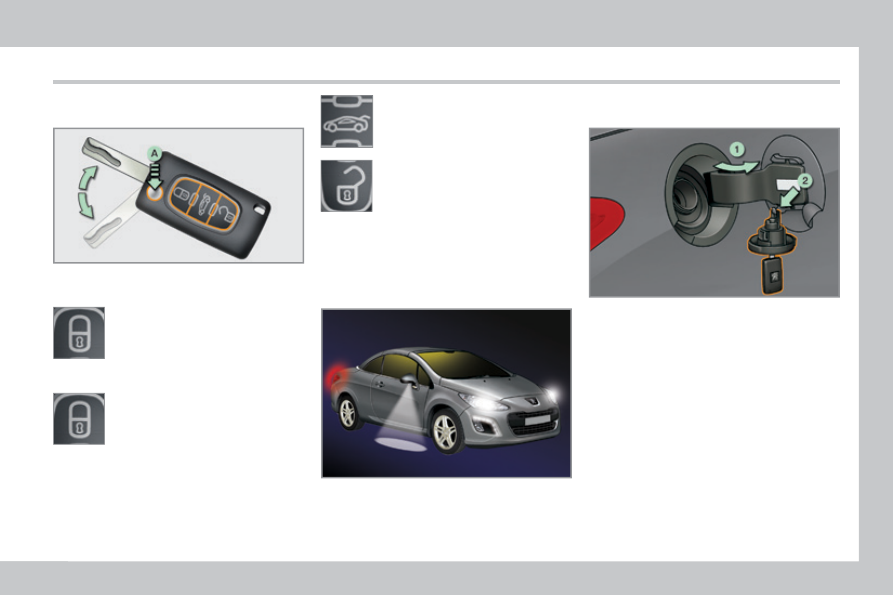

Remote control key

A. Unfolding / Folding the key

(ﬁ rst press this button).

Normal locking

(press once; ﬁ xed lighting of

the direction indicators).

Fuel tank

1. Opening the fuel ﬁ ller ﬂ ap.

2. Opening and hooking the fuel ﬁ ller

cap.

Capacity of the tank: approximately

60 litres.

Unlocking and partial opening

of the boot

(press for more than two sec-

onds).

When the light is poor, detected by a

sensor, the remote switching on of the

dipped beam headlamps, sidelamps

and side spotlamps makes your ap-

proach to the vehicle easier.

In the same way, the passenger com-

partment lighting, such as the courtesy

lamps, the door sill lamps and the foot-

well lamps, comes on.

Deadlocking of the vehicle

(press twice in succession;

ﬁ xed lighting of the direction

indicators).

ACCESS

Complete or selective unlock-

ing of the vehicle

(rapid ﬂ ashing of the direction

indicators).

Locking the vehicle using the remote

control or the key also locks the glove

box and the front armrest.

FAMILIARISATION

ACCESS

Retractable roof

The operation of the roof is the ex-

clusive responsibility of the driver.

To avoid any risk of injury when

operating the roof, ensure that no

one is standing near the moving

parts.

You are strongly advised not to op-

erate the roof in strong winds.

When washing your vehicle:

- lock the vehicle using the re-

mote control or the key,

- avoid spraying the upper part

of the windows,

- keep the end of the high pres-

sure nozzle at least 1 metre

from the windows and door

seals.

When the vehicle has been washed

or after rain, wait until the roof has

dried before opening it.

It is preferable to operate the roof

with the engine running and the ve-

hicle stationary. Wait until the end of

operation message appears in the

multifunction screen before moving

off.

The operation can only be carried

out when moving if the speed is be-

low 6 mph (10 km/h), and you are

driving smoothly on level ground.

Preliminary conditions
 Start the engine

 You must ensure that:

- the electric windows are initialised

(see the corresponding section),

- the ambient temperature is higher

than -15 °C.

Precautions to be taken before

operating the roof
 Park the vehicle on level ground.

 Check that no objects could hinder

the operation of the roof:

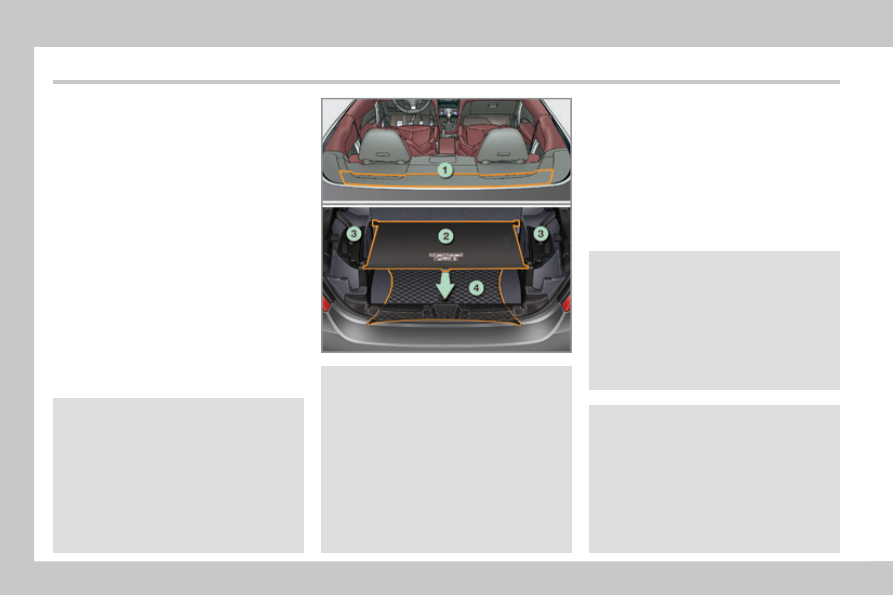

- nothing should be placed on the

moving rear shelf

1 , on the boot

screen

2 or on the side trims 3 ,

if luggage is transported in the

boot, it must not lift the boot

screen,

- any objects, such as a jacket or

umbrella, placed in the boot, must

be secured using the luggage re-

taining net

4 .

 Check that the boot screen

2 is se-

cured ﬁ rmly.

 Close the boot correctly.

After the roof has been operated

fully four times in succession, the

system switches to protection

mode temporarily to avoid dam-

age to the roof motors. Let the

system rest for approximately ten

minutes; if you are unable to oper-

ate the roof after this time, contact

a PEUGEOT dealer or a qualiﬁ ed

workshop.

FAMILIARISATION

ACCESS

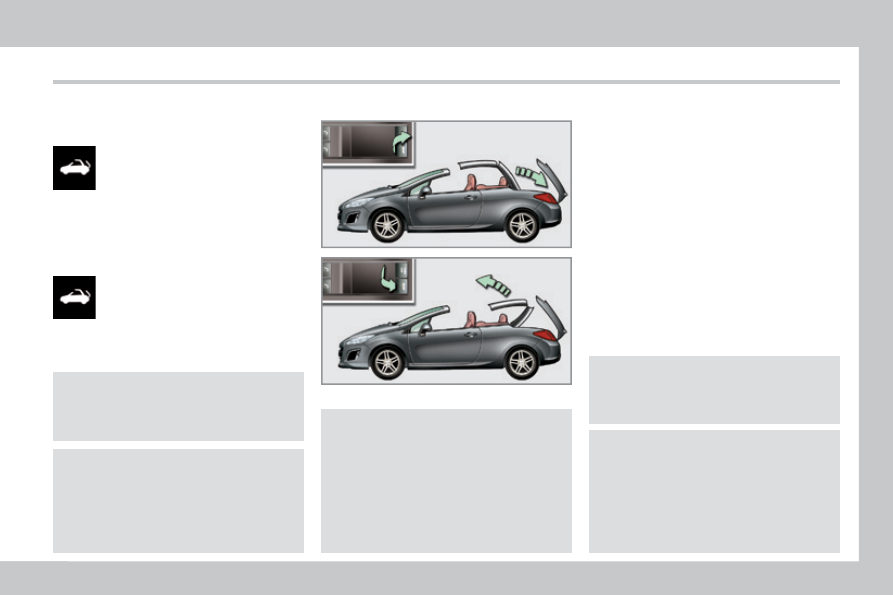

Retractable roof operations

Opening the roof

 Pull this control until the roof

opening operation is com-

plete.

Closing the roof

 Press this control until the

roof closing operation is

complete.

Change to "cabriolet" conﬁ guration:

the four windows lower partially,

the boot opens,

- the roof folds into the boot,

the boot closes.

Change to "coupé" conﬁ guration:

the four windows lower partially,

the boot opens,

- the roof unfolds and locks automati-

cally,

the boot closes.

To ensure that the roof operates cor-

rectly, do not release the control while

the roof is moving.

However, in the event of any danger,

release the control, the roof stops; then,

once the danger had been eliminated,

complete the movement required.

Operating fault
If a malfunction of the roof occurs,

apply the parking brake, switch off

the ignition, start the engine again,

then start the operation required

again.

If the problem persists, contact a

PEUGEOT dealer or a qualiﬁ ed

workshop.

The electric window controls and

the control for all four windows are

deactivated while the roof is in op-

eration.

The end of the operation is conﬁ rmed

by an audible signal and a message in

the multifunction screen.

The end of the operation is conﬁ rmed

by an audible signal and a message in

the multifunction screen.

If you continue to pull or press this

control after the end of the opera-

tion, the four windows rise.

The roof's electronic control unit

may interrupt the operation in

progress as a precaution (ex-

ample: door movement and roof

operation in quick succession). In

this case, release the control, then

activate it again to complete the

operation required.



87, 88



233



179

FAMILIARISATION

Interior mood lighting
This subdued lighting of the passenger

compartment improves visibility inside

the vehicle when the light is poor.

"AIRWAVE" system

Incorporated in each front head re-

straint, this heating system improves

your comfort around the neck in cold

weather, particularly in the "cabriolet"

conﬁ guration. It operates most effec-

tively with the Windstop installed in the

raised position.

Audio and telematics systems
These systems beneﬁ t from the latest technol-

ogy: MP3 compatible PEUGEOT Connect Sound,

PEUGEOT Connect Bluetooth, PEUGEOT

Connect Navigation (RT6) with retractable colour

screen, JBL audio system, auxiliary sockets.

Secure storage compartments
The glove box and the front armrest are

designed to remain locked, even in the

"cabriolet" conﬁ guration. They can only

be locked using the remote control or

the key at the same time as the rest of

the vehicle.

INTERIOR

PEUGEOT Connect Sound

PEUGEOT Connect Navigation (RT6)

FAMILIARISATION

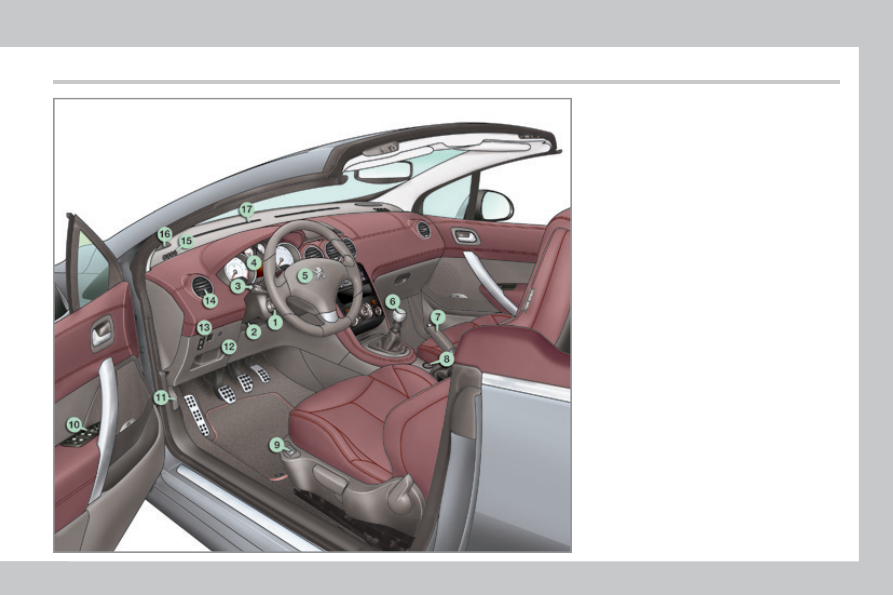

1. Cruise control / speed limiter

switches.

2. Steering wheel adjustment control.

3. Lighting and direction indicator

control stalk.

4. Instrument panel.

5. Driver's front airbag.

Horn.

6. Gear lever.

7. Parking brake.

8. 12 V accessory socket.

9. Heated seat control.

10. Door mirror controls.

Electric window controls.

11. Bonnet release.

12. Fusebox.

13. Manual headlamp height

adjustment.

Stop & Start button.

14. Side adjustable air vent.

15. Front side window demisting vent.

16. Speaker (tweeter).

17. Windscreen demisting vent.

INSTRUMENTS AND CONTROLS

FAMILIARISATION

INSTRUMENTS AND CONTROLS

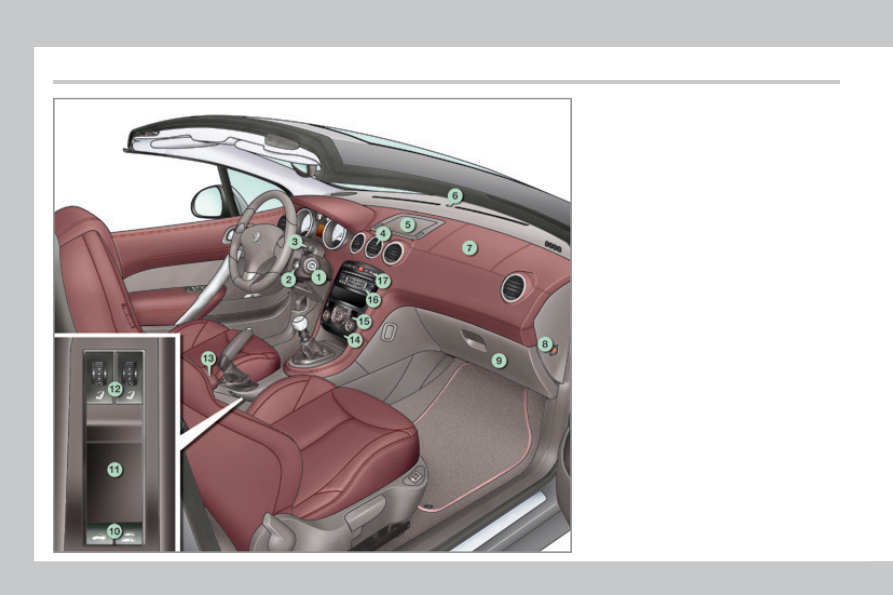

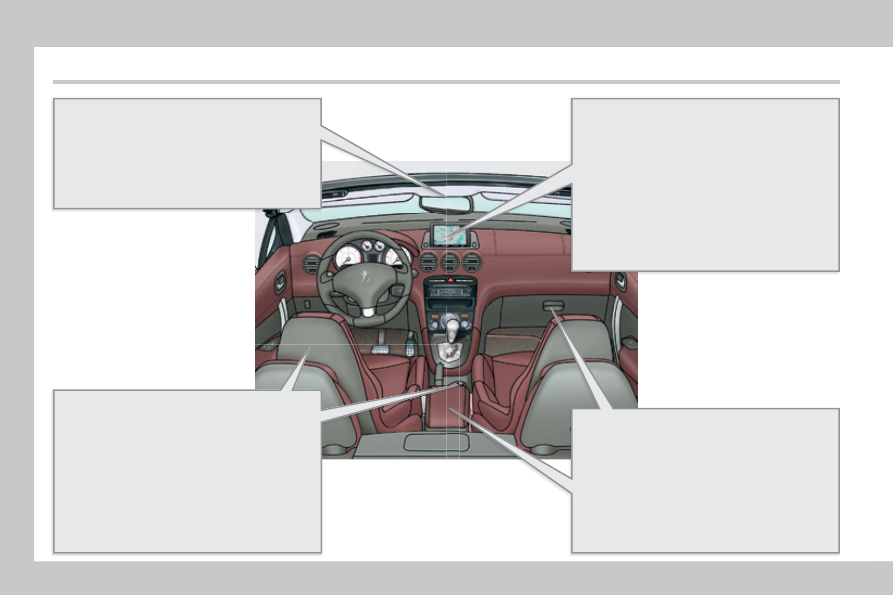

1. Steering lock and ignition.

2. Audio and telematics system

steering mounted control stalk.

3. Wipers / screenwash / trip

computer control stalk.

4. Central adjustable air vents.

5. Multifunction screen.

6. Sunshine sensor.

7. Passenger's front airbag.

8. Passenger's front airbag

deactivation switch.

9. Glove box / Audio/video sockets.

10. Retractable roof control.

Control for all four windows.

11. Storage compartment.

12. "AIRWAVE" system controls.

13. Front armrest.

14. Front ashtray.

15. Heating / air conditioning controls.

16. Audio and telematics system.

17. Emergency call button.

Alarm button.

Central locking button.

Hazard warning lamps button.

DSC/ASR systems button.

Parking sensors button.

PEUGEOT services button.



FAMILIARISATION

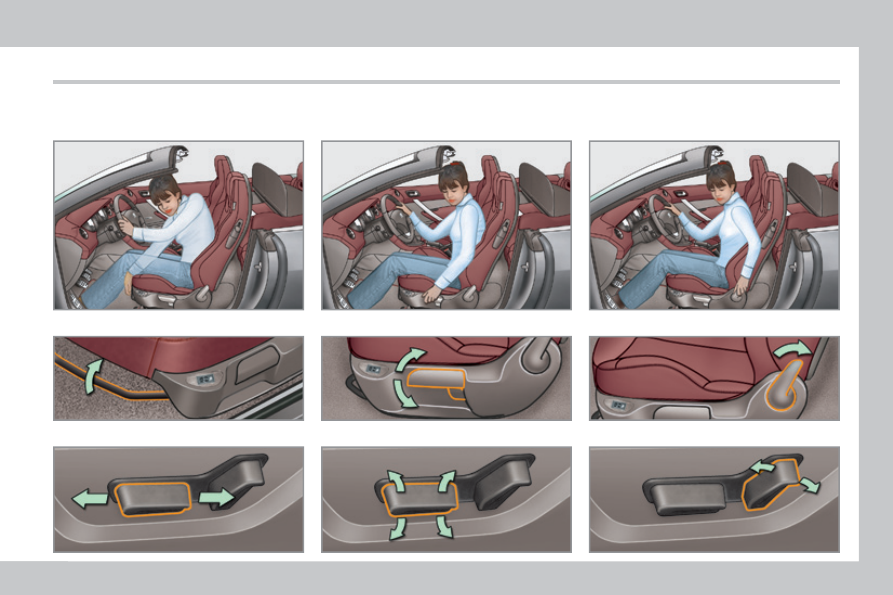

Front seats

Manual adjustments

Forwards-backwards

Seat back angle

Height

SITTING COMFORTABLY

Electric adjustments



FAMILIARISATION

SITTING COMFORTABLY

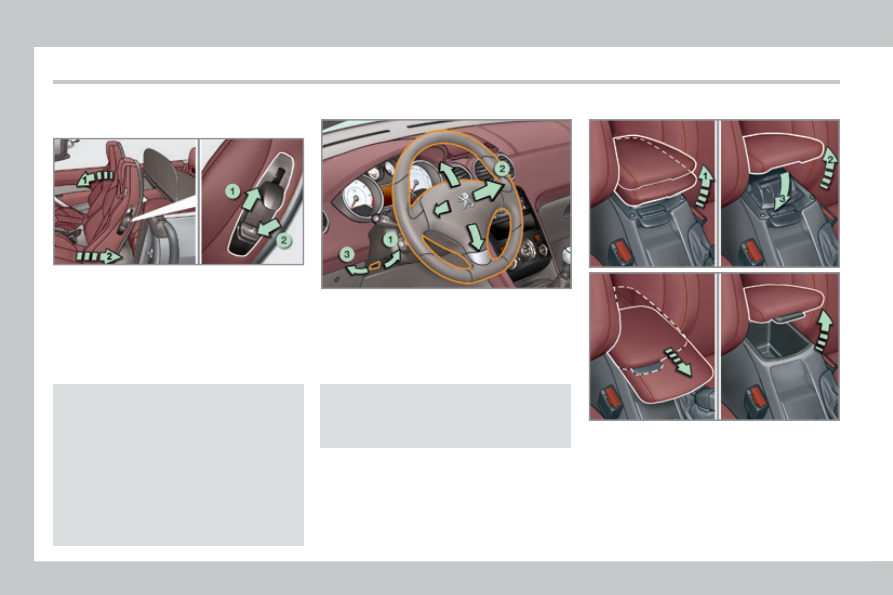

Steering wheel adjustment

1. Release the adjustment mechanism.

2. Adjust for height and reach.

3. Lock the adjustment mechanism.

Front seats

Other functions available...
Storing driving positions (driver's

electric seat).

Electric access to the rear seats

Lockable front armrest

For your comfort, the height and the

longitudinal position of the front armrest

can be adjusted.

It also offers a storage compartment. As

a security measure when in the "cabrio-

let" conﬁ guration, this is locked at the

same time as the rest of the vehicle,

only when using the remote control or

the key.

As a safety precaution, these op-

erations must only be carried out

when stationary.

1. Control for release of the seat back

and automatic forward movement of

the seat.

2. Control for returning the seat to the

initial position.

"AIRWAVE" system.

Heated seats.



FAMILIARISATION

SITTING COMFORTABLY

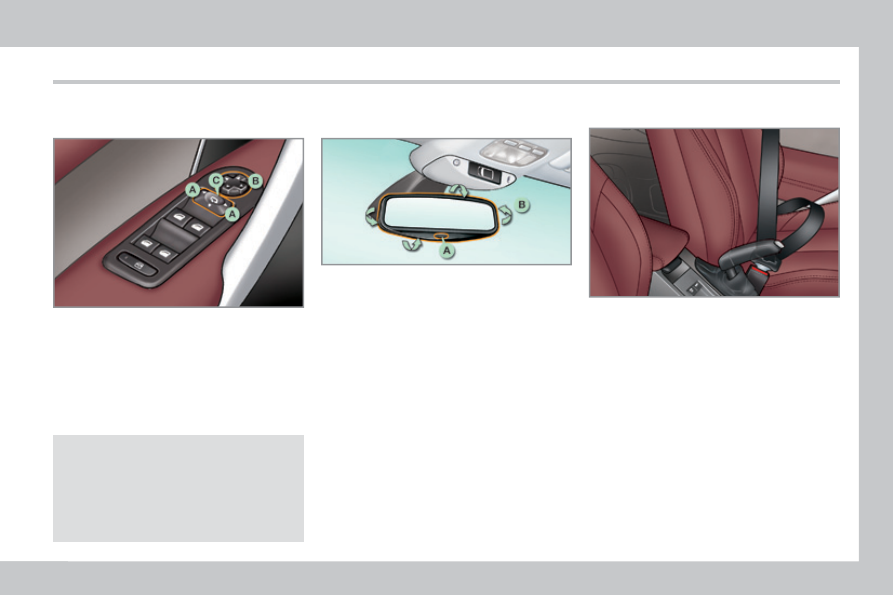

Door mirrors

Adjustment

Other functions available...
Folding / Unfolding.

Automatic tilting of the mirror in re-

verse gear for parking.

Rear view mirror

Front seat belts

1. Position the strap.

2. Fasten the buckle.

3. Check the fastening by pulling the

strap.

A. Selection of the mirror to be adjusted.

Adjustment of the position of the

mirror glass in four directions.

C. De-selection of the mirror.

Automatic day/night model

A. Light level detection of the automatic

day/night mode.

B. Mirror adjustment.



FAMILIARISATION

SEEING CLEARLY

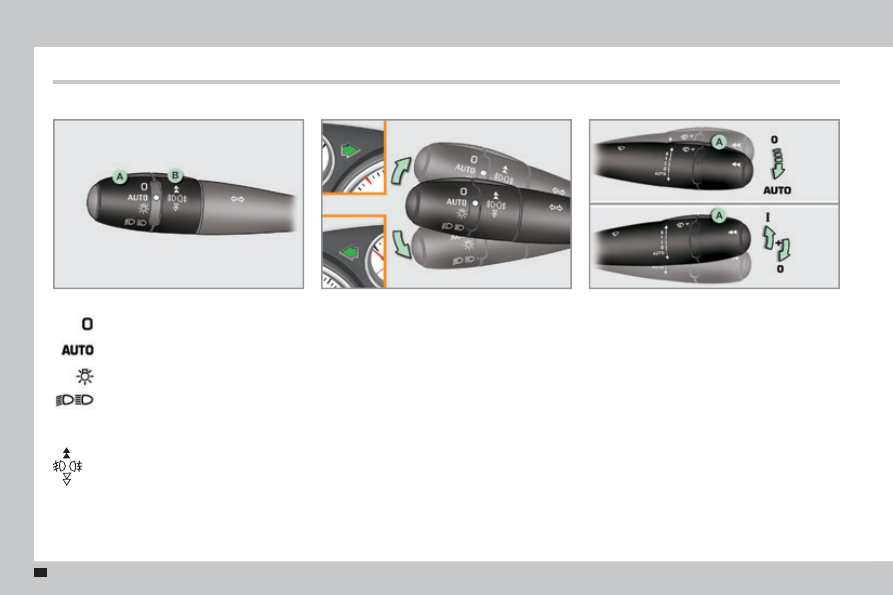

Lighting

Ring A

Ring B

Raise or lower the lighting stalk passing

the point of resistance; the correspond-

ing direction indicators will ﬂ ash until

the stalk is moved from this position.

Direction indicators

Lighting off.
Automatic illumination of headlamps.

Sidelamps.
Dipped / main beam headlamps.

Front and rear foglamps.

Stalk A: windscreen wipers

Wipers

Three ﬂ ashes
Press the lighting stalk up or down once,

without passing the point of resistance;

the corresponding direction indicators

will ﬂ ash three times.

The use of this function is available re-

gardless of the speed, but you will ﬁ nd it

particularly useful when changing lane

on fast roads.

Switching on "AUTO"
 Press the stalk down and release it.

Switching off "AUTO"
 Push the stalk up and return it to

p osition

"0" .

Content .. 1 2 3 ..
