Peugeot 307 (2007.5). Instruction

PRACTICAL INFORMATION

130

Fuse N°

Rating

Functions

20 A

Engine control unit and fan assembly high speed relays supply.

15 A

Horn.

10 A

Front and rear wash-wipe.

20 A

Headlamp wash.

15 A

Fuel pump and purge canister solenoid valve (2 litre petrol).

10 A

Four speed automatic gearbox control unit, automatic gearbox lever locking control, push
control switch, fan assembly high speed relay, right and left xenon headlamps.

10 A

ABS/ESP control unit, power steering electro-pump unit control unit.

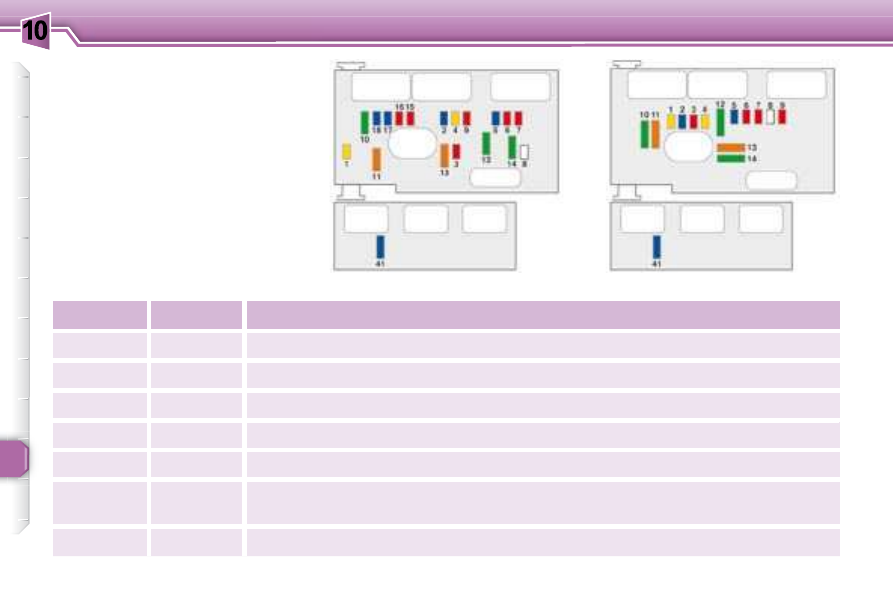

Engine compartment

fuses

To access the fuse box in the engine
compartment (next to the battery),
unclip the cover.
Close the cover carefully when

you have i nished to guarantee the

sealing of the fuse box.

Fuse box 1

Fuse box 2

PRACTICAL INFORMATION

131

* For fuse box 1 only.
** The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses must be carried out by

a PEUGEOT dealer.

Fuse N°

Rating

Functions

25 A

Starter control.

10 A

Additional heating unit (Diesel), coolant level switch.

F10

30 A

Engine control unit actuators (ignition coil, solenoid valves, oxygen sensors, control units,
injectors, heaters), purge canister solenoid valve (1.4 litre petrol and 1.6 litre petrol).

F11

40 A

Air conditioning blower.

F12

30 A

Windscreen wipers low/high speed.

F13

40 A

Built-in systems interface supply (ignition positive).

F14

30 A

Air pump (2 litre petrol).

F15 *

10 A

Right main beam headlamp.

F16 *

10 A

Left main beam headlamp.

F17 *

15 A

Left dipped headlamp.

F18 *

15 A

Right dipped headlamp.

F41

15 A

Six speed automatic gearbox control unit.

PRACTICAL INFORMATION

132

The electrical system of your vehicle is designed to operate with standard or optional equipment
Before installing other electrical equipment or accessories on your vehicle, contact a PEUGEOT dealer.
PEUGEOT will not accept responsibility for the cost incurred in repairing your vehicle or for rectifying the malfunctions
resulting from the installation of accessories not supplied and not recommended by PEUGEOT and not installed in

accordance with its instructions, in particular when the combined consumption of all of the additional equipment connected
exceeds 10 milliamperes.

Fuse N°

Rating

Functions

MF1 **

30 A

200 W fan unit.

50 A

400 W and 460 W fan unit.

MF2 **

30 A

ABS/ESP pump.

MF3 **

30 A

ABS/ESP solenoid valves.

MF4 **

80 A

Built-in systems interface supply.

MF5 **

80 A

Built-in systems interface supply.

MF6 **

80 A

Passenger compartment fuse box.

MF8 **

70 A

Power steering electro-pump unit.

** The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses must be carried out by

a PEUGEOT dealer.

PRACTICAL INFORMATION

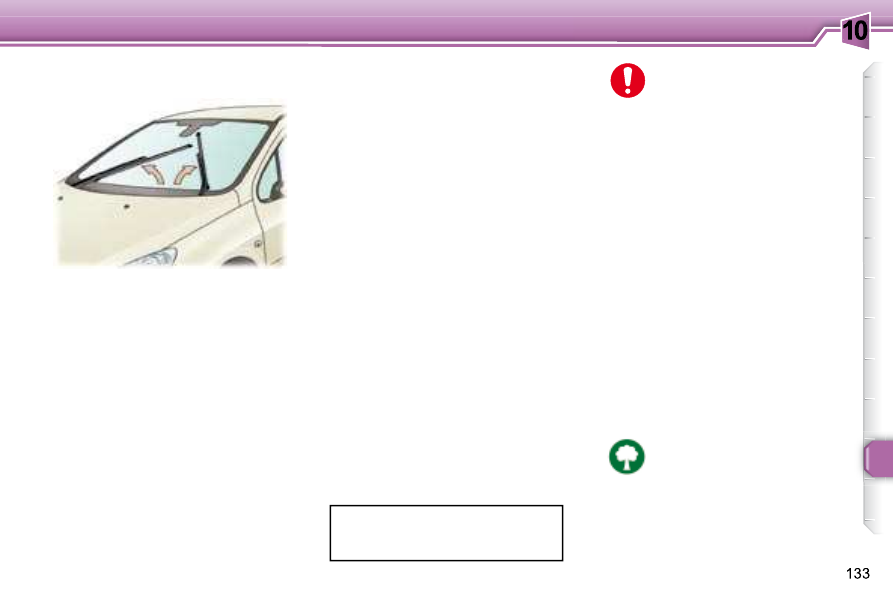

Special front windscreen

wiper position

 Within one minute of switching off

the  ignition,  operate  the  wipers
stalk to position the wiper blades
in  the  centre  of  the  windscreen
(maintenance position).

Changing a wiper blade

 Lift the wiper arm, then unclip the

blade and remove it.

 Fit the new blade and push back

the arm.

Note:

the shortest blade is i tted on

the vehicle’s right-hand windscreen
wiper arm.

To return the windscreen wipers

to their normal position, switch on

the ignition and operate the wiper

stalk.

BATTERY
To charge the battery using a

battery charger:

Disconnect the battery starting
with the negative (-) terminal,

Follow the instructions for use
given by the battery charger
manufacturer,

Check  that  the  terminals  and
connectors  are  clean;  if  they  are
covered  with  sulphate  (white  or
greenish

deposit),

disconnect

them and clean them,

Reconnect the battery starting
with the negative (-) terminal.

Before

disconnecting

the

battery, you must wait for
2 minutes after switching off
the ignition.

Never disconnect a terminal when
the engine is running.
Never charge a battery without i rst

disconnecting the terminals.
Close  the  windows  and  sunroof
before  disconnecting  the  battery.
If  they  do  not  operate  normally
following

reconnection

the

battery,  they  must  be  reinitialised
(see  sections  "Reinitialisation  of  the
electric windows" and "Sunroof").
After  every  reconnection  of  the
battery,  switch  on  the  ignition  and
wait  1  minute  before  starting  to
allow  the  electronic  systems  to  be

initialised. If slight difi culties are

experienced after this, please contact
a PEUGEOT dealer.
Following disconnection of the battery,
the remote control key and the GPS
satellite navigation system must
be reinitialised (see corresponding
section).

It is advisable to disconnect the

battery if the vehicle is not to be

used for a period of more than

one month.

To start the vehicle from another

battery:
-

Connect the red cable to the
positive (+) terminals of the two
batteries,

Connect one end of the green
or black cable to the negative (-)
terminal of the slave battery,

Connect the other end of the green
or black cable to an earth point on
the broken down vehicle as far as
possible from the battery,

Operate the starter, let the engine run,

Wait for the engine to return to
idle, then disconnect the cables.

The batteries contain harmful
substances such as sulphuric
acid and lead. They must be
disposed of in accordance

with  regulations  and  must  never  be
discarded with household waste.
Take used remote control and vehicle
batteries  to  an  approved  collection
point.

CHANGING A WINDSCREEN

WIPER BLADE

PRACTICAL INFORMATION

134

ECONOMY MODE FUNCTION

After the engine has stopped, certain
functions (windscreen  wiper, electric
windows,  sunroof,  courtesy  lights,
audio  equipment,  telephone,  dipped
headlamps, etc.) can only be used for
a combined duration of approximately
thirty minutes, to prevent discharging
the battery.
Once  the  thirty  minutes  are  over,  a
switching to economy mode message
appears on the multi-function display
and  the  active  functions  are  put  on
standby.
These  functions  are  reactivated
automatically next time the vehicle is
driven.
In  order  to  resume  the  use  of  these
functions  immediately,  the  engine
must  be  started  and  left  to  run  for  a
few minutes.
The  time  available  to  you  will  then
be double the duration for which the
engine  is  left  running.  However,  this

period will always be between i ve

and thirty minutes.

A l at battery prevents the

engine from starting.

LOAD REDUCTION

FUNCTION

When driving, certain functions (air
conditioning, heated rear screen,
heating

system

for

passenger

compartment of diesel vehicles, etc.)
may  be  switched  off  temporarily,
depending  on  the  level  of  battery
charge.
Reactivation  of  these  functions  is
automatic, once the battery charge is

sufi cient.
  Note:   at  the  risk  of  discharging  the
battery, the functions that have been
switched  off  may  be  reactivated
manually.

  Note:   if  the  telephone  is
being  used  when  economy
mode  starts,  it  will  still  be

possible to i nish the call.

PRACTICAL INFORMATION

Without lifting

(4 wheels on the ground)

You must always use a tow bar.
The  removable  towing  eye  is  inside
the spare wheel.
  Estate:  the removable towing eye is
inside the right-hand boot trim.

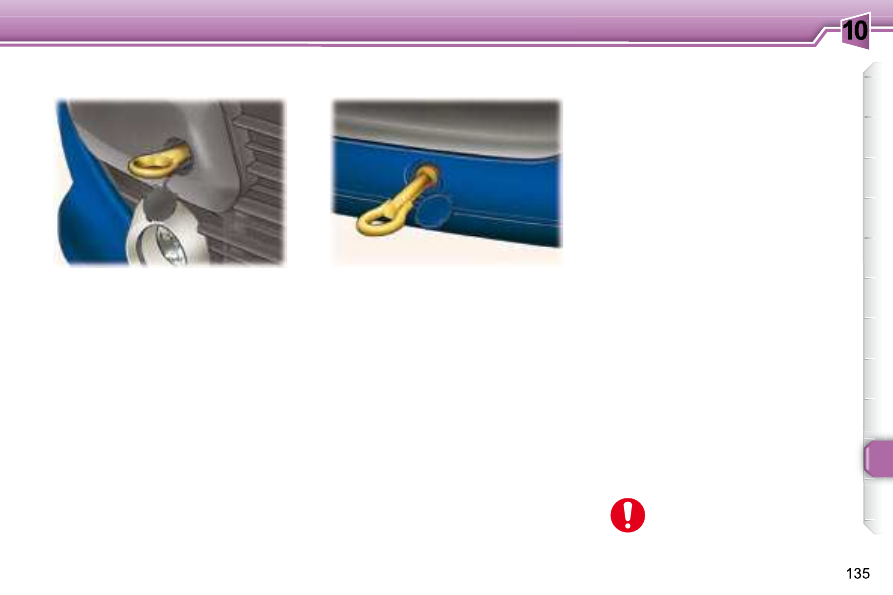

From the front:
 Unclip the cover, by pressing the

bottom part,

 Screw in the towing eye as far as

it will go.

Lifting (2 wheels only on the

ground)

It is preferable to raise the vehicle
with a professional lifting device.

When towing with the engine
switched off, there is no brak-
ing or steering assistance.

TOWING YOUR VEHICLE

From the rear:
 Unclip the top of the cover using

a coin,

 Screw in the towing eye as far as

it will go.

Special features of the

automatic gearbox

When towing with four wheels on the
ground, the following rules must be
obeyed:
-

lever in position N ,

tow the vehicle at less than 30 mph
(50 km/h) up to a maximum dis-
tance of 30 miles (50 km).

do not add oil to the gearbox.

PRACTICAL INFORMATION

136

Driving advice

Distribution of loads:
Distribute  the  load  in  the  trailer  so
that  the  heaviest  items  are  as  close
as possible to the axle and the nose
weight  approaches  the  maximum
permitted without exceeding it.

   Cooling:
towing a trailer on a slope increases
the temperature of the coolant.
As  the  fan  is  electrically  controlled,
its cooling capacity is not dependent
on the engine speed.
To  lower  the  engine  speed,  reduce
your speed.
The maximum towing load on a long
slope  depends  on  the  gradient  and
the outside temperature.
In  all  cases,  pay  attention  to  the
coolant temperature.
If  the  warning  light  comes  on,  stop
the vehicle and switch off the engine
as soon as possible.

Tyres:
check the tyre pressures of the towing
vehicle and of the trailer, observing
the recommended pressures.

Braking: towing increases the
braking distance.

Lights: check the electrical
signalling on the trailer.

Side wind: take into account the

increased sensitivity to side wind.

TOWING A TRAILER, A

CARAVAN, A BOAT, ETC...

Your  vehicle  is  primarily  designed
for  transporting  people  and  luggage
but it may also be used for towing a
trailer.
We  recommend  the  use  of  original
PEUGEOT

towbars

and

their

harnesses that have been tested and
approved from the design stage of

your vehicle and that the i tting of the

towbar is entrusted to a PEUGEOT
dealer.
If the towbar is not i tted by a

PEUGEOT dealer, it is imperative

that it is i tted using the electrical

pre-equipment located at the rear of
the vehicle in accordance with the
manufacturer’s instructions.
Driving with a trailer subjects the

towing vehicle to more signii cant

stress  and  its  driver  must  be
particularly careful.
Air  density  decreases  with  altitude,
thus  reducing  engine  performance.
Above  1 000  metres,  the  maximum
towing load must be reduced by 10 %
and so on for every 1 000 metres of
altitude.
The rear parking assistance function
will be disarmed automatically when

a towbar is i tted.

PRACTICAL INFORMATION

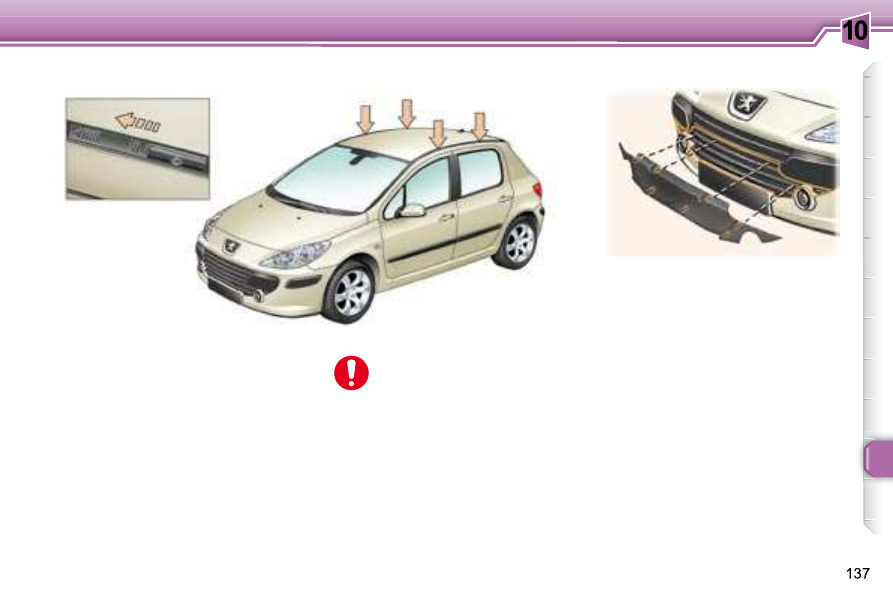

Saloon:

when i tting transverse roof

bars, use the four threads provided
for this purpose. To access these,

push the concealing l aps in the

direction of the arrow.
Estate:

when i tting transverse roof

bars, observe their positioning. This
is indicated by marks on each of the
longitudinal bars.
Use

accessories

approved

PEUGEOT and follow the manufac-

turer’s i tting instructions.

Maximum authorised weight

on the roof rack, for a loading

height not exceeding 40 cm

(with the exception of bicycle

carriers): 80 kg (saloon), 100 kg (es-

tate).

If the height exceeds 40 cm,

adapt the speed of the vehicle to

the proi le of the road to avoid

damaging the roof bars and the

i xings on the roof.

FITTING ROOF BARS

VERY COLD CLIMATE SCREEN *

The very cold climate screen is
installed on the lower part of the front
bumper to prevent the accumulation
of snow at the radiator cooling fan.

When the snow has cleared

(temperature above 10 °C), remove

the very cold climate screen.

FITTING

 Offer up the very cold climate

screen facing the front bumper .

 Put it in place by pressing at each

clip .

REMOVAL

 Insert a screwdriver into the hole

located near each of the clips.

 Use the screwdriver as a lever to

unclip each clip in turn.

* According to country.

PRACTICAL INFORMATION

138

ACCESSORIES FOR YOUR 307

A  wide  range  of  accessories  recom-
mended  by  PEUGEOT  and  original
parts are offered by the network.
They  all  benei t  from  PEUGEOT’s

recommendation.
These accessories and parts, having
been tested and approved for reli-
ability and safety, are all adapted to
your PEUGEOT vehicle.
The

product

range

offered

PEUGEOT  Accessories  is  structured
around  5  categories:  PROTECTION  -
TOURING  -  IN-CAR  TECHNOLOGY  -
STYLING - UNIVERSAL, it is dedicated
to:

"Touring":
mats, boot tray, luggage

net, i xed coat hook on

head  restraint,  aluminium
or PVC door sills.
For  leisure  pursuits:  roof
bars,  tailgate  bicycle  car-

rier *   (estate),  bicycle  carrier  on  roof
bars,  ski  carrier,  roof  box,  booster
seats  and  child  seats,  side  blinds
and  rear  blind,  front  centre  armrest,
CD storage, under shelf storage (sa-
loon).
Trailer towbar which must be i tted by

the PEUGEOT network.

The i tting of electrical equip-

ment  or  accessories  which
are  not  recommended  by
PEUGEOT  may  result  in  a

failure  of  your  vehicle’s  electronic
system.
Please  note  this  specii c  warning.

You  are  advised  to  contact  a  repre-
sentative of the Marque to be shown
the  range  of  recommended  equip-
ment and accessories.

"Universal":
screenwash, interior and
exterior maintenance and
cleaning products.

"Protection":
anti-theft alarm, window en-

graving, wheel locks, i rst

aid kit, warning triangle,
safety jacket, stolen vehicle
tracking system, dog guard,
snow chains.

"In-car technology":
audio systems, audio/tele-

phone, amplii ers, satellite

navigation systems, hands-
free

kit,

entertainment

screen kit, CD changer,
speakers, DVD player, con-

nection kit for MP3 player or portable
CD player, rear parking assistance.

"Styling":
seat covers compatible with
side air bags, aluminium
gear lever knob, fog lamps,

door del ectors, spoiler

(saloon), styling strips, al-
loy wheels, trims, sport ex-
haust.

* When using a tailgate bicycle car-

rier, deactivate the rear wiper via

the multifunction display coni gu-

ration menu.

Note

To avoid any risk of jamming of the
pedals:
-

ensure that the mat is positioned
and secured correctly,

never i t one mat on top of another.

Depending  on  the  country
in  which  the  vehicle  is  sold,
it  is  compulsory  to  have  a
high visibility safety jacket, a

warning triangle and a set of spare
bulbs available in the vehicle.

TECHNICAL DATA

139

ENGINES AND GEARBOXES

  MODELS:
  Model codes:
  3A... 3C... 3E...

KFUC
KFUC

NFUC

NFUL

NFUF

NFUC/FF

3G...

PETROL ENGINES

1.4 litre 16V 90 bhp

1.6 litre 16V 110 bhp

1.6 litre 16V BioFlex

Cubic capacity (cm

)

1 360

1 587

Bore x stroke (mm)

75 x 77

78,5 x 82

EU standard max power (kW/bhp)

65/90

80/110

Max power engine speed (rpm)

5 250

5 800

EU standard max torque (Nm)

133

147

153

Max torque engine speed (rpm)

3 250

4 000

Fuel

Unleaded

E85

Catalytic converter

Yes

GEARBOX

Manual

(5-speed)

Manual

(5-speed)

Auto

(4-speed)

Manual

(5-speed)

OIL CAPACITIES (in litres)

Engine (with cartridge replacement)

3,05

3,25

Gearbox-Final drive

TECHNICAL DATA

140

ENGINES AND GEARBOXES

  MODELS:
  Model codes:
  3A... 3C... 3E...

RFJC

RFJF

PETROL ENGINES

2 litre 16V bhp

Cubic capacity (cm

)

1 997

Bore x stroke (mm)

85 x 88

EU standard max power (kW)

103

Max power engine speed (rpm)

6 000

EU standard max torque (Nm)

200

Max torque engine speed (rpm)

4 000

Fuel

Unleaded

Catalytic converter

Yes

GEARBOX

Manual

(5 speed)

Automatic

(4 speed)

OIL CAPACITIES (in litres)

Engine (with cartridge replacement)

Gearbox-Final drive

1.9

TECHNICAL DATA

ENGINES AND GEARBOXES

  MODELS:
  Model codes:
  3A... 3C... 3E...

9HXC
9HVC

9HZC

9HYB
9HYC

3G...

9HXC

9HZC

9HYB
9HYC

DIESEL ENGINES

1.6 l. Turbo HDI 16V

90 bhp

1.6 l. Turbo HDI 16V 110 bhp

Cubic capacity (cm

)

1 560

Bore x stroke (mm)

75 x 88.3

EU standard max power (kW/bhp)

66/90

80/110

Max power engine speed (rpm)

4 000

EU standard max torque (Nm)

215

240

Max torque engine speed (rpm)

1 750

Fuel

Diesel

Catalytic converter

Yes

Particle emission i lter

Yes

GEARBOX

Manual

(5-speed)

Manual

(5-speed)

OIL CAPACITIES (in litres)

Engine (with cartridge replacement)

3.75

Gearbox-Final drive

1.9

TECHNICAL DATA

142

ENGINES AND GEARBOXES

  MODELS:
  Model codes:
  3A... 3C... 3E...

RHRH

RHRJ

DIESEL ENGINES

2 litre turbo HDI 16V 136 bhp

Cubic capacity (cm

)

1 997

Bore x stroke (mm)

85 x 88

EU standard max power (kW/bhp)

100/136

Max power engine speed (rpm)

4 000

EU standard max torque (Nm)

320

Max torque engine speed (rpm)

2 000

Fuel

Diesel

Catalytic converter

Yes

Particle emission i lter

Yes

GEARBOX

Manual

(6 speed)

Automatic

(6 speed)

OIL CAPACITIES (in litres)

Engine (with cartridge replacement)

5.25

Gearbox-Final drive

2.4

TECHNICAL DATA

143

The consumption values presented here correspond to the values communicated at the time of printing. These consumption values
were established in accordance with EC Directive 80/1268 (as amended). They may vary depending on the style of driving, driving
conditions, weather conditions, the vehicle load, the maintenance of the vehicle and the use of the accessories.
(1) Unleaded. - (2) E85.

SALOON CONSUMPTION

In accordance with EC Directive 80/1268 (as amended)

Engine

Gearbox

Model

codes:

3A... 3C...

Urban Circuit

mpg

(litres/100 km)

Inter-urban

Circuit mpg

(litres/100 km)

Mixed Circuit

mpg

(litres/100 km)

Emission
of CO

weight (g/km)

1.4 litre 16V

Manual

KFUC

32.4 (8.7)

53.3 (5.3)

43.5 (6.5)

155

1.6 litre 16V

Manual

NFUC

28.2 (10.0)

48.7 (5.8)

38.1 (7.4)

174

NFUL

28.2 (10.0)

48.7 (5.8)

38.1 (7.4)

174

Automatic

NFUF

25.3 (11.2)

47.1 (6.0)

35.8 (7.9)

189

1.6 l. 16V BioFlex

Manual

NFUC/FF

28.2 (10.0) (1)
20.6 (13.7) (2)

48.7 (5.8) (1)
35.7 (8.0) (2)

38.1 (7.4) (1)

28.0 (10.1) (2)

174 (1)
165 (2)

2 litre 16V 143 bhp

Manual

RFJC

26.4 (10.7)

47.1 (6.0)

36.7 (7.7)

184

Automatic

RFJF

23.9 (11.8)

45.6 (6.2)

34.4 (8.2)

195

1.6 l. Turbo HDI 16V
90 bhp

Manual

9HXC

46.3 (6.1)

65.7 (4.3)

57.6 (4.9)

129

9HVC

46.3 (6.1)

65.7 (4.3)

57.6 (4.9)

129

1.6 litre Turbo HDI
16V 110 bhp

Manual

9HZC

46.3 (6.1)

65.7 (4.3)

57.6 (4.9)

129

9HYB

47.1 (6.0)

67.2 (4.2)

60.0 (4.8)

126

9HYC

45.6 (6.2)

56.5 (5.0)

132

2 litre Turbo HDI
16V

Manual

RHRH

39.8 (7.1)

62.8 (4.5)

52.4 (5.4)

142

Automatic

RHRJ

30.4 (9.3)

54.3 (5.2)

42.2 (6.7)

178

TECHNICAL DATA

144

The consumption values presented here correspond to the values communicated at the time of printing. These consumption va-
lues were established in accordance with EC Directive 80/1268 (as amended). They may vary depending on the style of driving,
driving conditions, weather conditions, the vehicle load, the maintenance of the vehicle and the use of the accessories.

VAN CONSUMPTION

In accordance with EC Directive 80/1268 (as amended)

Engine

Gearbox

Model
codes

3G... 3X...

Urban circuit

mpg

(litres/100 km)

Inter-urban

circuit mpg

(litres/100 km)

Mixed circuit

mpg

(litres/100 km)

Emission of

weight (g/km)

1.4 litre 16V

Manual

KFUC

32.4 (8.7)

53.3 (5.3)

43.5 (6.5)

155

1.6 litre Turbo HDI
16V 90 bhp

Manual

9HXC

46.3 (6.1)
46.3 (6.1)

65.7 (4.3)
65.7 (4.3)

57.6 (4.9)
57.6 (4.9)

129
129

1.6 litre Turbo HDI
16V 110 bhp

Manual

9HZC

46.3 (6.1)

65.7 (4.3)

57.6 (4.9)

129

9HYB

47.1 (6.0)
45.6 (6.2)

67.3 (4.2)
65.7 (4.3)

60.1 (4.8)
57.6 (4.9)

126
132

9HYC

45.6 (6.2)
45.6 (6.2)

65.7 (4.3)
65.7 (4.3)

56.5 (5.0)
57.6 (4.9)

132
132

TECHNICAL DATA

145

ESTATE CONSUMPTION

In accordance with EC Directive 80/1268 (as amended)

Engine

Gearbox

Model
codes

3E...

Urban circuit

mpg

(litres/100 km)

Inter-urban

circuit mpg

(litres/100km)

Mixed circuit

mpg

(litres/100 km)

Emission of

weight (g/km)

1.4 litre 16V

Manual

KFUC

32.1 (8.8)

51.4 (5.5)

42.2 (6.7)

159

1.6 litre 16V

Manual

NFUC

28.5 (9.9)

44.8 (6.3)

36.7 (7.7)

178

Automatic

NFUF

24.8 (11.4)

44.8 (6.3)

34.0 (8.3)

194

1.6 l. 16V BioFlex

Manual

NFUC/FF

28.5 (9.9) (1)

20.3 (13.9) (2)

44.8 (6.3) (1)
33.2 (8.5) (2)

36.7 (7.7) (1)

27.2 (10.4) (2)

178 (1)
169 (2)

2 litre16V 143 bhp

Manual

RFJC

25.7 (11.0)

46.3 (6.1)

35.8 (7.9)

188

Automatic

RFJF

23.2 (12.2)

44.8 (6.3)

33.4 (8.4)

199

1.6 litre Turbo HDI
16V 90 bhp

Manual

9HXC

45.6 (6.2)

64.2 (4.4)

56.5 (5.0)

131

9HVC

45.6 (6.2)

64.2 (4.4)

56.5 (5.0)

131

1.6 litre Turbo HDI
16V 110 bhp

Manual

9HZC

45.6 (6.2)

64.2 (4.4)

56.5 (5.0)

131

9HYB

46.3 (6.1)

65.7 (4.3)

57.6 (4.9)

128

9HYC

44.8 (6.3)

64.2 (4.4)

55.4 (5.1)

134

2 litre Turbo HDI
16V

Manual

RHRH

38.7 (7.3)

60.1 (4.7)

50.4 (5.6)

148

Automatic

RHRJ

29.7 (9.5)

52.4 (5.4)

40.9 (6.9)

183

Peugeot 307 (2007.5). Instruction - part 10
