CHECKS

Where the handbrake travel
is too great or there is a re-
duction  in  the  performance
of  the  system,  the  hand-
brake  should  be  adjusted,

even between services.
Have the system checked by a
PEUGEOT dealer.

Particle emission filter
(Diesel)

It is imperative that the particle emis-

sion i lter is maintained in accordance

with  the  manufacturer’s  servicing
schedule, by a PEUGEOT dealer.
  Note:   following  prolonged  operation
of the vehicle at very low speed or at
idle,  you  may,  in  exceptional  cases,
notice  discharges  of  water  vapour
at  the  exhaust  on  acceleration. This
has no effect on the behaviour of the
vehicle or on the environment.

Brake pad wear depends
on the style of driving, in
particular for vehicles which
are used in town, over short
distances.

Disc and drum wear status

For any information relating to the wear
status of the surfaces of the discs and
drums, contact a PEUGEOT dealer.

Only use products recom-
mended by PEUGEOT or
products of equivalent qual-
ity and characteristics.
To ensure best performance

from components as important as the
power steering and the braking sys-
tem, PEUGEOT selects and offers

quite specii c products.
To  prevent  damage  to  the  electrical
units, high pressure washing to clean
the  engine  compartment  is  strictly
prohibited .

Oil filter

Used products

Avoid all prolonged contact of the
used oil with the skin.
Brake l uid is harmful to health and

very corrosive.

Air filter and passenger
compartment filter

Do not dispose of used oil,

brake l uid or coolant into

drains or onto the ground.
Empty the used oil into the
containers provided for this

purpose in the PEUGEOT network.

Battery

At  the  start  of  winter,  have
your  battery  checked  by  a
PEUGEOT dealer.

Brake pads

It  may  be  necessary  to
check  the  thickness  of  the
pads,  even  between  ser-
vices.

Handbrake

Change the i lter regularly,

in accordance with the ser-
vicing schedule.

Manual gearbox

This does not require an oil
change. Have the level checked
in accordance with the manu-
facturer’s servicing schedule.

To check the main levels

and certain components,

in accordance with the

manufacturer’s

servicing

schedule, refer to the

pages of the servicing booklet

which correspond to your vehi-

cle’s engine.

Have the i lter elements re-

placed regularly. If you drive

in dusty conditions, change

them twice as often.

PRACTICAL INFORMATION

117

   1.    Wheelbrace.
  2.    Jack with handle.
  3.    Centralising tool.
  4.    Socket for anti-theft bolt.

  5.    Removable towing eye.
  6.    Alloy wheel bolt trim remover.
  7.    Alloy wheel trim remover.

Parking the vehicle
 If possible, park the vehicle on

level, stable and non-slippery
ground.

 Apply the handbrake, switch off

the ignition and engage i rst or

reverse gear (position P for the
automatic gearbox).

To gain access to the spare wheel

and the jack in the boot, lift the l oor

using the handle.

CHANGING A WHEEL (SALOON)

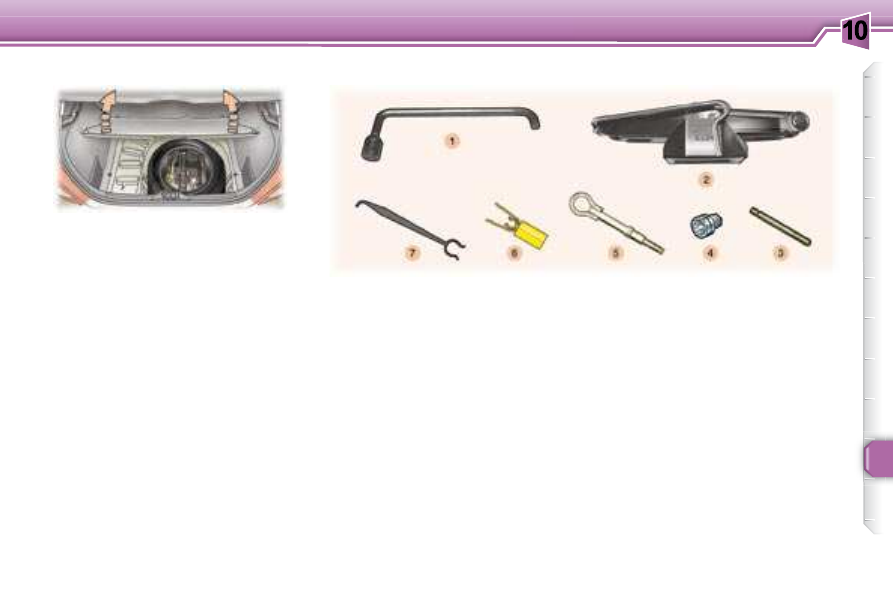

Tools
The following tools are located in a holder in the centre of the spare wheel:

A diagram on the holder indicates the location of the tools.

PRACTICAL INFORMATION

118

Removing the wheel
 If necessary, place a chock under

the wheel diagonally opposite to
the one to be changed.

 Remove the trim, using the

wheelbrace 1 , pulling at the valve
passage hole.

 Loosen the wheel bolts (for

vehicles i tted with alloy wheels,

remove the chrome trim i rst. See

paragraph on ‘Special features of
alloy wheels’).

 Place the jack 2 in contact with

one of the four locating points A
on the sub-frame (the one which
is closest to the wheel to be
changed).

 Extend the jack 2 until its base

is in contact with the ground.
Ensure that the centre line of the
base of the jack is straight above
the locating point A used.

 Raise the vehicle.
 Unscrew the bolts and remove

the wheel.

Fitting a wheel
 Position the wheel using the

centralising tool 3 to assist you.

 Tighten the bolts by hand and

remove the centralising tool.

 Partly tighten the bolts using the

wheelbrace 1 .

 Fold the jack 2 and remove it.
 Fully tighten the bolts using the

wheelbrace 1 .

 Replace the wheel trim, starting

by  placing  the  wheel  trim  notch
opposite  the  valve,  and  press  it
on using the palm of the hand.

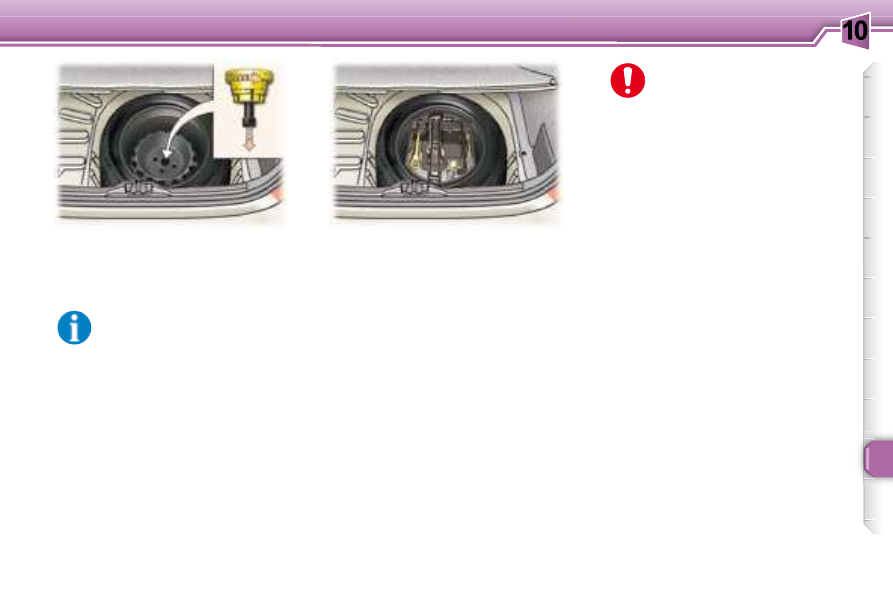

Extracting the wheel

 Unscrew the yellow central bolt a

quarter turn.

 Raise the spare wheel towards

you from the rear.

 Remove the wheel from the

boot.

PRACTICAL INFORMATION

119

Putting the wheel back in place

 Put the wheel back in place.

 Unscrew the yellow central bolt a

few turns, then put it in place in
the centre of the wheel.

 Tighten the central bolt fully until it

clicks to secure the wheel i rmly.

 Put the tool holder back in the

centre of the wheel and clip it.



Put the boot l oor back in place.

Wheels i tted with the Tyre Under-

Inl ation Detection system
For further information refer to "Tyre

under-inl ation detection" in the

safety section.

The wheel must be positioned

l at, in the centre of its

housing.

For your safety, always

change the wheel:

on level, stable, non-slippery
ground,

with the handbrake on and the
ignition switched off,

- with i rst or reverse gear engaged

(position P for the automatic
gearbox),

with the vehicle chocked.

Never go underneath a vehicle that is

supported only by a jack (use a ramp).

* According to model and country.

After changing the wheel:

have the tightening of the bolts
and the tyre pressure checked by
a PEUGEOT dealer as soon as
possible,

have the punctured tyre repaired

and rei t it to the vehicle as soon

as possible.

Recommendations when using

the temporary spare wheel *
Your vehicle may be equipped with a
spare wheel which has a different rim
to the standard wheel.
After  use,  it  must  be  replaced  as
quickly as possible.
Observe the following instructions to
avoid  altering  the  behaviour  of  the
vehicle:
   -

do not exceed 50 mph (80 km/h) ,

- do not i t a wheel trim,
-

drive with care,

check the tyre pressure indicated
on the label.

PRACTICAL INFORMATION

123

Alloy  wheel  bolts  are  covered  by
chrome trims.

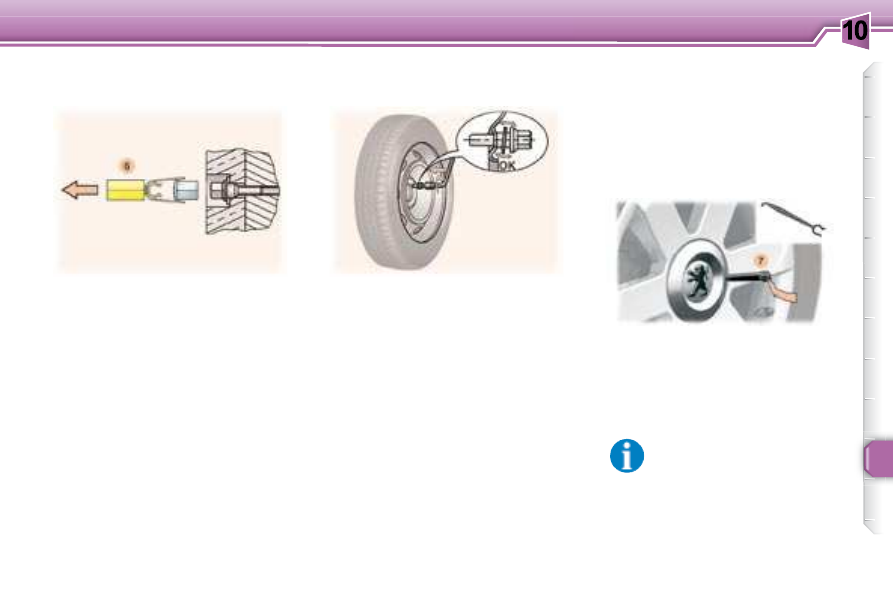

Use  the  yellow  tool   6   to  remove  the
trims before slackening the bolts.

Wheel with centre trim

Fitting snow tyres

If you i t snow tyres mounted on

steel wheels onto your vehicle, it
is essential to use special bolts
available

from

your

PEUGEOT

dealer.

 slide the trim remover 7 into the

notch of the centre trim,

 use the trim remover as a lever

pressing on the trim to unclip it,

 unscrew the bolt using the anti-

theft socket and the wheelbrace.

If your vehicle is i tted with a steel

spare wheel, when i tting it, it is

normal   when  tightening  the  bolts  to
notice that the washers do not come
into  contact  with  the  rim.  The  spare
wheel is secured by the cone shape
of each bolt.

This  anti-theft  socket  was
given  to  you  on  delivery
of  your  vehicle  along  with
the  duplicate  keys  and  the

coni dential card.

Make  a  careful  note  of  the  code
number engraved on the head of the
anti-theft socket. This will enable you
to  obtain  a  duplicate  socket  from  a
PEUGEOT dealer.

Special features of alloy wheels

Fitting the spare wheel

Anti-theft bolts

Your wheels are i tted with an anti-

theft bolt, one per wheel.

Bolt covers

   Wheel with chrome trim
      remove the chrome trim,
     unscrew  the  bolt  using  the  anti-

theft socket and the wheelbrace.

PRACTICAL INFORMATION

120

Parking the vehicle
 As far as possible, park the

vehicle on level, stable and non-
slippery ground.

 Apply the handbrake, switch off

the ignition and engage i rst or

reverse gear (position P for the
automatic gearbox).

   Access to the spare wheel
      Open the boot.
  

Open the l ap using the lug

to release the winch and gain
access to its control nut.

 Unscrew the nut fully, using the

wheelbrace 1 , to unroll the winch
cable.

Tools

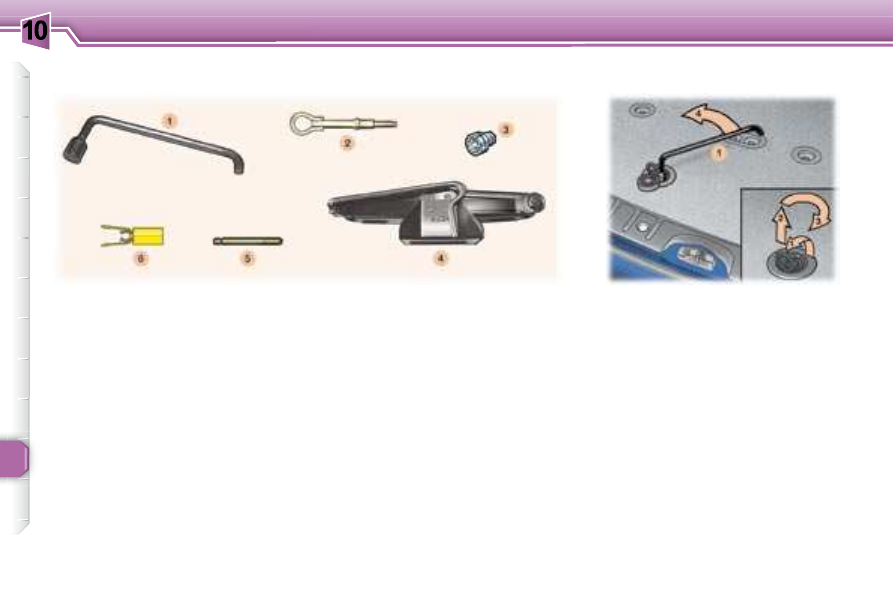

The following tools are located:
-

in the right-hand trim of the boot,

1. Wheelbrace.

2. Removable towing eye.

3. Socket for anti-theft bolts.

in the holder in the centre of the
spare wheel,

4. Jack with handle.

5. Centralising tool.

6. Bolt cover tool.

CHANGING A WHEEL (ESTATE)

PRACTICAL INFORMATION

121

 Detach the wheel/holder assembly

from the rear of the vehicle.

 Take out the notched hook to

release the wheel, as shown in
the illustration.

Removing the wheel
 Slide the holder cover to gain

access to the tools.

 If necessary, place a chock under

the wheel diagonally opposite to
the one to be changed.

 Remove the trim, using the

wheelbrace 1 , pulling at the valve

passage hole (for vehicles i tted

with steel wheels).

 Loosen the wheel bolts (see

§ "Special features of alloy

wheels" for vehicles i tted with

alloy wheels).

Note : you can use the other end
of the tool 6 to unscrew the wheel
bolts.

 Place the jack 4 in contact with

one  of  the  four  locating  points
A   on  the  sub-frame;  the  closest
possible  to  the  wheel  to  be
changed.

 Extend the jack 4 until its base

is in contact with the ground.
Ensure that the centre line of the
base of the jack is straight above
the locating point A used.

 Raise the vehicle.
 Remove one bolt and position the

centralising tool 5 in its place.

 Unscrew the other bolts and

remove the wheel.

PRACTICAL INFORMATION

122

Fitting a wheel
 Position the wheel using the

centralising tool 5 to assist you.

 Tighten the bolts by hand and

remove the centralising tool 5 .

 Partly tighten the bolts using the

wheelbrace 1 .

 Fold the jack 4 and remove it.
 Fully tighten the bolts using the

wheelbrace 1 .

 Replace the wheel trim, starting

by placing the wheel trim notch
opposite the valve, and press it
on using the palm of the hand.

 Put the corresponding tools in the

holder and secure its cover.

 Place the holder on the ground

and align the spare wheel on it.

 Pass the notched hook into the

holder cover.



Rei t the wheel under the vehicle

tightening the winch control nut
using the wheelbrace 1 .

 Fully tighten and check that

the wheel is horizontally l ush

against the rear l oor .



Close the l ap using the lug to

lock the winch.

 Store the rest of the tools in the

right-hand trim of the boot.

For your safety, always

change the wheel:

on level, stable, non-slippery
ground,

with the handbrake on and the
ignition switched off,

- with i rst or reverse gear engaged

(position P for the automatic
gearbox),

with the vehicle chocked.

Never go underneath a vehicle that

is supported only by a jack (use a

ramp).

Never rei t the holder under the

vehicle without the spare wheel.

Do not use a screwdriver in place

of the wheelbrace to unwind or

wind the winch.

Recommendations when using

do not exceed 50 mph (80 km/h) ,

- do not i t a wheel trim,
-

drive with care,

check the tyre pressure indicated
on the label.

After changing the wheel:
-

have the correct positioning of the
punctured  wheel,  the  tightening
of the bolts and the tyre pressure
checked  by  a  PEUGEOT  dealer
as soon as possible,

have the punctured tyre repaired

and rei t it to the vehicle as soon

as possible,

have  the  correct  positioning  of
the  spare  wheel  checked  by  a
PEUGEOT dealer.

Wheels i tted with the Tyre Under-

Inl ation Detection system
For further information refer to "Tyre

under-inl ation detection" in the

safety section.

* According to model and country.

PRACTICAL INFORMATION

123

Alloy  wheel  bolts  are  covered  by
chrome trims.
Use  the  yellow  tool   6   to  remove  the
trims before slackening the bolts.

Wheel with centre trim

Fitting snow tyres

If you i t snow tyres mounted on

steel wheels onto your vehicle, it
is essential to use special bolts
available

from

your

PEUGEOT

dealer.

 slide the trim remover 7 into the

notch of the centre trim,

 use the trim remover as a lever

pressing on the trim to unclip it,

 unscrew the bolt using the anti-

theft socket and the wheelbrace.

If your vehicle is i tted with a steel

spare wheel, when i tting it, it is

normal   when  tightening  the  bolts  to
notice that the washers do not come
into  contact  with  the  rim.  The  spare
wheel is secured by the cone shape
of each bolt.

This  anti-theft  socket  was
given  to  you  on  delivery
of  your  vehicle  along  with
the  duplicate  keys  and  the

coni dential card.

Make  a  careful  note  of  the  code
number engraved on the head of the
anti-theft socket. This will enable you
to  obtain  a  duplicate  socket  from  a
PEUGEOT dealer.

Special features of alloy wheels

Fitting the spare wheel

Anti-theft bolts

Your wheels are i tted with an anti-

theft bolt, one per wheel.

Bolt covers

   Wheel with chrome trim
      remove the chrome trim,
     unscrew  the  bolt  using  the  anti-

theft socket and the wheelbrace.

PRACTICAL INFORMATION

124

Front lights

In  the  engine  compartment,  on  the
right-hand  side,  remove  the  style
trim * :
   -

press the centre of each plastic
stud A ,

remove each plastic stud,

remove the style trim.

When you have i nished, do not

forget to put everything back in place
correctly:
-

position the style trim * ,

- rei t each plastic stud A by

pressing on it.

Handle the bulbs with a dry
cloth.
The headlamps are i tted

with polycarbonate glass with

a protective coating.

Do not clean

them with a dry or abrasive cloth,

nor with a detergent or solvent

product.
Use a sponge and soapy water.

1. Dipped beam headlamps

(H1-55 W or xenon bulb).

WARNING: RISK OF ELECTRO-

CUTION
Xenon  bulbs  must  be  changed  by  a
PEUGEOT dealer.

Main beam headlamps (H7-55 W).

 Remove the protective cover

corresponding to the faulty bulb.

 Disconnect the connector.
 Press the end of each securing

clip. Change the bulb.

When i tting the new bulb, ensure

that the direction notches are
positioned

correctly and

the

securing clips are i xed properly.

 Reconnect the connector.


Rei t the protective cover.

CHANGING A BULB

* According to engine.

PRACTICAL INFORMATION

125

Integrated direction indicator side

repeaters.
 Push the repeater forwards and

release it.

 Remove the repeater and change

it.

These can be obtained from a
PEUGEOT dealer.

Amber coloured bulbs, such
as the direction indicators,
must be replaced with bulbs

of identical specii cation and

colour.

3. Side lights (W 5 W).
 Remove the protective cover

corresponding to the faulty bulb.

 Disconnect the connector.
 Remove the bulb and change it.

4. Direction indicators

(PY 21 W amber).

 Turn the bulb holder a quarter of

a turn and remove it.

 Change the bulb.

Note : in certain climatic conditions
(low temperature, humidity),

conden-

sation inside the headlamp glass is

normal ; it disappears a few minutes
after the lights are switched on.

5. Fog lamps (H11-55 W).
Contact a PEUGEOT dealer to have
these bulbs changed.

PRACTICAL INFORMATION

126

Direction indicators (P 21 W).

Reversing lights (P 21 W),

left-hand side.

Fog lamp (P 21 W), right-hand

side.

3. Brake lights (P 21 W).
4.

Side lights (x 2) (R 5 W).

 Using a 10 mm box spanner,

unscrew the 2 i xing nuts 1 .

 Release the lamp unit by pushing

it outwards.

 Squeeze the two tabs 2 to release

the bulb holder.

 Change the faulty bulb.


When rei tting, ensure that the

lamp unit seal has been put back
in place correctly.

These 6 bulbs are changed from
inside the boot:
 Move aside the boot trim to

access the bulb holder,

 Press the two tabs and remove

the bulb holder,

 Change the faulty bulb.
When rei tting, take care to pass the

trim under the seal.

Rear lights (saloon)

Third brake light (saloon)

(4 W 5 W bulbs)

PRACTICAL INFORMATION

127

 Remove the tailgate upper trim

carefully by unclipping it on either
side, perpendicular to its direction
of engagement.

 Insert a screwdriver into the two

outer holes B to press on the two
tabs C .

 Push the light unit outwards while

maintaining the pressure on the
tabs.

 Pull the light unit outwards while

tilting it.

 Change the faulty bulb.


When rei tting, ensure that the

light  unit  tabs  are  engaged
correctly  and  that  the  tailgate
upper  trim  has  been  put  back  in
place correctly.

1. Brake lights (P 21 W).
2.

Side lights (x 2) (R 5 W).

Direction indicators (P 21 W).

Reversing light (P 21 W),

left-hand side.

Fog lamp (P 21 W), right-hand

side.

These 6 bulbs are changed by
removing the light:
 Remove the corresponding boot

side trim to access the light,



Remove the light i xing nut inside

the boot,



Remove the light i xing nut out-

side the boot,

 Remove the light,
 Unclip the harness,

 Remove the bulb holder pressing

on the tabs A ,

     Change the faulty bulb.
  Note:   if  necessary,  use  the  wheel-
brace to remove the nuts.
When  rei tting,  take  care  to  position

the bulb holder and the light
correctly.

Number plate lights
(W 5 W)

 Insert a thin screwdriver into one

of the external holes of the lens.

     Push it outwards to unclip it.
     Remove the lens.
     Change the faulty bulb.

Rear lights (estate)

Third brake light (estate)

(4 W 5 W bulbs)

PRACTICAL INFORMATION

128

Changing a fuse

Before  changing  a  fuse,  you  must
establish  the  cause  of  the  fault  and
have it corrected. The fuse numbers
are indicated on the fuse box.
Always change a faulty fuse for one
of the same rating (same colour).
Use the special pliers located on the
inside  of  the  fascia  fuse  box  cover,
this  support  also  contains  the  spare
fuses.

Fascia panel fuses

Fuse No.

Rating

Functions

15 A

Rear wiper.

30 A

Locking and deadlocking.

5 A

Air bags and pre-tensioners unit.

10 A

Brake (STOP) and clutch pedal switches, engine
coolant level switch, steering wheel angle sensor,
ESP dual-function sensor, particle emission

i lter pump, diagnostic socket, electrochromatic

mirror.

30 A

Front electric windows, sunroof, heated mirrors.

CHANGING A FUSE

The fuse boxes are located in the
lower part of the fascia (passenger
side) and in the engine compartment
(left-hand side).

Correct

Incorrect

 Open the glove box lid to gain

access to the fuses.

PRACTICAL INFORMATION

128

Changing a fuse

Fascia panel fuses

Fuse No.

Rating

Functions

15 A

Rear wiper.

30 A

Locking and deadlocking.

5 A

Air bags and pre-tensioners unit.

10 A

Brake (STOP) and clutch pedal switches, engine
coolant level switch, steering wheel angle sensor,
ESP dual-function sensor, particle emission

i lter pump, diagnostic socket, electrochromatic

mirror.

30 A

Front electric windows, sunroof, heated mirrors.

CHANGING A FUSE

The fuse boxes are located in the
lower part of the fascia (passenger
side) and in the engine compartment
(left-hand side).

Correct

Incorrect

 Open the glove box lid to gain

access to the fuses.

PRACTICAL INFORMATION

129

Fuse N°

Rating

Functions

30 A

Rear electric windows.

5 A

Front and rear courtesy lights, map reading lights, glove box lighting.

20 A

Audio equipment, audio/telephone, multifunction display, alarm siren, alarm unit, trailer fuse
box, driving school module, steering wheel controls supply.

30 A

12 V front socket, 12 V rear socket.

F10

15 A

Automatic gearbox control unit, tyre under-inl ation control unit, STOP switch.

F11

15 A

Diagnostic socket, particle emission i lter unit, low current ignition switch.

F12

15 A

Driving school module, rear parking assistance.

F13

5 A

Engine fuse box, rain and brightness sensor.

F14

15 A

Trailer fuse box, instrument panel, air bags and pre-tensioners unit, automatic air conditioning,
hands-free kit.

F15

30 A

Locking and deadlocking.

F16

PARC shunt.

F17

40 A

Heated rear screen.

Content .. 7 8 9 10 ..
