Peugeot 307 SW (2007.5). Instruction - part 3

INSTRUMENTS, CONTROLS and DISPLAYS

Display C

 Press the "MENU" button to gain

access to the general menu.



Press the arrows, then the

"OK" button to select the "Trip
computer" menu.

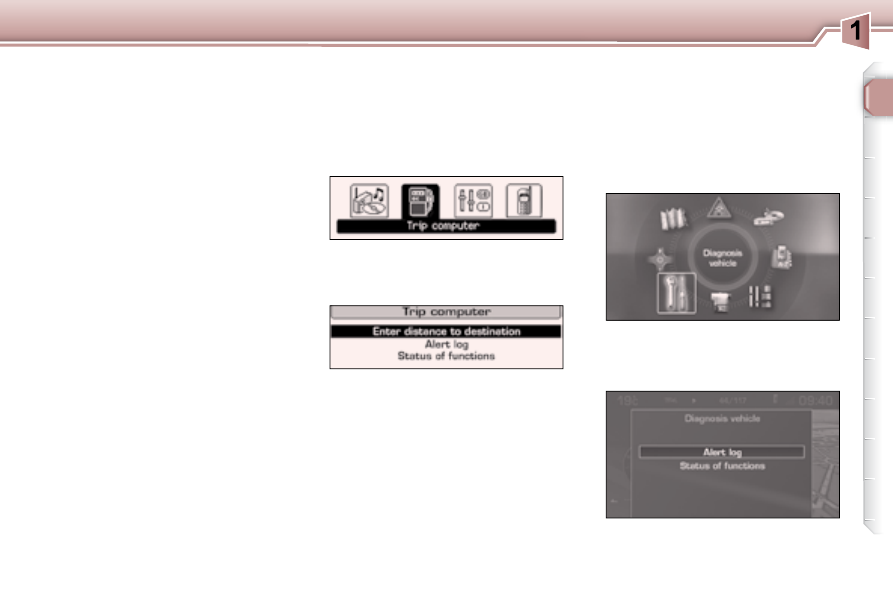

 On the "Trip computer" menu,

select one of the following

applications:

Warnings log
This summarises the active warning

messages, displaying them in

succession

on the multifunction

display.
Status of the functions
This summarises the active or inactive

status of the functions present on the

vehicle.

Enter the distance to the
destination
This enables you to enter an

approximate value for the distance to

the i nal destination.

"TRIP COMPUTER" MENU

System which provides general

information concerning the status

of certain equipment with which

your vehicle is equipped, such as

the warnings log, the status of the

functions...

"DIAGNOSTICS" MENU

 On the "Diagnostics" menu,

select one of the following

applications:

Colour display

 Press the "MENU" button to gain

access to the general menu.



Turn the dial and press it to select

the "Diagnostics" menu.

MULTIFUNCTION DISPLAYS

Presentation

This displays the following informa-

tion:

- the time,

- the date,

- the outside temperature * (this

l ashes if there is a risk of ice),

- the status of the accesses (doors,

boot, ...),

- the warning messages (e.g.:

"Emission control system faulty")

or information messages (e.g.:

"Auto lights on"), displayed

temporarily, can be cleared by

pressing the "ESC" button,

- the

trip

computer

(see

corresponding section).

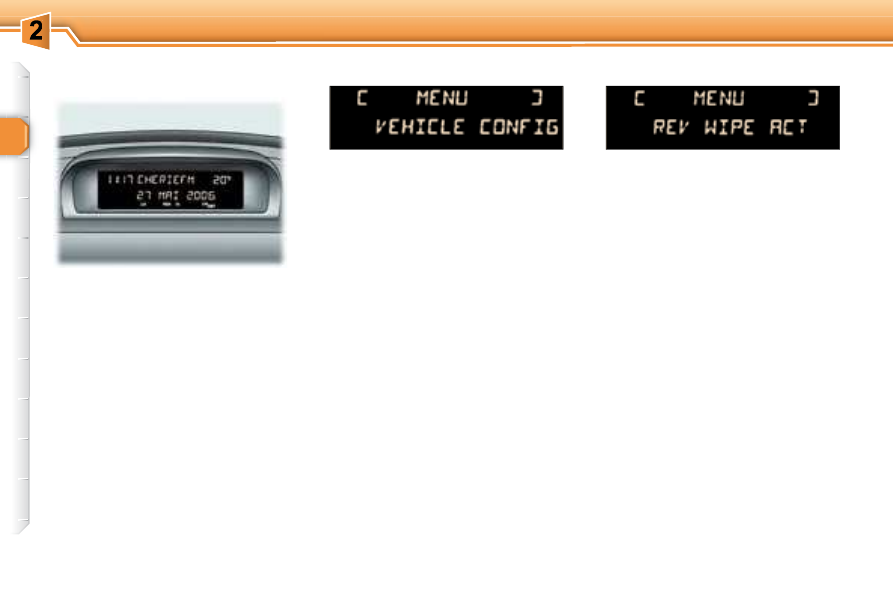

MONOCHROME DISPLAY A
(WITHOUT RD4 AUDIO EQUIPMENT)

Parameter configuration

There are three display control

buttons:

- "ESC" to abandon the operation

in progress,

- "MENU" to scroll through the

menus or sub-menus,

- "OK" to select the menu or sub-

menu required.

Press the "MENU" button to scroll
through the various menus of the

general menu:

- vehicle coni guration,

- options,

- display settings,

- languages,

- units.
Press the "OK" button to select the

menu required.

General menu

* With air conditioning only.

MULTIFUNCTION DISPLAYS

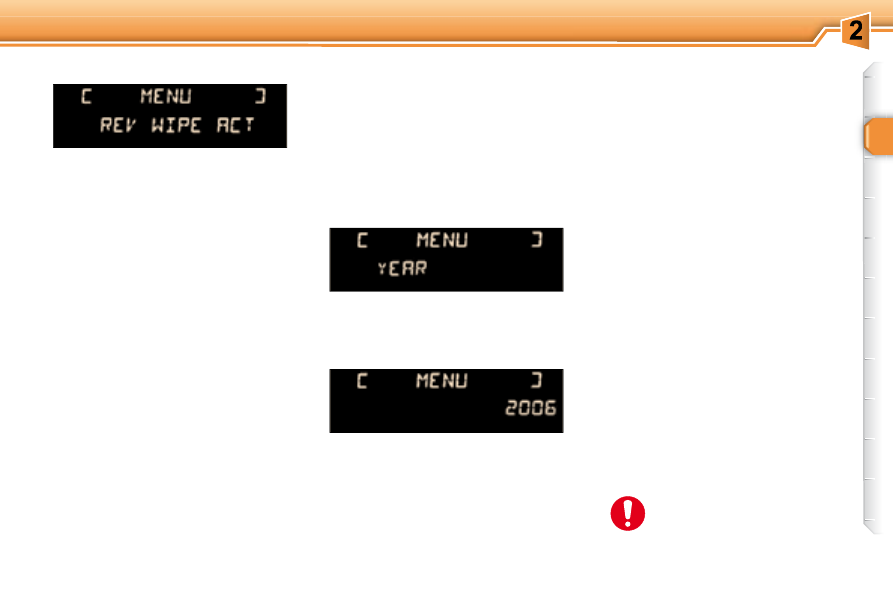

Once the "Vehicle coni guration"

menu has been selected, you can

activate or deactivate the following

equipment:

- wiper linked with reverse gear

(refer to the "Visibility" section),

- "follow-me-home" lighting (refer

to the "Visibility" section),

- parking assistance (refer to the

"Driving" section).

Options
Once the "Options" menu has been

selected, you can start diagnostics of

the status of the equipment (active,

not active, faulty).

   Languages
Once  the  "Languages"  menu  has
been  selected,  you  can  change  the

language used by the display (Fran-

çais, Italiano, Nederlands, Portu-

gues, Portugues-Brasil, Deutsch,

English, Espanol).

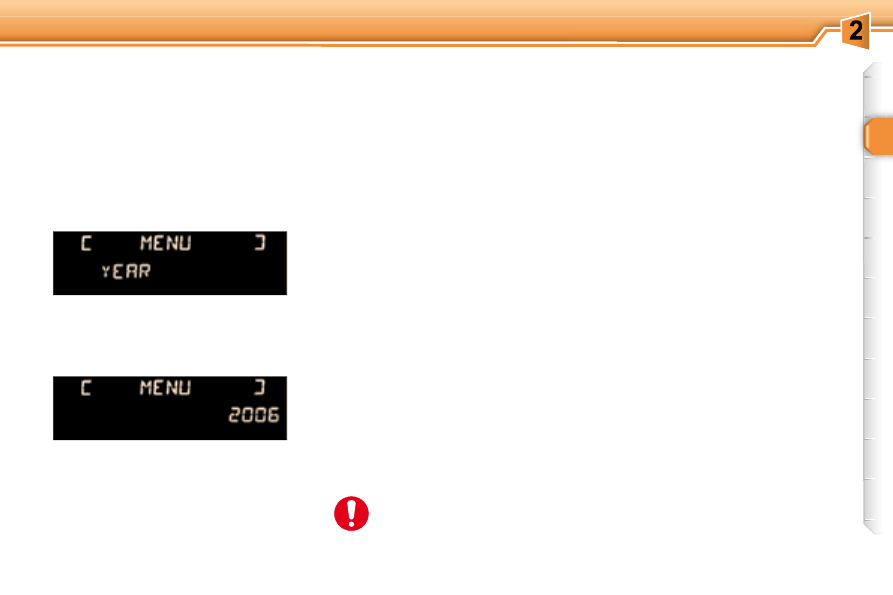

Display settings
Once the "Display settings" menu has

been selected, you can gain access

to the following settings:

- year,

- month,

- day,

- hour,

- minutes,

- 12 or 24 hour mode.

   Units
Once  the  "Units"  menu  has  been
selected,  you  can  change  the  units

of the following parameters:

- temperature (°C or °F),

- fuel consumption (l/100, mpg or

km/l).

Once you have selected a setting,

press the "OK" button to change its

value.

Wait for approximately ten seconds

without any action to allow the

changed data to be recorded or press

the "ESC" button to cancel.
The display then returns to the

normal display.

For safety reasons, coni gu-

ration of the multifunction

displays by the driver must

take place when stationary.

Vehicle coni guration

MULTIFUNCTION DISPLAYS

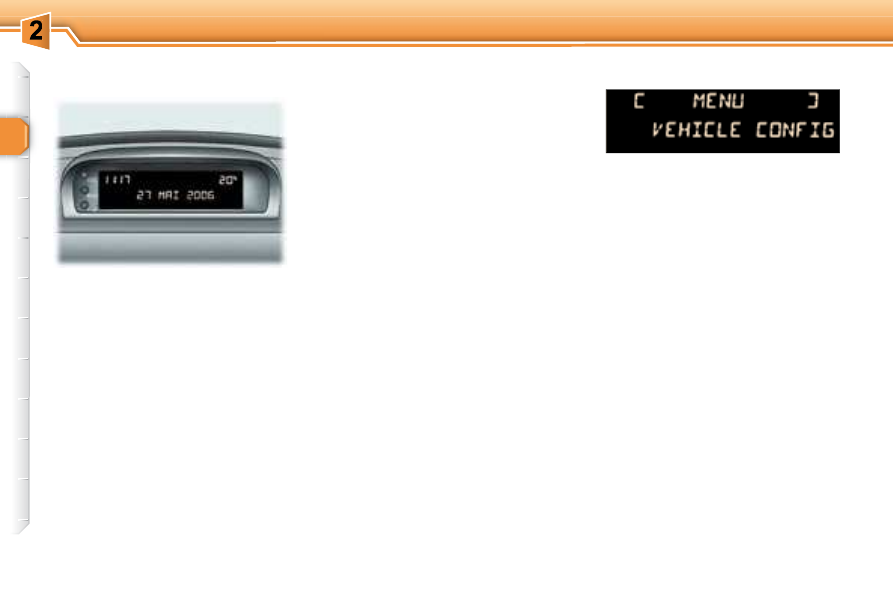

MONOCHROME DISPLAY A

Press the "MENU" button to gain
access to the general menu, then

press the "  " or "  " buttons to

scroll through the following items:

- radio-CD,

- vehicle coni guration,

- options,

- display settings,

- languages,

- units.
Press the "OK" button to select the

menu required.

Presentation

This displays the following informa-

tion, via the RD4 audio equipment

control keypad:

- the time,

- the date,

- the outside temperature * (this

l ashes if there is a risk of ice),

- the audio source displays (radio,

CD, ...),

- the status of the accesses (doors,

boot, ...),

- the warning messages (e.g.:

"Emission control system faulty")

or information messages (e.g.:

"Auto lights on"), displayed

temporarily, can be cleared by

pressing the "ESC" button,

- the

trip

computer

(see

corresponding section).

Radio-CD
With the RD4 audio equipment

switched on, once the "Radio-CD"

menu has been selected, you can
activate or deactivate the functions

linked with the use of the radio (RDS

following, REG mode), the CD or the

CD changer (introscan, random play,

CD repeat).
For further details concerning the

"Radio-CD" application, refer to

the RD4 part of the "Audio and

Telematics" section.

Once the "Vehicle coni guration"

menu has been selected, you can

activate or deactivate the following

equipment:

- rear wiper linked with reverse gear

(refer to the "Visibility" section),

- "follow-me-home" lighting (refer

to the "Visibility" section),

- parking assistance (refer to the

"Driving" section).

Options
Once the "Options" menu has been

selected, you can start diagnostics of

the status of the equipment (active,

not active, faulty).

General menu

Vehicle coni guration

* With air conditioning only.

MULTIFUNCTION DISPLAYS

Display settings
Once the "Display settings" menu has

been selected, you can gain access

to the following settings:

- year,

- month,

- day,

- hour,

- minutes,

- 12 or 24 hour mode.

   Languages
Once  the  "Languages"  menu  has
been  selected,  you  can  change  the

language used by the display (Fran-

çais, Italiano, Nederlands, Portu-

gues, Portugues-Brasil, Deutsch,

English, Espanol).

   Units
Once  the  "Units"  menu  has  been
selected,  you  can  change  the  units

of the following parameters:

- temperature (°C or °F),

- fuel consumption (l/100, mpg or

km/l).

Once you have selected a setting,

press the "  " or "  " buttons to

change its value.

Press the " 

" or " 

" buttons to

move to the previous or next setting

respectively.
Press the "OK" button to record
the change and return to the normal

display or press the "ESC" button to

cancel.

For safety reasons, coni gu-

ration of the multifunction

displays by the driver must

take place when stationary.

MULTIFUNCTION DISPLAYS

Presentation

It displays the following information:

- the time,

- the date,

- the exterior temperature (this

l ashes if there is a risk of ice),

- the accesses check (doors,

boot, ...),

- the warning messages (e.g.:

"Depollution system faulty") or

information messages (e.g.: "Au-

tomatic headlamp lighting acti-

vated"), displayed temporarily,

can be cleared by pressing the

"ESC" button,

- the trip computer (see corre-

sponding section),

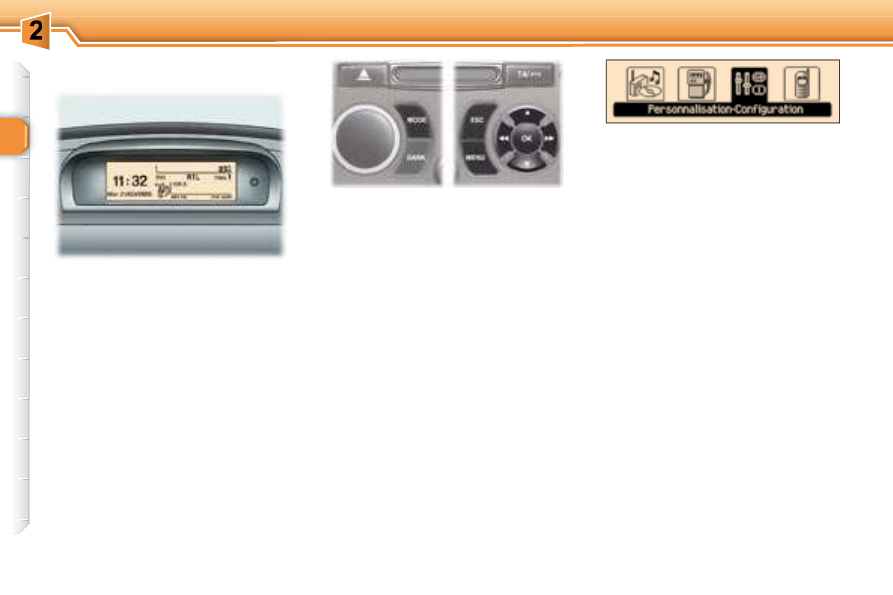

MONOCHROME DISPLAY C
(WITHOUT RD4 AUDIO EQUIPMENT)

There are three buttons and a
navigator to enable you to control the

screen:

- "MENU" to display the general

menu,

- "MODE" to change the permanent

application

(trip

computer,

date, ...),

- "ESC" to abandon the operation

in progress,

- Rotation of the navigator:

movement on the display or

changing of a setting,

- Press

the

navigator:

coni rmation of the selection.

Press the "MENU" button to access

the general menu:

- trip computer (see corresponding

section),

- personalisation-coni guration.
Turn the navigator to select the menu

required, then coni rm by pressing

the navigator.

Once this menu has been selected,

you can access the following

functions:

- dei ne the vehicle parameters,

- display coni guration,

- selection of the language.

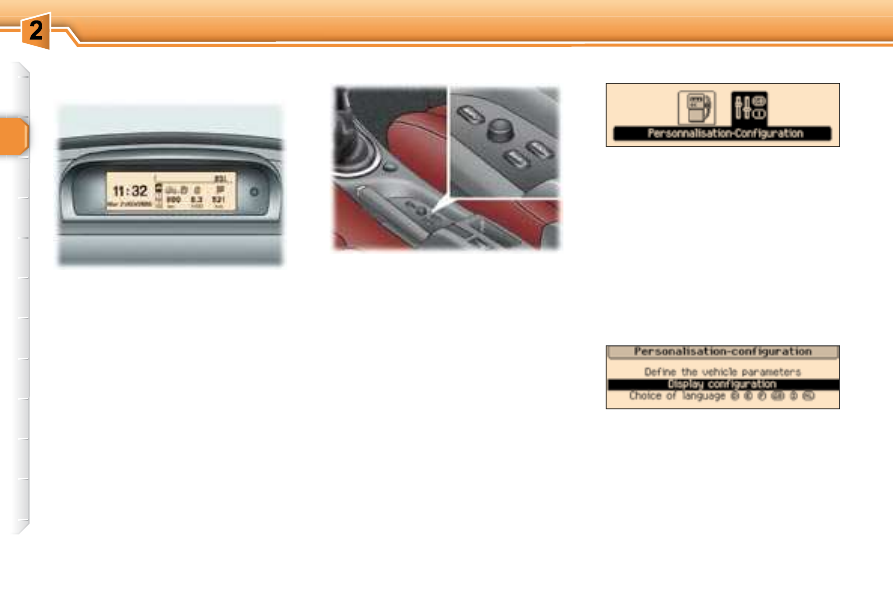

Parameter configuration

General menu

"Personalisation-
Configuration" menu

MULTIFUNCTION DISPLAYS

   Selection of the language
Once  this  menu  has  been  selected,
you  can  change  the  language

used on the display (Deutsch,

English, Espanol, Français, Italiano,

Nederlands, Portugues, Portugues-

Brasil).

Display coni guration
Once this menu has been selected,

you can access the following

settings:

- brightness-video setting,

- date and time setting,

- selection of the units.

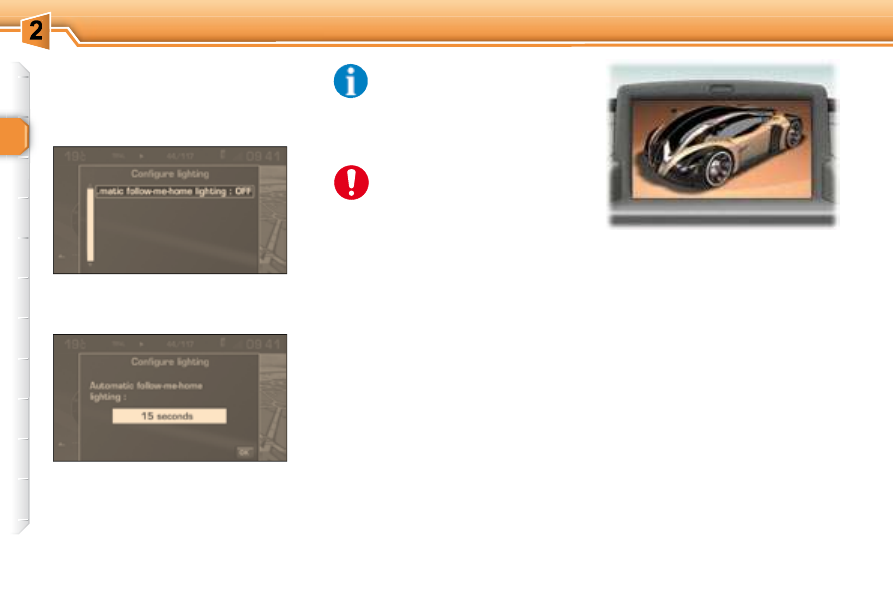

Example:

"Duration of the "follow-

me-home" lighting"

For safety reasons, coni gu-

ration of the multifunction

displays by the driver must

take place when stationary.

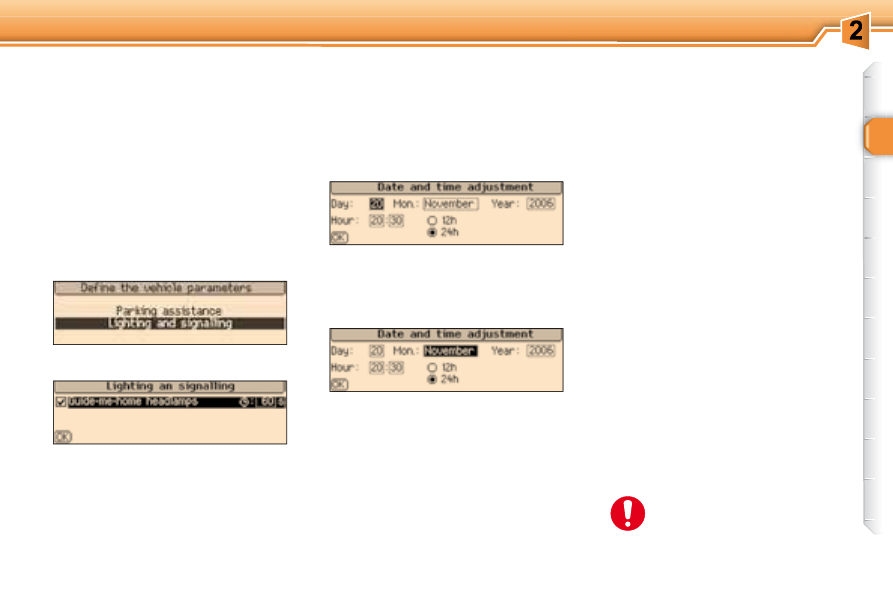

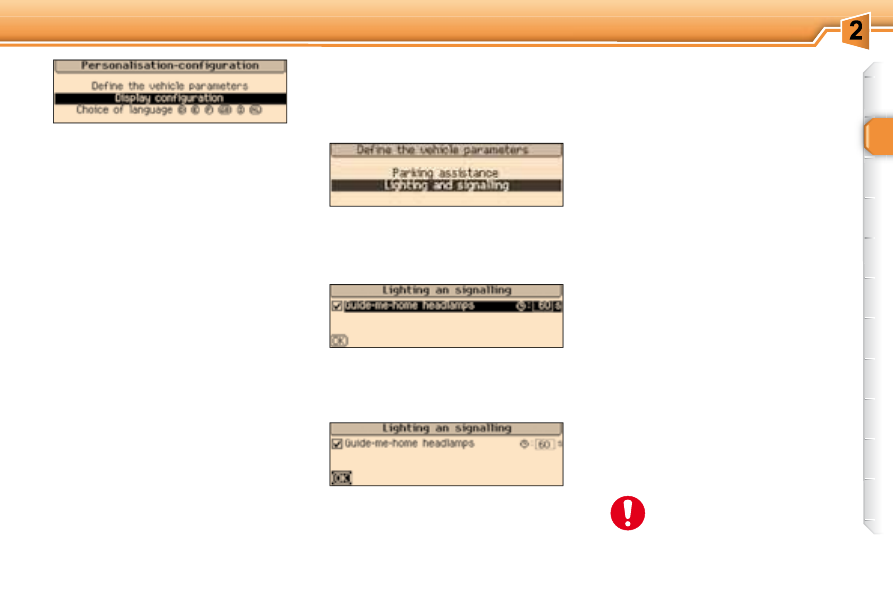

Dei ne the vehicle parameters
Once this menu has been selected,
you can activate or deactivate the

following equipment:

- wiper linked with reverse gear

(refer to the "Visibility" section),

- "follow-me-home" lighting and

duration (refer to the "Visibility"
section),

- parking assistance (refer to the

"Driving" section).

Once you have selected a setting,

press the navigator.
Turn the navigator to change its
value.

Press the navigator to record the

change and move on to the next

setting or press the "ESC" button to

cancel.

MULTIFUNCTION DISPLAYS

MONOCHROME SCREEN C

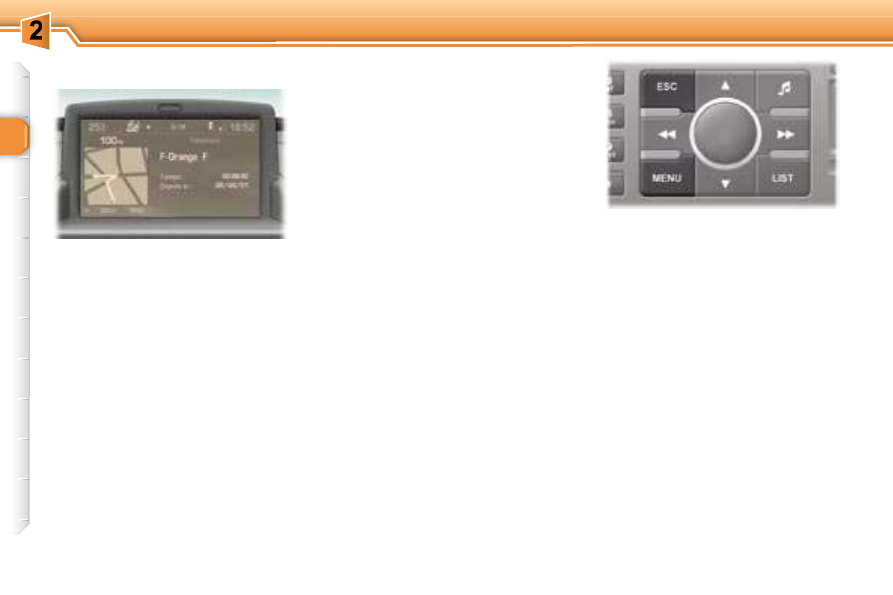

Controls

From the RD4 audio equipment

control panel, you can:


press the "MENU" button to gain

access to the general menu ,



press the "  " or "  " buttons to

scroll through the items on the
screen,



press the "MODE" button to

change the permanent application

(trip computer, audio source, ...),



press the "  " or "  " buttons to

change a setting value,



press the "OK" button to

coni rm,

or


press the "ESC" button to

abandon

the

operation

progress.

Displays on the screen

This displays the following informa-

tion:

- the time,

- the date,

- the outside temperature * (this

l ashes if there is a risk of ice),

- the status of the accesses (doors,

boot, ...),

- the audio sources (radio, CD, ...),

- the trip computer (refer to the

corresponding section).

Warning messages (e.g.: "Emission

control system faulty") or information

messages (e.g.: "Automatic switching

on of the headlamps activated")

may appear temporarily. These can

be cleared by pressing the "ESC"

button.

General menu

 Press the "MENU" button to gain

access to the general menu

- audio functions,
- trip computer (refer to the cor-

responding section),

- personalisation-coni guration,
- telephone (hands-free kit).

 Press the "  " or "  " buttons to

select the menu required, then

coni rm by pressing the "OK"

button.

* With air conditioning only.

"Audio functions" menu

With the RD4 audio equipment

switched on, once this menu has

been selected you can activate
or deactivate the functions linked

with use of the radio (RDS, REG,

RadioText), the CD or the CD changer

(introscan, shufl e, CD repeat).
For further details concerning the

"Audio functions" application, refer

to the RD4 part of the "Audio and

Telematics" section.

"Trip computer" menu

Once this menu has been selected,

you can consult information concern-

ing the status of the vehicle (warn-

ings log, status of the functions, ...).

MULTIFUNCTION DISPLAYS

"Personalisation-
Configuration" menu

Once this menu has been selected,

you can gain access to the following

functions:

- dei ne the vehicle parameters,

- display coni guration,

- selection of the language.

Display configuration

Once this menu has been selected,

you can gain access to the following

settings:

- brightness-video setting,

- date and time setting,

- selection of the units.

Example: setting of the duration of

the "follow-me-home" lighting
 Press the "  " or "  " buttons,

then the "OK" button to select

the menu required.

 Press the "  " or "  " buttons,

then the "OK" button to select
the "Lighting and signalling" line.

 Press the "  " or "  " buttons

to set the value required (15, 30

or 60 seconds), then press the

"OK"

button to coni rm.

For safety reasons, it is

imperative that coni guration

of the multifunction displays

by the driver takes place

when stationary.

Define the vehicle parameters

Once this menu has been selected,
you can activate or deactivate the

following equipment:

- wiper linked with reverse gear

(refer to the "Visibility" section),

- "follow-me-home" lighting (refer

to the "Visibility" section),

- parking assistance (refer to the

"Driving" section).

 Press the "  " or "  " buttons,

then the "OK" button to select the
"OK"

box and coni rm or press

the "ESC" button to cancel.

Selection of the language

Once this menu has been selected,
you can change the language used by

the display (Deutsch, English, Espanol,

Français,

Italiano,

Nederlands,

Portugues, Portugues-Brasil).

"Telephone" menu

With the RD4 audio equipment

switched on, once this menu has

been selected you can coni gure your

Bluetooth hands-free kit (matching),

consult the various telephone

directories (calls log, services, ...)
and manage your communications

(pick up, hang up, call waiting, secret

mode, ...).
For further details concerning the

"Telephone" application, refer to

the RD4 part of the "Audio and

Telematics" section.

MULTIFUNCTION DISPLAYS

COLOUR DISPLAY

Displays on the screen

When the ignition is switched on, this

displays the following information

automatically and directly:

- the time,

- the date,

- the outside temperature (if there

is a risk of ice, you are warned by

a message).

Warning messages (e.g.: "Fuel level

low") and vehicle function status

messages (e.g.: "Automatic switching

on of the headlamps activated")

may appear temporarily. These can

be cleared by pressing the "ESC"

button.

General menu

When the RT4 GPS audio/telephone

is switched on, select the menu

which corresponds to the following

applications:

- the satellite navigation system,

- the guidance on the map,

- the trafi c information,

- the audio sources (radio, CD,

Jukebox, ...),

- the telephone directories and

functions,

- the coni guration of the screen

and the setting of the parameters

of the vehicle’s equipment,

- the displaying of a video,

- the vehicle diagnostics (warnings

log and status of the functions).

Controls

From the RT4 GPS audio/telephone

control panel, to select one of the

applications:


press the "MENU" button to gain

access to the general menu ,

 turn

the

dial

move

the

selection,



press the dial to coni rm the

selection,

or


press the "ESC" button to aban-

don the operation in progress and

return to the previous display.

For further details concerning these

applications, refer to the RT4 part of

the "Audio and Telematics" section.

MULTIFUNCTION DISPLAYS

Selection of the language
Once the "Selection of the language"
menu has been selected, you gain

access to the following parameters:

- selection

the

display,

information and voice commands
language

(Français,

English,

Italiano, Portugues, Espanol,

Deutsch, Nederlands).

Display coni guration

Once the "Display coni guration"

menu has been selected, you gain

access to the following parameters:

- selection of the palette of colours

available for the display,

- setting of the brightness and

brilliance of the display,

- setting of the date and time (12 or

24 hour mode, adjustment of the

minutes on GPS),

- selection of the units (temperature

in °Celsius or °Fahrenheit;

consumption in l/100 km or mpg

or km/l).

   Sounds
Once  the  "Sounds"  menu  has  been
selected,  you  gain  access  to  the

following parameters:

- setting of the voice commands,

- setting of the voice synthesiser

(volume

the

instructions

and other messages, male or
female),

- activation of the auxiliary input

AUX.

Dei ne the vehicle parameters

Once the "Dei ne the vehicle param-

eters" menu has been selected, you
can activate or deactivate certain

driving and comfort equipment:

- parking assistance (refer to the

"Driving" section),

- wiper linked with reverse gear

(refer to the "Visibility" section),

- "follow-me-home" lighting and

duration (refer to the "Visibility"
section).

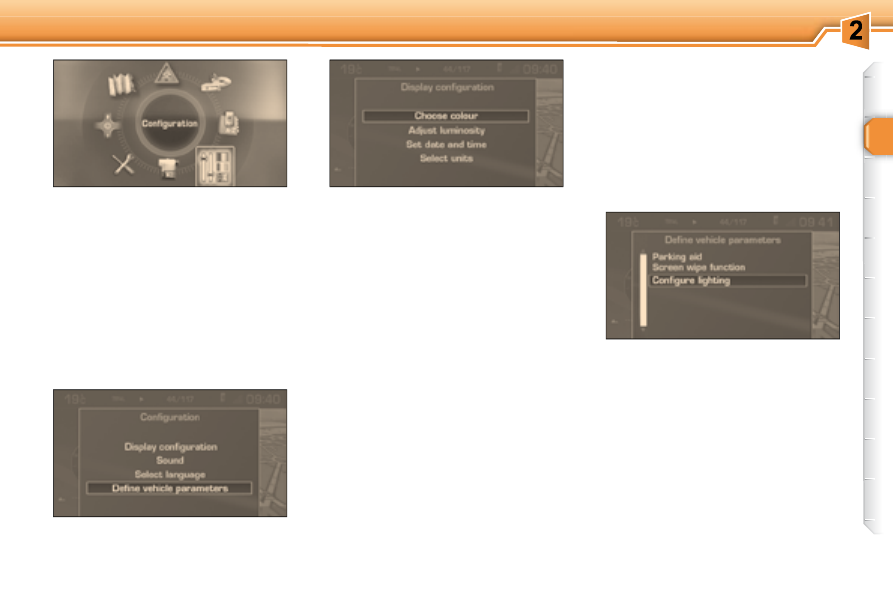

"Configuration" menu

 Press the "MENU" button on the

RT4 GPS audio/telephone to gain

access to the general menu .

 Turn the dial to select the

"Coni guration" menu, then

press it to coni rm.

Once this menu has been selected,

you can gain access to the following

functions:

MULTIFUNCTION DISPLAYS

"Video" menu

You can connect video equipment

(camcorder, digital camera, DVD

player, ...) to the three audio/video

sockets, located in the glove box.
  Videos  can  only  be  displayed
when stationary.
Once  this  menu  has  been  selected,

you can select:

- "Activate video mode" to activate/

deactivate the video,

- "Video parameters" to set the

display format, the brightness,

the contrast and the colours.

 Press the "MODE" or "DARK"

button to disconnect the display-

ing of the video.

 Press the "SOURCE" button

several times in succession to
select an audio source other than
that of the video.

 Select the line "Duration of the

"follow-me-home" lighting" then

coni rm.

Example: setting the duration of the

"follow-me-home" lighting
 Turn the dial to select the

"Lighting coni guration" menu,

then press it to coni rm.



Select the duration then press the

dial.

 Turn the dial to set the value

required (15, 30 or 60 seconds),

then press the dial.

 Select the "OK"

box, then

coni rm.

The RT4 GPS audio/tele-

phone must reinitialise and

restart in order to change
the voice used by the voice
synthesiser (male or female)
or the language used by the
system.

For safety reasons, it is

imperative that coni guration

of the multifunction displays

by the driver takes place

when stationary.

COMFORT

Windscreen de-icing or demisting

vents.

Front window de-icing or demist-

ing vents.

3. Side vents.

4. Centre vents.
5.

Air outlet to front footwells.

Air outlet to rear footwells.

Switch off the rear screen

and exterior mirrors demist-

ing as soon as you consider
this necessary as reducing

the current consumption reduces the

fuel consumption.

VENTILATION

Advice on operation



If, when the vehicle has been

parked in the sun for a long time,

the interior temperature remains

very high, do not hesitate to ven-

tilate the passenger compartment

for a few minutes.

Place the air l ow control at a

level sufi cient to ensure a good

renewal of air in the passenger

compartment.

When the air l ow control is in posi-

tion 0 (deactivation of the system),

temperature related comfort is no

longer guaranteed but a slight l ow

of air, due to the movement of the
vehicle, can still be felt.

 For even air distribution, take care

not to obstruct the exterior air in-

take grille at the base of the wind-

screen, the vents, the air outlets
under the front seats and the air

extractor located behind the l aps

in the boot.

Check that the passenger com-

partment i lter is in good condi-

tion. Have the i lters replaced

regularly. If you drive in a dusty

environment, change them twice

as often.

COMFORT

The air conditioning only operates

when the engine is running.

2. Temperature adjustment

1. Air conditioning On/Off

Turn the control from blue

(cold) to red (warm) to ad-

just the temperature to your

requirements.

4. Air distribution adjustment

Windscreen and side

windows.

Windscreen, side windows

and footwells.

Footwells (vents closed).

The air conditioning is de-

signed to operate effectively

in all seasons, with the win-

dows closed. In summer, it

enables the temperature to

be lowered and in winter, above 0 °C,

it increases the effectiveness of the
demisting.
Press the switch, the indicator light

comes on.
The air conditioning does not op-

erate while the air l ow adjustment

control 3 is in position "0" .

Centre and side vents.

3. Air flow adjustment

Turn the control from posi-

tion 1

to position 4 to obtain

an air l ow sufi cient to en-

sure your comfort.

The air distribution can be adjusted

by placing the control in an interme-

diate position, marked "



MANUAL AIR CONDITIONING

COMFORT

6. Demisting the rear screen

and the mirrors

Pressing the button once
demists the rear screen

and the exterior mirrors.

This switches off automati-

cally to prevent an exces-

sive consumption of current.

Pressing again reactivates demist-

ing.
It is possible to stop demisting be-

fore it is switched off automatically by

pressing the button again.

In certain cases of particu-

larly arduous use (towing the

maximum load on a steep

gradient in high tempera-

tures), switching off the air condition-

ing permits the recovery of engine

power and therefore an increase in

the towing capacity.
In order for the air conditioning to be

fully effective, the windows must be

closed.
The air conditioning system does not

contain chlorine and does not present

any danger to the ozone layer.
Operate the air conditioning system

for 5 to 10 minutes, once or twice a

month, to keep it in perfect working

order.
The water produced by the air con-

ditioning condensation is discharged

through an opening provided for this

purpose. Therefore, a puddle of wa-

ter may form underneath the vehicle

when stationary.

In order to ensure that the air condi-

tioning system operates correctly, reg-

ular checks are also recommended.
If the system does not produce cold air,

do not use it and contact a PEUGEOT
dealer.

5. Air intake/Air recirculation

Pressing button 5

permits

recirculation of the interior

air. This is indicated by il-

lumination of the indicator
light.

As soon as possible, press button

again to permit the intake of out-

side air, to prevent deterioration of

the air quality and to avoid misting of

the windows. This is indicated by the

switching off of the indicator light.

The interior air recirculation enables

you to isolate the passenger com-

partment from exterior odours and

smoke.
The outside air intake enables you to

prevent and eliminate misting of the

windscreen and side windows.

Used simultaneously with the air con-

ditioning, air recirculation enables

performance to be improved.

Used in a humid climate, air recir-

culation may result in misting of the

windows.

Rapid demisting of the
windscreen
To quickly de-ice or demist the wind-

screen and side windows:

- place the air distribution control

in the "windscreen and side win-

dows" position,

- place the temperature 2 and air

l ow 3 controls at maximum, as

indicated by the "Windscreen

and side windows" symbol on the

control panel,

- close the centre vents,

- switch air intake button 5 to the

"Outside Air Intake" position (but-

ton 5 indicator light off),

- start the air conditioning by press-

ing button 1 .

COMFORT

The air conditioning only operates

when the engine is running.

When the engine is cold, to prevent

too great a distribution of cold air, the

air l ow will reach its optimum level

gradually.

The driver and his front

passenger can each adjust

the temperature to their re-

quirements.
The value indicated on the

display corresponds to a level of

comfort and not to a temperature in

degrees Celsius or Fahrenheit.
Turn control 2 or 3 to the left or to

the right respectively to decrease or

increase this value.
A setting around the value 21

pro-

vides optimum comfort. However, de-

pending on your requirements, a set-

ting between 18 and 24 is normal.

For optimum comfort, you are ad-

vised to avoid a left/right setting dif-

ference of more than 3.
For maximum cooling or heating of the

passenger compartment, it is possible

to go below the value 15 by turning un-

til "LO"

is displayed or above the value

27 by turning until "HI"

is displayed.

4. Automatic visibility

programme

The automatic comfort pro-

gramme may not be suf-

i cient to quickly demist or

de-ice the windscreen and

side windows (humidity,

several passengers, ice, etc.).

In this case, select the automatic vis-

ibility programme.
The system automatically controls

the air conditioning, the air l ow and

the air intake and provides optimum

distribution of the ventilation to the

windscreen and side windows.

To switch it off, press button 4 again

or press the "AUTO" button, the but-

ton’s indicator light switches off and

"AUTO"

is displayed.

Automatic operation

1. Automatic comfort programme

Press the "AUTO" button.
The "AUTO"

symbol is dis-

played.
We recommend the use of

this mode: it permits auto-

matic and optimised adjustment of

all of the functions, passenger com-

partment temperature, air l ow, air

distribution and air recirculation, in

accordance with the comfort value

that you have chosen. This system is

designed to operate effectively in all

seasons, with the windows closed.

2. Driver’s side adjustment

3. Passenger side adjustment

On entering the vehicle, if

the interior temperature is

much colder or warmer than

the comfort value, there is no

need to change the value displayed

in order to obtain the comfort re-

quired. The system corrects the dif-

ference in temperature automatically

and as quickly as possible.

DUAL ZONE AUTOMATIC AIR CONDITIONING

Content .. 1 2 3 4 ..
