Peugeot 307 SW (2007.5). Instruction - part 1

FAMILIARISATION

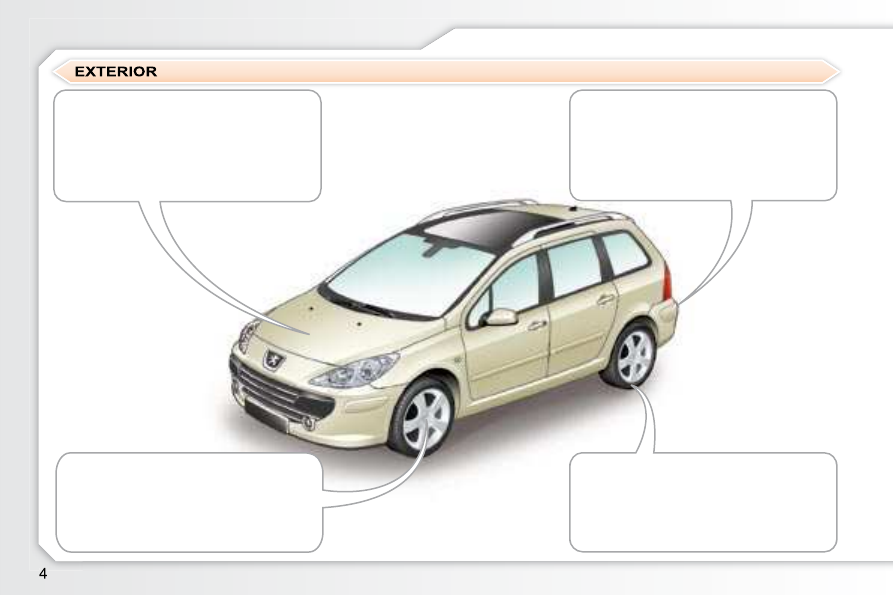

1.6 litre 16V BioFlex engine

This technology enables this engine to

run on unleaded petrol, ethanol E85 or a

mixture of both of these fuels.

 73

ASR and ESP systems

This equipment is linked to guarantee

the directional stability of the vehicle wi-

thin the limits of the laws of physics.

 89

Visual and audible rear parking
assistance

When reversing, this equipment warns

you of obstacles detected behind the
vehicle.

 106

Tyre under-inflation detection

This equipment monitors the pressure in

each tyre and warns you in the event of

a puncture or under-inl ation.

 87

FAMILIARISATION

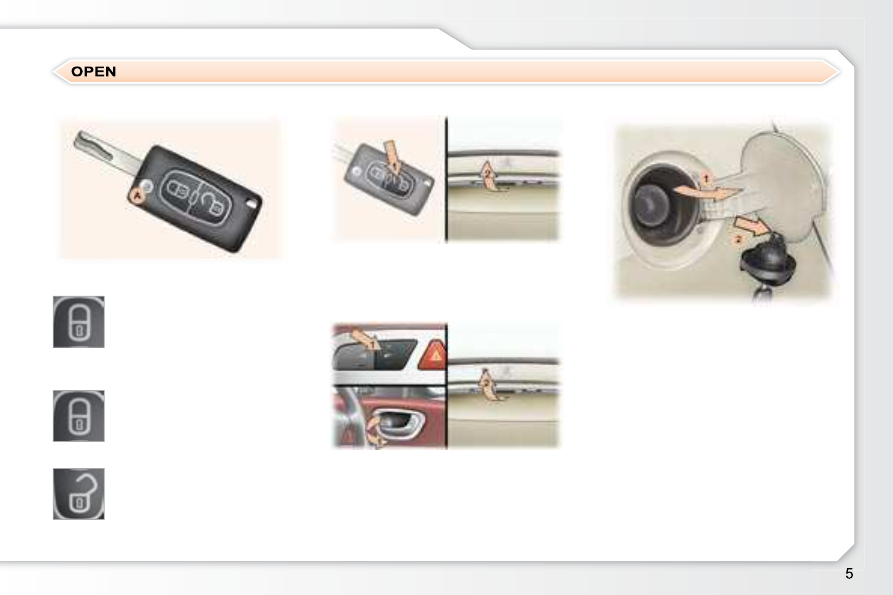

Fuel tank

  From the outside
   1.   Unlocking of the doors and boot.
  2.

Opening of the tailgate.

Remote control key

A. Unfolding/Folding of the key.

Boot

Opening of the fuel i ller l ap.

Opening and hooking of the fuel

tank cap.

Capacity of the fuel tank: approxima-

tely 60 litres.

 73

Normal locking
(a single press) (i xed lighting

of the direction indicators).

Deadlocking of the vehicle
(two consecutive presses)

(i xed lighting of the direc-

tion indicators).

Unlocking of the vehicle
(rapid l ashing of the direc-

tion indicators).

 65

From the inside
1.

Unlocking using the interior cen-

tral control or the interior opening

control on the front doors.

Opening of the tailgate.

 71

FAMILIARISATION

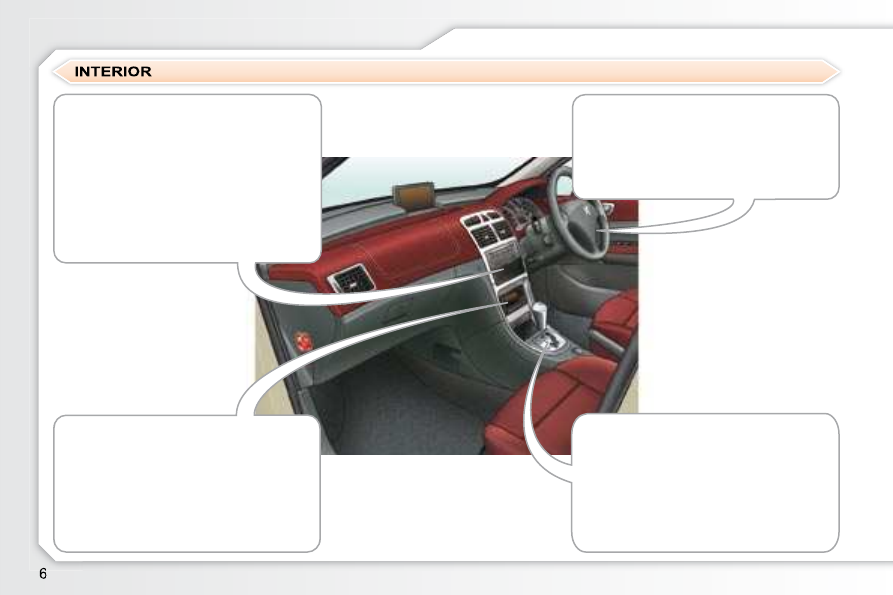

Dual-zone automatic air
conditioning

This equipment permits the setting of a

different comfort level for the driver and

front passenger. It then controls this le-

vel automatically in relation to the exte-

rior climatic conditions.

 46

Automatic gearbox

This equipment guarantees perfect dri-

ving by combining a fully automatic

mode, associated with two special pro-

grammes, and a manual mode.

 97

Cruise control/speed limiter

These two functions allow you to control

the speed of the vehicle in relation to the

value that you have programmed.

 100, 102

Audio and communication
systems

This equipment benei ts from the latest

technology: MP3 compatible RD4 audio

equipment, Bluetooth hands-free kit,

RT4 GPS audio/telephone, JBL audio

system.
RT4

 141

RD4

 170

FAMILIARISATION

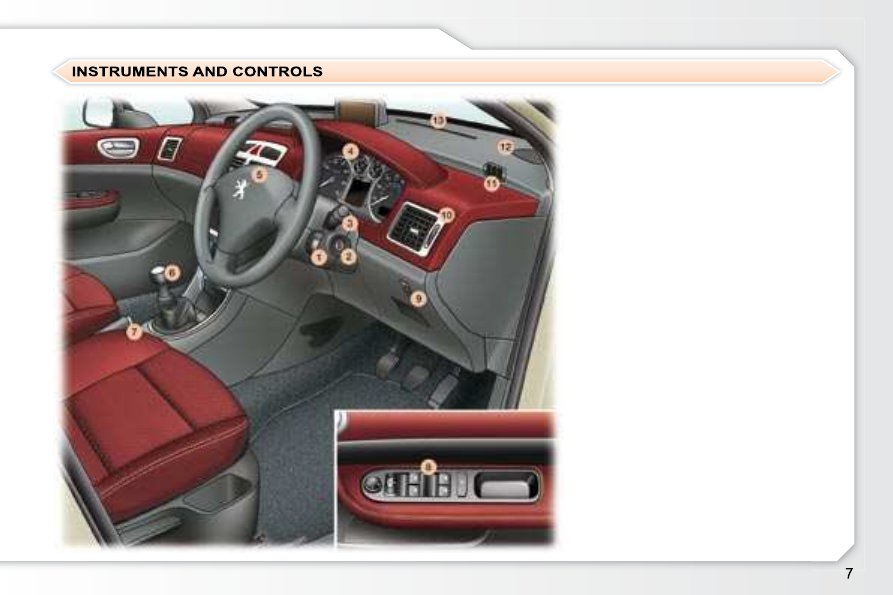

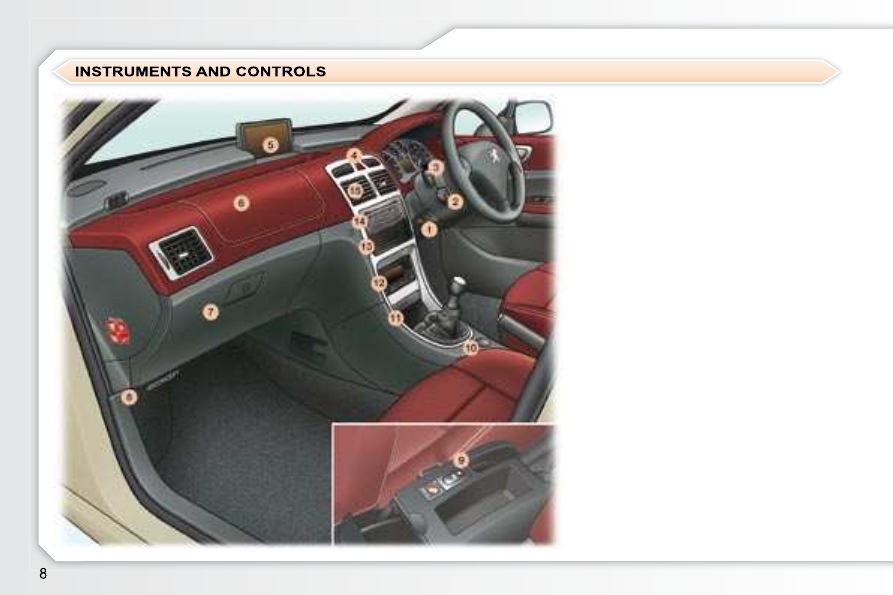

Steering wheel audio equipment

control.

2. Steering lock and ignition.

Wipers/wash-wipe/trip computer

control.

Instrument panel.

5. Driver’s air bag.

Horn.

6. Gear lever.

7. Handbrake.

8. Electric mirror controls.

Electric window controls.

Rear electric windows deactiva-
tion control.

Headlamp height adjustment.

10.

Side adjustable and closing vent.

11.

Front door window de-icing vent.

12.

Speaker location (tweeter).

13.

Windscreen de-icing vents.

FAMILIARISATION

Steering wheel adjustments

control.

Cruise control/speed limiter

switch.

3. Lights and direction indicators

controls.

4. Alarm button.

Central locking button.

Hazard warning lights button.

Dynamic stability control (ESP/
ASR) button.

Multifunction display.

6. Passenger air bag.

Glove box/Audio/video sockets/

Fuse box.

8. Bonnet release.

9. Panoramic roof shutter control.

10. 12 volt socket.

11. Front ashtray.

12. Heating/Air conditioning controls.

13. CD changer.

14. Audio RD4 or RT4 GPS audio/

telephone.

15.

Central adjustable and closing

vents.

FAMILIARISATION

5. Head restraint height and angle

adjustment.

6. Removable front armrest.
7.

Storage drawer.

Never drive with the head

restraints removed.

 51



When stationary, pull the control

to unlock the steering wheel.



Adjust the height and depth of

the steering wheel.



Lock by pushing the control A

fully.

 50

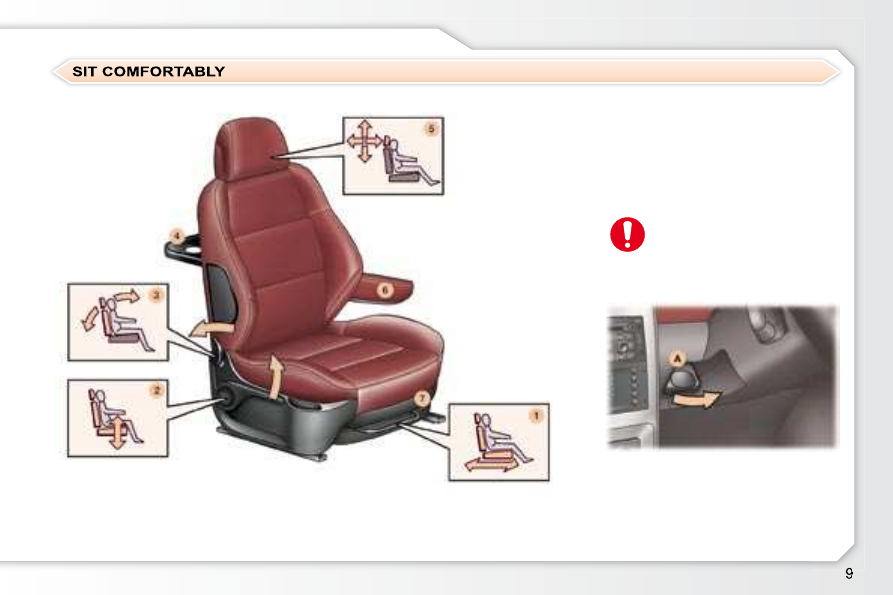

Front seat adjustment

Forwards-backwards adjust-

ment.

Driver or passenger seat height

adjustment.

Seat back angle adjustment.

"Aircraft" type table.

Steering wheel adjustment

FAMILIARISATION

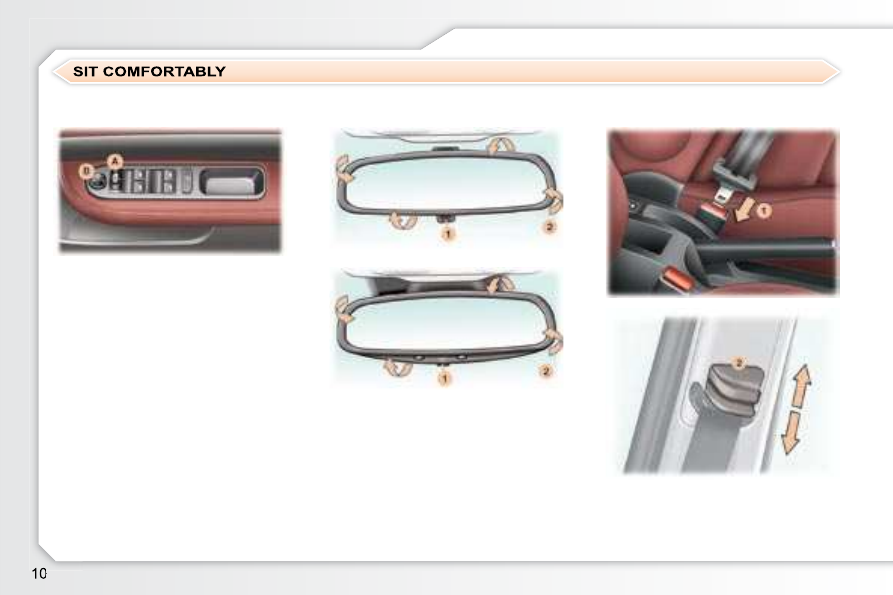

Interior mirror adjustment

Front seat belts

 Place the control A on the right

or on the left to select the mirror

to be adjusted.

 Move the control B in all four

directions to adjust.

 Return the control A

to the cen-

tral position.

When parking, the mirrors can be fol-

ded electrically, by pulling the control

rearwards, or automatically on

locking the vehicle using the remote
control or the key.

 49

Selection of the "day" position of

the mirror.

2. Directing of the mirror.

 50

1. Fastening.
2.

Height adjustment.

 90

Electric mirror adjustment

FAMILIARISATION

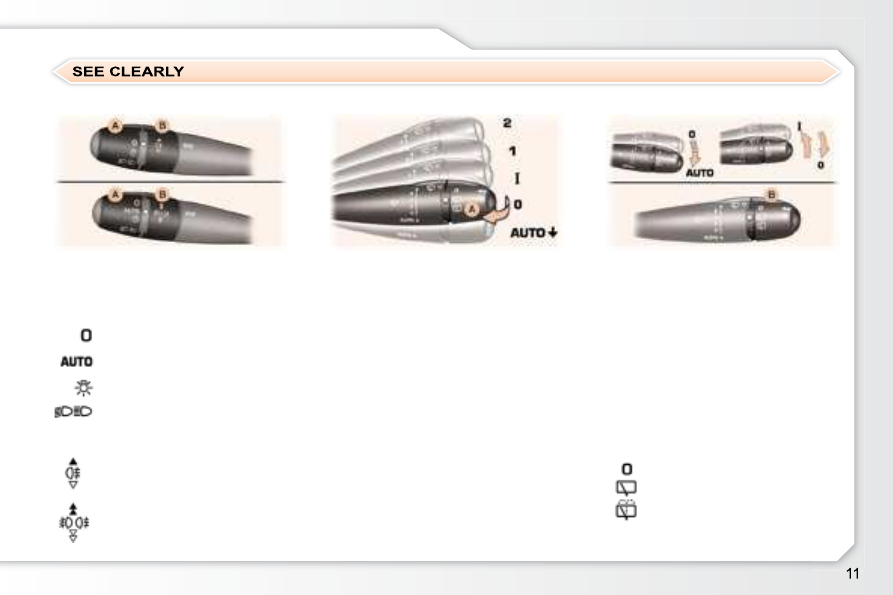

Control A: windscreen wipers
2

Fast wipe.

Normal wipe.

Intermittent wipe.

park.

AUTO

Automatic wiping or single

wipe.

Wash-wipe: pull the control towards

you.

Ring A: front and rear lights

Lights off.
Automatic switching on of

the lights.

Side lights.

Rear fog lamp.

Front and rear fog lamps.

 74

Dipped/main beam headlamps.

Ring B: fog lamps

Park.
Intermittent wipe.
Wash-wipe.

 77

The position is displayed on the ins-

trument panel by the corresponding

indicator light.

Wipers

  Switching on "AUTO" mode
Push the control down and release it.
  Switching off "AUTO" mode
Push  the  control  up  and  return  it  to

position "0" .
If the ignition has been off for more

than approximately one minute, the

automatic wiping must be reactiva-

ted.
Ring B: rear wiper

Lights

–

FAMILIARISATION

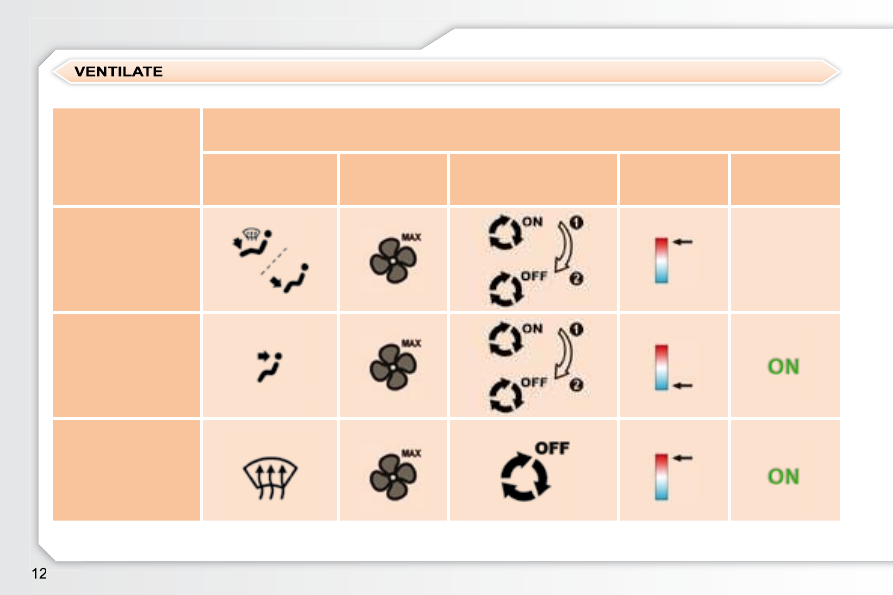

Recommended interior settings

I require...

Manual air conditioning

Air distribution

Air l ow

Air recirculation /

Intake of exterior air

Temperature

Manual A/C

HOT

COLD

DEMISTING

DE-ICING

Automatic air conditioning: use of the fully automatic mode by pressing the "AUTO" button is recommended.

FAMILIARISATION

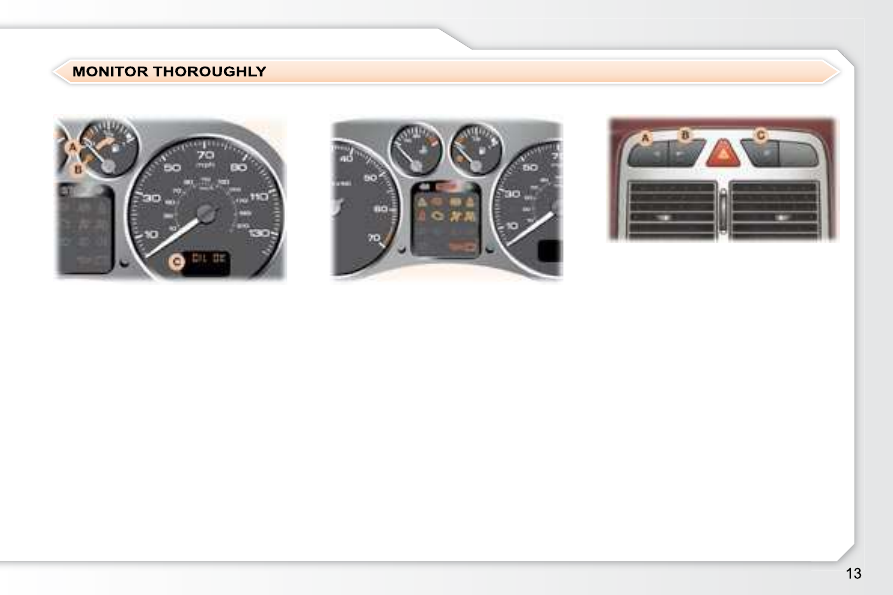

When the ignition is on, the nee-

dle should indicate the level of
fuel remaining.

B. When the engine is running, the

associated low level warning

light should switch off.

C. When the ignition is on, the oil

level indicator should display

"OIL OK"

for a few seconds.

If the levels are not correct, top up as

necessary.

 17

1. When the ignition is on, the

orange and red warning lights

come on.

2. When the engine is running,

these warning lights should

switch off.

If warning lights remain on, refer to

the page concerned.

 21

If an indicator light is on, this indica-

tes the status of the corresponding

function.
A.

Deactivation of the interior

protection alarm.

 68

Central locking.

 70

Deactivation of the ESP/

ASR system.

 89

Instrument panel

Warning lights

Controls bar

FAMILIARISATION

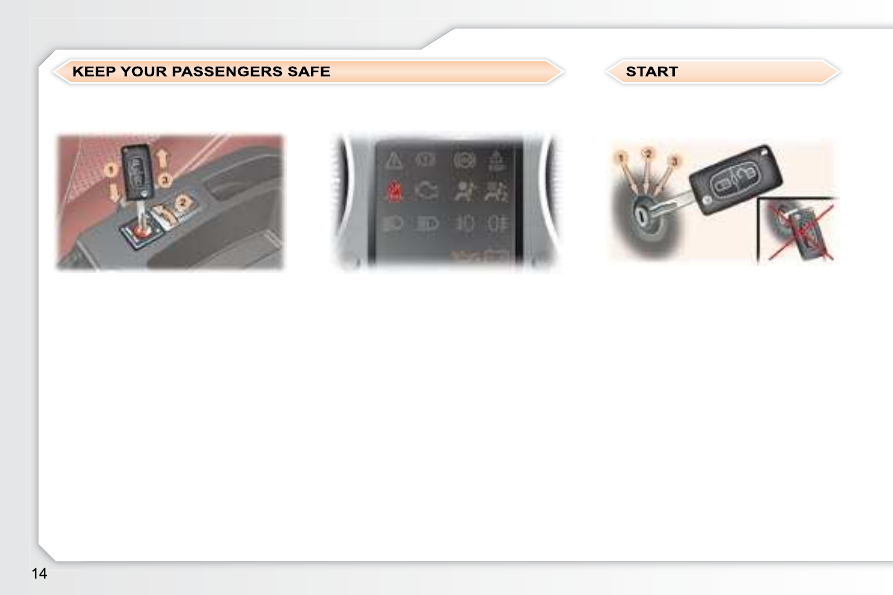

1. Insertion of the key.
2.

Selection of the position: "OFF"

(disarming), with "rear facing"

child seat,

"ON"

(activation), with front passen-

ger or "forward facing" child seat.

Removal of the key keeping the

switch in this position.

 94

When the ignition is on, the war-

ning light comes on if the driver
has not fastened his seat belt.

When the engine is running with

the doors closed, the warning

light switches off automatically

after 30 seconds.

Below 12 mph (20 km/h), the

warning light comes on conti-

nuously if the seat belt is unfas-

tened.

Above 12 mph (20 km/h), the

warning light l ashes for

2 minutes accompanied by an

audible signal of increasing
volume.

 90

1. Stop

position.

2. Ignition

position.

3. Starting

position.

 66

Passenger’s front air bag

Front seat belt not fastened/
unfastened

Ignition switch

FAMILIARISATION

Speed limiter mode Selection/

Off.

Decreasing of the programmed

value.

Increasing of the programmed

value.

Speed limiter On/Off.

The values must be set with the en-

gine running.

 100

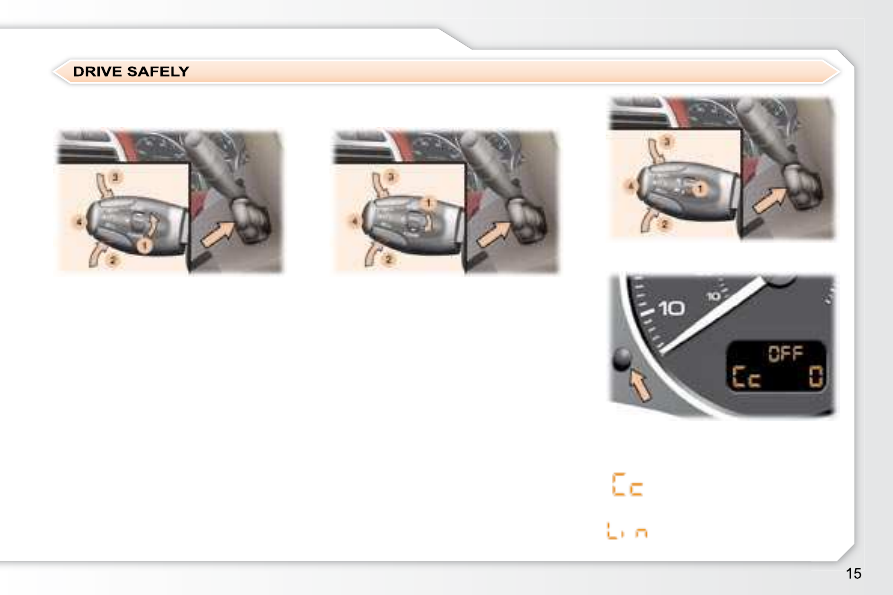

1. Cruise control mode Selection/

Off.

Programming of a speed/De-

creasing of the programmed

value.

Programming of a speed/In-

creasing of the programmed

value.

4. Cruise control Off/Resume.
In order to be programmed or activa-

ted, the vehicle speed must be higher

than 25 mph (40 km/h), with at least

fourth gear engaged on the manual

gearbox (second for the automatic

gearbox).

 102, 104

The cruise control or speed limiter

mode appears on the instrument pa-

nel when it is selected.

Display on the instrument panel

Cruise control

Speed limiter

SPEED LIMITER "LIMIT"

Cruise control "CRUISE"

FAMILIARISATION

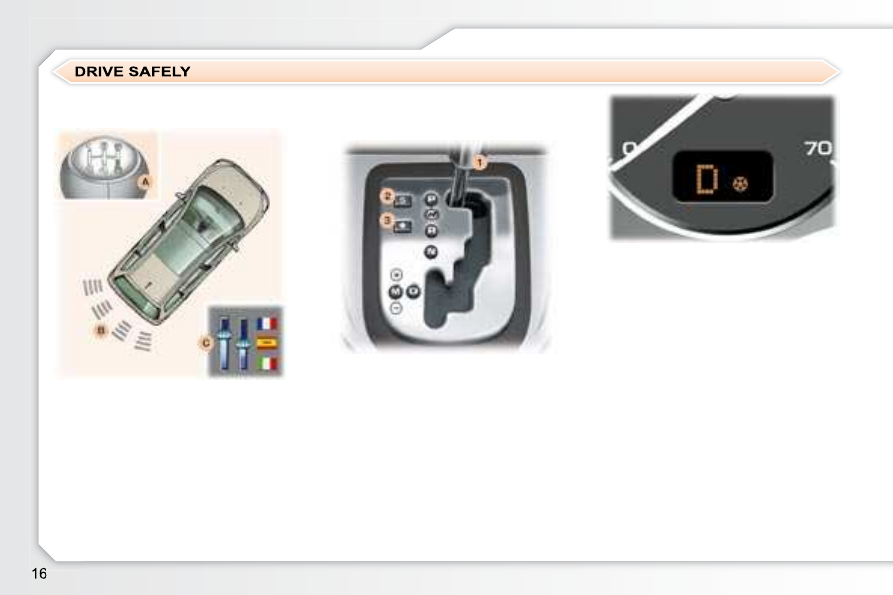

   1.   Gear lever.
  2.    "SPORT"  button.
  3.    "SNOW"  button.

Position selection gate
Move the lever in the gate to select

a position.

Once a position has been selected,

the corresponding indicator light is

displayed on the instrument panel

screen.

Switching on.

B. Detection.
C. Activation/Deactivation.

(via the multifunction display

coni guration menu).

 106

  Display on the instrument panel
  P:  Park.
  R:  Reverse.
  N:  Neutral.
  D:  Drive.
  M:  Manual mode.
  S:

Sport programme.

 :

Snow programme.

1 2 3 4 5 * 6 * : gears engaged.

* According to version.

Moving off
With the handbrake applied, select

position P or N .

Switch on the ignition.

With the engine running, in position

P  or  N ,  with your foot on the brake
pedal, release the handbrake.
Select position  R ,  D  or  M .

Gradually release the brake pedal;

the vehicle moves off immediately.

Visual and audible rear
parking assistance

"PORSCHE TIPTRONIC
SYSTEM" automatic gearbox

INSTRUMENTS, CONTROLS and DISPLAYS

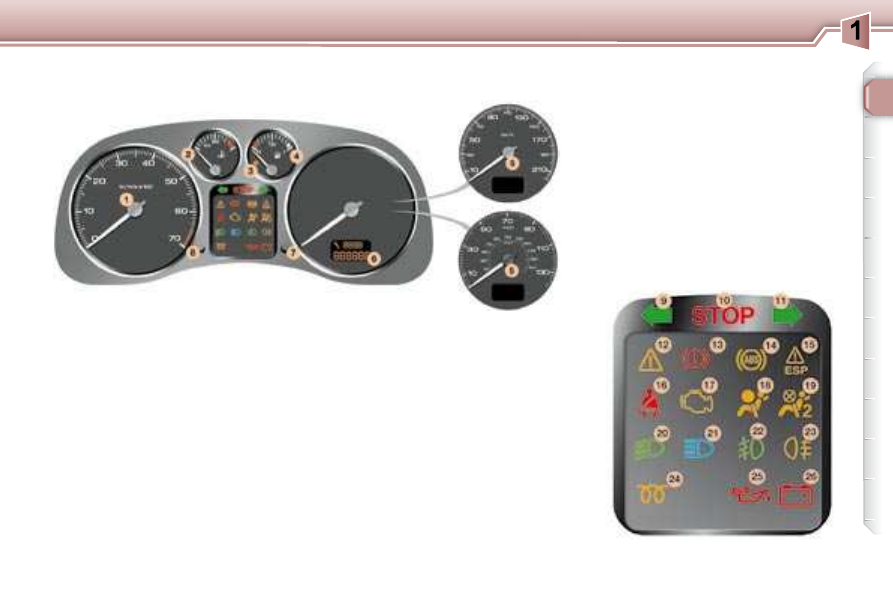

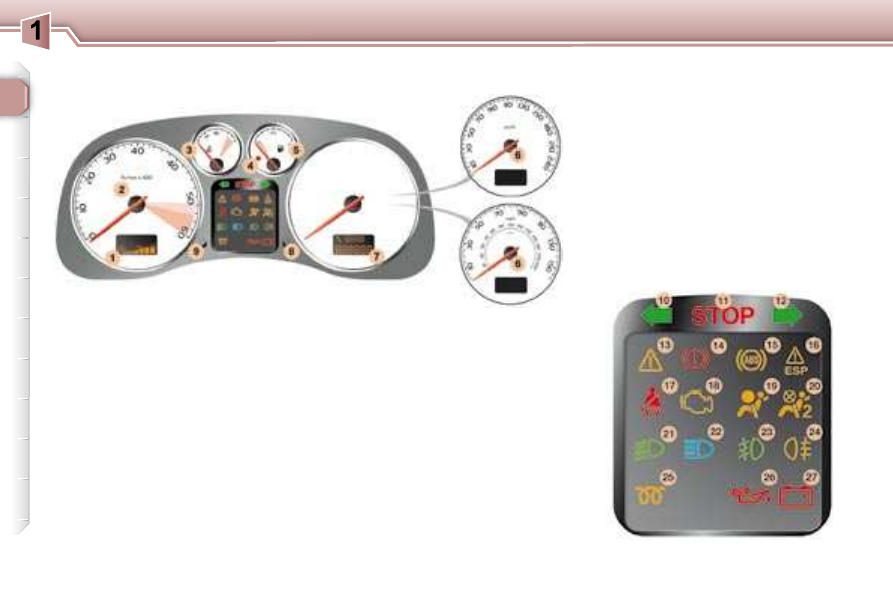

1. Rev counter.
2.

Coolant temperature indicator.

Low fuel level warning light.

4. Fuel gauge.
5.

Speedometer.

6. Service

indicator,

oil

level

indicator, distance recorder and

cruise control/speed limiter.

Trip recorder zero reset button.

8. Lighting rheostat button.

Left-hand direction indicator.

10.

Central STOP warning light.

11.

Right-hand direction indicator.

12.

Service warning light.

13.

Handbrake, brake l uid level and

electronic brake force distribution

warning light.

14.

Anti-lock braking system (ABS)

warning light.

15. Electronic stability control (ESP/

ASR) warning light.

16. Driver’s seat belt not fastened

warning light.

17.

Emission control system warning

light.

18.

Air bags warning light.

19. Passenger air bag disarmed

indicator light * .

20.

Dipped beam headlamps indicator

light.

21.

Main beam headlamps indicator

light.

22.

Front fog lamps indicator light.

23.

Rear fog lamp indicator light.

24.

Diesel engine preheating light.

25.

Engine oil pressure warning

light * .

26.

Battery charge warning light * .

PETROL/DIESEL INSTRUMENT PANELS: MANUAL GEARBOX

* According to country.

INSTRUMENTS, CONTROLS and DISPLAYS

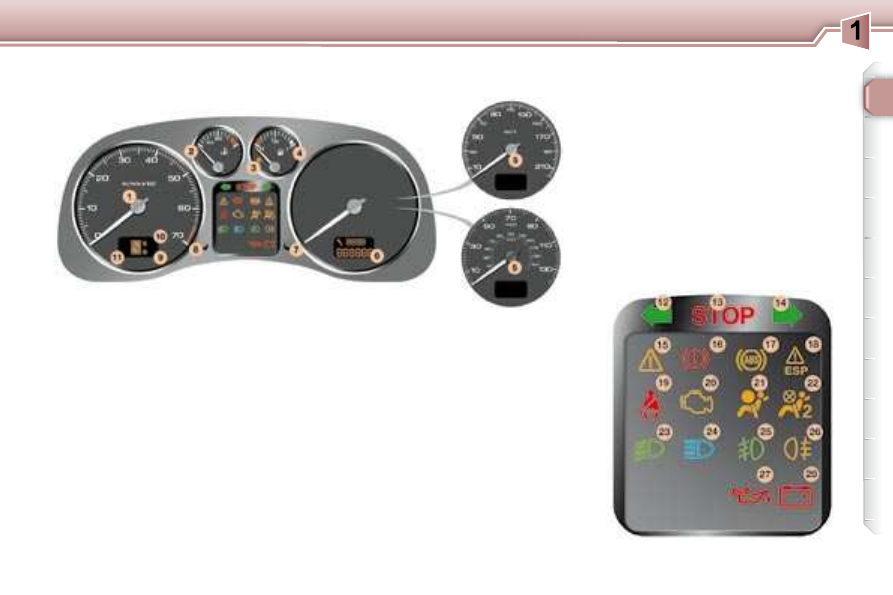

Engine oil temperature indicator.

2. Rev counter.
3.

Coolant temperature indicator.

Low fuel level warning light.

5. Fuel gauge.
6.

Speedometer.

7. Service

indicator,

oil

level

indicator, distance recorder and

cruise control/speed limiter.

Trip recorder zero reset button.

9. Lighting rheostat button.
10.

Left-hand direction indicator.

11.

Central STOP warning light.

12.

Right-hand direction indicator.

13.

Service warning light.

14.

Handbrake, brake l uid level and

electronic brake force distribution

warning light.

15.

Anti-lock braking system (ABS)

warning light.

16. Electronic stability control (ESP/

ASR) warning light.

17. Driver’s seat belt not fastened

warning light.

18.

Emission control system warning

light.

19.

Air bags warning light.

20. Passenger air bag disarmed

indicator light * .

21.

Dipped beam headlamps indicator

light.

22.

Main beam headlamps indicator

light.

23.

Front fog lamps indicator light.

24.

Rear fog lamp indicator light.

25.

Diesel engine pre-heat indicator

light.

26.

Engine oil pressure warning light * .

27.

Battery charge warning light * .

PETROL-DIESEL SPORT INSTRUMENT PANEL DIALS: MANUAL
GEARBOX

* According to country.

INSTRUMENTS, CONTROLS and DISPLAYS

1. Rev counter.
2.

Coolant temperature indicator.

Low fuel level warning light.

4. Fuel gauge.
5.

Speedometer.

6. Service

indicator,

oil

level

indicator, distance recorder and

cruise control/speed limiter.

Trip recorder zero reset button.

8. Lighting rheostat button.
9.

Snow programme indicator light.

10.

Sport programme indicator light.

11.

Gear lever position indicator.

12.

Left-hand direction indicator.

13.

Central STOP warning light.

14.

Right-hand direction indicator.

15.

Service warning light.

16.

Handbrake, brake l uid level and

electronic brake force distribution

warning light.

17.

Anti-lock braking system (ABS)

warning light.

18. Electronic stability control (ESP/

ASR) warning light.

19. Driver’s seat belt not fastened

warning light.

20.

Emission control system warning

light.

21.

Air bags warning light.

22. Passenger air bag disarmed

indicator light * .

23.

Dipped beam headlamps indicator

light.

24.

Main beam headlamps indicator

light.

25.

Front fog lamps indicator light.

26.

Rear fog lamp indicator light.

27.

Engine oil pressure warning light * .

28.

Battery charge warning light * .

PETROL INSTRUMENT PANEL DIALS: AUTOMATIC GEARBOX

* According to country.

Content .. 1 2 3 ..
