Peugeot 307 CC (2007.5). Instruction - part 1

FAMILIARISATION

Automatic switching on of the
lights

This equipment switches on the side

lights and dipped headlamps automati-

cally if a low level of light is detected or

following activation of te wipers.

 62

ASR and ESP systems

This equipment is linked to guarantee

the directional stability of the vehicle

within the limits of the laws of physics.

 73

Visual and audible rear parking
assistance

When reversing, this equipment warns

you of obstacles detected behind the
vehicle.

 89

Tyre under-inflation detection

This equipment monitors the pressure in

each tyre and warns you in the event of

a puncture or under-inl ation.

 71

FAMILIARISATION

Fuel tank

  From the outside
   1.   Unlocking of the doors and boot.
  2.

Opening of the tailgate.

Remote control key

A. Unfolding/Folding of the key.

Boot

Opening of the fuel i ller l ap.

Opening and hooking of the fuel

tank cap.

Capacity of the fuel tank: approxi-

mately 60 litres.

 60

Normal locking
(a single press) (i xed lighting

of the direction indicators).

Deadlocking of the vehicle
(two consecutive presses)

(i xed lighting of the direction

indicators).

Unlocking of the vehicle
(rapid l ashing of the direction

indicators).

 51

From the inside
1.

Key present in the ignition

switch and permanent locking

deactivated.

2. Unlocking using the interior

central control or the interior

door opening control.

 58

Partial opening of the boot.

FAMILIARISATION

Retractable roof

Preliminary conditions


Turn the ignition key to position M .



Be absolutely certain that:

the vehicle is not in "energy
economy mode" (refer to the

corresponding section),

- the battery voltage is sufi cient

(lighting of the indicator light on

the roof control button),

the roof fuse is in good condition

(refer to the corresponding

section),

- the electric windows are

initialised (refer to the

corresponding section),

- the exterior temperature is

higher than -20 °C.

It is advisable to operate the roof

with the engine running.

The roof may be operated at a

speed below 6 mph (10 km/h).

After washing the vehicle or

following rain, it is advisable to

wait until the roof has dried be-

fore opening it.

When operating the roof with

the engine off, if the "energy

economy mode" is activated

(message on the display) the

movement of the roof stops.

Start the engine to exit "energy

economy mode" and complete

the movement.

You are strongly advised not

to operate the roof in strong

winds.

When washing your vehicle:
-

do not forget to lock it to
avoid any risk of automatic

partial opening of the

windows,

- avoid spraying the upper

part of the windows,

- keep the end of the

high-pressure nozzle at

least 1 metre from the

windows and door seals.

Operation of the roof is the sole

responsibility of the driver.

When opening and closing the

roof, to avoid any risk of injury,

ensure that no one is in the vicin-

ity of the moving parts.

  Precautions to be taken before
operating the roof
      Park the vehicle on level ground.
  

Check that no object could

hinder the operation of the roof:

- nothing should be placed on

the moving rear shelf 1

, on the

boot screen 2 or on or near the
hinged covers 3

- if luggage is transported in the

boot, this must not raise the

boot screen,

- any object, such as a jacket or

umbrella, placed in the boot,

must be retained by the lugga-
ge retaining net 4 .

 Ensure that the boot screen 2 is

secured correctly.

 Close the boot correctly.

FAMILIARISATION

To guarantee correct operation, do

not release the roof button when

the roof is in an intermediate posi-

tion (neither completely open nor

completely closed).

However, if there is any danger,

release the roof button and the

manoeuvre will stop instantly.

Once the danger has been elim-

inated, complete the required

manoeuvre.

Maintenance
Carry out a complete roof

operating cycle at least once

a month to keep it in perfect

working order.

If you continue to pull or push

this button after the end of the

manoeuvre, the four windows

rise.

Change to "cabriolet"

coni guration

The four windows lower, the boot

opens, the hinged covers unfold, the

roof folds into the boot, the moving

rear shelf takes up its position, then

the boot closes.

Change to "coupé coni guration"

The four windows lower, the boot

opens, the moving rear shelf and the

roof unfold and take up their position,

the hinged covers fold, then the boot

closes.

Operating fault
If an electrical or hydraulic mal-

function of the roof occurs,

switch off the ignition, restart the

engine, then start the required

manoeuvre again.
If the problem persists, contact

a PEUGEOT dealer.

The electric window controls are

deactivated during operation of

the roof.

Opening the roof

 Pull this button until the

end of the roof opening

manoeuvre.

Closing the roof

 Push this button until

the end of the roof
closing manoeuvre.

Operating the retractable roof

This is coni rmed by an audible sig-

nal and a message on the multifunc-

tion display.

OPEN

This is coni rmed by an audible sig-

nal and a message on the multifunc-

tion display.

FAMILIARISATION

Dual-zone automatic air
conditioning

This equipment permits the setting of a

different comfort level for the driver and

front passenger. It then controls this level

automatically in relation to the exterior cli-
matic conditions.

 38

Automatic gearbox

This equipment guarantees perfect

driving by combining a fully automatic

mode, associated with two special

programmes, and a manual mode.

 80

Cruise control/speed limiter

These two functions allow you to control

the speed of the vehicle in relation to the

value that you have programmed.

 83, 85

Audio and communication
systems

This equipment benei ts from the lat-

est technology: MP3 compatible RD4

audio equipment, Bluetooth hands-free

kit, RT4 GPS audio/telephone, JBL

audio system.
RT4

 123

RD4

 152

FAMILIARISATION

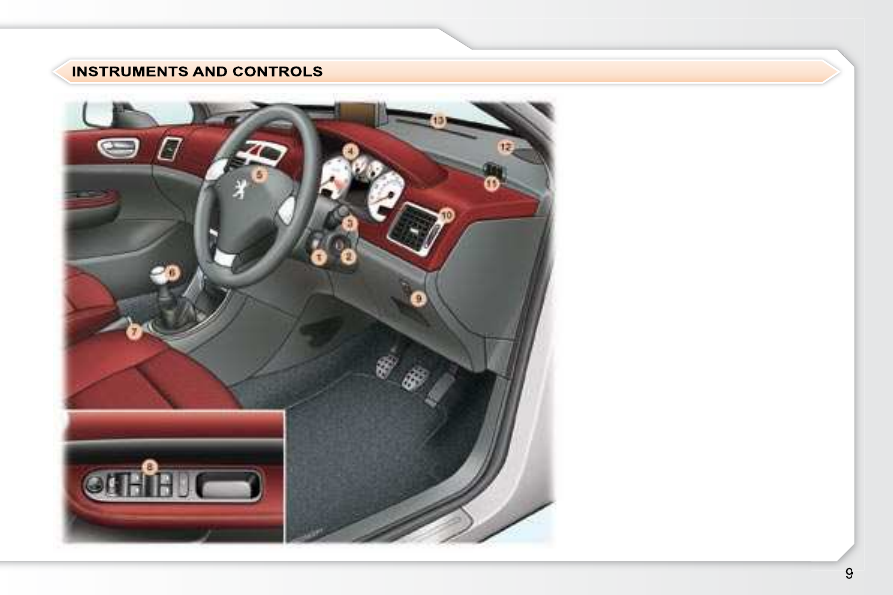

Steering wheel audio equipment

control.

2. Steering lock and ignition.
3.

Wipers/wash-wipe/trip computer

control.

Instrument panel.

5. Driver’s air bag.

Horn.

  6.   Gear lever.
  7.   Handbrake.
  8.   Electric mirror controls.

Electric window controls.

Rear electric windows

deactivation control.

Headlamp height adjustment.

10.

Side adjustable and closing vent.

11.

Door window de-icing vent.

12.

Speaker (tweeter).

13. Windscreen de-icing vents.

FAMILIARISATION

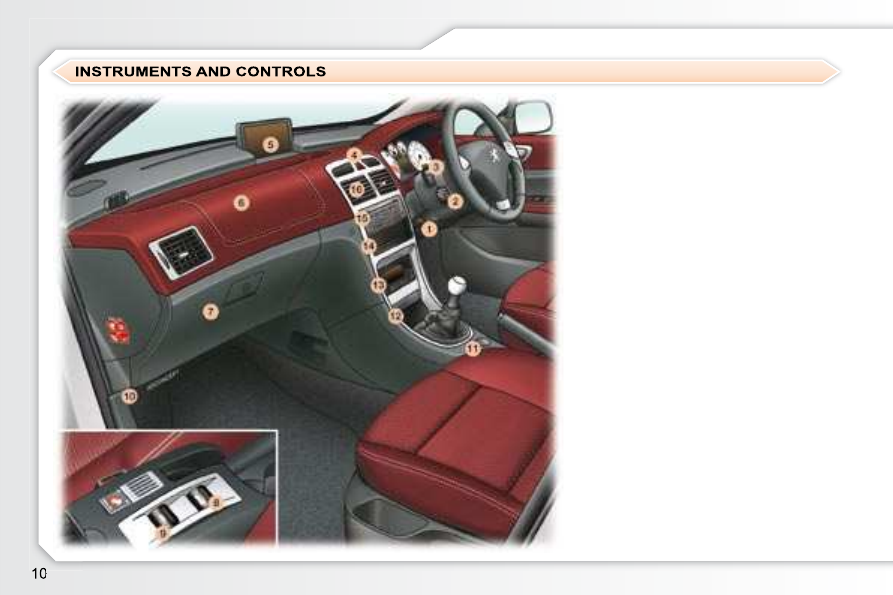

Steering wheel adjustments

control.

Cruise control/speed limiter

switch.

3. Lights and direction indicators

control.

4. Alarm button.

Central locking button.

Hazard warning lights button.

Dynamic stability control
(ESP/ASR) button.

Multifunction display.

6. Passenger air bag.
7. Glove box/Audio/video sockets/

Fuse box.

8. Retractable roof control.
9.

Control for the four windows.

  10.  Bonnet release.
  11.  12 volt socket.
  12.  Front ashtray.
  13.  Heating/Automatic air

conditioning controls.

14. CD changer.
15. Audio RD4 or RT4 GPS

audio/telephone.

16.

Central adjustable and closing

vents.

FAMILIARISATION

5. Head restraint height and angle

adjustment.

Never drive with the head re-

straints removed.

 43



When stationary, pull the control

to unlock the steering wheel.



Adjust the height and depth of

the steering wheel.



Lock by pushing the control A

fully.

 42

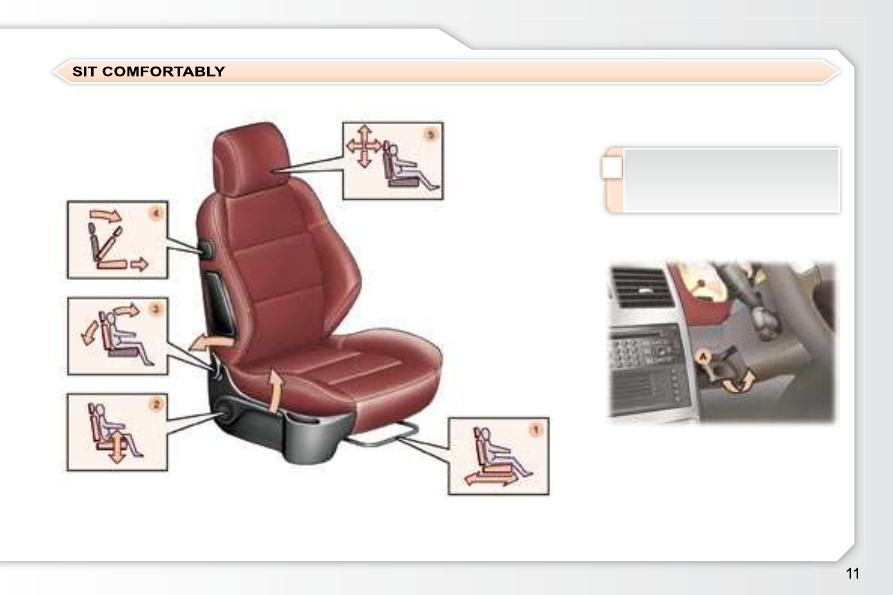

Front seat adjustment

Forwards-backwards adjustment.

Driver or passenger seat height

adjustment.

Seat back angle adjustment.

4. Access to rear seats.

Steering wheel adjustment

FAMILIARISATION

Interior mirror adjustment

Front seat belts

 Place the control A on the right

or on the left to select the mirror

to be adjusted.

 Move the control B in all four

directions to adjust.

 Return the control A to the

central position.

When parking, the mirrors can be

folded electrically, by pulling the con-

trol A

rearwards, or automatically on

locking the vehicle using the remote
control or the key.

 41

Selection of the "day" position of

the mirror.

2. Directing of the mirror.

 42

A. Fastening.

 74

Electric mirror adjustment

FAMILIARISATION

Control A: windscreen wipers
2

Fast wipe.

Normal wipe.

Intermittent wipe.

Park.

AUTO

Automatic wiping or single

wipe.

Wash-wipe: pull the control towards

you.

Ring A: front and rear lights

Lights off.
Automatic switching on of

the lights.

Side lights.

Front and rear fog lamps.

Dipped/main beam headlamps.

Ring B: fog lamps

 61

The position is displayed on the in-

strument panel by the corresponding

indicator light.

Wipers

  Switching on "AUTO" mode
Push the control down and release it.
  Switching off "AUTO" mode
Push  the  control  up  and  return  it  to

position "0" .
If the ignition has been off for more

than approximately one minute, the

automatic wiping must be reactivated.

 64

Lights

FAMILIARISATION

When the ignition is on, the

needle should indicate the level
of fuel remaining.

When the engine is running, the

associated low level warning

light should switch off.

When the ignition is on, the oil

level indicator should display

"OIL OK"

for a few seconds.

If the levels are not correct, top up as

necessary.

 18

When the ignition is on, the

orange and red warning lights

come on.

When the engine is running,

these warning lights should

switch off.

If warning lights remain on, refer to

the page concerned.

 20

If an indicator light is on, this indi-

cates the status of the corresponding

function.

A. Deactivation of the interior

protection alarm.

 54

B. Central locking.

 59

C. Deactivation of the ESP/ASR

system.

 73

Instrument panel

Warning lights

Controls bar

FAMILIARISATION

1. Insertion of the key.
2.

Selection of the position:

"OFF"

(disarming), with "rear

facing" child seat,

"ON"

(activation), with front

passenger or "forward facing"

child seat.

Removal of the key keeping the

switch in this position.

 77

When the ignition is on, the

warning light comes on if the

driver has not fastened his seat
belt.

When the engine is running with

the doors closed, the warning

light switches off automatically

after 30 seconds.

Below 12 mph (20 km/h),

the warning light comes on

continuously if the seat belt is
unfastened.

Above 12 mph (20 km/h),

the warning light l ashes for

2 minutes accompanied by an

audible signal of increasing
volume.

 74

Passenger’s front air bag

Front seat belt not fastened/
unfastened

1. Stop

position.

2. Ignition

position.

3. Starting

position.

 52

Ignition switch

FAMILIARISATION

Speed limiter "LIMIT"

Cruise control "CRUISE"

Display on the instrument panel

1. Cruise control mode Selection/

Off.

Programming of a speed/

Decreasing of the programmed

value.

Programming of a speed/

Increasing of the programmed

value.

4. Cruise control Off/Resume.
In order to be programmed or activat-

ed, the vehicle speed must be higher

than 25 mph (40 km/h), with at least

fourth gear engaged on the manual
gearbox (second for the automatic
gearbox).

 85, 87

Speed limiter mode Selection/

Off.

Decreasing of the programmed

value.

Increasing of the programmed

value.

Speed limiter On/Off.

The values must be set with the

engine running.

 83

Cruise control

Speed limiter

The cruise control or speed limiter

mode appears on the instrument

panel when it is selected.

FAMILIARISATION

   1.   Gear lever.
  2.    "SPORT"  button.
  3.    "SNOW"  button.

Position selection gate
Move the lever in the gate to select

a position.

Once a position has been selected,

the corresponding indicator light is

displayed on the instrument panel

screen.

Switching on.

B. Detection.
C. Activation/Deactivation.

(via the multifunction display

coni guration menu).

 89

  Display on the instrument panel
  P:  Park.
  R:  Reverse.
  N:  Neutral.
  D:  Drive.
  M:  Manual mode.
  S:

Sport programme.

 :

Snow programme.

1 2 3 4: gears engaged.

Moving off
With the handbrake applied, select

position P or N .

Switch on the ignition.

With the engine running, in position

P or N

, with your foot on the brake

pedal, release the handbrake.
Select position R , D or M .

Gradually release the brake pedal;

the vehicle moves off immediately.

Visual and audible rear
parking assistance

"PORSCHE TIPTRONIC
SYSTEM" automatic gearbox

 80

INSTRUMENTS and CONTROLS

Engine oil temperature indicator.

2. Rev counter.

Coolant temperature indicator.

Low fuel level warning light.

5. Fuel gauge.

Speedometer.

Service indicator, oil level

indicator, distance recorder and

cruise control/speed limiter.

Trip recorder zero reset button.

9. Lighting rheostat button.

10. Left-hand direction indicator.

11.

Central STOP warning light.

12. Right-hand direction indicator.

13.

Service warning light.

14.

Handbrake, brake l uid level and

electronic brake force distribution
warning light.

15. Anti-lock braking system (ABS)

warning light.

16. Electronic stability control

(ESP/ASR) warning light.

17. Driver’s seat belt not fastened

warning light.

18.

Emission control system warning

light.

19.

Air bags and rear, protective

pop-up roll-over hoops warning light.

20. Passenger air bag disarmed

indicator light * .

21.

Dipped beam headlamps

indicator light.

22.

Main beam headlamps indicator

light.

23.

Front fog lamps indicator light.

24.

Rear fog lamp indicator light.

25.

Diesel engine pre-heat warning

light.

26.

Engine oil pressure warning

light * .

27.

Battery charge warning light * .

PETROL-DIESEL INSTRUMENT PANEL DIALS: MANUAL
GEARBOX

* According to country.

INSTRUMENTS and CONTROLS

Engine oil temperature indicator.

Sport programme indicator light.

Gear lever position indicator.

Snow programme indicator light.

5. Rev counter.

Coolant temperature indicator.

Low fuel level warning light.

8. Fuel gauge.

Speedometer.

10.

Service indicator, oil level

indicator, distance recorder and

cruise control/speed limiter.

11.

Trip recorder zero reset button.

12. Lighting rheostat button.

13. Left-hand direction indicator.

14.

Central STOP warning light.

15. Right-hand direction indicator.

16.

Service warning light.

17.

Handbrake, brake l uid level and

electronic brake force distribution

warning light.

18. Anti-lock braking system (ABS)

warning light.

19. Electronic stability control

(ESP/ASR) warning light.

20. Driver’s seat belt not fastened

warning light.

21.

Emission control system warning

light.

22.

Air bags and rear, protective

pop-up roll-over hoops warning light.

23. Passenger air bag disarmed

indicator light * .

24.

Dipped beam headlamps

indicator light.

25.

Main beam headlamps indicator

light.

26.

Front fog lamps indicator light.

27.

Rear fog lamp indicator light.

28.

Engine oil pressure warning light * .

29.

Battery charge warning light * .

* According to country.

Content .. 1 2 3 ..
