TECHNICAL DATA

PETROLAND DIESEL ENGINES

7ALFYE

7CWJY

7ALFYT

7AWJY

MODELS:

7BLFYE

7CRFV

7SWJY

7CRHY

Model codes

7BLFYT

7ARFV

7BWJY

7ARHY

7ELFYE

7BRFV

7EWJY

7BRHY

7ELFYT

7ERFV

7TWJY

7ERHY

ENGINES

1,8 litre 16V

2 litres 16 V

Diesel

DieselTurbo

1,9 litre

2 litres HDI

Capacity (cm3)

1761

1998

1868

1997

Bore x stroke

83 x 81,4

86 x 86

82,2 x 88

85 x 88

Number of valves

Max. power:

EU standard (KW)

97,4

at engine speed (r.p.m)

5500

4600

4000

Max. torque:

EU standard (Nm) at r.p.m

155 at 4250

180 at 4200

125 at 2500

205 at 1900

Fuel

Unleaded

Diesel

Catalytic converter

oui

GEARBOX

Manual

Automatic

Manual

(5-speed)

(4-speed)

(5-speed)

CAPACITIES (in litres)

Engines (with filter replacement)

4,25(1)

4,5(1)

4,25

4,75(2)

Gearbox - Final drive

1,9

(1) With air conditioning.

(2) Without air conditioning.

113

TECHNICAL DATA

PETROLAND DIESEL ENGINES

7ALFYE

7CWJY

7ALFYT

7AWJY

MODELS:

7BLFYE

7CRFV

7SWJY

7CRHY

Model codes

7BLFYT

7ARFV

7BWJY

7ARHY

7ELFYE

7BRFV

7EWJY

7BRHY

7ELFYT

7ERFV

7TWJY

7ERHY

ENGINES

1,8 litre 16V

2 litres 16 V

Diesel

DieselTurbo

1,9 litre

2 litres HDI

Capacity (cm3)

1761

1998

1868

1997

Bore x stroke

83 x 81,4

86 x 86

82,2 x 88

85 x 88

Number of valves

Max. power:

EU standard (KW)

97,4

at engine speed (r.p.m)

5500

4600

4000

Max. torque:

EU standard (Nm) at r.p.m

155 at 4250

180 at 4200

125 at 2500

205 at 1900

Fuel

Unleaded

Diesel

Catalytic converter

oui

GEARBOX

Manual

Automatic

Manual

(5-speed)

(4-speed)

(5-speed)

CAPACITIES (in litres)

Engines (with filter replacement)

4,25(1)

4,5(1)

4,25

4,75(2)

Gearbox - Final drive

1,9

(1) With air conditioning.

(2) Without air conditioning.

114

TECHNICAL DATA

PETROL ENGINE FUEL CONSUMPTION

Consumption

In accordance with directive 93/116

(litres/100km)

Engines

Gearbox

Model

Urban

Inter-urban

Mixed

Emission

codes

driving

of CO

2 by mass

7CKFW

7AKFW

1,4 litre

Manual

7SKFW

8,6

5,5

6,6

156 g/km

7BKFW

7EKFW

7CNFT

7ANFT

1,6 litre

Manual

9,1

5,6

6,9

165 g/km

7BNFT

7ENFT

7CNFT

7ANFT

1,6 litre

Automatic

5,9

7,8

185 g/km

7BNFT

7ENFT

7CLFYT

7ALFYT

11,6

6,1

8,1

193 g/km

7BLFYT

1,8 litre 16 V

Manual

7ELFYT

11,7

6,2

8,2

196 g/km

7CLFYE

7ALFYE

6,3

8,3

198 g/km

7BLFYE

7ELFYE

12,1

6,4

8,4

198 g/km

7CRFV

7ARFV

2 litres 16 V

Manual

12,8

7,0

9,1

219 g/km

7BRFV

7ERFV

7CRFVW

7ARFVW

2 litres 16 V

Automatic

13,7

6,5

9,2

221 g/km

7BRFVW

7ERFVW

115

TECHNICAL DATA

CONSUMPTION FOR DIESEL

Consumption

According to directive 93/116 (litres/100 km)

Engine

Gearbox

Model

Urban

Inter-urban

Mixed

Emission of C0

codes

roads

by mass

7CWJY

7AWJY

7BWJY

Diesel 1,9 litre

Manual

8,3

6,3

166 g/km

7EWJY

7SWJY

7TWJY

7CRHY

Diesel turbo

7ARHY

4,4

5,3

143 g/km

Manual

2 litres HDI

7BRHY

7ERHY

The fuel consumption values given are correct at the time of going to press.

116

TECHNICAL DATA

TOWING WEIGHTS AND LOADS (IN KG)

3 DOOR

Engines

1.4 litre

1.6 litre

1.8 litre

l 16 V

1.9 l D

2 l HDI

Gearbox

Manual

Auto.

Manual

Auto.

Manual

Model codes : 7C…

KFW

NFT

LFY/L6A

RFV

WJY

RHY

• Kerb weight

1 013

1 071

1 108

1 096

1 160

1 208

1 100

1 142

• Gross vehicle weight (GVW)

1 460

1 535

1 550

1 560

1 625

1 650

1 530

1 585

• Gross Train weight (GTW)*

2 360

2 435

2 450

2 560

2 625

2 650

2 480

2 585

• Unbraked trailer

540

570

575

580

610

630

570

600

• Braked trailer (within GTW)

1 200

5 DOOR

Engines

1.4 litre

1.6 litre

1.8 litre

1.8 l 16 V 2

l 16 V

1.9 l D

2 l HDI

Gearbox

Manual

Auto.

Manual

Auto.

Manual

Model codes : 7A…

KFW

NFT

LFY/L6A

FYE/FYT

RFV

WJY

RHY

• Kerb weight

1 043

1 106

1 125

1 116

1 194

1 242

1 118

1 213

• Gross vehicle weight (GVW)

1 480

1 580

1 600

1 670

1 640

1 650

1 580

1 630

• Gross Train weight (GTW)*

2 380

2 480

2 500

2 600

2 670

2 640

2 650

2 530

2 630

• Unbraked trailer

550

580

585

590

625

620

640

580

610

• Braked trailer (within GTW)

1 200

3 DOOR VAN 7S...

5 DOOR VAN 7T...

Engines

1.4 litre

1.9 l D

1.8 l 16 V

1.9 l D

Gearbox

Manual

Model codes : 7S… / 7T…

KFW

WJY

FYE/FYT

WJZ

• Kerb weight

1 013

1 100

1 096

1 118

• Gross vehicle weight (GVW)

1 460

1 530

1 670

1 580

• Gross Train weight (GTW)*

2 360

2 480

2 670

2 530

• Unbraked trailer

—

• Braked trailer (within GTW)

1 200

* The speed of a towing vehicle is limited to 60 mph (100 Km/h).

117

TECHNICAL DATA

TOWING WEIGHTS AND LOADS (IN KG)

4 DOOR

Engines

1.4 litre

1.6 litre

1.8 litre

1.8 l 16 V

l 16 V

1.9 l D

l HDI

Gearbox

Manual

Auto.

Manual

Auto.

Manual

Model codes : 7B…

KFW

NFT

LFY/L6A

FYE/FYT

RFV

WJY

RHY

• Kerb weight

1 042

1 117

1 180

1 162

1 198

1 225

1 227

1 225

• Gross vehicle weight (GVW)

1 515

1 575

1 610

1 615

1 695

1 635

1 660

1 590

1 635

• Gross Train weight (GTW)*

2 415

2 475

2 510

2 615

2 695

2 635

2 660

2 540

2 635

• Unbraked trailer

555

585

605

600

640

630

650

590

620

• Braked trailer (within GTW)

1 200

ESTATE

Engines

1.4 litre

1.6 litre

1.8 litre

1.8 l 16 V

l 16 V

1.9 l D

2 l HDI

Gearbox

Manual

Auto.

Manual

Auto.

Manual

Model codes : 7B…

KFW

NFT

LFY/L6A

FYE/FYT

RFV

WJY

RHY

• Kerb weight

1 088

1 150

1 165

1 185

1 195

1 225

1 172

1 260

• Gross vehicle weight (GVW)

1 550

1 605

1 635

1 645

1 725

1 665

1 675

1 625

1 655

• Gross Train weight (GTW)*

2 450

2 505

2 535

2 645

2 725

2 665

2 675

2 575

2 655

• Unbraked trailer

570

590

620

630

675

640

650

600

635

• Braked trailer (within GTW)

1 000

* The speed of a towing vehicle is limited to 60 mph (100 Km/h).

118

TECHNICAL DATA

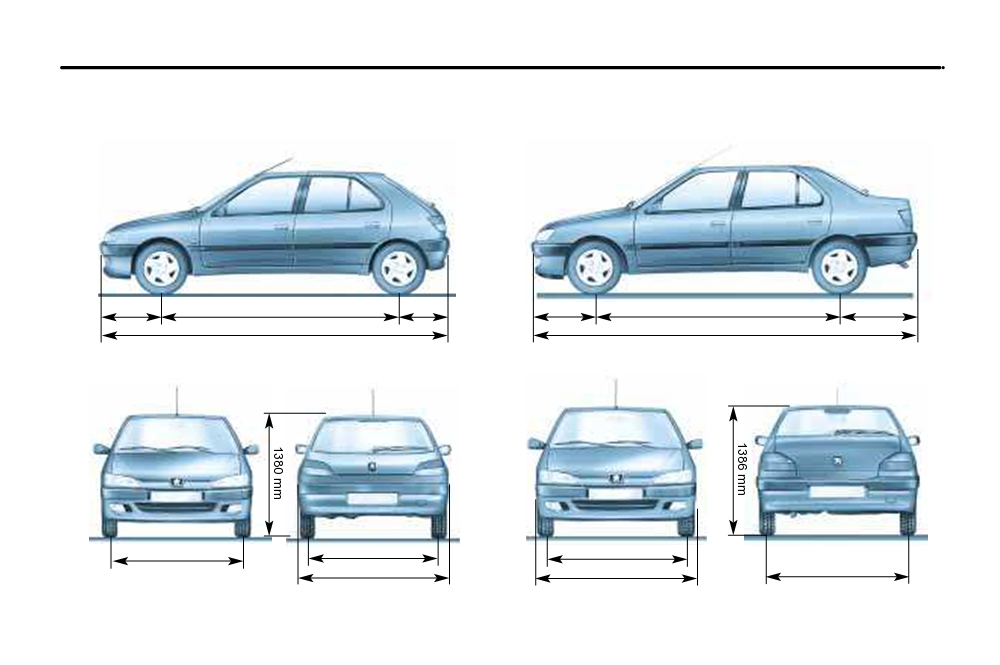

Dimensions 3 or 5 door

Dimensions 4 door

815 mm

2580 mm

635 mm

815 mm

2580 mm

872 mm

4030 mm

4267 mm

1462 - 1465 mm

1431 - 1435 mm

1454 - 1462 mm

1680 mm

1433 - 1439 mm

119

TECHNICAL DATA

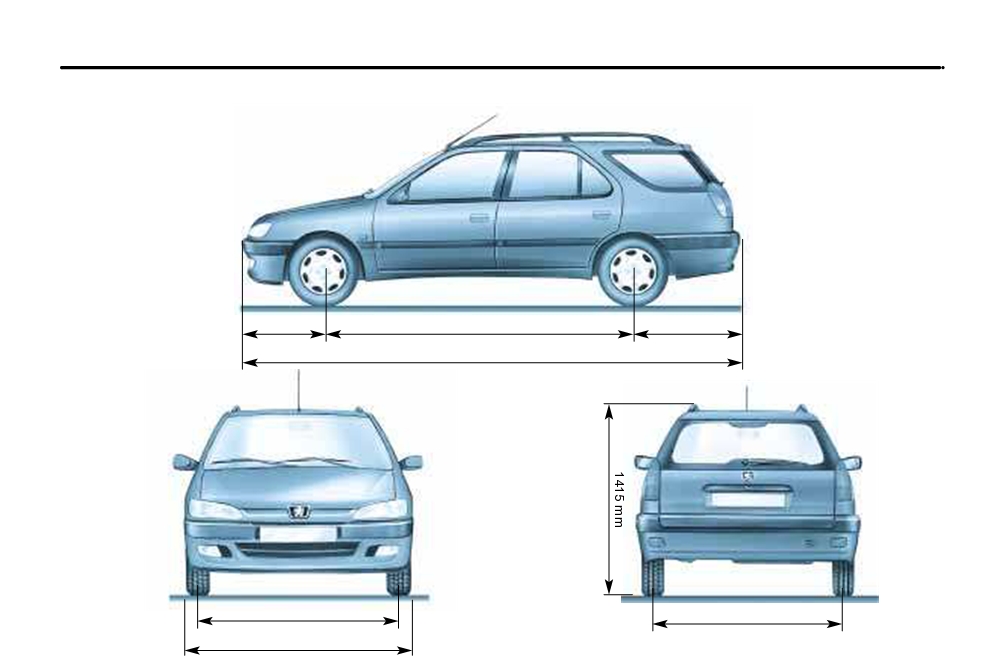

Dimensions estate

815 mm

2580 mm

943 mm

4338 mm

1423 - 1433 mm

1424 - 1432 mm

1680 mm

120

TECHNICAL DATA

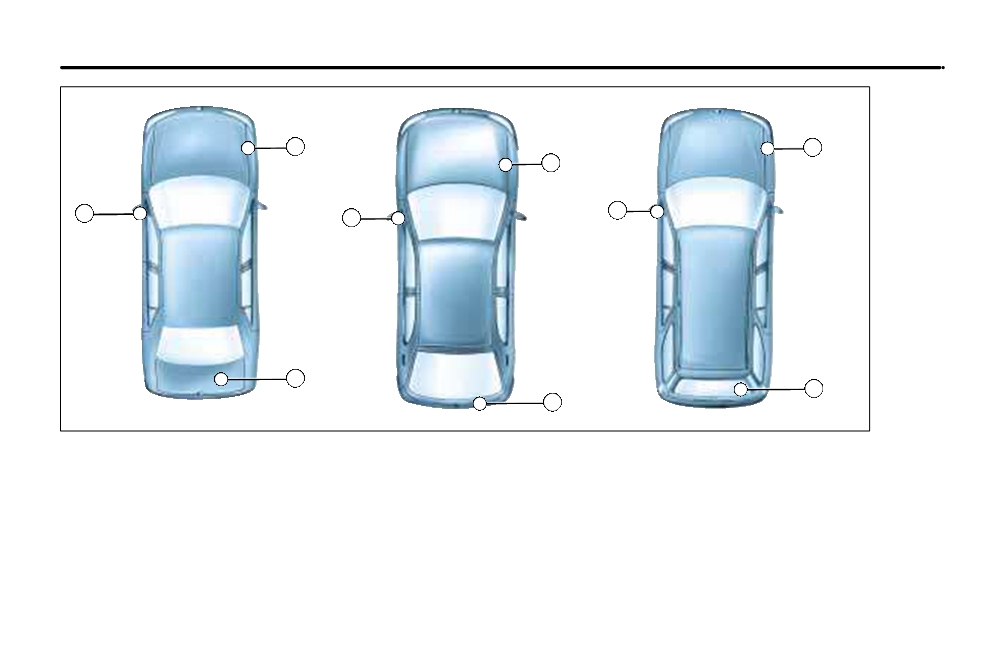

IDENTIFYING FEATURES OF YOUR 306

A. Manufacturer’s plate.

B. Model serial number.

C. Tyre pressures and paint colour code.

The label C affixed to the centre pillar of the driver’s side door indicates:

- the wheel and tyre sizes,

- the brands of tyres approved by the manufacturer,

- inflation pressures (the inflation pressure check must be carried out cold, at least once a month).

- the paint colour code.
