Peugeot 207 CC (2014 year). Instruction - part 5

COMFORT

207CC_EN_CHAP02_CONFORT_ED01-2014

 Engage the shafts of the windstop

frame in the openings in the rear

side trim.

When installing the windstop for the ﬁ rst

time:

 position a 10 mm open-ended span-

ner on the hexagonal part of the

shaft,

 tighten or slacken without forcing on

each side to adjust the depth set-

ting.

 Lastly, always check that the wind-

stop is retained securely before us-

ing it in the "cabriolet" conﬁ guration.

Removal

 Press and pull on the shaft supports

to release the shafts from the open-

ings in the rear side trim.

It is not necessary to remove the

windstop when changing to the

"coupé" conﬁ guration.

COMFORT

207CC_EN_CHAP02_CONFORT_ED01-2014

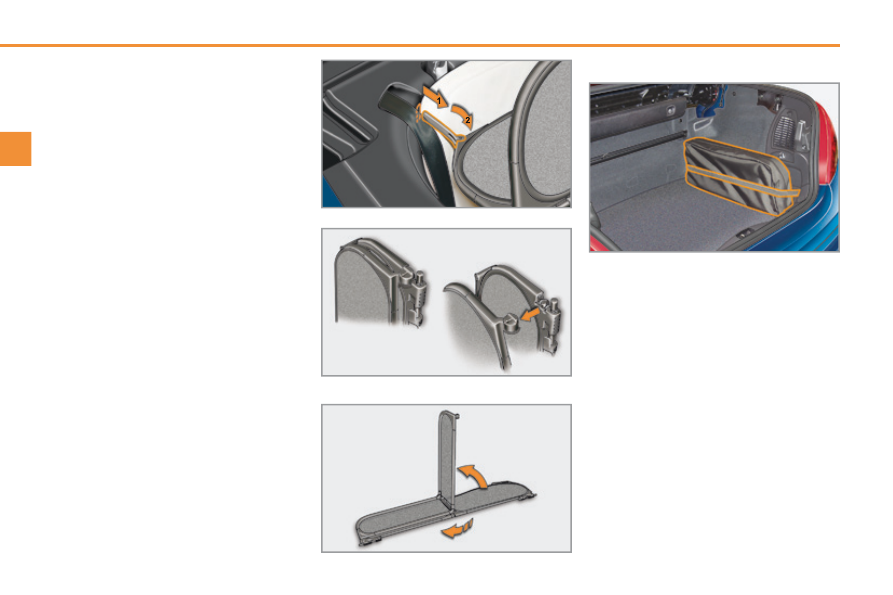

 Pull the windstop forwards to release

the guides from the points located

behind the rear seat belts.

 Fold the windstop frame guides.



Fold the windstop closing the

two large parts on themselves.

 Unclip each end individually.

 Fold each of the two parts on them-

selves.

Storing

 Store the windstop folded in its pro-

tective case.

 Use the strap intended to secure the

case on the right-hand side of the

boot (refer to the "Boot ﬁ ttings" sec-

tion).

ACCESS

207CC_EN_CHAP03_OUVERTURES_ED01-2014

Deadlocking renders the exterior

and interior door controls inopera-

tive.

It also deactivates the manual cen-

tralised control button.

Therefore, do not leave anyone

inside the vehicle when it is dead-

locked.

If one of the doors or the boot is still

open, the central locking does not

take place.

REMOTE CONTROL KEY

System which permits central unlocking

or locking of the vehicle using the lock

or remotely. It also locates and starts

the vehicle, as well as providing protec-

tion against theft.

Unfolding the key

 First press button

A to unfold the

key.

Unlocking the vehicle

Unlocking is conﬁ rmed by rapid ﬂ ashing

of the direction indicators for approxi-

mately two seconds.

According to version, the door mirrors

unfold at the same time.

After unlocking the vehicle, if a

door or the boot is not opened

within around thirty seconds, the

vehicle locks itself again; the alarm

is not set.

Deadlocking using the remote

control

 Press the closed padlock to lock the

vehicle.



Press the closed padlock again

within ﬁ ve seconds to deadlock the

vehicle.

 Press the open padlock to

unlock the vehicle.

Unlocking using the key

 Turn the key to the left in the driver's

door lock to unlock the vehicle.

 Press the closed padlock

to lock the vehicle.

Normal locking using the key



Turn the key to the right in the

driver's door lock to lock the vehicle.

Locking is conﬁ rmed by ﬁ xed lighting of

the direction indicators for approximate-

ly two seconds.

According to version, the door mirrors

fold at the same time.

Unlocking using the remote

control

Deadlocking using the key

 Turn the key to the right in the driver's

door lock to lock the vehicle.

 Turn the key to the right again within

ﬁ ve seconds to deadlock the vehicle.

Deadlocking is conﬁ rmed by ﬁ xed

lighting of the direction indicators for

approximately two seconds.

According to version, the door mirrors

fold at the same time.

Normal locking using the remote

control

Locking the vehicle

ACCESS

207CC_EN_CHAP03_OUVERTURES_ED01-2014

The vehicle will lock itself again

automatically after thirty seconds

unless a door is opened. This

system prevents unintentional un-

locking.

Please note that in this case, the

alarm will not be set.

The folding and unfolding of the

door mirrors can be deactivated by

a PEUGEOT dealer.

Folding the key

 First press button

A to fold the key.

Locating your vehicle

 Press the closed padlock to locate

your locked vehicle in a car park.

This is indicated by lighting of the cour-

tesy lamp and ﬂ ashing of the direction

indicators for a few seconds.

Electronic engine immobiliser

The key contains an electronic chip

which has a special code. When the

ignition is switched on, this code must

be recognised in order for starting to be

possible.

This electronic engine immobiliser locks

the engine management system a few

minutes after the ignition is switched off

and prevents starting of the engine by

anyone who does not have the key.

Anti-theft protection

In the event of a fault, you are

informed by illumination of this

warning lamp, an audible signal

and a message in the screen.

In this case, your vehicle will not start;

contact a PEUGEOT dealer as soon as

possible.



Press the boot unlocking

button on the remote control

for more than 2 seconds.

The boot opens slightly.

Unlocking and partially opening

the boot

Keep safely, away from your vehicle,

the label attached to the keys given to

you on acquisition of the vehicle.

ACCESS

207CC_EN_CHAP03_OUVERTURES_ED01-2014

Starting the vehicle

 Insert the key in the ignition switch.

The system recognises the starting

code.

 Turn the key fully towards the dash-

board to position

3 (Starting) .

 When the engine starts, release the

key.

Switching the vehicle off

 Immobilise the vehicle.

 Turn the key fully towards you to po-

sition

1 (Stop) .

 Remove the key from the ignition

switch.

Remote control problem

Following disconnection of the vehicle

battery, replacement of the remote con-

trol battery or in the event of a remote

control malfunction, you can no longer

unlock, lock or locate your vehicle.

 First of all, use the key in the lock to

unlock or lock your vehicle.

 Then, reinitialise the remote control.

If the problem persists, contact a

PEUGEOT dealer as soon as possible.

Changing the battery

Battery ref.: CR1620/3 volts.

Reinitialisation

 Switch off the ignition.

 Turn the key to position

2 (Ignition on) .

 Press the closed padlock immedi-

ately for a few seconds.

 Switch off the ignition and remove

the key from the ignition switch.

The remote control is fully operational

again.

If the battery is ﬂ at, you are in-

formed by illumination of this

warning lamp, an audible signal

and a message in the multi-

function screen.

 Unclip the casing using a coin at the

notch.

 Slide the ﬂ at battery out of its location.

 Slide the new battery into its loca-

tion observing the original direction.

 Clip the casing.

 Reinitialise the remote control.

Key in ignition
If the key has been left in the igni-

tion, an audible signal is heard on

opening the driver's door.

Switching off the engine leads to a

loss of braking assistance.

ACCESS

207CC_EN_CHAP03_OUVERTURES_ED01-2014

Lost keys

Go to a PEUGEOT dealer with the vehicle's registration document, your per-

sonal identiﬁ cation documents and if possible the key code label.

The PEUGEOT dealer will be able to look up the key code and the transpon-

der code required to order a new key.

Do not throw the remote control bat-

teries away, they contain metals

which are harmful to the environment.

Take them to an approved collection

point.

Remote control

The high frequency remote control is a sensitive system; do not operate it while it is in your

pocket as there is a possibility that it may unlock the vehicle, without you being aware of it.

Do not repeatedly press the buttons of your remote control out of range and out of sight

of your vehicle. You run the risk of stopping it from working and the remote control would

have to be reinitialised.

No remote control can operate when the key is in the ignition switch, even when the igni-

tion is switched off, except for reinitialisation.

Locking the vehicle

Driving with the doors locked may make access to the passenger compart-

ment by the emergency services more difﬁ cult in an emergency.

As a safety precaution, never leave children alone in the vehicle, except for a

very short period.

In all cases, it is essential to remove the key from the ignition switch when

leaving the vehicle.

Anti-theft protection

Do not make any modiﬁ cations to the electronic engine immobiliser system;

this could cause malfunctions.

When purchasing a second-hand vehicle

Have the pairing of all of the keys in your possession checked by a PEUGEOT

dealer, to ensure that only your keys can be used to open and start the vehicle.

ACCESS

207CC_EN_CHAP03_OUVERTURES_ED01-2014

ALARM

System which protects and dissuades

against the theft of your vehicle. It pro-

vides two types of protection, exterior

and interior, as well as an anti-tamper

function.

Locking the vehicle with

full alarm

Do not make any modiﬁ cations to

the alarm system, this could cause

malfunctions.

In order to be taken into account,

this deactivation must be car-

ried out each time the ignition is

switched off.

In the "cabriolet" conﬁ guration, the

interior protection is deactivated

automatically.

Locking the vehicle with

perimiter protection only

Activation

 Switch off the ignition and get out of

the vehicle.

 Lock or deadlock the vehicle using

the locking button on the remote

control.

The alarm is activate; the indicator lamp

on button

A ﬂ ashes once per second.

The perimiter protection is activated

5 seconds after pressing the locking

button on the remote control.

The volumetric protection is activated

45 seconds after pressing the locking

button on the remote control.

If a door or the boot is open or not

properly closed, the vehicle is not

locked, but the perimiter protection will

be activated after 45 seconds at the

same time as the volumetric protection.

Exterior perimeter protection

The system detects opening of the vehicle.

The alarm is triggered if anyone tries to

enter the vehicle by forcing a door, the

boot or the bonnet.

Interior volumetric protection

The system detects any variation in the

volume in the passenger compartment.

The alarm is triggered if anyone breaks

a window or moves inside the vehicle.

If you wish to leave a pet in the vehicle

or a window partially open, deactivate

the interior protection.

Anti-tamper function

The system detects the putting out of

service of its components.

The alarm is triggered if anyone tries

to put the wires of the siren, the central

control or the battery out of service.

Deactivation

 Unlock the vehicle using the unlock-

ing button on the remote control.

The alarm is deactivated; the indicator

lamp on button

A switches off.

Deactivation of the interior

volumetric protection

 Switch off the ignition.

 Within ten seconds, press button

A un-

til the indicator lamp is lit continuously.

 Get out of the vehicle.

 Quickly lock or deadlock the vehicle

using the locking button on the re-

mote control.

The exterior perimeter protection alone

remains activated; the indicator lamp on

button

A ﬂ ashes once per second.

ACCESS

207CC_EN_CHAP03_OUVERTURES_ED01-2014

Triggering of the alarm

This is indicated by sounding of the si-

ren and ﬂ ashing of the direction indica-

tors for approximately thirty seconds.

After it has been triggered, protection is

again operational.

If the alarm is triggered ten times in

succession, the eleventh time will

result in it becoming inactive.

If the indicator lamp on button

ﬂ ashes rapidly, this indicates that

the alarm was triggered during

your absence. When the ignition is

switched on, this ﬂ ashing stops im-

mediately.

To avoid triggering the alarm when

washing your vehicle, lock it using

the key in the driver's door lock.

Failure of the remote control

 Unlock the vehicle using the key in

the driver's door lock.

 Open the door; the alarm is triggered.

 Switch on the ignition; the alarm stops.

* According to country.

Malfunction

When the ignition is switched on, light-

ing of the indicator lamp on button

A for

ten seconds indicates a siren fault.

Have it checked by a PEUGEOT dealer

or a qualiﬁ ed workshop.

Locking the vehicle without

activating the alarm

 Lock or deadlock the vehicle using

the key in the driver's door lock.

Automatic operation *

Depending on the legislation in force in

your country, one of these cases may

occur:

- 45 seconds after the vehicle is locked

using the remote control, the alarm is

activated, regardless of the status of

the doors and boot.

- 2 minutes after the last door or the

boot is closed, the alarm is activated.



To avoid triggering the alarm on

entering the vehicle, ﬁ rst press the

unlocking button on the remote

control.

Reactivation of the interior

protection

 Unlock the vehicle using the unlock-

ing button on the remote control.

 Lock the vehicle again using the re-

mote control.

The alarm is activate again with both

types of protection; the indicator lamp

on button

A ﬂ ashes once per second.

ACCESS

207CC_EN_CHAP03_OUVERTURES_ED01-2014

WINDOW CONTROLS

System which opens or closes a window

manually or automatically. It is ﬁ tted with

a system which controls all four windows

on all models.

1. Driver's electric windows switch.

2. Passenger's electric windows

switch.

Each window switch controls, on its

own side, the front window and the rear

quarter light.

One-touch electric windows

You have two options:

The windows (except the driver's

window) do not have an automatic

mode or safety anti-pinch function

for closing.

For your safety, the windows rise

in several stages; however, always

be vigilant.

The window control switches remain

operational for approximately 45 sec-

onds after the ignition is switched off

or until a door is opened.

 Press or pull switch

1 . The

window stops as soon as

the switch is released.

Electric windows

manual mode

 Press or pull switch

1 gently. The

window stops as soon as the switch

is released.

The rear quarter light only opens once

the front window has opened completely.

automatic mode



Press switch

fully. The window

opens or closes completely when

the switch is released.

 Pressing the switch again stops the

movement of the window.

 If you continue to press the switch,

the rear quarter light will open or

close.

The rear quarter light only opens once

the front window has opened completely.

ACCESS

207CC_EN_CHAP03_OUVERTURES_ED01-2014

Switch for all four windows

This switch opens or closes all of the

windows.

Reinitialisation

Following reconnection of the battery or

in the event of a malfunction you must

reinitialise the operation of the electric

windows:

 release the switch and pull it again

until it closes completely,



hold the switch for approximately

one second after closing,

 press the switch to lower the win-

dow automatically,

 when the window has reached the

low position, press the switch again

for approximately one second.

Always remove the key from the

ignition when leaving the vehicle,

even for a short time.

In the event of contact during op-

eration of the windows, you must

reverse the movement of the win-

dow. To do this, press the switch

concerned.

When the driver operates the pas-

senger electric window switches,

they must ensure that no one is

preventing correct closing of the

windows.

The driver must ensure that the

passengers use the electric win-

dows correctly.

Be particularly aware of children

when operating the windows.

 Press switch

3 and release it. The

windows open completely.

 Pressing the switch again stops the

movement of the windows.

 Pull switch

3 and hold it in this posi-

tion. The windows close completely.

 If you release the switch before the

windows have closed completely,

the windows stop.

This switch is operated under the

full responsibility of the driver.

This procedure reinitialises the opera-

tion of the electric windows and the

automatic partial opening of the door

windows

ACCESS

207CC_EN_CHAP03_OUVERTURES_ED01-2014

DOORS

 After unlocking the vehicle using the

remote control or the key, pull the

door handle.

The window lowers automatically by

a few millimetres when the door is

opened.

From inside



Pull the door control to open the

door; this unlocks the doors only.

The window lowers automatically by

a few millimetres when the door is

opened.

The interior door controls do not

operate when the vehicle is dead-

locked.

Closing

The window rises automatically after a

few seconds and adjusts to ensure per-

fect sealing on closing.

If a door is not closed correctly:

when the engine is run-

ning

, this warning lamp

comes on, accompanied by a

message in the multifunction

screen for a few seconds,

when the vehicle is moving (speed

above 6 mph (10 km/h)), this warn-

ing lamp comes on, accompanied

by an audible signal and a message

in the multifunction screen for a few

seconds.

If you leave the door open for more

than one minute, the window rises

again.

Pull the handle again to reactivate

the system.

The boot does not unlock at the

same time as the doors (refer to

the "Boot" section).

When washing your vehicle, avoid

spraying the upper part of the

windows.

Opening

From outside

ACCESS

207CC_EN_CHAP03_OUVERTURES_ED01-2014

If the vehicle is locked or dead-

locked from the outside, the red

indicator lamp ﬂ ashes and button

is inactive.



In this case, use the remote

control or the key to unlock the

vehicle.

Manual central locking control

System which provides full manual

locking or unlocking of the doors and

boot from the inside.

Locking

 Press button

A to lock the vehicle.

The red indicator lamp in the button

comes on.

If one of the doors is open, the cen-

tral locking from the inside does not

take place.

Unlocking

 With the key in the ignition, press

button

A again to unlock the vehicle.

The red indicator lamp nn the button

goes off.

ACCESS

207CC_EN_CHAP03_OUVERTURES_ED01-2014

Emergency control

System which locks or unlocks the

doors mechanically in the event of a

malfunction of the central locking.

 Insert the key in the lock, located on

the edge of the door, then turn it

one

eighth of a turn .

Locking the driver's door

 Insert the key in the lock, then turn it

to the right.

Unlocking the driver's door

 Insert the key in the lock, then turn it

to the left.

Locking the passenger door

Unlocking the passenger door

 Pull the interior door opening control.

If one of the doors is open, the auto-

matic central locking does not take

place.

If the boot is open, the automatic

central locking of the doors is active.

Anti-intrusion security

System which provides full automatic

locking or unlocking of the doors and

boot while driving.

You can activate or deactivate this

function.

Activation



Press this button for more than

two seconds.

A conﬁ rmation message appears in the

multifunction screen.

Unlocking

 Above 6 mph (10 km/h), press this

button to unlock the doors and boot

temporarily.

Locking

When the speed exceeds 6 mph (10 km/h),

the doors and boot lock automatically.

Deactivation



Press this button again for more

than two seconds.

A conﬁ rmation message appears in the

multifunction screen.

ACCESS

207CC_EN_CHAP03_OUVERTURES_ED01-2014

BOOT

Opening

 After unlocking the boot or the vehi-

cle using the remote control or the

key, pull the handle and raise the

boot lid.

Unlocking and partially opening

the boot



Press the boot unlocking

button on the remote control

for more than two seconds.

The boot opens slightly.

If a battery failure occurs, the boot

is locked. Contact a PEUGEOT

dealer or a qualiﬁ ed workshop.

Boot anti-theft protection

The boot is designed to remain secure,

even in the "cabriolet" conﬁ guration.

So, when the vehicle is locked and the

roof is open, the boot cannot be un-

locked:

- by means of the interior door opening

control, when the key is not in the

ignition switch,

- by pressing the manual centralised

control

A , when the key is not in the

ignition switch.

when the engine is running ,

this warning lamp comes on,

accompanied by a message

on the multifunction screen

for a few seconds,

when the vehicle is moving (speed

above 6 mph (10 km/h)), this warn-

ing lamp comes on, accompanied

by an audible signal and a message

on the multifunction screen for a

few seconds.

Closing

 Lower the boot lid using the interior

grab handle.

If the boot lid is not closed correctly:

Automatic locking of the boot

In the "cabriolet" conﬁ guration, with

the vehicle locked, if you unlock the

boot by pressing the boot unlock-

ing button on the remote control,

it will lock automatically when you

close it again.

In this case, if you inadvertently

leave the key in the boot, press the

manual centralised control

A im-

mediately to unlock the boot and

retrieve the key.

ACCESS

207CC_EN_CHAP03_OUVERTURES_ED01-2014

The key cannot be removed from

the lock until the cap is reﬁ tted.

FUEL TANK

Fuel tank capacity: approximately

50 litres (petrol) or 48 litres (Diesel).

Opening the ﬁ ller cap may create a

noise caused by an inrush of air. This

vacuum is entirely normal, resulting

from the sealing of the fuel system.

To ﬁ ll the tank safely:



the engine must be switched off,

 open the fuel ﬁ ller ﬂ ap,

 insert the key in the cap, then turn it

to the left,

When you have ﬁ lled the tank:

 put the cap back in place,

 turn the key to the right, then re-

move it from the cap,

 close the ﬂ ap.

 remove the cap and hook it onto the

clip located on the inside of the ﬂ ap,

 ﬁ ll the tank,

but do not continue

after the 3rd cut-off of the pump ;

this could cause malfunctions.

Low fuel level

When the fuel tank minimum

level is reached this warning

lamp comes on on the instru-

ment panel. When it ﬁ rst comes

on there remains

approxi-

mately 5 litres of fuel in the tank.

You must refuel as soon as possible to

avoid running out of fuel.

If you run out of fuel (Diesel), refer also

to the "Checks" section.

Filling

A label afﬁ xed to the inside of the ﬂ ap

reminds you of the type of fuel to be

used depending on your engine.

Additions of fuel must be of at least

5 litres, in order to be taken into account

by the fuel gauge.

DIESEL

ACCESS

207CC_EN_CHAP03_OUVERTURES_ED01-2014

Quality of the fuel used for

petrol engines

Quality of the fuel used for

Diesel engines

The petrol engines are perfectly com-

patible with E10 or E24 type petrol

biofuels (containing 10 % or 24 % etha-

nol), conforming to European standards

EN 228 and EN 15376.

E85 type fuels (containing up to 85 %

ethanol) are reserved exclusively for ve-

hicles marketed for the use of this type

of fuel (BioFlex vehicles). The quality of

the ethanol must comply with European

standard EN 15293.

For Brazil only, special vehicles are

marketed to run on fuels containing up

to 100 % ethanol (E100 type).

The Diesel engines are perfectly com-

patible with biofuels which conform to

current and future European standards

(Diesel fuel which complies with stand-

ard EN 590 mixed with a biofuel which

complies with standard EN

14214)

available at the pumps (containing up

to 7 % Fatty Acid Methyl Ester).

The B30 biofuel can be used in cer-

tain Diesel engines; however, this use

is subject to strict application of the

special servicing conditions. Contact a

PEUGEOT dealer or a qualiﬁ ed work-

shop.

The use of any other type of (bio)fuel

(vegetable or animal oils, pure or diluted,

domestic fuel...) is strictly prohibited

(risk of damage to the engine and fuel

system).

Content .. 3 4 5 6 ..
