Peugeot 206 SW (2008 year). Instruction - part 5

ACCESS -

DOORS

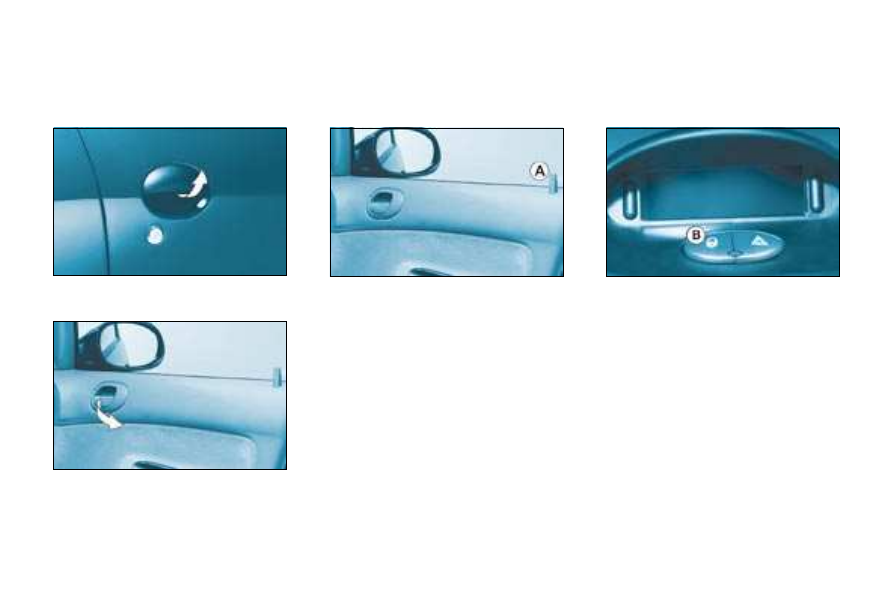

Opening the doors from inside

Locking/Unlocking from inside

"Door open" warning
With the engine running, you are

warned if a door is not shut properly

by an audible signal and a message
or graphic on the multifunction dis-

play, indicating the door in question.

When the vehicle is moving, if the
courtesy light button is in the "light-

ing on opening a door" position, the

courtesy light lashes.

Without central locking
To lock, press button A. The button

locks the door in question.
The button on the driver’s door locks
the door and the tailgate.

To unlock, pull button A or operate

the handle.

With central locking
Press button B to lock/unlock.

Opening the doors from outside

ACCESS

60 -

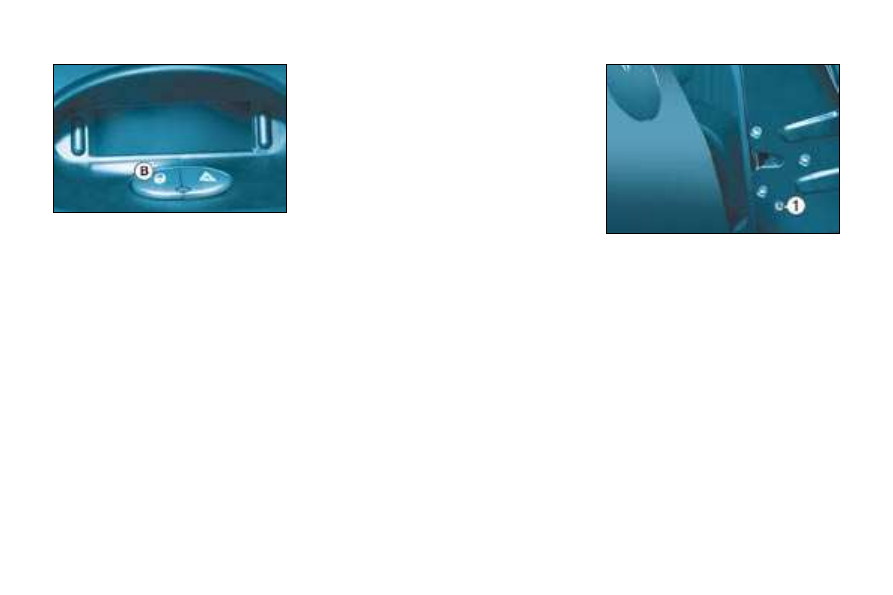

CHILD SAFETY LOCK

On each rear door this prevents
opening of the door from the inside.

Turn switch 1 an eighth turn (45 de-

grees) using the ignition key.

Automatic central locking of the
doors
The doors can lock automatically

when you are driving (at a speed of

more than 6 mph (10 km/h)).

Above 6 mph (10 km/h), press but-

ton B

briely to unlock the doors tem-

porarily.
You can activate or deactivate this
function.

To switch off
Press and hold button B.

Notes:

if one of the doors is open,

locking from the inside and automatic
central locking are not possible.

If the boot is open, automatic central

locking of the doors is possible.

To switch on
Press and hold button B.
Activation of the function is accom-
panied by an audible signal and a
message on the multifunction display.
The message is displayed each time
the vehicle is started.

ACCESS -

LOCKING/UNLOCKING
THE TAILGATE

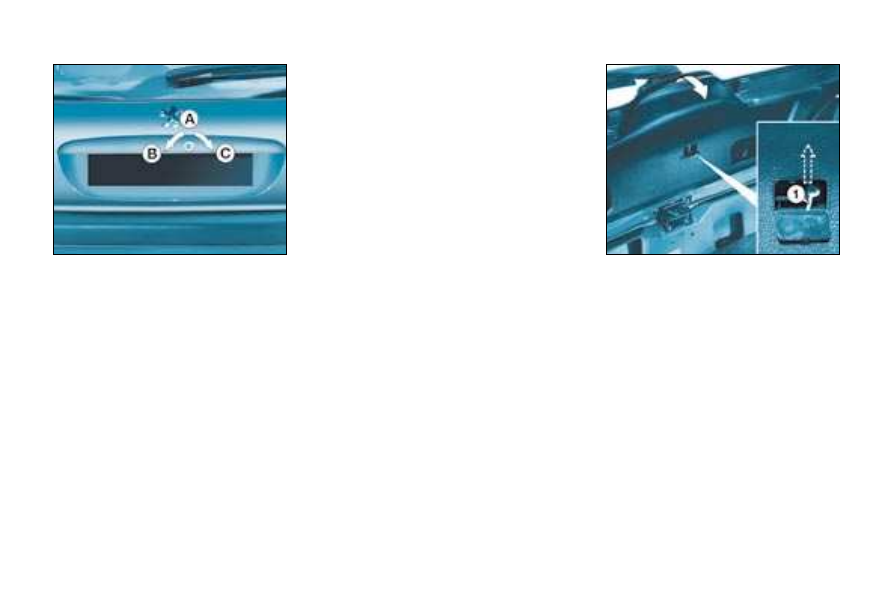

Without central locking
To lock, turn the key from A to C.

To open, turn the key from A to B,

press the handle then lift the tail-
gate.

TAILGATE RELEASE

This enables the tailgate to be un-
locked in the event of a central locking
fault:
-

Fold back the rear seats to gain
access to the boot from inside

the vehicle,

- Pull the tailgate trim to release it,
-

Pull the opening catch 1

upwards.

"Boot open" warning
If the tailgate is not shut properly:
-

with the engine running, you

are warned by an audible signal

and a message or graphic on the

multifunction display,

when the vehicle is moving,

the courtesy light lashes if the

courtesy light button is in this
position.

With central locking
Locking and unlocking of the tailgate

is simultaneous with the doors.

The lighting is activated on opening
the tailgate.

ACCESS

62 -

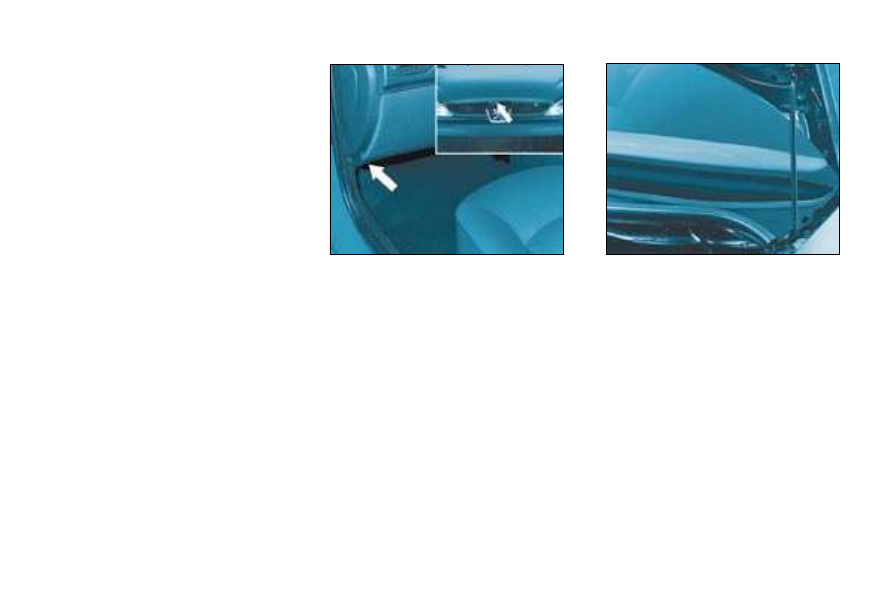

OPENING THE BONNET

Inside the vehicle: pull the handle on

the left-hand side, under the fascia.

Outside the vehicle: lift the catch
and raise the bonnet.

BONNET STRUT

Secure the strut to hold the bonnet
open.

Before closing the bonnet, replace

the strut in its housing.

FILLING THE FUEL TANK

The tank must be illed with fuel with

the engine switched off.
Insert the key then turn it to the left.
Remove the cap.

A label indicates which type of fuel to

use.

If you ill your tank, do not continue

after the third cut-off of the pump
nozzle. This could result in vehicle
malfunctions.
The capacity of the tank is approxi-
mately 50 litres.

To close
Lower the bonnet and release it at

the end of its travel.
Check that the bonnet is locked.

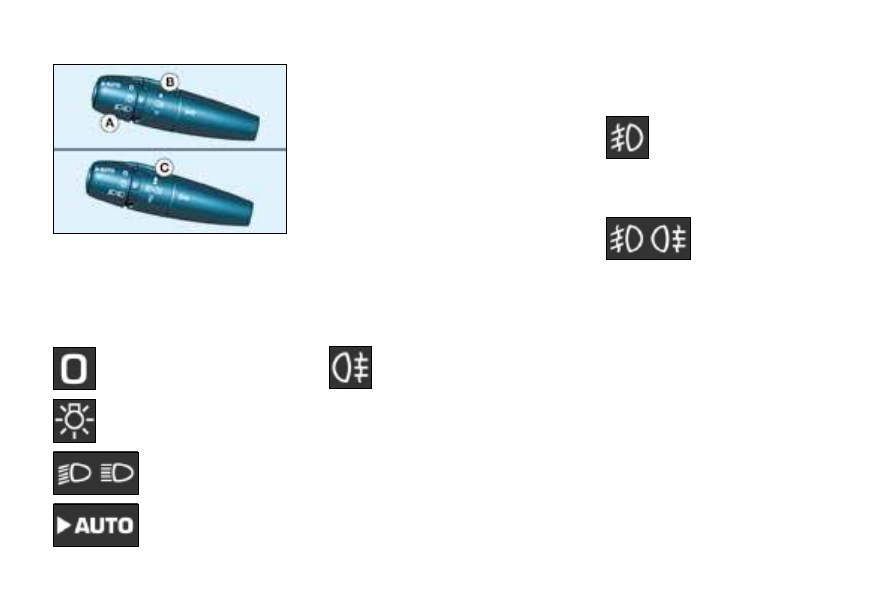

VISIBILITY -

LIGHTS STALK

Dipped/Main beam change
Pull the stalk towards you.

Vehicles itted with front fog

lamps and a rear fog lamp (ring C)

Side lights

Dipped/Main beam
headlamps

Automatic switching

on of lights

Rear fog lamp

Front fog lamps (irst rotation

of the ring forwards)

Front and rear fog
lamps (2nd rotation of

the ring forwards).

Note:

to switch off the rear fog lamp

and the front fog lamps, turn the ring

backwards twice in succession.

Note:

when the lights are switched

off automatically or when the dipped

headlamps are switched off manu-

ally, the front fog lamps, the rear fog

lamp and the side lights remain on

(turn the ring backwards to switch off

the front fog lamps. The side lights

then switch off).

Vehicles itted with a rear fog

lamp (ring B)

This only operates with the dipped/

main beam headlamps.

Note:

when the lights are switched

off automatically, the rear fog lamp

and the dipped headlamps remain on

(turn the ring backwards to switch off

the rear fog lamp. The dipped head-

lamps and side lights then switch

off).

The front fog lamps operate with the

side lights and the dipped headlamps.

Lights off

Front fog lamps and rear
fog lamp

Rotate the ring forwards to switch on

and backwards to switch off. The sta-

tus is conirmed by the indicator light

on the instrument panel.

Lights on reminder
With the ignition off and the auto-

matic lighting function switched off,

when the driver’s door is opened, a

buzzer sounds if you have left your
lights on.

Front and rear lights

Selection is by turning ring A.

VISIBILITY

64 -

"Follow me home" lighting
When you leave your vehicle, the

side lights and dipped headlamps
can be left on for approximately
30 seconds.
To do this:
-

place the key in the STOP

position,

place the lights stalk in the
0

position,

- lash the headlamps,
-

get out of the vehicle and lock it.

AUTOMATIC SWITCHING ON
OF LIGHTS

The side lights and dipped beam

headlamps switch on automatical-

ly if the light is poor and when the

windscreen wipers operate continu-

ously and switch off when the light

becomes bright enough or the wind-

screen wipers are switched off.

In foggy weather or in snow, the
brightness sensor can detect suf-

icient light, the lights will not

come on automatically. If neces-
sary, the dipped headlamps must
be switched on manually.

This function is active when the ve-

hicle is supplied to the customer.
To disarm or activate the function:
-

Place the key in the accessories

position (1st notch),

Place the lights stalk in the
AUTO/0

position,

Press the end of the lights stalk
for more than four seconds.

Do  not  cover  the  brightness  sen-
sor,  coupled  with  the  rain  sensor,
located  in  the  centre  of  the  wind-
screen, behind the interior mirror.
It  is  used  for  automatic  switching
on of the lights.

Operating check

In good or rainy weather,

both day and night, the

front fog lamps and the
rear fog lamp are dazzling
and are prohibited.

Do not forget to switch them off

when they are no longer needed.

Direction indicators

(lashers)

Left:

downwards.

Right:

upwards.

Disarming
The disarmed function is accompa-
nied by an audible signal.
When the driver uses the manual

lighting controls, the function is tem-

porarily disarmed.
If  the  brightness  sensor  does  not
function  correctly,  the  lights  come
on accompanied by an audible signal
and  a  message  on  the  multifunction
display.
Consult a PEUGEOT dealer.

Activation
The activated function is accompa-
nied by an audible signal and a mes-
sage on the multifunction display.

VISIBILITY

64 -

"Follow me home" lighting
When you leave your vehicle, the

side lights and dipped headlamps
can be left on for approximately
30 seconds.
To do this:
-

place the key in the STOP

position,

place the lights stalk in the
0

position,

- lash the headlamps,
-

get out of the vehicle and lock it.

AUTOMATIC SWITCHING ON
OF LIGHTS

The side lights and dipped beam

headlamps switch on automatical-

ly if the light is poor and when the

windscreen wipers operate continu-

ously and switch off when the light

becomes bright enough or the wind-

screen wipers are switched off.

In foggy weather or in snow, the
brightness sensor can detect suf-

icient light, the lights will not

come on automatically. If neces-
sary, the dipped headlamps must
be switched on manually.

This function is active when the ve-

hicle is supplied to the customer.
To disarm or activate the function:
-

Place the key in the accessories

position (1st notch),

Place the lights stalk in the
AUTO/0

position,

Press the end of the lights stalk
for more than four seconds.

Operating check

In good or rainy weather,

both day and night, the

front fog lamps and the
rear fog lamp are dazzling
and are prohibited.

Do not forget to switch them off

when they are no longer needed.

Direction indicators

(lashers)

Left:

downwards.

Right:

upwards.

Disarming
The disarmed function is accompa-
nied by an audible signal.
When the driver uses the manual

lighting controls, the function is tem-

Activation
The activated function is accompa-
nied by an audible signal and a mes-
sage on the multifunction display.

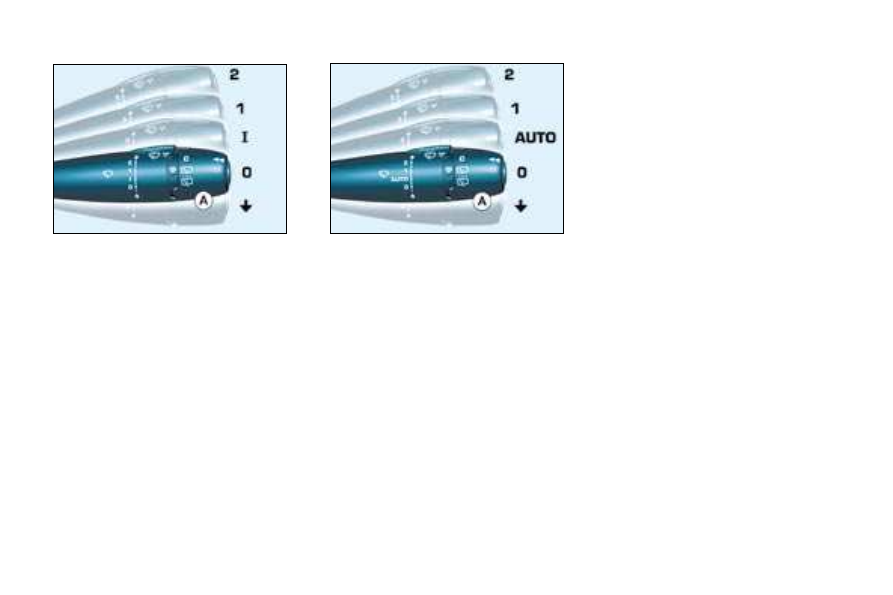

VISIBILITY -

WINDSCREEN WIPER STALK

Front windscreen wiper with
automatic wipe
2

Fast wipe (heavy rain).

Normal wipe (moderate rain).

AUTO

Automatic wipe.

Off.

Single wipe (press down-

wards).

In the AUTO

position, the wiping

speed is in proportion to the intensity
of the rainfall.

The command must be reacti-
vated

whenever the ignition has been

switched off for more than one minute:

- move the stalk to any position,
-

then move it back to the required
position.

Front windscreen wiper with
intermittent wipe
2

Fast wipe (heavy rain).

Normal wipe (moderate rain).

Intermittent wipe.

0 Off.

Single wipe (press downwards).

In the I

ntermittent position, the wiping

speed is in proportion to the vehicle
speed.

Windscreen wash
Pull the wiper stalk towards you. The

windscreen wash, then the wind-

screen wipers, operate for a speciied

time.

The headlamp wash is also activated

if the headlamps are on.

VISIBILITY

66 -

Automatic windscreen wipers
In the AUTO

position, the windscreen

wipers operate automatically and

adapt their speed to the intensity
of the rainfall.

Do not cover the rain sen-

sor located on the wind-

screen behind the interior
mirror.

When using an automatic car

wash, switch off the ignition or

check that the wiper stalk is not in

the AUTO position.

In winter, it is advisable to wait

for the windscreen to completely

clear of ice before operating the

automatic wipe.

Rear screen wiper

Rear screen wash

Turn ring A

to the irst notch

for intermittent wiping.

If  the  ignition  is  switched
off,  it  is  necessary  to  re-
activate  the  control  each

time.

To do this, move the stalk to

any position, then move it back to the

required position.

Turn ring A

past the irst

notch; the screen wash then

the wiper operate for a ixed

period.

Operating check
Activation
Activation of the function is accom-
panied by a message on the multi-
function display.

In the event of malfunction, the
driver is informed by an audible sig-
nal.
In the AUTO

position, the wind-

screen wiper will operate in intermit-

tent mode.
Contact a PEUGEOT dealer to have
the system checked.

Automatic rear screen wiper
When the windscreen wipers control

is activated and you engage reverse

gear, the rear screen wiper operates

intermittently.
Note:

if you use a bicycle carrier,

consult a PEUGEOT dealer to have
this function deactivated or install a

speciic bicycle carrier approved by

PEUGEOT.

VISIBILITY -

TRIP COMPUTER

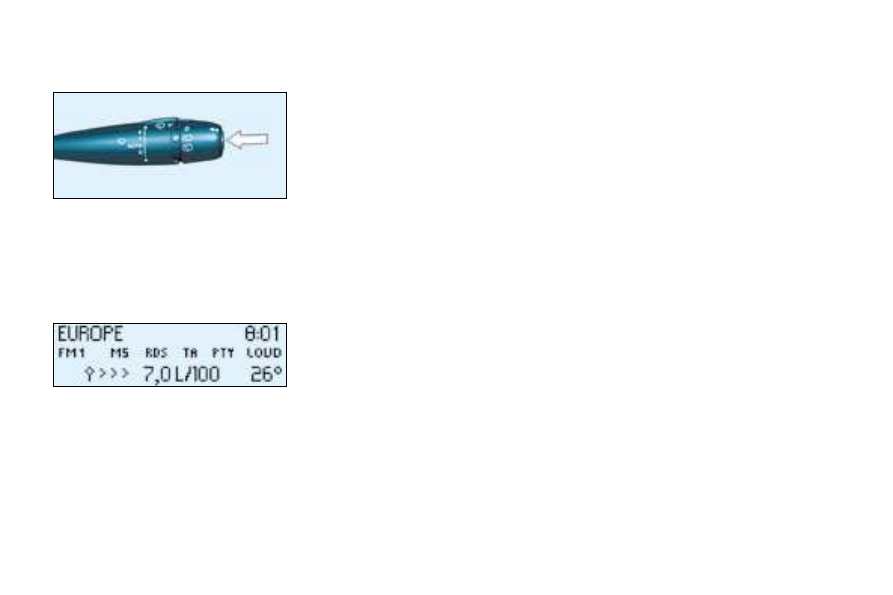

Pressing the button on the end of the
wash/wipe stalk

enables the following

data to be displayed:

Display B

the range

the distance travelled

the average consumption

the current consumption

the average speed

Zero reset

Press the stalk for more than two

seconds.

Range
This shows the distance that can still

be covered with the fuel remaining in

the tank.

Note:

this igure may increase if there

is a change in the style of driving or

the road surface, producing a signii-

cant drop in current consumption.
When the range is less than 20 miles

(30 km), three segments are dis-

played. After illing with fuel, the

range is displayed when it exceeds

60 miles (100 km).
If horizontal segments are displayed

for long periods instead of digits,

contact a PEUGEOT dealer.

Distance travelled
This indicates the distance travelled

since the computer was last set to

zero.

Average consumption
This is the average fuel consumption

since the computer was last set to

zero.

Current consumption
This is the average quantity of fuel con-

sumed during the last few seconds.

This function is displayed only when

the vehicle is travelling at a speed
greater than 20 mph (30 km/h).

Average speed
This is the average speed calculated

since the computer was last set to

zero (with the ignition on).

VISIBILITY

68 -

ELECTRIC WINDOWS

2. Passenger's electric window

switch.

REAR QUARTER LIGHTS
(3 DOOR)

To partially open the rear windows,

tilt lever then push the window.

Always remove the key

from the ignition when

leaving the vehicle, even

for a short time.

If an obstacle is detected when

operating the electric windows,

you must reverse the movement

of the window. To do this, press

the control concerned.
When the driver operates the pas-

senger electric window controls,

he must ensure that no one is pre-

venting correct closing of the win-

dows.

The driver must ensure that pas-

sengers use the electric windows

correctly.

Be aware of children when operat-

ing the windows.

This switch enables the rear windows

to be locked whatever their position.

A 1st press activates the control (the
indicator light on the button comes
on) and a 2nd press deactivates it
(the indicator light on the button goes
out).

Temporary disarming of the
rear windows (child safety)

1. Driver's electric window

switch

Manual operation:

Press or pull switch 1 gently. The

window stops as soon as the

switch is released.

Automatic operation:

Press or pull switch 1 irmly.

One touch completely opens or

closes the window.

Automatic closing only operates

when the engine is running and only

on the driver's electric window.

3. Rear left electric window

switch.

4. Rear right electric window

switch.

VISIBILITY -

Manual interior mirror

The interior mirror has two positions:

- day (normal),
-

night (anti-dazzle).

To change from one to the other,

push or pull the lever on the lower

edge of the mirror.

Manual exterior mirrors
Move the lever in all four directions
to adjust.

When the vehicle is parked, the ex-

terior mirrors can be folded back
manually.

Electric exterior mirrors

Turn knob 1 to the right or to the left
to select the corresponding mirror.
Move knob 1 in all four directions to
adjust.

Objects  observed  in  the
driver’s  and  passenger’s
mirrors  are  in  reality  closer
than they appear.

This must be taken into account to
judge correctly the distance of ve-
hicles approaching from behind.

Fold-back electric mirrors
With the ignition on, turn knob 1 to

position A.

LAYOUT

70 -

HEADLAMP ADJUSTMENT

Depending on the load in your vehicle,

it is recommended that the headlamp
beam is adjusted.
0.   1 or 2 people in the front seats.
-.   3 people.
1.   5 people.
2.   5 people + maximum

authorised load.

3. Driver + maximum

authorised load.

Initial setting is position 0.

STEERING WHEEL HEIGHT
ADJUSTMENT

When stationary, lower the handle to

unlock the steering wheel.
Adjust to the desired height and
lift the handle to lock the steering

wheel.

HORN

Press one of the spokes of

the steering wheel.

LAYOUT -

COURTESY LIGHTS

Map-reading light (button B)

With the key in the accessories or

ignition on position, turn button B to

the left or to the right.

AREAS FOR TOLL CARDS/
CAR PARK TICKETS

The athermic windscreen has two

non-relective zones located either

side of the base of the interior mirror.
They are intended for afixing toll

cards and/or car park tickets.

SUN VISOR

The sun visors are itted with a vanity

mirror, with a concealing lap on the

driver’s side.

Permanently off

Permanently on when the

key is in the accessories po-

sition or with the ignition on.

Front courtesy light (button A)

In this position, it comes on

for about 30 seconds:

-  on unlocking the vehicle,
-  when opening a door,
-  when opening the tailgate and

the rear screen (206 SW),

- on switching off the ignition.
It switches off on locking the vehicle.

The courtesy light lashes while driving if

a door or the boot is not closed correctly.

LAYOUT

72 -

GLOVE BOX

To open the glove box, lift the handle.

The light comes on when the cover

is opened.
1.  Handbook pack storage.
2.  Can holder.
3.  Pen holder.
4.  Spectacles storage.
5.  Map storage.
6.  Coin storage.

FRONT ASHTRAY

To empty, close the cover.
Pull the lug and release the ashtray

upwards.

LIGHTER

Press and wait a few moments until it

springs out automatically.
It is supplied with power with the igni-

tion key in the accessories position
(1st notch).

LAYOUT -

Luggage retaining net
Use the stowing rings on the boot

loor and on the back of the rear seat

to hook on your luggage retaining
net.

There are several options for storing
the shelf:
- either behind the front seats,
-

or behind the rear seat using the

luggage retaining net,

- or lat in the boot.

Rear parcel shelf
To remove the shelf:
- unhook the two strings 1,
- slightly raise the shelf, then

remove it.

BOOT LAYOUT

Retaining strap
A strap secured to the side of the
boot enables you to secure various

objects (cans, irst aid kit, etc.).

Content .. 3 4 5 6 ..
