Peugeot 206 SW (2008 year). Instruction - part 3

AUDIO EQUIPMENT

34 -

EON system
This connects stations which are part

of the same network. It enables the

broadcast of trafic information or a

PTY

programme, by a station that is

part of the same network as the sta-

tion to which you are listening.

This service is available when you

have selected the TA

trafic informa-

tion programme or the PTY function.

Search by type of programme
(PTY)
This allows you to listen to stations broad-

casting a speciic type of programme

(news, culture, sport, rock, etc.).

To search for a PTY programme:

With FM

selected, press

the "TA" button for

two seconds to switch

this function on or off.

select the PTY

function,

- briely press button L or N to

scroll down the list of the various

types of programmes offered.

- when the programme of your

choice is displayed, keep button

L or N

pressed for two seconds

to carry out an automatic search
(after an automatic search the
PTY

function is switched off).

In PTY mode the different types of
programme can be stored in the mem-

ory. To do this, press the preselection

buttons "1" to "6"

for two seconds.

Briely press the corresponding but-

ton to recall the type of programme
stored in the memory.

AUDIO EQUIPMENT -

Ejection of a disc

Selecting a track

Shufle (RDM)

When the CD player is selected,

press and hold button Q

for two sec-

onds. The tracks will be played in

random sequence. Pressing the but-

ton again for two seconds returns

you to normal play.
Shufle mode is de-activated each

time the set is switched off.

COMPACT DISC

Press  button  L  to  select  the  next
track.
Press  button  N  to  return  to  the  start
of  the  current  track  or  to  select  the
previous track.

Accelerated play
Press and hold button L or N for

forwards or backwards accelerated

play.
Accelerated play stops as soon as
the button is released.

After insertion of a

disc, printed face

upwards, the player

starts automatically.

If a disc is already inserted, press

button Q.

Press button S to
eject the disc from the
player.

The use of copied compact
discs may cause faults.
Insert circular compact
discs only.

Selecting CD mode

AUDIO EQUIPMENT

36 -

RADIO RECEPTION
(AERIAL ADJUSTMENT)

Notes on radio reception. Your radio

will be subject to phenomena which

do  not  affect  domestic  radio  sets.
Both  MW/LW  and  FM  reception  are
subject  to  various  forms  of  interfer-

ence, which are no relection on the

quality of your equipment but are due
to the nature of the signals and the

way in which they are transmitted.

On MW/LW, interference may be no-

ticed when passing underneath high

voltage power lines, under bridges or

in tunnels.

On FM, interference may be the re-

sult of increasing distance from the

transmitter, delection of the signal

by obstacles (mountains, hills, build-

ings, etc.), or of being in an area not

covered by a transmitter.

Saloon: recommended position for
the front aerial for best reception.
No particular position for the ixed

rear aerial (preset aerial).

AUDIO EQUIPMENT -

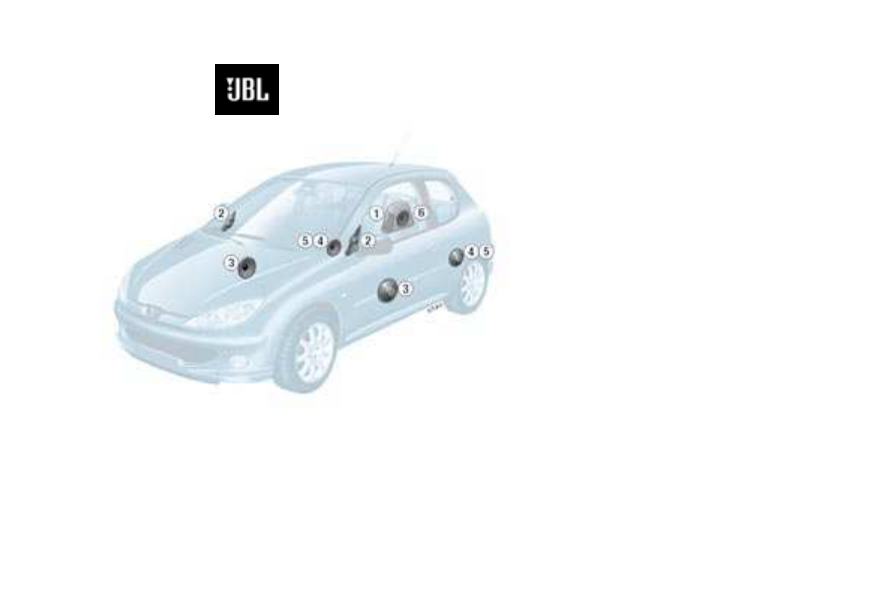

206 AUDIO SYSTEM

Presentation
Your 206 is itted with a JBL audio

system, designed speciically for the

passenger compartment.
At the heart of the system, a

240 watt multifunction ampliier (1)

(integrated in the subwoofer in
the boot) independently controls

8 high acoustic deinition speakers

and the subwoofer.

The speakers are situated:
-

in the front door pillars:

two Tweeters (2) for

reproduction of the treble
(high frequency) in the front.

in the front doors:

two Woofers (3) for reproduction

of the bass (low frequencies) in

the front.

in the rear doors:

two Tweeters (4) set into

two Woofers (5), providing a

balance of frequencies in the
rear.

in the boot: a Subwoofer (6)
for reproduction of the bass and

ultra-bass (very low frequencies)

throughout the whole of the

passenger compartment.

You will appreciate the clarity and
depth and notice that the sound

ills the whole of the vehicle

perfectly.

This system provides optimal re-
production and distribution of the
sound in the vehicle, both in the
front and the rear.

Adjusting in CD or Radio mode
The basic functions remain those of
the audio set.
There is no need for any further ad-

justment. However, in order to take

full advantage of your JBL audio

system, you are advised to set the

AUDIO functions (BASS, TREB,
FAD, BAL) to position "0"

(zero), the

Loudness (LOUD) to the "ON" posi-
tion for CD mode and to the "OFF"
position for radio mode.

COMFORT

38 -

COMFORT -

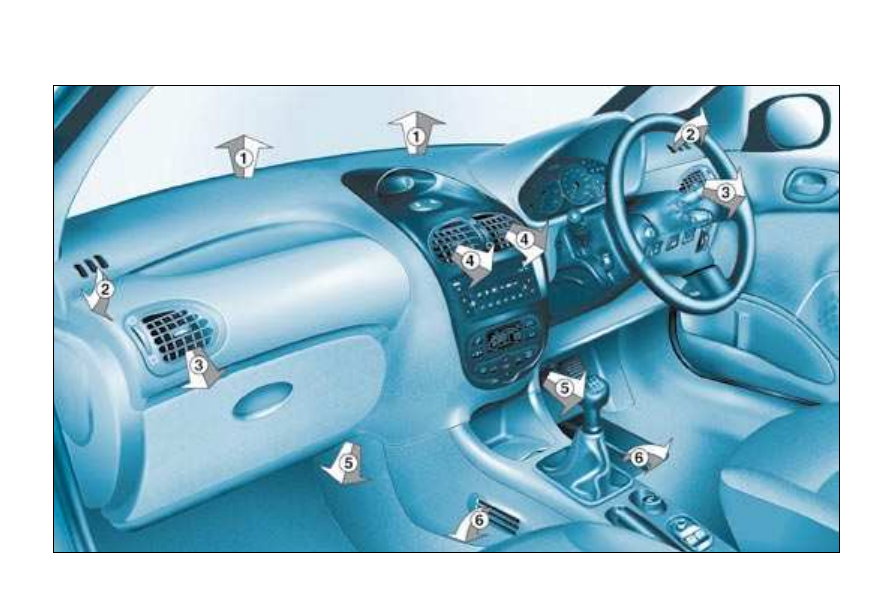

VENTILATION

1. Windscreen de-icing or

demisting vents.

Front door windows de-icing or

demisting vents.

3. Side vents.
4. Centre vents.
5.

Air outlet to front footwells.

Air outlet to rear footwells (with

automatic air conditioning only).

Advice on operation and
notes

Place the air low control at a level

suficient to ensure an adequate re-

newal of air in the passenger com-

partment.

When the air low control is in the

OFF

position (system switched off),

temperature-related comfort is no

longer guaranteed. However, a slight

low of air, due to the movement of

the vehicle, can still be felt.

Select the air distribution which is

most suited to your requirements and

the weather conditions.

Change the temperature setting pro-
gressively for greater comfort.
Place the air intake control in the

"Exterior air" position, this facilitates

demisting.

If the interior temperature remains

very high following a long period

parked in the sun, do not hesitate to

ventilate the passenger compartment

for a few minutes.

To obtain a perfectly uniform distribu-

tion of air, do not cover the exterior

air intake grille, the vents, the air pas-

sages and the air outlets in the foot-

wells.

In certain cases of particularly ardu-

ous use (towing the maximum load

on a steep gradient in a high temper-

ature), cutting off the air conditioning

permits recovery of the engine power

and, therefore improvement of the

towing capacity.

Ensure that the passenger com-

partment ilter, located by the wind-

screen, under the bonnet, is in good

condition. Have the ilter elements

replaced regularly. If you drive in a

dusty environment, change them

twice as often.

The air conditioning system does not
contain chlorine and does not present
any danger to the ozone layer.
Operate the air conditioning system

for 5 to 10 minutes, once or twice a

month to keep it in perfect working

order.

The water formed by the condensa-

tion of the air conditioning system is
discharged via an opening provided

for this purpose. Therefore, a pud-

dle may form underneath the vehicle

when stationary.

If the system does not produce

cold air, do not use it and contact a

PEUGEOT dealer.

COMFORT

40 -

DE-ICING AND DEMISTING

De-icing the rear screen and
mirrors

When the engine is running,

pressing this button de-ices
the rear screen and exterior
mirrors.

It switches off automatically, after ap-

proximately twelve minutes, to pre-

vent an excessive consumption of
current. Pressing the button again re-

starts operation for twelve minutes.

It is possible to stop the operation of

the de-icing before it is switched off

automatically by pressing the button
again.

Switch off the de-icing as soon as

you consider this necessary as low

current consumption reduces fuel
consumption.

Manual demisting

To quickly demist the windscreen and

side windows:

- switch on the air conditioning,
-

place the temperature and air

low controls in the maximum

position,

- close the central vents,
-

place the exterior air intake

control on the left, in the

"Exterior Air" position.

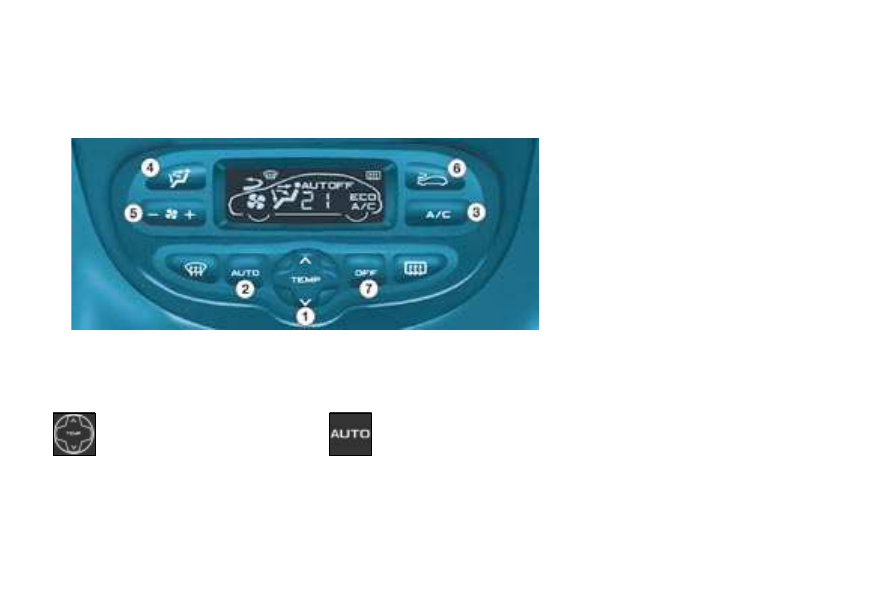

Automatic demisting,
visibility programme

In some cases, the AUTO programme

may not be suficient to demist the

windscreen and side windows (hu-

midity, several passengers, ice...).

Select the "visibility" demisting pro-
gramme by pressing this button to

clear the windows quickly.

To exit from this programme and re-

turn to the AUTO programme, press

the AUTO button.

COMFORT -

HEATING/VENTILATION

The heating and ventilation can only operate when the engine is running.

2. Air distribution adjustment

1. Temperature adjustment
Turn the control from blue (cold) to
red (hot) to adjust the temperature to
suit your requirements.

Windscreen and side windows

(de-icing/demisting).

Windscreen, side windows and

footwells.

Footwells.

Centre and side vents.

These settings are recommended for
cold climates.

This setting is recommended for hot
climates.
The air distribution can be adjusted
by placing the control in an interme-
diate position.

3. Air low adjustment

Turn the control from position
1 to position 4 to obtain an

air low suficient to ensure

your comfort.

4. Air intake/Air recirculation
The recirculation of interior air pre-
vents exterior odours and smoke en-
tering the passenger compartment.
The intake of exterior air prevents

and eliminates misting of the wind-

screen and side windows.

Air intake.

Air recirculation.

Move the manual control 4 to the
right for the "Interior air recirculation"
position.

Move  the  manual  control  4  to  the
left  to  return  to  the  "Exterior  air  in-
take"  position  as  soon  as  possible
to  prevent  deterioration  of  the  air
quality.

COMFORT

42 -

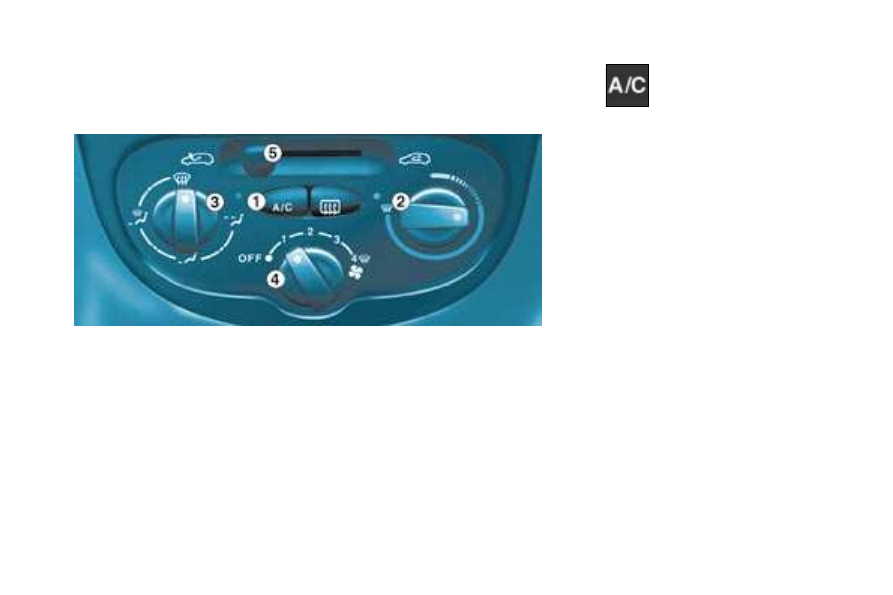

AIR CONDITIONING

The air conditioning can only operate when the engine is running.

The air conditioning does not op-

erate while the air low adjustment

control is in the "OFF" position.

To guarantee correct operation of

your air conditioning system, we also

recommend that you have it checked
regularly.

1. Air conditioning On/Off
The air conditioning is designed to operate effectively in all seasons, with the

windows closed. In summer, it permits lowering of the temperature and in winter,

above 0 °C, it increases the effectiveness of the demisting.

2. Temperature adjustment
Turn the control from blue (cold) to
red (hot) to adjust the temperature to
suit your requirements.

Press the switch, the indica-

tor light comes on.

COMFORT -

Windscreen and side windows

(de-icing/demisting).

Windscreen, side windows and

footwells.

Footwells.

3. Air distribution adjustment

Centre and side vents.This
setting is recommended for
hot climates.

These settings are recommended for
cold climates.

The air distribution can be adjusted
by placing the control in an interme-
diate position.

4. Air low adjustment

Turn the control from position
1 to position 4 to obtain an

air low suficient to ensure

your comfort.

Intake of exterior air.

Air recirculation.

The recirculation of interior air pre-
vents exterior odours and smoke en-
tering the passenger compartment.
The intake of exterior air prevents

and eliminates misting of the wind-

screen and side windows.

Used simultaneously with the air con-

ditioning, air recirculation improves

air conditioning performance.

Used in a damp climate, air recirculation

may result in misting of the windows.

Move the manual control 5 to the
right to the "Interior air recirculation"
position.
Move the manual control 5 to the left
to the "Exterior air intake" position as
soon as possible to prevent deterio-
ration of the air quality.

5. Air intake/Air recirculation

COMFORT

44 -

AUTOMATIC AIR CONDITIONING

The air conditioning can only operate when the engine is running.

Automatic operation

2. Control by the AUTO

programme

Press the "AUTO" button.
We recommend that you use
this mode: it provides opti-
mised automatic control of

all of the functions, passenger com-

partment temperature, air low, air

distribution and air recirculation, in

accordance with the comfort value

that you have chosen. This system is
designed to operate effectively in all

seasons, with the windows closed.

Note:

for your comfort, the values

set when the engine is switched off

are retained on re-starting if the tem-
perature in the passenger compart-

ment has not changed signiicantly;

otherwise, operation resumes in au-

tomatic mode.

When the engine is cold, to prevent

too great a distribution of cold air, the

ventilation will only reach its optimum

level gradually.

On entering the vehicle, if the interior

temperature is much colder or warm-

er than is comfortable, there is no

need to change the value displayed
in order to reach the required level of
comfort. The system eliminates the
temperature difference automatically
and as quickly as possible.

Manual operation

If you wish, you can make a different

choice from that offered by the sys-
tem by changing a setting. The other

functions will still be controlled auto-

matically.
Pressing the AUTO button returns
the system to completely automatic
operation.

1. Temperature adjustment

The  value  indicated  on  the
display corresponds to a level
of  comfort  and  not  to  a  tem-
perature  in  degrees  Celsius
or Fahrenheit.

Press the arrows 1 (up and down) to

change this value. A setting around
21 enables a comfortable tempera-
ture to be obtained.

COMFORT -

3. Air conditioning On/Off

Press this button to stop air
cooling.
The symbol ECO is displayed.

Automatic operation of the air condi-

tioning is resumed when the button

is pressed again. The symbol A/C is
displayed.

4. Air distribution

Pressing this button several
times in succession enables

the air low to be directed in

turn towards:

- the windscreen

(de-icing or demisting),

- the windscreen and the

footwells,

- the footwells,
-

the centre and side vents and

the footwells,

the centre and side vents.

5. Air low

Press buttons "+" and
"-" respectively to in-
crease or decrease

the air low.

6. Air intake/Air recirculation

7. Switching the system off

The OFF

button switches

off all the functions of the
system.

Temperature-related

comfort

and

demisting are no longer guaranteed

but a slight low of air is maintained.

Pressing the OFF

, AUTO, or "vis-

ibility" button again reactivates the

system with the values set before it

was switched off.

Note:

if you wish to cut off the low

of air completely, press the air intake

button 7.

Press this button for recir-
culation of the interior air.

Recirculation, shown on the

display, enables the pas-

senger compartment to be insulated
from exterior odours and smoke.
Avoid prolonged recirculation of interior
air (risk of condensation and deteriora-
tion of the air quality).
Press the button again to resume
automatic management of the intake
of air.

Notes
To prevent condensation on the in-

side of the vehicle in cold or wet

weather, you are advised to avoid

using the ECO mode.
To guarantee correct operation of

your air conditioning system, we also

recommend that you have it checked
regularly.

COMFORT

46 -

COMFORT -

FRONT SEATS

It is impossible to access the
rear seats if the front seat is in a
reclining position.

Place your ingers in one of the

two handles and push forwards

to fold down the seat back. The

seat does not move forward.

When put back, the seat back

returns to its initial angle.

Never drive with the head

restraints removed; they

should be in place and
correctly adjusted.

"Comma" type rear head restraints
These have one position for when

they are in use (high) and a storage

position (low). They can be removed.

To lower the head restraints, press

the lug.

To remove them, pull upwards as far

as the stop then press the release
control.

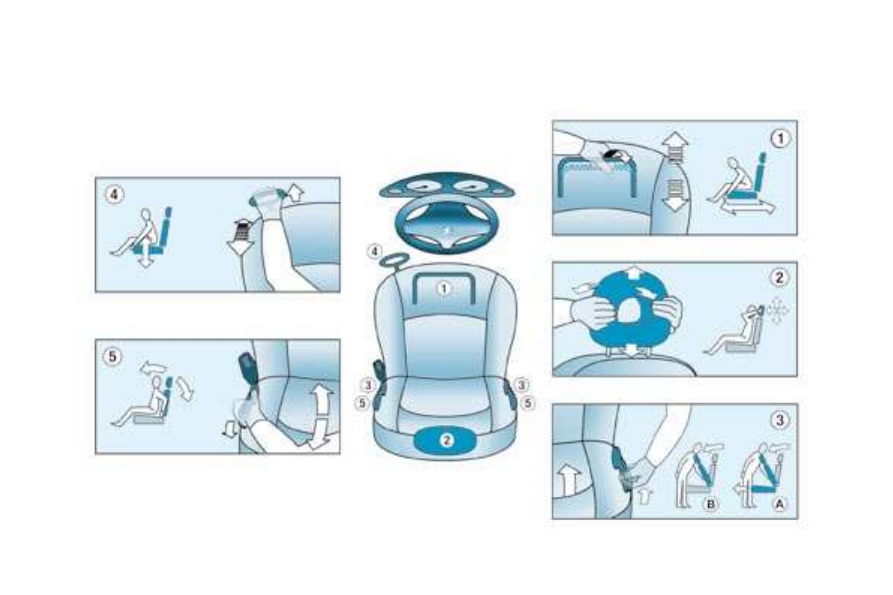

1 - Forwards-backwards

adjustment

Lift the control and slide the seat for-

wards or backwards.

2 - Head restraint height and

angle adjustment

To raise the restraint, pull it upwards.

The adjustment is correct when the
upper edge of the head restraint is
level with the top of the head.

The head restraint is itted with a

frame with notches, which prevent

the head restraint dropping down

(this is a safety device in the case of
impact).

To lower the head restraint, it is nec-

essary to push simultaneously:
-

the button located on the left-
hand guide at the base of the

head restraint frame,

- the head restraint downwards.
To remove the head restraint, press

the lug.
The head restraint angle can also be
adjusted.

3 - Access to the rear seats

(3-door), A or B according to

version

Place your ingers in one of the

two handles and push forwards

to fold down the seat back and

move the seat forwards.

When put back, the seat returns

to its initial position.
No person or object must
prevent the seat from returning
to its initial position. Returning to
this position is necessary for it to
be locked.

4 - Height adjustment
Pull the handle upwards.

Remove your weight from the seat to

raise, or press on the seat to lower.

5 - Seat back angle adjustment
Push the handle towards the rear.

COMFORT -

FRONT SEATS

It is impossible to access the
rear seats if the front seat is in a
reclining position.

Place your ingers in one of the

two handles and push forwards

to fold down the seat back. The

seat does not move forward.

When put back, the seat back

returns to its initial angle.

Never drive with the head

restraints removed; they

should be in place and
correctly adjusted.

"Comma" type rear head restraints
These have one position for when

they are in use (high) and a storage

position (low). They can be removed.

To lower the head restraints, press

the lug.

To remove them, pull upwards as far

as the stop then press the release
control.

1 - Forwards-backwards

adjustment

Lift the control and slide the seat for-

wards or backwards.

2 - Head restraint height and

angle adjustment

To raise the restraint, pull it upwards.

The adjustment is correct when the
upper edge of the head restraint is
level with the top of the head.

The head restraint is itted with a

frame with notches, which prevent

the head restraint dropping down

(this is a safety device in the case of
impact).

To lower the head restraint, it is nec-

essary to push simultaneously:
-

the button located on the left-
hand guide at the base of the

head restraint frame,

- the head restraint downwards.
To remove the head restraint, press

the lug.
The head restraint angle can also be
adjusted.

3 - Access to the rear seats

(3-door), A or B according to

version

Place your ingers in one of the

two handles and push forwards

to fold down the seat back and

move the seat forwards.

When put back, the seat returns

to its initial position.
No person or object must
prevent the seat from returning
to its initial position. Returning to
this position is necessary for it to
be locked.

4 - Height adjustment
Pull the handle upwards.

Remove your weight from the seat to

raise, or press on the seat to lower.

5 - Seat back angle adjustment
Push the handle towards the rear.

COMFORT

48 -

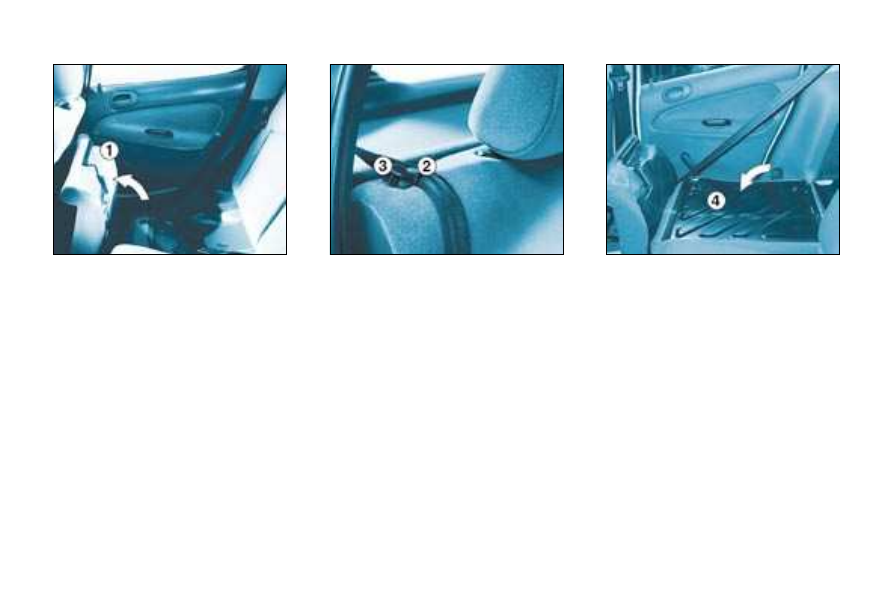

position the seat belt under the
belt holder 2

pull control 3 to unlock the seat
back 4

- remove or lower the head

restraint,

tilt the seat back 4.

Always start with the seat, never
the seat back (risk of damage).

REAR SEATS

To fold the rear seats:
-

lift the front of the seat cushion 1

tilt the seat cushion 1 against the

front seats,

When repositioning:
-

return the seat back to the

upright position,

- fold back the seat cushion,
-

reposition the buckles before
locking the front of the seat
cushion.

Take care not to trap the seat belts.

Content .. 1 2 3 4 ..
