FUSES

WARNING!

• When replacing a blown fuse, always use an ap-

propriate replacement fuse with the same amp
rating as the original fuse. Never replace a fuse
with another fuse of higher amp rating. Never
replace a blown fuse with metal wires or any other
material. Failure to use proper fuses may result in
serious personal injury, fire and/or property dam-
age.

• Before replacing a fuse, make sure that the ignition

is off and that all the other services are switched off
and/or disengaged.

• If the replaced fuse blows again, contact an autho-

rized dealer.

(Continued)

WARNING! (Continued)

• If a general protection fuse for safety systems (air

bag system, braking system), power unit systems
(engine system, gearbox system) or steering system
blows, contact an authorized dealer.

MAINTAINING YOUR VEHICLE

287

Engine Compartment Fuses

The engine compartment fuse box is located on the left
side of the engine compartment, next to the battery. To
access the fuses, remove screws and then remove the
cover.

The ID number of the electrical component correspond-
ing to each fuse can be found on the back of the cover.

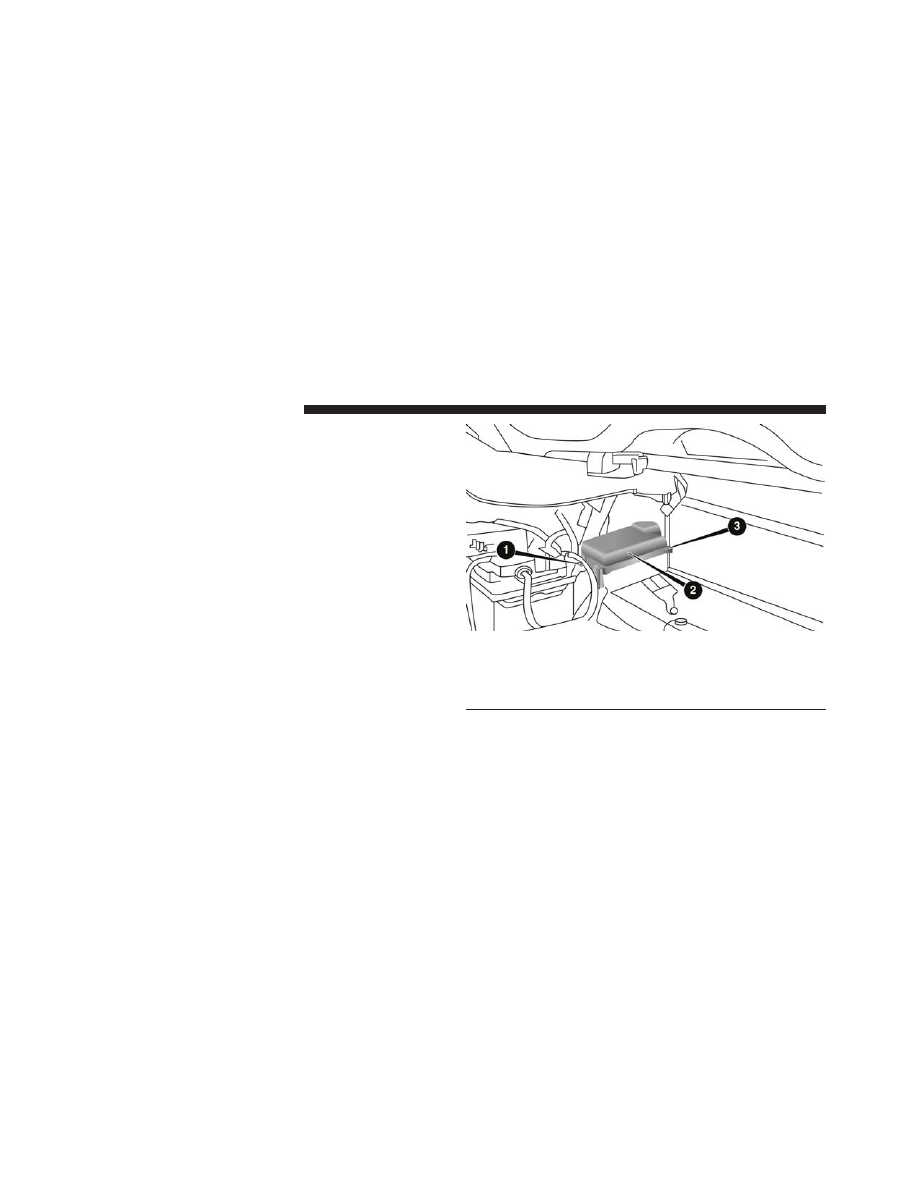

Engine Compartment Fuse Box

1 — Forward Screw
2 — Fuse Box Cover
3 — Rearward Screw

288

MAINTAINING YOUR VEHICLE

Cavity

Maxi Fuse

Mini Fuse

Description

F01

70 Amp Tan

Body Controller

F03

20 Amp Yellow

Ignition Switch

F04

40 Amp Orange

Anti-Lock Brake Pump

F05

20 Amp Yellow

Anti-Lock Brake Valve

F06

40 Amp Orange

Radiator Fan - Low Speed

F07

50 Amp Red

Radiator Fan - High Speed

F08

20 Amp Yellow

Blower Motor

F09

5 Amp Tan

Headlight beam switch (If Equipped)

F10

10 Amp Red

Horn

F11

20 Amp Yellow

Powertrain

F14

15 Amp Blue

Alfa Twin Clutch Transmission

F15

15 Amp Blue

Alfa Twin Clutch Transmission

F16

5 Amp Tan

Alfa Twin Clutch Transmission, ECM

F17

10 Amp Red

Powertrain

F18

5 Amp Tan

Powertrain

MAINTAINING YOUR VEHICLE

289

Cavity

Maxi Fuse

Mini Fuse

Description

F19

7.5 Amp Brown

Air Conditioning Compressor

F21

20 Amp Yellow

Fuel Pump

F22

20 Amp Yellow

Engine Control Unit Power Supply

F24

5 Amp Tan

Anti-Lock Brake System (ABS)

F30

10 Amp Red

Water Pump, HVAC

F82

30 Amp Green

Headlamp Washer (If Equipped)

F83

40 Amp Orange

Alfa Twin Clutch Transmission Pump

F84

5 Amp Tan

After Run Pump

F86

15 Amp Blue

Rear Power Outlet 12V

F88

7.5 Amp Brown

Heated Mirrors

Dashboard Fuse Box

The dashboard fuse box is part of the Body Control
Module (BCM) and is located on the passenger side
under the forward passenger floor. Remove the six
screws and the forward floor pan to access the BCM.

290

MAINTAINING YOUR VEHICLE

Cavity

Vehicle Fuse

Number

Mini Fuse

Description

F53

7.5 Amp Brown

Instrument Panel Node

F38

15 Amp Blue

Central Door Locking

F36

10 Amp Red

Diagnostic Socket, Car Radio, TPMS, Alarm

F43

20 Amp Yellow

Bi-Directional Washer

F48

20 Amp Yellow

Passenger Power Window

F50

7.5 Amp Brown

Airbag

F51

7.5 Amp Brown

Headlamp Washer Relay, A/C Compressor Relay,
High Beam Relay, Parking ECU, Car Radio, Stop
Lamp Switch

F37

7.5 Amp Brown

Stop Light Switch, Instrument Panel Node

F49

5 Amp Tan

Transmission Shifter Module, Cigar Lighter Light,
Drive Style Unit, Heated Mirrors Relay

F31

5 Amp Tan

Climate Control, Body Controller

F47

20 Amp Yellow

Driver Power Window

MAINTAINING YOUR VEHICLE

291

VEHICLE STORAGE

If you are leaving your vehicle dormant for more than 21
days, you may want to take these steps to protect your
battery.
• Disconnect the negative cable from the battery.
• Anytime you store your vehicle, or keep it out of

service (e.g., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.

REPLACEMENT BULBS

Interior Bulbs

Bulb Number

Overhead Lamp

C10W

Luggage Compartment

W5W

Exterior Bulbs

Bulb Number

Parking Lights/Daytime
Running Lights (DRL)

LED (See Authorized

dealer)

Rear Tail Lights

LED (See Authorized

dealer)

Font and Rear Side
Lights

W3W

292

MAINTAINING YOUR VEHICLE

Bulb Number

Dipped/Main Beam
Headlights (Versions
With Bi-Halogen Head-
lights) — If Equipped

HIR2

Dipped/Main Beam
Headlights (Versions
With Bi-Xenon Head-
lights) — If Equipped

D5S (See Authorized

dealer)

Dipped/Main Beam
Headlights (Versions
With Bi-Led Headlights)
— If Equipped

LED (See Authorized

dealer)

Front Direction Indicators

PY24W

Rear Direction Indicators

P21W

Side Direction Indicators

WY5W

Bulb Number

Brake Lights

LED (See Authorized

dealer)

Third Brake Light

LED (See Authorized

dealer)

License Plate Lamps

W5W

Reversing light

W16W

NOTE:

Numbers refer to commercial bulb types that

can be purchased from your authorized dealer.
If a bulb needs to be replaced, visit your authorized
dealer or refer to the applicable Service Manual.

MAINTAINING YOUR VEHICLE

293

BULB REPLACEMENT

NOTE:

Lens fogging can occur under certain atmo-

spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.

Front Light Clusters

The front head lamp contains bulbs for the parking
lights/daytime running lights (DRL), low beam head-
lights, high beam headlights and direction indicators.

If bulb replacement is required, please see an authorized
dealer.

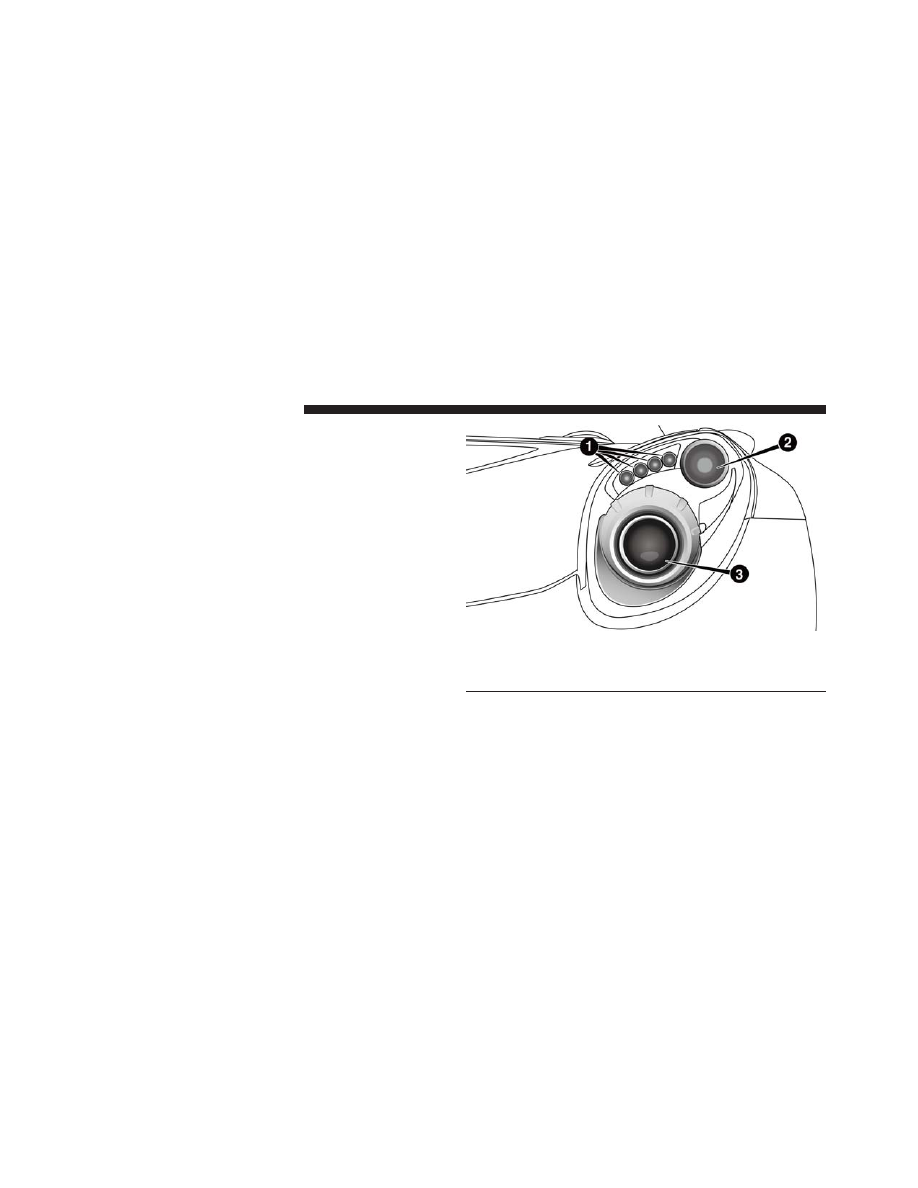

1 — Daytime Running Lights
2 — Direction Indicator
3 — High/Low Beam Lights

294

MAINTAINING YOUR VEHICLE

Side Lights/Daytime Running Lights (DRL)

These are LEDs. For the replacement, contact the your
authorized dealer.

Low/High Beam Bi-Halogen Headlights

To change the bulb, proceed as follows:

1. Turn the steering wheel completely.

2. Open the protective flap by rotating the screw.

1 — Direction Indicator Bulb Protective Flap
2 — Headlamp Bulb Protective Flap

MAINTAINING YOUR VEHICLE

295

3. Remove the electric connector (1) and then rotate the

bulb holder (2) clockwise and remove it.

4. Extract the bulb and replace it.

5. Refit the new bulb, making sure that it is locked

correctly, and reconnect the electrical connector.

6. Close the protective flap.

Low/High Beam HID & LED Headlights

For the replacement, contact the your authorized dealer.

Direction Indicators

Front:

1. Turn the steering wheel completely.

2. Open the protective flap by rotating the screw.

1 — Electrical Connector
2 — Bulb Holder

296

MAINTAINING YOUR VEHICLE

3. Rotate the bulb holder counterclockwise and remove

it.

4. Rotate the bulb assembly counter clockwise to remove

from bulb holder.

5. Install the new bulb, making sure that it is locked in

correctly, and reinstall into headlamp assembly.

6. Close the protective flap.

1 — Direction Indicator Bulb Protective Flap
2 — Headlamp Bulb Protective Flap

Bulb Holder

MAINTAINING YOUR VEHICLE

297

Side:

1. Adjust the lens in the point shown in to compress the

retaining clip, then pull the cluster outwards.

2. Turn the bulb holder counterclockwise, remove the

bulb and replace it.

3. Install the bulb holder in the lens and turn it clock-

wise.

4. Install the cluster making sure that the internal clip

clicks into position.

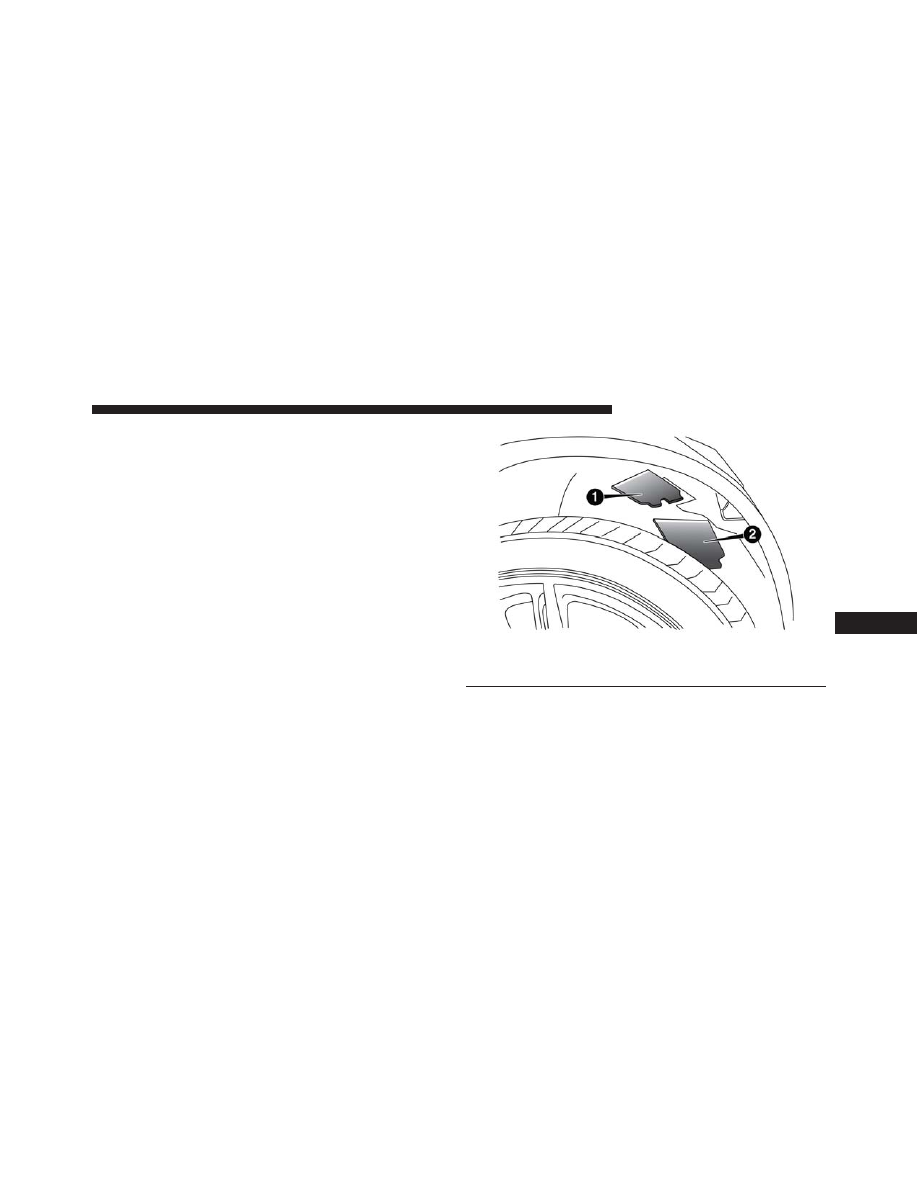

1 — Lens
2 — Bulb Holder

298

MAINTAINING YOUR VEHICLE

Front Side Marker

To change the bulb, proceed as follows:

1. Turn the front wheels to gain access and then remove

the fastener from the inner wheel liner.

2. Fold back wheel liner door to access bulb housing.

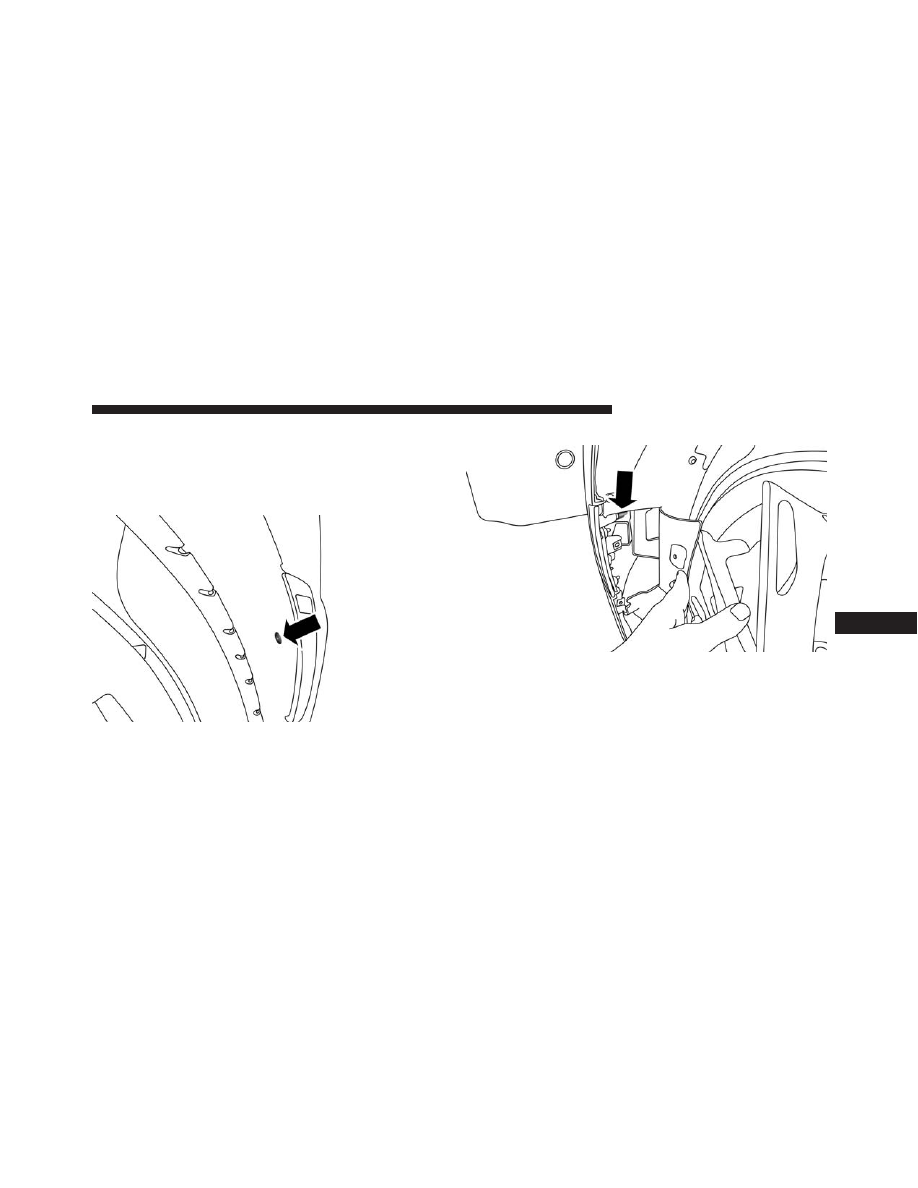

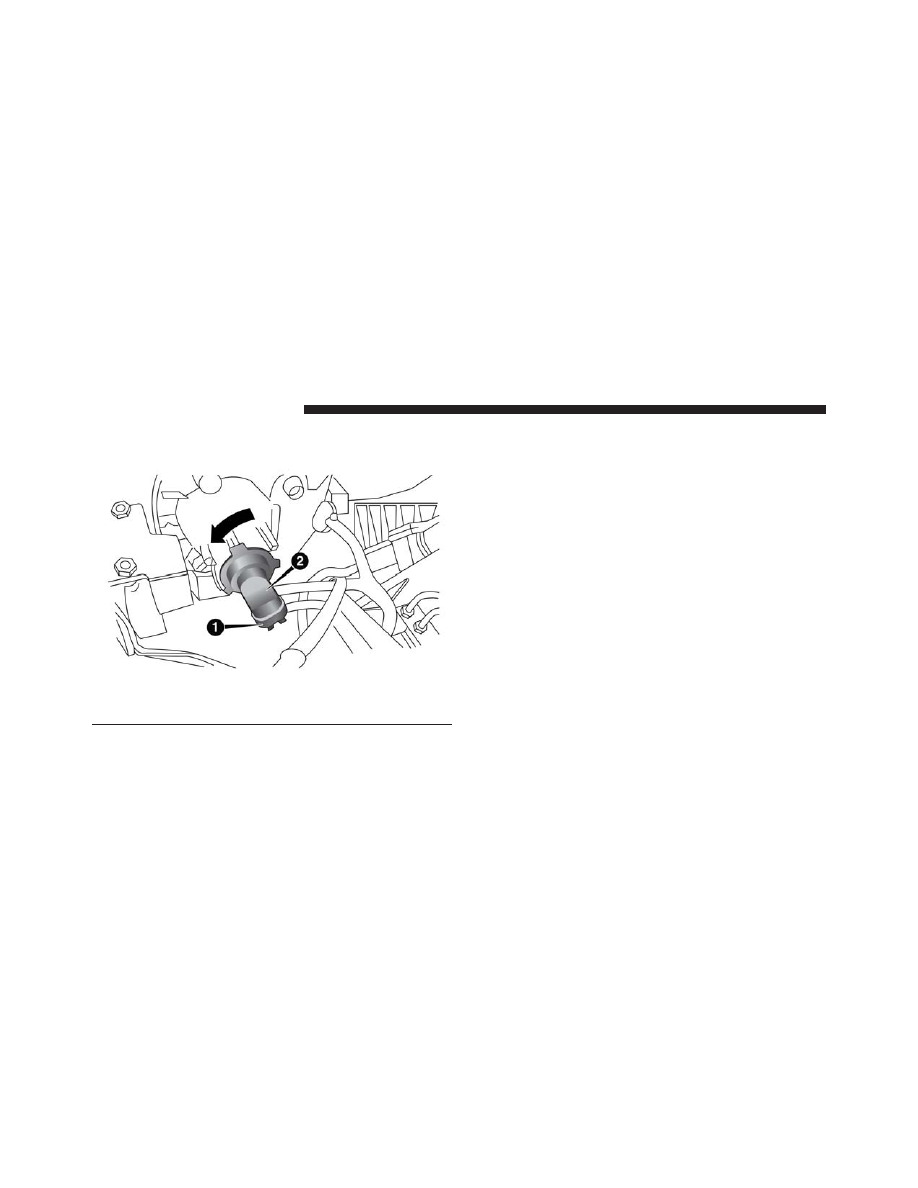

Fastener Location

Bulb Housing Location

MAINTAINING YOUR VEHICLE

299

3. Remove bulb from bulb housing then remove and

replace bulb and reinstall.

Rear Light Clusters

These contain the bulbs for the side lights, direction
indicators and brake lights.

Direction Indicators

To change the bulb, proceed as follows:

1. Remove the protective cap (one for each side) on the

side cover of the luggage compartment.

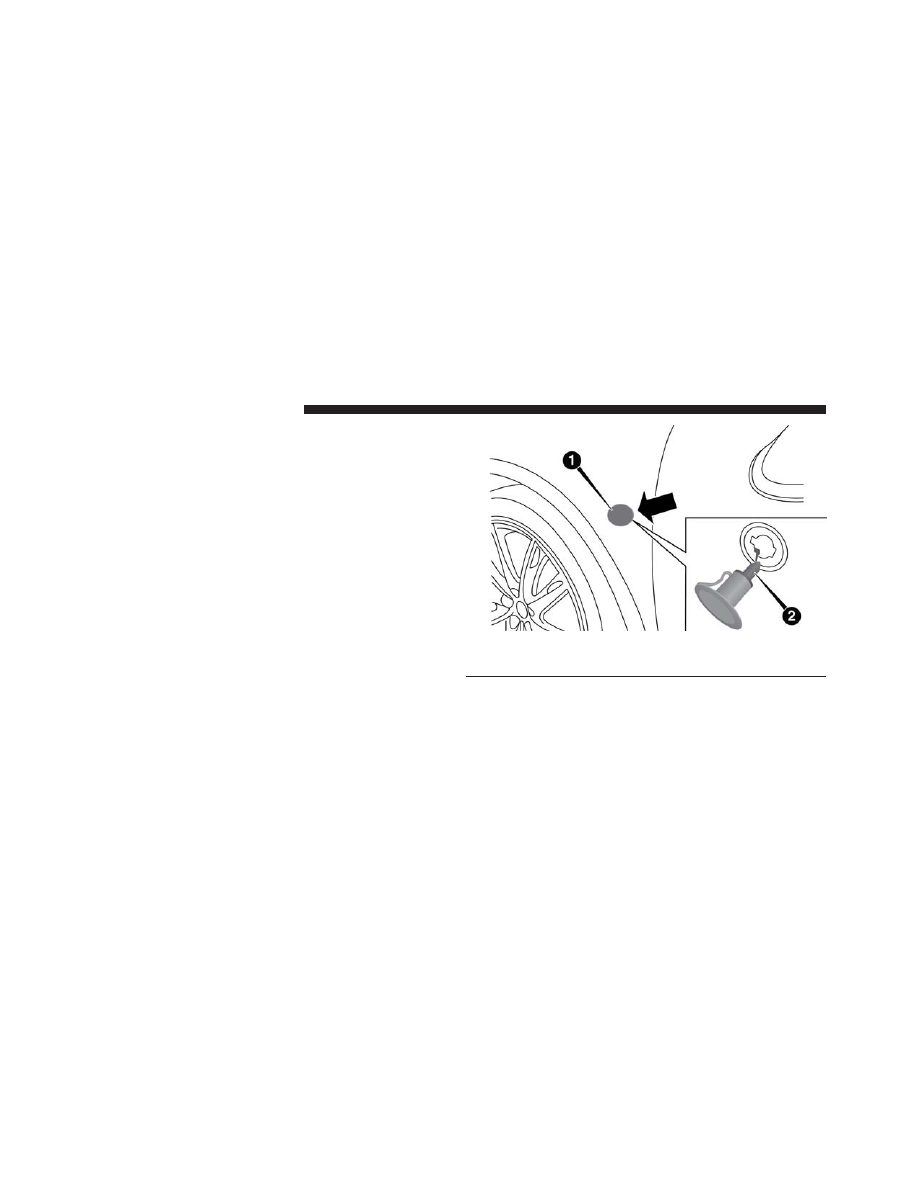

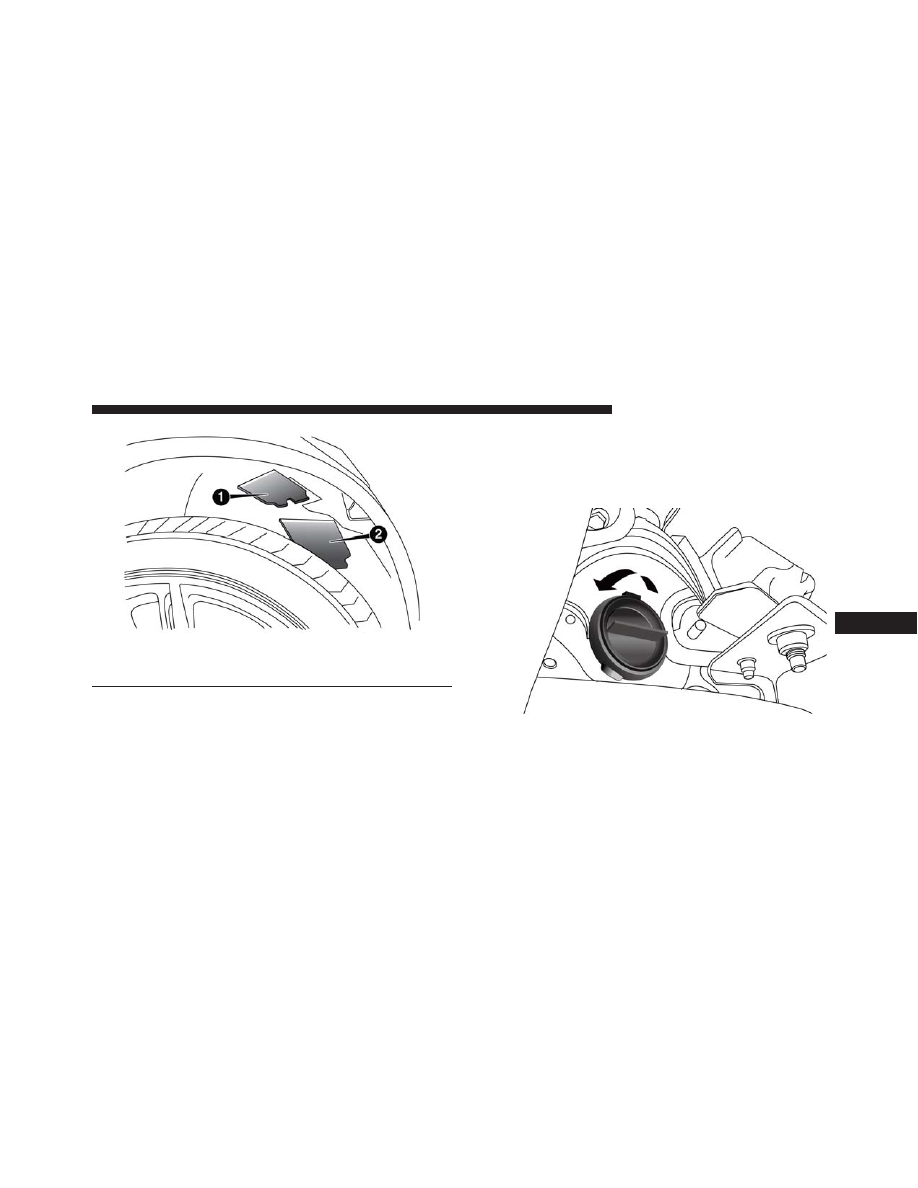

Front Side Marker Bulb

First Protective Cap

300

MAINTAINING YOUR VEHICLE

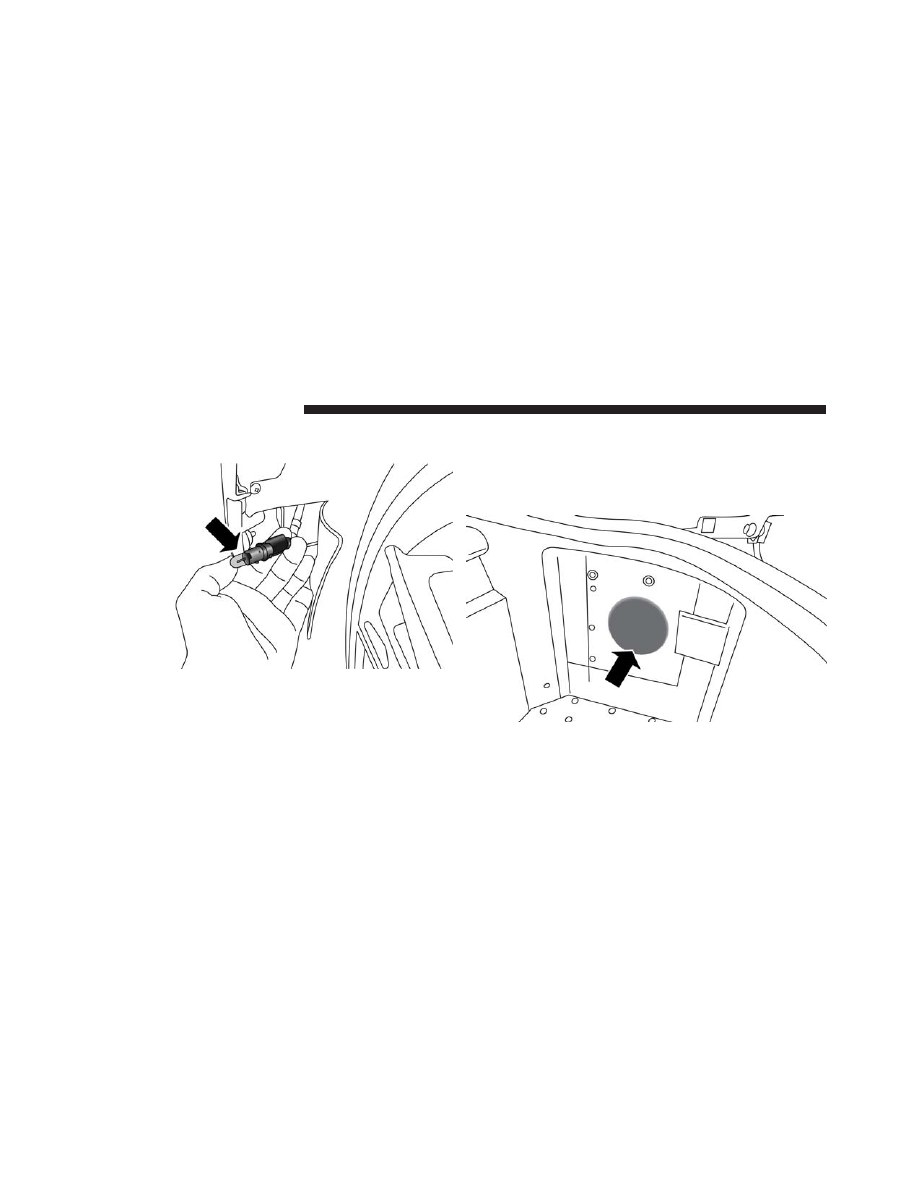

2. Remove the second protective cap inserting a hand

inside the opening.

3. Rotate clockwise to remove the bulb holder remove

the bulb from the bulb holder.

4. Install the bulb by pressing it into bulb holder then

turn install the bulb holder and turn it counterclock-
wise.

5. Install the previously removed protective caps.

Tail Lights/Brake Lights

These are LEDs. For the replacement, contact the your
local dealer.

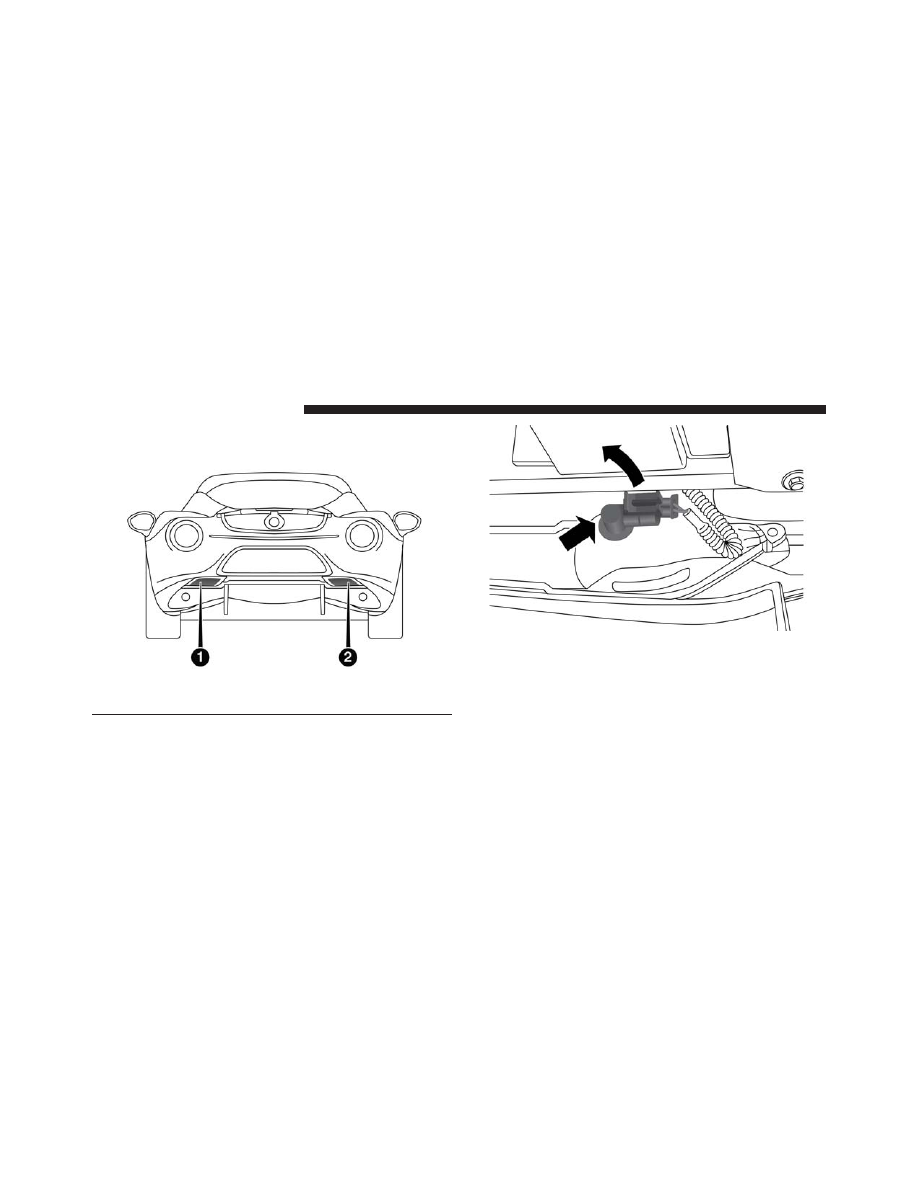

Reversing Light

WARNING!

The reversing light are located close to the exhaust
pipes; take the utmost care not to get burnt during
the bulb replacement.

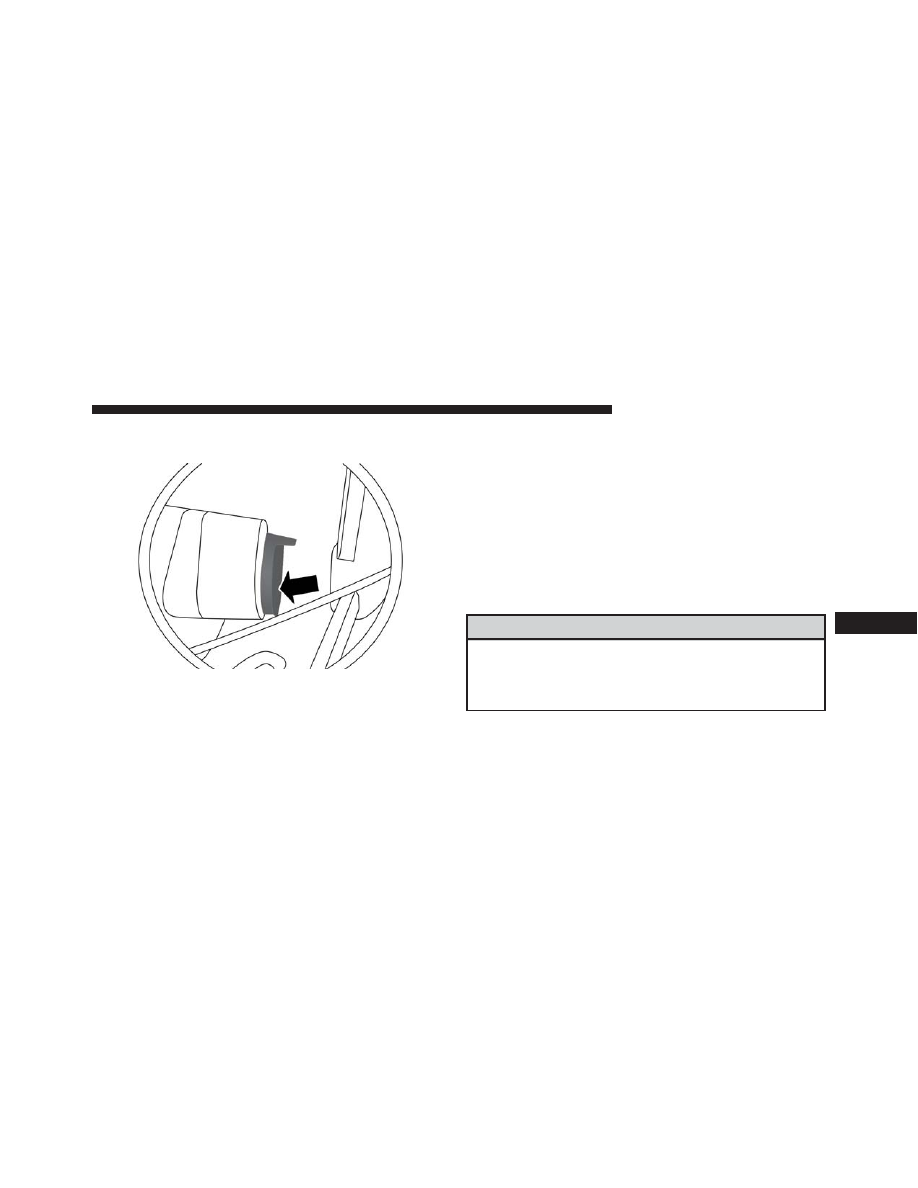

Second Protective Cap

MAINTAINING YOUR VEHICLE

301
