Opel Zafira (2020 year). Manual in english - page 11





Vehicle care
225

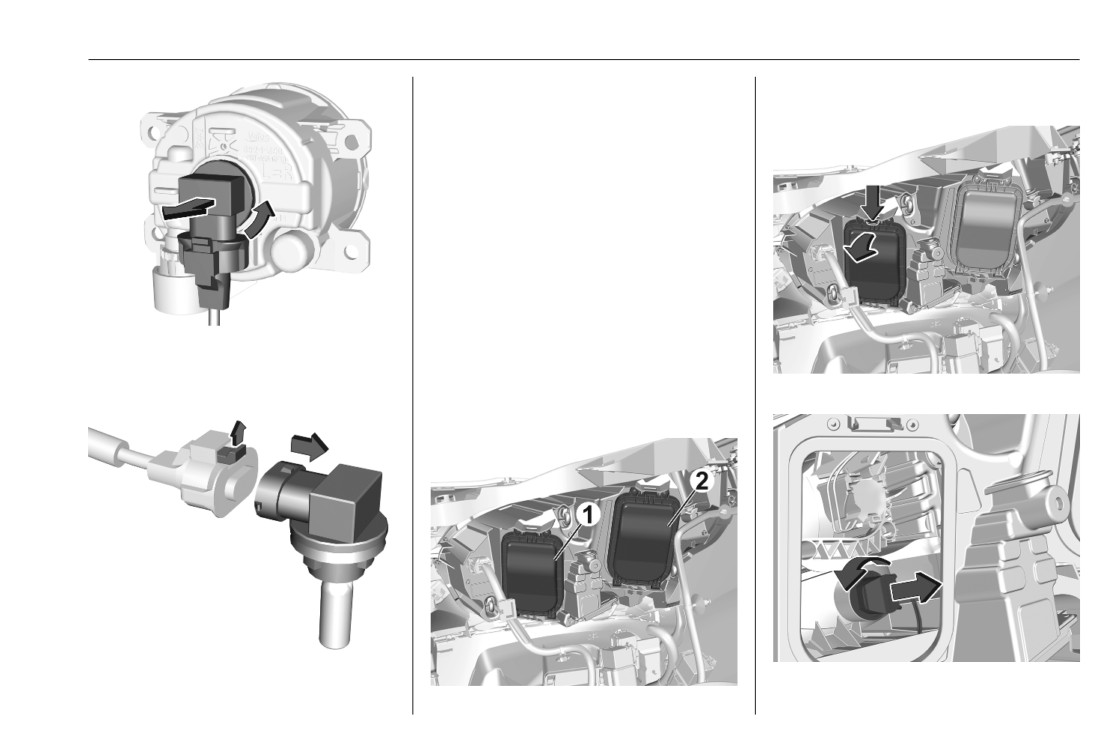

4. Remove and replace the bulb unit
Turn light bulb sits in inner chamber
and attach the plug connector.
(1)
Note that the bulb and the socket
are one unit and have to be
changed together.
5. Insert the bulb socket into the light
assembly by turning clockwise
and engage.
6. Mount the light assembly by
tightening the two screws.
7. Attach and engage the cover.
2. Turn the bulb socket
anticlockwise and remove it from
Front turn lights
the light assembly.
Illustrations show the right headlight
1. Remove the protective cover.
unit.
3. Disengage the plug connector by
pulling the retaining lug.
226
Vehicle care
2. Rotate the bulb socket

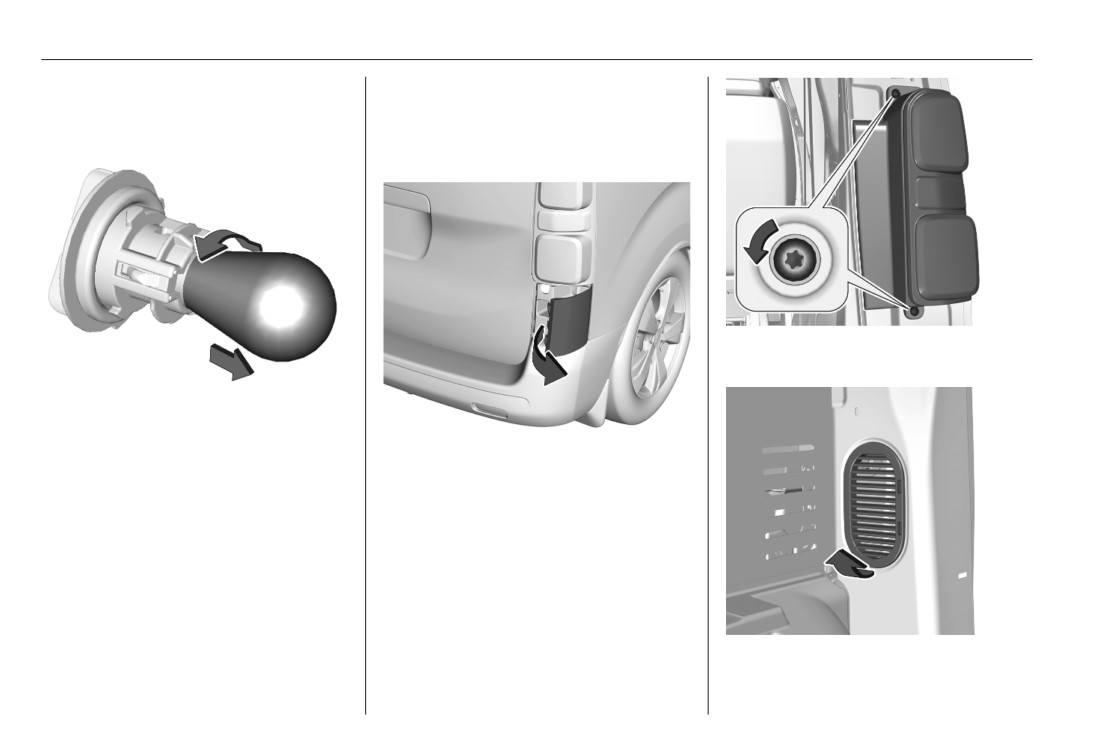

Tail lights
anticlockwise to disengage and
withdraw from the reflector.
Tail light assembly
All body styles except platform cab
2. Unscrew and remove the two
screws.
3. Slightly press down the bulb, turn
it anticlockwise and remove it
1. Vehicles with a cover hiding the
from the socket.
lower tail light assembly screw:
4. Replace and insert the new bulb
remove cover by carefully
into socket by turning clockwise.
releasing its retaining lugs with a
5. Insert the bulb socket into the
screwdriver and tilting the cover
reflector and turn clockwise.
slightly towards the outside.
3. Vehicles with air vent or cover
behind the tail light, in the trim:
Remove air vent or cover.
Vehicle care
227

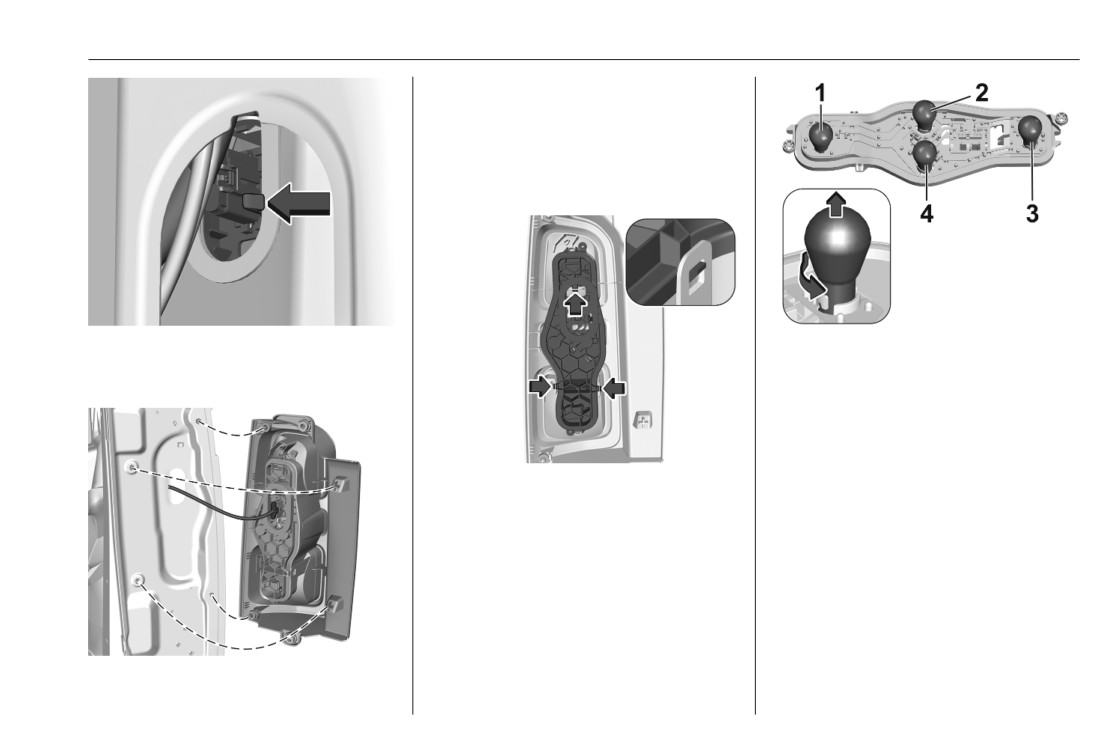

5. Carefully withdraw the tail light
assembly from recess and
remove. Take care that the cable
duct remains in position.
6. Detach the cable from the retainer
in the light assembly.
4. While holding the light assembly,
8. Push the bulb slightly down, turn
push the retaining lug which holds
it and remove it from the bulb
the tail light assembly in the body.
carrier. Replace the bulb:
Tail light / parking light (1)
Reverse light (2)
Brake light / parking light (3)
7. Disengage the central retaining
Turn light / hazard warning flasher
lug, pull the bulb carrier and
(4)
disengage the remaining retaining
lugs.
9. Attach the bulb carrier to the light
assembly.
10. Attach the cable to the retainer.
11. Attach the light assembly to the
vehicle body and tighten both
screws.
228
Vehicle care
12. Clip in cover which may have
Side turn lights
covered the lower tail light
To replace the bulb, remove the light
assembly screw.
housing:
13. Attach cover or air vent behind the
tail light if removed before.

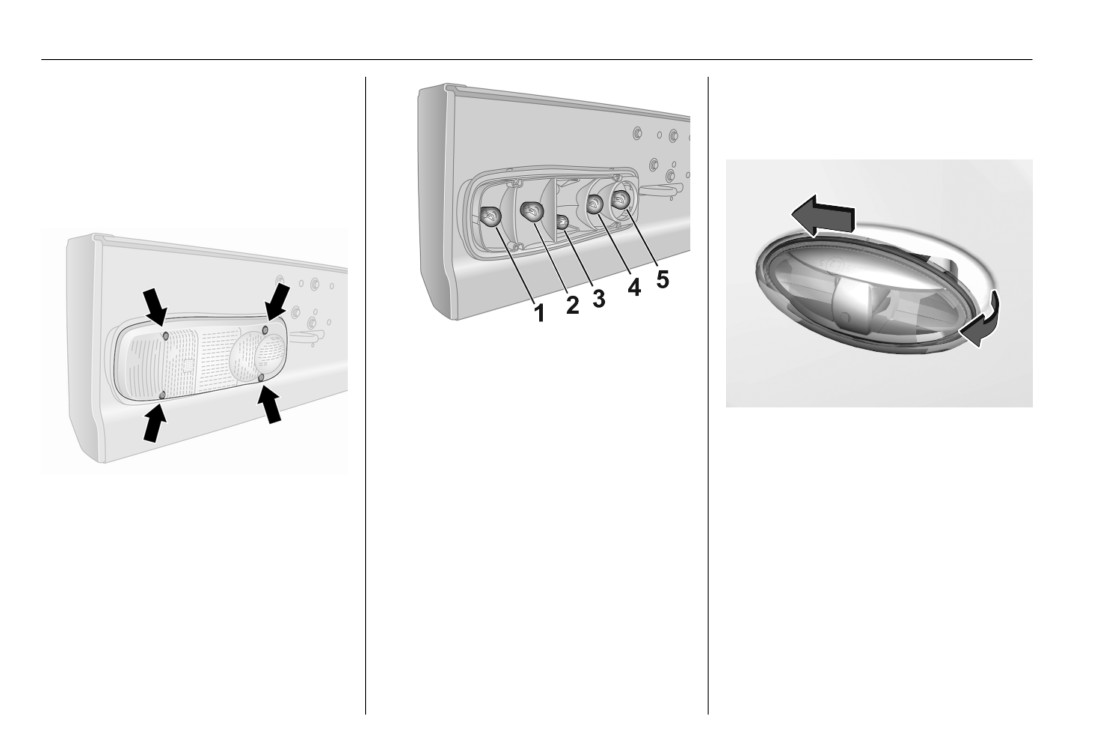

Platform Cab
3. Push bulb into socket slightly,
rotate anticlockwise, remove and
renew bulb.
Turn light (1)
1. Slide the lamp housing forward
Brake light (2)
and remove it at the back. It may
Tail light (3)
help to use a screwdriver to lever
1. Remove the four screws from the
Reversing light (4)
out the light housing from the
lens.
body. Wrap the tip of the
Rear fog light, may be on one side
screwdriver with a cloth to prevent
2. Remove lens from the aperture.
only (5)
paint damage.
4. Install lens in aperture and
replace the four screws.
Vehicle care
229
2. a) vehicles with tailgate:
Wrap a cloth around the tip of a
slot screwdriver to prevent paint
damage. Remove the inner cover
or air vent with the screwdriver.
3. Push the brake light assembly
carefully out through the recess.
4. Detach the cable from the retainer
in the light assembly.
2. Pull the retaining lug upwards and
remove the bulb socket from the
Loose the inner trim from clips by
plug connector.
swiveling it upwards and
downwards. Pull trim off carefully.
3. Replace the complete unit.
b) vehicles with hinged doors:
4. Insert left end of the lamp, slide to
the left and insert right end.

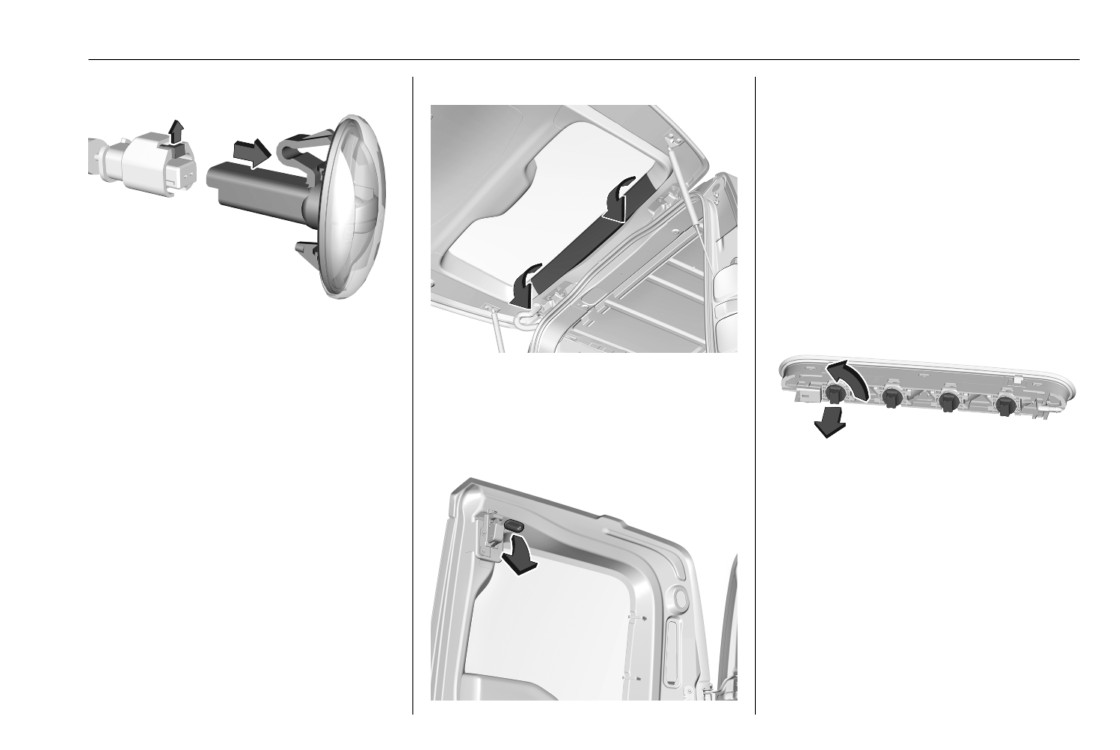

Centre high-mounted brake
5. Remove the socket of the defect
light
bulb by turning it a quarter turn
anti-clockwise.
Vehicles with hinged doors or
tailgate
6. Renew bulb.
7. Install brake light assembly like
1. Open the rear doors.
explained above, in reversed
order.
230
Vehicle care
2. Pull the bulb from the bulb holder

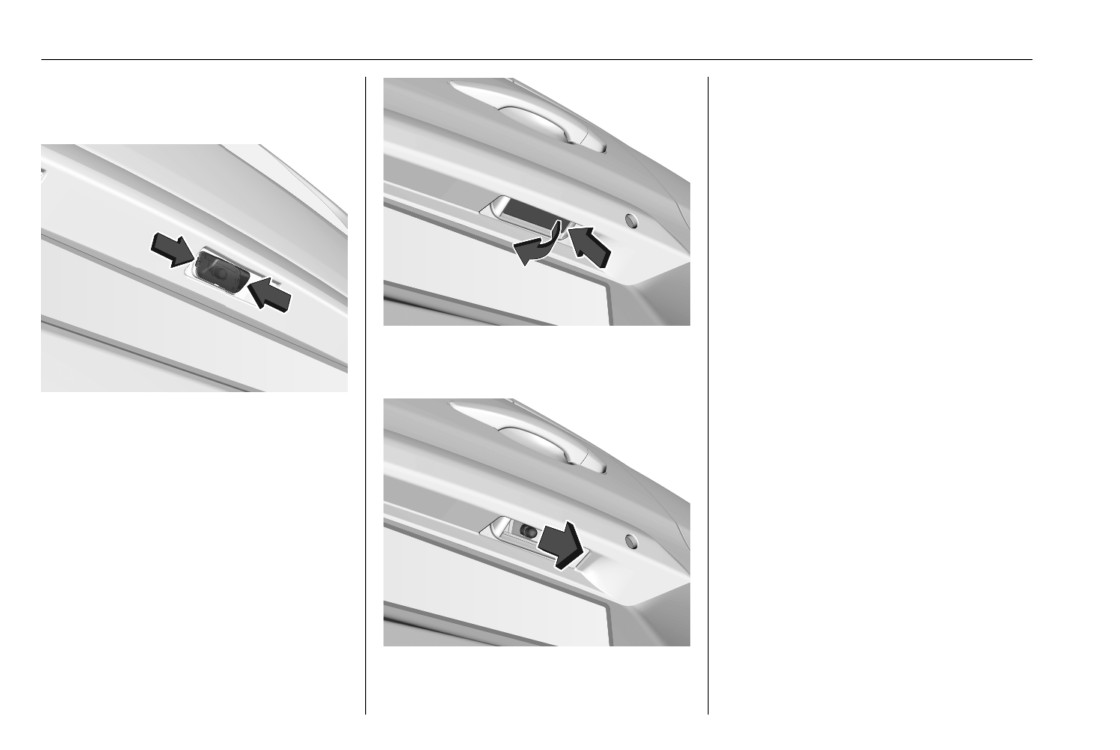

Number plate light
and replace it.
1. a) vehicles with tailgate:
3. Attach the cover.
Interior lights
Have the following lights replaced by
a workshop:
● courtesy light, reading lights
● load compartment light
● instrument panel illumination
Insert a screwdriver in one of the
recesses of the cover and lever it
out. Remove the cover.
Insert a thin screwdriver, e.g., in
one of the recesses of the cover
and push it outwards to unclip it.
Remove the cover.
b) vehicles with hinged doors:
Vehicle care
231
Fuse extractor
Unclip the cover by pulling at the top
Electrical system
left, then right. Disengage the cover
A fuse extractor may be located
completely and turn it over.
Fuses
behind the passenger compartment
The extractor has two sides, each
Data on the replacement fuse must
fuse box cover:
side is designed for a different type of
match the data on the defective fuse.
fuses.
There are two fuse boxes in the
vehicle:
● engine compartment
● instrument panel
Before replacing a fuse, turn off the
respective switch and the ignition.
A blown fuse can be recognised by its
melted wire.
Caution
Do not replace the fuse until the
cause of the fault has been
Grab the fuse with the fuse extractor
remedied.
and withdraw the fuse.
Some functions are protected by
several fuses.
Fuses may also be inserted without
existence of a function.
232
Vehicle care
Engine compartment fuse
No. Circuit
box
19
Front wiper motor
20
Front and rear screenwash
pump
21
Headlight wash pump
22
Horn
23
Right high beam
24
Left high beam
After having changed defective fuses,
close the fuse box cover and lock it.
If the fuse box cover is not closed
The fuse box is in the front left of the
correctly, malfunction may occur.
engine compartment.
Disengage the cover and remove it.
Instrument panel fuse box
No. Circuit
The fuse box is located behind a
cover in the instrument panel at the
12
Heated washer jets
left side.
14
Front and rear screenwash
pump
Remove the cover by pulling at the
15
Front radar system, electric
top left, then at the right side.
power steering
17
Built-in systems interface
Vehicle care
233
Version 1 (Eco)
No.
Circuit
No. Circuit
13
Head-up display, climate
34
Interior mirror, blind spot
controls, Infotainment system
monitoring system, door
controls, gear selector
mirror controls
14
Anti-theft alarm system, tele-
35
Heated washer jets, headlight
matic unit
range adjustment
17
Instrument cluster
36
Interior lights, torch charger
19
Steering wheel controls
Version 2 (Full)
21
Anti-theft system or electronic
key system
22
Front camera, rain and light
No.
Circuit
sensor
1
Clutch switch, power steering
23
Seat belt reminder
4
Horn
24
Parking assist, Infotainment
system, rear view camera
5
Front and rear screenwash
pump
25
Airbags
6
Front and rear screenwash
29
Infotainment system
pump
31
Infotainment system (+
7
Rear power outlet
battery)
8
Rear window wipers
32
Front power outlet
10/11
Central locking system
234
Vehicle care
No.
Circuit
No.
Circuit
Vehicle tools
1
Anti-theft system or
25
Headlight range adjust-
Tools
electronic key system
ment
5
Parking assist, Infotain-
26
Seat belt reminder
ment system, rear view
27
Front camera, rain and
camera
light sensor
7
Rear climate controls,
28
Head-up display, front
audio system amplifier
climate controls, Info-
8
Rear window wipers
tainment system
controls, gear selector
10/11
Central locking system
30A or 30B Audio system (+
12
Anti-theft alarm system
battery)
17
Rear power outlet
31
Airbag
The tools are located in the box
18
Telematic unit
33
Front power outlet
underneath the left front seat.
21
Interior lights, torch
35
Instrument cluster
charger
36
Infotainment system
22
Interior lights, glovebox
light
23
Blind spot monitoring
system, door mirror
controls
24
Steering wheel controls
Vehicle care
235

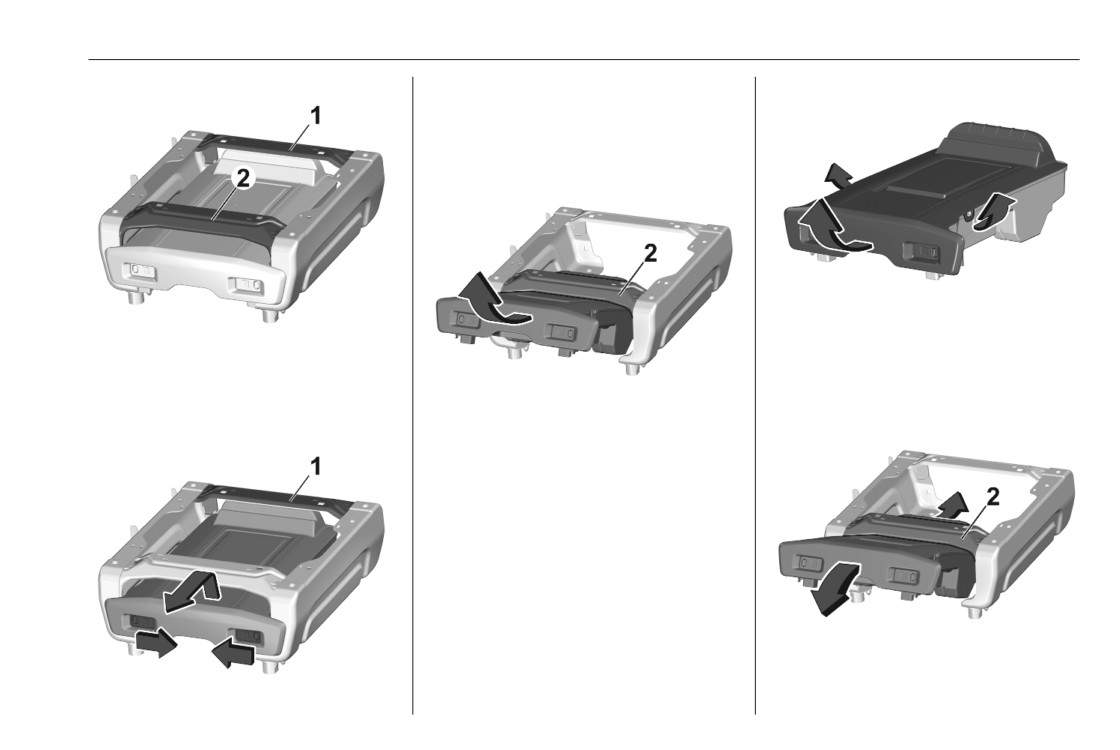

Opening of the box
2. Press latches and slide them
inwards to release the box. Lift the
box slightly to release it from bar
1. Pull it out.
4. Unclip retainers on the box cover
1. The box is secured by two bars
and open it.
which prevent its escaping from
Stowing the box
its housing, if it is not stowed
correctly.
3. Lift the box upwards to take it past
bar 2.
236
Vehicle care
1. Insert the box with the front
Vehicles with spare wheel
Vehicles without spare wheel
inclined upwards. To take it past
bar 2, push the box in and down.

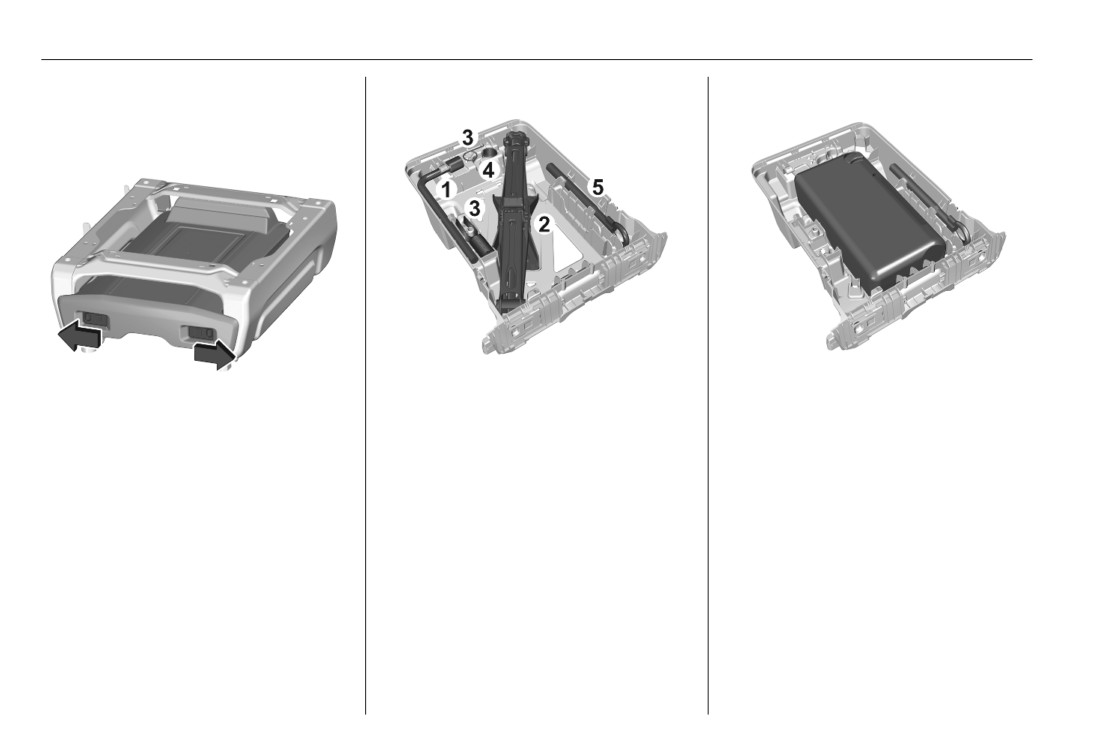

The box contains:
The box contains a towing eye and a
tyre repair kit.
2. Once the box is in the housing,
1. a wheelbrace for removing the
push it down and slide latches
wheel bolts and operating the
Tyre repair kit 3 241.
outwards to secure it.
jack.
2. a jack to raise the vehicle.
3. wheel bolt cap or hub cap removal
tools. These tools are designed to
remove the wheel bolt head
covers on alloy wheels or the hub
cap on steel wheels.
4. a wheelbrace adapter for the
security wheel bolts.
5. a towing eye.
Vehicle care
237
Wheels and tyres
Tyre designations
Directional tyres
E.g. 225/55 R 18 98 V
Directional tyres should be mounted
Tyre condition, wheel condition
225 : tyre width, mm
so that they rotate in the correct
55
: cross-section ratio (tyre height
direction. The proper rotation
Drive over edges slowly and at right
direction is indicated by a symbol
to tyre width), %
angles if possible. Driving over sharp
(e.g. an arrow) on the sidewall.
R
: belt type: Radial
edges can cause tyre and wheel
RF : type: RunFlat
damage. Do not trap tyres on the kerb
18
: wheel diameter, inches
Tyre pressure
when parking.
98
: load index e.g. 98 is equivalent
Check the pressure of cold tyres at
Regularly check the wheels for
to 750 kg
least every 14 days and before any
damage. Seek the assistance of a
V
: speed code letter
long journey. Do not forget the spare
workshop in the event of damage or
Speed code letter:
wheel. This also applies to vehicles
unusual wear.
with tyre pressure monitoring system.
Q : up to 160 km/h
S : up to 180 km/h
Tyre pressure 3 271.
Winter tyres
T
: up to 190 km/h
The tyre pressure data refers to cold
Winter tyres improve driving safety at
H : up to 210 km/h
tyres. It applies to summer and winter
temperatures below 7 °C and should
V : up to 240 km/h
tyres.
therefore be fitted on all wheels.
W : up to 270 km/h
Always inflate the spare tyre to the
In accordance with country-specific
Choose a tyre appropriate for the
pressure specified for full load.
regulations, affix the speed sticker in
maximum speed of your vehicle.
Incorrect tyre pressures will impair
the driver's field of view.
Refer to the EEC Certificate of
safety, vehicle handling, comfort and
All tyre sizes are permitted as winter
Conformity provided with your vehicle
fuel economy and will increase tyre
tyres 3 271.
or other national registration
wear.
documents. Optional equipment
Tyre pressures differ depending on
could reduce the maximum speed of
various options. For the correct tyre
the vehicle.
pressure value, follow the procedure
below:
238
Vehicle care
1. Identify the engine identifier code.
If a tyre loses pressure the control
pressure as indicated on the tyre.
Engine data 3 268.
indicator q illuminates, a warning
Never exceed the maximum tyre
chime is given and a warning
2. Identify the respective tyre.
pressure as indicated on the tyre.
message is displayed in the Driver
The tyre pressure tables show all
Information Centre.
possible tyre combinations 3 271.
Temperature dependency
In this case reduce speed, avoid
For the tyres approved for your
The tyre pressure depends on the
sharp cornering and strong braking.
vehicle, refer to the EEC Certificate of
temperature of the tyre. During
Stop at next safe opportunity and
Conformity provided with your vehicle
driving, tyre temperature and
check tyre pressure.
or other national registration
pressure increase. Tyre pressure
Control indicator q 3 114.
documents.
values provided on the tyre
The driver is responsible for correct
information label and tyre pressure
After adjusting tyre pressure initialise
adjustment of tyre pressure.
chart are valid for cold tyres, which
system to extinguish the control
means at 20 °C.
indicator and restart system.
9 Warning
The pressure increases by nearly
Caution
10 kPa for a 10 °C temperature
If the pressure is too low, this can
increase. This must be considered
result in considerable tyre warm-
when warm tyres are checked.
Deflation detection system warns
up and internal damage, leading to
just about low tyre pressure
tread separation and even to tyre
condition and does not replace
Tyre deflation detection
regular tyre maintenance by the
blow-out at high speeds.
system
driver.
The tyre deflation detection system
9 Warning
In case of a system malfunction, the
continually checks the rotation speed
control indicators q and
R
of all four wheels and warns on low
For specific tyres the
appear at the same time or a
tyre pressure condition once vehicle
recommended tyre pressure as
message is displayed in the Driver
is driving. This is achieved by
shown in the tyre pressure table
Information Centre. Set correct tyre
comparing tyre rolling circumference
may exceed the maximum tyre
pressure and reinitialise system. If the
with reference values and further
failure continues to be displayed,
signals.
Vehicle care
239
contact a workshop. The system is
System has to be reinitialised when:
inoperable when ABS or ESC has a
● Tyre pressure has been changed
malfunction or a temporary spare
● Load condition has been
wheel is used. Once the road tyre has
changed
been refitted, check the tyre pressure
with cold tyres and initialise the
● Wheels have been swapped or
system.
exchanged
The system will not warn
System initialisation
instantaneously on a tyre blow out or
After tyre pressure correction or
a rapid deflation. This is due to
wheel change, the system must be
required calculation time.
initialised to learn new circumference
a) Vehicles without Infotainment
reference values:
Tread depth
system: Press button q for 3
1. Always ensure that all four tyres
seconds. A chime confirms the
Check tread depth at regular
have correct tyre pressure
start.
intervals.
3 271.
b) Vehicles with Infotainment
Tyres should be replaced for safety
2. Apply parking brake.
system: Initialise the deflation
reasons at a tread depth of 2-3 mm
3. Start the initialisation procedure:
detection system in the vehicle
(4 mm for winter tyres).
personalisation 3 124.
For safety reasons, it is
4. Reset is confirmed by pop-up
recommended that the tread depth of
indication.
the tyres on one axle should not vary
by more than 2 mm.
After initialisation system
automatically calibrates to new tyre
pressures during driving. After longer
drive the system will adopt and
monitor new pressures.
Always check tyre pressure with cold
tyres.
240
Vehicle care
Wheel covers must not impair brake
Changing tyre and wheel
cooling.
size
If tyres of a different size than those
9 Warning
fitted at the factory are used, it may be
necessary to reprogramme the tyre
Use of unsuitable tyres or wheel
deflation detection system and make
covers could lead to sudden
other vehicle modifications.
pressure loss and thereby
Tyre deflation detection system
accidents.
3 238.
Vehicles with steel wheels: When
Have the label with tyre pressures
using locking wheel nuts, do not
replaced.
attach wheel covers.
The legally permissible minimum
tread depth (1.6 mm) has been
9 Warning
reached when the tread has worn
Tyre chains
down as far as one of the tread wear
The use of unsuitable tyres or
indicators (TWI). Their position is
wheels may lead to accidents and
indicated by markings on the
will invalidate the vehicle
sidewall.
operating permit.
If there is more wear at the front than
the rear, swap round front wheels and
Wheel covers
rear wheels periodically. Ensure that
Wheel covers and tyres that are
the direction of rotation of the wheels
factory approved for the respective
remains the same.
vehicle and comply with all of the
Tyres age, even if they are not used.
relevant wheel and tyre combination
We recommend tyre replacement
requirements must be used.
every six years.
If the wheel covers and tyres used are
not factory approved, the tyres must
not have a rim protection ridge.
Vehicle care
241
Tyre chains are only permitted on the
9 Warning
front wheels.
Always use fine mesh chains that add
Do not drive faster than 80 km/h.
no more than 9 mm to the tyre tread
Do not use for a lengthy period.
and the inboard sides (including chain
lock).
Steering and handling may be
affected.
9 Warning
In the case of a flat tyre:
Damage may lead to tyre blowout.
Apply the parking brake and engage
first gear, reverse gear or P.
Tyre chains are permitted on all tyres
The tyre repair kit is located in the tool
sizes allowed for the vehicle.
3. Turn selector A to the "sealant"
box underneath the left front seat.
position. Check that switch B is in
Tool box 3 234.
Temporary spare wheel
position J.
1. Pull speed limit label from the tyre
The use of tyre chains is not permitted
repair kit and place it in driver's
on the temporary spare wheel.
visible area.
2. Pull the electrical cable and air
Tyre repair kit
hose out of the compartments on
Minor damage to the tyre tread can be
the underside of the kit.
repaired with the tyre repair kit.
Do not remove foreign bodies from
the tyres.
Tyre damage exceeding 4 mm or that
is at tyre's sidewall cannot be repaired
with the tyre repair kit.
242
Vehicle care
4. Uncoil the air hose fully and
When the correct pressure is
unscrew the cap from the end of
obtained, switch off the
the hose. Connect hose to the
compressor.
valve of the defective tyre.
If the prescribed tyre pressure is
not obtained within ten minutes,
remove the tyre repair kit. Move
the vehicle one tyre rotation.
Reattach the tyre repair kit and
continue the filling procedure for
ten minutes. If the prescribed tyre
pressure is still not obtained, the
tyre is too badly damaged. Seek
6. Set the rocker switch on the
the assistance of a workshop.
compressor to I. The tyre is filled
with sealant.
7. The compressor pressure gauge

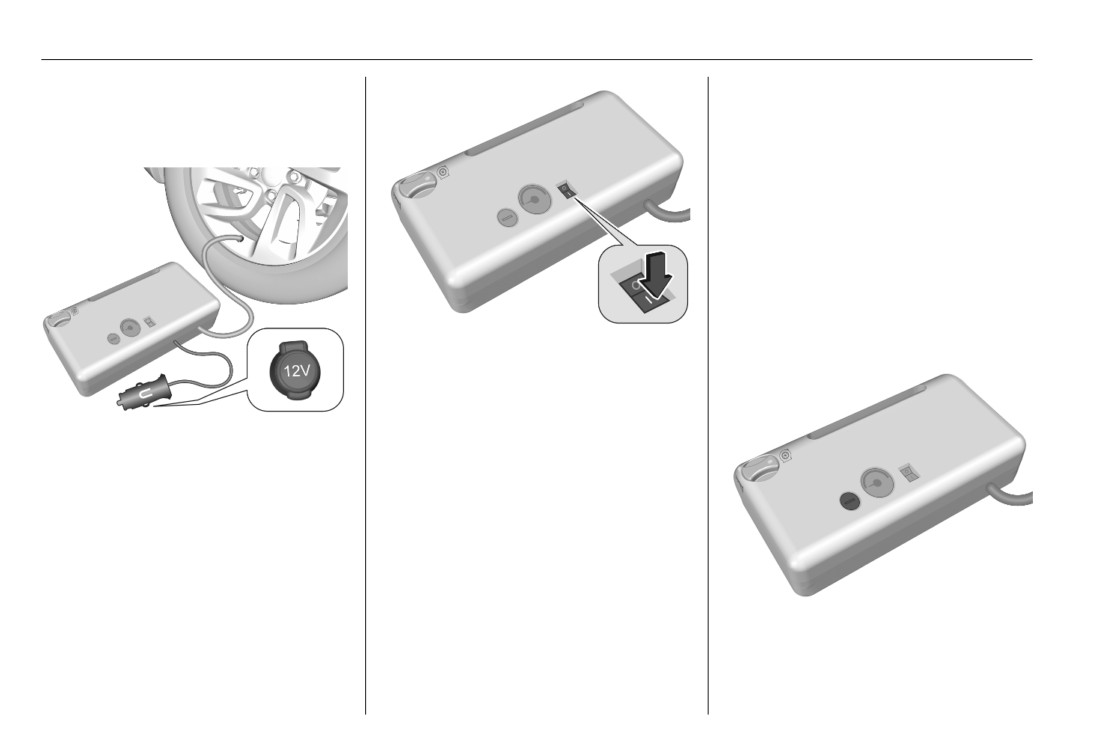

5. Connect the electrical cable to the
briefly indicates up to
vehicle's 12 V front power outlet
600 kPa (6 bar) whilst the sealant
3 98.
cartridge is emptying (approx.
30 s). Then the pressure starts to
To avoid discharging the battery,
drop.
we recommend running the
engine.
8. All of the sealant is pumped into
the tyre. Then the tyre is being
inflated.
9. The prescribed tyre pressure
Drain excess tyre pressure with
should be obtained within ten
the button.
minutes.
Do not run the compressor longer
Tyre pressure 3 271.
than ten minutes.
Vehicle care
243
10. Detach the tyre repair kit. Stow
If tyre pressure hasn't decreased
Note the expiry date of the kit. After
tyre repair kit in load
under 150 kPa (1.5 bar), set it to
this date its sealing capability is no
compartment.
the correct value. Otherwise the
longer guaranteed. Pay attention to
vehicle must not be used. Seek
storage information on sealant
11. Remove any excess sealant
assistance of a workshop.3 271
bottle.
using a cloth.
Repeat the checking procedure
Replace the used sealant cartridge.
once more after driving further
Dispose of the bottle as prescribed
10 km but no more than ten
by applicable laws.
minutes to check that there is no
The compressor and sealant can be
more loss of pressure.
used from approx. -30 °C.
If the tyre pressure has fallen

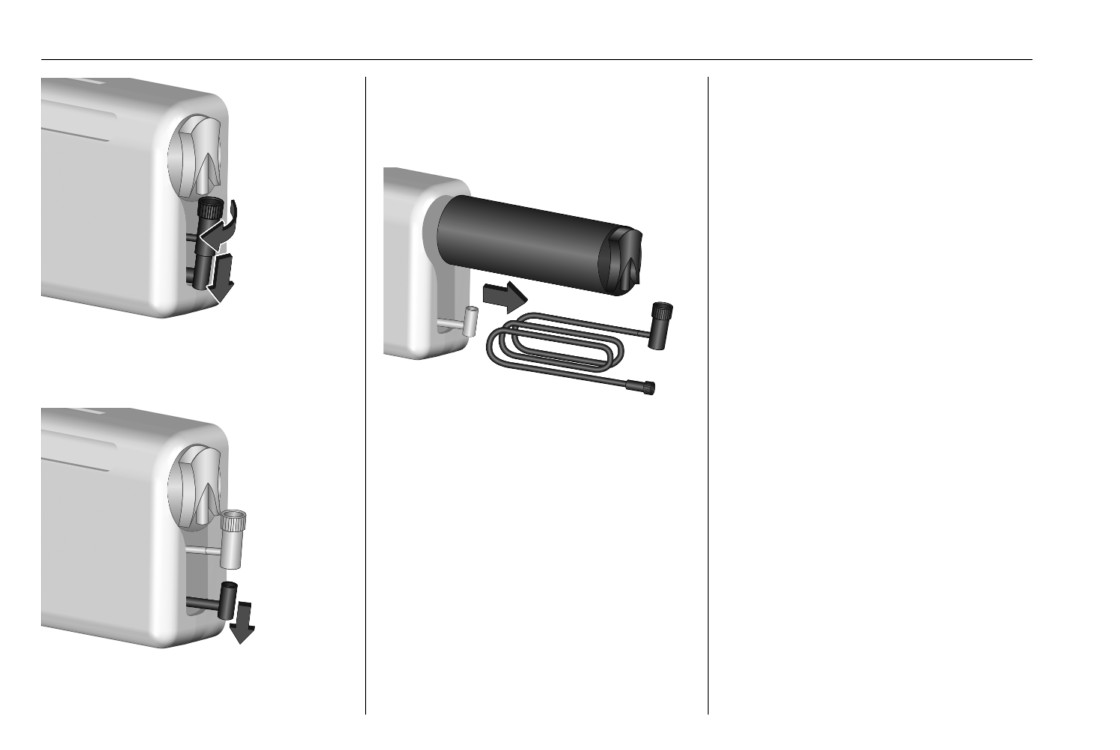

Removing the pipe and cartridge
below 150 kPa (1.5 bar), the
vehicle must not be used. Seek
the assistance of a workshop.
13. Stow away tyre repair kit in load
compartment.
Note
12. Start driving immediately so that
The driving characteristics of the
sealant is evenly distributed in the
repaired tyre are severely affected,
tyre. After driving approx. 5 km but
therefore have this tyre replaced.
no more than ten minutes, stop
If unusual noise is heard or the
and check tyre pressure. Turn
compressor becomes hot, turn
selector on the kit to the air pump
compressor off for at least
symbol. Connect compressor air
30 minutes.
hose to tyre valve. Fill tyre as
1. Turn pipe assembly to the left until
described before. Drain excess
it contacts the unit.
tyre pressure with the button on
the kit.
244
Vehicle care
3. Pull pipe assembly out slightly,
Wheel changing
then disconnect connector from
Make the following preparations and
the air hose by turning it a quarter
observe the following information:
turn anticlockwise.
Park the vehicle on a level, firm
and non-skid surface. The front
wheels must be in the straight-
ahead position.
If necessary, place a chock under
the wheel diagonally opposite the
wheel to be changed.
Apply the parking brake and
2. Disconnect the connector from
engage first gear, reverse gear or
the cartridge by turning it a quarter
P.
turn anti-clockwise.
If the ground on which the vehicle
is standing is soft, a solid board
4. Remove air hose.
(max. 1 cm thick) should be
placed under the jack.
Keep the kit vertical and unscrew
the cartridge from the bottom.
Take heavy objects out of the
vehicle before jacking up.
5. To fit the new cartridge and new
pipe, carry out these operations in
No people or animals may be in
reverse order.
the vehicle when it is jacked-up.
Never crawl under a jacked-up
vehicle.
Do not start the vehicle when it is
raised on the jack.
Before screwing in the wheel
bolts, clean them.
Vehicle care
245
The rear arm position of the lifting
9 Warning
platform is centrically under the
relevant vehicle jacking point.
Do not grease wheel bolts.
Tightening torques
Tightening torque for steel wheels is
Caution
125 Nm.
If the vehicle is equipped with alloy
Use the correct wheel bolts for the
wheels, tighten the wheel bolts
respective wheels.
manually at least for the first five
Jacking positions
turns.
The jacking positions shown refer to
There are two different types of
the use of lifting arms and accessory
wheels with two different bolts and
jacks used for changing winter /
tightening torques.
summer tyres.
The front arm position of the lifting
platform is centrically under the
relevant vehicle jacking point.
Spare wheel
The spare wheel is located in a holder
beneath the vehicle floor.
Tightening torque for alloy wheels is
The tools are in a box in the left front
125 Nm.
seat 3 234.
Use the jack only on the specific
jacking positions 3 244.
246
Vehicle care
The spare wheel can be classified as
3. Fit the wheel wrench on the
a temporary spare wheel depending
hexagon bolt. Turn it
on the size compared to the other
anticlockwise until the spare
mounted wheels and country
wheel holder is low enough to
regulations. In this case a permissible
allow the catch to be unhooked.
maximum speed applies, even
though no label at the spare wheel
indicates this.
Only mount one temporary spare
wheel. Do not drive faster than
80 km/h. Take curves slowly. Do not
use for a long period of time.
2. Remove the cover of the carrier
Caution
bolt, located on the rear door sill
The use of a spare wheel that is
smaller than the other wheels or in
combination with winter tyres
4. Lift the spare wheel holder and
could affect driveability. Have the
unhook the catch.
defective tyre replaced as soon as
Lower the spare wheel holder.
possible.
If the vehicle is equipped with a trailer
hitch, lift the back of the vehicle on
one of the rear vehicle jacking points
for easier access to the spare wheel.
1. Depending on the version, open
the tailgate or the rear doors.















Content      ..     9      10      11      12     ..
