Driving and operating

Driving hints

Control of the vehicle

Never coast with engine not

running

Many systems will not function in this

situation (e.g. brake servo unit, power

steering). Driving in this manner is a

danger to yourself and others. All

systems function during an Autostop.
Stop-start system 3 185.

Idle boost

If charging of the vehicle battery is

required due to battery condition, the

power output of the generator must

be increased. This will be achieved by

an idle boost which may be audible.
A message appears in the Driver

Information Centre.

Pedals

To ensure the pedal travel is

uninhibited, there must be no mats in

the area of the pedals.

Use only floor mats which fit properly

and are fixed by the retainers on the

driver's side.

Steering

If power steering assist is lost

because the engine stops or due to a

system malfunction, the vehicle can

be steered but may require increased

effort.
Control indicator c 3 98.

Starting and operating

New vehicle running-in

Do not brake unnecessarily hard for

the first few journeys.
During the first drive, smoke may

occur because of wax and oil

evaporating off the exhaust system.

Park the vehicle in the open for a

while after the first drive and avoid

inhaling the fumes.
During the running-in period, fuel and

engine oil consumption may be

higher and the cleaning process of

the exhaust filter may take place more

often. Autostop may be inhibited to

allow for charging of the vehicle

battery.
Exhaust filter 3 188.

Ignition switch positions

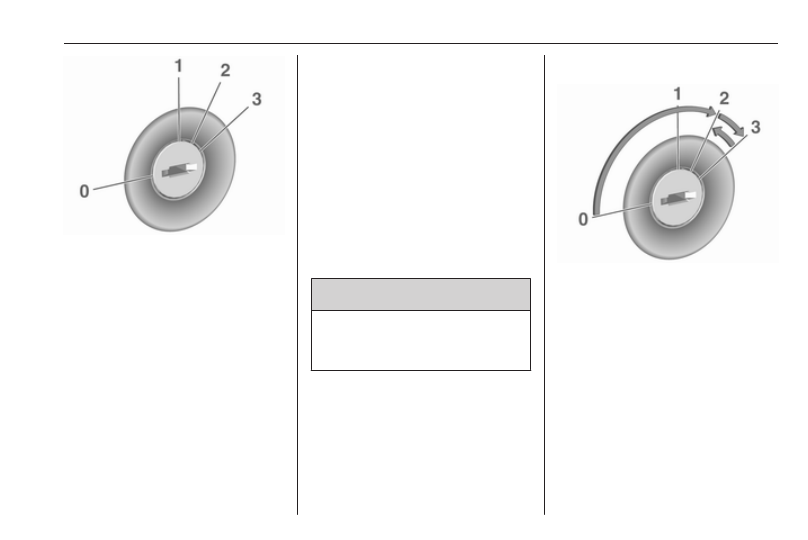

Turn key:

Driving and operating

183

0 : ignition off: Some functions

remain active until key is

removed or driver's door is

opened, provided the ignition was

on previously.

1 : accessory power mode: Steering

wheel lock released, some

electrical functions are operable,

ignition is off.

2 : ignition on power mode: Ignition

is on, diesel engine is preheating.

Control indicators illuminate and

most electrical functions are

operable. To turn the key from

position 2 to 1 or 0, first push the

key all the way in towards the

steering column.

3 : engine start: Release key after

starting procedure begins.

Steering wheel lock

Remove key from ignition switch and

turn steering wheel until it engages.

9 Danger

Never remove the key from

ignition switch during driving as

this will cause steering wheel lock.

Retained power off

The following electronic systems can

work until the driver's door is opened

or for ten minutes after the ignition is

switched off:

● power windows
● power outlets

Starting the engine

Turn key to position 1 to release the

steering wheel lock.
Manual transmission: operate clutch

and brake pedal.
Automatic transmission: operate

brake pedal and move selector lever

to P or N.
Do not operate the accelerator pedal.
Diesel engines: turn the key to

position 2 for preheating and wait until

control indicator ! extinguishes.

184

Driving and operating

Turn key briefly to position 3 and

release: an automatic procedure

operates the starter with a short delay

until the engine is running, see

Automatic Starter Control.
Manual transmission: during an

Autostop, the engine can be started

by depressing the clutch pedal

3

 185.

Automatic transmission: during an

Autostop, the engine can be started

by releasing the brake pedal 3 185.
Before restarting or to switch off the

engine, turn the key back to position

0.

9 Danger

Switching off the engine during

driving may cause loss of power

support for brake and steering

systems. Assistance systems and

airbag systems are disabled.

Lighting and brake lights will

extinguish. Therefore power down

the engine and ignition while

driving only when required in case

of emergency.

Starting the vehicle at low

temperatures

The start of the engine without

additional heaters is possible down to

-25 °С for diesel engines and -30 °C

for petrol engines. Required is an

engine oil with the correct viscosity,

the correct fuel, performed services

and a sufficiently charged battery.

With temperatures below -30 °C the

automatic transmission need a

warming phase of approx. five

minutes. The selector lever must be

in position P.

Automatic Starter Control

This function controls the engine

starting procedure. The driver does

not have to hold the key in position 3.

Once applied, the system will go on

starting automatically until the engine

is running. Because of the checking

procedure, the engine starts running

after a short delay.

Possible reasons for a non-starting

engine:

● Clutch pedal not operated

(manual transmission).

● Brake pedal not operated or

selector lever not in P or N

(automatic transmission).

● Timeout occurred.

Turbo engine warm-up

Upon start-up, engine available

torque may be limited for a short time,

especially when the engine

temperature is cold. The limitation is

to allow the lubrication system to fully

protect the engine.

Overrun cut-off

The fuel supply is automatically cut off

during overrun, i.e. when the vehicle

is driven with a gear engaged but

accelerator pedal is released.
Depending on driving conditions, the

overrun cut-off may be deactivated.

Driving and operating

185

Stop-start system

The stop-start system helps to save

fuel and to reduce the exhaust

emissions. When conditions allow, it

switches off the engine as soon as the

vehicle is at a low speed or at a

standstill, e.g. at a traffic light or in a

traffic jam. It starts the engine

automatically as soon as the clutch is

depressed. A vehicle battery sensor

ensures that an Autostop is only

performed if the vehicle battery is

sufficiently charged for a restart.

Activation

The stop-start system is available as

soon as the engine is started, the

vehicle starts-off and the conditions

as stated below in this section are

fulfilled.

Deactivation

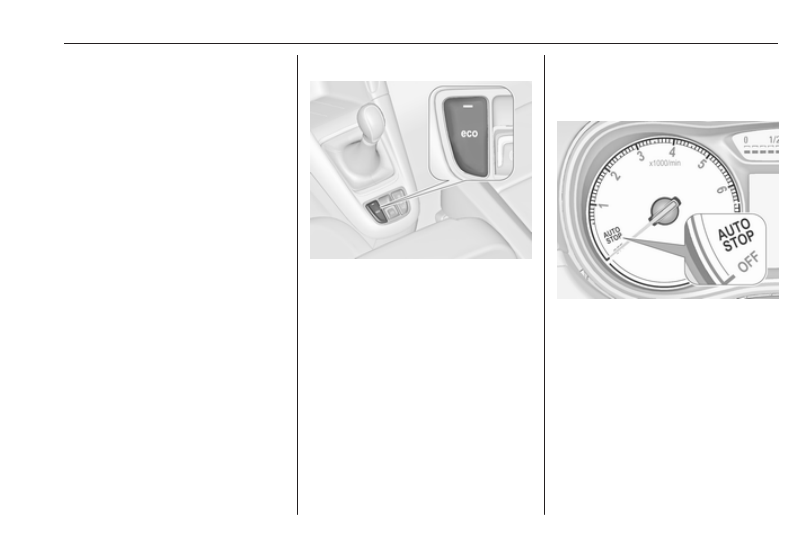

Deactivate the stop-start system

manually by pressing eco. The

deactivation is indicated when the

LED in the button extinguishes.

Autostop

If the vehicle is at a low speed or at a

standstill, activate an Autostop as

follows:

● Depress the clutch pedal.
● Move the selector lever to

neutral.

● Release the clutch pedal.

The engine will be switched off while

the ignition stays on.

Indication

An Autostop is indicated by the

needle at the AUTOSTOP position in

the tachometer.
After restart, the idle speed is

indicated.
The stop-start system will be disabled

on inclines of 12% or more.
During an Autostop, the heating and

brake performance will be

maintained.

186

Driving and operating

Conditions for an Autostop

The stop-start system checks if each

of the following conditions is fulfilled.

● The stop-start system is not

manually deactivated.

● The bonnet is fully closed.
● The driver's door is closed or the

driver's seat belt is fastened.

● The vehicle battery is sufficiently

charged and in good condition.

● The engine is warmed-up.
● The engine coolant temperature

is not too high.

● The engine exhaust temperature

is not too high, e.g. after driving

with high engine load.

● The ambient temperature is

above -5 °C.

● The climate control system

allows an Autostop.

● The brake vacuum is sufficient.
● The self-cleaning function of the

exhaust filter is not active.

● The vehicle was driven at least at

walking speed since the last

Autostop.

Otherwise an Autostop will be

inhibited.
Certain settings of the climate control

system may inhibit an Autostop. See

Climate control chapter for more

details 3 175.
Immediately after motorway driving,

an Autostop may be inhibited.
New vehicle running-in 3 182.

Vehicle battery discharge protection

To ensure reliable engine restarts,

several battery discharge protection

features are implemented as part of

the stop-start system.

Power saving measures

During an Autostop, several electrical

features such as auxiliary electric

heater or rear window heating are

disabled or switched into a power-

saving mode. The fan speed of the

climate control system is reduced to

save power.

Restart of the engine by the driver

Depress the clutch pedal to restart the

engine.

When the engine is restarted, control

indicator D in the Driver Information

Centre extinguishes.
If the selector lever is shifted out of

neutral before depressing the clutch

pedal first, control indicator -

illuminates or is shown as a message

in the Driver Information Centre.
Control indicator - 3 96.

Restart of the engine by the stop-

start system

The selector lever must be in neutral

to enable an automatic restart.
If one of the following conditions

occurs during an Autostop, the

engine will be restarted automatically

by the stop-start system.

● The stop-start system is

manually deactivated.

● The bonnet is opened.
● The driver's seat belt is

unfastened and the driver's door

is opened.

● The engine temperature is too

low.

Driving and operating

187

● The charge level of the vehicle

battery is below a defined level.

● The brake vacuum is not

sufficient.

● The vehicle is driven at least at

walking speed.

● The climate control system

requests an engine start.

● The air conditioning is manually

switched on.

If the bonnet is not fully closed, a

warning message is displayed in the

Driver Information Centre.
If an electrical accessory, e.g. a

portable CD player, is connected to

the power outlet, a brief power drop

during engine restart may be

noticeable.

Parking

9 Warning

● Do not park the vehicle on an

easily ignitable surface. The

high temperature of the

exhaust system could ignite the

surface.

● Always apply the parking

brake. Activate the manual

parking brake without pressing

the release button. Apply as

firmly as possible on a downhill

slope or uphill slope. Depress

brake pedal at the same time to

reduce operating force.
For vehicles with electric

parking brake, pull switch m for

a minimum of one second until

control indicator m illuminates

constantly and electric parking

brake is applied 3 96.

● Switch off the engine.
● If the vehicle is on a level

surface or uphill slope, engage

first gear or set the selector

lever to position P before

removing the ignition key. On

an uphill slope, turn the front

wheels away from the kerb.
If the vehicle is on a downhill

slope, engage reverse gear or

set the selector lever to position

P before removing the ignition

key. Turn the front wheels

towards the kerb.

● Close the windows.
● Remove the ignition key from

the ignition switch. Turn the

steering wheel until the

steering wheel lock is felt to

engage.
For vehicles with automatic

transmission, the key can only

be removed when the selector

lever is in position P.

● Lock the vehicle.
● Activate the anti-theft alarm

system.

● The engine cooling fans may run

after the engine has been

switched off 3 240.

188

Driving and operating

Caution

After running at high engine

speeds or with high engine loads,

operate the engine briefly at a low

load or run in neutral for

approx. 30 seconds before

switching off, in order to protect

the turbocharger.

Note

In the event of an accident with

airbag deployment, the engine is

turned off automatically if the vehicle

comes to a standstill within a certain

time.

Engine exhaust

9 Danger

Engine exhaust gases contain

poisonous carbon monoxide,

which is colourless and odourless

and could be fatal if inhaled.
If exhaust gases enter the interior

of the vehicle, open the windows.

Have the cause of the fault

rectified by a workshop.
Avoid driving with an open load

compartment, otherwise exhaust

gases could enter the vehicle.

Exhaust filter

The exhaust filter is a particle filter for

diesel and gasoline engines.

Automatic cleaning process

The exhaust filter system filters soot

particles out of the exhaust gases.

The system includes a self-cleaning

function that runs automatically

during driving without any notification.

The filter is cleaned by periodically

burning off the soot particles at high

temperature. This process takes

place automatically under set driving

conditions and may take up to

25 minutes. Typically it needs

between seven and twelve minutes.

Autostop is not available and fuel

consumption may be higher during

this period. The emission of smells

and smoke during this process is

normal.

System requires cleaning

Under certain conditions, e.g. driving

short distances, the system cannot

clean itself automatically.
If cleaning of the filter is required and

if previous driving conditions did not

enable automatic cleaning, it will be

indicated by illumination of % and a

warning message in the Driver

Information Centre.

Driving and operating

189

%

 illuminates along with a warning

message when exhaust filter is full.

Start cleaning process as soon as

possible.
%

 flashes along with a warning

message when exhaust filter has

reached the maximum filling level.

Start cleaning process immediately to

avoid damage to the engine.

Activate self-cleaning process

To activate cleaning process,

continue driving, keep engine speed

above 2000 rpm. Shift down if

necessary. Exhaust filter cleaning is

then started.
Cleaning process is completed more

quickly at high engine speeds and

loads.
Control indicator % extinguishes as

soon as the self-cleaning operation is

complete. Keep on driving until self-

cleaning operation is complete.

Caution

If possible, do not interrupt

cleaning process. Drive until

cleaning is completed to avoid the

need for service or repair by a

workshop.

Cleaning process not possible

If cleaning is not possible for any

reason, control indicator Z

illuminates and a warning message

appears in the Driver Information

Centre. Engine power may be

reduced. Seek the assistance of a

workshop immediately.

Catalytic converter

The catalytic converter reduces the

amount of harmful substances in the

exhaust gases.

Caution

Fuel grades other than those listed

on pages 3 229, 3 292 could

damage the catalytic converter or

electronic components.
Unburnt petrol will overheat and

damage the catalytic converter.

Therefore avoid excessive use of

the starter, running the fuel tank

dry and starting the engine by

pushing or towing.

In the event of misfiring, uneven

engine running, a reduction in engine

performance or other unusual

problems, have the cause of the fault

rectified by a workshop as soon as

possible. In an emergency, driving

can be continued for a short period,

keeping vehicle speed and engine

speed low.

190

Driving and operating

AdBlue

General information

The selective catalytic reduction

(BlueInjection) is a method to

substantially reduce the nitrogen

oxides in the exhaust emission. This

is achieved by injecting a Diesel

Exhaust Fluid (DEF) into the exhaust

system. The ammonia released by

the fluid reacts with nitrous gases

(NO

x

) from the exhaust and turns it

into nitrogen and water.
The designation of this fluid is

AdBlue

®

. It is a non-toxic, non-

flammable, colourless and odourless

fluid which consists of 32% urea and

68% water.

9 Warning

Avoid contact of your eyes or skin

with AdBlue.
In case of eye or skin contact,

rinse off with water.

Caution

Avoid contact of the paintwork with

AdBlue.
In case of contact, rinse off with

water.

AdBlue freezes at a temperature of

approx. -11 °C. As the vehicle is

equipped with an AdBlue pre-heater,

the emissions reduction at low

temperatures is ensured. The AdBlue

pre-heater works automatically.
The typical AdBlue consumption is

approx. 1.2 litres per 1000 km for

vehicles with engine D16DTH or

D16DTJ and approx. two litres per

1000 km for vehicles with engine

D20DTH. The consumption can also

be higher depending on driving

behaviour (e.g. high load or towing).

AdBlue tank

The AdBlue tank level can be found in

the display menu.

Level warnings

Depending on the calculated range of

AdBlue, different messages are

displayed in the Driver Information

Centre. The messages and the

restrictions are a legal requirement.
The first possible warning is AdBlue

Range: 2400 km.
This warning will show up once briefly

with the calculated range. Driving is

possible without any restrictions.
The next warning level is entered with

a range below 1750 km. The

message with the current range will

always be displayed when ignition is

switched on and needs to be

confirmed 3 101. Refill AdBlue before

entering the next warning level.
At an AdBlue range below 900 km,

the following warning messages are

alternately displayed and cannot be

dismissed:

● AdBlue Low Refill Now
● Engine Restart Prevented in

900 km.

Additionally, control indicator Y

flashes continuously.

Driving and operating

191

Note

In case of high AdBlue consumption,

the Driver Information Centre may

display this warning without the

previous warning stages.

The last warning level is entered

when the AdBlue tank is empty.

Restart of the engine is not possible.

The following warning messages are

alternately displayed and cannot be

dismissed:

● AdBlue Empty Refill Now
● Engine Will Not Restart.

Additionally, control indicator Y

flashes continuously.
With active prevention of an engine

start, the following message will be

displayed:
Refill AdBlue To Start Vehicle.
The tank must be refilled completely

with AdBlue, otherwise restarting of

the engine is not possible.

High emission warnings

If the exhaust emission rises above a

certain value, warnings similar to the

range warnings will be displayed in

the Driver Information Centre.
Requests to have the exhaust system

checked and finally the

announcement of the prevention of

an engine restart are displayed.

These restrictions are a legal

requirement.
Consult a workshop for assistance.

Refilling AdBlue

Caution

Only use AdBlue that complies

with European standards

DIN 70 070 and ISO 22241-1.
Do not use additives.
Do not dilute AdBlue.
Otherwise the selective catalytic

reduction system could be

damaged.

Note

Whenever a filling pump with a

nozzle for passenger cars is not

available at a filling station, use only

AdBlue bottles or canisters with a

sealed refill adapter for refilling, to

prevent splashback and overspill,

and in order to ensure that the fumes

from the tank are captured and do

not emerge. AdBlue in bottles or

canisters is available in many filling

stations and can be purchased e.g.

at Opel dealers and other retail

outlets.
Since AdBlue has a limited

durability, check the date of expiry

before refilling.
Note

When unscrewing the protective cap

from the filler neck, ammonia fumes

may emerge. Do not inhale as the

fumes have a pungent smell. The

fumes are not harmful by inhalation.

The AdBlue tank should be filled

completely. This must be done if the

warning message regarding

prevention of an engine restart is

already displayed.

192

Driving and operating

The vehicle must be parked on a level

surface.

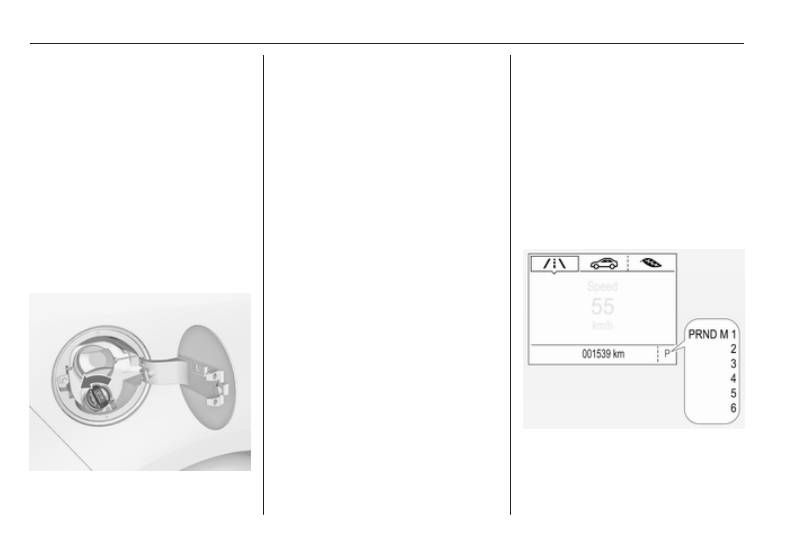

The filler neck for AdBlue is located

behind the fuel filler flap, which is

located at right rear side of the

vehicle.
The fuel filler flap can only be opened

if the vehicle is unlocked.

1. Remove key from ignition switch.
2. Close all doors to avoid ammonia

fumes entering the interior of the

vehicle.

3. Release the fuel filler flap by

pushing the flap 3 231.

4. Unscrew protective cap from the

filler neck.

5. Open AdBlue canister.
6. Mount one end of the hose on the

canister and screw the other end

on the filler neck.

7. Lift the canister until it is empty, or

until the flow from the canister has

stopped. This can take up to five

minutes.

8. Place the canister on the ground

to empty the hose, wait 15

seconds.

9. Unscrew the hose from the filler

neck.

10. Mount the protective cap and turn

clockwise until it engages.

Note

Dispose of AdBlue canister

according to environmental

requirements. To reuse the hose

flush it with clear water after usage.

Automatic transmission

The automatic transmission permits

automatic gearshifting (automatic

mode) or manual gearshifting

(manual mode).

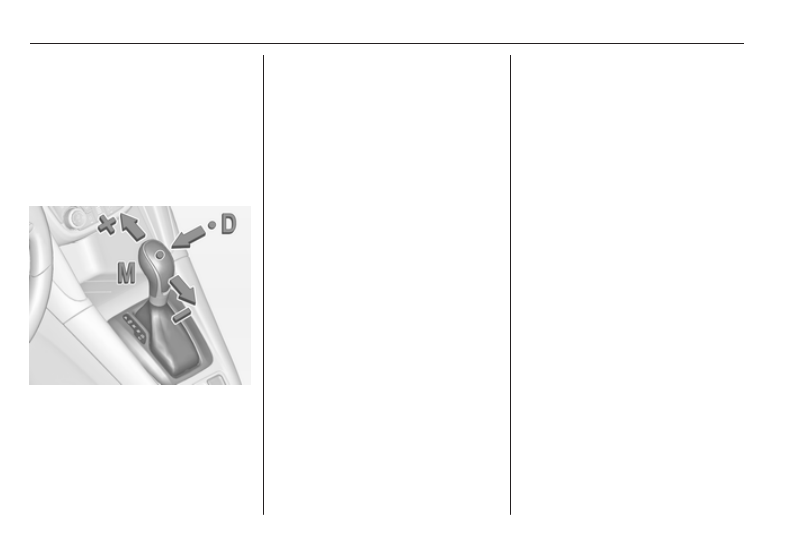

Manual shifting is possible in manual

mode M by tapping the selector lever

to + or - 3 194.

Transmission display

The mode or selected gear is shown

in the Driver Information Centre.
In automatic mode, the driving

programme is indicated by D.

Driving and operating

193

In manual mode, M and the number

of the selected gear is indicated.
R indicates reverse gear.
N indicates neutral position.
P indicates park position.

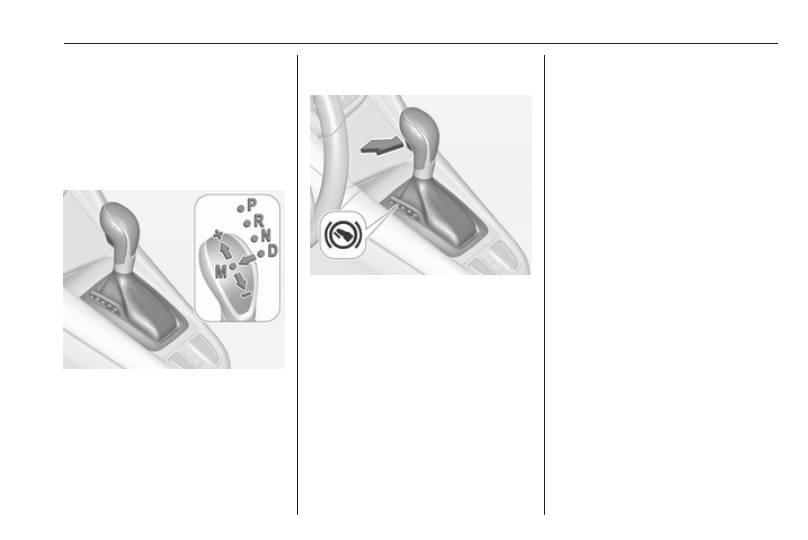

Selector lever

P : park position, wheels are locked,

engage only when the vehicle is

stationary and the parking brake

is applied

R : reverse gear, engage only when

the vehicle is stationary

N : neutral

D : automatic mode

M : manual mode

<

: upshift in manual mode

]

: downshift in manual mode

The selector lever is locked in P and

can only be moved when the ignition

is on, the release button on the

selector lever is pushed and the brake

pedal is applied.
Without brake pedal applied, the

control indicator j illuminates.
If the selector lever is not in P when

the ignition is switched off, control

indicator j flashes.
To engage P or R, press the release

button.

The engine can only be started with

the lever in position P or N. When

position N is selected, press the brake

pedal or apply the parking brake

before starting.
Do not accelerate while engaging a

gear. Never depress the accelerator

pedal and brake pedal at the same

time.
When a gear is engaged, the vehicle

slowly begins to creep when the

brake is released.

Engine braking

To utilise the engine braking effect,

select a lower gear in good time when

driving downhill, see manual mode.

Rocking the vehicle

Rocking the vehicle is only

permissible if the vehicle is stuck in

sand, mud or snow. Move the selector

lever between D and R in a repeat

pattern. Do not race the engine and

avoid sudden acceleration.

194

Driving and operating

Parking

Apply the parking brake and engage

P.
The ignition key can only be removed

when the selector lever is in position

P.

Manual mode

Move selector lever out of position D

towards the left in position M.
Tap selector lever upwards + to shift

to a higher gear.
Tap the selector lever downwards - to

shift to a lower gear.

If a higher gear is selected when

vehicle speed is too low, or a lower

gear when vehicle speed is too high,

the shift is not executed. This can

cause a message in the Driver

Information Centre.
In manual mode, no automatic

shifting to a higher gear takes place

at high engine revolutions.

Gear shift indication

The symbol R with a number beside

it is indicated when gearshifting is

recommended for fuel saving

reasons.
Shift indication appears only in

manual mode.

Electronic driving

programmes

● When SPORT mode is engaged,

the vehicle shifts at higher engine

speeds (unless cruise control is

on). SPORT mode 3 201.

● Special programmes

automatically adapt the gearshift

points when driving up inclines or

down hills.

● In snowy or icy conditions or on

other slippery surfaces, the

electronic transmission control

enables the driver to select

manually first, second or third

gear for starting off.

Kickdown

If the accelerator pedal is pressed

down completely in automatic mode,

the transmission shifts to a lower gear

depending on engine speed.

Fault

In the event of a fault a message is

displayed in the Driver Information

Centre. Vehicle messages 3 106.
The transmission no longer shifts

automatically. Continued travel is

possible with manual shifting.

Driving and operating

195

Only the highest gear is available.

Depending on the fault, 2nd gear may

also be available in manual mode.

Shift only when vehicle is at a

standstill.
Have the cause of the fault remedied

by a workshop.

Interruption of power supply

In the event of an interruption of

power supply, the selector lever

cannot be moved out of the P

position. The ignition key cannot be

removed from the ignition switch.
If the vehicle battery is discharged,

start the vehicle using jump leads

3

 276.

If the vehicle battery is not the cause

of the fault, release the selector lever.

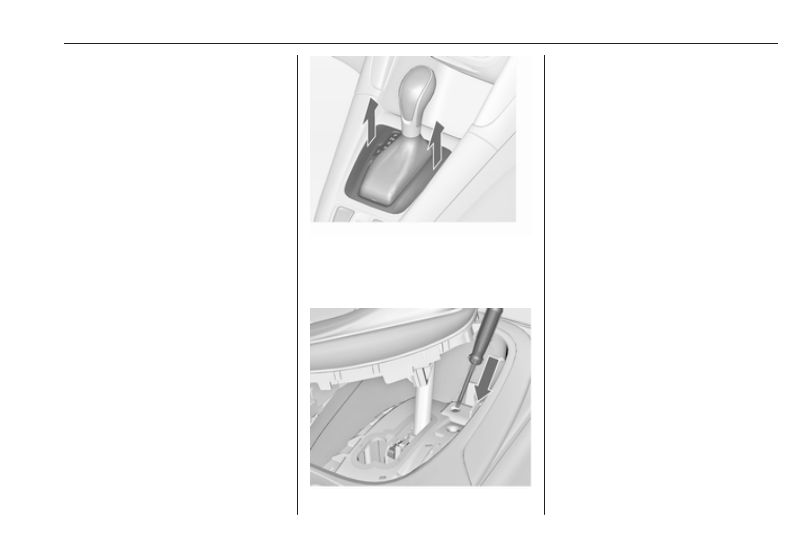

1. Apply the parking brake.

2. Release the selector lever trim

from the centre console at the

front, fold it upwards and rotate it

to the left.

3. Push down the release lever and

move the selector lever out of P or

N. If these positions are engaged

again, the selector lever will be

locked in position again. Have the

cause of the power supply

interruption remedied by a

workshop.

4. Mount the selector lever trim onto

the centre console and refit.

196

Driving and operating

Manual transmission

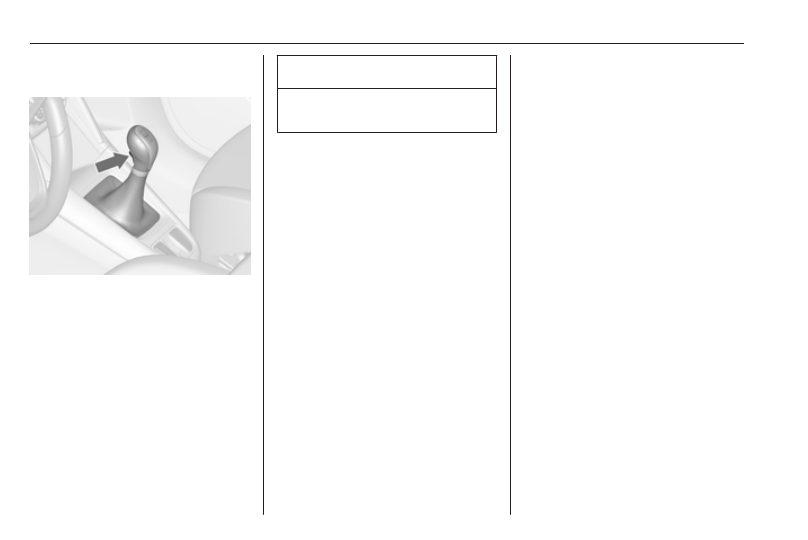

To engage reverse, depress the

clutch pedal and then press the

release button on the selector lever

and engage the gear.
If the gear does not engage, set the

lever to neutral, release the clutch

pedal and depress again; then repeat

gear selection.
Do not slip the clutch unnecessarily.
When operating, depress the clutch

pedal completely. Do not use the

pedal as a foot rest.

Caution

It is not advisable to drive with the

hand resting on the selector lever.

Gear shift indication 3 98.
Stop-start system 3 185.

Brakes

The brake system comprises two

independent brake circuits.
If a brake circuit fails, the vehicle can

still be braked using the other brake

circuit. However, braking effect is

achieved only when the brake pedal

is depressed firmly. Considerably

more force is needed for this. The

braking distance is extended. Seek

the assistance of a workshop before

continuing your journey.
When the engine is not running, the

support of the brake servo unit

disappears once the brake pedal has

been depressed once or twice.

Braking effect is not reduced, but

braking requires significantly greater

force. It is especially important to bear

this in mind when being towed.
Control indicator R 3 96.

Antilock brake system

Antilock brake system (ABS)

prevents the wheels from locking.

Driving and operating

197

ABS starts to regulate brake pressure

as soon as a wheel shows a tendency

to lock. The vehicle remains

steerable, even during hard braking.
ABS control is made apparent

through a pulse in the brake pedal

and the noise of the regulation

process.
For optimum braking, keep the brake

pedal fully depressed throughout the

braking process, despite the fact that

the pedal is pulsating. Do not reduce

the pressure on the pedal.
After starting off the system performs

a self-test which may be audible.

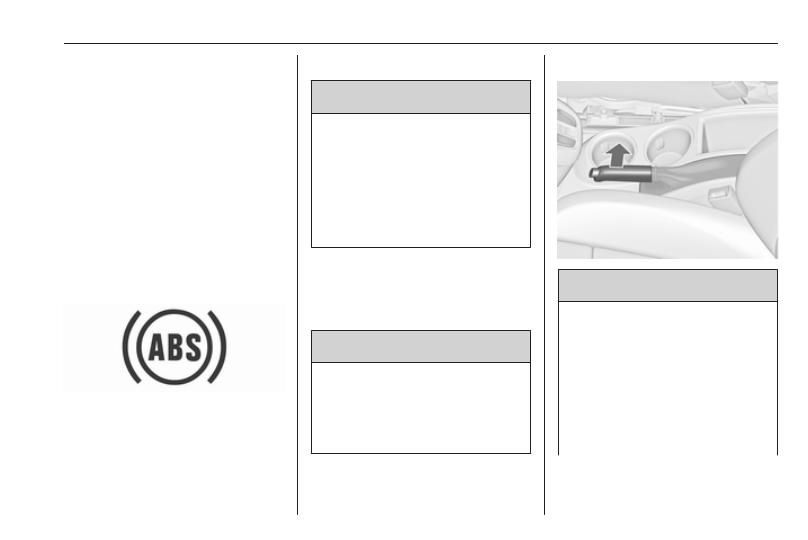

Control indicator u 3 97.

Adaptive brake light

During full braking, all three brake

lights flash for the duration of ABS

control.

Fault

9 Warning

If there is a fault in the ABS, the

wheels may be liable to lock due

to braking that is heavier than

normal. The advantages of ABS

are no longer available. During

hard braking, the vehicle can no

longer be steered and may

swerve.

Have the cause of the fault remedied

by a workshop.

Parking brake

9 Warning

Before leaving the vehicle, check

parking brake status. Control

indicator R (manual parking

brake) or m (electrical parking

brake) must illuminate constantly.

Manual parking brake

9 Warning

Always apply parking brake firmly

without operating the release

button, and apply as firmly as

possible on a downhill or uphill

slope.
To release the parking brake, pull

the lever up slightly, press the

release button and fully lower the

lever.
