150

Infotainment system

Route guidance is provided by voice

output and an arrow, as well as with

the aid of a multi-colour map display.

Important information

TMC traffic information system and

dynamic route guidance

The TMC traffic information system

receives all current traffic information

from TMC radio stations. This

information is included in the

calculation of the overall route. During

this process, the route is planned so

that traffic problems related to pre-

selected criteria are avoided.
If there is a traffic problem during

active route guidance, depending on

the pre-settings, a message appears

as to whether the route should be

changed.
TMC traffic information is displayed in

the map display as symbols or as

detailed text on the TMC messages

menu.
To be able to use TMC traffic

information, the system must receive

TMC stations in the relevant region.

The TMC traffic stations can be

selected in the navigation menu

3

 150.

Map data

All required map data is stored within

the Infotainment system.
To update the navigation map data,

purchase new data at the Opel Dealer

or on our home page http://

opel.navigation.com/. You are

provided with a USB device

containing the update.
Connect the USB device to the USB

port and follow the instructions on the

screen. The vehicle must be turned

on during the update process.

Note

The vehicle remains operational

during the update process. If the

vehicle is turned off, the update can

be paused. The navigation

application, Bluetooth and other

external devices are unavailable

until the update process is finished.

Usage

To display the navigation map,

press ; and then select the

Navigation icon.
Route guidance not active

● The map view is displayed.
● The current location is indicated

by a circle with an arrow pointing

into the direction of travel.

● The name of the street you are

currently in is displayed on the

bottom of the screen.

Infotainment system

151

Route guidance active

● The map view is displayed.
● The active route is indicated by a

coloured line.

● The moving vehicle is marked by

a circle with an arrow pointing

into the direction of travel.

● The next turning manoeuvre is

indicated in the separate field on

the left side of the screen.

● The arrival time or travel time is

shown above the arrow symbol.

● The remaining distance to the

destination is displayed above

the arrow symbol.

Map manipulation

Scrolling

To scroll the map, place your finger

anywhere on the screen and move it

up, down, left or right depending on

the direction in which you want to

scroll.
The map moves accordingly

displaying a new section.
To return to the current location,

select Re-centre on the bottom of the

screen.

Centring

Touch and hold the desired location

on the screen. The map centres

around this location.
A red d is displayed at the respective

location and the corresponding

address is shown on a label.

To return to the current location,

select Re-centre on the bottom of the

screen.

Zooming

To zoom in on a selected map

location, place two fingers on the

screen and move them away from

each other.
Alternatively, use < on the map

screen.
To zoom out and display a larger area

around the selected location, place

two fingers on the screen and move

them towards each other.
Alternatively, use ] on the map

screen.

152

Infotainment system

Cancel screen button

During active route guidance, a

Cancel screen button is displayed on

the left side of the screen.
To cancel the active route guidance

session, select Cancel.
For a few seconds, a Resume Trip

screen button is displayed on the map

screen. Select Resume Trip to restart

the cancelled guidance session.

Overview screen button

During active route guidance, an

Overview screen button is displayed

on the left side of the screen.
To display an overview of the route

currently active, select Overview. The

map changes to the desired route

overview.
To return to the normal view, select

Overview again.

f

 screen button

If route guidance is active and you are

on a highway, an additional f screen

button is displayed on the bottom of

the map.
Select f to display a list of the next

upcoming service stations.

When selecting a desired exit, you

can access points of interest in the

respective area and start route

guidance to some of these locations

3

 155.

x

 screen button

In a menu or submenu, select x to

directly return to the map.

Current location

Select the street name on the bottom

of the screen. Information on the

current location is displayed.

To save the current location as

favourite, select Favourite. The f

icon is filled and the location is saved

in the favourites list.

Map settings

Map view

Three different map views are

available for selection.
Select L on the map screen and then

repeatedly select the map view

screen button to toggle between the

options.

Infotainment system

153

Depending on the former setting, the

screen button is labelled 3D Head

Up, 2D Head Up or 2D North Up. The

map view changes according to the

screen button.
Select the desired option.

Map colours

Depending on the external lighting

conditions, the colouring of the map

screen (light colours for the day and

dark colours for the night) can be

adapted.
Select L on the map screen to display

the Options menu. Select Navigation

Settings and then Map colours.

The default setting is Auto. When

Auto is activated, the screen adjusts

automatically.
Alternatively, activate Day (light) or

Night (dark) for an only light or only

dark screen.

Autozoom function

If the autozoom function is activated

(default setting), the zoom level

changes automatically when

approaching a turning manoeuvre

during active route guidance. This

way, you always get a good overview

of the respective manoeuvre.
If the autozoom function is

deactivated, the selected zoom level

remains the same during the whole

route guidance process.
To deactivate the function, select L

on the map to display the Options

menu. Select Navigation Settings and

then touch the slider bar next to Auto

Zoom.
Touch the screen button again to

reactivate the function.

POI (Points of Interest) icons on the

map

POIs are points of general interest,

e.g. gas stations or restaurants.
The display of POI categories shown

on the map may be personally

adapted.
Select L on the map to display the

Options menu. Select Navigation

Settings and then Show on map.
Activate the desired POI categories.

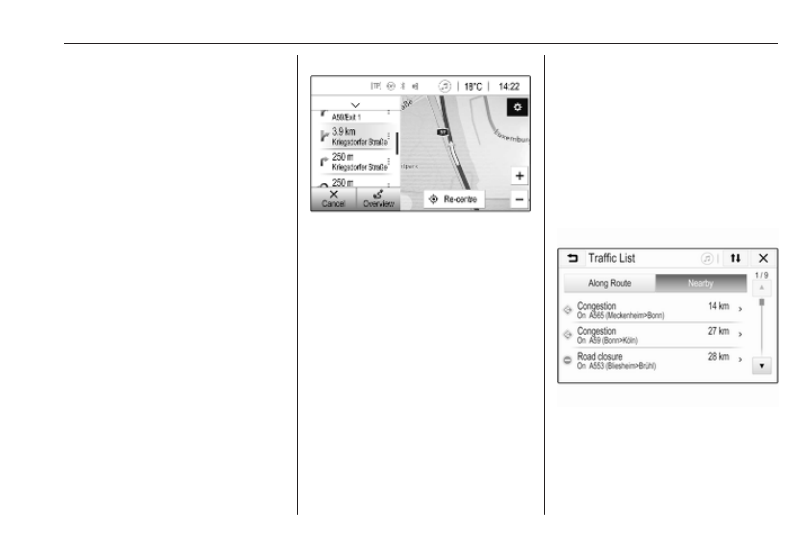

Traffic events on the map

Traffic events may be directly

indicated on the map.
To activate the function, select L on

the map to display the Options menu.

Select Traffic on Map. The screen

button changes to activation mode.
To deactivate the function, select

Traffic on Map again.

Time indication

The time indication during active

route guidance may be displayed in

two different modes: the remaining

time (until the destination will be

reached) or the arrival time (when the

destination will be reached).

154

Infotainment system

Select L on the map to display the

Options menu. Select Navigation

Settings and then Time to Destination

Format.
Activate the desired option in the

submenu.

Note

During active route guidance, the

time indication can be changed by

simply tapping on the time indication

field on the screen.

Alert preferences

If desired, you may receive an

additional notification in specific traffic

zones.
Select L on the map to display the

Options menu. Select Navigation

Settings and then Alert Preferences.
If Safety camera is activated, you are

warned when approaching a

stationary speed camera.

Note

This function is only available if such

an alert system corresponds to the

legal provisions applicable in the

country you are in.

Activate the desired option.

Voice guidance

The route guidance process can be

supported by voice prompts given out

by the system.

Note

The navigation voice prompts

function is not supported for all

languages. If there are no voice

prompts available, the system

automatically plays a tone to

indicate a manoeuvre ahead.

Activation

The voice guidance function is

activated by default. To deactivate

the function, select L on the map to

display the Options menu and then

touch Voice Guidance. The screen

button changes.
Select the screen button again to

reactivate the function.

Voice guidance settings

To define which system outputs may

assist during active route guidance,

select L on the map, Navigation

Settings and then Voice Guidance.

If Normal voice guidance is activated,

a voice announces the next turning

manoeuvre to be taken.
If Beep only is activated, only beep

tones are given out for notification.
In the submenu of Prompts during

Phone Call, the possible voice

outputs during a phone call can be

set.
Activate the desired options.

Note

Voice guidance prompts are only

given out if Voice Guidance is

activated in the Options menu, see

above.

Information

Select L on the map to display the

Options menu. Select Navigation

Settings and then About.
The texts of the manufacturer's terms

and conditions or privacy statement

can be accessed via the respective

menu items.
The navigation map version is

displayed.

Infotainment system

155

Destination input

The navigation application provides

different options to set a destination

for route guidance.

Destination input via map

It is possible to directly enter

destinations from the map screen.

Personal addresses on the map

You can predefine two address

shortcuts (e.g. Home and Work) to

easily start route guidance to these

two places. The addresses can be

defined in the settings menu and be

labelled individually. Then, they can

be directly selected from the map.
To save the addresses, select L on

the map, Navigation Settings and

then Set up My Places.
Select one of the menu items (Home

and Work by default). Use the

keyboard to enter the required data in

the address field. For a detailed

description of the keyboard, see

below.

To change the name of the personal

address, select c to hide the

keyboard and select one of the items

in the list. Alternatively, enter a new

name in the first entry field.
If necessary, tap within one of the

entry fields to redisplay the keyboard

and select Done. The location is

saved as shortcut.
To start route guidance to one of

these locations, select the ═ screen

button on the map. The two

destinations are displayed.
Select one of the screen buttons. The

Routes menu is displayed.
Activate the desired route and then

select Go to start route guidance.

Destination selection via map

Scroll to the desired map section.

Touch and hold the desired location

on the screen. The map centres

around this location.
A red d is displayed at the respective

location and the corresponding

address is shown on a label.

Touch the label. The Details menu is

displayed. Select Go to start route

guidance.

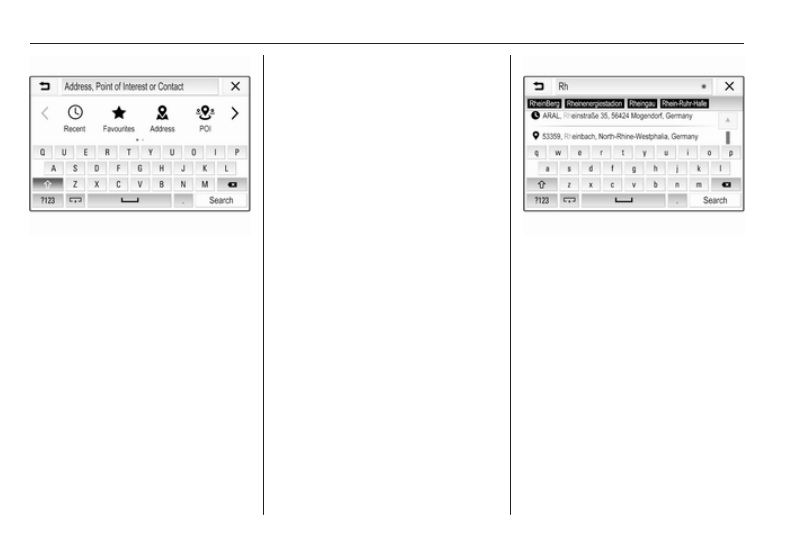

Keyboard entry

Select ½ on the map to display the

destination search menu.

156

Infotainment system

You can directly enter a search word

e.g. address, POI category or name,

phone contact, favourite, recent

destination or coordinates in the entry

field on top of the search menu

screen.

Note

Coordinates have to be entered in

the following way: latitude, longitude

e.g. "43.3456, 9.432435".

Alternatively, select Address, POI or

Junction to use a search mask. If

required, touch q to scroll the page.

To access the number and symbol

keyboard, select ?123. Select ABC at

the same position on the keyboard to

return to the letter keyboard.
To enter a character, touch the

respective screen button. The

character is entered upon release.
Touch and hold a letter screen button

to display associated letters in a letter

pop-up menu. Release and then

select the desired letter.
To enter capital letters, select b and

then the desired character.
To delete a character, select k. To

delete the whole entry, select the tiny

x

 within the entry field.

As soon as characters are entered,

the system makes search word

suggestions. Every additional

character is considered in the

matching process.

If desired, select one of the search

words suggested. When the entry

fields are filled out, select Search on

the keyboard. The Results menu is

displayed.
Select the desired destination. The

Details menu is displayed. Select Go

to start route guidance.
Considering the letters entered, the

system also creates a list of probable

destinations assembled from phone

contacts, POIs, addresses, recent

destinations and favourites. Touch

c

 on the bottom of the screen to

hide the keyboard and gain access to

the list.

Infotainment system

157

To redisplay the keyboard, tap within

the entry field.
If desired, select a destination from

the list. The Details menu is

displayed. Select Go to start route

guidance.

Lists with selectable destinations

To access the lists, select ½ on the

map and, if required, touch q to scroll

the page.
Select one of the options:

● Recent: list of destinations

recently used

● Favourites: list of destinations

stored as favourites

● Contacts: list of addresses stored

in the phone book of the mobile

phone currently connected via

Bluetooth

To choose a destination from one of

the lists, scroll through the respective

list and select the desired destination.

The Details menu is displayed. Select

Go to start route guidance.

Recent destinations

The recent destinations list is

automatically filled with destinations

used in route guidance.
The addresses in the recent

destinations list can be stored as

favourites. Enter the recent

destinations list, select n next to the

desired address to display additional

function buttons and then select f. If

the icon is filled, the address is saved

in the favourites list.
Addresses can be deleted from the

recent destinations list. Enter the

recent destinations list, select n next

to the desired address and then

select e to delete the respective

address.

Favourites

Favourites can be added when a f

icon is displayed next to an address.

When the star icon is filled, the

respective address is stored as a

favourite.

The position of a favourite in the list

can be changed. Enter the favourites

list, select n next to the desired

favourite to display additional function

buttons and then select Q or P.
The name of a favourite can be

changed. Enter the favourites list,

select n next to the desired favourite

to display additional function buttons

and then select o. A keyboard is

displayed. Enter the desired name

and then select Done.
Favourites can be deleted. Enter the

favourites list, select n next to the

desired favourite to display additional

function buttons and then select f.

The favourite is deactivated (unfilled

star). If you select the icon again, the

favourite is reactivated (filled star).

When leaving the favourites list while

favourites are deactivated, they are

deleted from the list.

Contacts

You can search for addresses within

the list by using the keyboard. Enter

the first letters of the word (name or

158

Infotainment system

address) you want to search for. All

entries containing a word starting with

these letters are displayed.
For a detailed description of the

keyboard, see above.

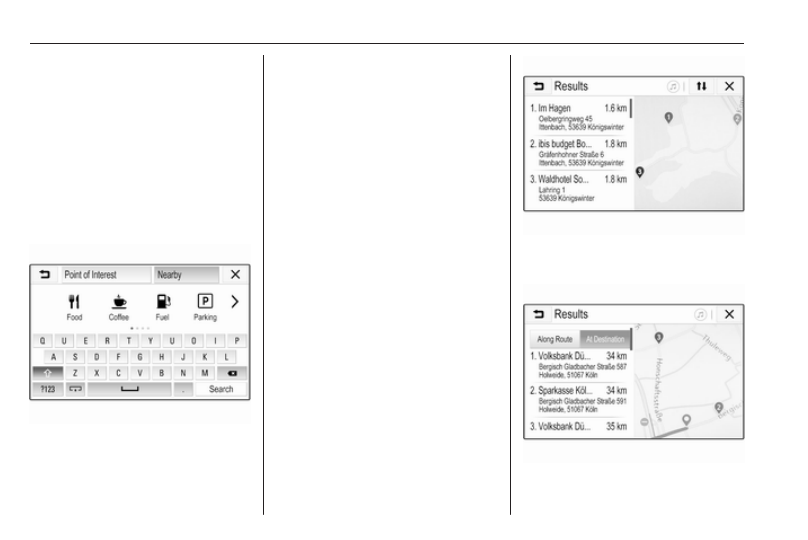

Category search

POIs can also be searched by

categories.
Select ½ on the map and then select

POI.

Note

If desired, set the location around

which you want to search for POIs

via keyboard entry in the second

entry field (default setting: Nearby)

and then use the category search

menu.

If required, scroll to the desired page

and then select one of the main

categories in the menu.
Depending on the category selected,

different subcategories may be

available.
Navigate through the subcategories

until you reach the Results list.
Select the desired POI. The Details

menu is displayed. Select Go to start

route guidance.

Results list

In the Results list, different possible

destinations are listed.

If route guidance is active, two

different tabs are available.

Infotainment system

159

Choose between the tabs:

● Along Route: possible

destinations along the route

currently active

● At Destination: possible

destinations around the

destination of the route

The list can be sorted in two different

ways. Select l in the top right corner

of the screen and activate the desired

option.
If you activate sorting by relevance,

the system tries to give you the best

match according to your search term.
If you activate sorting by distance, the

system arranges the destinations

according to their distance to your

current location.

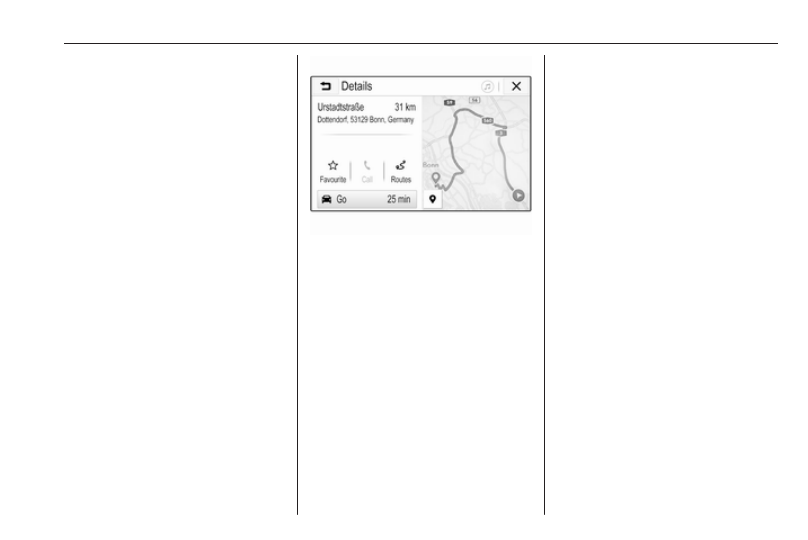

Details menu

After a destination has been selected,

the Details menu is displayed.

Storing favourites

To store the respective destination as

a favourite, activate Favourite (filled

star: favourite saved, unfilled star:

favourite not saved).
The destination is stored as a

favourite and may then be accessed

via the favourites list.

Initiating a phone call

In some cases, e.g. when a POI has

been selected, a phone number might

be available for the respective

destination. To call this phone

number, select y.

Setting the route

In case the system finds more than

one possible route, you can choose

between the routes suggested.
Select Routes to display a list of all

routes detected by the system.

Activate the desired route and then

select Go to start route guidance.

Routes with several destinations

After route guidance has been

started, it is possible to add

destinations to the active route, e.g.

to pick up a friend on the way or stop

at a gas station.

Note

Up to five destinations can be

combined in one route.

Start route guidance to the desired

destination.
To add another destination, select L

on the map and then select Add

Destination. The destination search

menu is displayed.
Navigate to the desired destination.

The Details menu is displayed. Select

Add.

160

Infotainment system

Note

If you select Go, route guidance to

the destination first selected is

stopped and route guidance to the

new destination is started.

The destinations are arranged in the

order in which they are entered while

the last destination added is the first

you are guided to. In order to check or

confirm while driving, the name of the

next destination is displayed above

the arrival time and distance.
The order of the destinations can be

changed 3 160.

Guidance

Route guidance is provided by the

navigation system through visual

instructions and voice prompts (voice

guidance).
Visual instructions

Visual instructions are provided on

the display.

Note

When route guidance is active and

you are not within the navigation

application, turning manoeuvres are

indicated by pop-up messages

displayed on top of the screen.

Voice guidance

Navigation voice prompts announce

which direction to follow, when

approaching an intersection at which

you need to turn.
To activate the voice prompts

function 3 150.
Touch the big turn arrow on the left

side of the screen to replay the last

voice guidance instruction.

Starting and cancelling route

guidance

To start route guidance, select Go in

the Details menu after a destination

has been selected 3 155.
To cancel route guidance, select

Cancel on the left side of the screen

3

 150.

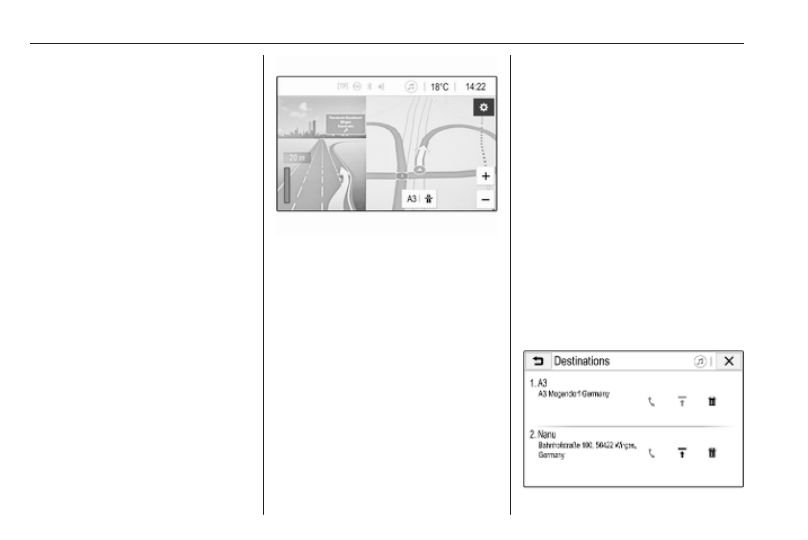

Destinations list

The Destinations list contains all

destinations belonging to the route

currently active.
Touch j within the time and distance

field. The Destinations list is

displayed.

Infotainment system

161

In case a phone number is available,

select y to start a phone call.
To change the order of the

destinations, select h in the field of

the destination whose position is to be

changed. The order is rearranged

and the destination selected is set at

the first position.
To delete a destination from the route,

select e in the field of the respective

destination. The destination is

deleted and the route is rearranged.

Turn list

The next turning manoeuvre is

displayed on the left side of the

screen.
Select a underneath the manoeuvre

indication to display the turn list. The

turn list contains all upcoming turns

on the active route.

To display a turning manoeuvre on

the map, scroll through the list and

touch the desired manoeuvre. The

map jumps to the respective location

on the map.
To avoid a route section, select n next

to the respective turning manoeuvre.

A m symbol is displayed.
To recalculate the route without the

respective route section, select m.

The route is changed.
Select the arrow above the list to

return to the normal navigation map

screen.

Traffic settings

There are different options available

concerning traffic events.

Traffic list

The traffic list contains all traffic

events detected by the system.
To access the traffic list, select L on

the map and then Traffic List. The list

is displayed.

162

Infotainment system

If route guidance is active, choose

between the tabs:

● Along Route: traffic events along

the active route

● Nearby: traffic events close to the

current location of the vehicle

Traffic events

If required, scroll to the desired traffic

event.
To display additional information,

select the respective traffic event.
List sorting

The nearby list can be organised in

two different ways.
To change the sorting order, select

l

 in the top right corner of the screen.

The Traffic Events Sorting menu is

displayed.
Activate the desired option.

Traffic station

The traffic message channel

providing the traffic information can

be personally set, if desired.
Select L on the map to display the

Options menu. Select Navigation

Settings and then Traffic Resource.

A list of all traffic stations currently

available is displayed.
By default, Auto is activated. The

station is adapted automatically by

the system.
If you want the traffic information to be

taken from a specific station, activate

the respective station.

Traffic avoidance function

Traffic events are taken into

consideration when the system

determines a route to a destination.
During active route guidance, the

route can be modified according to

incoming traffic messages.
To set the parameters for these

modifications, select L on the map to

display the Options menu. Select

Navigation Settings, Routing options

and then Auto-Reroute to Avoid

Traffic.
If you want the system to

automatically modify the route

according to new traffic messages,

activate Automatically reroute.

If you want to be consulted when a

route is modified, activate Always

ask.
If you do not want routes to be

modified, activate Never.

Route settings

Parameters for road and route

selection can be set.

Road types

If desired, certain road types can be

avoided.
Select L on the map to display the

Options menu. Select Avoid on

Route and then activate the road

types you want to be avoided.

Note

If route guidance is active when

changing the road settings, the route

is recalculated according to the new

settings.

Route type

To set the route type, select L on the

map to display the Options menu.

Select Navigation Settings, Routing

options and then Route type.

Infotainment system

163

Activate the desired option:

● Fastest for the fastest route
● Eco-friendly for a route that

allows ecologically friendly

driving

Speech recognition

General information

The voice pass-thru application of the

Infotainment system allows access to

the speech recognition commands on

your smartphone. See your

smartphone manufacturer's

operating instructions to find out

whether your smartphone supports

this feature.
In order to use the voice pass-thru

application, the smartphone must be

connected to the Infotainment system

via USB cable 3 143 or via Bluetooth

3

 164.

Usage

Activating speech recognition

Press and hold g on the control panel

or qw on the steering wheel to start

a speech recognition session. A voice

command message is displayed on

the screen.

As soon as a beep is heard, you can

say a command. For information on

the commands supported, see the

operating instructions of your

smartphone.

Adjusting the volume of voice

prompts

Turn m on the control panel or press

+ / - on the right side of the steering

wheel to increase or decrease the

volume of voice prompts.

Deactivating speech recognition

Press xn on the steering wheel.

The voice command message

disappears and the speech

recognition session is ended.

164

Infotainment system

Phone

General information

The phone function provides you with

the possibility of having mobile phone

conversations via a vehicle

microphone and the vehicle

loudspeakers as well as operating the

most important mobile phone

functions via the Infotainment system

in the vehicle. To be able to use the

phone function, the mobile phone

must be connected to the

Infotainment system via Bluetooth.
Not all phone functions are supported

by every mobile phone. The usable

phone functions depend on the

relevant mobile phone and network

provider. You can find further

information on this in the operating

instructions of your mobile phone, or

you can enquire about them with your

network provider.

Important information for

operation and traffic safety

9 Warning

Mobile phones have effects on

your environment. For this reason

safety regulations and directions

have been prepared. You should

be familiar with the related

directions before you use the

telephone function.

9 Warning

Use of the hands-free facility while

driving can be dangerous because

your concentration is reduced

when telephoning. Park your

vehicle before you use the hands-

free facility. Follow the stipulations

of the country in which you find

yourself at present.
Do not forget to follow the special

regulations that apply in specific

areas and always switch off the

mobile phone if the use of mobile

phones is prohibited, if

interference is caused by the

mobile phone or if dangerous

situations can occur.

Bluetooth

The phone function is certified by the

Bluetooth Special Interest Group

(SIG).
You can find further information about

the specification on the internet at

http://www.bluetooth.com.

Bluetooth connection

Bluetooth is a radio standard for the

wireless connection of e.g. mobile

phones, smartphones or other

devices.
The pairing and connecting of the

Bluetooth devices to the Infotainment

system are carried out via the

Bluetooth menu. Pairing is the PIN

code exchange between the

Bluetooth device and the

Infotainment system.

Bluetooth menu

Press ; and then select Settings.

Infotainment system

165

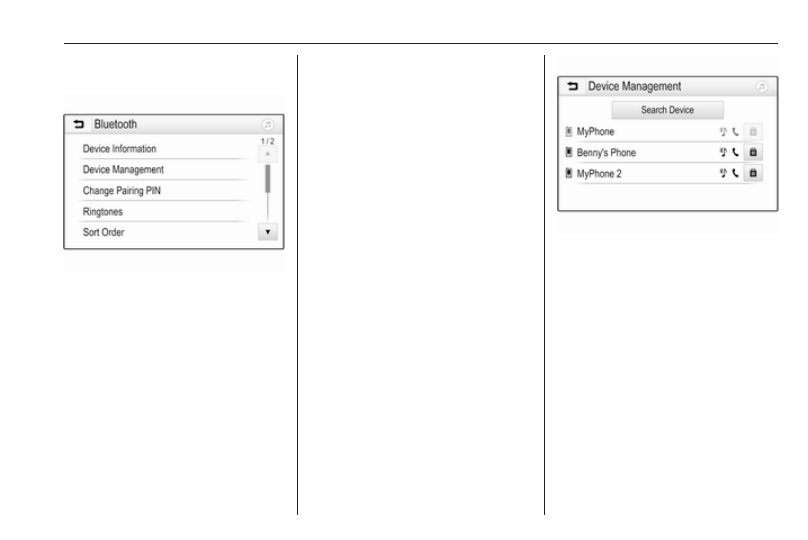

Select Bluetooth to display the

Bluetooth menu.

Pairing a device

Important information

● Up to ten devices can be paired

to the system.

● Only one paired device can be

connected to the Infotainment

system at a time.

● Pairing only needs to be carried

out once, unless the device is

deleted from the list of paired

devices. If the device has been

connected previously, the

Infotainment system establishes

the connection automatically.

● Bluetooth operation considerably

drains the device's battery.

Therefore, connect the device to

the USB port for charging.

Pairing a new device

1. Activate the Bluetooth function of

the Bluetooth device. For further

information, see the operating

instructions of the Bluetooth

device.

2. Press ; and then select

Settings on the display.
Select Bluetooth and then Device

Management to display the

respective menu.

Note

If no phone is connected, the Device

Management menu can also be

accessed via the phone menu:

Press ; and then select Phone.

3. Touch Search Device. All

discoverable Bluetooth devices in

the environment are displayed in

a new search list.

4. Touch the Bluetooth device you

wish to pair.

5. Confirm the pairing procedure:

● If SSP (secure simple

pairing) is supported:
