134

Infotainment system

through the list of menu items and

select Tone Settings. The respective

menu is displayed.

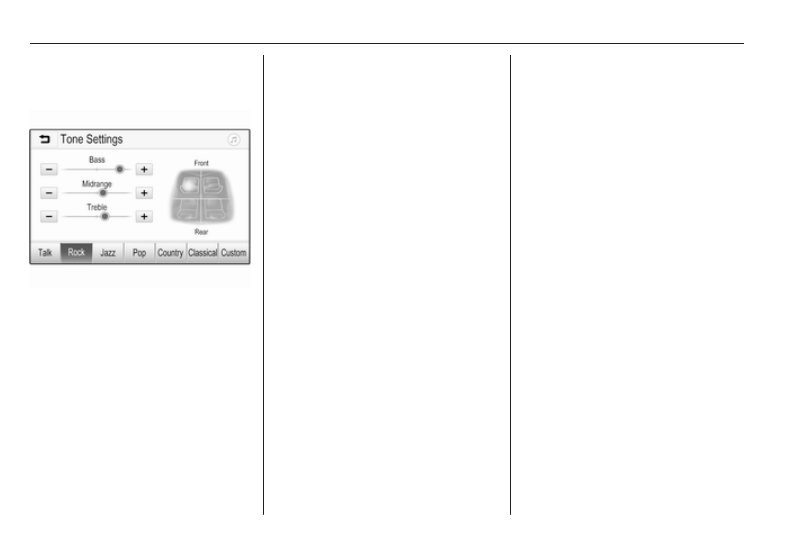

Equaliser mode

Use this setting to optimise the tone

for the style of music, e.g. Rock or

Classical.
Select the desired sound style in the

interaction selector bar at the bottom

of the screen. If you choose Custom,

you can manually adjust the following

settings.

Bass

Use this setting to enhance or

attenuate the deep frequencies of the

audio sources.
Touch + or - to adjust the setting.

Midrange

Use this setting to enhance or

attenuate the midrange frequencies

of the audio source.
Touch + or - to adjust the setting.

Treble

Use this setting to enhance or

attenuate the high frequencies of the

audio sources.
Touch + or - to adjust the setting.

Setting balance and fader

Use the illustration at the right side of

the menu to adjust balance and fader.
To define the point in the passenger

compartment where the sound is at its

highest level, touch the

corresponding point in the illustration.

Alternatively, you can move the red

marker to the desired point.

Note

The balance and fader settings are

valid for all audio sources. They

cannot be adjusted individually for

each audio source.

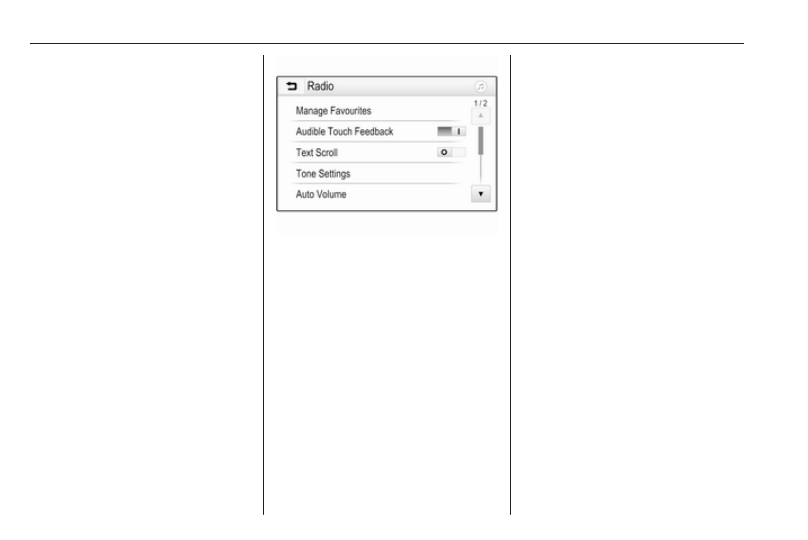

Volume settings

Adjusting the maximum startup

volume

Press ; and then select Settings.
Select Radio, scroll through the list

and then select Max Startup Volume.
Touch + or - to adjust the setting or

move the slider on the volume bar.

Adjusting the speed

compensated volume

Press ; and then select Settings.
Select Radio, scroll through the list

and then select Auto Volume.
To adjust the degree of volume

adaptation, select one of the options

in the list.
Off: no enhancement of volume with

increasing vehicle speed.

Infotainment system

135

High: maximum enhancement of

volume with increasing vehicle

speed.

Activating or deactivating the

audible touch feedback function

If the audible touch feedback function

is activated, each touch of a screen

button or menu item is indicated by a

beeping sound.
Press ; and then select Settings.
Select Radio and then scroll through

the list to Audible Touch Feedback.

Touch the screen button next to

Audible Touch Feedback to activate

or deactivate the function.

Volume of traffic announcements

To adjust the volume of traffic

announcements, set the desired

volume while a traffic announcement

is given out by the system. The

respective setting is then stored by

the system.

System settings

The following settings concern the

whole system. All other settings are

described in the respective chapters

of this manual.

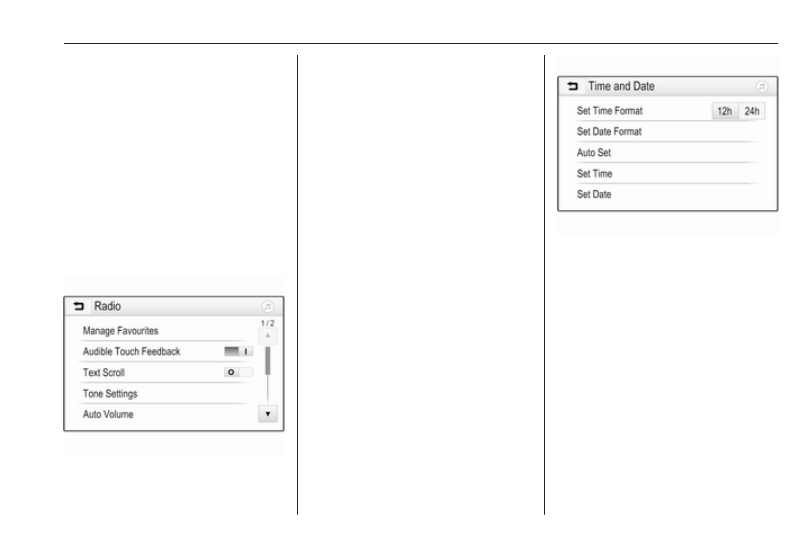

Time and date settings

Press ; and then select Settings.
Select Time and Date to display the

respective submenu.

Set Time Format

To select the desired time format,

touch the screen buttons 12 h or 24 h.

Set Date Format

To select the desired date format,

select Set Date Format and choose

between the available options in the

submenu.

Auto Set

To choose whether time and date are

to be set automatically or manually,

select Auto Set.
For time and date to be set

automatically, select On - RDS.

136

Infotainment system

For time and date to be set manually,

select Off - Manual. If Auto Set is set

to Off - Manual, the submenu items

Set Time and Set Date become

available.

Set time and date

To adjust the time and date settings,

select Set Time or Set Date.
Touch + or - to adjust the settings.

Language settings

Press ; and then select Settings.
Select Language to display the

respective menu.
To adjust the language for the menu

texts, touch the desired language.

Text scroll function

If long text is displayed on the screen

e.g. song titles or station names, the

text may either be scrolled continually

or it may be scrolled once and

displayed in truncated form.
Press ; and then select Settings.
Select Radio.

If you wish the text to be scrolled

continually, activate Text Scroll.
If you wish the text to be scrolled in

blocks, deactivate the setting.

Black display function

If you do not want to see the

illuminated display, e.g. during night

time, you can turn the display off.
Press ; and then select Settings.
Scroll through the list and select Turn

Display Off. The display is turned off.

The audio functions remain active.
To turn the display on again, touch the

screen or press a button.

Factory defaults

(without embedded navigation

system)
Press ; and then select Settings.
Scroll through the list and select

Return to Factory Settings.
To restore all vehicle personalisation

settings, select Restore Vehicle

Settings.
To delete the paired Bluetooth

devices, the contacts list and the

voice mail numbers stored, select

Clear All Private Data.
To reset tone and volume settings,

delete all favourites, and erase the

ringtone selection, select Restore

Radio Settings.
In each case, a warning message is

displayed. Select Continue to reset

the settings.

Factory defaults

(with embedded navigation system)
Press ; and then select Settings.
Scroll through the list and select

Restore Factory Settings.

Infotainment system

137

Vehicle settings

To restore all vehicle personalisation

settings, select Reset Vehicle

Settings.
A pop-up is displayed. Confirm the

pop-up message.

Phone information

To delete the paired Bluetooth

devices, the contacts list and the

voice mail numbers stored, select

Clear all phone information.
A pop-up is displayed. Confirm the

pop-up message.

Radio settings

To reset tone and volume settings

and delete all favourites, select

Restore Radio Settings.
A pop-up is displayed. Confirm the

pop-up message.

Navigation settings

To reset all navigation parameters

and navigation system settings,

select Restore Navigation Settings. A

submenu is displayed.

Depending on which set of

parameters you want to reset, select

Clear navigation history (recent

destinations), Clear navigation

favourites (favourites) or Reset

navigation options and settings (e.g.

settings concerning map display,

voice output or route options).
A pop-up is displayed. Confirm the

pop-up message.

System version

Press ; and then select Settings.
Scroll through the list and select

Software Information.
If a USB device is connected, you

may save the vehicle information to

this USB device.
Select System Update and then Save

Vehicle Info to USB.
For a system update, contact your

workshop.

Vehicle settings

Vehicle settings are described in the

Owner's Manual.

Radio

Usage

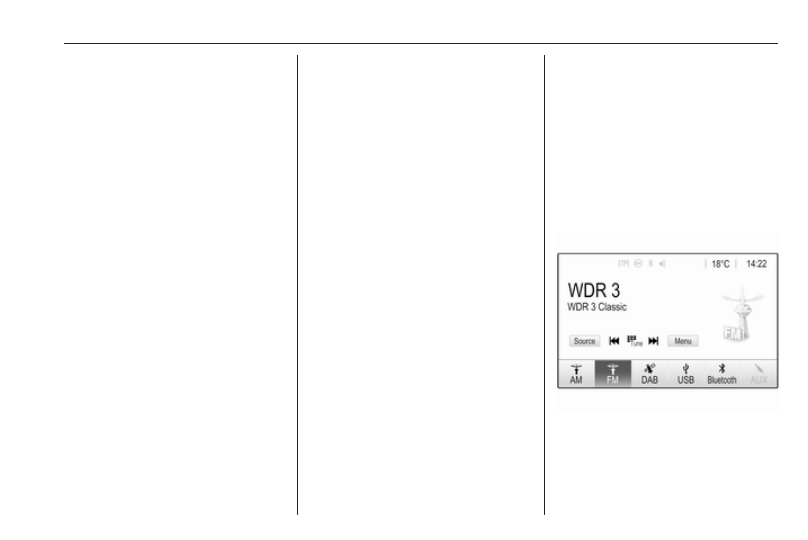

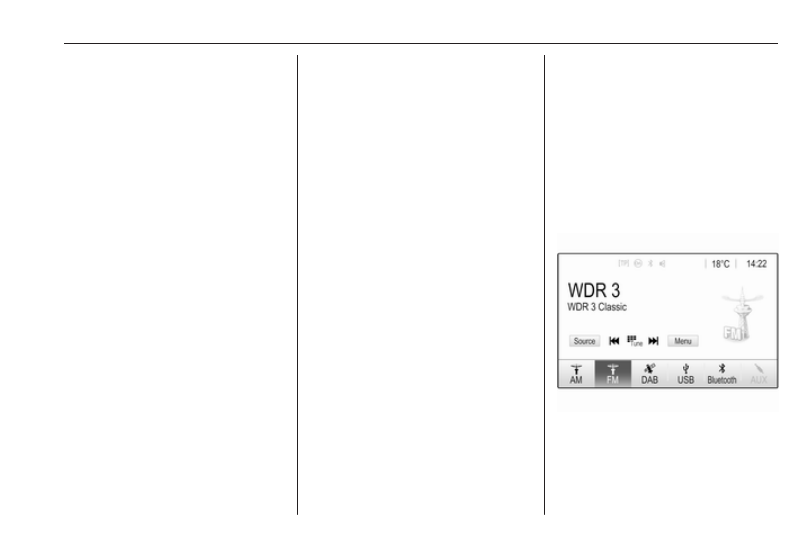

Activating radio

Press ; and then select Audio. The

audio main menu last selected is

displayed.
Select Source in the radio main menu

to open the interaction selector bar.

Select the desired waveband.
The station last played in the selected

waveband will be received.

138

Infotainment system

Station search

Automatic station search

Briefly press or touch t or v on the

control panel or on the screen to play

the previous or next station in the

station memory.

Manual station search

Press and hold t or v on the

control panel. Release when the

required frequency has almost been

reached.
A search is made for the next station

that can be received and it is played

automatically.

Note

FM waveband: when the RDS

function is activated, only RDS

stations 3 140 are searched for, and

when the radio traffic service (TP) is

activated, only traffic service

stations 3 140 are searched for.

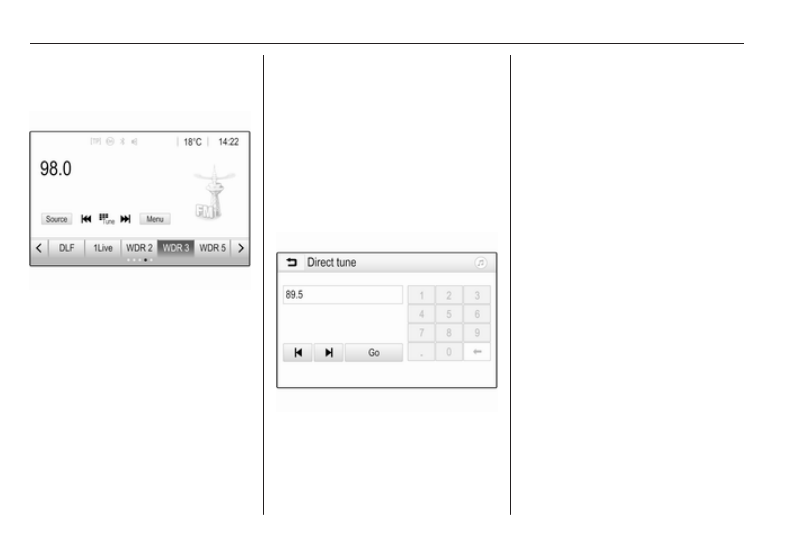

Station tuning

Touch B on the screen. The Direct

tune screen is shown.

Enter the desired frequency. Use r

to delete digits entered. If necessary,

touch d or c to subsequently adjust

the input.
Confirm the input to play the station.

Station lists

Select Menu in the radio main menu

to open the corresponding

waveband-specific submenu.
Select Station List. All receivable

stations of the relevant waveband

and in the current reception area are

displayed.
Select the desired station.

Note

The currently received radio station

is indicated by the l symbol next to

the station name.

Category lists

Numerous radio stations broadcast a

PTY code, which specifies the type of

programme transmitted (e.g. news).

Some stations also change the PTY

code depending on the content which

is currently transmitted.
The Infotainment system stores these

stations, sorted by programme type in

the corresponding category list.

Note

The Categories list item is not

available for the AM waveband.

Infotainment system

139

To search for a programme type

determined by the stations, select

Categories.
A list of programme types currently

available is displayed.
Select the desired programme type. A

list of stations of the selected

programme type is displayed.
Select the desired station.

Note

The currently received radio station

is indicated by the l symbol next to

the station name.

Update station lists

If the stations stored in the waveband-

specific station list can no longer be

received, the station lists must be

updated.

Note

The FM station list is updated

automatically.

Select Menu in the radio main menu

and then select Update Station List.

Note

If a waveband-specific station list is

updated, the corresponding

category list is also updated.

A station search is started and a

corresponding message is displayed.

Once the search is finished, the

respective station list is displayed.

Note

The currently received radio station

is indicated by the l symbol next to

the station name.

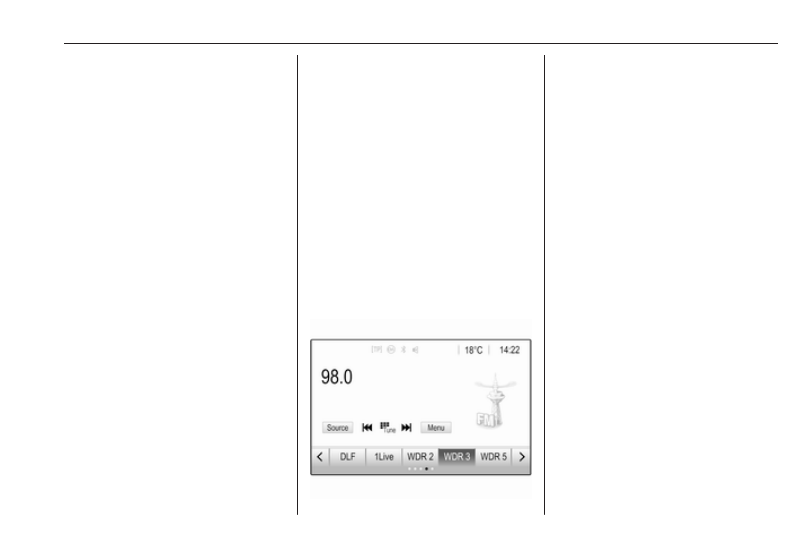

Favourite lists

Stations of all wavebands can be

stored manually in the favourite lists.

Five favourite lists with five favourites

each are available.

Note

The currently received station is

highlighted.

Storing a station

If required, touch < or > to scroll to

the desired favourite list.
To store the currently active radio

station as a favourite, touch and hold

the desired favourite button for a few

seconds. The favourite button will be

titled as the corresponding frequency

or station name.

Retrieving a station

If required, touch < or > to scroll to

the desired favourite list.
Select the desired favourite.

Defining the number of available

favourite lists

To define the number of favourite lists

displayed for selection, press ; and

then select Settings on the screen.

140

Infotainment system

Select Radio and then Manage

Favourites to display the respective

submenu.
Activate or deactivate the favourite

lists to be displayed.

Radio data system

Radio data system (RDS) is a service

of FM stations that considerably

facilitates the finding of the desired

station and its fault-free reception.

Advantages of RDS

● On the display, the programme

name of the station appears

instead of its frequency.

● During a station search, the

Infotainment system tunes in to

RDS stations only.

● The Infotainment system always

tunes into the best receivable

broadcasting frequency of the set

station by means of AF

(alternative frequency).

● Depending on the station that is

received, the Infotainment

system displays radio text that

can contain e.g. information on

the current programme.

RDS configuration

Touch Menu in the FM radio main

menu to open the corresponding

waveband-specific submenu.
Scroll to RDS.
Activate or deactivate RDS.

Traffic Programme

Radio traffic service stations are RDS

stations that broadcast traffic news. If

the traffic service is switched on, the

currently playing audio source is

interrupted for the duration of the

traffic announcement.

Activating the traffic programme

function

Select Menu in the FM radio main

menu to open the corresponding

waveband-specific submenu.
Touch the screen button next to

Traffic Programme to activate or

deactivate the function.

Note

In the station list, TP is displayed

next to the stations providing a traffic

programme.

If the radio traffic service is activated,

[TP] is shown in the top line of all main

menus. If the current station is not a

radio traffic service station, TP is

greyed-out and a search is started

automatically for the next radio traffic

service station. As soon as a radio

traffic service station is found, TP is

highlighted. If no radio traffic service

station is found, TP remains greyed-

out.
If a traffic announcement is broadcast

on the respective station, a message

is displayed.

Infotainment system

141

To interrupt the announcement and

return to the function previously

activated, touch the screen or press

m

.

Regionalisation

Sometimes RDS stations broadcast

regionally different programmes on

different frequencies.
Select Menu in the FM radio main

menu to open the corresponding

waveband-specific submenu and

scroll to Region
Activate or deactivate Region.
If regionalisation is activated,

alternative frequencies with the same

regional programmes are selected

where necessary. If regionalisation is

switched off, alternative frequencies

of the stations are selected without

regard to regional programmes.

Digital audio broadcasting

Digital audio broadcasting (DAB)

broadcasts radio stations digitally.
DAB stations are indicated by the

programme name instead of the

broadcasting frequency.

General information

● With DAB, several radio

programmes (services) can be

broadcast on a single ensemble.

● Besides high-quality digital audio

services, DAB is also able to

transmit programme-associated

data and a multitude of other data

services including travel and

traffic information.

● As long as a given DAB receiver

can pick up the signal sent out by

a broadcasting station (even if

the signal is very weak), sound

reproduction is ensured.

● In the event of poor reception, the

volume is reduced automatically

to avoid the output of

disagreeable noises.
If the DAB signal is too weak to

be picked up by the receiver,

reception is interrupted

completely. This incident can be

avoided by activating DAB-DAB

Linking or DAB-FM Linking in the

DAB menu (see below).

● Interference caused by stations

that are on nearby frequencies (a

phenomenon that is typical of AM

and FM reception) does not

occur with DAB.

● If the DAB signal is reflected by

natural obstacles or buildings,

the reception quality of DAB is

improved, whereas AM or FM

reception is considerably

impaired in such cases.

● When DAB reception is enabled,

the FM tuner of the Infotainment

system remains active in the

background and continually

searches for the FM stations with

the best reception. If TP 3 140 is

activated, traffic announcements

of the FM station with the best

reception are issued. Deactivate

TP if DAB reception should not

be interrupted by FM traffic

announcements.

DAB Announcements

Besides their music programmes, a

lot of DAB stations also broadcast

announcements of various

categories. If you activate some or all

142

Infotainment system

categories, the currently received

DAB service is interrupted when an

announcement of these categories is

made.
Select Menu in the DAB radio main

menu to open the corresponding

waveband-specific submenu.
Scroll through the list and select DAB

Announcements to display a list of the

categories available.
Activate all or just the desired

announcement categories. Different

announcement categories can be

selected at the same time.

DAB-DAB Linking

If this function is activated, the device

switches over to the same service

(programme) on another DAB

ensemble (if available) when the DAB

signal is too weak to be picked up by

the receiver.
Select Menu in the DAB radio main

menu to open the corresponding

waveband-specific submenu.
Scroll through the list and activate or

deactivate DAB-DAB Linking.

DAB-FM Linking

This function enables switching from

a DAB station to a corresponding FM

station and vice versa.
If this function is activated, the device

switches over to a corresponding FM

station of the active DAB service (if

available) when the DAB signal is too

weak to be picked up by the receiver.
Scroll through the list and activate or

deactivate DAB-FM Linking.

L Band

With this function, you may define

which DAB wavebands are to be

received by the Infotainment system.
L Band (earth and satellite radio) is

another radio band that can be

received additionally.
Select Menu in the DAB radio main

menu to open the corresponding

waveband-specific submenu.
Scroll through the list and activate or

deactivate L Band.

Intellitext

The Intellitext function allows the

reception of additional information

such as financial information, sports,

news etc.

Note

The content available depends on

the station and region.

Select Menu in the DAB radio main

menu to open the corresponding

waveband-specific submenu.
Scroll through the list and select

Intellitext.
Select one of the categories and

choose a specific item to display

detailed information.

EPG

The Electronic Programme Guide

provides information on the current

and upcoming programme of the

respective DAB station.
Select Menu in the DAB radio main

menu and then select Station List.
To display the programme of the

desired station, touch the icon next to

the station.

Infotainment system

143

External devices

General information

A USB port for the connection of

external devices is located in the

centre console.

Note

The USB port must always be kept

clean and dry.

USB port

An MP3 player, USB device, SD card

(via USB connector / adapter) or

smartphone can be connected to the

USB port.
Up to two USB devices can be

connected to the Infotainment system

at a time.

Note

For the connection of two USB

devices, an external USB hub is

required.

The Infotainment system can play

audio files, show picture files or play

movie files contained in USB devices.

When connected to the USB port,

various functions of the devices

mentioned above can be operated via

the controls and menus of the

Infotainment system.

Note

Not all auxiliary devices are

supported by the Infotainment

system. Check the compatibility list

on our website.

Connecting / disconnecting a device

Connect one of the devices

mentioned above to the USB port. If

required, use the appropriate

connection cable. The music function

starts automatically.

Note

If a non-readable USB device is

connected, a corresponding error

message appears and the

Infotainment system automatically

switches to the previous function.

To disconnect the USB device, select

another function and then remove the

USB device.

Caution

Avoid disconnecting the device

during playback. This may

damage the device or the

Infotainment system.

USB Auto Launch

By default, the USB audio menu is

displayed automatically as soon as a

USB device is connected.
If desired, this function can be

deactivated.
Press ; and then select Settings to

open the settings menu.
Select Radio, scroll to USB Auto

Launch and touch the screen button

next to the function.
To reactivate the function, touch the

screen button again.

Bluetooth

Devices which support the Bluetooth

music profiles A2DP and AVRCP can

be connected wirelessly to the

Infotainment system. The

Infotainment system can play music

files contained in these devices.

144

Infotainment system

Connecting a device

For a detailed description on how to

establish a Bluetooth connection

3

 164.

File formats and folders

The maximum capacity of a device

supported by the Infotainment system

amounts to 5000 music files,

5000 picture files, 500 movie files,

5000 folders and 15 stages of folder

structure. Only devices formatted in

the FAT16 / FAT32 file system are

supported.
If there are images included in the

audio metadata, these images are

displayed on the screen.

Note

Some files may not be played

properly. This may be due to a

different recording format or the

condition of the file.
Files from online shops to which

Digital Rights Management (DRM)

has been applied cannot be played.

The Infotainment system can play the

following audio, picture and movie

files stored on external devices.

Audio files

The playable audio file formats are

MP3 (MPEG-1 Layer 3, MPEG-2

Layer 3), WMA, AAC, AAC+, ALAC

OGG WAF (PCM), AIFF, 3GPP

(audio only), Audio Books and LPCM.

iPod

®

 and iPhone

®

 devices play

ALAC, AIFF, Audio Books and LPCM.
When playing a file with ID3 tag

information, the Infotainment system

can display information, e.g. on the

track title and artist.

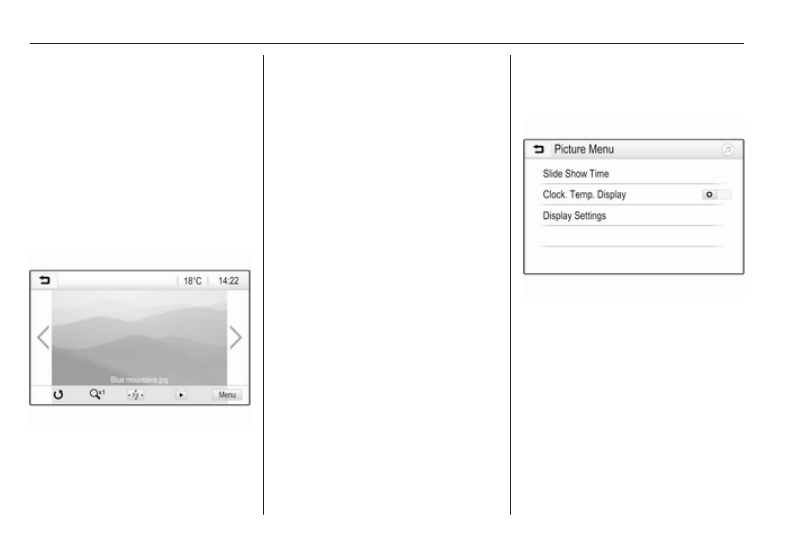

Picture files

The displayable picture file formats

are JPG, JPEG, BMP, PNG and GIF.
JPG files must be 64 to 5000 pixels in

width and 64 to 5000 pixels in height.
BMP, PNG and GIF files must be 64

to 1024 pixels in width and 64 to

1024 pixels in height.
The pictures should not exceed a file

size of 1MB.

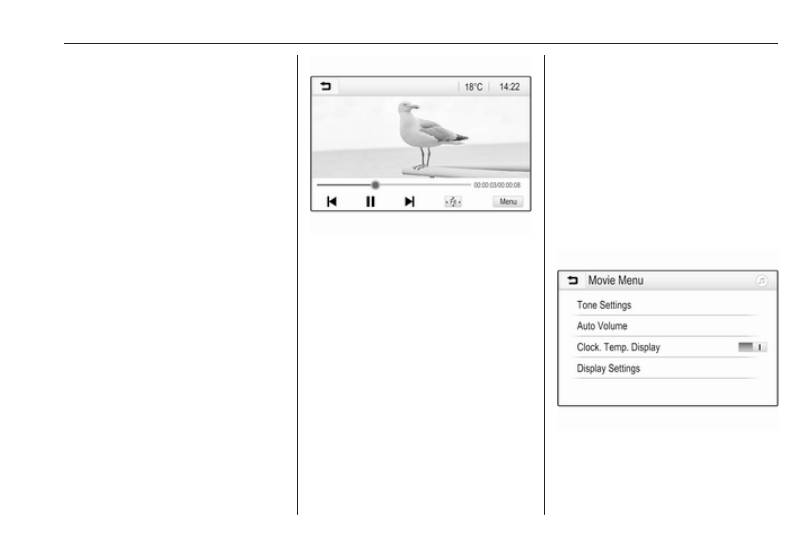

Movie files

The playable movie file formats are

AVI and MP4.

The maximum resolution is 1280 x

720 pixels. The frame rate must be

less than 30 fps.
The usable codec is H.264/MPEG-4

AVC.
The playable audio formats are MP3,

AC3, AAC and WMA.
The displayable subtitle format is

SMI.

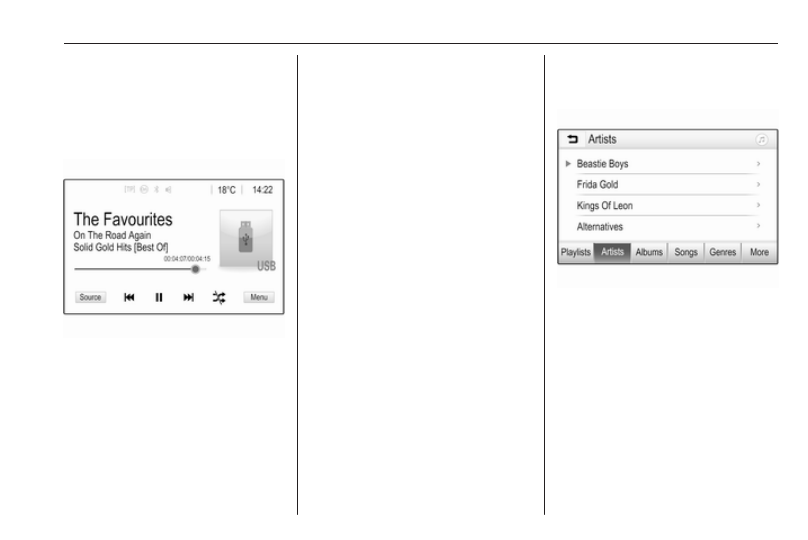

Playing audio

Activating the music function

If the device is not yet connected to

the Infotainment system, connect the

device 3 143.
Usually, the respective audio main

menu is displayed automatically.
If playback is not started

automatically, e.g. if USB Auto

Launch is deactivated 3 143, take the

following steps:
Press ; and then select Audio to

open the audio main menu last

selected.

Infotainment system

145

Select Source in the interaction

selector bar and then select the

desired audio source to open the

respective audio main menu.
Playback of the audio tracks starts

automatically.

Function buttons

Interrupting and resuming playback

Touch = to interrupt playback. The

screen button changes to l.
Touch l to resume playback.

Playing the next or previous track

Touch v to play the next track.

Touch t within the first two seconds

of the track playing to return to the

previous track.

Returning to the beginning of the

current track

Touch t after two seconds of the

track playing.

Fast forwarding and rewinding

Touch and hold t or v. Release to

return to normal playback mode.
Alternatively, you can move the slider

showing the current track position to

the left or right.

Playing tracks randomly

Touch n to play the tracks in random

order. The screen button changes to

o

.

Touch o again to deactivate the

shuffle function and go back to the

normal playback mode.

Browse Music function

To display the browse screen, touch

the screen. Alternatively, select

Menu in the audio main screen to

display the respective audio menu

and then select Browse Music.

Different categories, in which the

tracks are sorted, are displayed, e.g.

Playlists, Artists, or Albums.

Select the desired category,

subcategory (if available) and then

choose a track.
Select the track to start playback.

Displaying pictures

You can view pictures from a USB

device.

Note

For your safety, some features are

disabled while driving.

146

Infotainment system

Activating the picture function

If the device is not yet connected to

the Infotainment system, connect the

device 3 143.
Press ; and then select Gallery to

open the media main menu.
Touch l to open the picture main

menu to display a list of items stored

on the USB device. Select the desired

picture. If this is stored within a folder,

select the respective folder first.

Touch the screen to hide the menu

bar. Touch the screen again to

redisplay the menu bar.

Function buttons

Full screen mode

Select x to display the picture in full

screen mode. Touch the screen to

exit full screen mode.

Viewing the next or previous picture

Touch j or swipe to the left to view the

next picture
Touch i or swipe to the right to view

the previous picture.

Rotating a picture

Select v to rotate the picture.

Zoom in on a picture

Touch w once or several times to

zoom in on a picture or to return to its

original size.

Viewing a slide show

Select t to view the pictures stored

on the USB device in a slide show.
Touch the screen to end the slide

show.

Picture menu

Select Menu in the bottom line of the

screen to display the Picture Menu.

Slide show time

Select Slide Show Time to display a

list of possible time sequences and

select the desired time sequence.

Clock and temperature display

To display time and temperature in

full screen mode, activate Clock.

Temp. Display.

Infotainment system

147

Display settings

Select Display Settings to open a

submenu for the adjustment of

brightness and contrast.
Touch + or - to adjust the settings.

Playing movies

You can view movies from a USB

device.

Note

For your safety, the movie function is

not available while driving.

Activating the movie function

If the device is not yet connected to

the Infotainment system, connect the

device 3 143.
Press ; and then select Gallery to

open the media main menu.
Touch m to open the movie main

menu to display a list of items stored

on the USB device. Select the desired

movie. If this is stored within a folder,

select the respective folder first.
The movie is shown.

Function buttons

Full screen

Select x to display the movie in full

screen mode. Touch the screen to

exit full screen mode.

Interrupting and resuming playback

Touch = to interrupt playback. The

screen button changes to l.
Touch l to resume playback.

Playing the next or previous track

Touch c to play the next movie file.
Touch d within the first five seconds

of the movie playing to return to the

previous movie file.

Returning to the beginning of the

current movie

Touch d after five seconds of the

movie playing.

Fast forwarding and rewinding

Touch and hold d or c. Release to

return to normal playback mode.

Movie menu

Select Menu in the bottom line of the

screen to display the Movie Menu.

Clock and temperature display

To display time and temperature in

full screen mode, activate Clock.

Temp. Display.

148

Infotainment system

Display settings

Select Display Settings to open a

submenu for adjustment of brightness

and contrast.
Touch + or - to adjust the settings.

Using smartphone

applications

Phone projection

The phone projection applications

Apple CarPlay™ and Android™ Auto

display selected apps from your

smartphone on the Info Display and

allow their operation directly via the

Infotainment controls.
Check with the device's manufacturer

if this function is compatible with your

smartphone and if this application is

available in the country you are in.

Preparing the smartphone

Android phone: Download the

Android Auto app to your smartphone

from the Google Play™ Store.
iPhone: Make sure Siri

®

 is activated

on your smartphone.

Activating phone projection in the

settings menu

Press ; to display the home screen

and then select Settings.
Scroll through the list to

Apple CarPlay or Android Auto.
Make sure the respective application

is activated.

Connecting the mobile phone

Connect the smartphone to the USB

port 3 143.

Starting phone projection

To start the phone projection function,

press ; and then select Projection.

Note

If the application is recognised by

the Infotainment system, the

application icon may change to

Apple CarPlay or Android Auto.

To start the function, you can

alternatively press and hold ; for a

few seconds.
The phone projection screen

displayed depends on your

smartphone and software version.

Returning to the home screen

Press ;.

BringGo

BringGo is a navigation app providing

location search, map display and

route guidance.

Note

Before downloading the app, check

whether BringGo is available in your

vehicle.

Downloading the app

Before BringGo can be operated

using the controls and menus of the

Infotainment system, the respective

application must be installed on the

smartphone.
Download the app from App Store

®

 or

Google Play Store.

Activating BringGo in the settings

menu

Press ; to display the home screen

and then select Settings.
Scroll through the list to BringGo.
Make sure the application is

activated.

Infotainment system

149

Connecting the mobile phone

Connect the smartphone to the USB

port 3 143.

Starting BringGo

To start the app, press ; and then

select the Nav icon.
The main menu of the application is

shown on the Info Display.
For further information on how to

operate the app, see the instructions

on the manufacturer's website.

Navigation

General information

This chapter is about the embedded

navigation system.
The current traffic situation is taken

into account in the route calculation.

For this purpose, the Infotainment

system receives traffic

announcements in the current

reception area via RDS-TMC.
The navigation system cannot,

however, take into account traffic

incidents, traffic regulations changed

at short notice and hazards or

problems that arise suddenly (e.g.

road works).

Caution

The usage of the navigation

system does not release the driver

from the responsibility for a

correct, vigilant attitude in road

traffic. The relevant traffic

regulations must always be

followed. If a navigation instruction

contradicts traffic regulations, the

traffic regulations always apply.

Functioning of the navigation

system

The position and movement of the

vehicle are detected by the navigation

system using sensors. The travelled

distance is determined by the

vehicle’s speedometer signal, turning

movements on bends by a sensor.

The position is determined by the

GPS (Global Positioning System)

satellites.
By comparing the sensor signals with

the digital maps, it is possible to

determine the position with an

accuracy of approx. 10 metres.
The system will also work with poor

GPS reception. However, the

accuracy of the determination of the

position will be reduced.
After the entry of the destination

address or point of interest (nearest

petrol station, hotel, etc.), the route is

calculated from the current location to

the destination selected.
