Opel Insignia (2019 year). Manual - part 20





310

Technical data

Engine identifier code

D16DTI

D16DTH

D20DTH

D20DTR

Sales designation

1.6

1.6

2.0

2.0

Engineering code

D16DTI

D16DTH

D20DTH

D20DTR

Piston displacement [cm

3

]

1598

1598

1956

1956

Engine power [kW]

81

100

125

154

at rpm

3500

3500-4000

3750

4000

Torque [Nm]

300

320

400

480

at rpm

1750-2000

2000-2250

1750-2500

1500

Fuel type

Diesel

Diesel

Diesel

Diesel

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Technical data

311

Performance

Grand Sport

Engine

B15XHL

B15XHT

D16SHT

Maximum speed [km/h]
Manual transmission

210/213

3)

222/225

3)

4)

Automatic transmission

218

4)

3)

ECO

4)

Value was not available at time of printing.

Engine

D16DTI

D16DTH

D20DTH
FWD

5)

D20DTH
AWD

6)

D20DTR

Maximum speed [km/h]
Manual transmission

205

3)

211

226

223

Automatic transmission

205

223

233

3)

ECO

5)

Front wheel drive

6)

All wheel drive

-------------------------------------------------------------------------------------------------------------------------------------------------------------

312

Technical data

Sports Tourer

Engine

B15XHL

B15XHT

B20NFT

Maximum speed [km/h]
Manual transmission

207/210

3)

218/221

3)

4)

Automatic transmission

214

4)

3)

ECO

4)

Value was not available at time of printing.

Engine

D16DTI

D16DTH

D20DTH
FWD

5)

D20DTH
AWD

6)

D20DTR

Maximum speed [km/h]
Manual transmission

202

208

223

220

Automatic transmission

202

220

231

5)

Front wheel drive

6)

All wheel drive

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Technical data

313

Country Tourer

Engine

B15XHL

B15XHT

Maximum speed [km/h]
Manual transmission

203

213

Automatic transmission

210

Engine

D16DTH

D20DTH
FWD

5)

D20DTH
AWD

6)

D20DTR

Maximum speed [km/h]
Manual transmission

205

220

218

Automatic transmission

200

218

228

5)

Front wheel drive

6)

All wheel drive

-------------------------------------------------------------------------------------------------------------------------------------------------------------

314

Technical data

Vehicle weight

Kerb weight, basic model without any optional equipment

Grand Sport

Engine

Manual transmission

Automatic transmission

[kg]

B15XHL

1440/1456

7)

B15XHT

1441/1472

7)

1472

D16SHT

8)

8)

[kg]

D16DTI

1503

D16DTH

1503

1520

D20DTH

1582

1613

D20DTH
AWD

9)

1683

D20DTR

1733/1772

10)

7)

ECO

8)

Value was not available at time of printing.

9)

All wheel drive

10)

GSi

Optional equipment and accessories increase the kerb weight.
Loading information 3 85.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Technical data

315

Kerb weight, basic model without any optional equipment

Sports Tourer

Engine

Manual transmission

Automatic transmission

[kg]

B15XHL

1487

B15XHT

1487/1503

7)

1522

D16SHT

8)

8)

[kg]

D16DTI

1522

D16DTH

1567

1582

D20DTH

1633

1666

D20DTH
AWD

9)

1716

D20DTR

1772/1807

10)

7)

ECO

8)

Value was not available at time of printing.

9)

All wheel drive

10)

GSi

Optional equipment and accessories increase the kerb weight.
Loading information 3 85.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

316

Technical data

Kerb weight, basic model without any optional equipment

Country Tourer

Engine

Manual transmission

Automatic transmission

[kg]

B15XHL

1522

B15XHT

1522

1552

[kg]

D16DTH

1598

1613

D20DTH

1666

1666

D20DTH
AWD

9)

1716

D20DTR

1807

9)

All wheel drive

Optional equipment and accessories increase the kerb weight.
Loading information 3 85.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Technical data

317

Vehicle dimensions

Grand Sport

Sports Tourer, Country Tourer

Length min.-max. [mm]

4897-4910

4986-5004

11)

Width with folded exterior mirrors [mm]

1941

1941

Width with unfolded exterior mirrors [mm]

2093

2093

Height (without antenna) [mm]

1425-1485

12)

1450-1550

12)

Vehicle height - Rear compartment open [mm]

2128

2065-2088

11)

Length of load compartment floor [mm]

1133

1178

Length of load compartment with folded rear seats [mm]

1937

2005

Load compartment width [mm]

1030

1030

Load compartment height [mm]

497

384

Wheelbase [mm]

2829

2829

Turning circle diameter [m]

11.75

11.75

11)

Minimum length for standard version, maximum length for Country Tourer version.

12)

Depending on body- and equipment variants.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

318

Technical data

Capacities

Engine oil

Engine

B15XHL

B15XHT

D16SHT

including filter [l]

4.0

4.0

5.5

between MIN and MAX [l]

1.0

1.0

1.0

Engine

D16DTI

D16DTH

B20DTH

D20DTR

including filter [l]

5.0

5.0

5.25

4.5

between MIN and MAX [l]

1.0

1.0

1.0

1.0

Fuel tank

Petrol/diesel, refilling quantity [l]

61

AdBlue tank

AdBlue, refilling quantity [l]

17

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Technical data

319

Tyre pressures

Tyre pressures differ depending on

the model variant. The order of the

listed car models is as follows:

● Vehicles with Front-wheel drive
● Vehicles with All-wheel drive

Refer to the table header to find the

correct tyre pressure for your model.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

320

Technical data

Tyre pressures for vehicles with Front-wheel drive

Grand Sport, Sports Tourer, Country Tourer

Comfort with up to 3 people ECO with up to 3 people

With full load

Engine

Tyres

front

rear

front

rear

front

rear

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

B15XHL,
B15XHT,
D16DTI,
D16DTH

215/60 R16,
225/55 R17,
215/55 R17,
235/45 R18,
235/50 R18

13)

,

245/45 R18

220/2.2 (32) 220/2.2 (32) 270/2.7 (39) 270/2.7 (39) 240/2.4

(35)

270/2.7

(39)

D16SHT 225/55 R17,

245/45 R18

260/2.6 (38) 290/2.9 (42) 270/2.7 (39) 270/2.7 (39) 220/2.2

(32)

220/2.2

(32)

235/45 R18,
245/35 R20

260/2.6 (38) 290/2.9 (42) 270/2.7 (39) 270/2.7 (39) 230/2.3

(33)

230/2.3

(33)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Technical data

321

Comfort with up to 3 people ECO with up to 3 people

With full load

Engine

Tyres

front

rear

front

rear

front

rear

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

D20DTH 225/55 R17,

235/50 R18

13)

,

245/45 R18

220/2.2 (32) 220/2.2 (32) 270/2.7 (39) 270/2.7 (39) 260/2.6

(38)

290/2.9

(42)

235/45 R18,
245/35 R20

230/2.3 (33) 230/2.3 (33) 270/2.7 (39) 270/2.7 (39) 260/2.6

(38)

290/2.9

(42)

All

Temporary spare wheel
125/80 R16,
125/70 R17

420/4.2 (60) 420/4.2 (60) –

420/4.2

(60)

420/4.2

(60)

13)

Country Tourer only

-------------------------------------------------------------------------------------------------------------------------------------------------------------

322

Technical data

Tyre pressures for vehicles with All-wheel drive

Grand Sport, Sports Tourer, Country Tourer

Comfort with up to 3 people ECO with up to 3 people

With full load

Engine Tyres

front

rear

front

rear

front

rear

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

D20DTH 225/55 R17,

245/45 R18,
235/50 R18

13)

220/2.2 (32) 220/2.2 (32) 270/2.7 (39) 270/2.7 (39) 260/2.6 (38) 290/2.9 (42)

235/45 R18,
245/35 R20

230/2.3 (33) 230/2.3 (33) 270/2.7 (39) 270/2.7 (39) 260/2.6 (38) 290/2.9 (42)

D20DTR 225/55 R17,

245/45 R18

230/2.3 (33) 230/2.3 (33) 270/2.7 (39) 270/2.7 (39) 260/2.6 (38) 290/2.9 (42)

235/50 R18

13)

220/2.2 (32) 220/2.2 (32) 270/2.7 (39) 270/2.7 (39) 260/2.6 (38) 290/2.9 (42)

235/45 R18

250/2.5 (36) 250/2.5 (36) 270/2.7 (39) 270/2.7 (39) 260/2.6 (38) 290/2.9 (42)

245/35 R20

240/2.4 (35) 240/2.4 (35) 270/2.7 (39) 270/2.7 (39) 260/2.6 (38) 290/2.9 (42)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Technical data

323

Comfort with up to 3 people ECO with up to 3 people

With full load

Engine Tyres

front

rear

front

rear

front

rear

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

All

Temporary spare

wheel
125/80 R16,
125/70 R17

420/4.2 (60) 420/4.2 (60) –

420/4.2 (60) 420/4.2 (60)

13)

Country Tourer only

-------------------------------------------------------------------------------------------------------------------------------------------------------------

324

Technical data

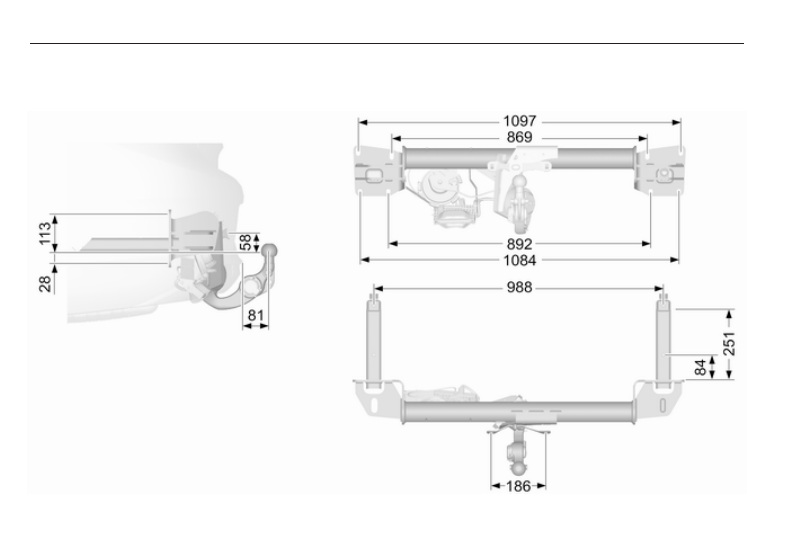

Towing hitch installation dimensions

Grandsport

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Technical data

325

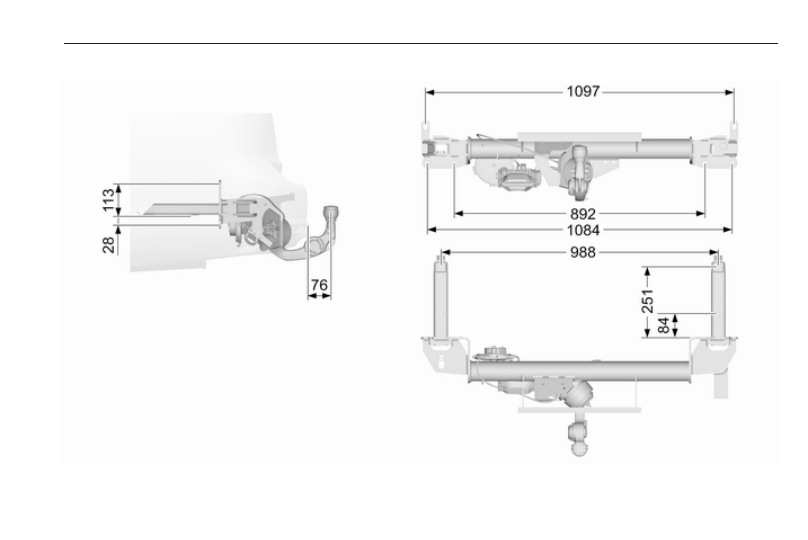

Sports Tourer, Country Tourer

-------------------------------------------------------------------------------------------------------------------------------------------------------------
